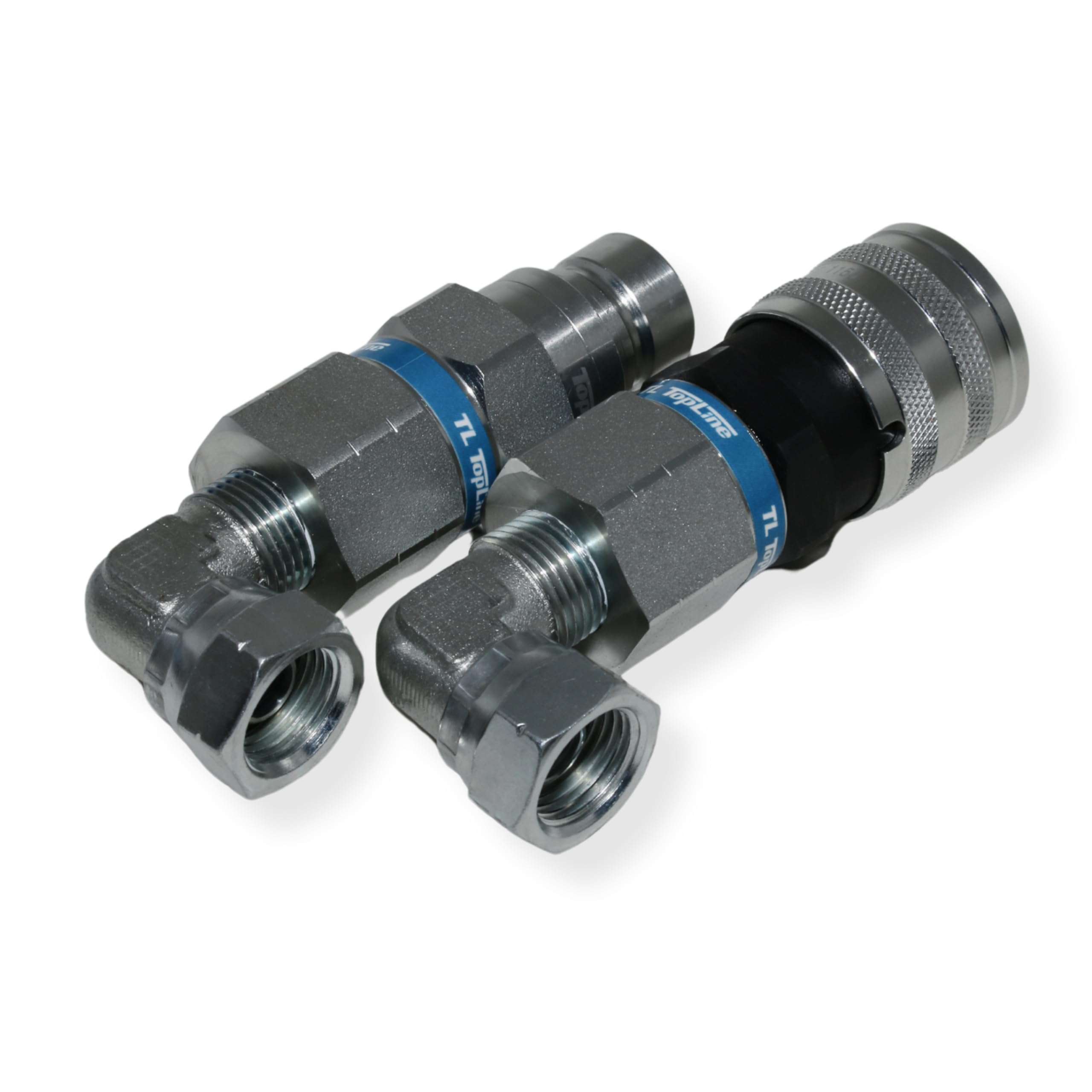

TL23E 1/2 NPT Flat Face Hydraulic Quick Coupler 1/2 body 90 deg. Elbow Bobcat

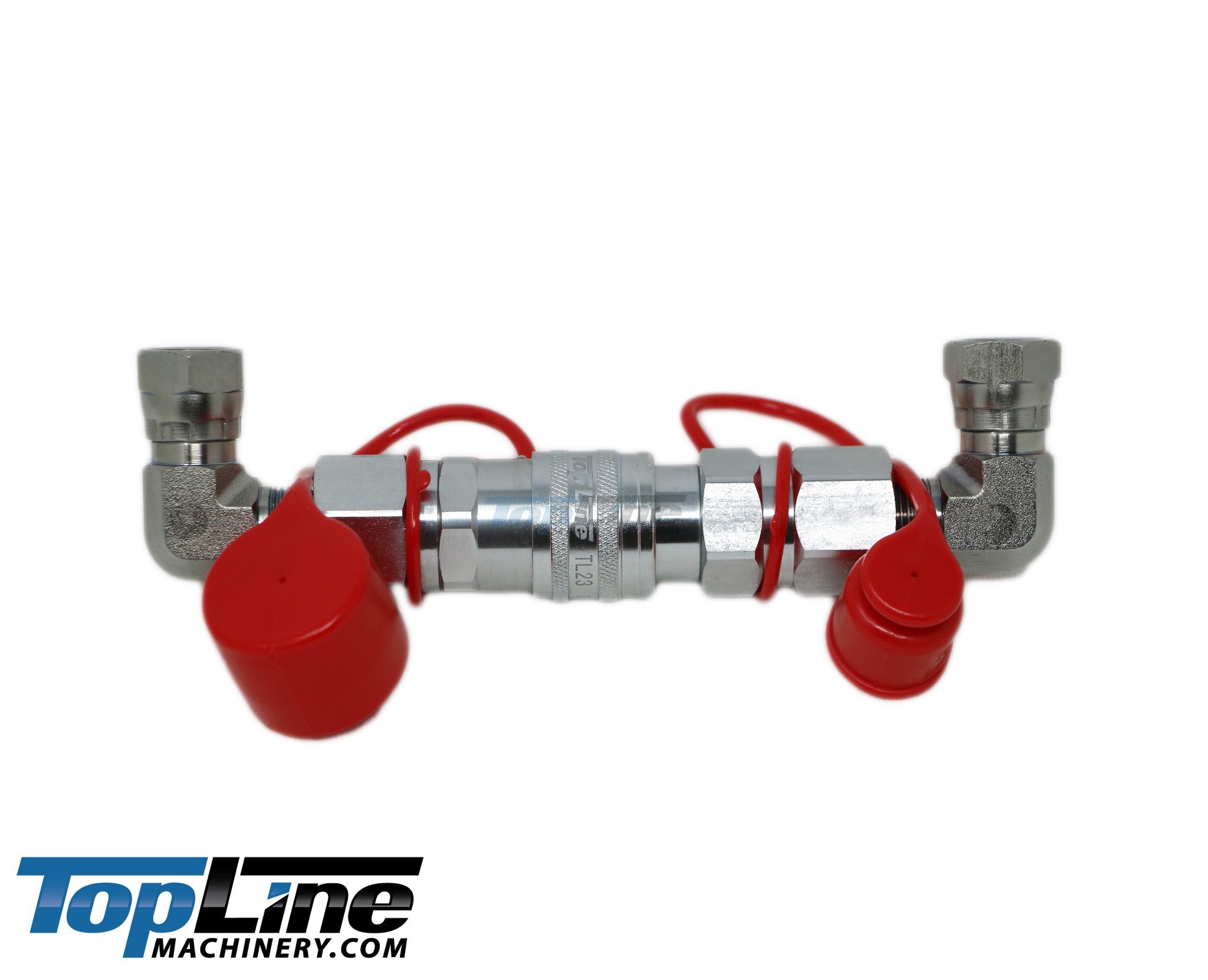

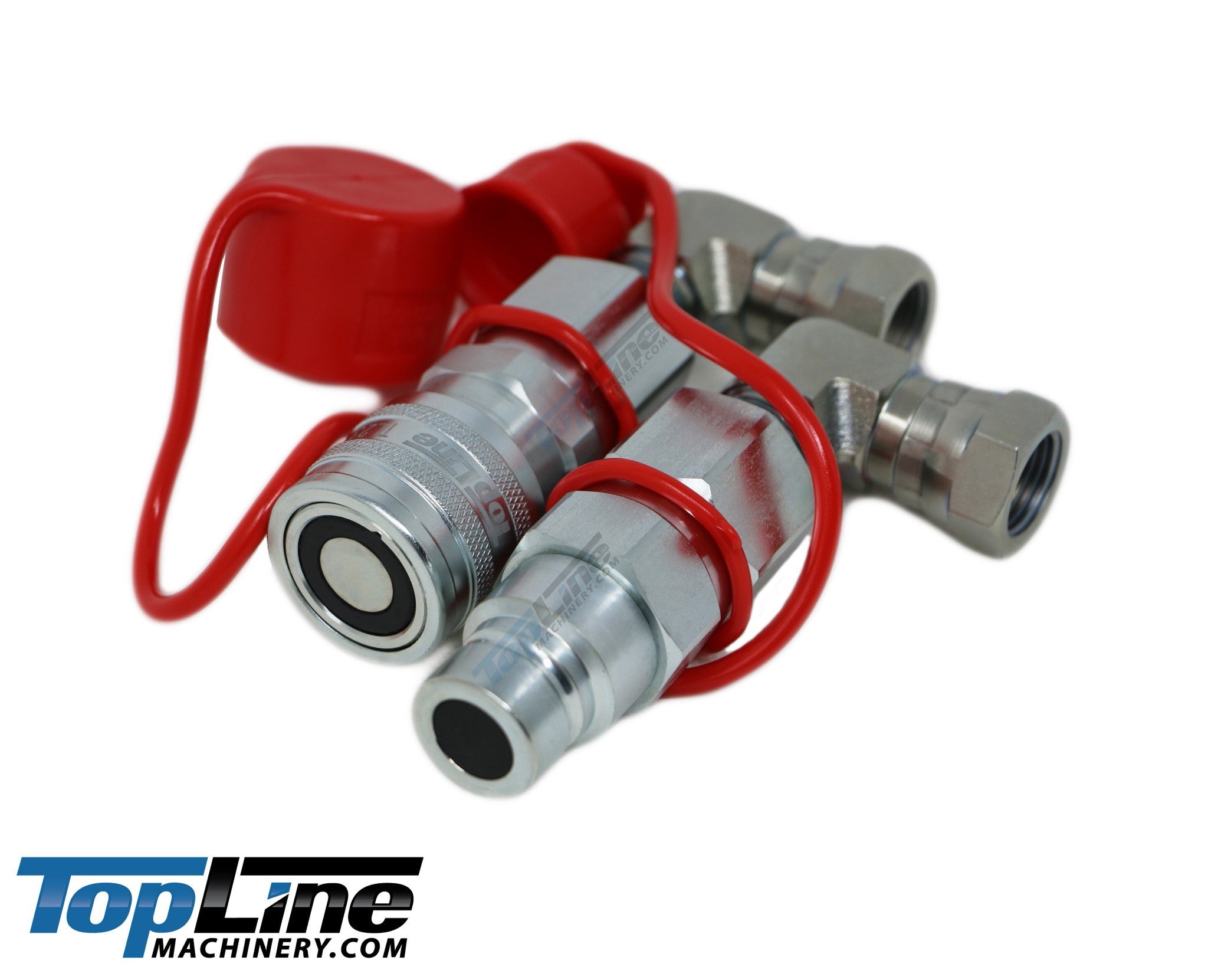

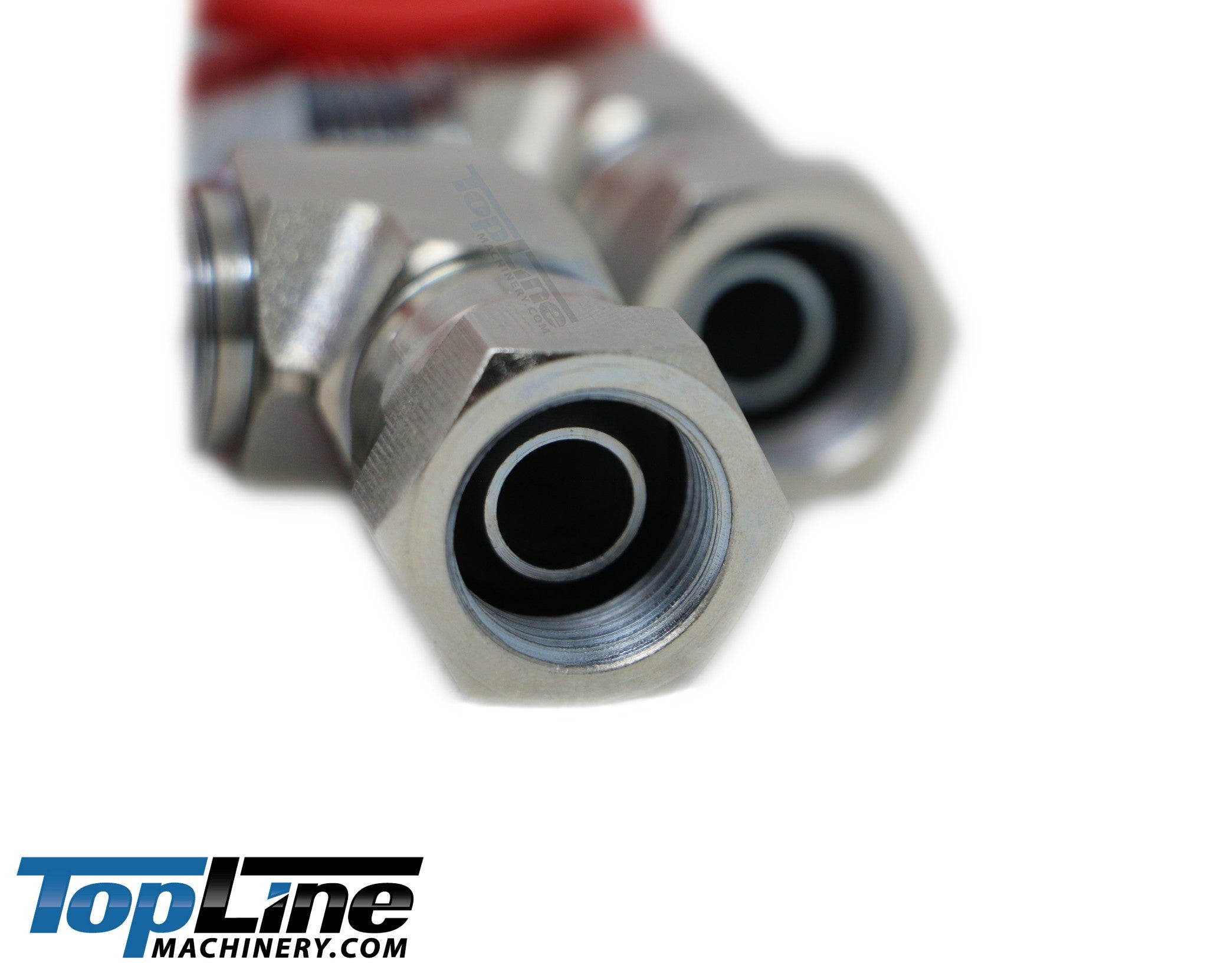

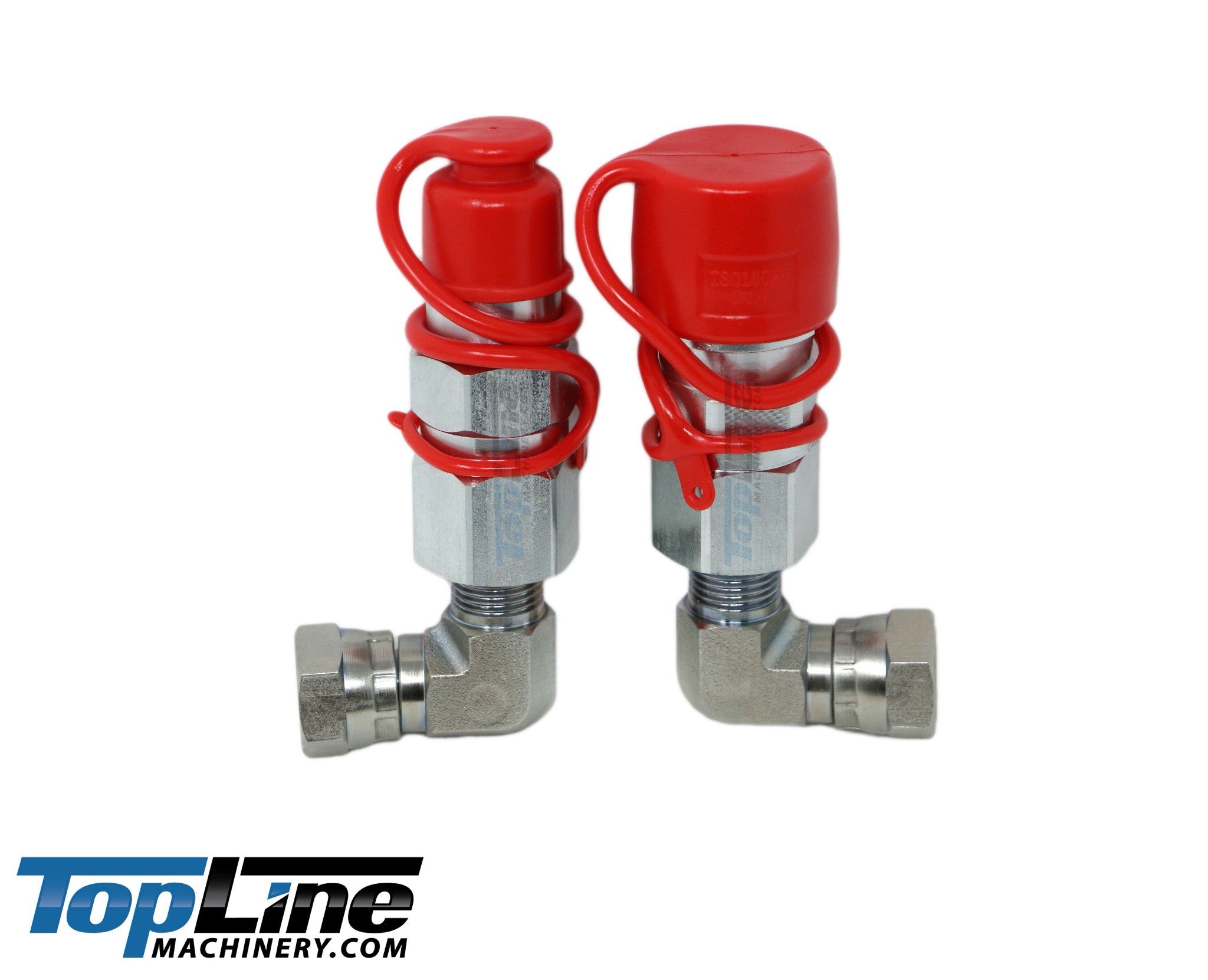

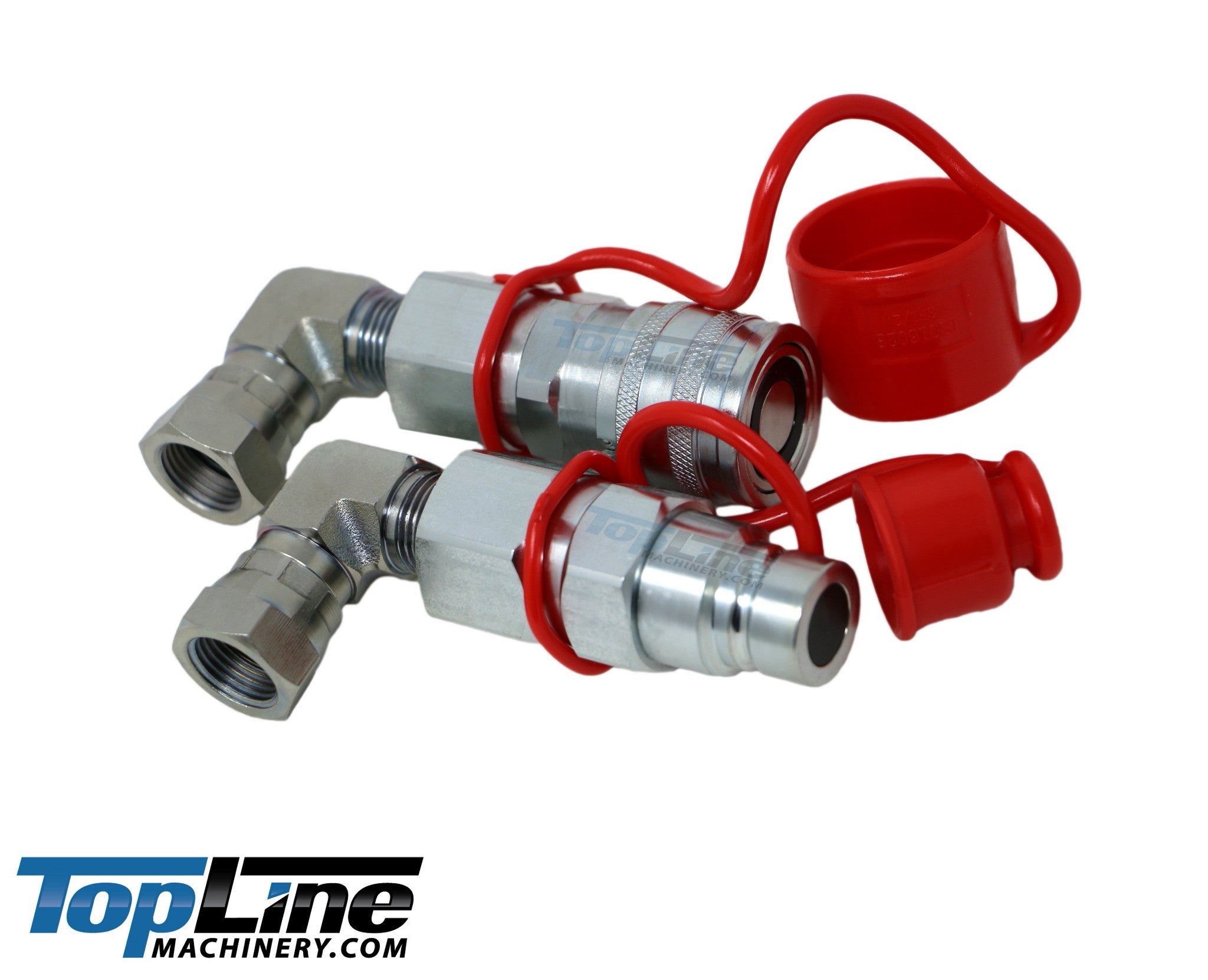

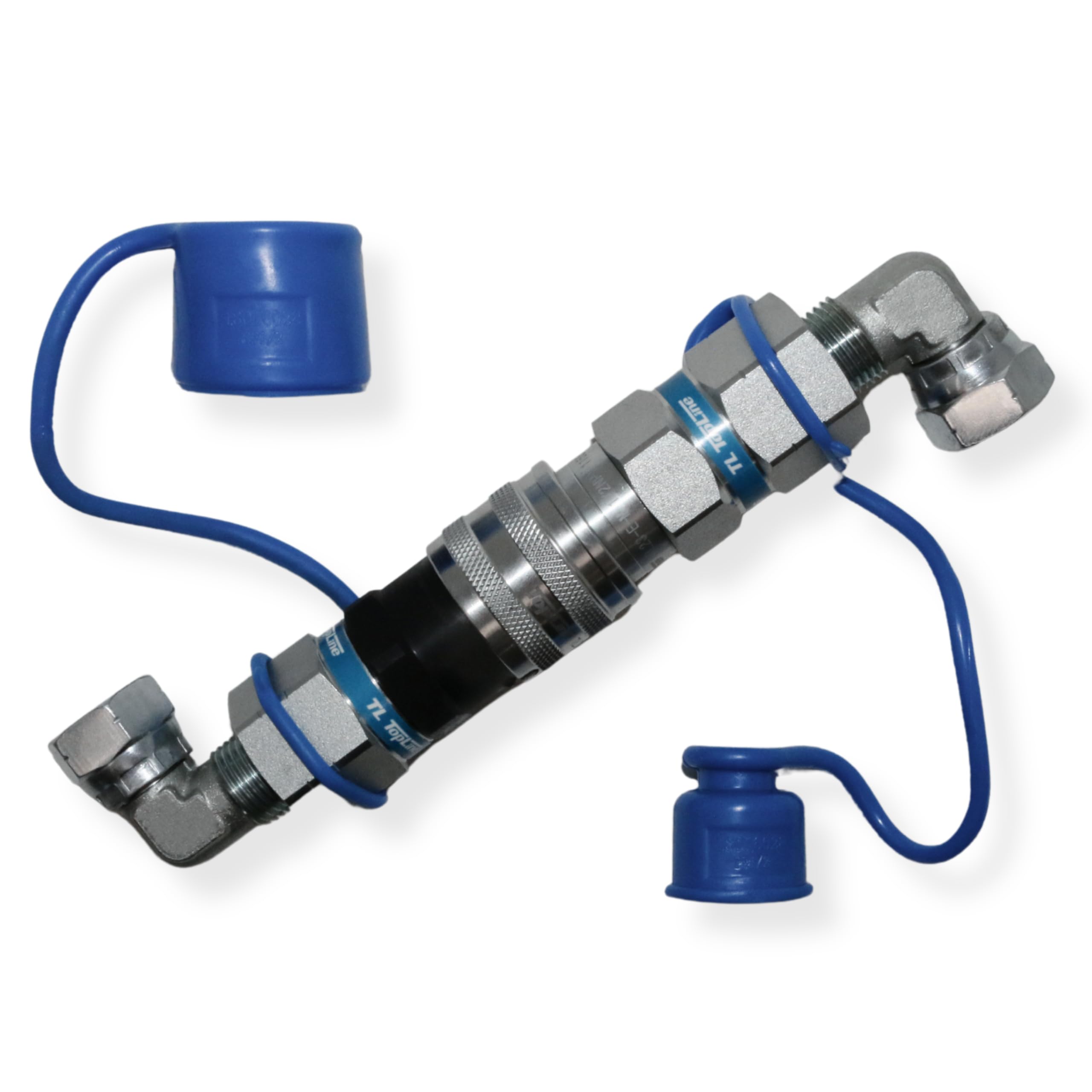

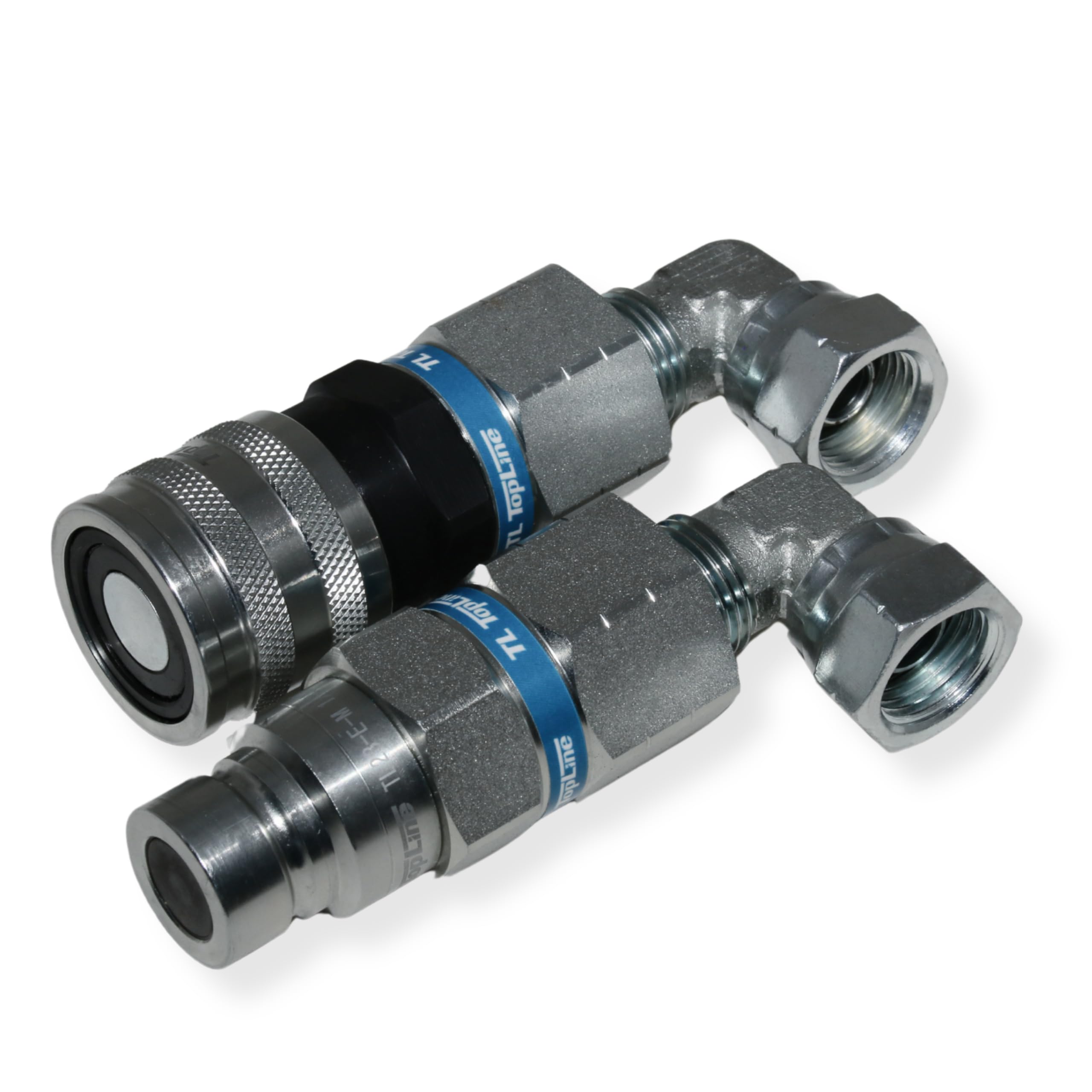

TL23E 1/2" BODY 90° ELBOW FLAT FACE HYDRAULIC COUPLER SET (1/2" NPT THREAD)

The TL23E is a specialized, heavy-duty hydraulic coupling system featuring an integrated 90-degree elbow design. This configuration is essential for skid steer applications where hose routing is tight, or where a straight fitting would cause excessive hose bending, kinking, or interference with the machine frame and attachments.

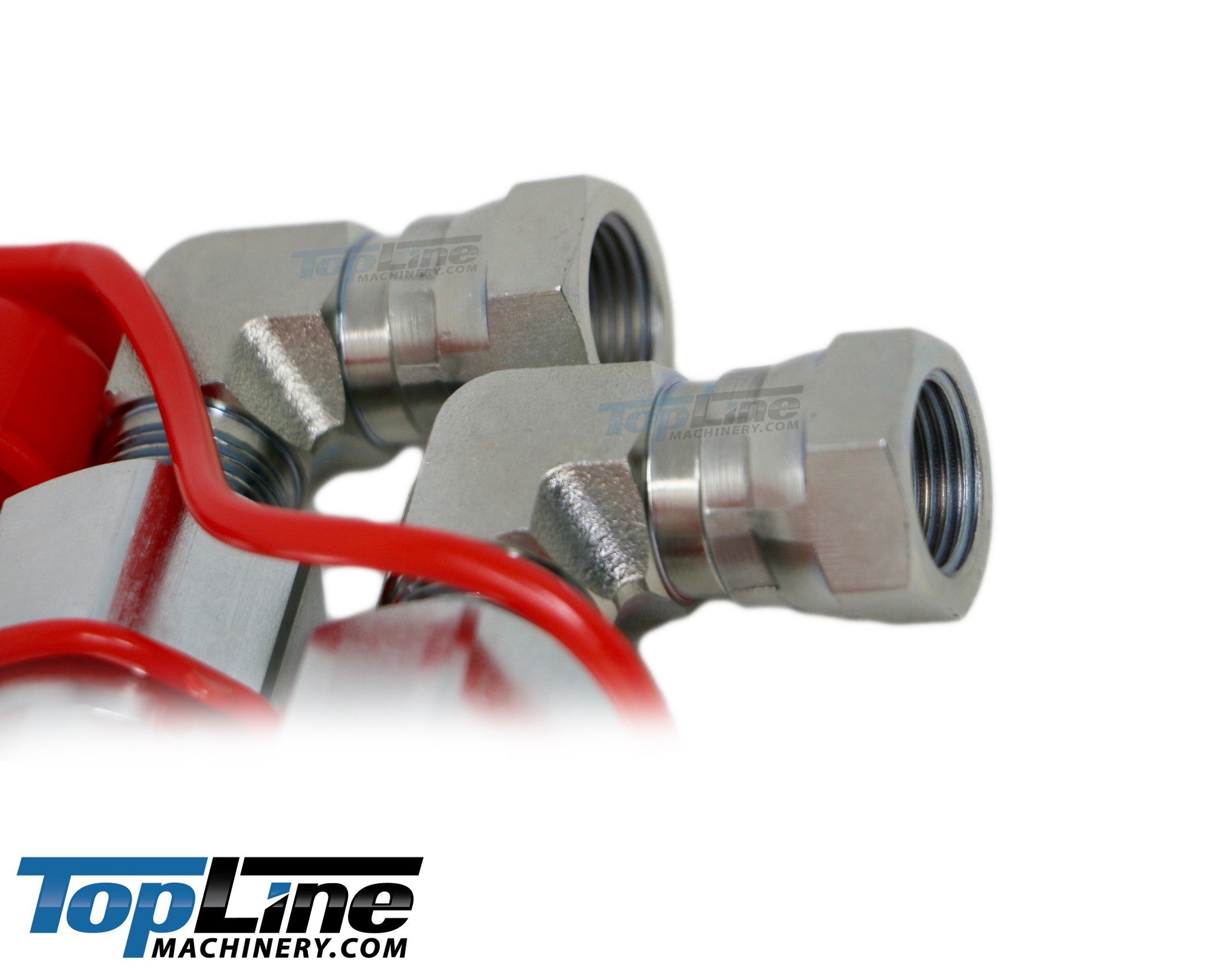

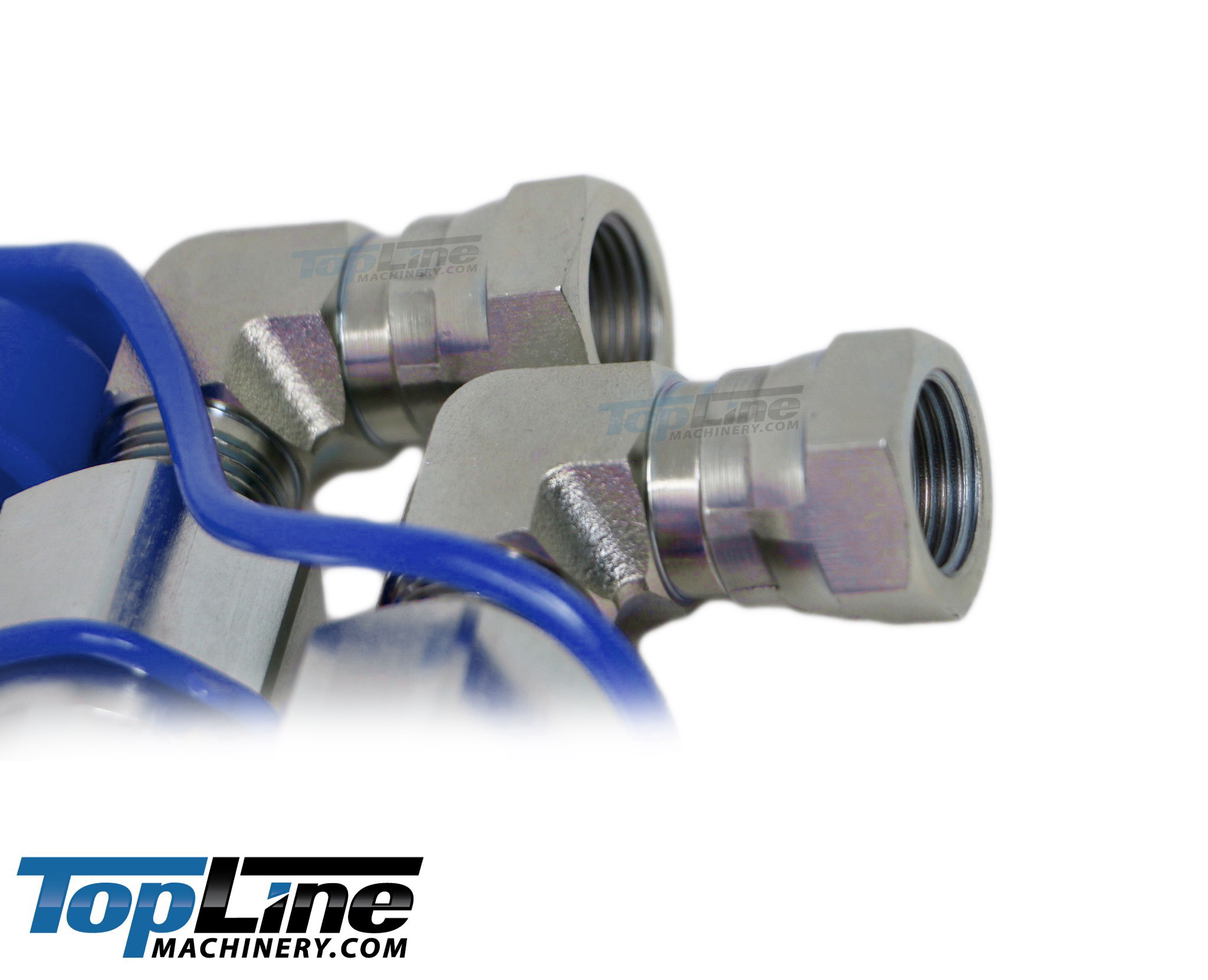

🗸 90-DEGREE ELBOW CONFIGURATION: The integrated elbow design solves common routing challenges in compact engine bays and attachment mounting plates. By providing an immediate right-angle transition, it eliminates the stress placed on hydraulic hoses by sharp bends, significantly extending hose life and preventing flow restrictions caused by kinking.

🗸 HEAVY-DUTY INDUSTRIAL RATING: These are not light-duty components. Rated for over 5076 PSI, the TL23E is constructed from high-strength steel to handle the extreme pressure spikes and intense vibrations encountered in professional construction, demolition, and landscaping operations.

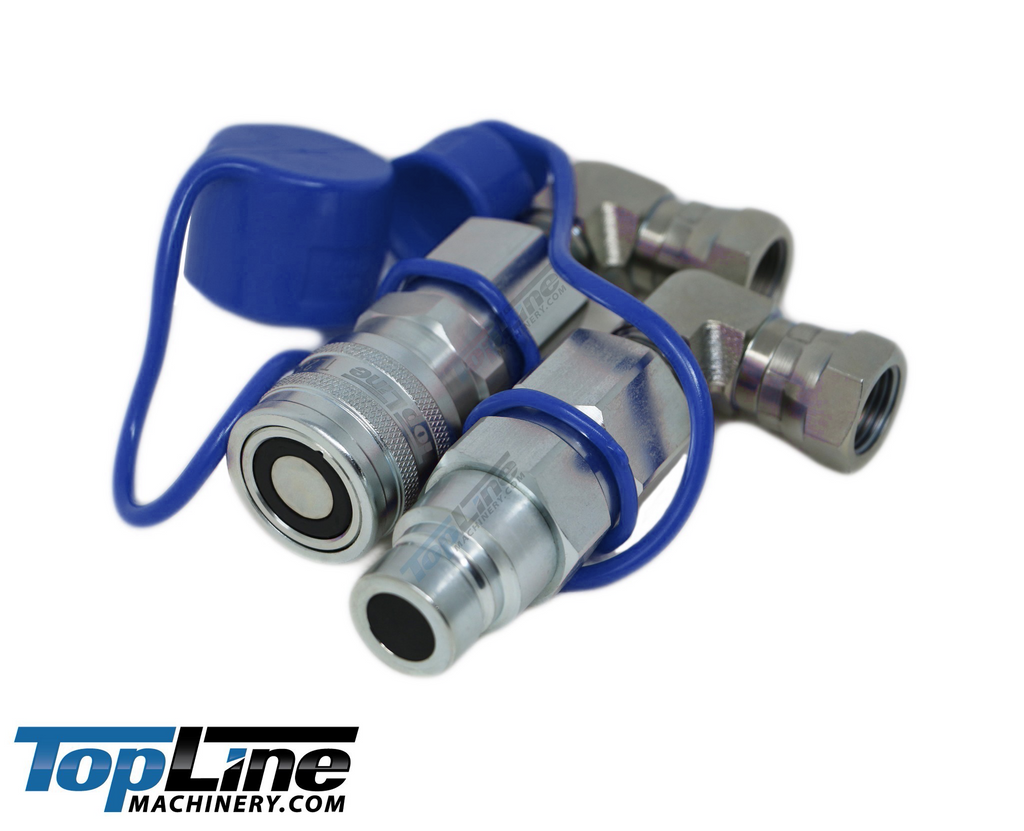

🗸 ISO 16028 FLUSH FACE TECHNOLOGY: This design is the industry benchmark for hydraulic system cleanliness. The perfectly flush interface allows for an instant wipe-clean before connection, which is vital for protecting sensitive skid steer valves and pumps from the abrasive grit that often accumulates in tight equipment spaces.

🗸 FIELD-READY ERGONOMICS: Designed for quick, reliable service, the push-connect locking sleeve features deep, heavy knurled texturing for a positive, non-slip grip. This enables fast, safe attachment changes even in the cramped, hard-to-reach areas where these elbow fittings are typically required.

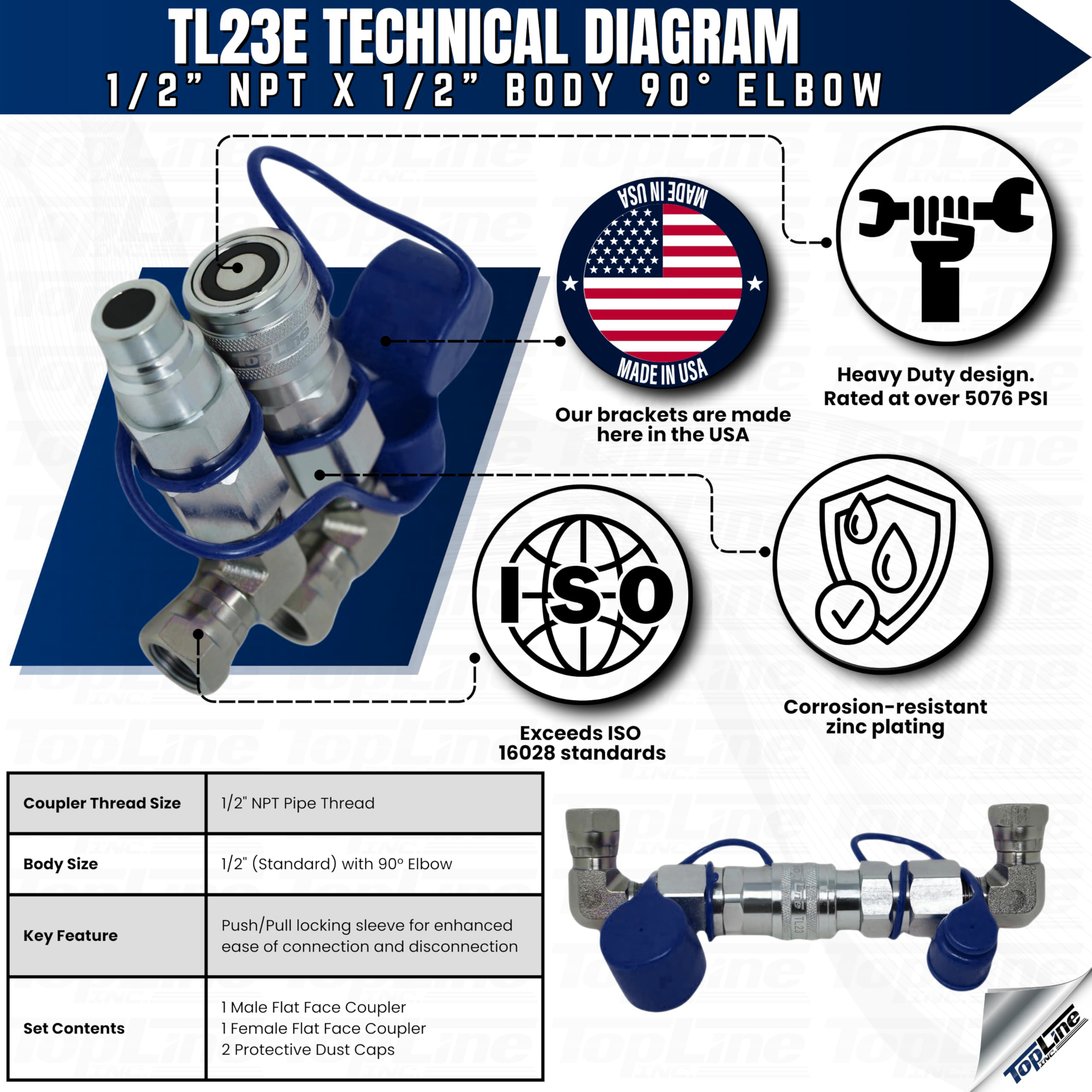

Specifications

Q: Why would I choose a 90-degree elbow coupler over a straight one?

A: A 90-degree elbow is used when your hydraulic hoses are coming out of a port at an awkward angle or where space is limited. Using a straight fitting in these situations would force the hose to make a tight, potentially damaging bend. The elbow allows the hose to follow a more natural, stress-free path, preventing premature hose failure.

Q: Will the TL23E work with my existing 1/2" flat-face couplers?

A: Yes. The TL23E is fully compliant with the ISO 16028 standard. It is designed to be completely interchangeable with any other standard 1/2" body flat-face coupler, regardless of the brand, while offering the added benefit of the 90-degree orientation.

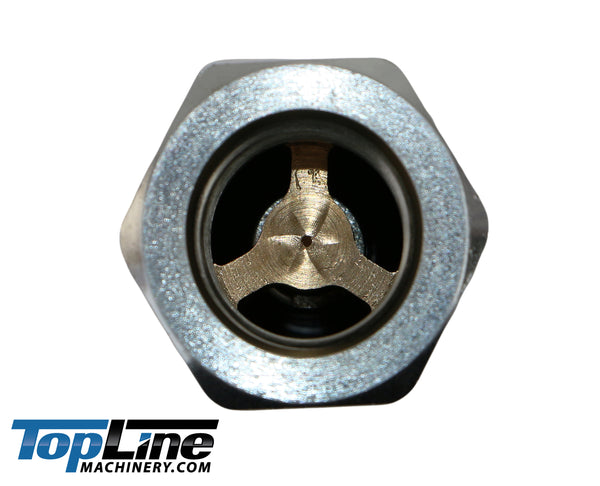

Q: How does the "No air inclusion" design work?

A: Internal valving remains closed until the male and female halves are fully locked together. This prevents air from being trapped and "injected" into your hydraulic system during the connection process, which is critical for preventing cavitation in your skid steer’s hydraulic pumps.

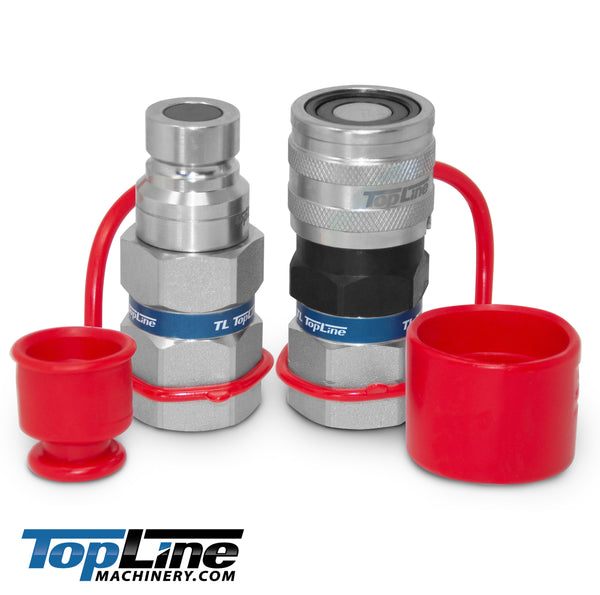

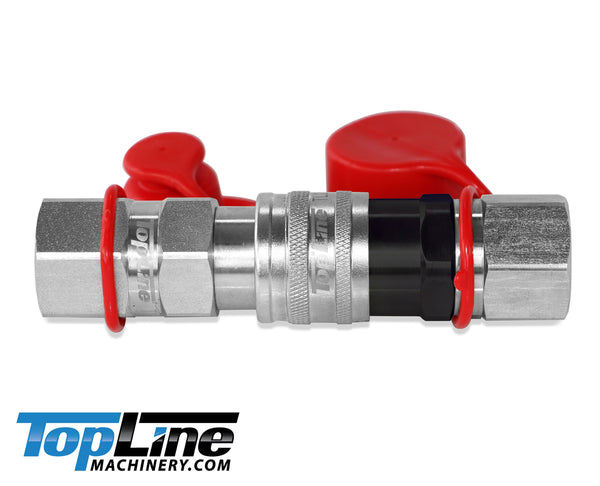

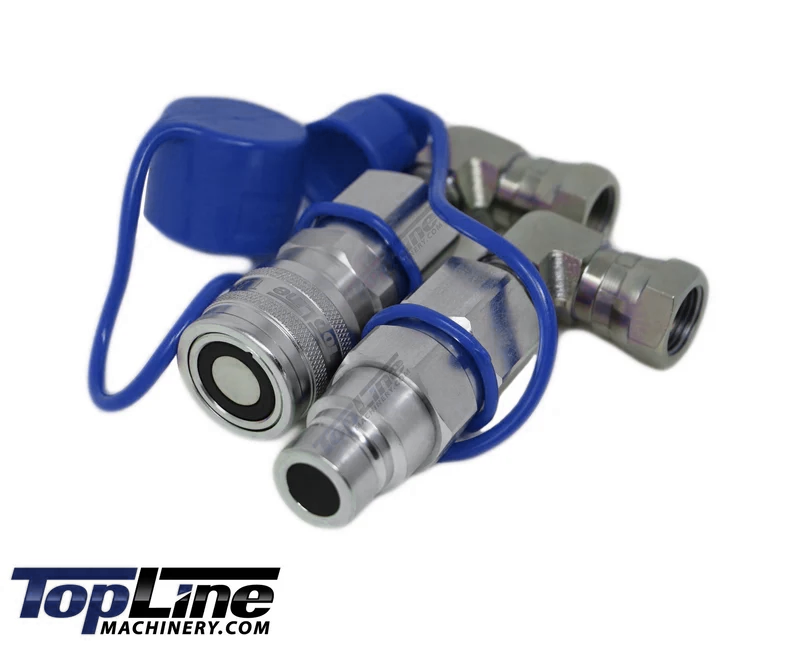

Q: Why are the included dust caps so critical for an elbow fitting?

A: Since 90-degree fittings are often installed in tight, recessed areas of a machine, it can be difficult to see or reach the coupler face to clean it properly. The protective dust caps ensure that no road debris or mud builds up in these hard-to-reach areas, maintaining the integrity of the connection every single time.

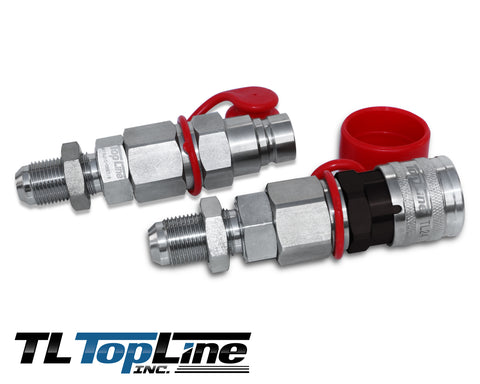

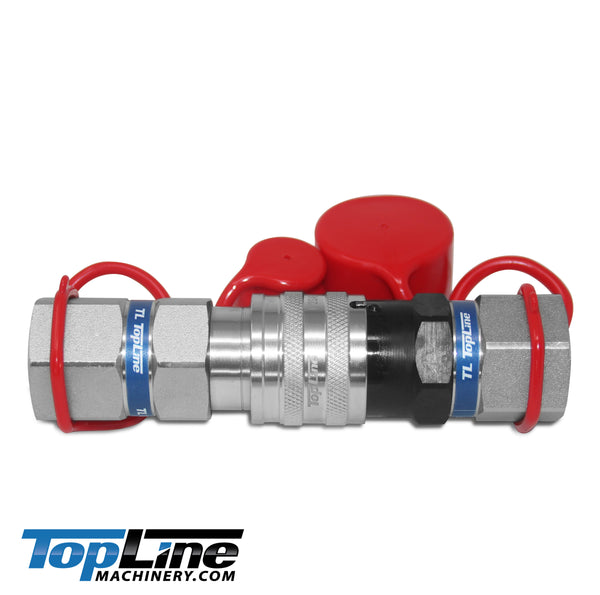

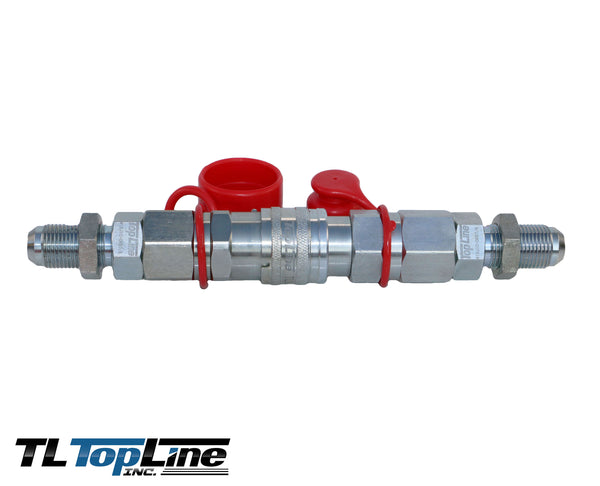

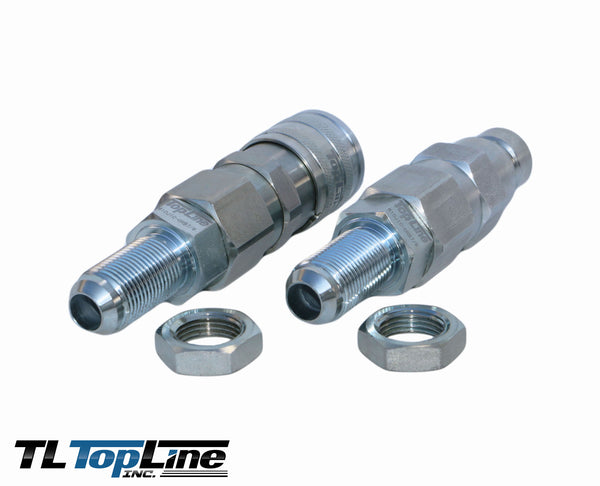

Other Thread Sizes for 1/2" Body Flat Face Coupler:
