Product Description

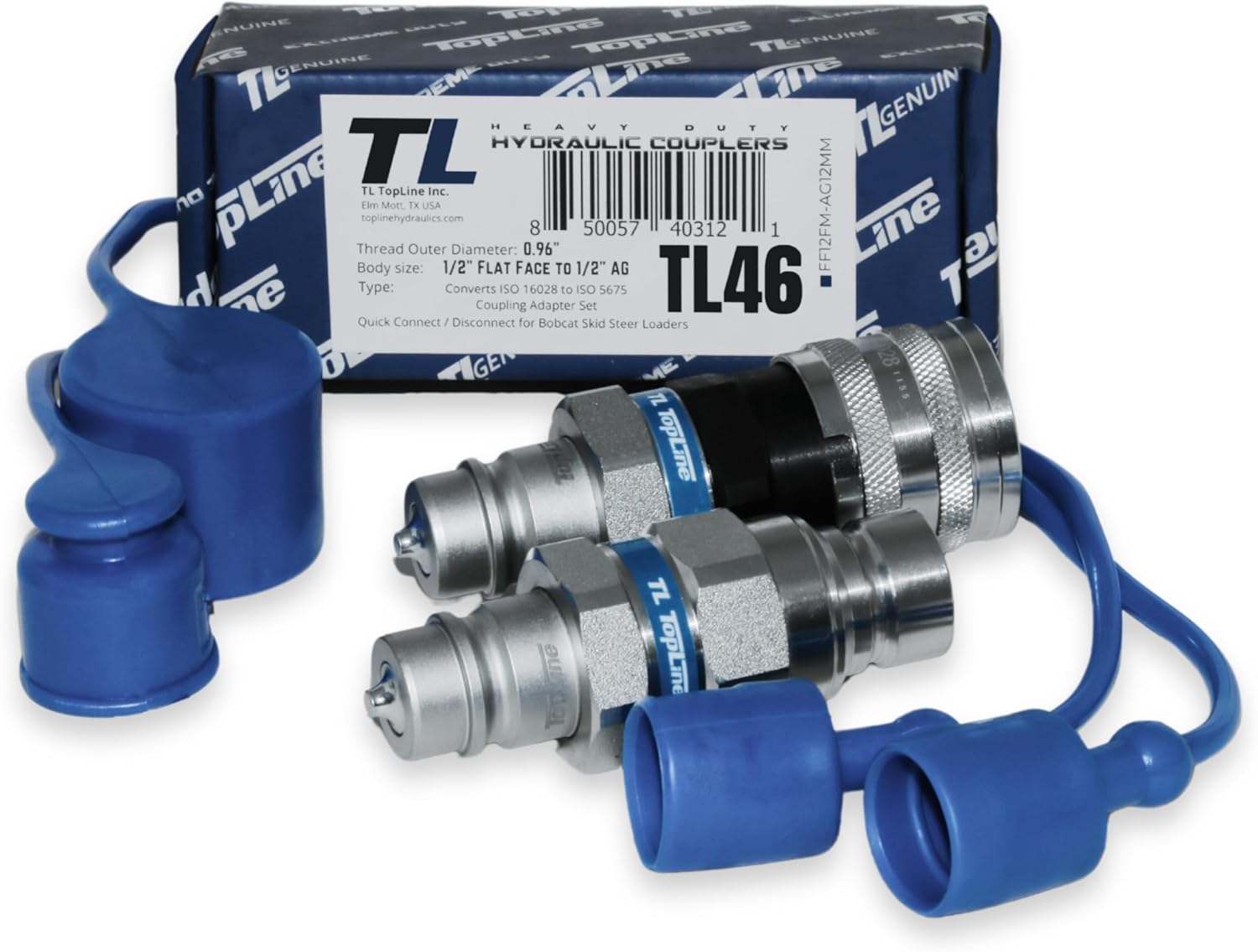

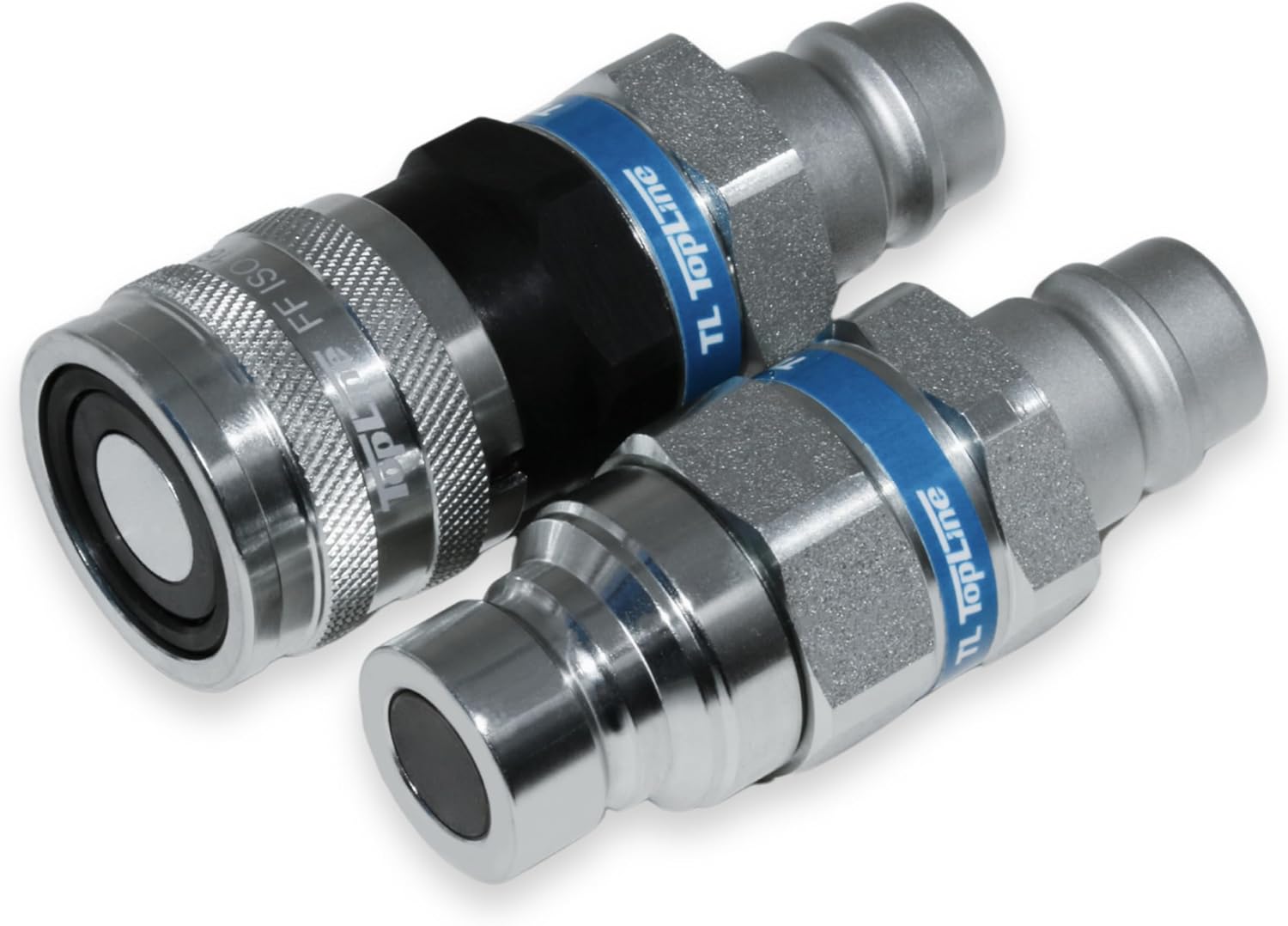

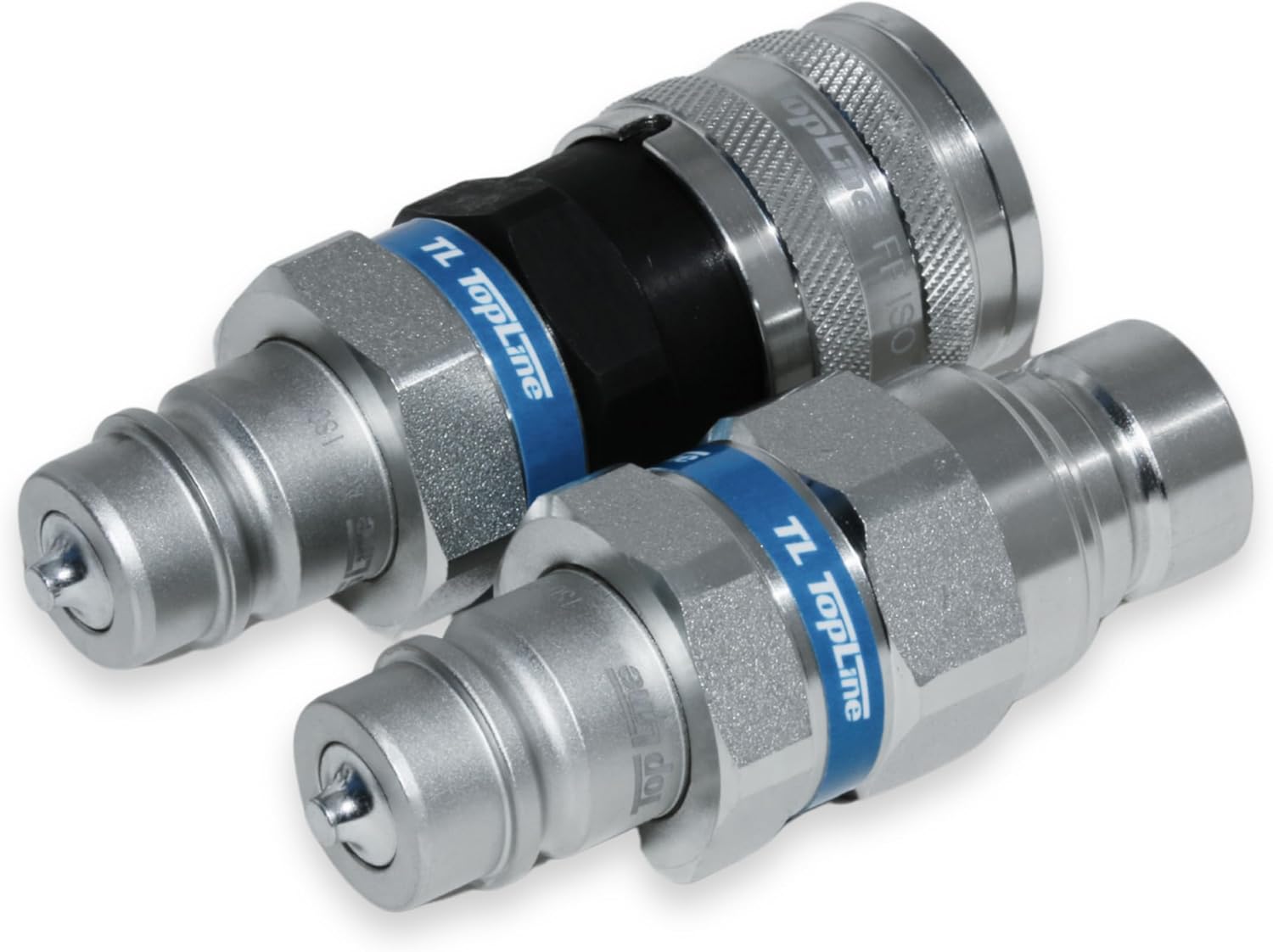

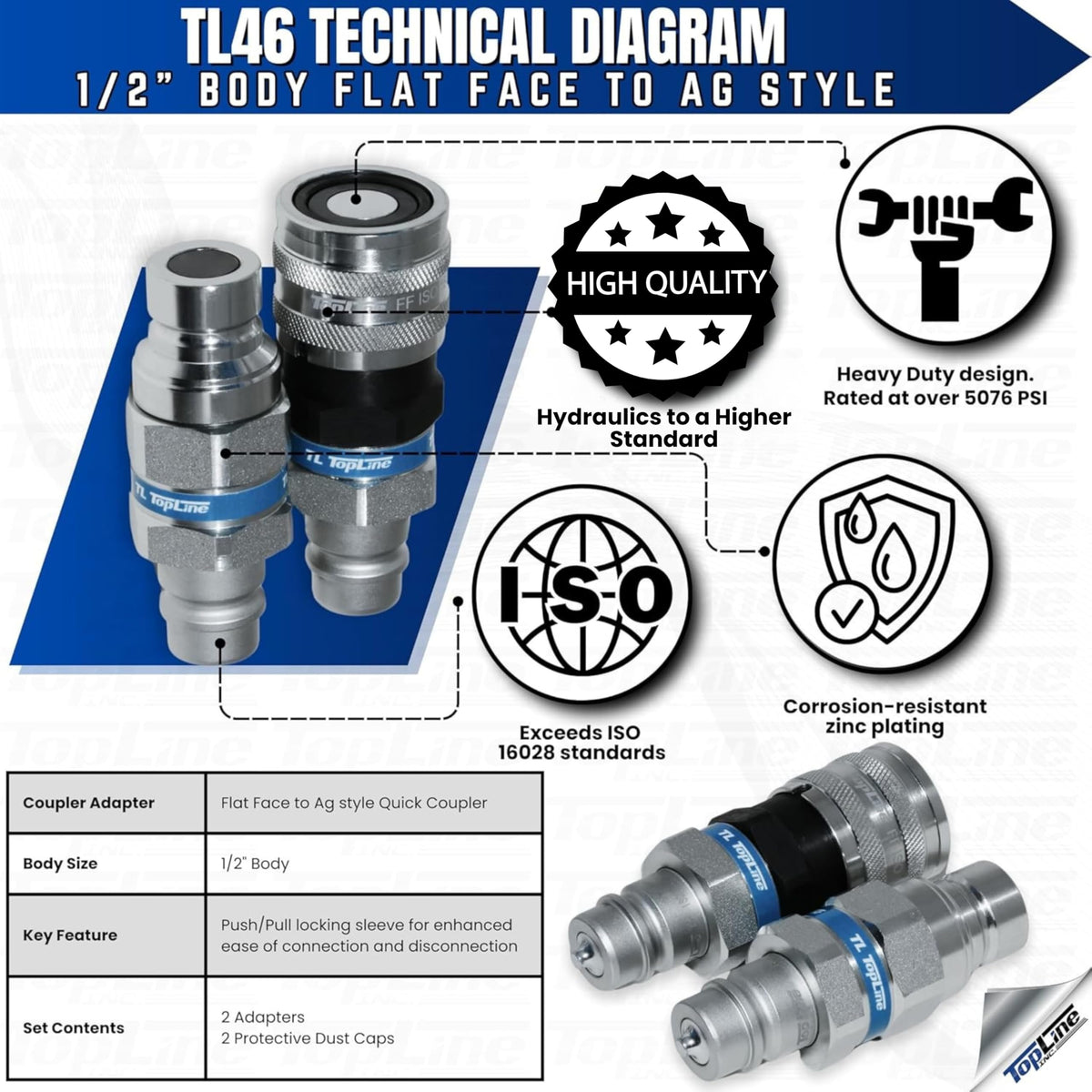

TL46 1/2" Flat Face to Ag-Style Hydraulic Quick Coupler Adapter Set (ISO 16028 to ISO 5675)
The TL46 adapter set is engineered to bridge the gap between different hydraulic standards, allowing you to easily install flat-face connectors on equipment or attachments utilizing standard Ag-style systems. Designed to transition smoothly from ISO 16028 to ISO 5675, this heavy-duty adapter set is built for professionals who need versatile, cross-system compatibility without sacrificing hydraulic efficiency or pressure tolerance.
✓ Cross-System Conversion: Specifically designed to convert or adapt between Flat Face (ISO 16028) and Ag-Style (ISO 5675) hydraulic connections, giving you the flexibility to run various attachments on your skid steer or tractor.
✓ Heavy-Duty Industrial Rating: Rated for high-pressure hydraulic circuits with a capacity of over 5076 PSI, ensuring robust performance under demanding field loads.
✓ Universal 1/2" Body Size: Built with a standard 1/2" body size to integrate seamlessly with standard hydraulic lines on major equipment brands including Bobcat, John Deere, CAT, Kubota, and more.
✓ Contamination & Fluid Management: The flat-face side allows the coupling surface to be easily wiped clean, preventing abrasive debris from entering your lines, while minimizing fluid loss during disconnection.

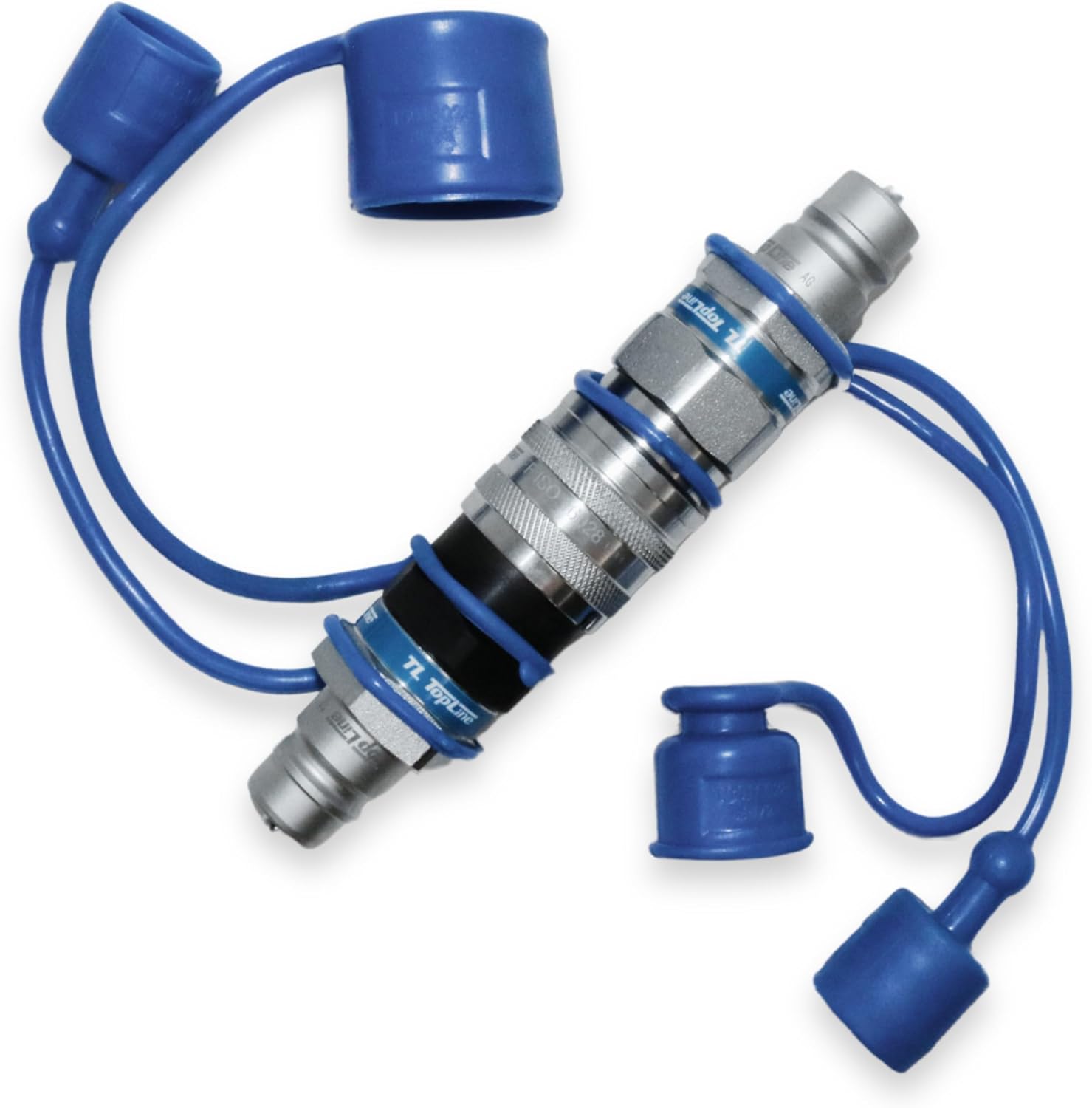

✓ Ergonomic & Secure: Equipped with heavy knurled locking sleeves to ensure a secure, non-slip grip, even when working with wet, muddy, or oily equipment, and includes protective dust caps.
Specifications
| Detail | Specification |
| Model Number | TL46 |
| Coupler Body Size | 1/2" |

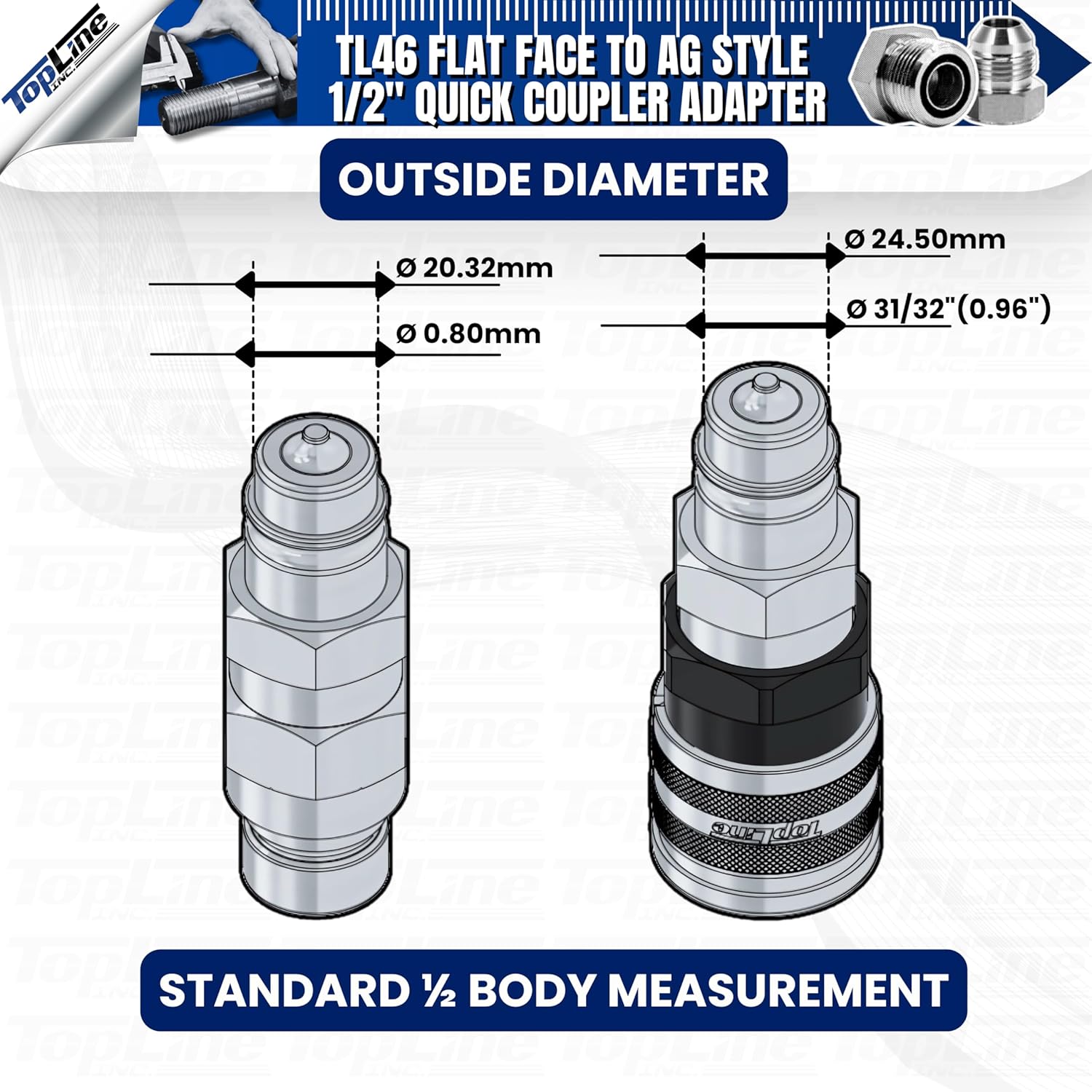

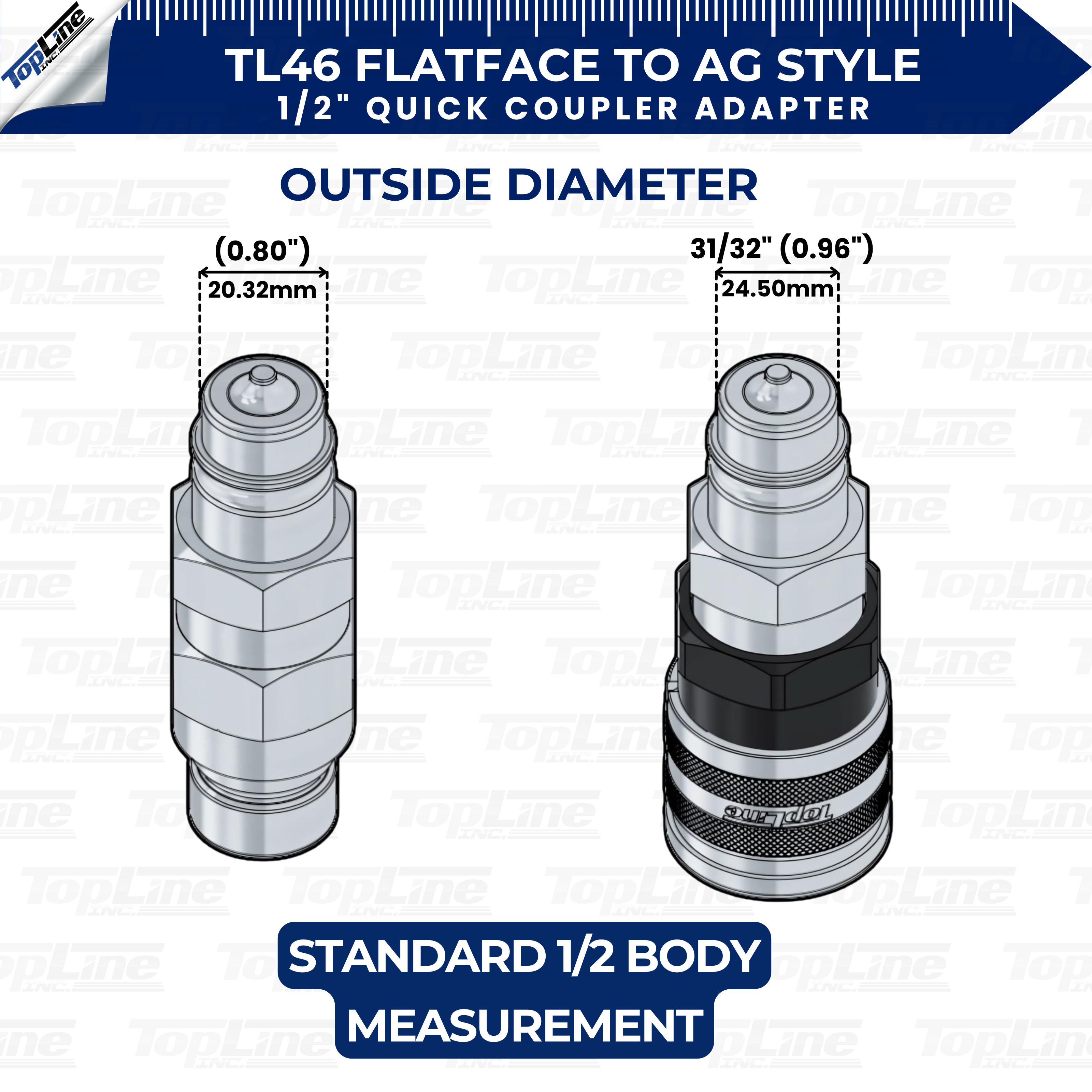

| Thread Inner Diameter | 0.96" |
| Coupler Material Type | Heavy-Duty Steel |
| Plating Type | Corrosion-resistant trivalent zinc |
| Package Includes | Hydraulic Adapter Set, Protective Dust Caps |
Frequently Asked Questions
Q: What is the main purpose of the TL46 adapter set?
A: The TL46 is designed to let you connect modern Flat Face attachments to a machine equipped with Ag-style couplers, or vice versa. It eliminates the need to cut and re-terminate hydraulic hoses when switching between different standard types.
Q: Does using an adapter cause a drop in hydraulic pressure?
A: No. The TL46 is engineered to maintain high-pressure integrity up to and exceeding 5076 PSI, ensuring your attachments receive the proper fluid flow and pressure without restriction.
Q: Are these adapters durable enough for heavy skid steer work?
A: Absolutely. Constructed from high-strength steel with a corrosion-resistant trivalent zinc plating, they are built to withstand the rigorous daily environments of construction, agriculture, and earth-moving.
Q: Do I need to use thread sealant on these adapters?
A: Depending on how the adapter integrates into your specific line configuration, always check the port type to ensure proper sealing materials (such as O-rings or thread tape) are used to prevent high-pressure leaks.
| TL107 | TL23 | TL22 | TL91 | TL30 |

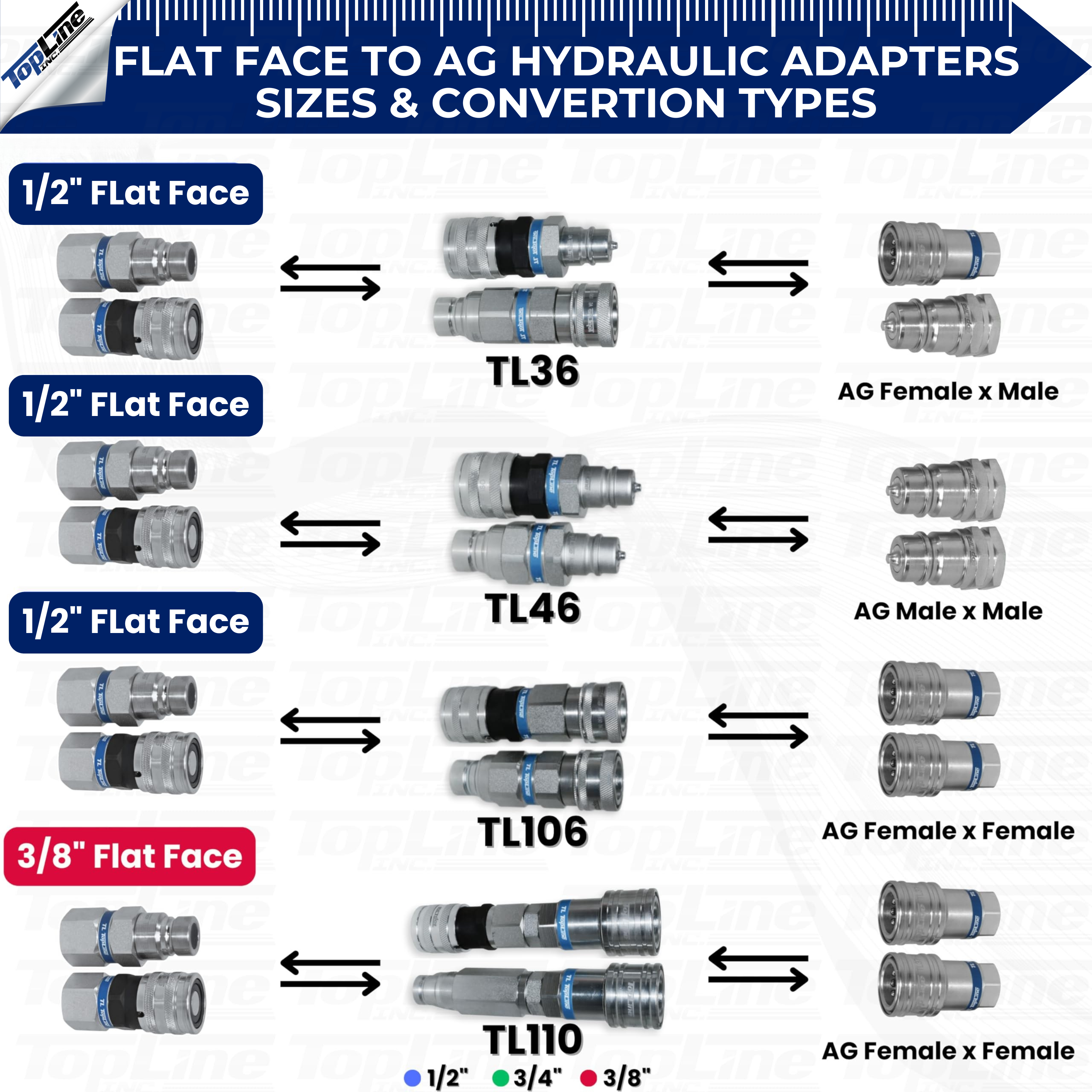

Flat Face to Agricultural Style Adapters:
See our Store for more coupler sizes
We aim to be your #1 source for high quality skid steer & ag hydraulic quick connect couplers and accessories.
This item has a 100% satisfaction guarantee!
Return Policy: If you are not fully satisfied with your purchase, you may return unused item for a full refund of the purchase price, excluding shipping charges, within 60 days of purchase date.
If you have any questions about this item, feel free to contact us
Check back often for more skid steer products and solutions.
