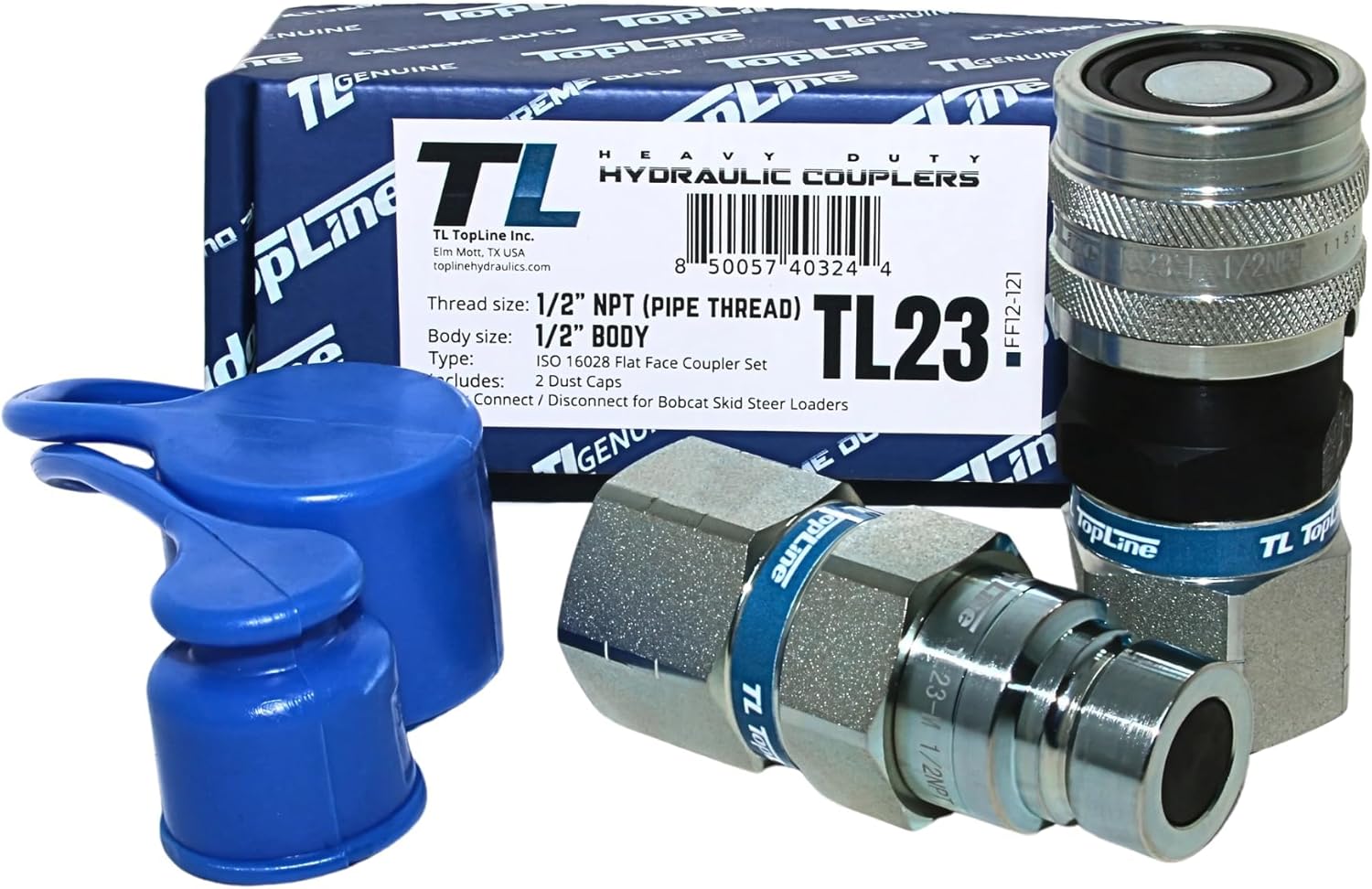

1/2" NPT Thread Flat Face Quick Connect Hydraulic Couplers 1/2" body size ISO 16028 (TL23) for Bobcat Skid Steer Loaders



These couplers are a direct replacement for the standard sized coupler mounted on many models of skid steers and attachments.

These are NOT light duty couplers. The sturdy design of heavy duty TopLine couplers have become well known for their durability and ability to withstand rugged conditions.

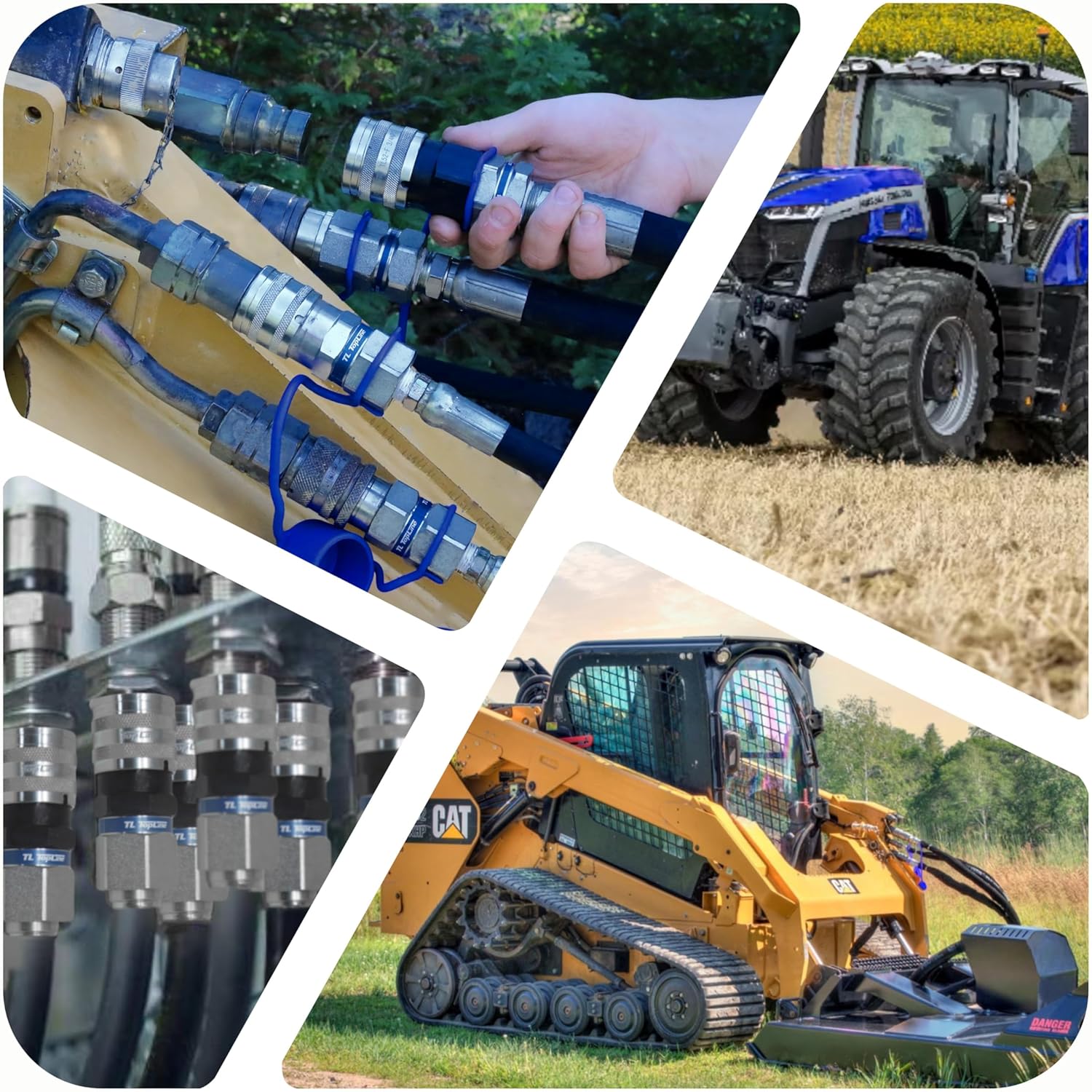

Fit many models of: Bobcat, John Deere, CAT, Kubota, New Holland, CASE, JCB, Thomas, Gehl, Volvo, and ASV skid steers.

Flat Face couplers are designed for applications where hydraulic spillage is a concern. One of the great advantages to the Flush Face design is that the couplers are easy to keep clean which helps to prevent contaminants from entering the hydraulic system during connection and disconnection.

Couples to any standard 1/2" body Flat Face couplers on Skid Steers and other equipment. These couplers meet or exceed the ISO 16028 standard.



Features:



  • Heavy Duty design. Rated at over 5076 PSI
  • Couples to any standard 1/2” Flat Face coupler
  • Push-connect locking sleeve design
  • Exceeds ISO 16028 standards
  • Corrosion-resistant zinc plating
  • No air inclusion during disconnection
  • Heavy knurled sleeves for non-slip grip
  • Includes dust caps to protect from the elements
  • Flat Face coupler design minimizes hydraulic fluid loss

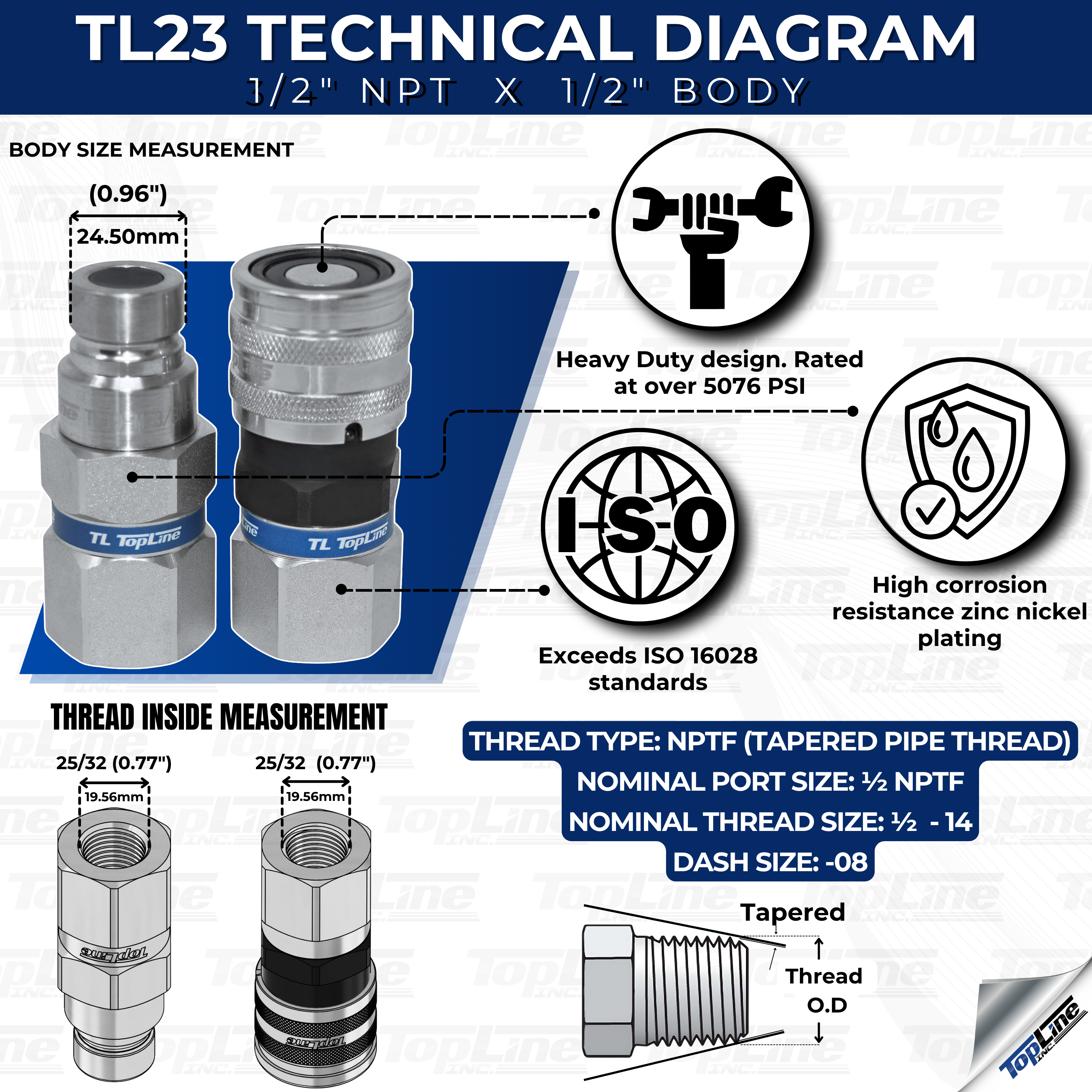

Specifications:

  • Model number:                  TL23

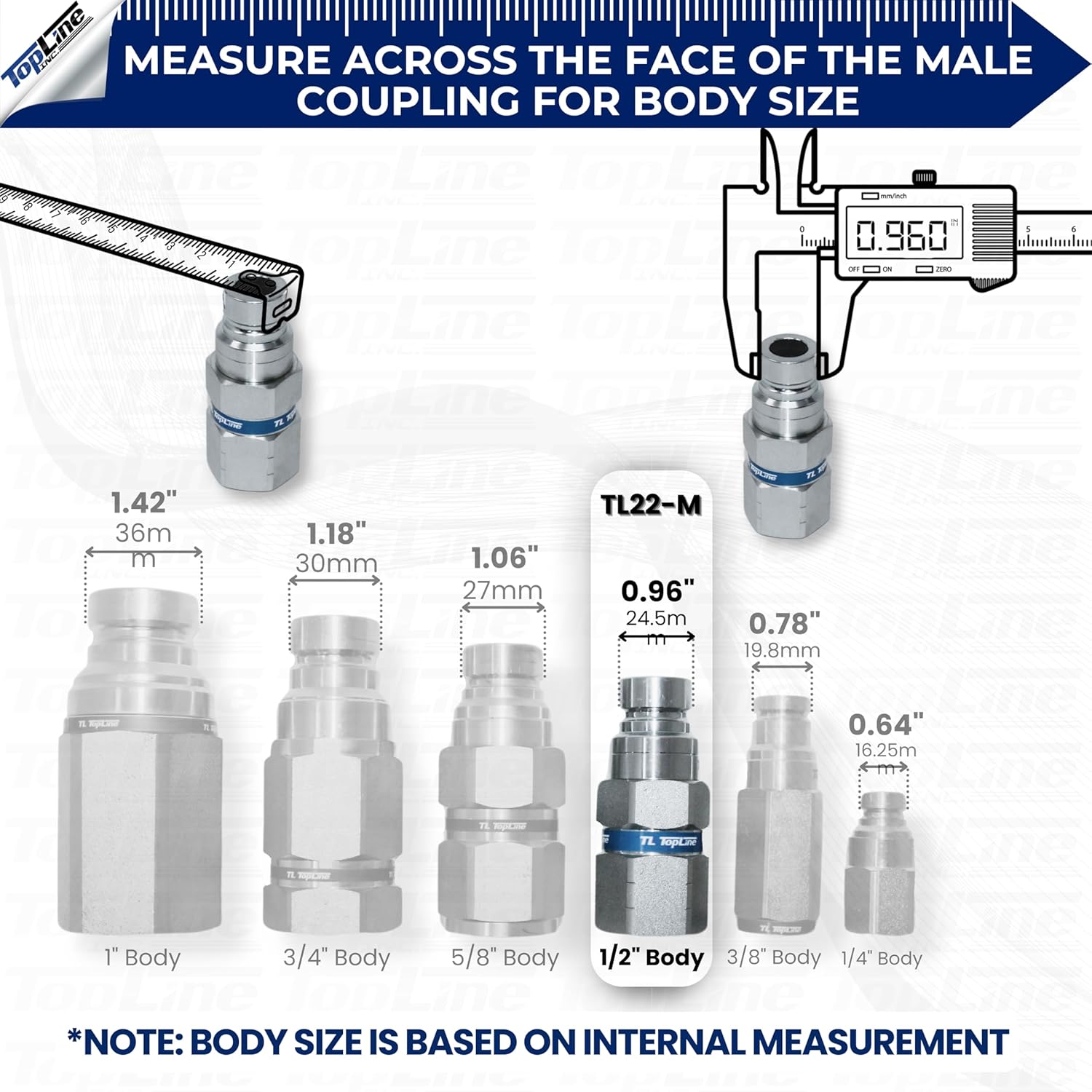

  • Coupler Body Size:           1/2"

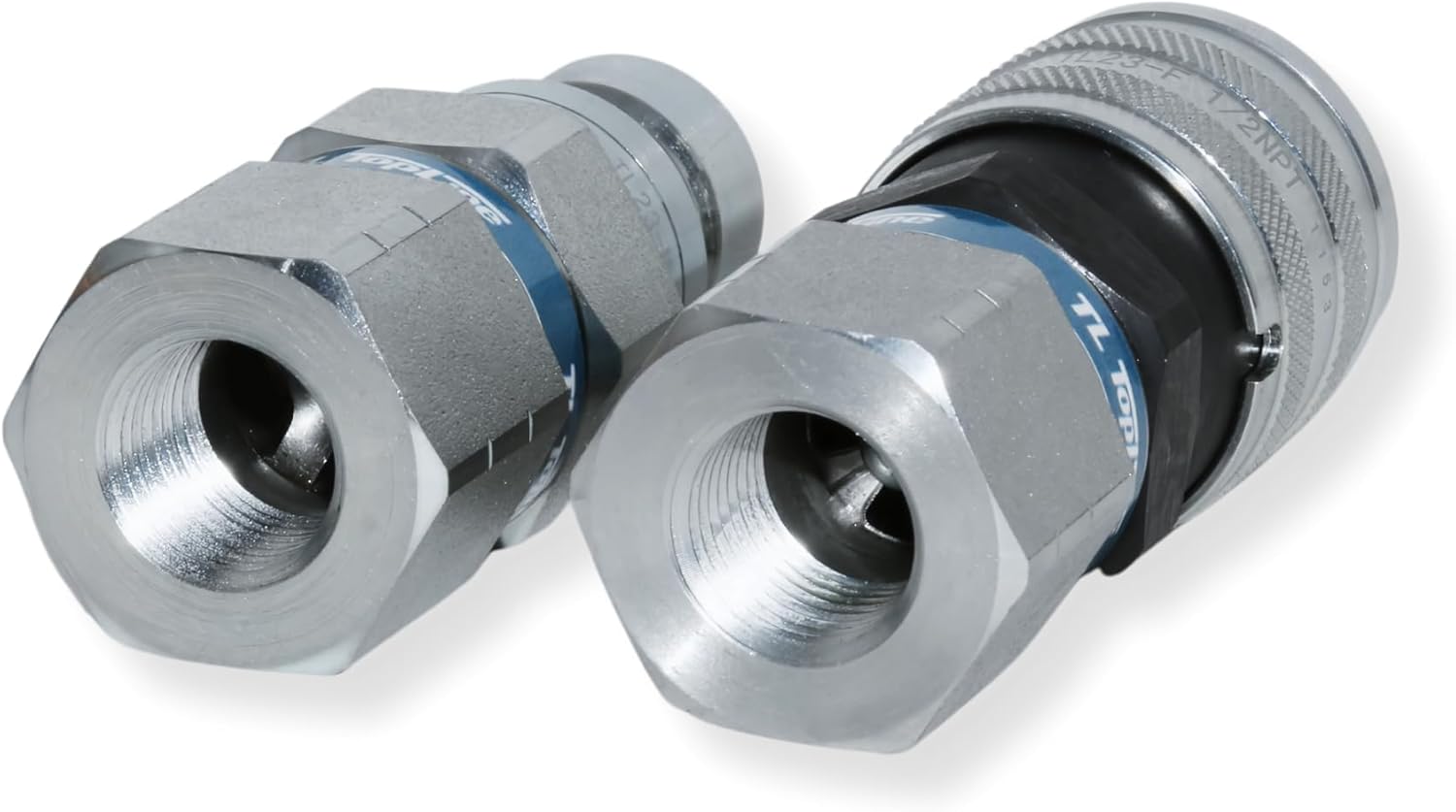

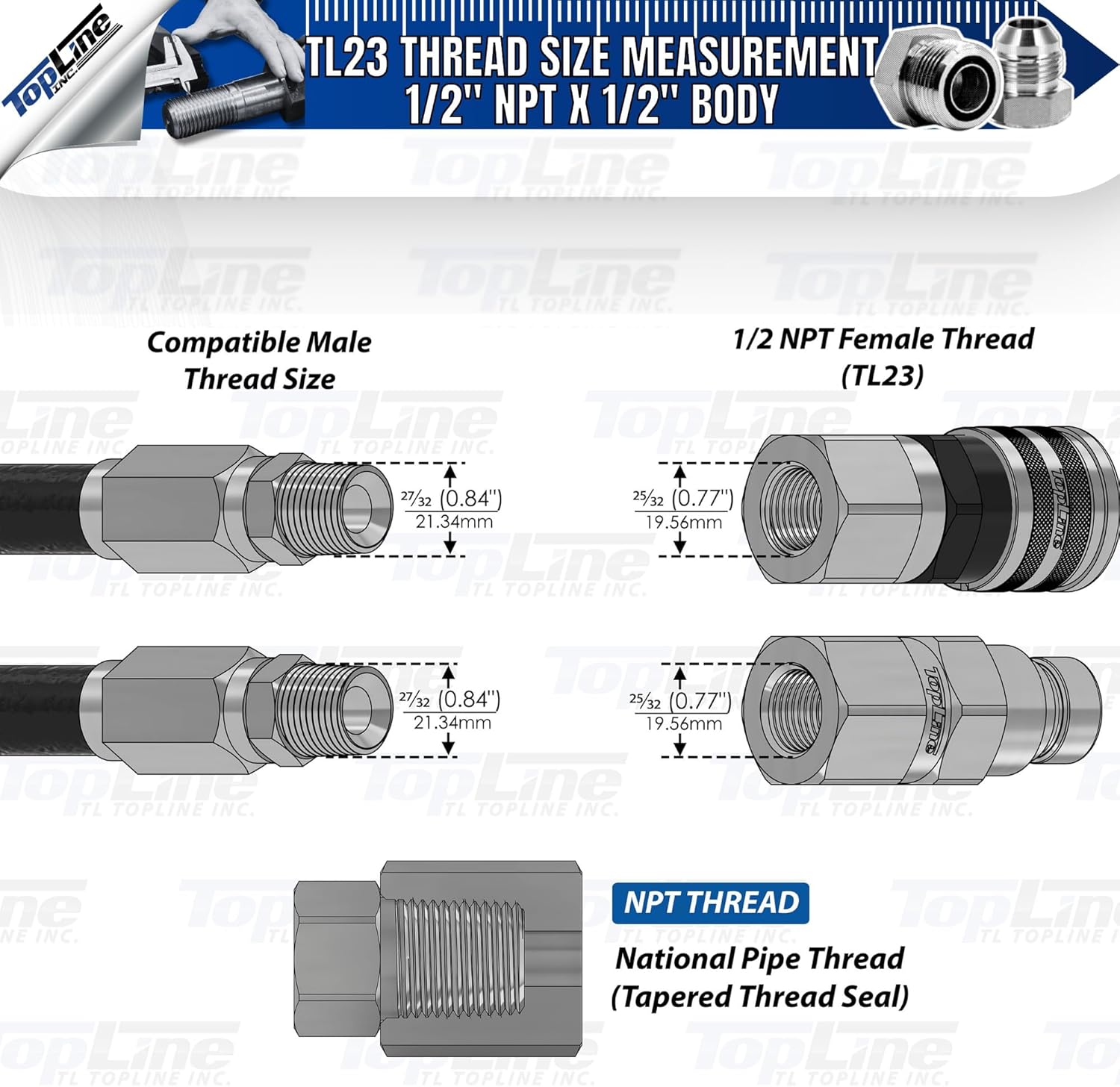

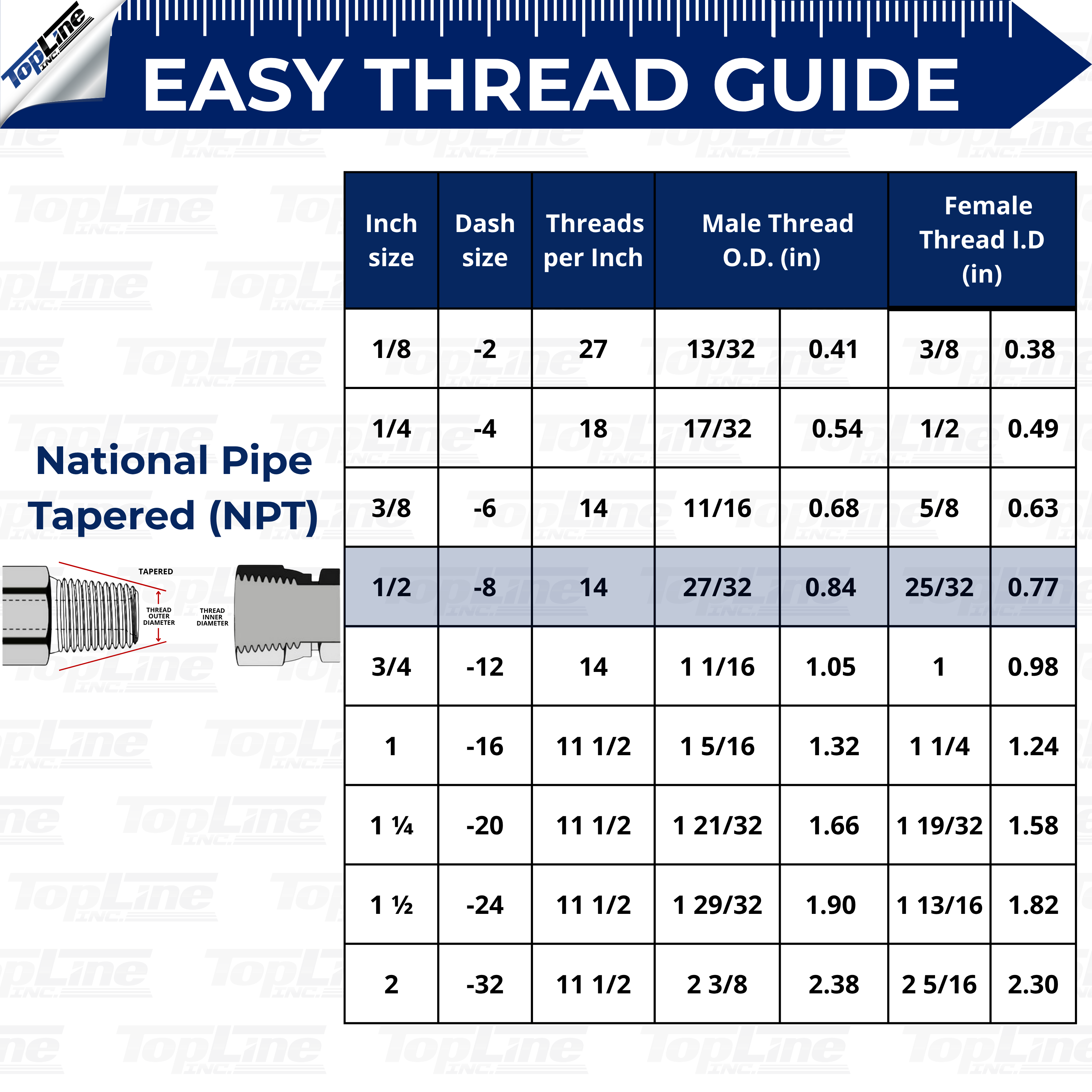

  • Coupler Thread Size:        1/2" NPT
  • Thread Inner Diameter:     0.77”
  • Thread Dash Number:       -08
  • Coupler Material Type:      Steel
  • Coupler Plating Type:        Corrosion-resistant trivalent zinc

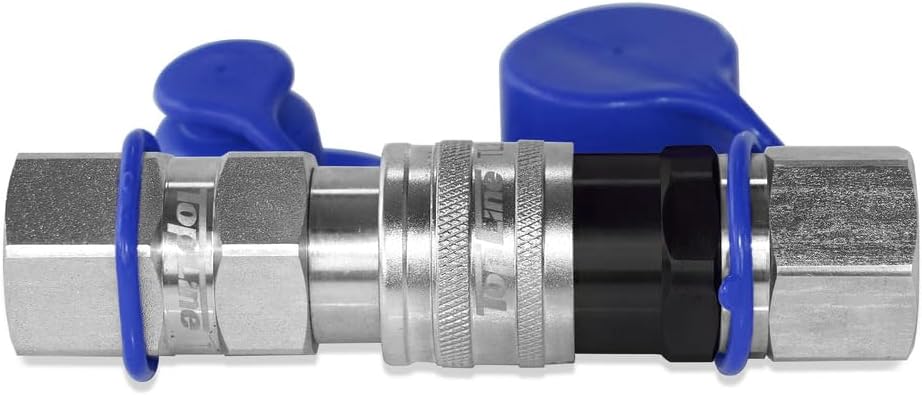

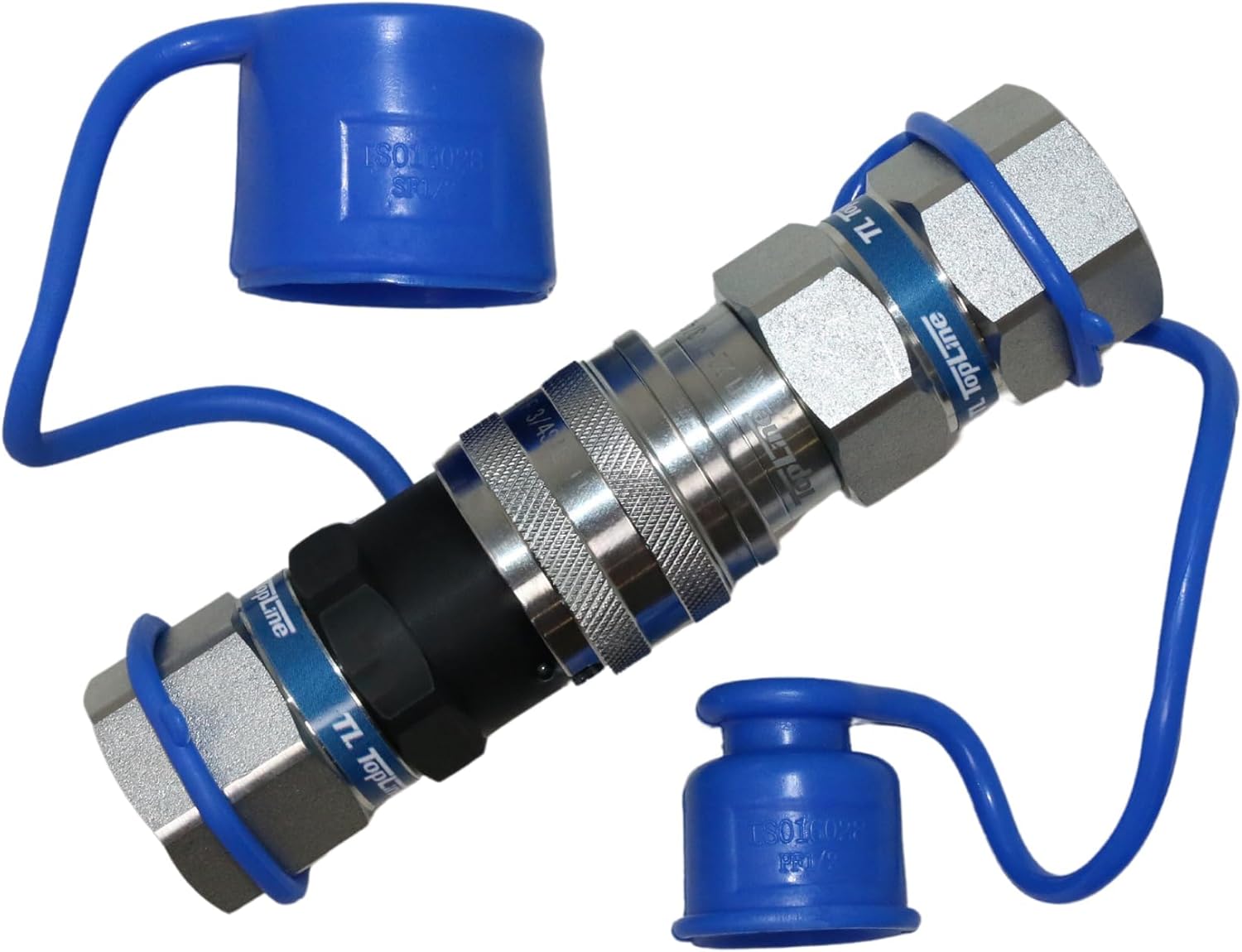

This set includes:

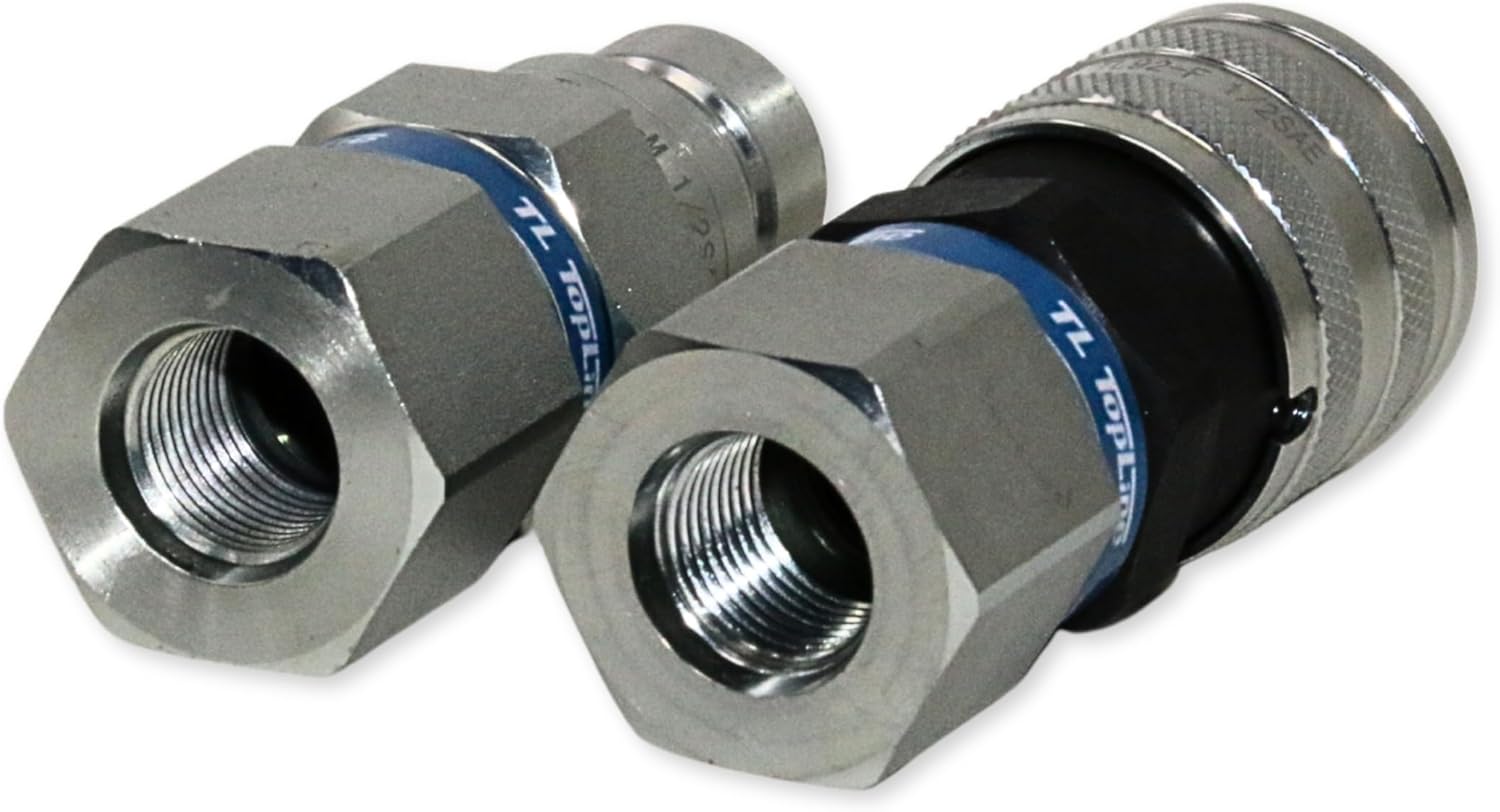

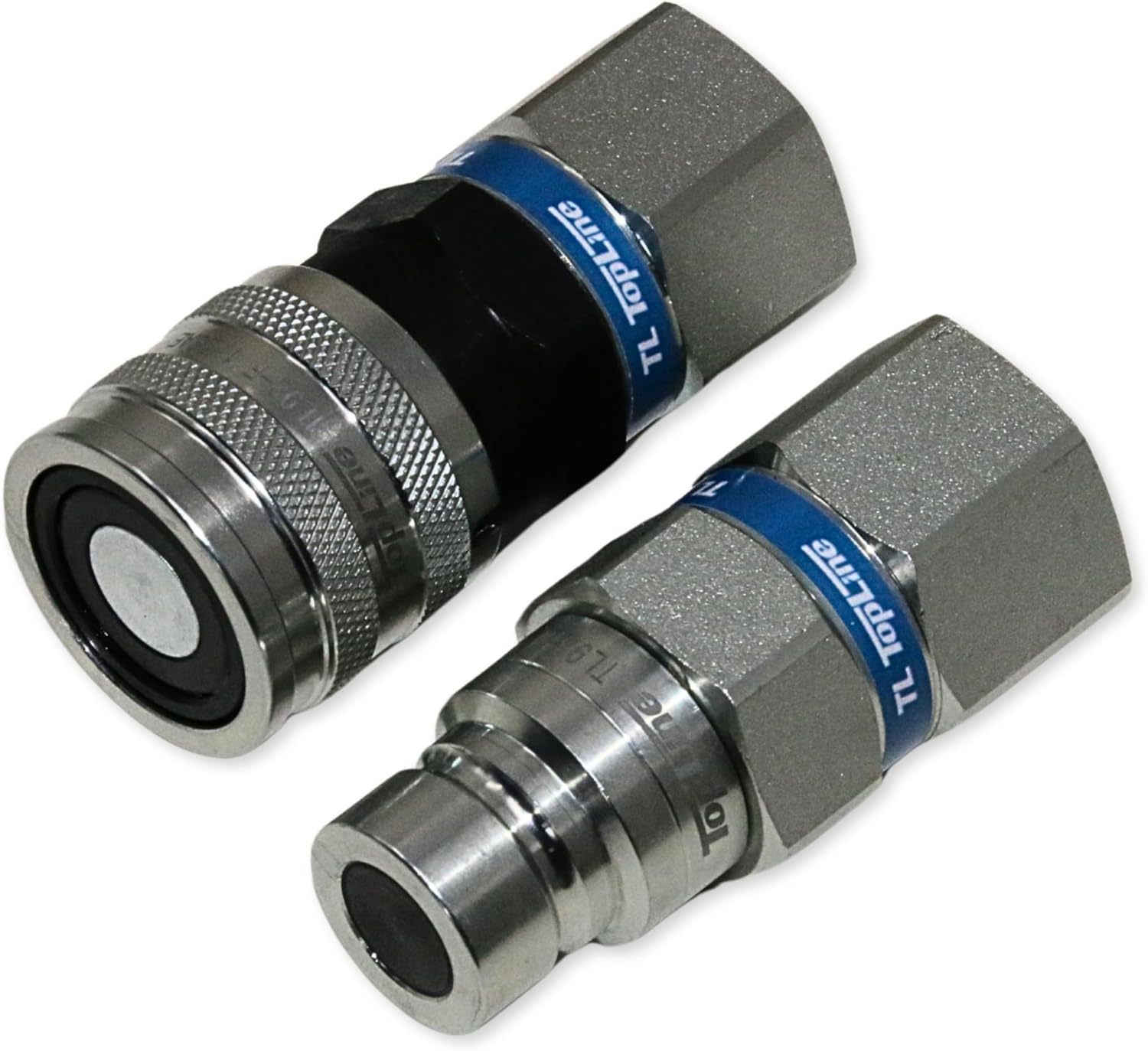

  • 1 Male Flat Face Coupler
  • 1 Female Flat Face Coupler

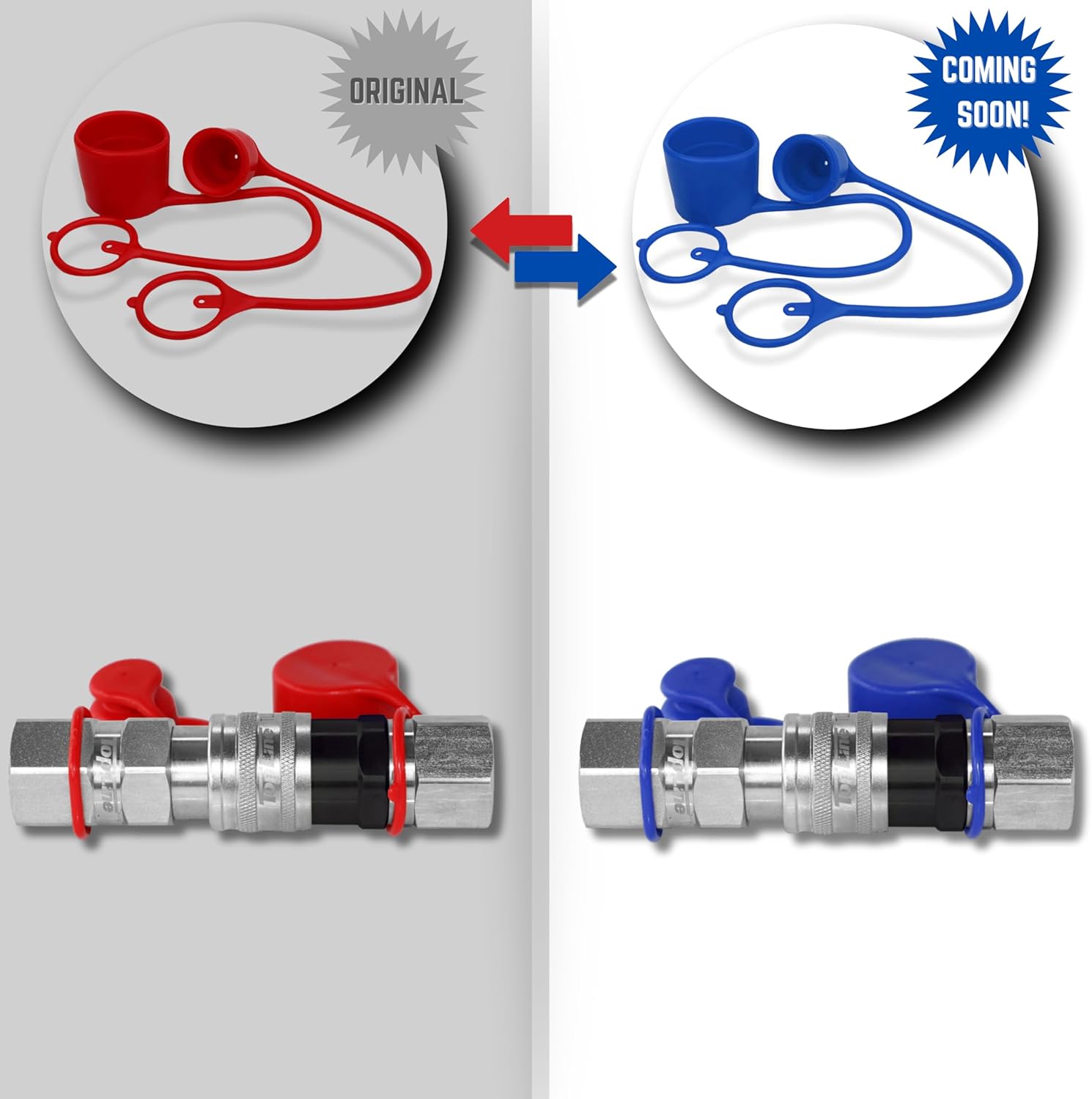

  • 2 Protective Dust Caps



    Interchangeable Part Numbers:

Manufacturer

Male

Female

Dixon HT Series

HT4F4

4HTF4

DNP PLT4 Series

FF-HPG-08-08N-NPT

FF-HPG-08-08C-NPT

Eaton Aeroquip

FD89-1002-08-08

FD89-1001-08-08

Faster FFH Series

FFH08 12NPT M

FFH08 12NPT F

Holmbury

FIMC12A NPT 1/2"M

FIMC12A NPT 1/2"F

Parker FE Series

FEM-502-8FP

FEM-501-8FP

Safeway

FFE491-4

FFE495-4

Snap Tite

74N8-8F

74C8-8F

Stucchi FIRG Series

800801007

800801006

Tomco

EP4-26

EC4-26

TopLine FF-1212-1-M FF-1212-1-F





(Click below to see what couplers fit your machine)



Need more set of TL23? Just click below

2 Sets
4 Sets

More Thread Sizes for 1/2" Flat Face Coupler:

3/8”  NPT  Female Thread (Set) TL19

1/2”  NPT  Female Thread (Set) TL23

1/2”  NPT  Female Thread (Male) TL40 -Connect under pressure

#08  JIC   Male Thread    (Set) TL20

5/8” SAE Female Thread (Set) TL21

#10  JIC   Male Thread    (Set) TL24   -With Bulkhead fitting-

5/8”  ORFS  Male Thread  (Set) TL26  -With Bulkhead fitting-

3/4”  SAE  Female Thread (Set) TL22

#12  JIC   Male Thread     (Set) TL25   -With Bulkhead fitting-

3/4”  NPT  Female Thread (Set) TL30

3/4”  NPT  Female Thread (Male) TL43 -Connect under pressure-



Flat Face to Agricultural Style Adapters:

Flat Face to Male Ag Couplers TL46

Flat Face to Male & Female Ag Coupler TL36



See our Store for more coupler sizes
