Price:
$ 80.59 $ 125.92

If you’re interested in purchasing in bulk, please complete our wholesale application form and submit it for approval. Once approved, you’ll be eligible for wholesale discounts. Wholesale Form
Added to cart!

Product Description

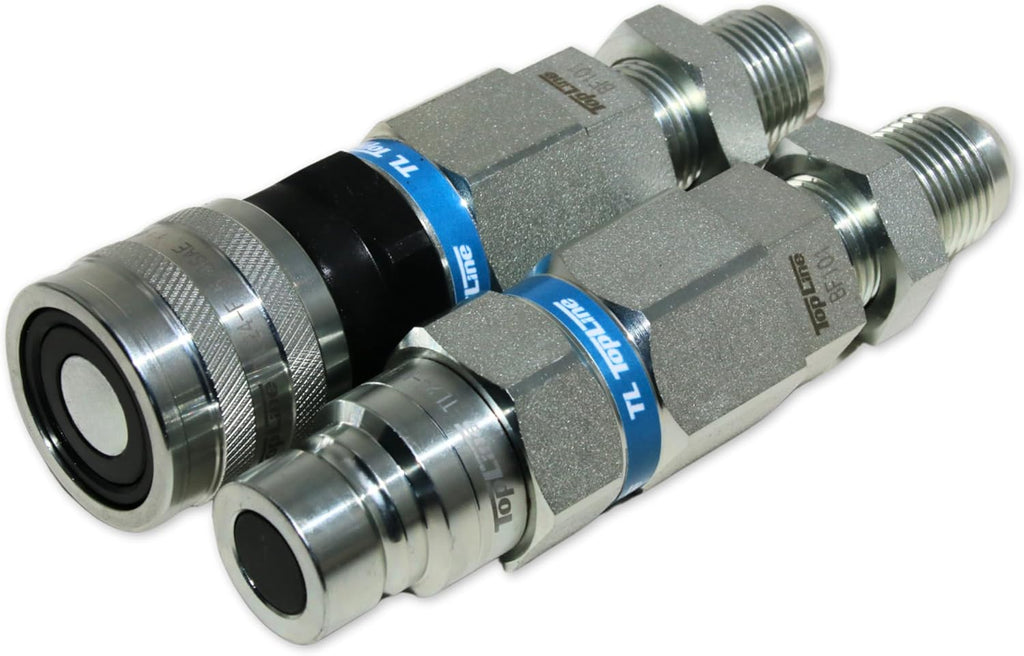

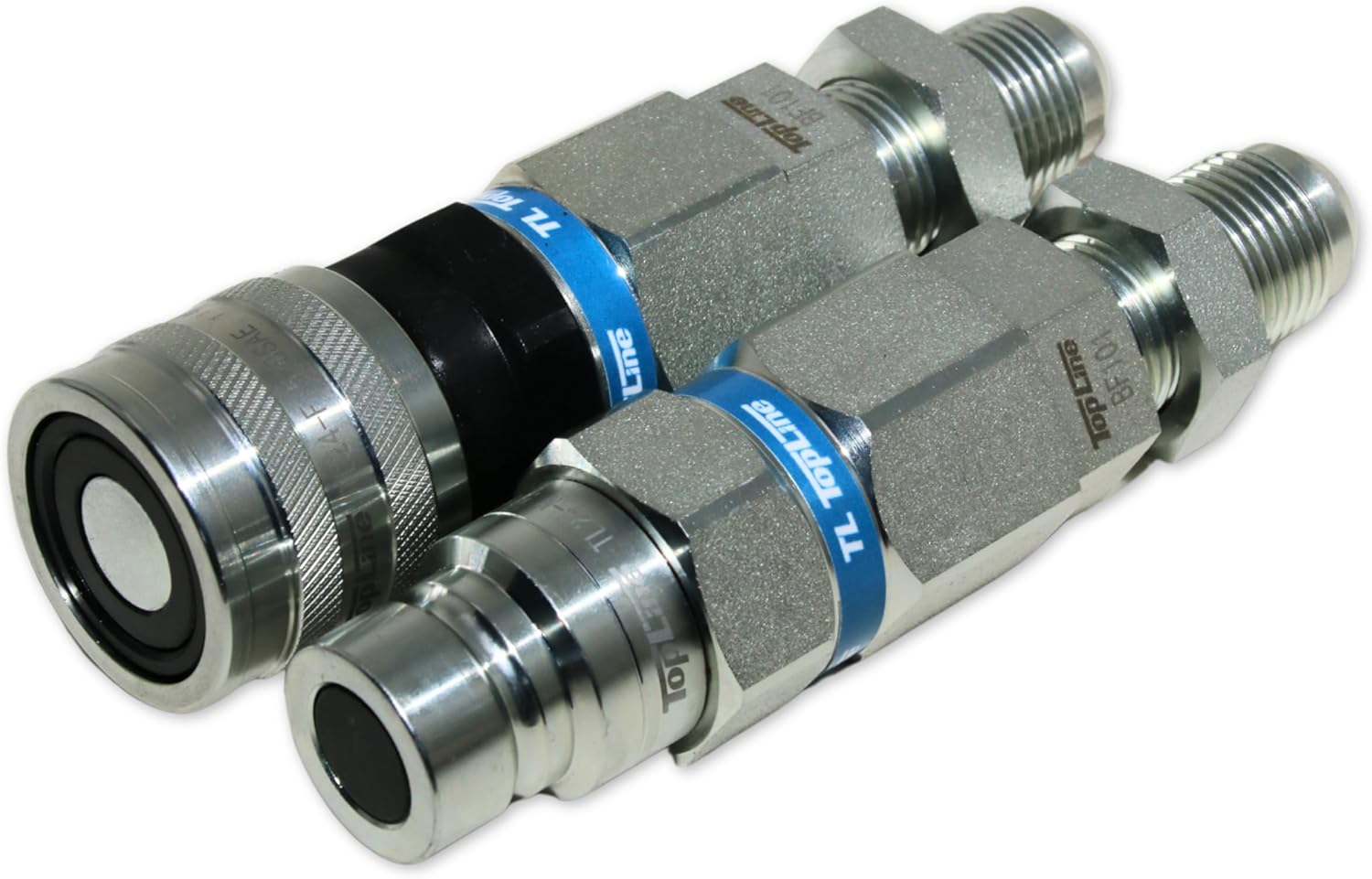

🗸 TL24 5/8" (#10) JIC Thread Bulkhead - 1/2" BODY SIZE, flat face hydraulic coupler to fit Bobcat and other skid steers. Rated for over 5076 PSI. Built for heavy-duty use.
🗸 QUICK & SECURE CONNECTION: Push-connect locking sleeve ensures easy, reliable coupling with no air inclusion or leaks.
🗸 DURABLE & CORROSION-RESISTANT: Zinc-plated for long-lasting protection and exceeds ISO 16028 standards.
🗸 LESS FLUID LOSS, MORE EFFICIENCY: Flat face design minimizes hydraulic fluid loss during disconnection, improving system performance.
🗸 EFFORTLESS USE – The push-connect locking sleeve and heavy knurled sleeves ensure a secure, non-slip grip, allowing for quick and easy connections and disconnections in the field, even with gloved hands.
What makes the TL24 Hydraulic Quick Connect Coupler a superior choice?
The TL24 coupler is built for high-performance use with a heavy-duty steel body and a working pressure rating of over 5,076 PSI. It's engineered to withstand tough environments while delivering consistent, leak-free performance.
How does the flat face design improve performance?
The flat face design significantly reduces fluid loss during connection and disconnection while minimizing the introduction of contaminants. This enhances hydraulic system longevity and reduces downtime due to maintenance.
Is the TL24 compatible with my skid steer or equipment?
The TL24 is compatible with many skid steers and attachments from Bobcat, John Deere, CAT, Kubota, CASE, JCB, and more. It features a standard 5/8" (#10) JIC thread and 1/2" body size for broad compatibility.
Does the product include any protective accessories?

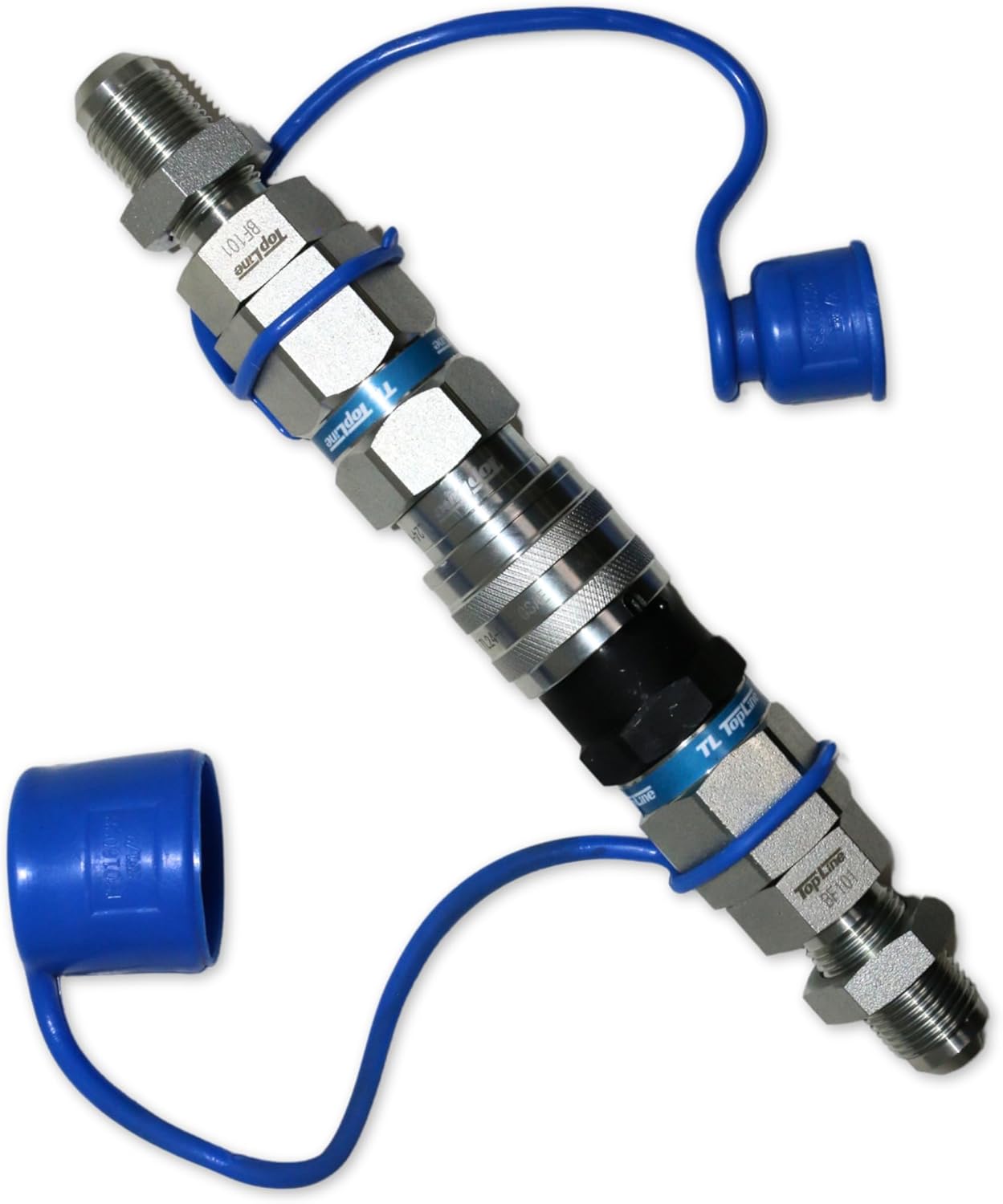

Yes, the TL24 includes protective dust caps for both male and female couplers. These caps help prevent dirt and debris from entering the hydraulic system when the couplers are not in use.
Can the TL24 be used as a replacement for existing couplers?
Absolutely. The TL24 is designed as a direct replacement for many standard flat face hydraulic couplers used on skid steers and other hydraulic machinery. Its standardized sizing allows for a simple, straightforward installation.

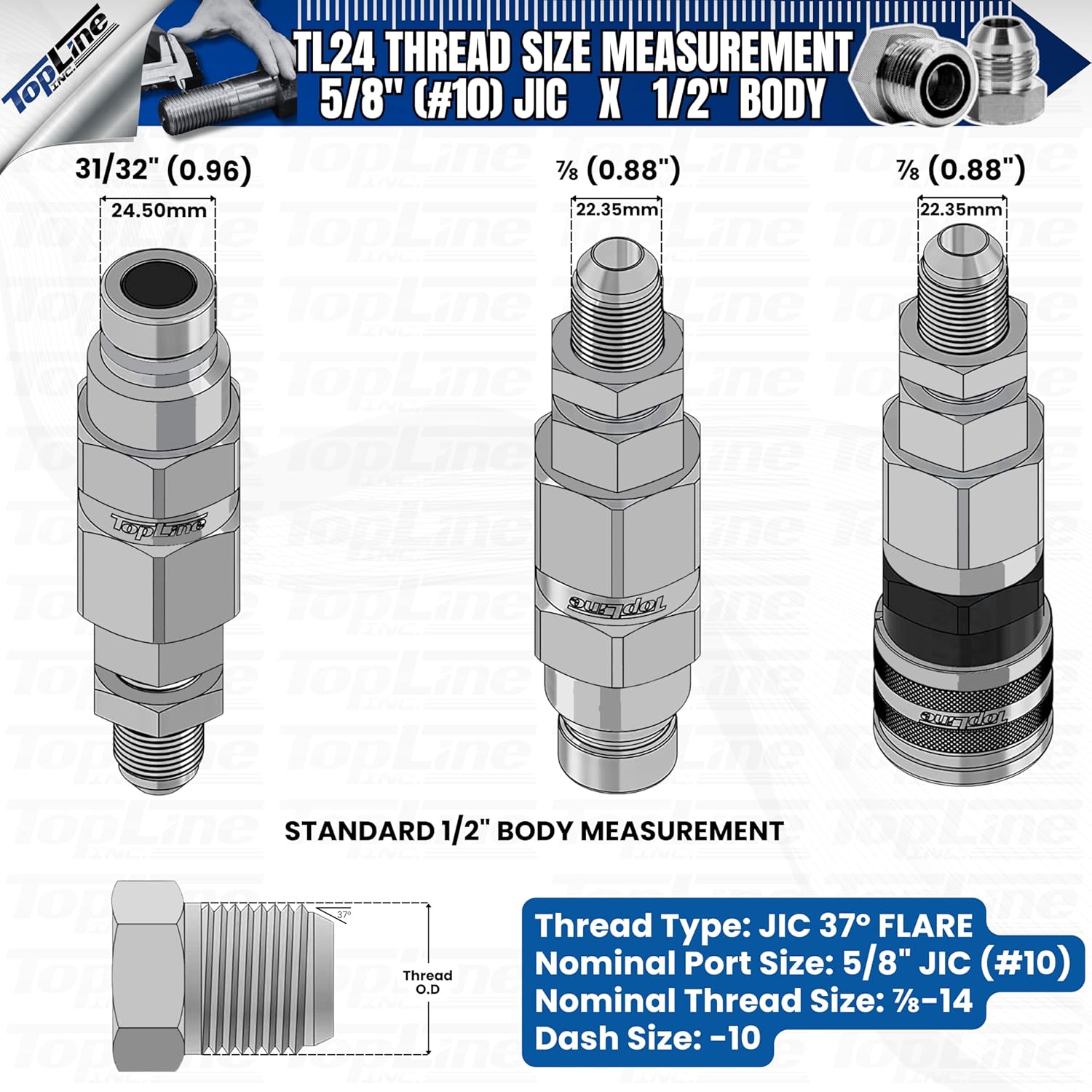

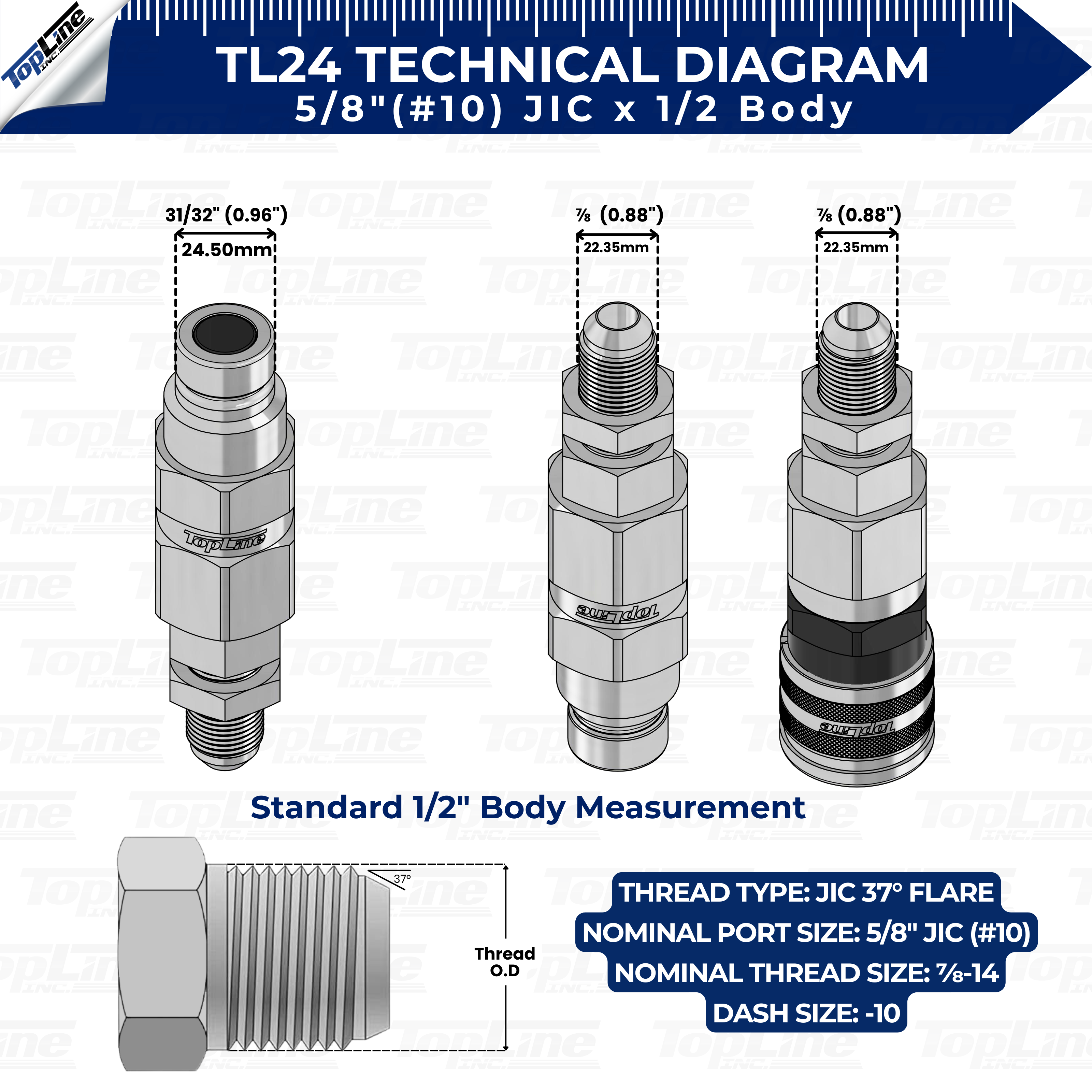

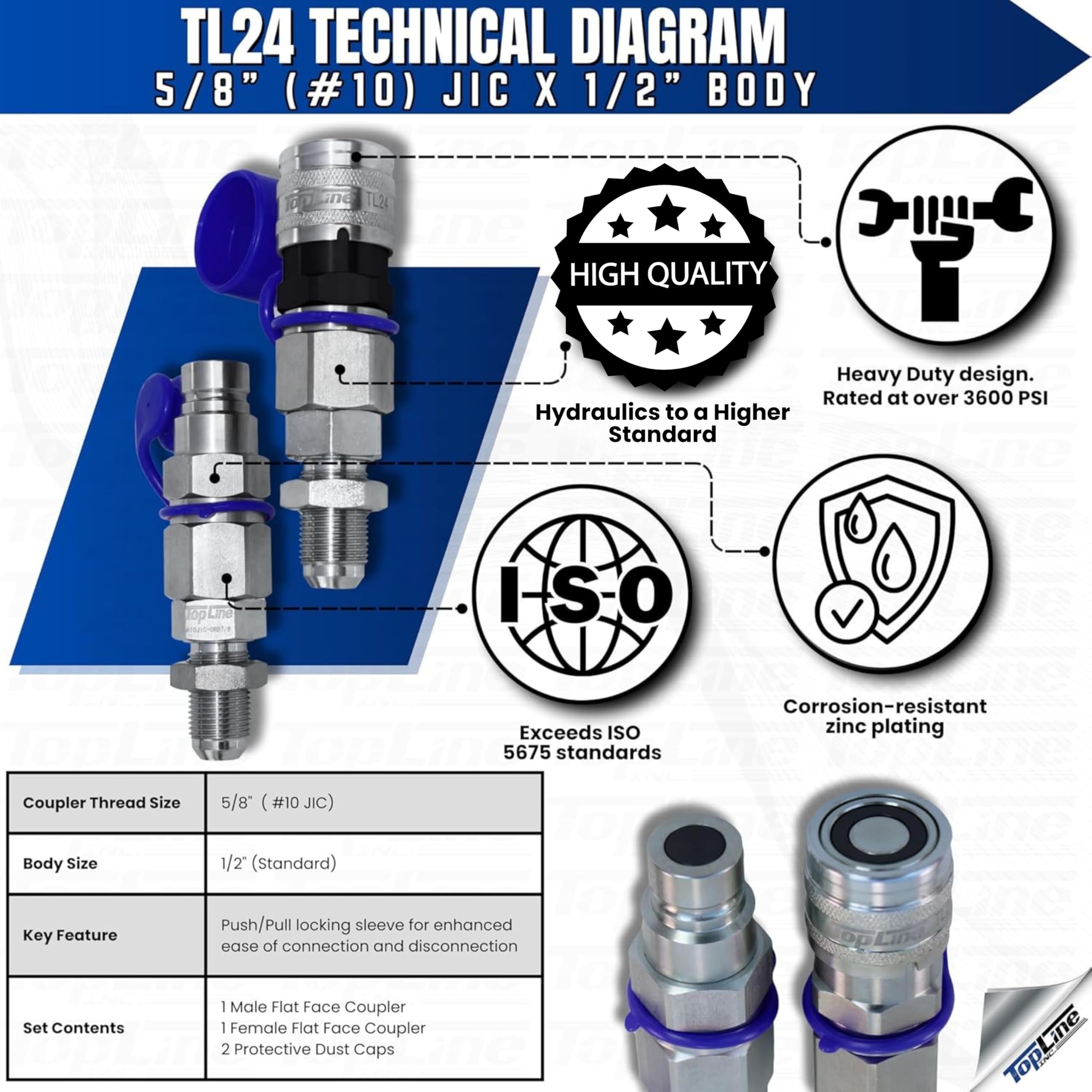

Specification Details
Model Number TL24
Coupler Body Size 1/2"

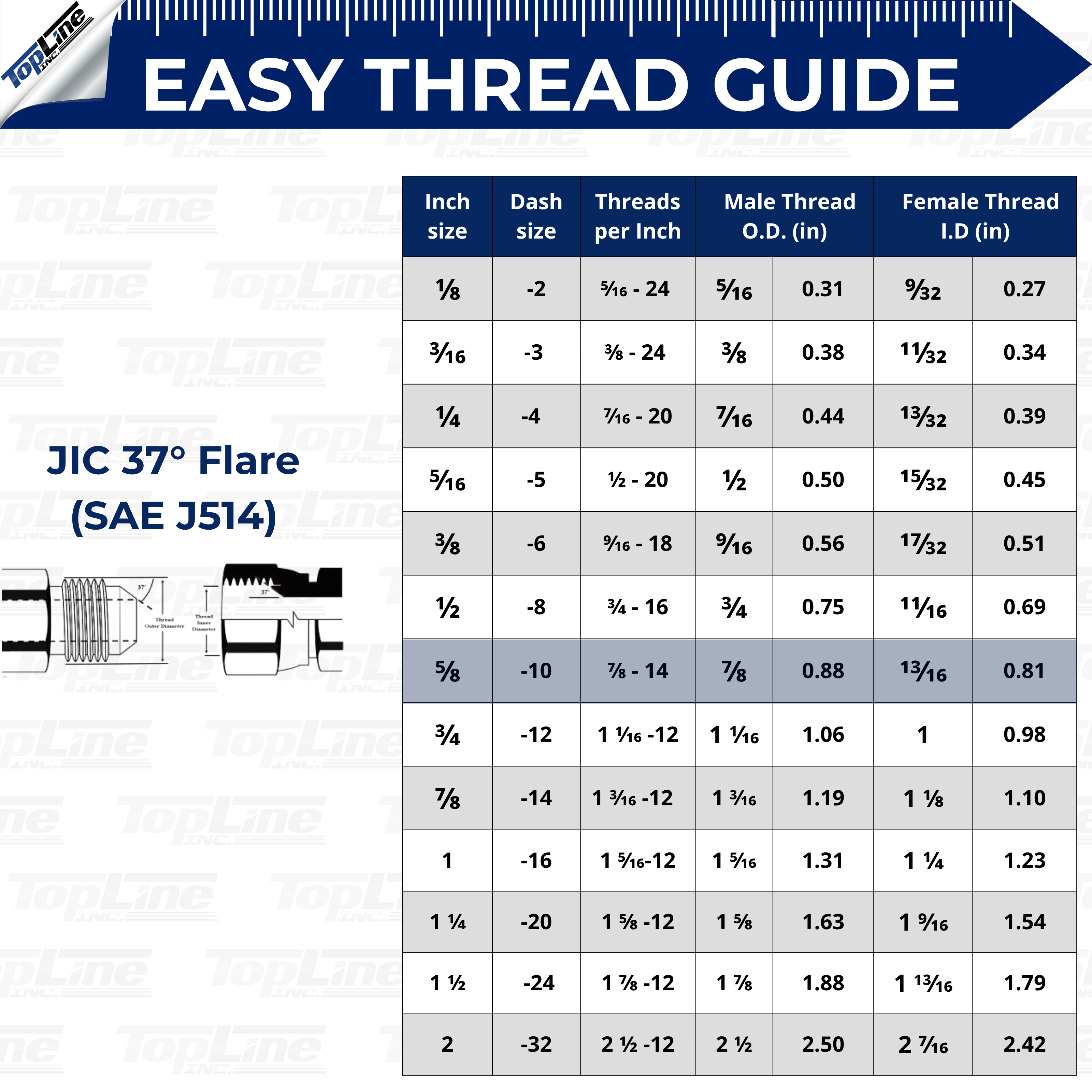

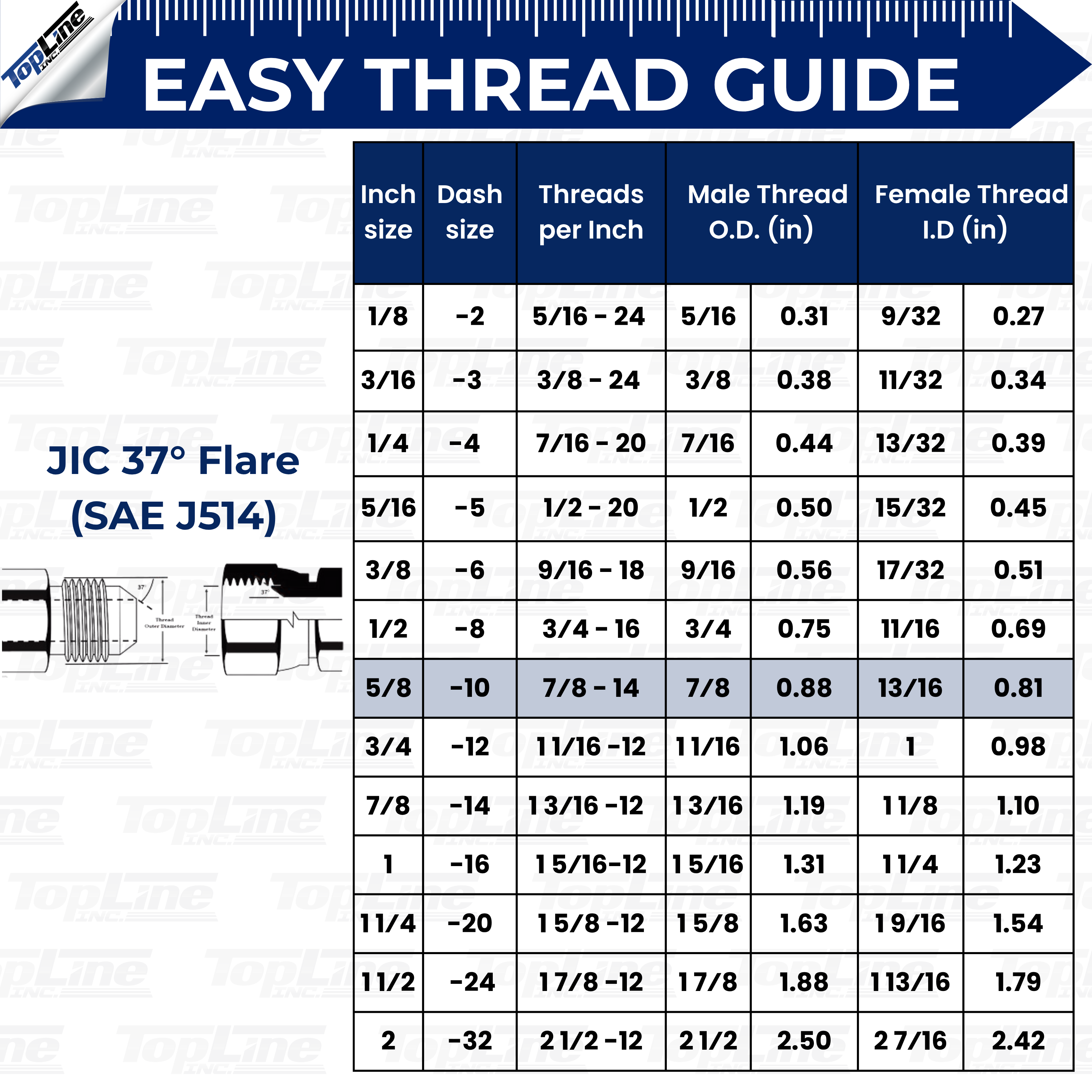

Coupler Thread Size 5/8" (#10) JIC
Thread Inner Diameter 0.88”
Thread Dash Number -10
Coupler Material Type Steel
Coupler Plating Type Corrosion-resistant trivalent zinc

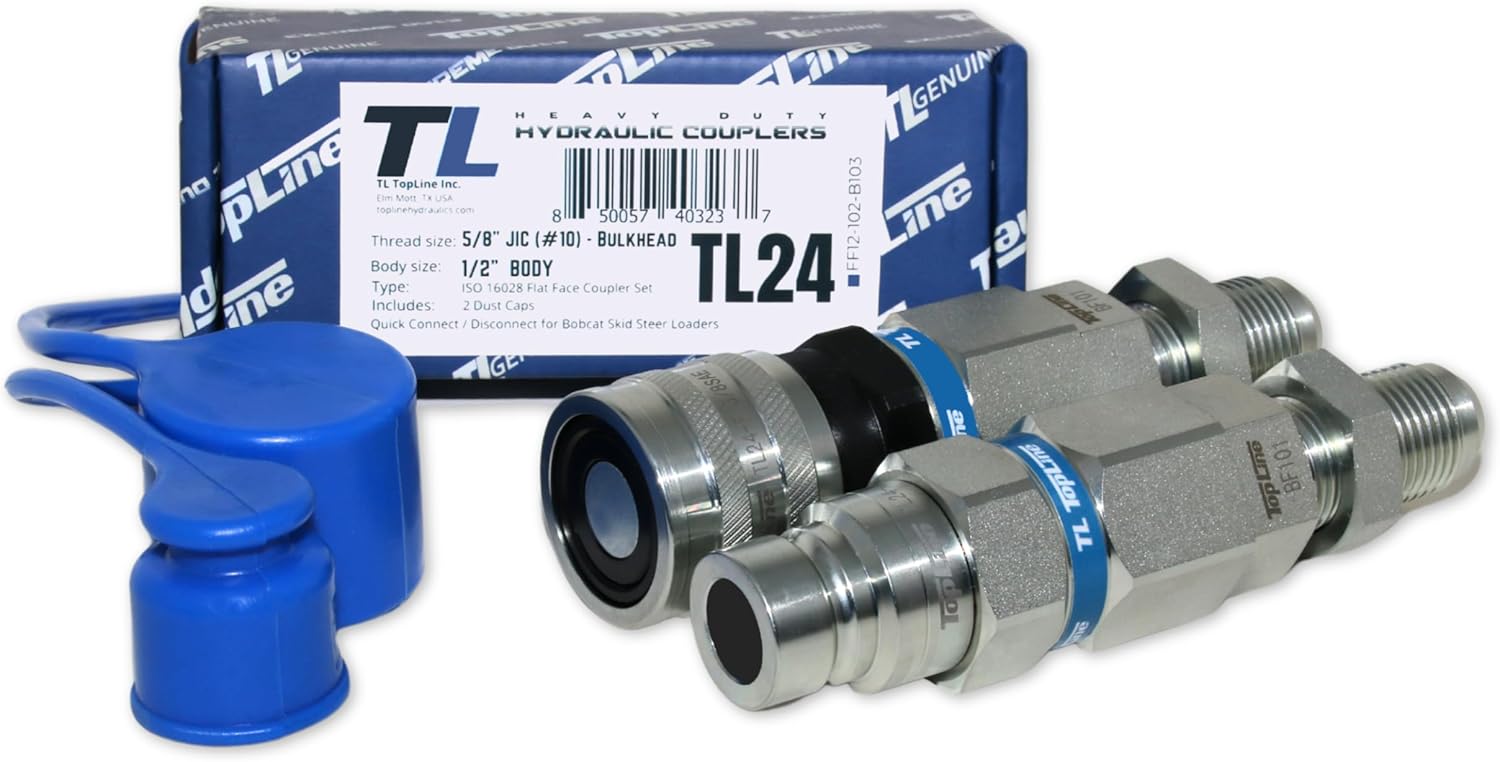

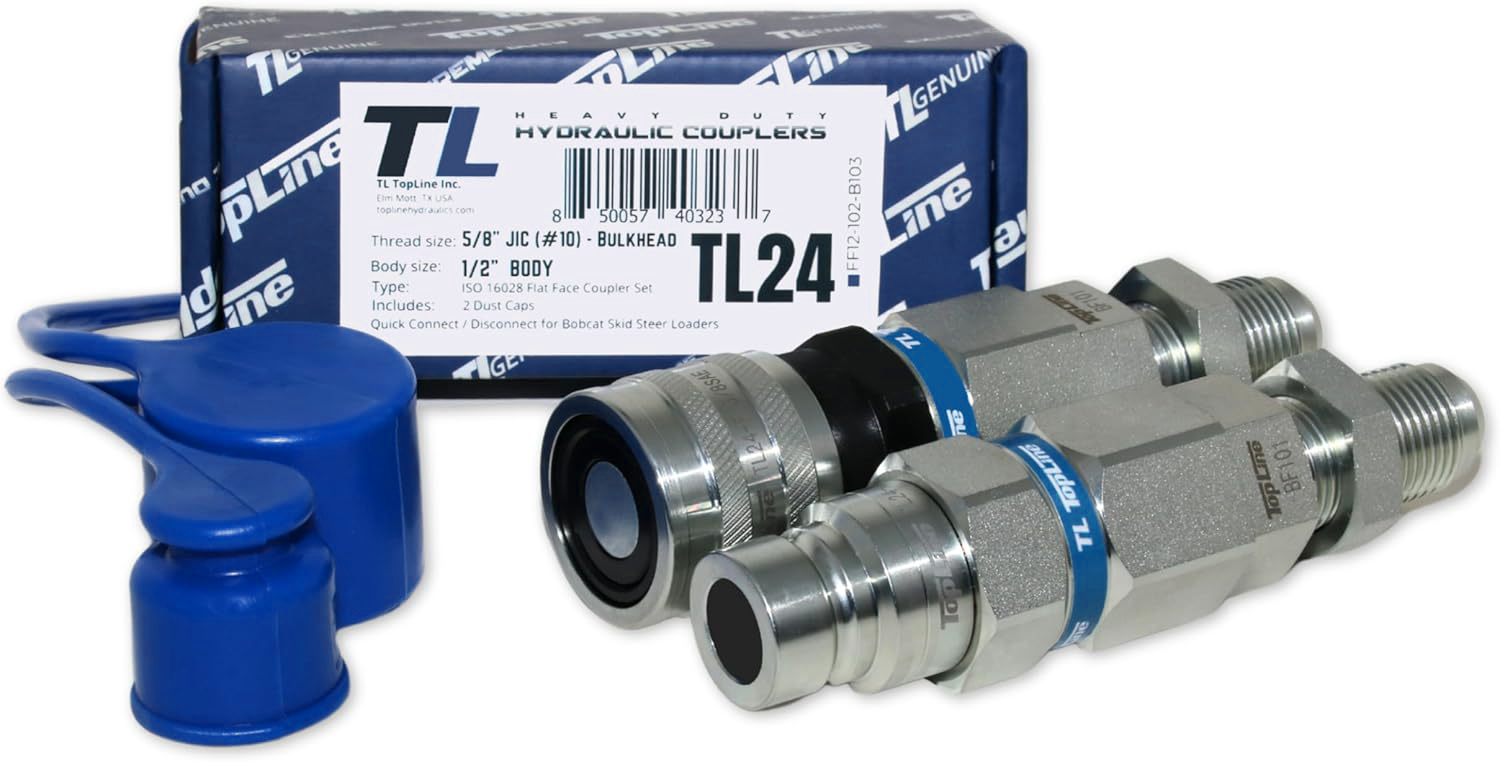

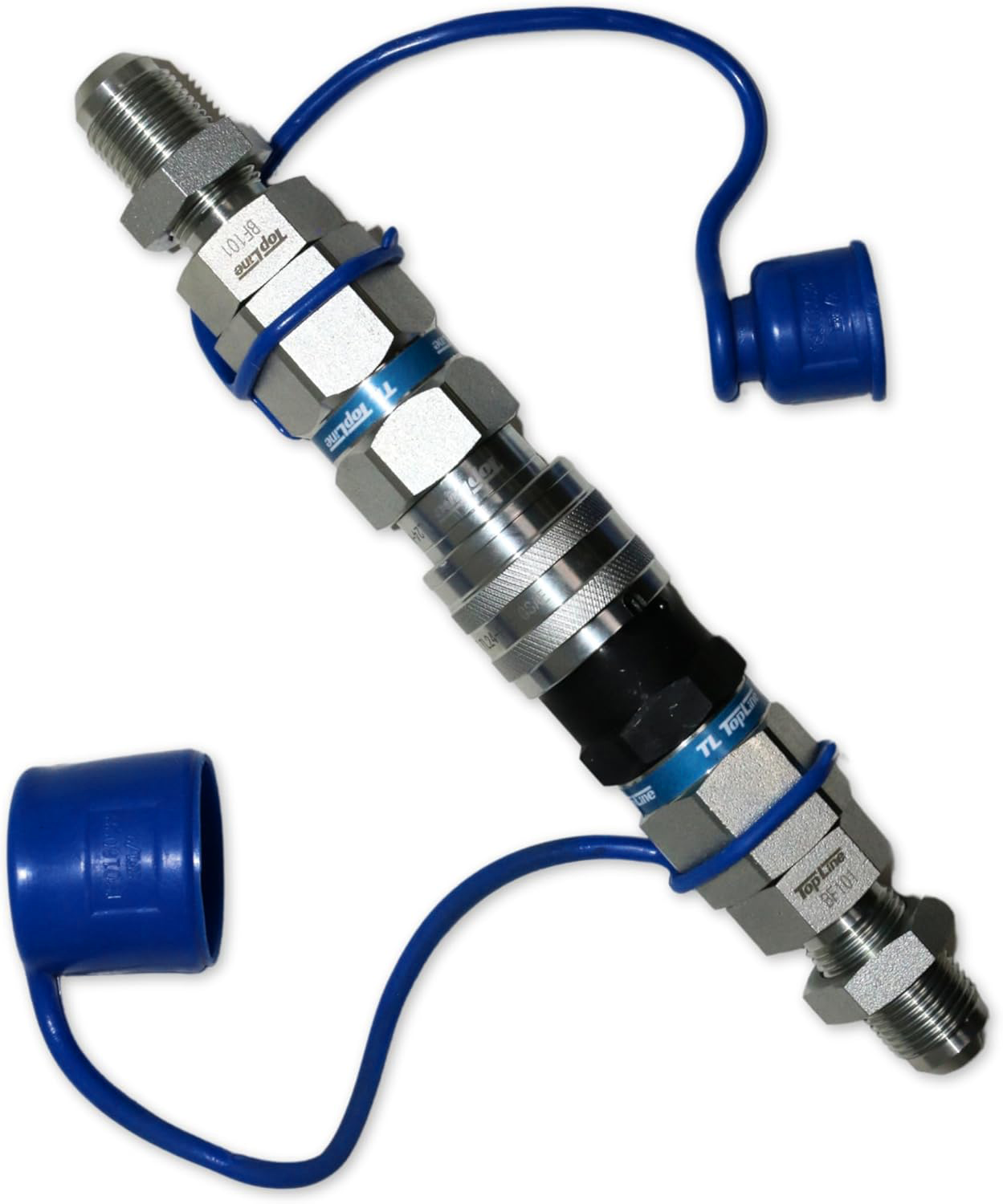

This set includes: 1 Male Flat Face Coupler
1 Female Flat Face Coupler
2 Protective Dust Caps


TL23 TL20 TL21 TL22 TL24
This coupler may fit:
  • BOBCAT (2001 or older) -  463, 553, 753, 763 (This coupler set comes with the adapters necessary to connect directly to hydraulic system)
  • NEW HOLLAND - LS140, LS150, LS160, LS170, LS180, LS185, LS190

  • CASE (2004 or newer) - 410, 420, 430, 435, 440, 445, 450, 465, 40XT, 60XT, 70XT, 75XT,

  • GEHL - 4640, 4840, 5640, 6640

Interchangeable Part Numbers:

Manufacturer

Male

Female

Parker

FEM-502-10BMF

FEM-501-10BMF
TopLine FF-1258-3B-8-DC FF-1258-3B-8-DC





(Click below to see what couplers fit your machine)





Other Thread Sizes for 1/2" Body Flat Face Coupler:

3/8”  NPT  Female Thread (Set) TL19

1/2”  NPT  Female Thread (Set) TL23

1/2”  NPT  Female Thread (Male) TL40 -Connect under pressure

#08  JIC   Male Thread    (Set) TL20

5/8” SAE Female Thread (Set) TL21

#10  JIC   Male Thread    (Set) TL24   -With Bulkhead fitting-

5/8”  ORFS  Male Thread  (Set) TL26  -With Bulkhead fitting-

3/4”  SAE  Female Thread (Set) TL22

#12  JIC   Male Thread     (Set) TL25   -With Bulkhead fitting-

3/4”  NPT  Female Thread (Set) TL30

3/4”  NPT  Female Thread (Male) TL43 -Connect under pressure-



Flat Face to Agricultural Style Adapters:

Flat Face to Male Ag Couplers TL46

Flat Face to Male & Female Ag Coupler TL36



See our Store for more coupler sizes
