Product Description

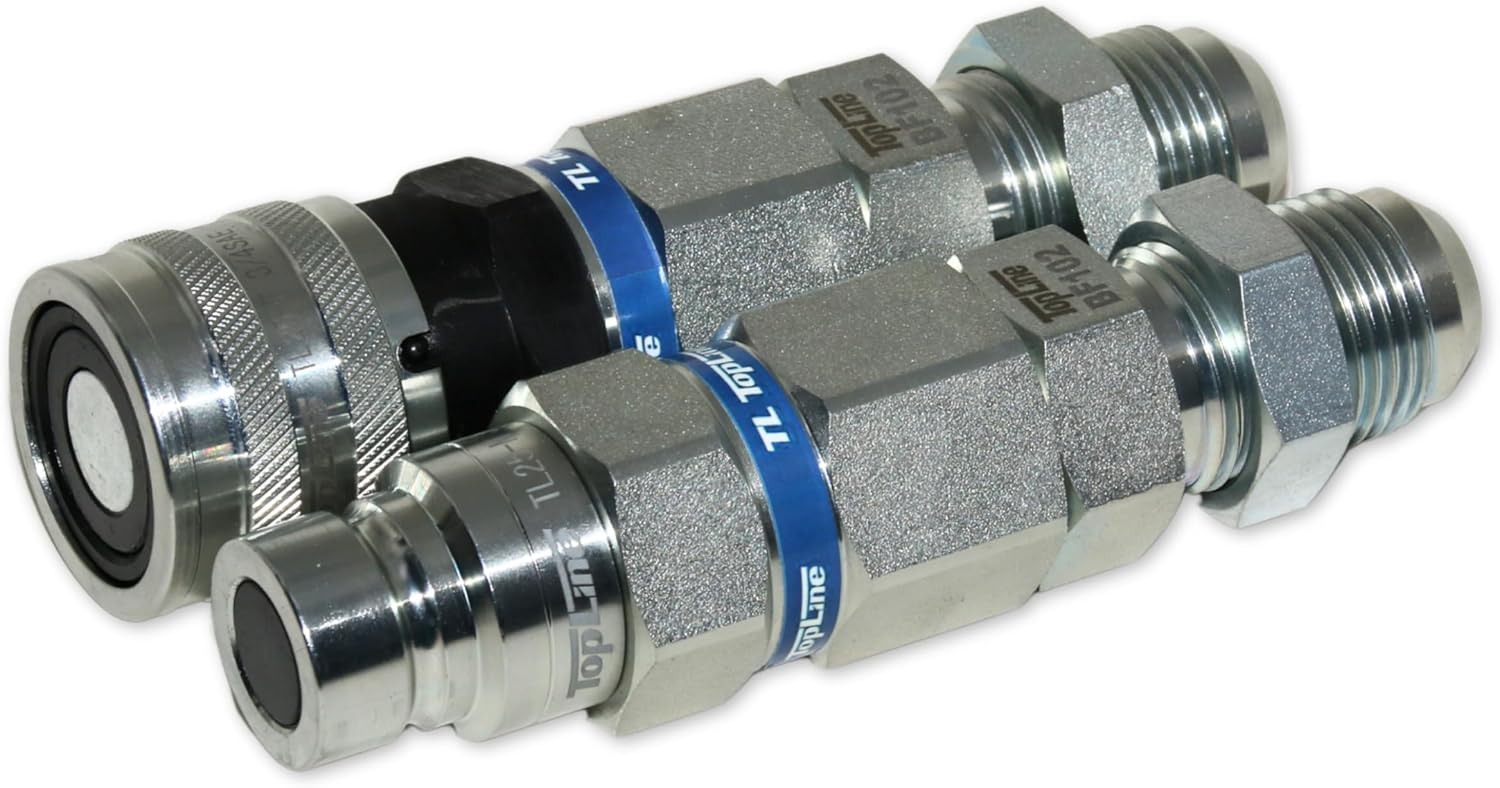

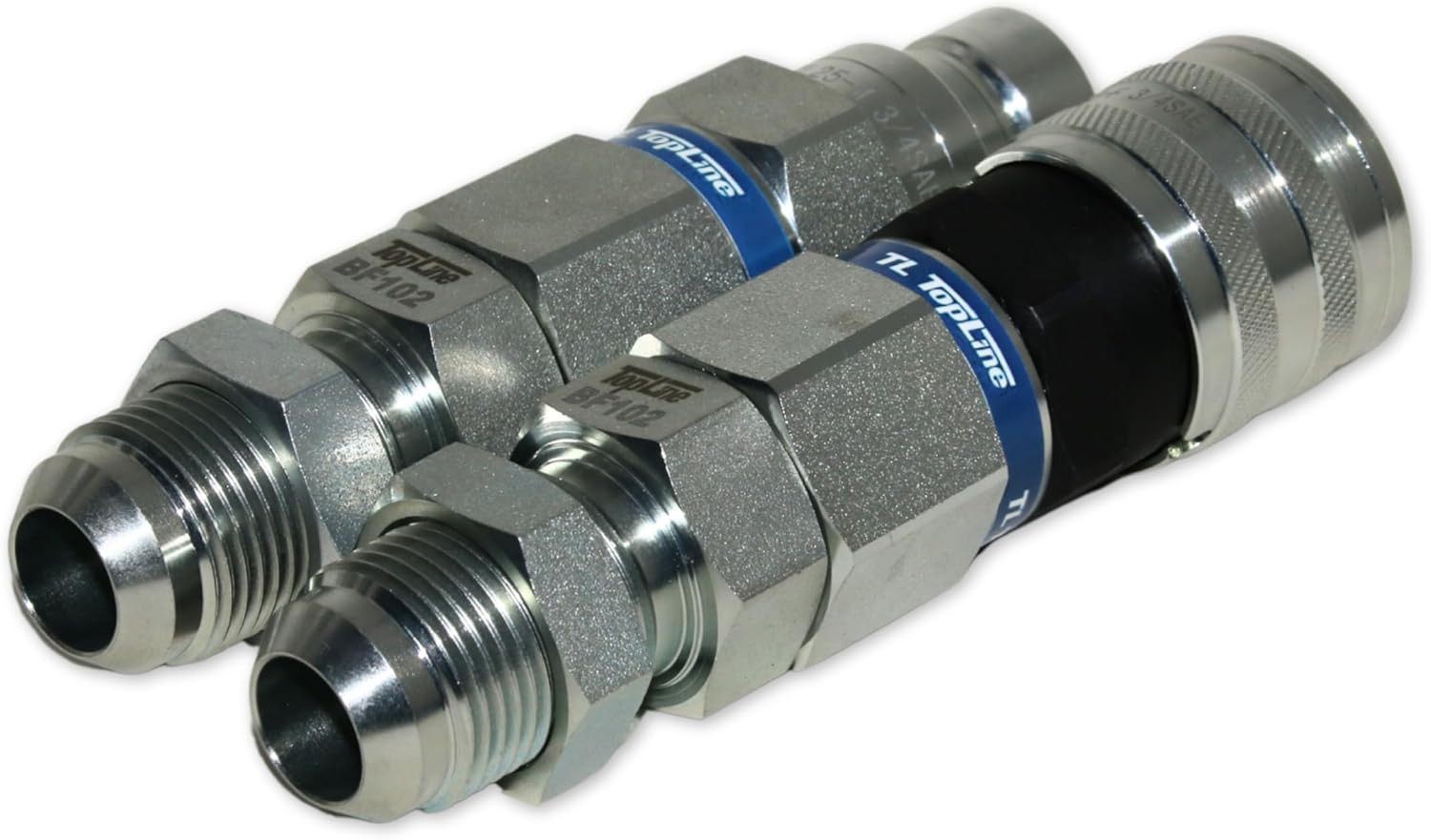

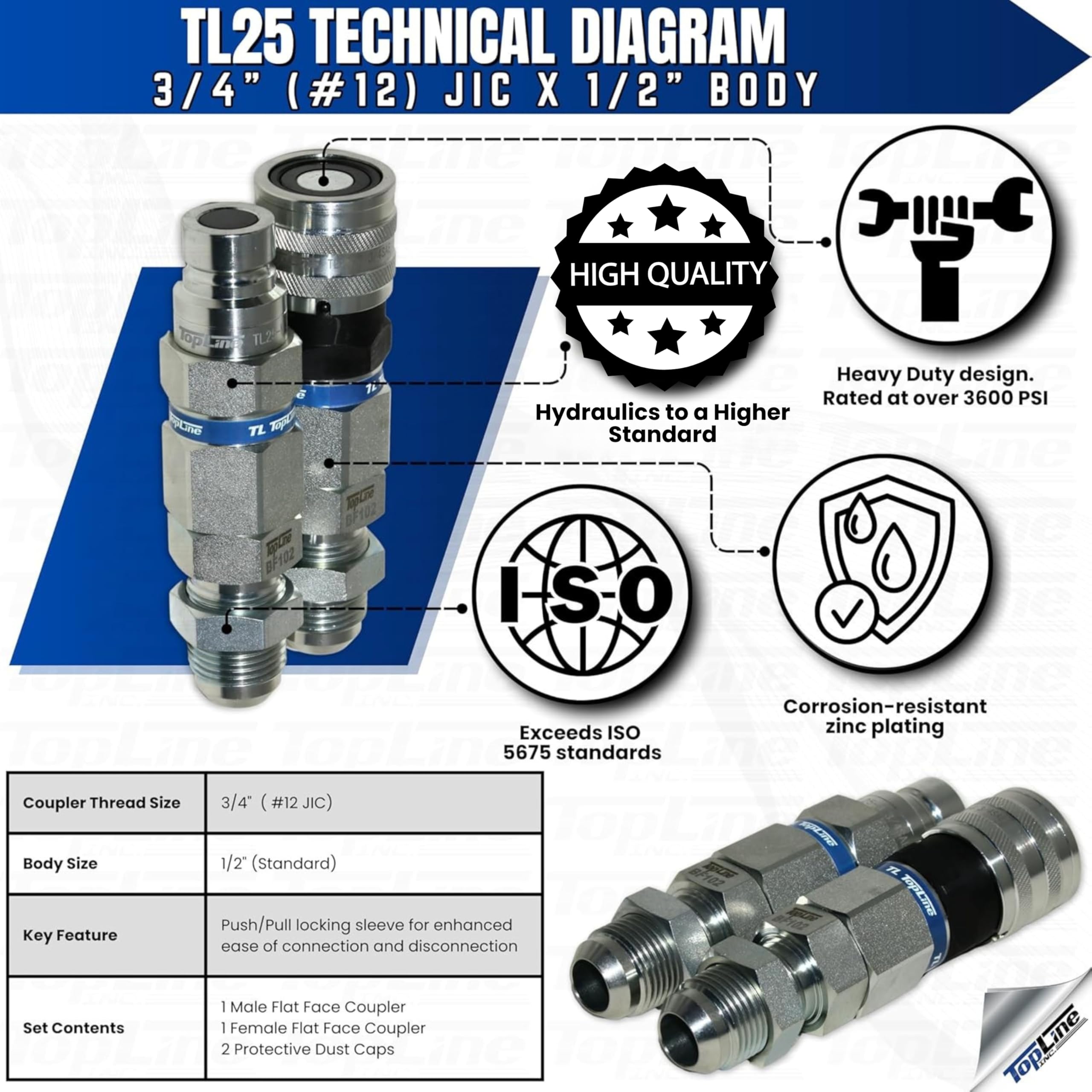

TL25 1/2" Body Bulkhead Flat Face Hydraulic Quick Connect Coupler Set (#12 JIC Thread)
The TL25 is a heavy-duty, professional-grade hydraulic coupler set featuring a bulkhead mounting design and a #12 (3/4") JIC thread. Built to exceed ISO 16028 standards, this 1/2" body set is engineered as a direct replacement for standard couplers on Bobcat and other major skid steer loaders, delivering exceptional performance and reliability under intense pressure.
✓ Bulkhead Mount Design: Specifically engineered with a threaded body for secure mounting through machine frames or service panels, preventing lines from dangling and reducing strain.
✓ Heavy-Duty Industrial Rating: Rated for high-pressure hydraulic circuits with a working capacity of over 5076 PSI, built to withstand rugged job site environments.
✓ ISO 16028 Flush Face Technology: The flat face design minimizes fluid loss during disconnection and prevents air inclusion, while making it easy to wipe clean to protect your system from contaminants.
✓ Universal Skid Steer Compatibility: Designed to fit many models from Bobcat, John Deere, CAT, Kubota, CASE, JCB, and more.

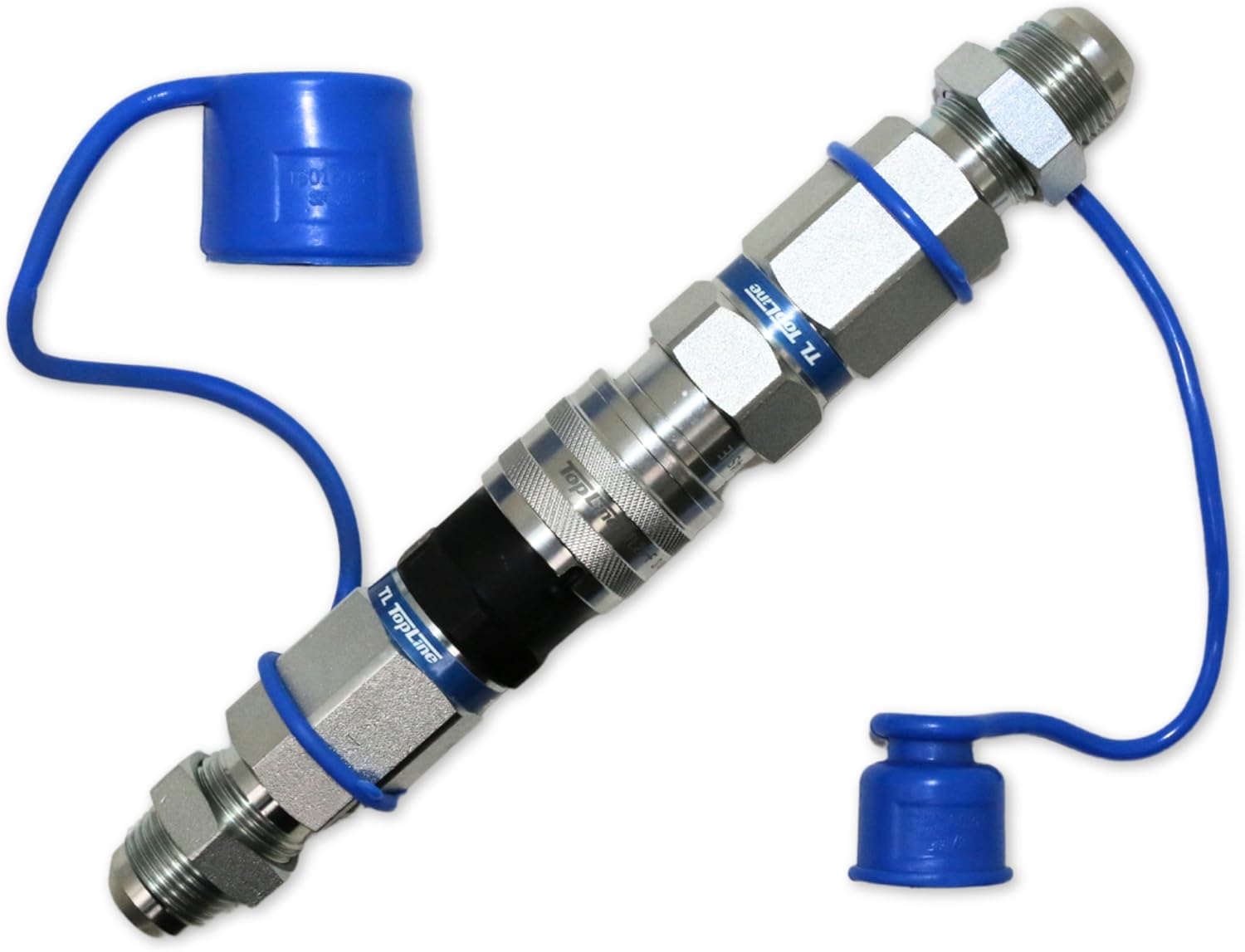

✓ Ergonomic & Secure: Equipped with a push-connect locking sleeve and heavy knurled sleeves for a secure, non-slip grip when handling with gloved hands. Includes protective dust caps.
Specifications
| Detail | Specification |
| Model Number | TL25 |
| Coupler Body Size | 1/2" |

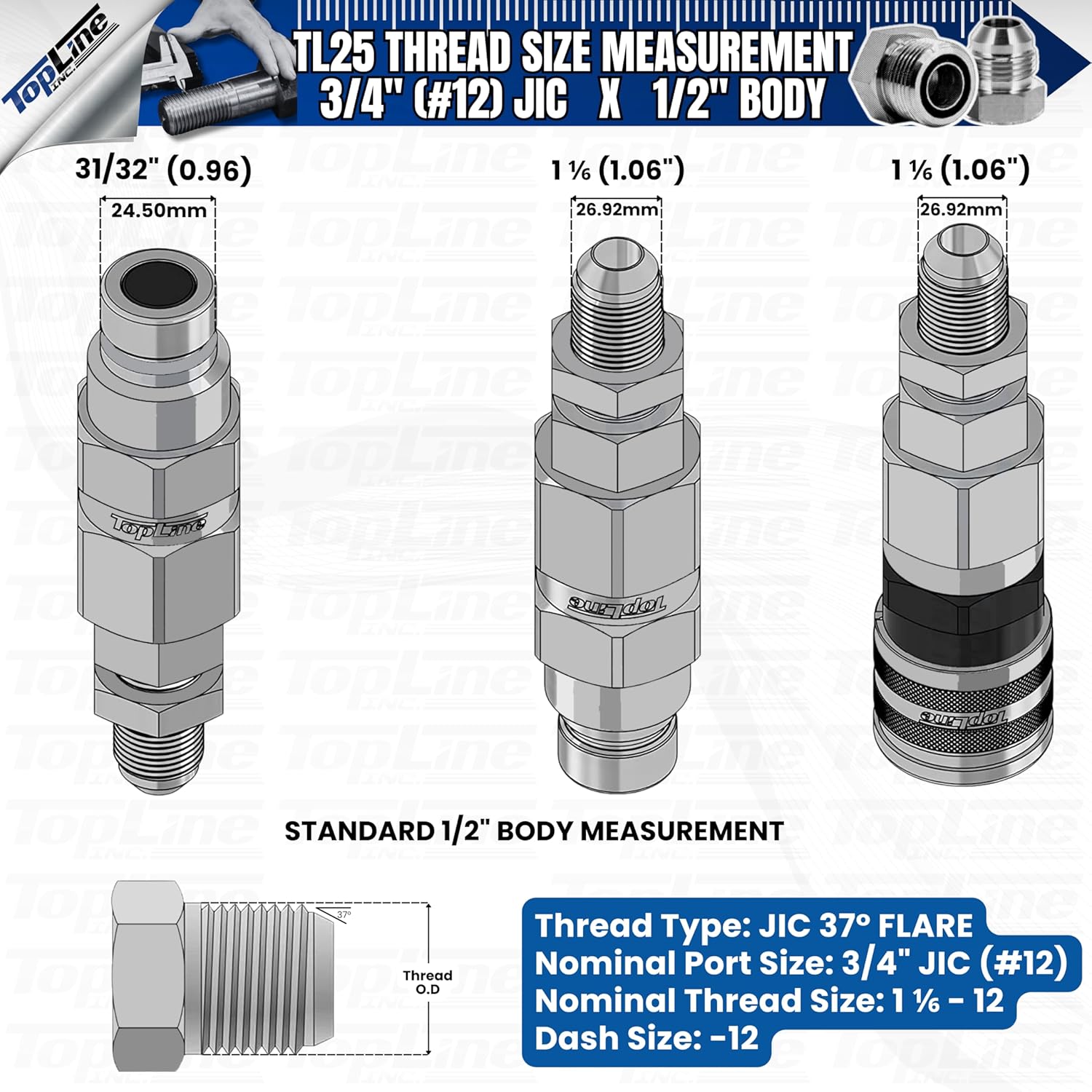

| Coupler Thread Size | #12 (3/4") JIC Bulkhead |

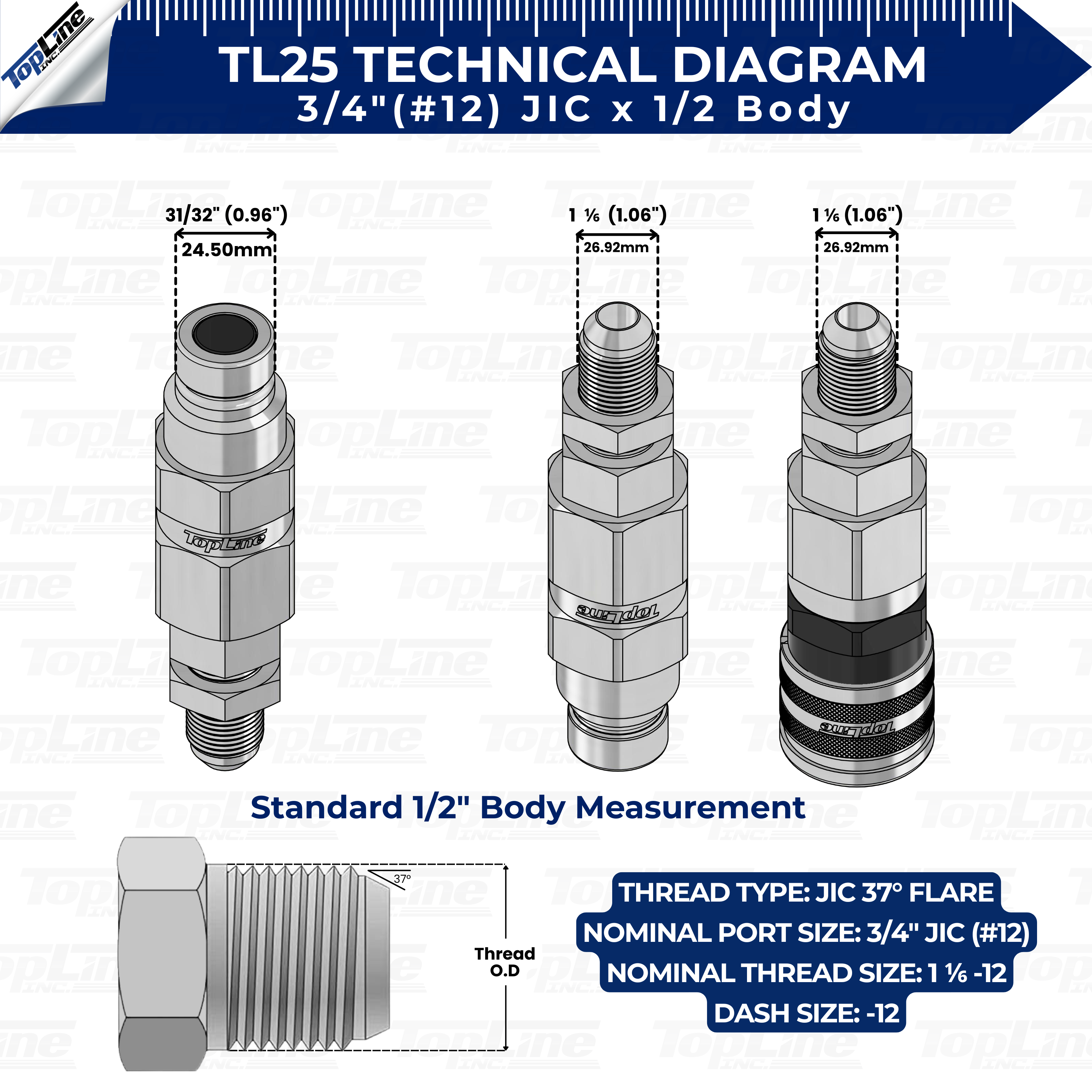

| Thread Outer Diameter | 1 1/16" |
| Thread Dash Number | -12 |
| Coupler Material Type | Heavy-Duty Steel |
| Plating Type | Corrosion-resistant trivalent zinc |

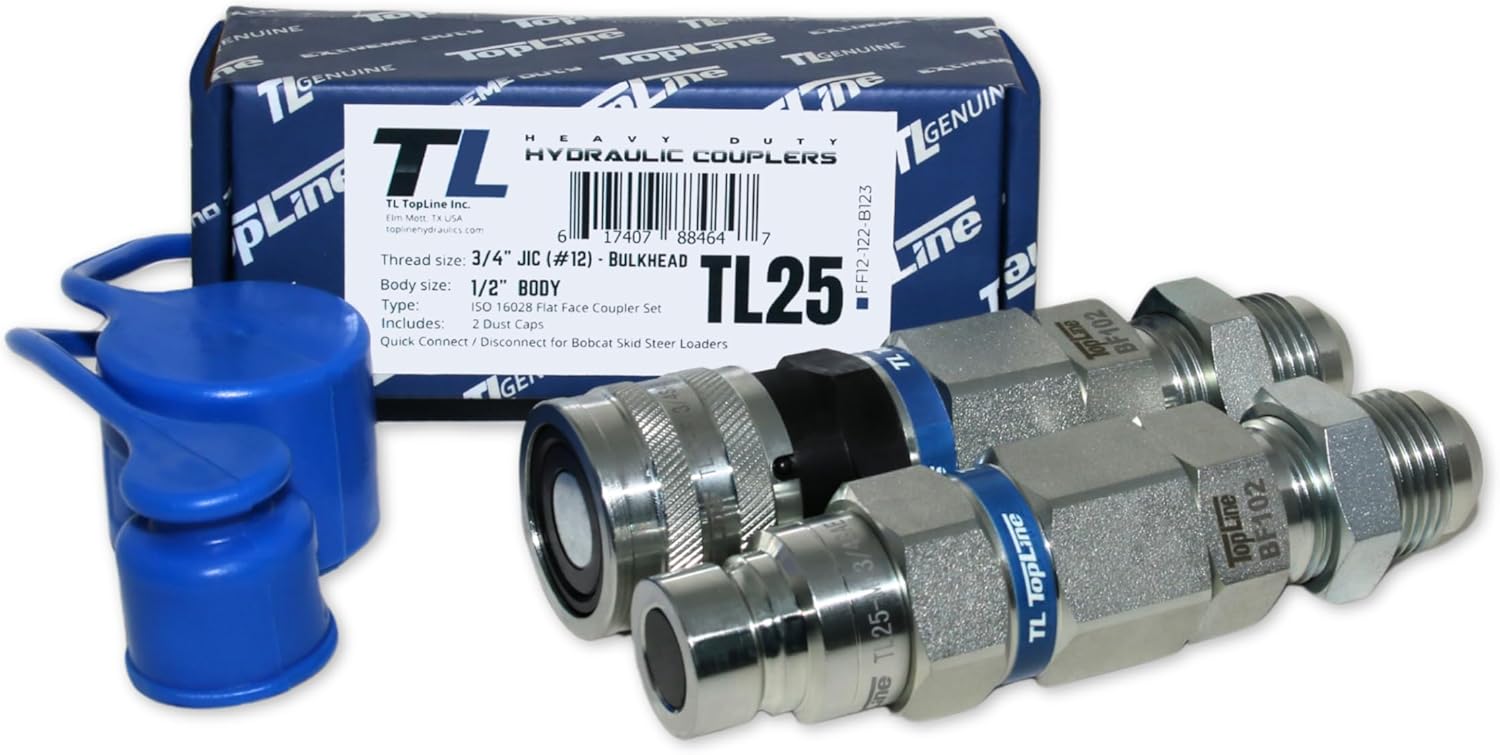

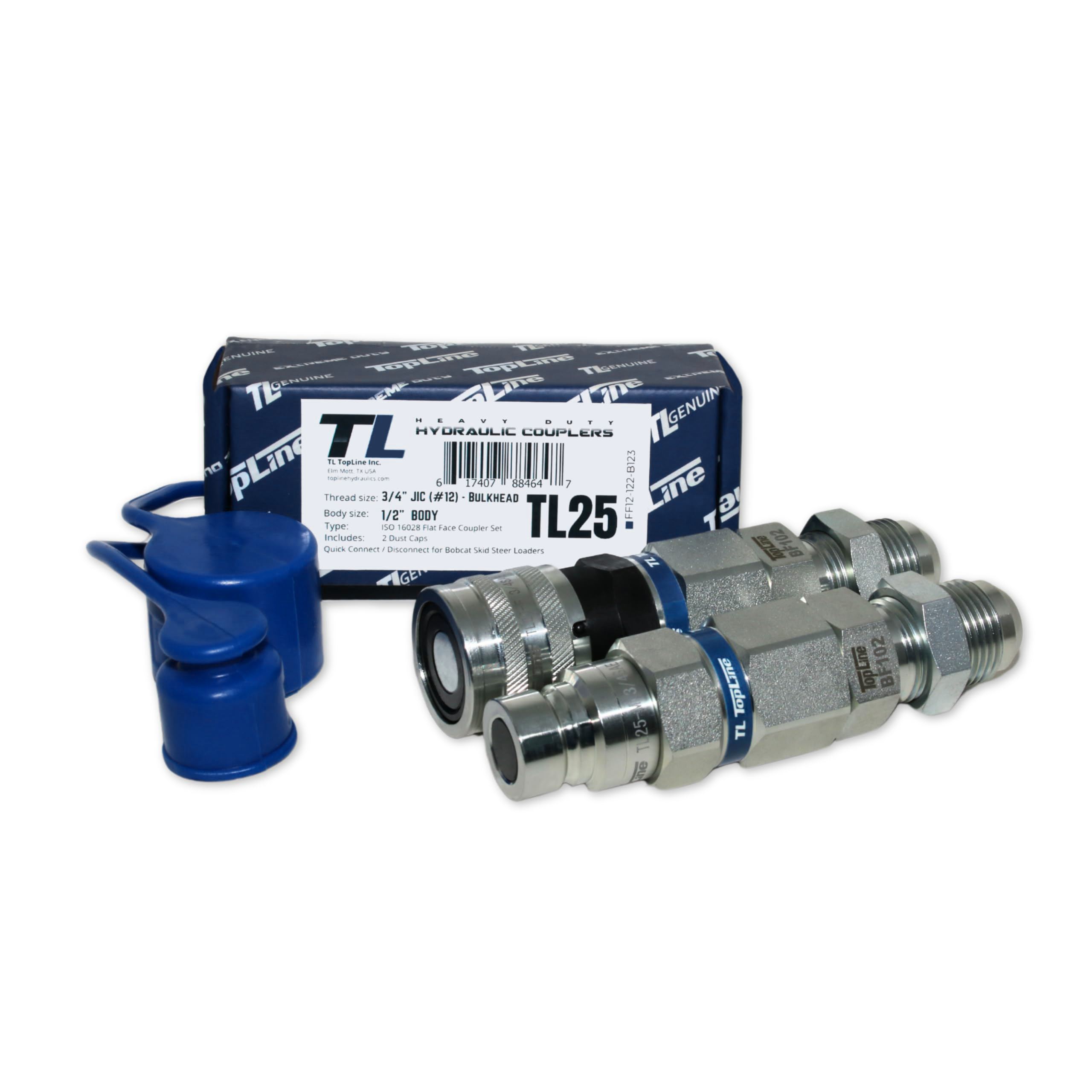

| Package Includes | (1) Male Flat Face Coupler, (1) Female Flat Face Coupler, (2) Protective Dust Caps |
Frequently Asked Questions
Q: What makes the TL25 ideal for skid steers?
A: The TL25 combines a standard 1/2" body size with a bulkhead mounting configuration and a rugged #12 JIC connection, making it a drop-in replacement for factory couplers on many Bobcat and construction loaders.
Q: Do I need thread sealant for the JIC connection?

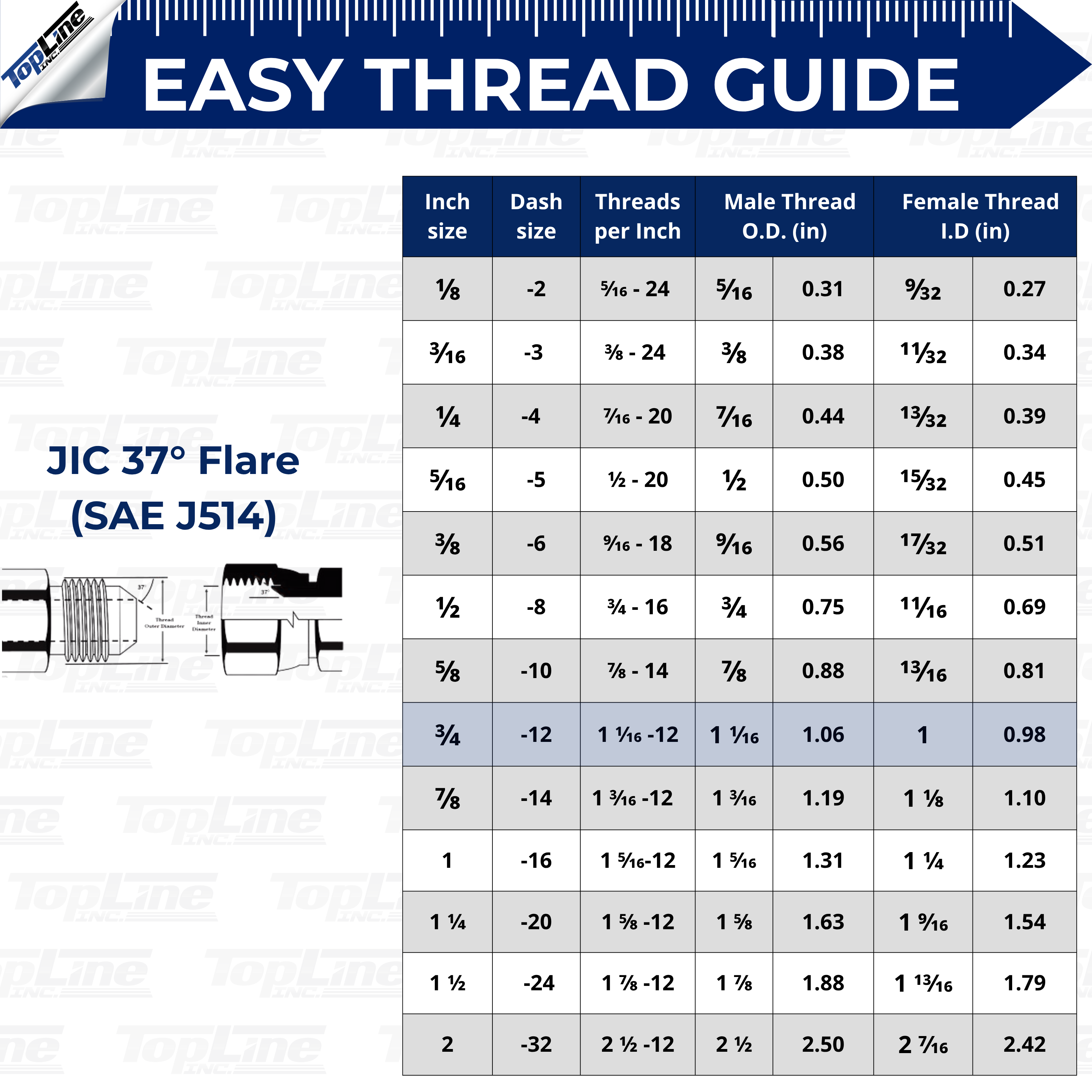

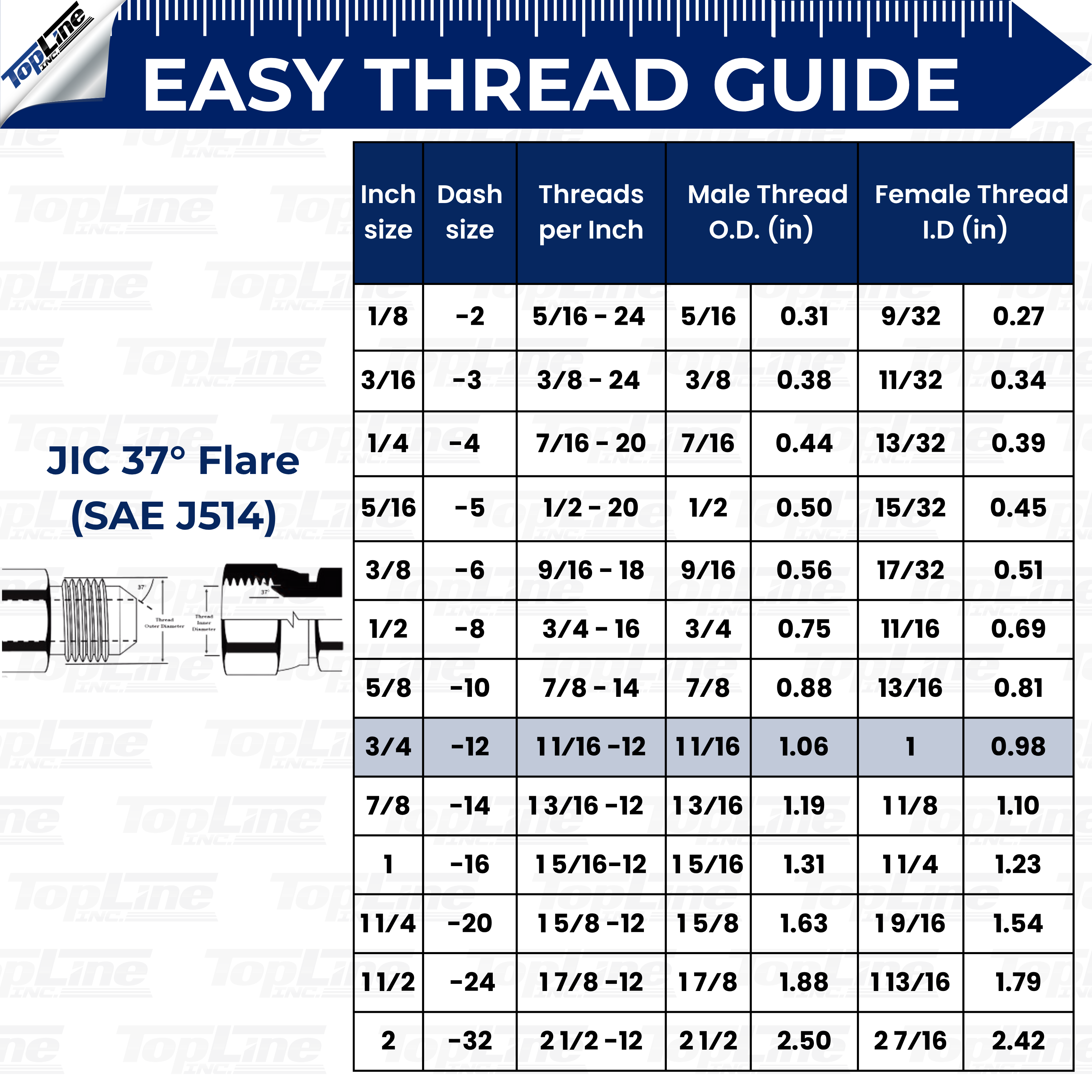

A: No. JIC fittings utilize a 37-degree metal-to-metal flare seat to create a secure seal. Thread sealant or Teflon tape is not required or recommended on the JIC flare threads.
Q: How does the flat face design protect my hydraulic system?
A: Traditional poppet couplers can trap dirt around the valve area, which gets pushed straight into your hydraulic lines upon connection. The flat-face design can be wiped completely clean with a shop rag in seconds, preventing contamination and extending the life of your machine's pumps and motors.
TL25 1/2" Body with 3/4" JIC Thread Bulkhead | Hydraulic Quick Connect Coupler
These couplers are designed for hydraulic attachments with a 1/2" Body with 3/4" (#12) JIC Thread Bulkhead. They are a direct replacement for standard couplers on many skid steer models. Our couplers fit popular brands like Bobcat, John Deere, CAT, and more. The flat face design minimizes hydraulic fluid loss and meets ISO 16028 standards.
This coupler may fit:
- BOBCAT (2001 or older) - 7753, 773, 863, 873, 963
**This coupler set comes with the adapters necessary to connect directly to hydraulic system.
Other Thread Sizes for 1/2" Body Flat Face Coupler:
|
1/2” NPT Female Thread (Male) TL40 -Connect under pressure |
|
#10 JIC Male Thread (Set) TL24 -With Bulkhead fitting- |
|
5/8” ORFS Male Thread (Set) TL26 -With Bulkhead fitting- |
|
#12 JIC Male Thread (Set) TL25 -With Bulkhead fitting- |
|
3/4” NPT Female Thread (Male) TL43 -Connect under pressure- |
Flat Face to Agricultural Style Adapters:
See our Store for more coupler sizes
