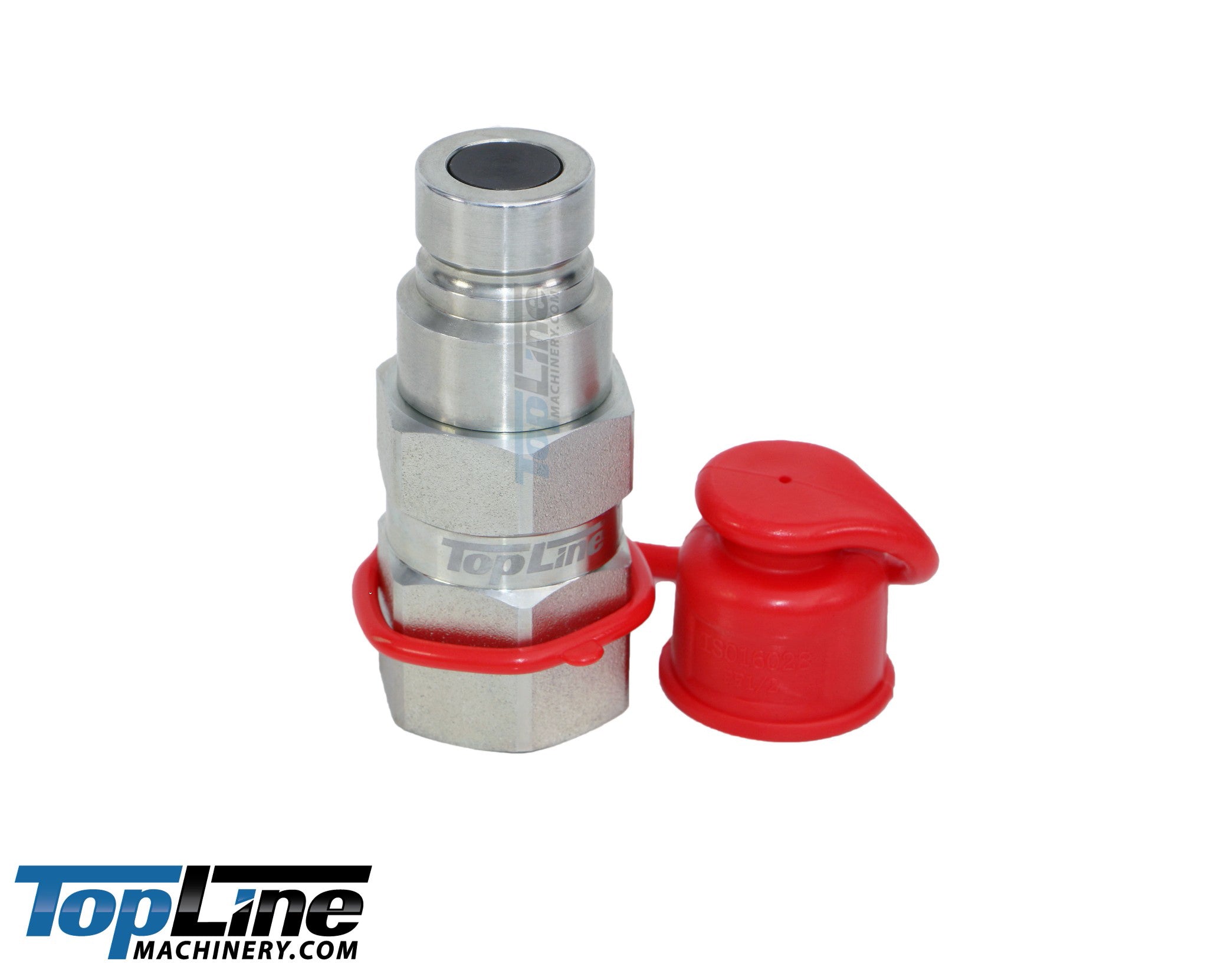

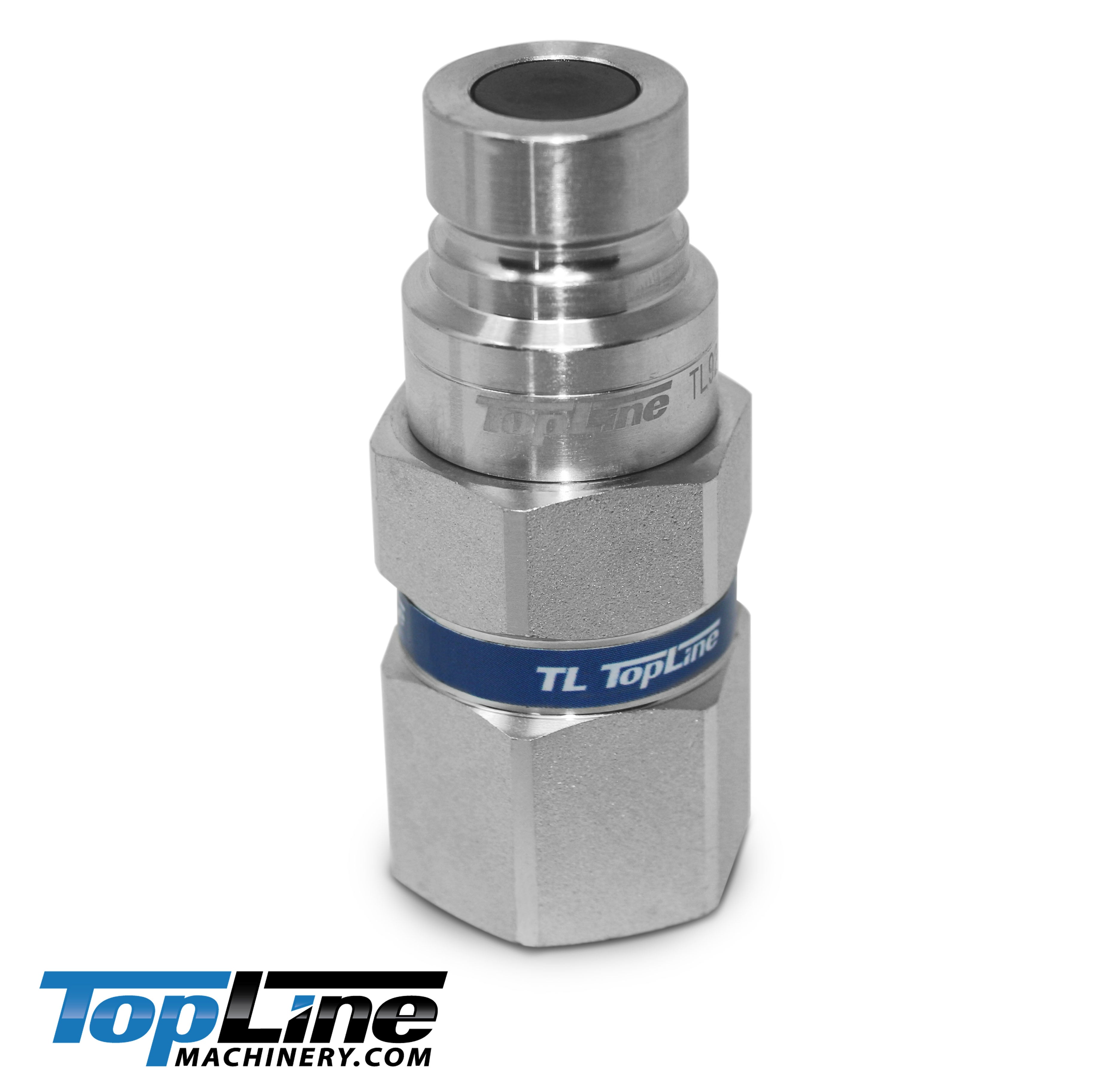

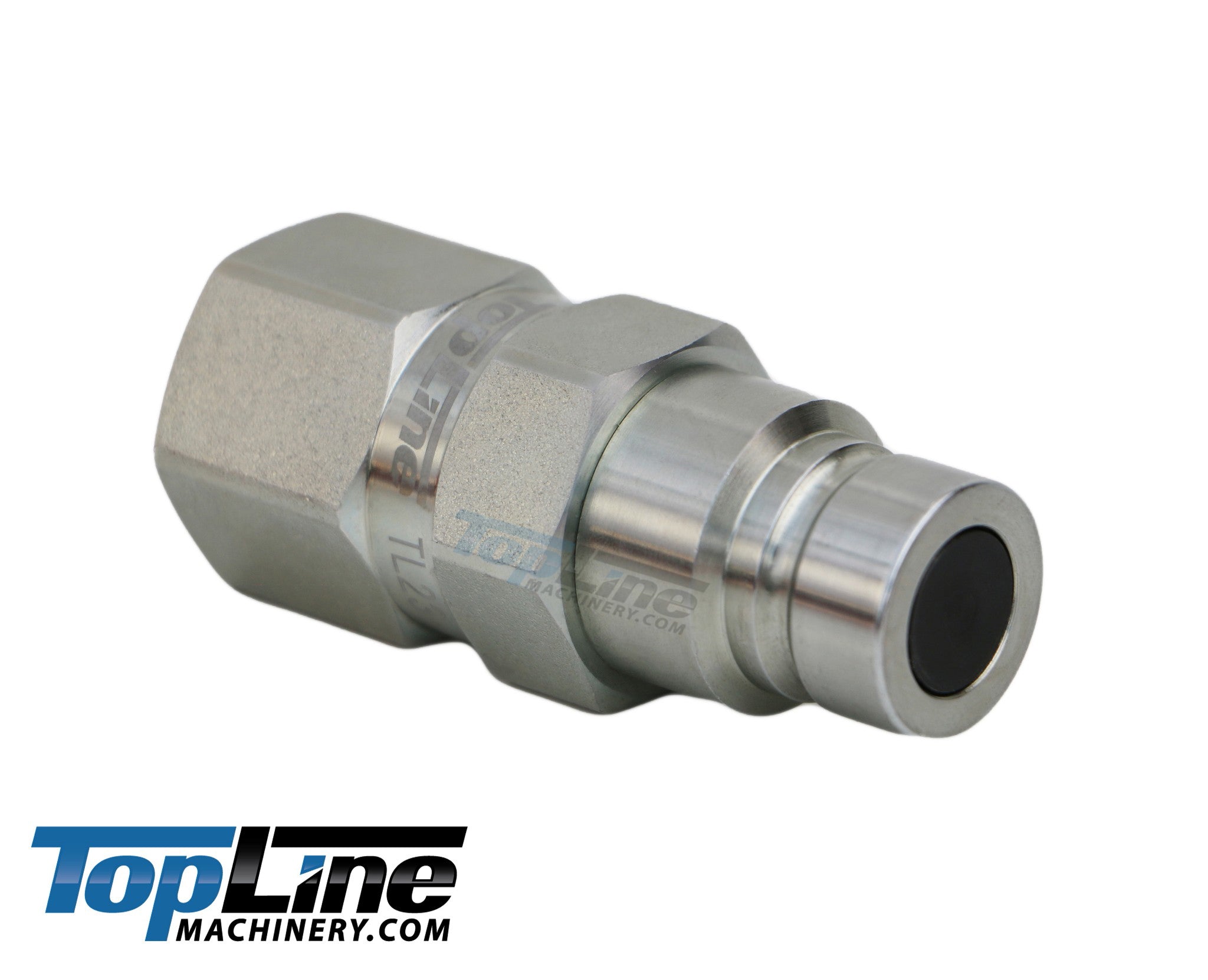

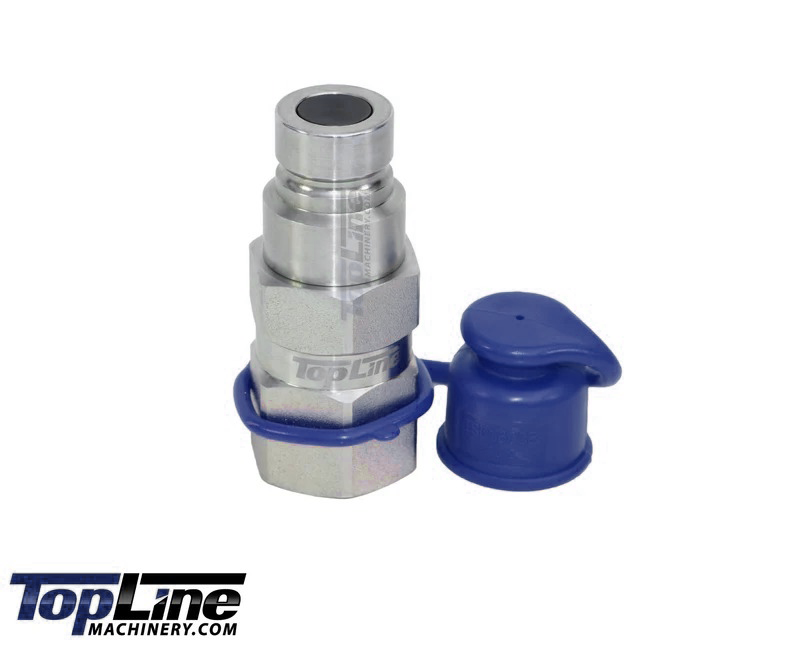

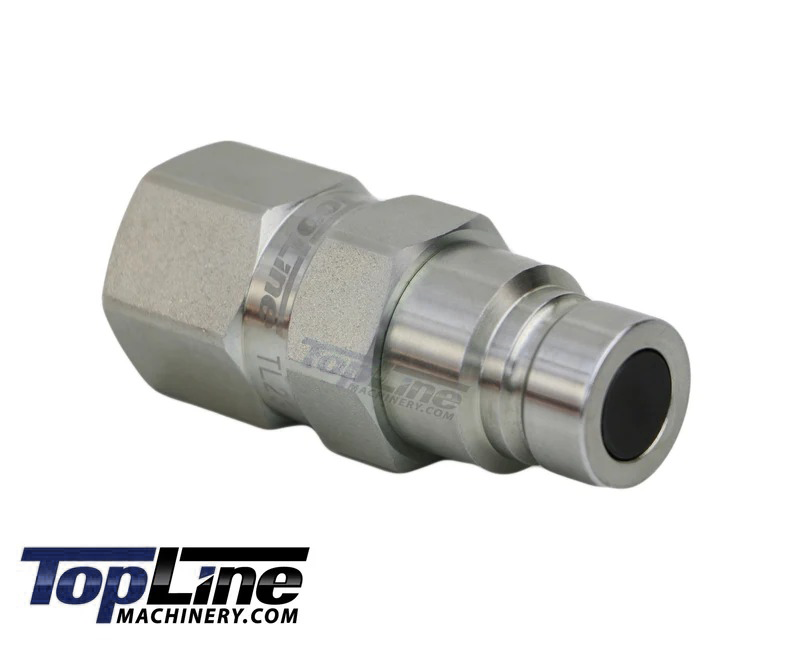

These couplers are a direct replacement for the standard sized coupler mounted on many models of skid steers and attachments.
These are NOT light duty couplers. The sturdy design of heavy duty TopLine couplers have become well known for their durability and ability to withstand rugged conditions.
Our coupler sizes fit many models of: Bobcat, John Deere, CAT, Kubota, New Holland, CASE, JCB, Thomas, Gehl, Volvo, and ASV skid steers.
Flat Face couplers are designed for applications where hydraulic spillage is a concern. One of the great advantages to the Flush Face design is that the couplers are easy to keep clean which helps to prevent contaminants from entering the hydraulic system during connection and disconnection.

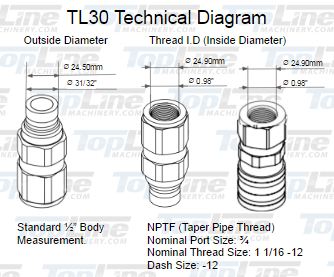

Couples to any standard 1/2" body Flat Face couplers on Skid Steers and other equipment. These couplers meet or exceed the ISO 16028 standard.
Features:
Specifications:
This set includes:
Interchangeable Part Numbers:
Manufacturer |
Male |
Female |
Dixon HT Series |
HT4F6 |
4HTF6 |
DNP PLT4 Series |
FF-HPG-08-12N-NPT |
FF-HPG-08-12C-NPT |
Eaton Aeroquip FD89 |
FD89-1002-12-08 |
FD89-1001-12-08 |
Faster FFH Series |
FFH08 34NPT M |
FFH08 34NPT F |
Parker FE Series |
FEM-502-12FP |
FEM-501-12FP |
Safeway FFE49 Series |
FFE491-6 |
FFE495-6 |
Snap Tite 74 Series |
74N8-12F |
74C8-12F |
Stucchi FIRG Series |
800801009 |
800801008 |
Tomco FE Series |
EP4-31 |
EC4-31 |
TopLine | FF-1234-1-DC | FF-1234-1-DC |
(Click below to see what couplers fit your machine)
More Thread Sizes for 1/2" Body Flat Face Coupler:
1/2” NPT Female Thread (Male) TL40 -Connect under pressure |
#10 JIC Male Thread (Set) TL24 -With Bulkhead fitting- |
5/8” ORFS Male Thread (Set) TL26 -With Bulkhead fitting- |
#12 JIC Male Thread (Set) TL25 -With Bulkhead fitting- |
3/4” NPT Female Thread (Male) TL43 -Connect under pressure- |
Flat Face to Agricultural Style Adapters:
See our Store for more coupler sizes
