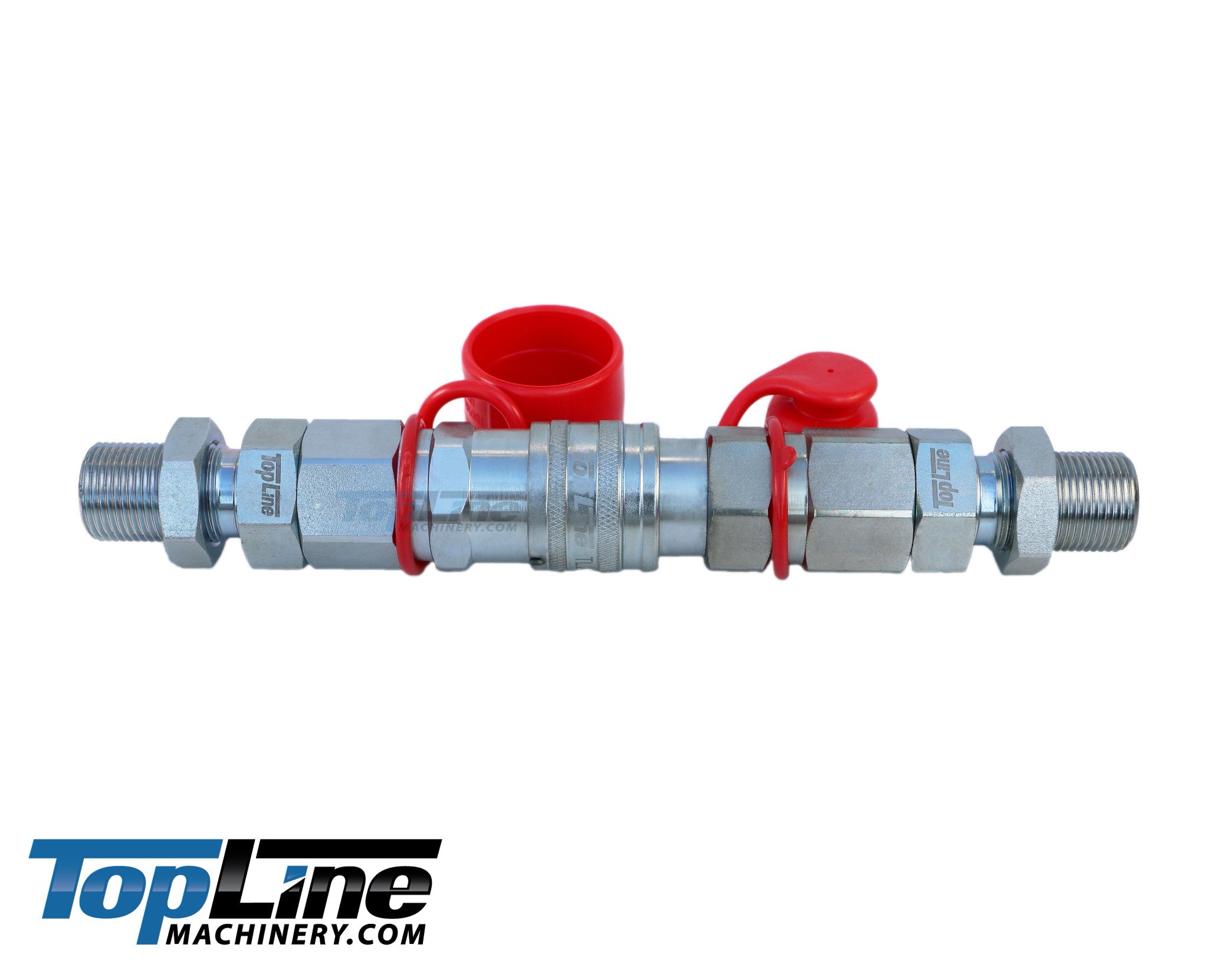

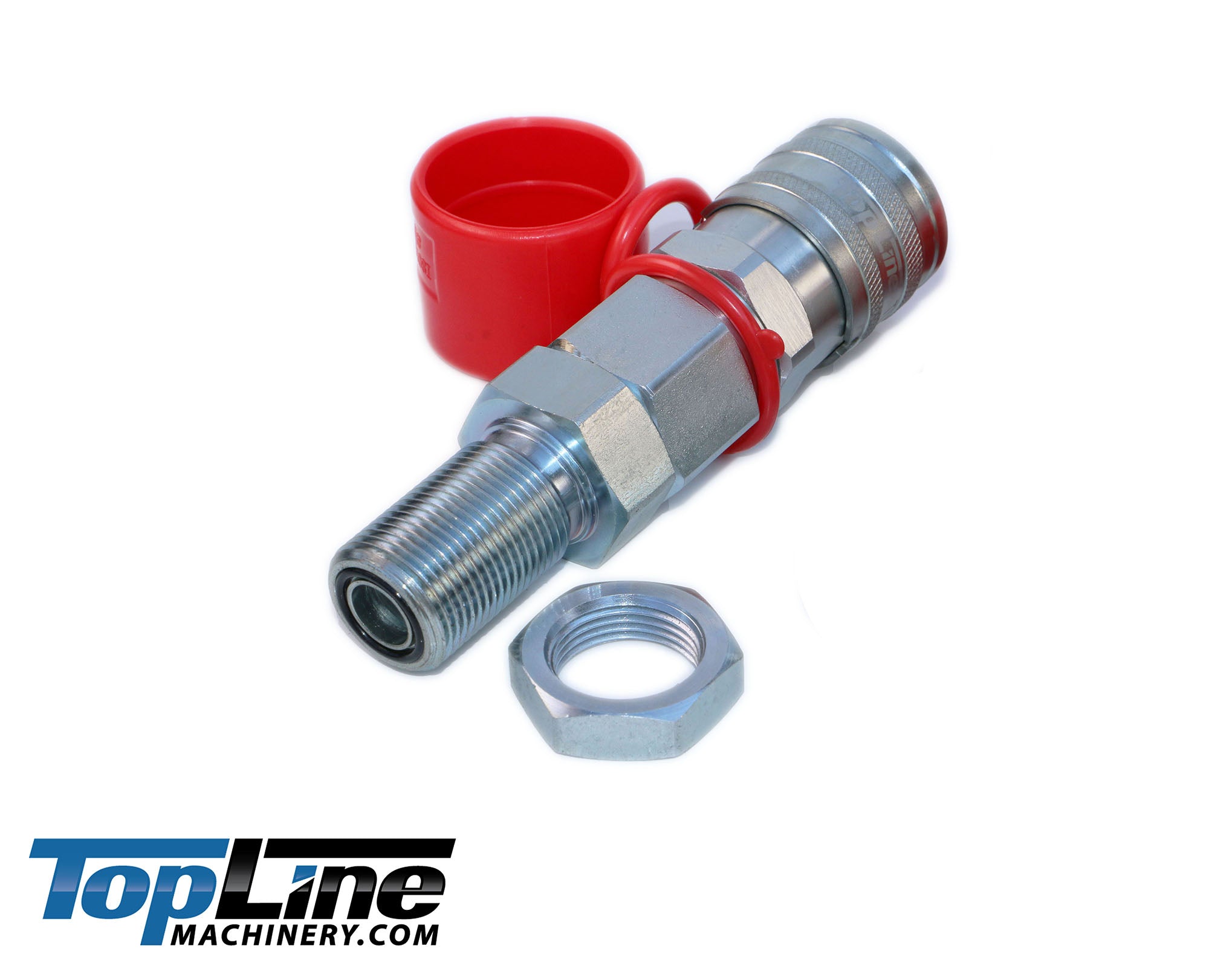

TL104-F 3/4" ORFS Thread Female Flat Face Quick Connect Hydraulic Coupler Bulkhead 1/2" body size for John Deere mini excavator

🗸 TL104-F 1/2" BODY FEMALE FLAT FACE HYDRAULIC COUPLER (3/4" ORFS THREAD)

The TL104-F is a professional-grade, bulkhead-mountable hydraulic connector designed for the demanding requirements of mini-excavators, specifically John Deere models. Built to withstand high-pressure environments, this coupler ensures a leak-free, clean, and reliable connection for your auxiliary attachments.

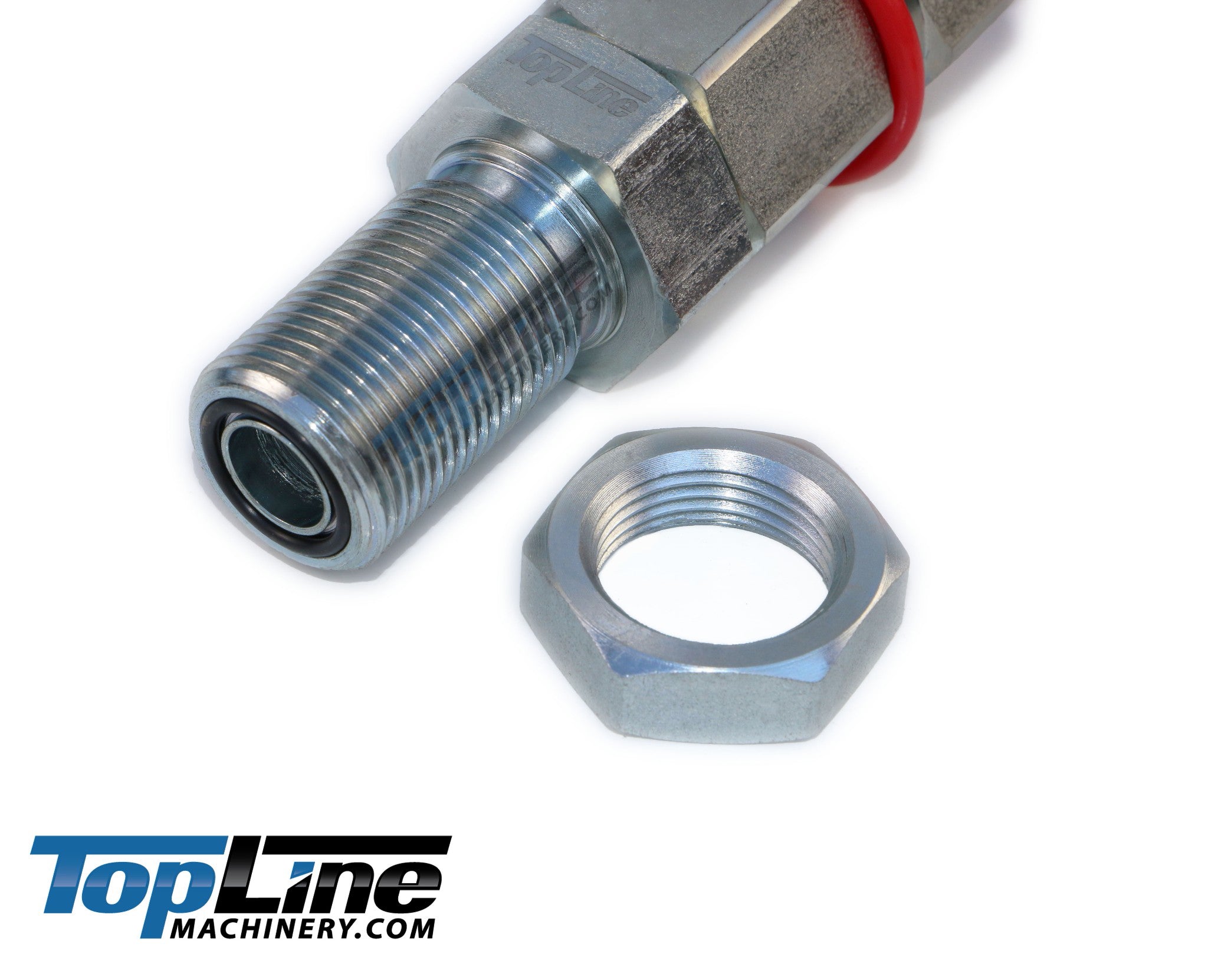

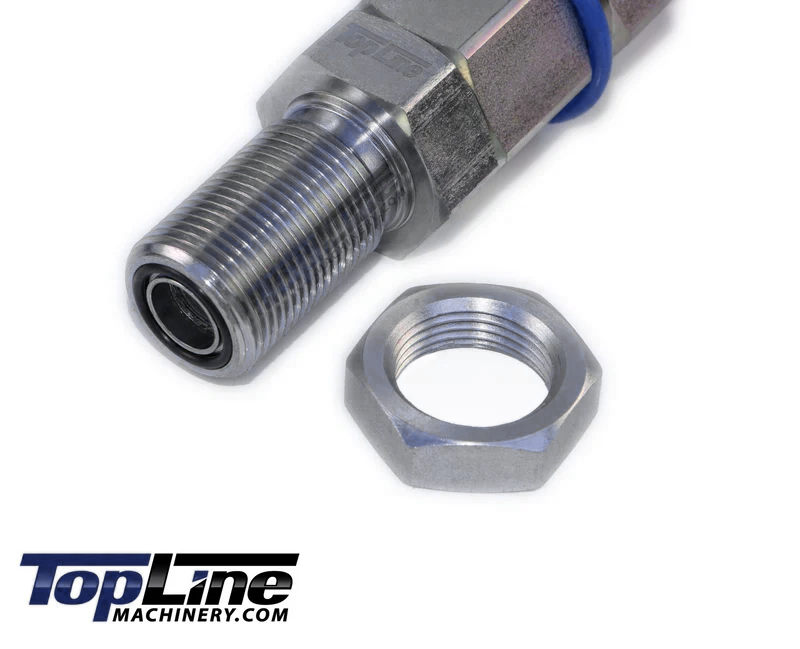

🗸 ORFS (O-RING FACE SEAL) BULKHEAD DESIGN: Engineered with 3/4" ORFS threads, this coupler provides a high-integrity, leak-proof seal ideal for bulkhead mounting. The ORFS design uses a replaceable O-ring in the face of the fitting, making it the industry standard for high-pressure systems where vibration resistance is critical.

🗸 HEAVY-DUTY INDUSTRIAL RATING: These are not light-duty components. Rated for over 5076 PSI, the TL104-F is constructed from high-strength steel to survive extreme pressure spikes and the harsh, high-vibration environment typical of mini-excavator operations.

🗸 ISO 16028 FLUSH FACE TECHNOLOGY: This design minimizes hydraulic fluid spillage and air inclusion during disconnection. The perfectly flat, flush-face surface is easy to wipe clean, ensuring that abrasive contaminants do not enter your hydraulic circuit, which protects your pump from premature internal scoring.

🗸 FIELD-READY ERGONOMICS: Designed for quick, reliable service, the push-connect locking sleeve features heavy, deep-knurled texturing for a positive, non-slip grip. This enables fast, safe attachment changes in the field, even when the operator is wearing thick safety gloves or working in wet, muddy conditions.

Specifications

Q: What is the primary advantage of ORFS (O-Ring Face Seal) fittings?

A: ORFS fittings are widely considered the best choice for high-pressure systems because they provide a "dry" seal. By compressing an O-ring between the flat face of the fitting and the hose end, they create a superior, vibration-resistant seal that is much less prone to leaking than metal-to-metal (like JIC) or tapered (like NPT) thread connections.

Q: Is the TL104-F a direct replacement for my mini-excavator?

A: Yes, it is designed specifically for bulkhead-style mounting in common applications such as John Deere mini-excavators, providing a direct-fit replacement for standard 1/2" body ISO 16028 flat-face couplers.

Q: Why is cleanliness so important for a mini-excavator's hydraulic system?

A: Compact machines like mini-excavators have smaller hydraulic reservoirs and more sensitive pump systems than large tractors. Contamination is the leading cause of hydraulic failure. The flat-face design, paired with the included protective dust cap, ensures that dirt and moisture are kept away from the sensitive internal valves.

Q: Can this be used for standard attachments?

A: Yes, because it meets the ISO 16028 standard, the TL104-F will couple with any standard 1/2" flat-face male coupler, regardless of the brand or whether it is on a skid steer or an excavator.
