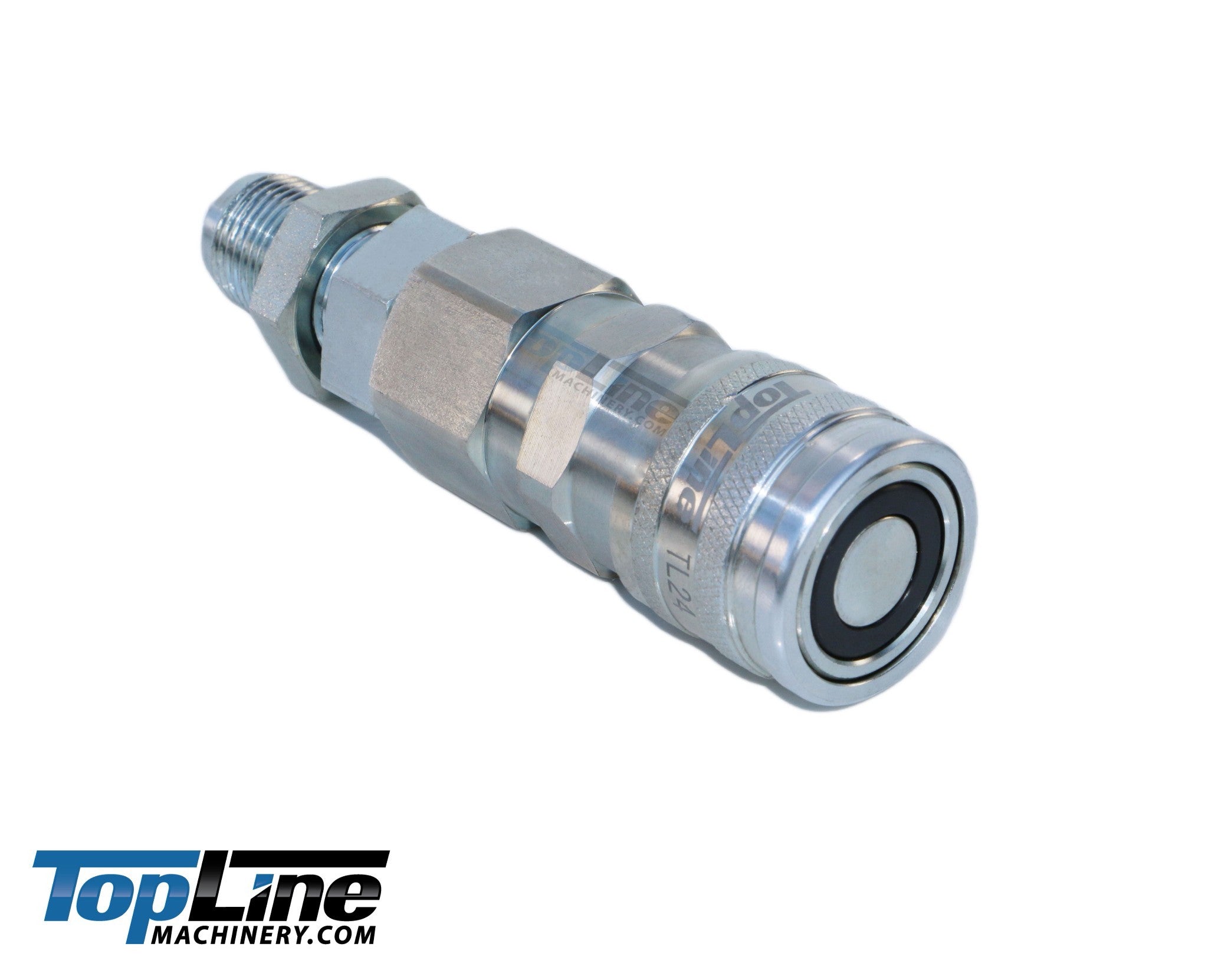

GEHL 131953 Replacement Female Flat Face Quick Connect Hydraulic Coupler Bulkhead Skid Steer Loaders TL24-F

TL24-F (GEHL 131953) 1/2" BODY FEMALE FLAT FACE HYDRAULIC COUPLER (BULKHEAD)

The TL24-F is a high-performance, bulkhead-mountable female hydraulic coupler engineered as a direct replacement for the GEHL 131953. Designed specifically for the demanding environment of skid steer loaders, this coupler ensures a robust, reliable, and contamination-free hydraulic connection that adheres to the strict ISO 16028 international standard.

🗸 HEAVY-DUTY INDUSTRIAL RATING: These are not light-duty components. Rated for over 5076 PSI, the TL24-F is constructed from high-strength steel to survive extreme pressure surges, constant mechanical vibrations, and the harsh environmental conditions found in professional construction and agricultural applications.

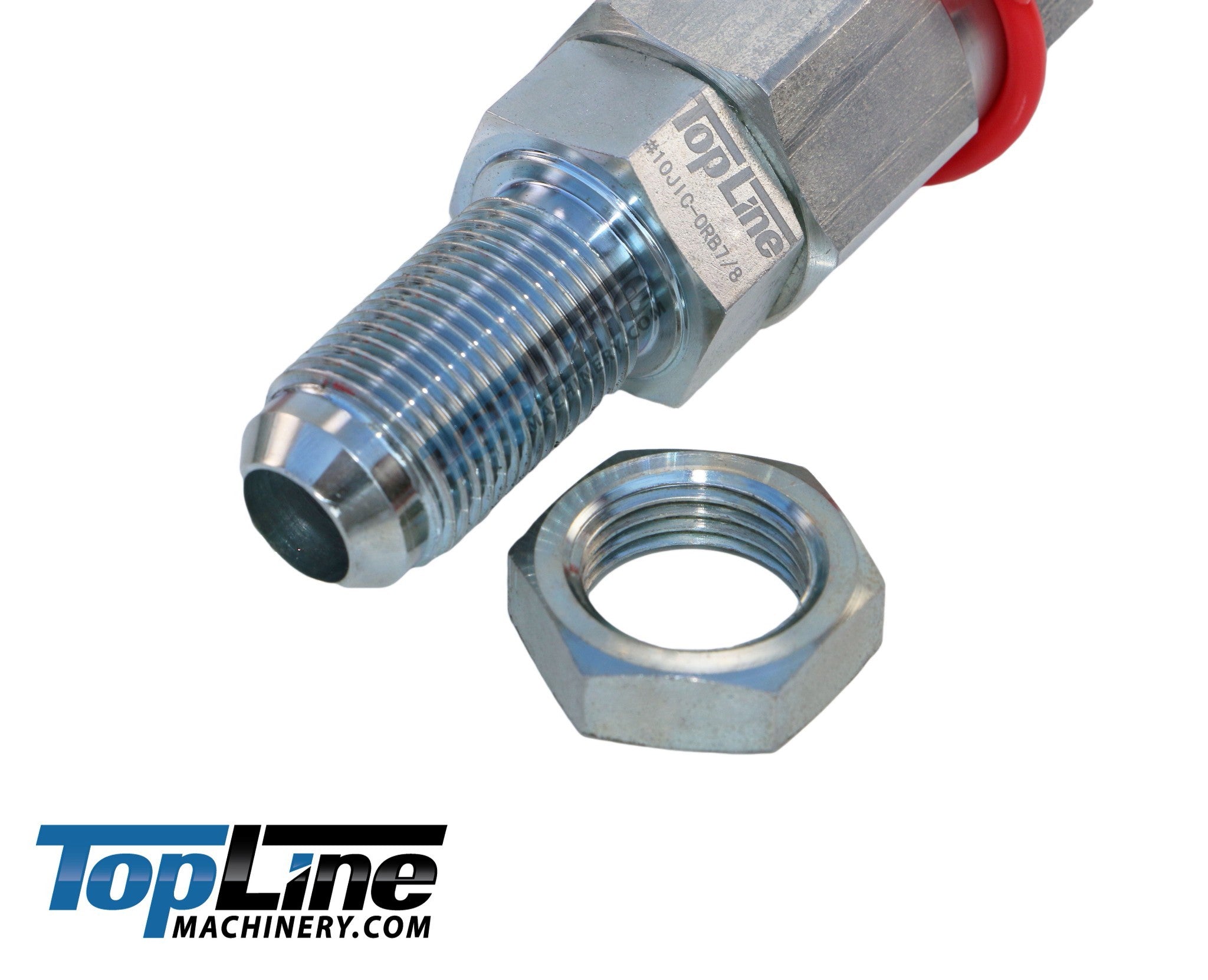

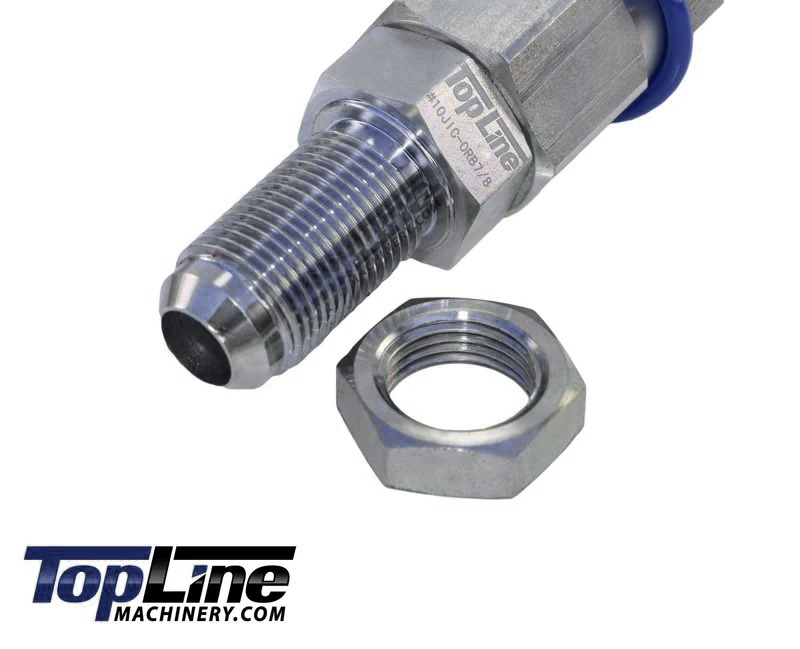

🗸 BULKHEAD MOUNTING CONVENIENCE: Specifically configured for bulkhead mounting, this coupler allows for a secure, semi-permanent installation on your loader’s chassis. This design isolates the coupler from the constant movement of the hydraulic hoses, reducing long-term stress and preventing leaks at the connection point.

🗸 ISO 16028 FLUSH FACE TECHNOLOGY: This design is the industry benchmark for hydraulic hygiene. Because the interface is perfectly flush, it is simple to wipe clean with a rag before connection. This prevents the "injection" of abrasive grit into your skid steer’s high-pressure hydraulic circuit—a critical step in protecting sensitive pumps and valves from internal scoring.

🗸 FIELD-READY ERGONOMICS: Designed for quick, reliable service, the push-connect locking sleeve features deep, heavy knurled texturing for a positive, non-slip grip. This enables fast, safe attachment changes in the field, even when the operator is wearing thick safety gloves or working in muddy conditions.

Specifications

Q: Is the TL24-F a direct replacement for the GEHL 131953?

A: Yes. The TL24-F is precision-engineered to match the dimensions and mounting specifications of the GEHL 131953, serving as a high-quality, direct-fit replacement for your equipment.

Q: Why is bulkhead mounting preferred for hydraulic couplers?

A: Bulkhead mounting anchors the coupler to the machine frame, which provides strain relief for your hydraulic lines. By preventing the hoses from pulling directly on the coupler, you significantly reduce the risk of thread fatigue, vibration-induced loosening, and premature hose failure.

Q: How does the flat-face design minimize air inclusion?

A: During the connection process, standard poppet-style couplers can trap a bubble of air, which is then pushed into your hydraulic system and compressed. The ISO 16028 flat-face design is engineered to purge air during the mating process, which prevents pump cavitation—a major cause of hydraulic pump destruction.

Q: Why is the dust cap included with the TL24-F?

A: Because bulkhead couplers are exposed on the exterior of the loader, they are constantly vulnerable to road salt, dust, and debris. The included dust cap keeps the face perfectly clean between uses. Since these couplers are the "gatekeepers" of your hydraulic fluid cleanliness, ensuring they remain grit-free is the single most important factor in extending the life of your hydraulic system.

This coupler fits the following GEHL Skid Steer Loaders Model :

• 4635, 4640, 4835, 4840, 5240, 5635, 5640, 6635, 6640, 7600, 7610, 7800, 7810

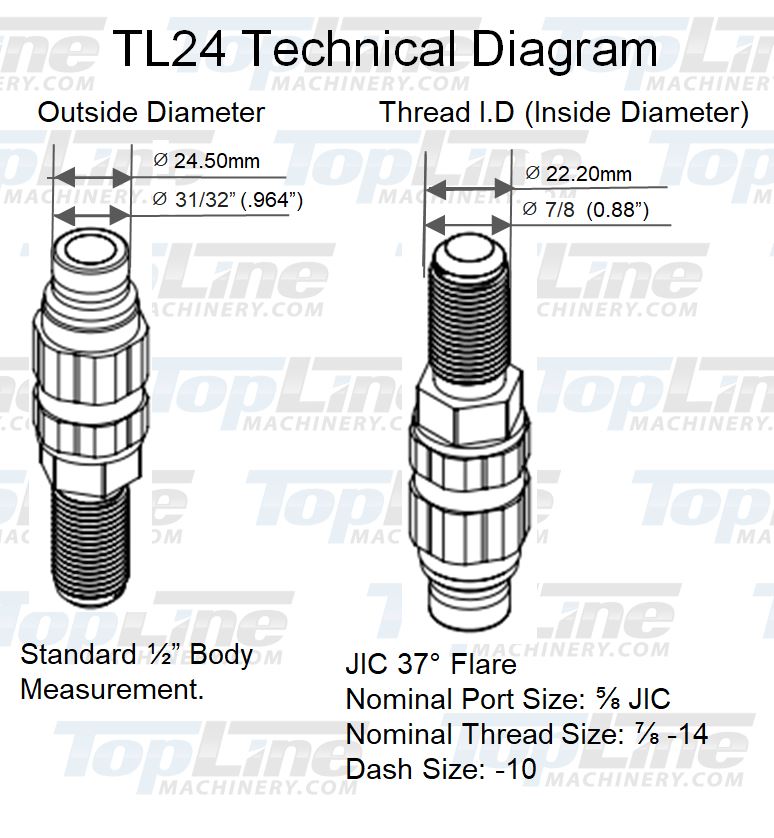

Other Thread Sizes for 1/2" Body Flat Face Coupler:
