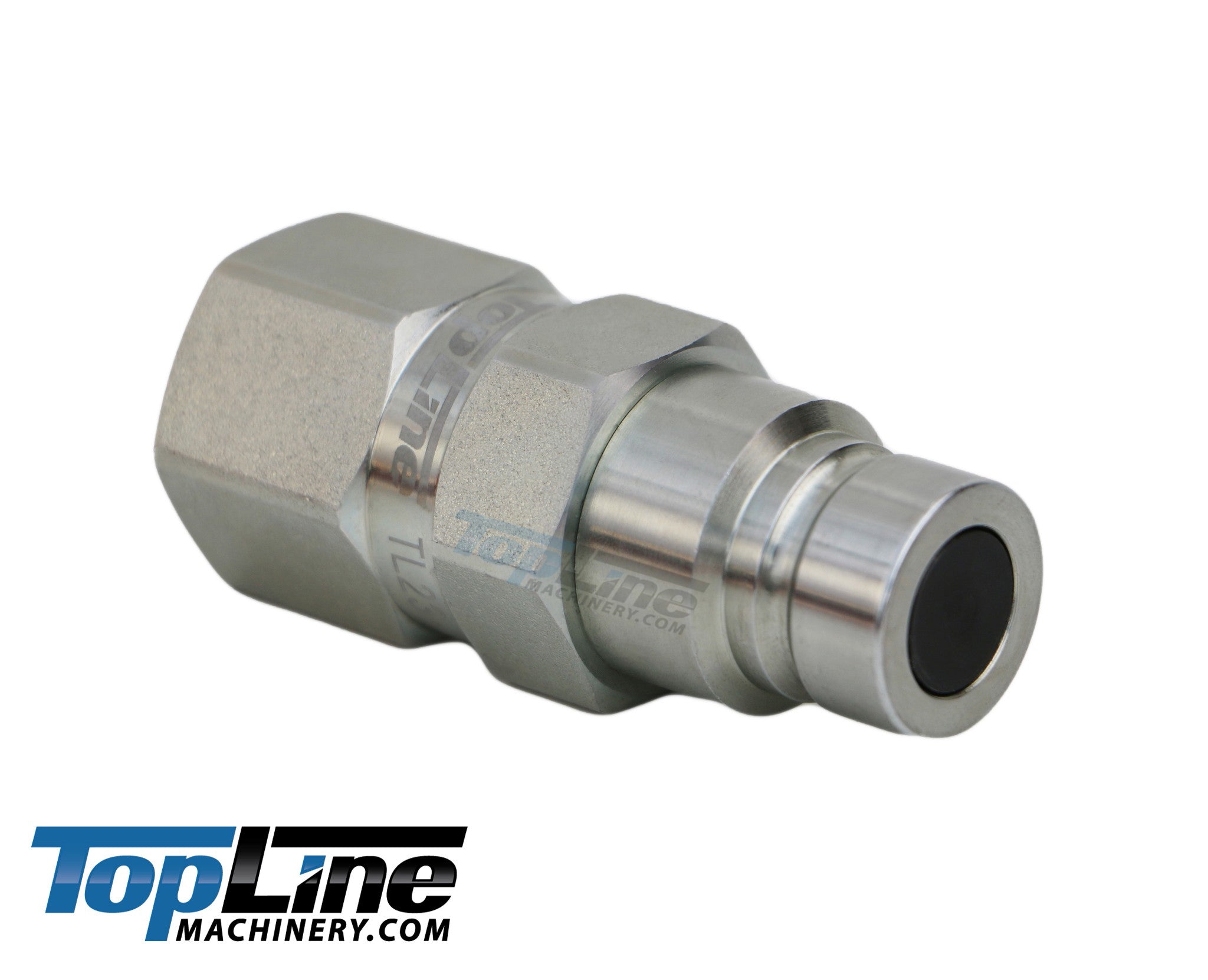

TL92-M 1/2" SAE(ORB) Thread Flat Face Quick Connect Hydraulic Male Coupler 1/2" Body Bobcat Size Skid Steer

TL92-M 1/2" BODY MALE FLAT FACE HYDRAULIC COUPLER (1/2" SAE/ORB THREAD)

The TL92-M is an industrial-grade, heavy-duty male hydraulic coupler featuring precision-engineered SAE O-Ring Boss (ORB) threads. Built to exceed the demands of skid steer and compact loader operations, this coupler offers superior vibration resistance and leak-free performance, making it an ideal choice for high-pressure auxiliary hydraulic circuits.

🗸 SAE O-RING BOSS (ORB) SEALING: Designed with 1/2" SAE (3/4"-16) threads, this coupler provides a high-integrity, leak-proof connection via O-ring compression at the thread base. This design is highly resistant to the vibration-induced loosening common in heavy construction equipment, ensuring your connections remain secure throughout the work day.

🗸 HEAVY-DUTY INDUSTRIAL RATING: These are not light-duty components. Rated for over 5076 PSI, the TL92-M is constructed from high-strength steel to endure extreme pressure pulses, high-frequency vibrations, and the rugged environmental stress typical of professional site preparation.

🗸 ISO 16028 FLUSH FACE TECHNOLOGY: This design is the benchmark for hydraulic system hygiene. Because the interface is perfectly flush, it is simple to wipe clean with a rag before connection. This critical step ensures that no grit, mud, or metallic debris enters your hydraulic stream, preventing the internal scoring that destroys hydraulic pumps and valve blocks over time.

🗸 FIELD-READY ERGONOMICS: Featuring a push-connect locking sleeve with deep, heavy knurled texturing, the TL92-M provides a secure, non-slip grip. This allows for quick and efficient attachment swaps in the field, even when the operator is wearing thick safety gloves or working in wet, muddy conditions.

Specifications

Q: What is the benefit of the SAE (ORB) thread for this coupler?

A: SAE O-Ring Boss (ORB) threads are favored in high-pressure hydraulic systems because they provide an excellent, leak-free seal via the O-ring compression. Unlike NPT threads which rely on thread deformation, the ORB design is specifically intended to handle the vibrations and pressure fluctuations found in heavy-duty construction equipment.

Q: How does the flat-face design minimize fluid loss?

A: Traditional poppet-style couplers often leave a small amount of oil trapped in the valve mechanism during disconnection. The ISO 16028 flat-face design uses a valve that stays flush to the surface when closed, drastically reducing "spill" and preventing air inclusion—which is the primary cause of hydraulic pump cavitation.

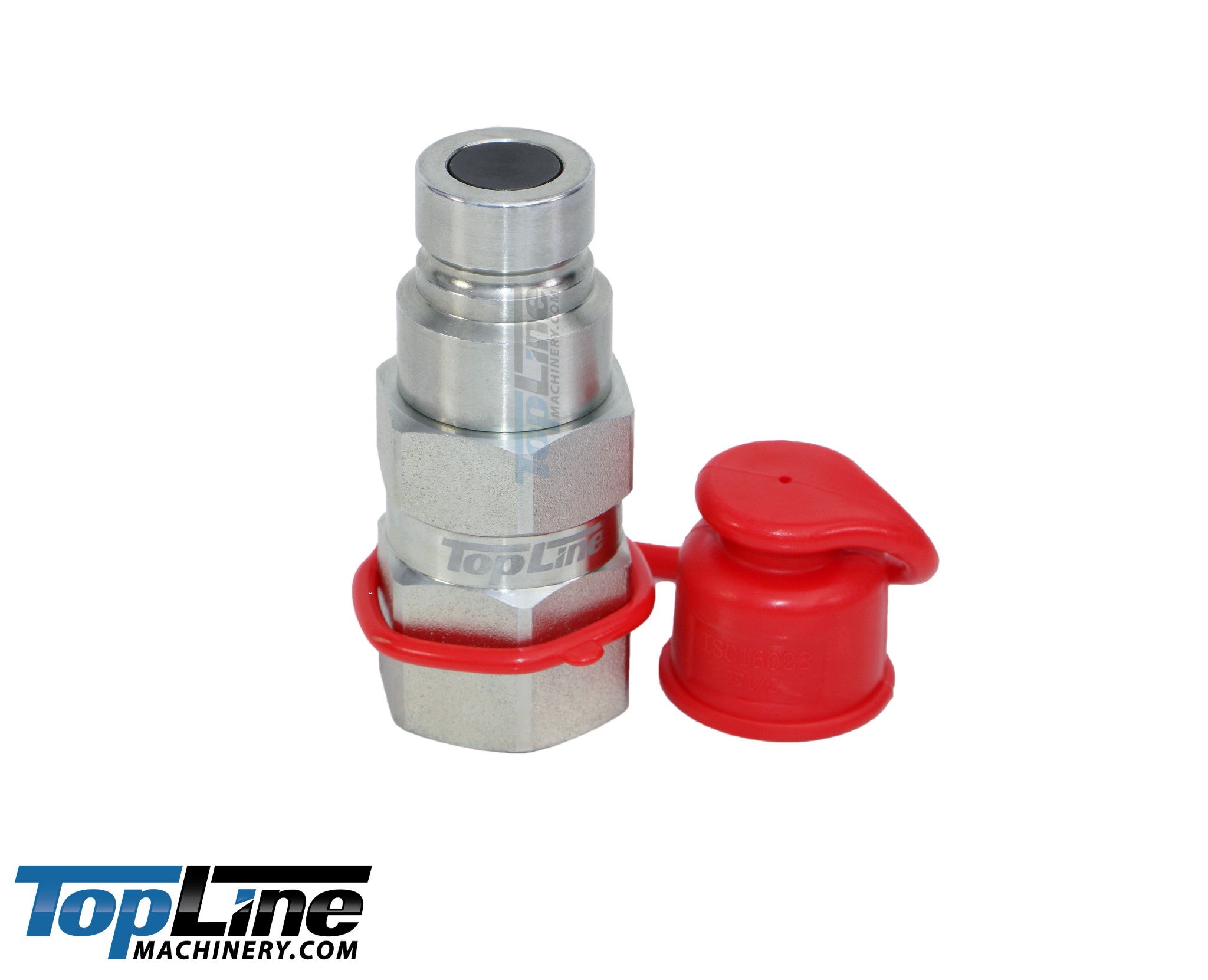

Q: Why is the dust cap so important for my male coupler?

A: The protective dust cap acts as a vital barrier against environmental contaminants like mud, grit, and moisture when the coupler is not connected. Because high-pressure hydraulic pumps are sensitive to abrasive particles, keeping the male coupler face perfectly clean before mating it to your skid steer is the most effective way to prevent costly internal damage.

Q: Is the TL92-M a direct replacement for my factory coupler?

A: Yes. It is designed as a direct-fit replacement for standard 1/2" body flat-face couplers found on most skid steer loaders and other popular equipment brands that adhere to the ISO 16028 standard.
