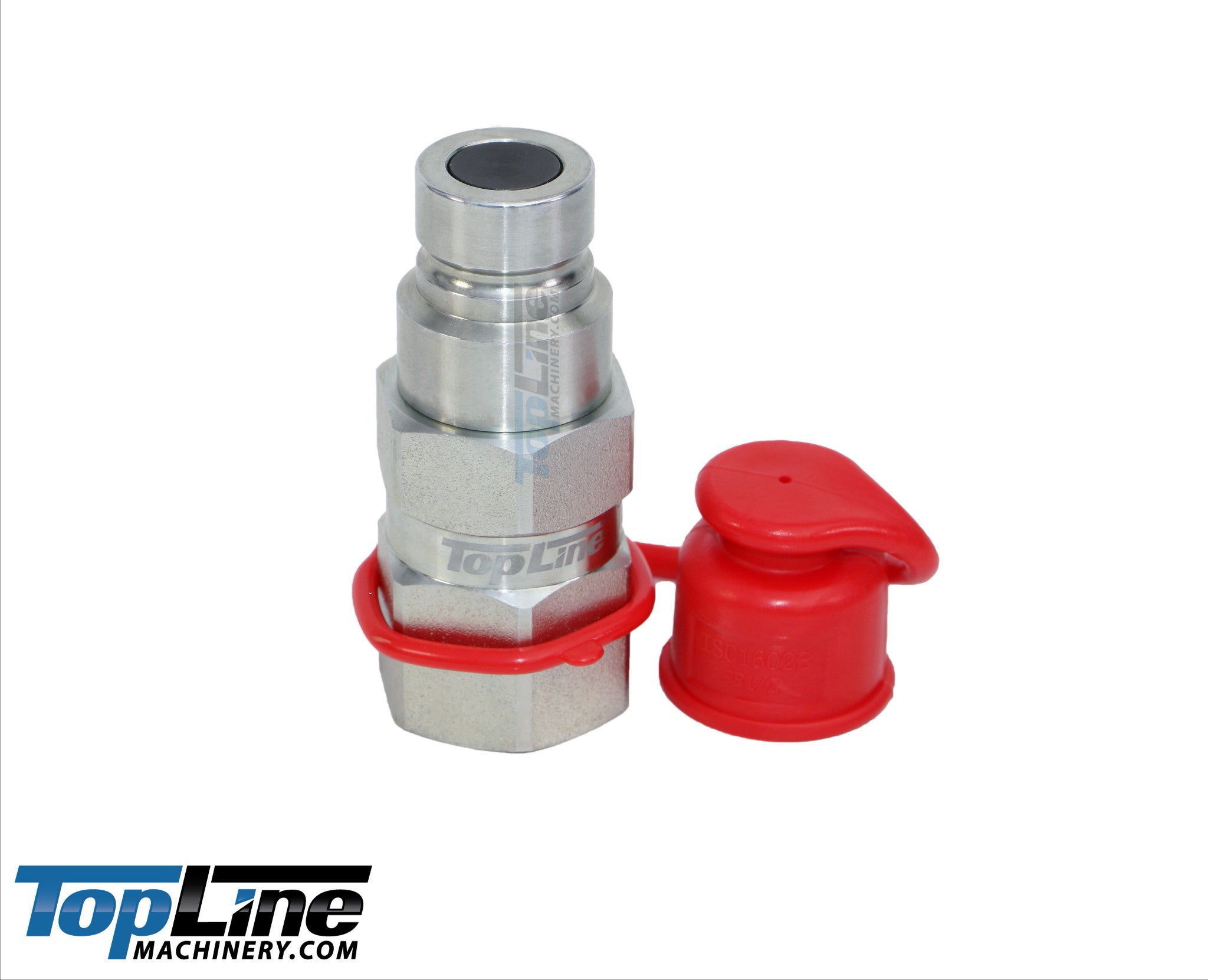

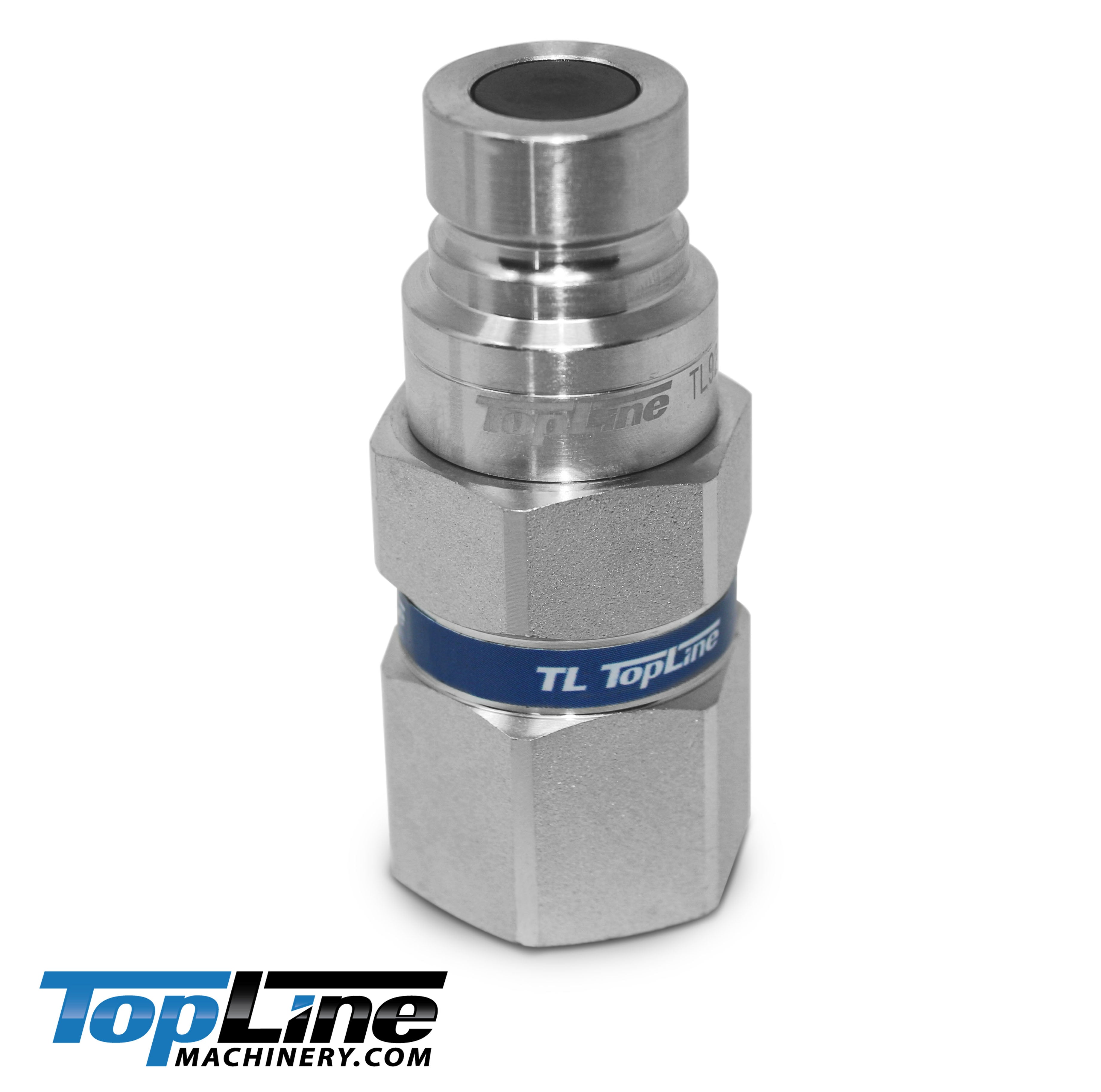

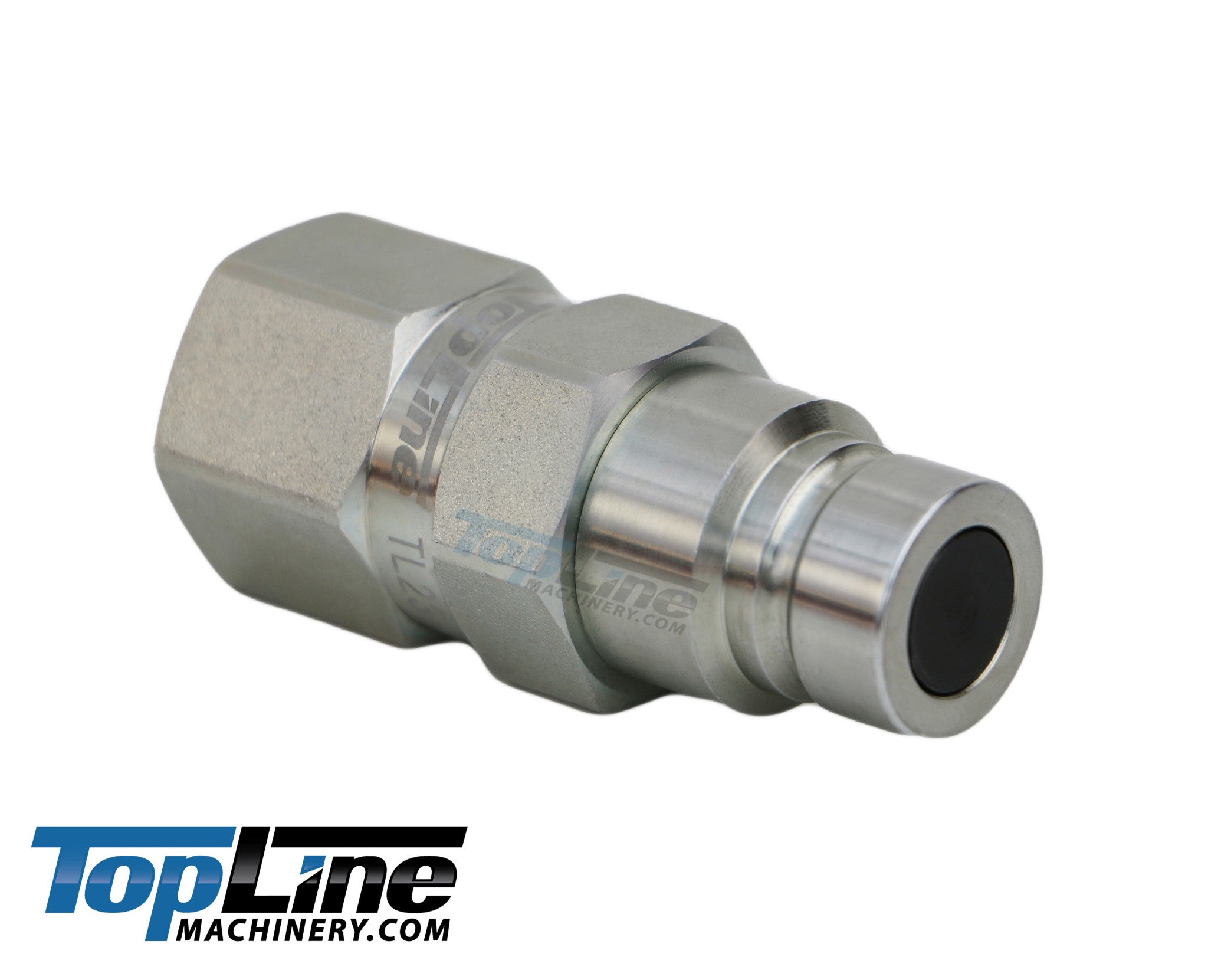

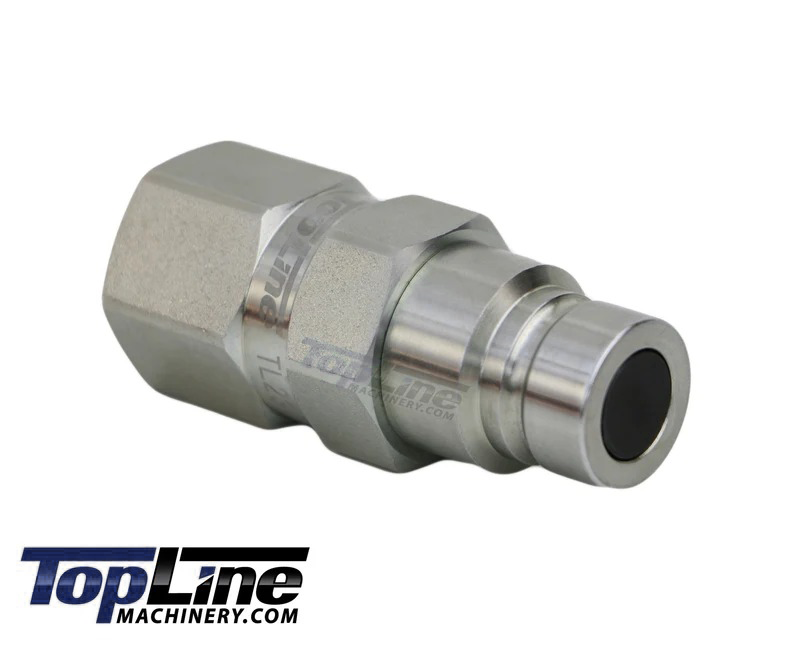

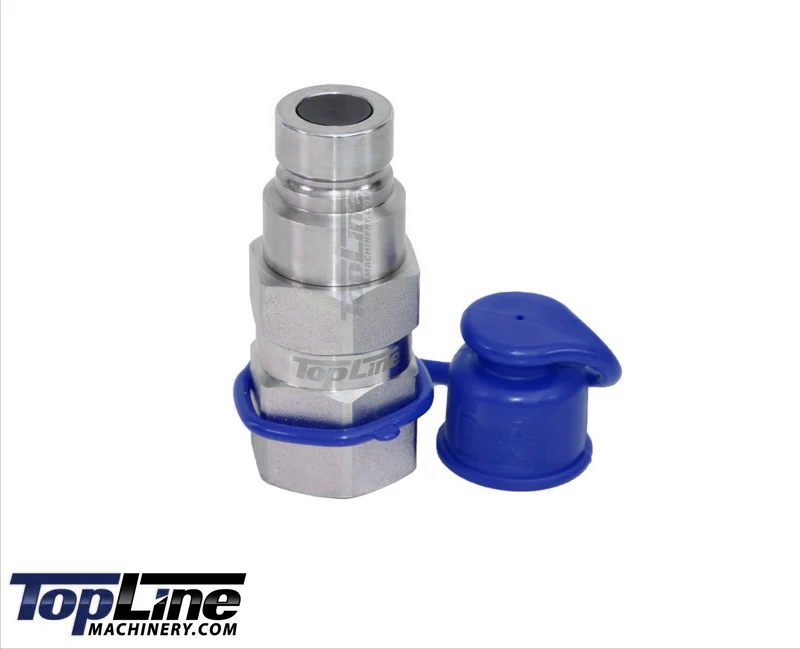

TL22-M 3/4" SAE Thread Flat Face Quick Connect Hydraulic Male Coupler 1/2" body size for Bobcat Skid Steer Loaders

This coupler is a direct replacement for the standard sized coupler mounted on many models of skid steers and attachments.


These are NOT light duty couplers. The sturdy design of heavy duty TopLine couplers have become well known for their durability and ability to withstand rugged conditions.


Our coupler sizes fit many models of: Bobcat, John Deere, CAT, Kubota, New Holland, CASE, JCB, Thomas, Gehl, Volvo, and ASV skid steers.


Flat Face couplers are designed for applications where hydraulic spillage is a concern. One of the great advantages to the Flush Face design is that the couplers are easy to keep clean which helps to prevent contaminants from entering the hydraulic system during connection and disconnection.


Couples to any standard 1/2" body Flat Face couplers on Skid Steers and other equipment. These couplers meet or exceed the ISO 16028 standard.




  • Heavy Duty design. Rated at over 5076 PSI
  • Couples to any standard 1/2” Flat Face coupler
  • Push-connect locking sleeve design
  • Exceeds ISO 16028 standards
  • Corrosion-resistant zinc plating
  • No air inclusion during disconnection
  • Heavy knurled sleeves for non-slip grip
  • Includes dust caps to protect from the elements
  • Flat Face coupler design minimizes hydraulic fluid loss



  • Model number:                  TL22-M

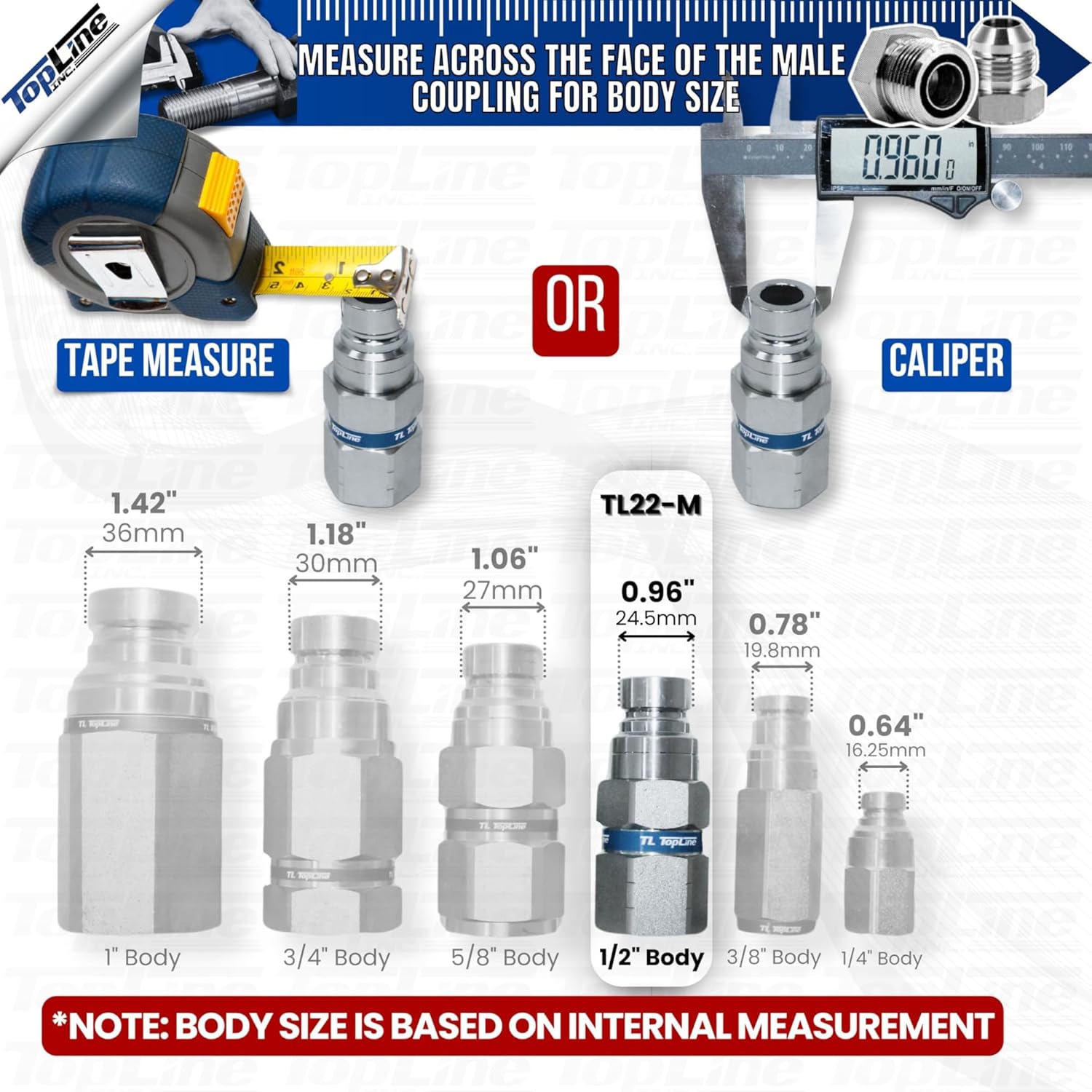

  • Coupler Body Size:           1/2"

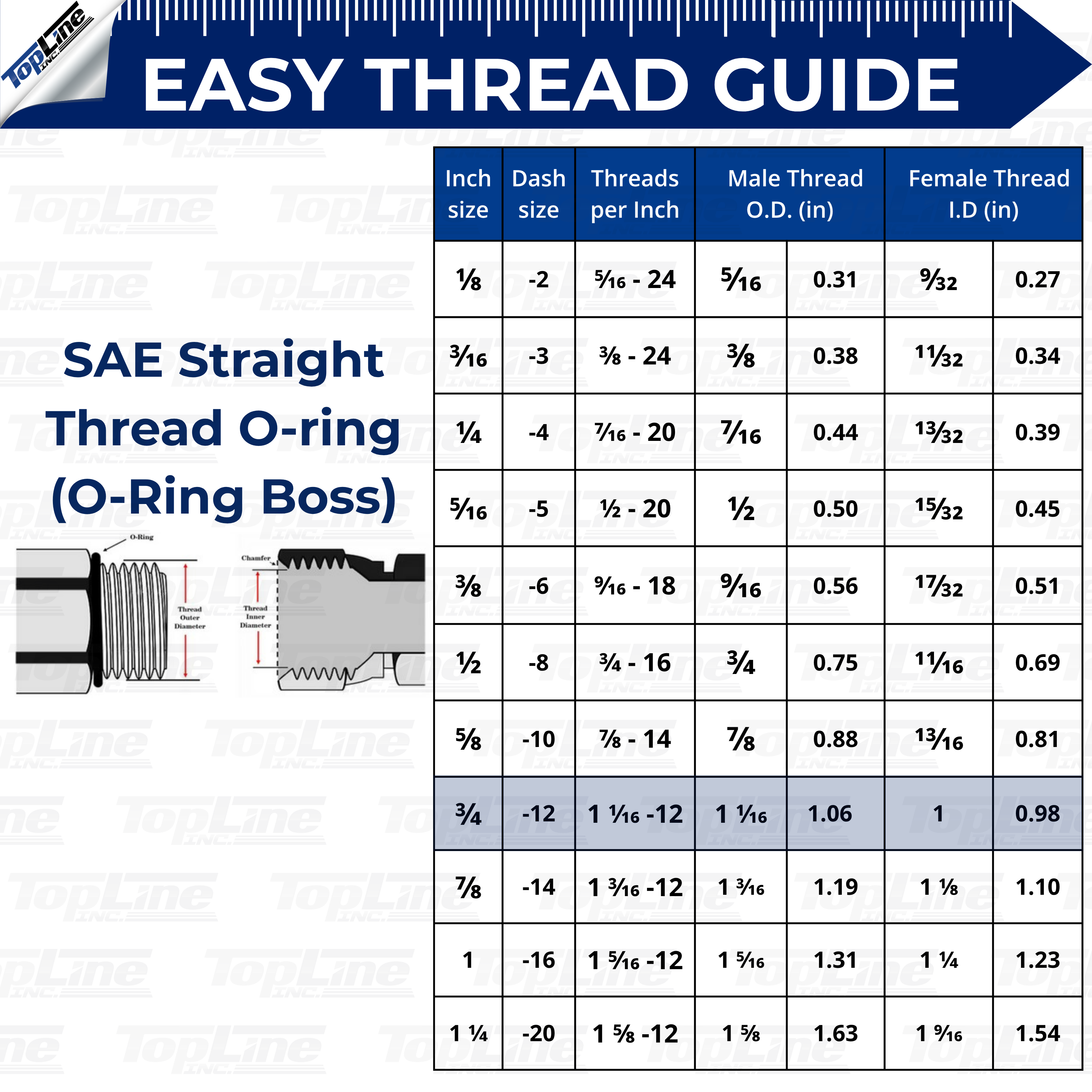

  • Coupler Thread Size:         3/4 SAE
  • Thread Outer Diameter:     0.96”
  • Thread Dash Number:       -12
  • Coupler Material Type:      Steel
  • Coupler Plating Type:        Corrosion-resistant trivalent zinc


This set includes:

  • 1 Male Flat Face Coupler
  • 1 Protective Dust Cap
Need a set of both Male and Female Couplers? Click HERE


Interchangeable Part Numbers:



Dixon HT Series


DNP PLT4 Series


Eaton Aeroquip


Faster FFH Series


Parker FE Series




Snap Tite


Stucchi FIRG Series


Tomco FE Series


TopLine FF-1234-2-M



(Click below to see what couplers fit your machine)



More Thread Sizes for 1/2" Flat Face Coupler:

3/8”  NPT  Female Thread (Set) TL19

1/2”  NPT  Female Thread (Set) TL23

1/2”  NPT  Female Thread (Male) TL40 -Connect under pressure

#08  JIC   Male Thread    (Set) TL20

5/8” SAE Female Thread (Set) TL21

#10  JIC   Male Thread    (Set) TL24   -With Bulkhead fitting

5/8”  ORFS  Male Thread  (Set) TL26  -With Bulkhead fitting

3/4”  SAE  Female Thread (Set) TL22

#12  JIC   Male Thread     (Set) TL25   -With Bulkhead fitting

3/4”  NPT  Female Thread (Set) TL30

3/4”  NPT  Female Thread (Male) TL43 -Connect under pressure



Flat Face to Agricultural Style Adapters:

Flat Face to Male Ag Couplers TL46

Flat Face to Male & Female Ag Coupler TL36


See our Store for more coupler sizes
