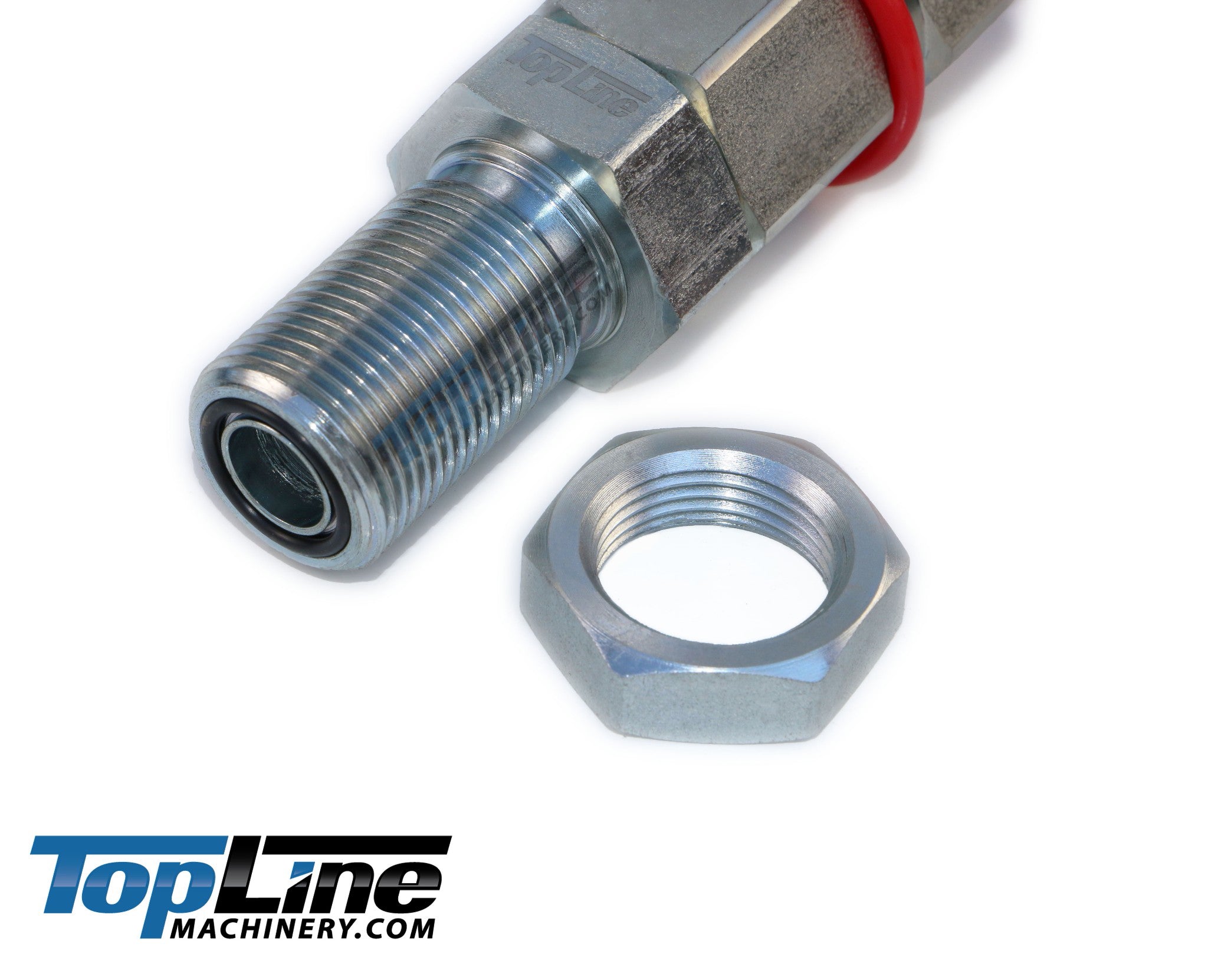

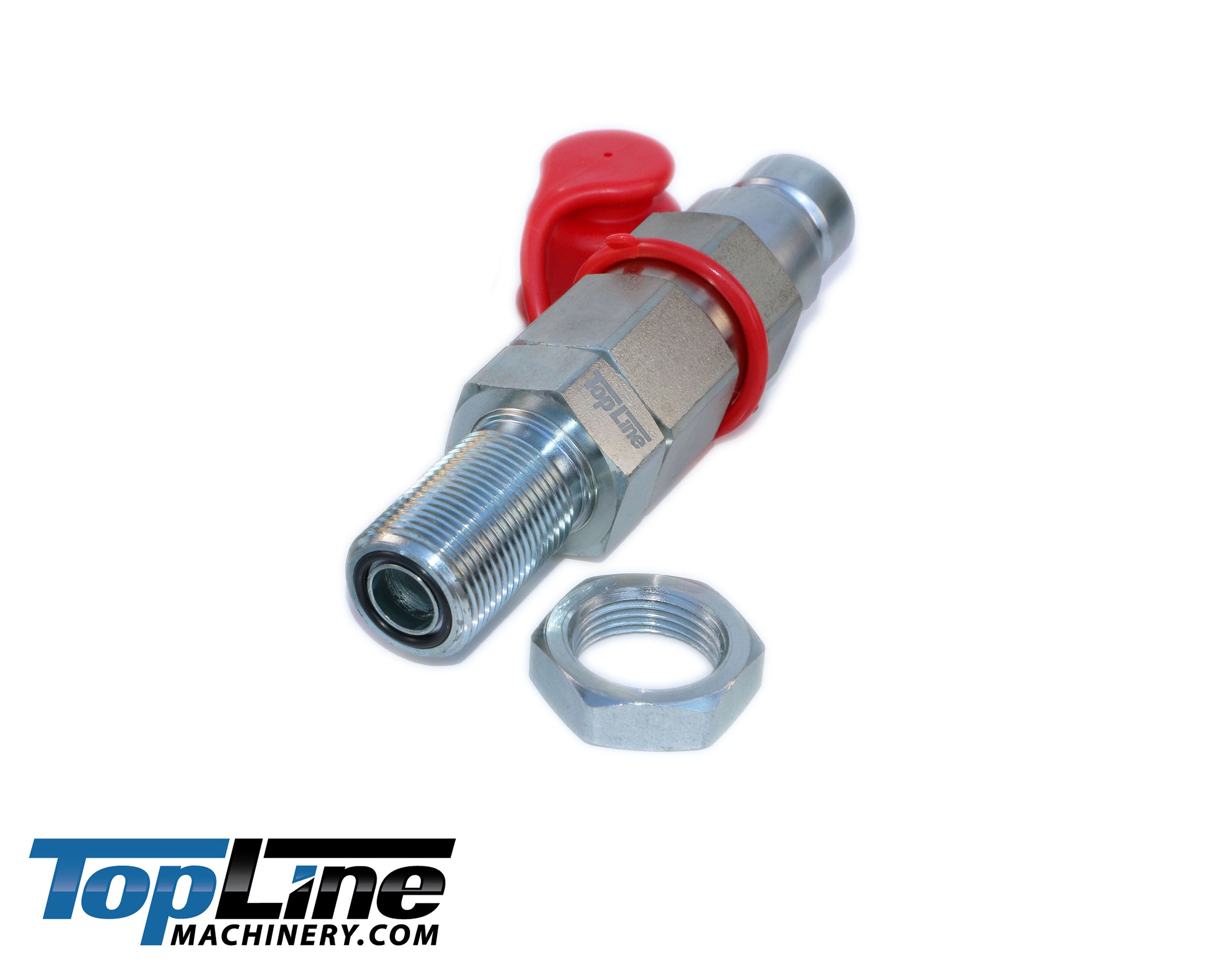

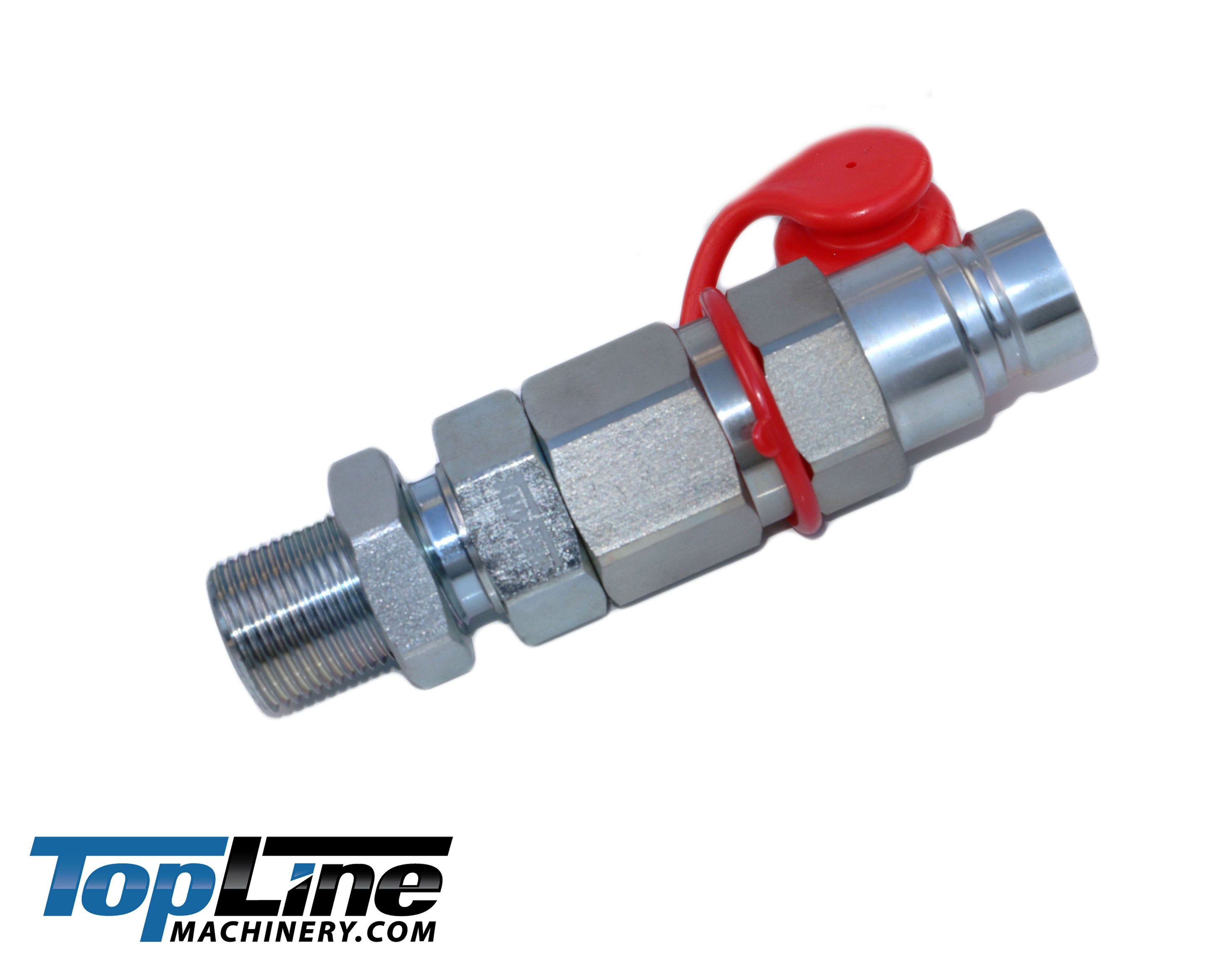

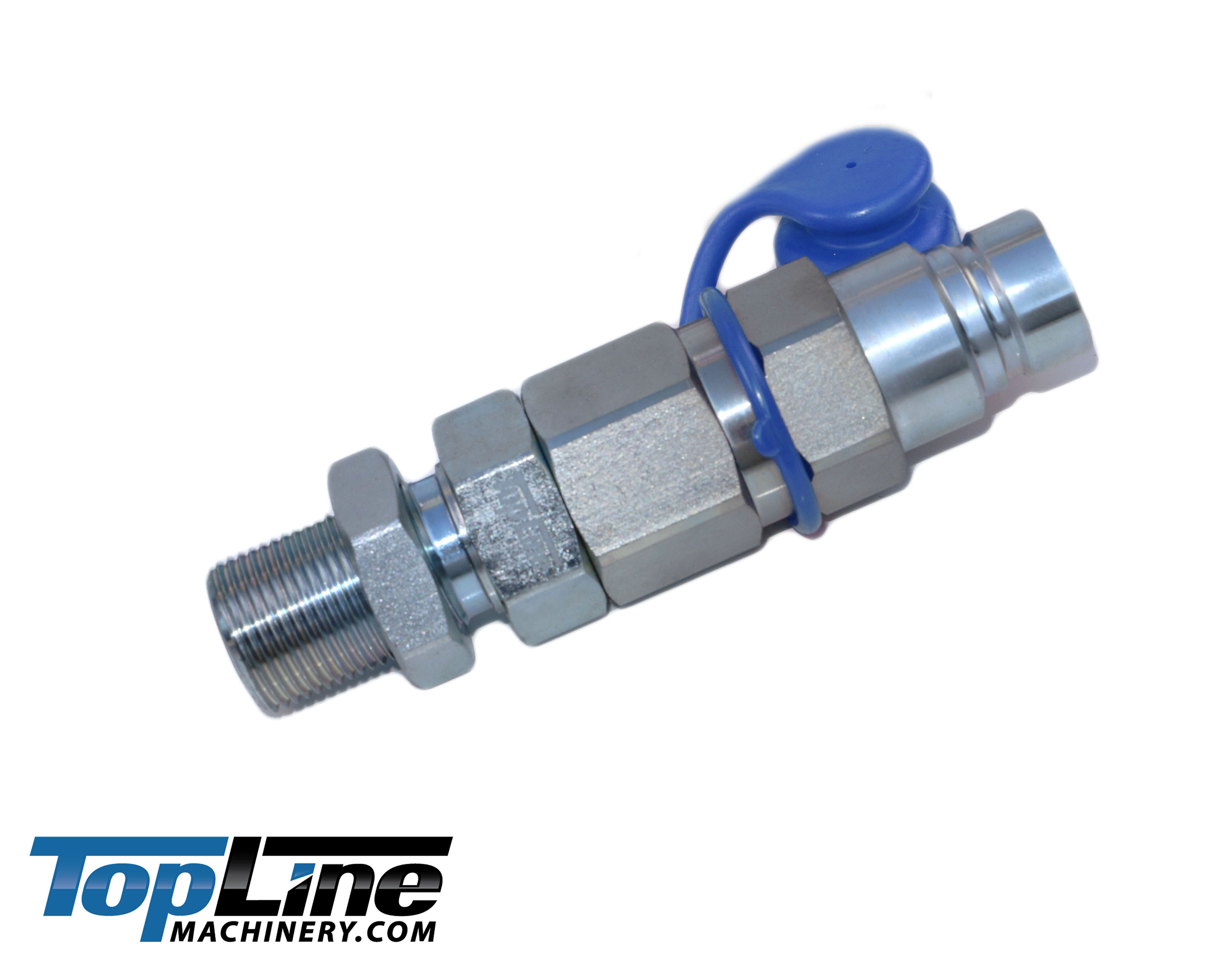

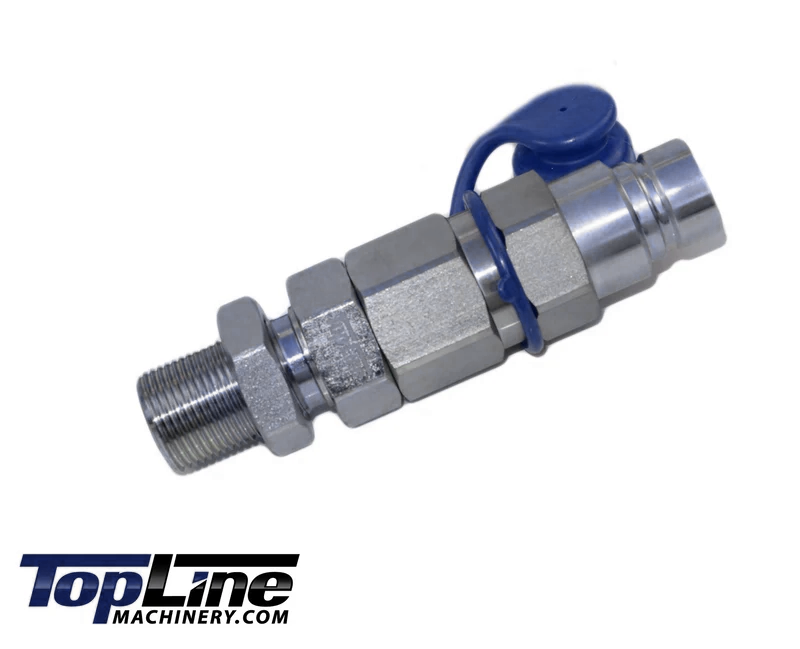

TL104-M 3/4" ORFS Thread Male Flat Face Quick Connect Hydraulic Coupler Bulkhead 1/2" body size for John Deere mini excavator

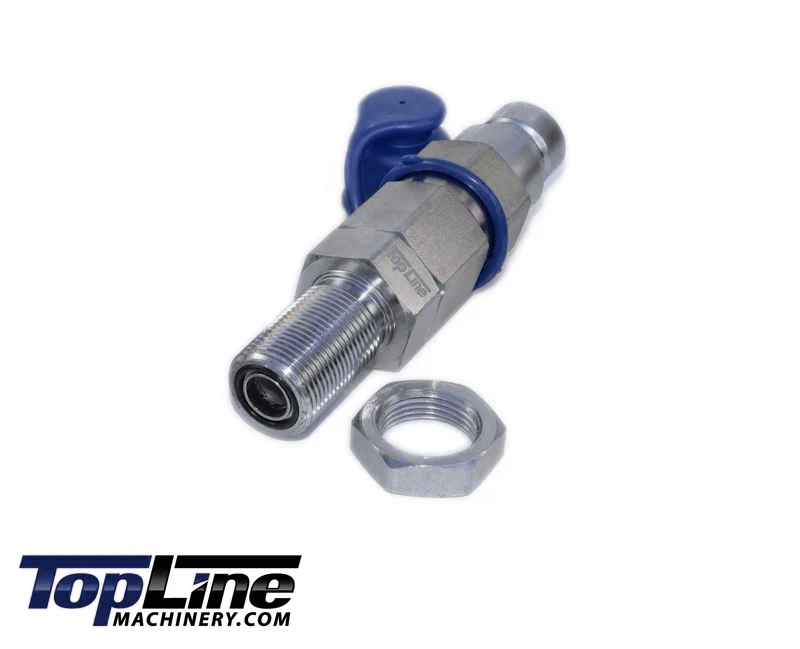

TL104-M 1/2" BODY MALE FLAT FACE HYDRAULIC COUPLER (3/4" ORFS THREAD)

The TL104-M is a professional-grade, bulkhead-mountable hydraulic connector engineered for the high-demand environments typical of mini-excavators, such as John Deere models. Designed for strength and longevity, this coupler ensures a leak-proof, contamination-free connection for your critical auxiliary attachments.

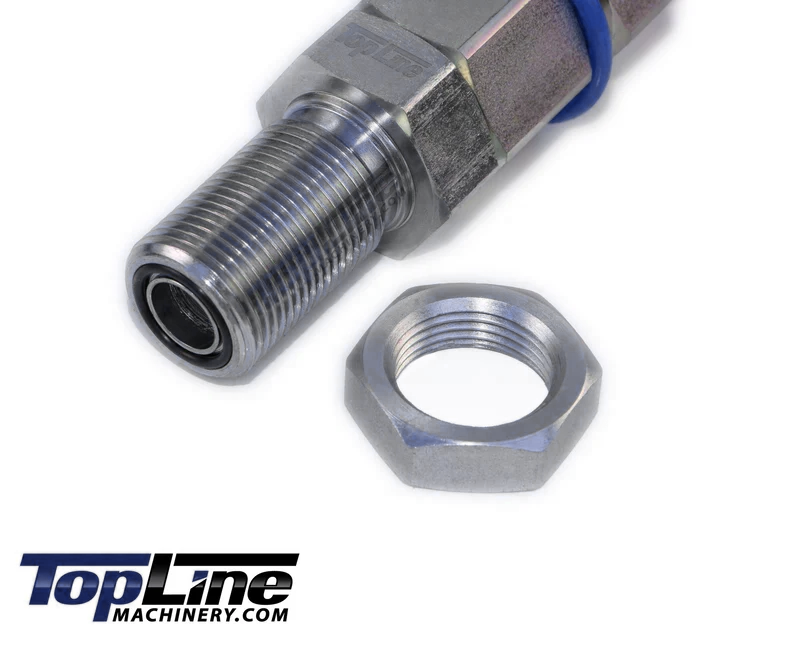

🗸 ORFS (O-RING FACE SEAL) BULKHEAD DESIGN: Utilizing 3/4" ORFS threads, this coupler is built for secure bulkhead installation. The ORFS standard is widely considered the superior choice for high-pressure systems, as it relies on an O-ring compressed against a flat face, providing a "dry" seal that is exceptionally resistant to loosening under the heavy vibrations common in excavating work.

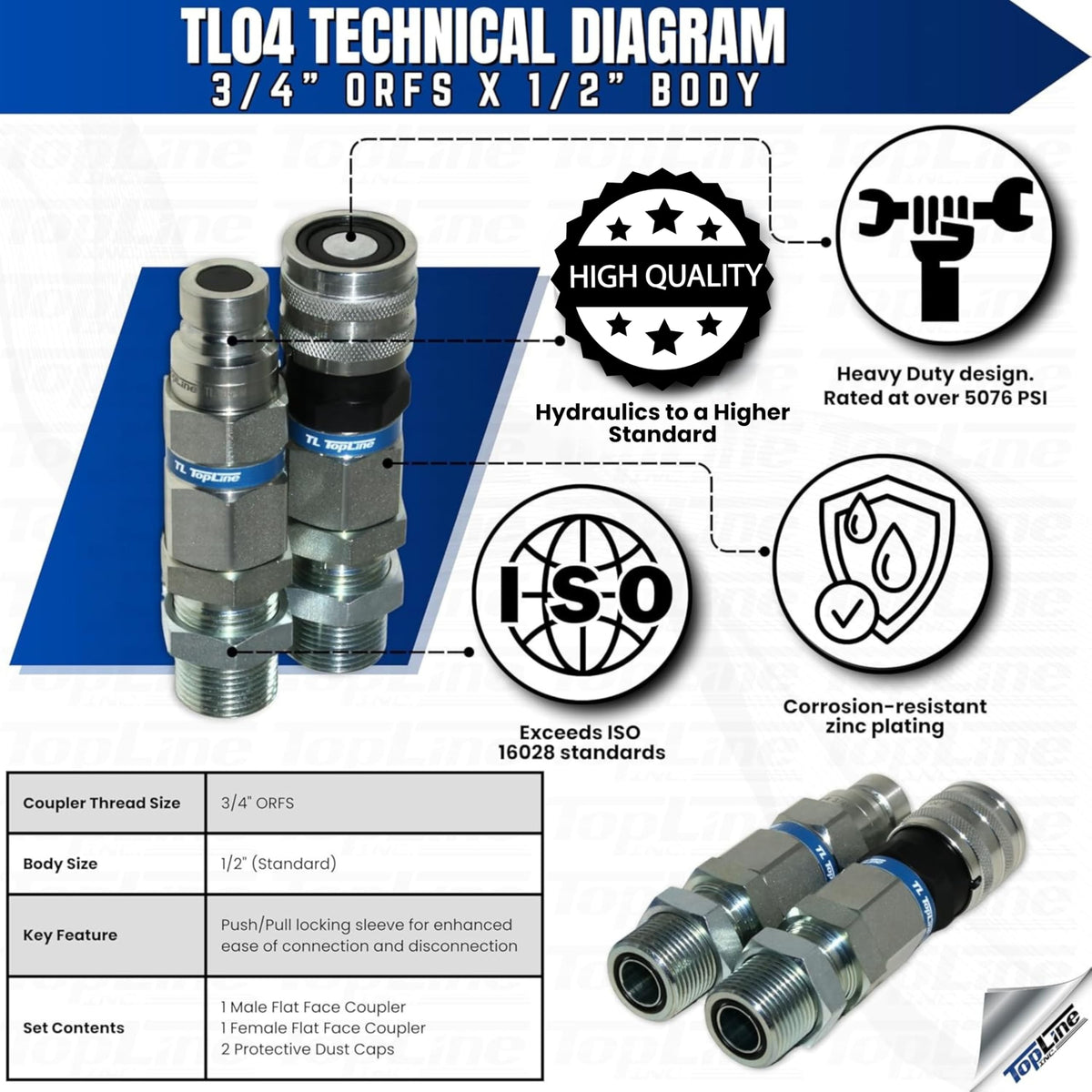

🗸 HEAVY-DUTY INDUSTRIAL RATING: These are not light-duty components. Rated for over 5076 PSI, the TL104-M is constructed from high-strength steel to survive the extreme pressure spikes and continuous duty cycles required in professional demolition, landscaping, and construction.

🗸 ISO 16028 FLUSH FACE TECHNOLOGY: This design is the industry gold standard for system hygiene. The perfectly flat, flush-face surface is easy to wipe clean, ensuring that abrasive debris does not enter your hydraulic circuit upon connection. This is vital for protecting your mini-excavator’s precision pump and valve components from premature internal scoring.

🗸 FIELD-READY ERGONOMICS: Designed for quick, reliable service, the push-connect locking sleeve features deep, heavy knurled texturing for a positive, non-slip grip. This enables fast, safe attachment changes in the field, even when the operator is wearing thick safety gloves or working in wet, muddy conditions.

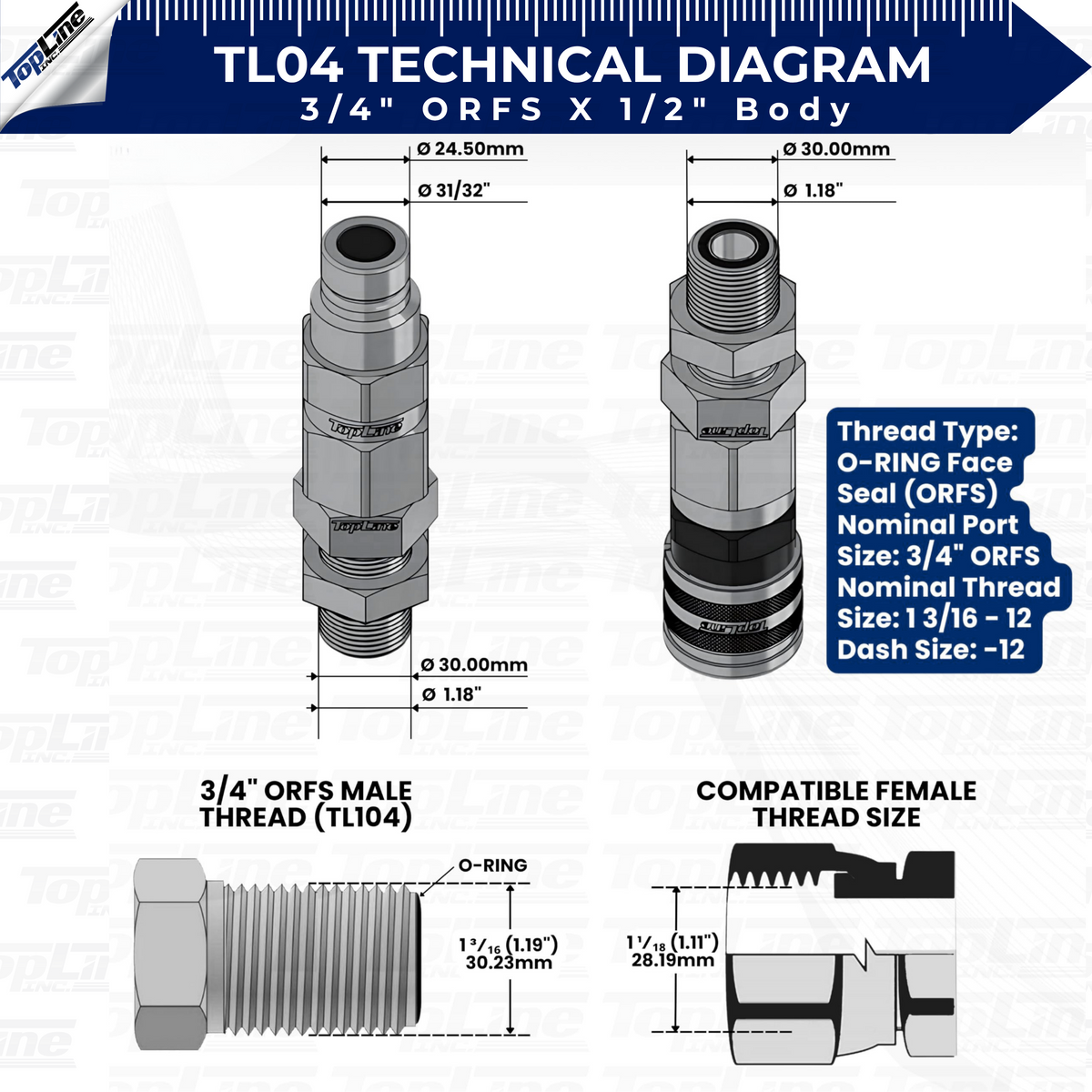

Specifications

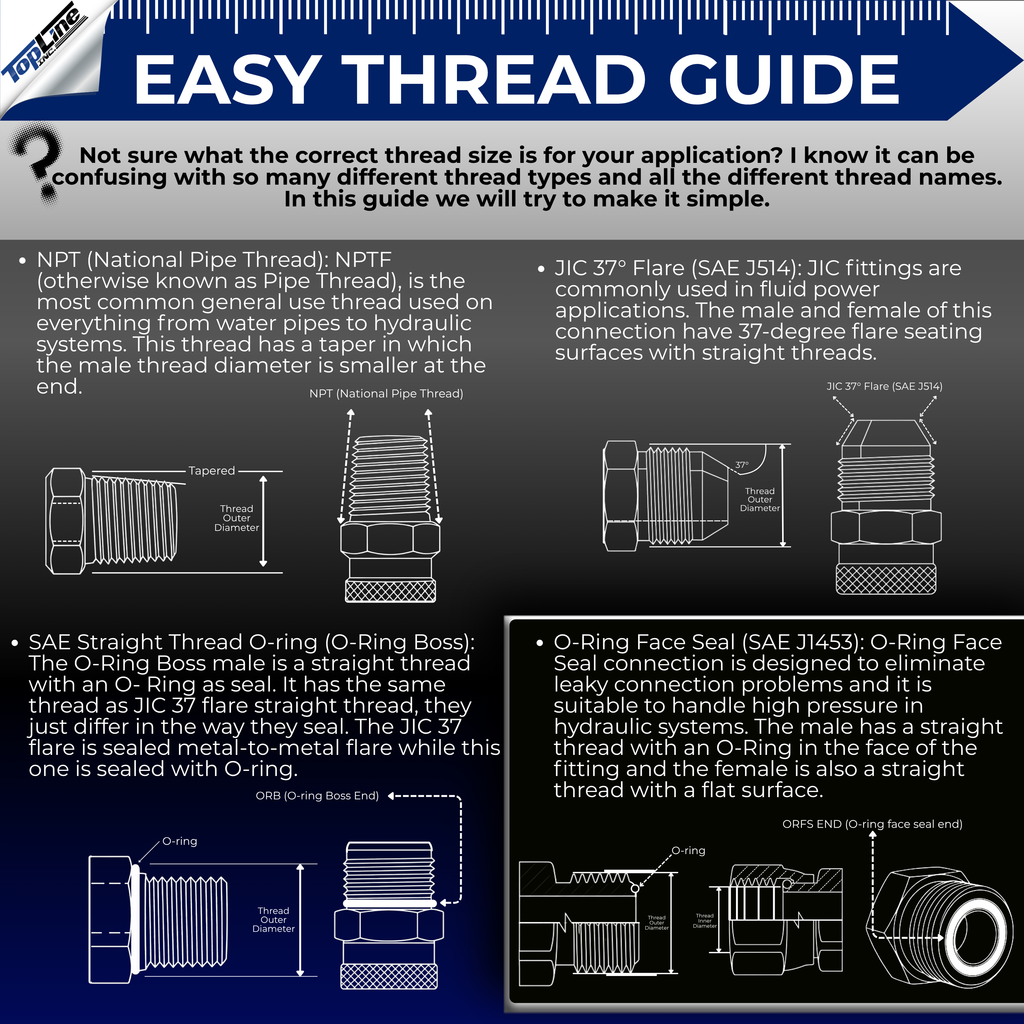

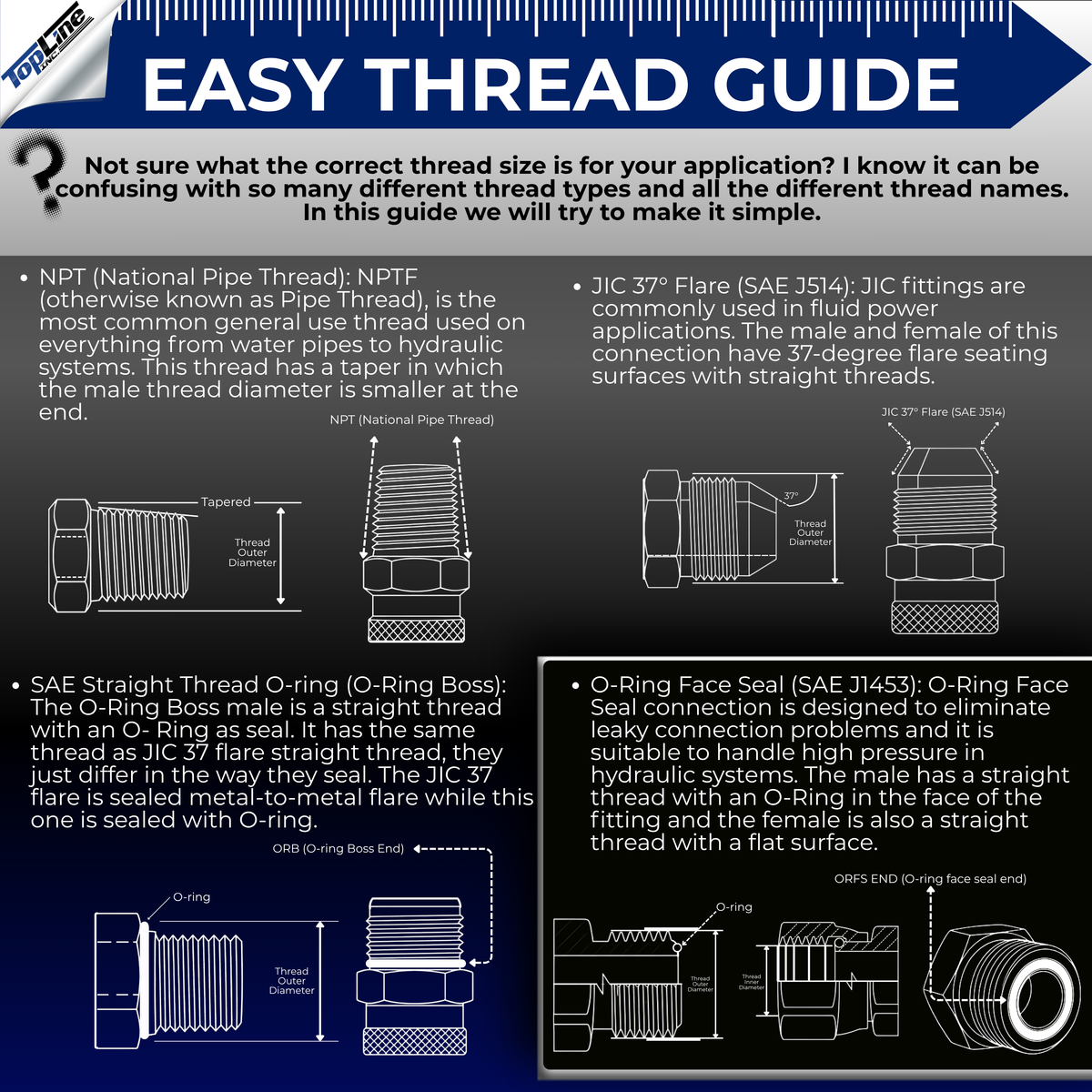

Q: What makes ORFS fittings better than other thread types for excavators?

A: Unlike tapered NPT threads—which can crack housings if over-tightened—or JIC threads—which rely on metal-to-metal seals that can be ruined by vibration—ORFS fittings create a seal using a captive O-ring. This provides a resilient, leak-proof connection that can withstand the high-frequency vibrations and pressure fluctuations inherent in excavator hydraulics.

Q: Is the TL104-M a direct replacement for my John Deere mini-excavator?

A: Yes, it is specifically designed for bulkhead-style mounting in common applications such as John Deere mini-excavators, serving as a direct-fit, high-performance replacement for standard 1/2" body ISO 16028 flat-face couplers.

Q: Why is the bulkhead mounting important?

A: By mounting the coupler to a bulkhead (the chassis or a dedicated plate), you eliminate the strain on your hydraulic hoses. The bulkhead carries the load of the connection and the weight of the attached hoses, preventing the "whip" effect that causes hydraulic leaks at the hose-to-coupler junction.

Q: Are the protective dust caps truly necessary?

A: In an excavator environment, they are essential. Since these couplers are often positioned low on the machine or on the dipper arm, they are constantly exposed to dirt, sand, and moisture. Even microscopic particles trapped between the coupler faces can lead to a seal blowout under high operating pressures. The cap ensures the sealing surface remains pristine.

Other Thread Sizes for 1/2" Body Flat Face Coupler:
