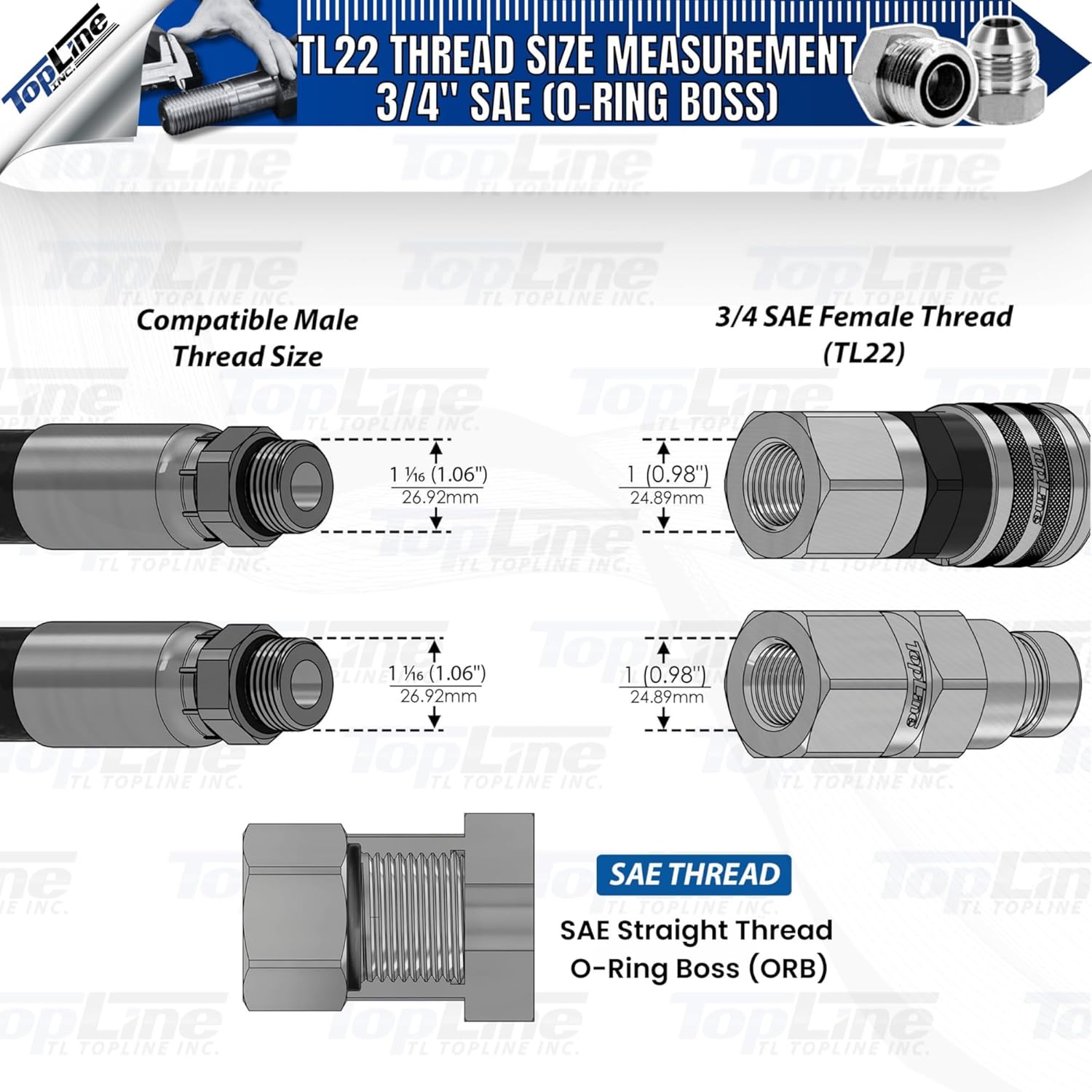

1/2" Body with 3/4" SAE O-Ring BOSS Thread, Hydraulic Quick Connect Coupler, Flat Face, ISO 16028, Heavy-Duty Coupling Set with Dust Caps for Skid Steer Bobcat Attachment | Model TL22

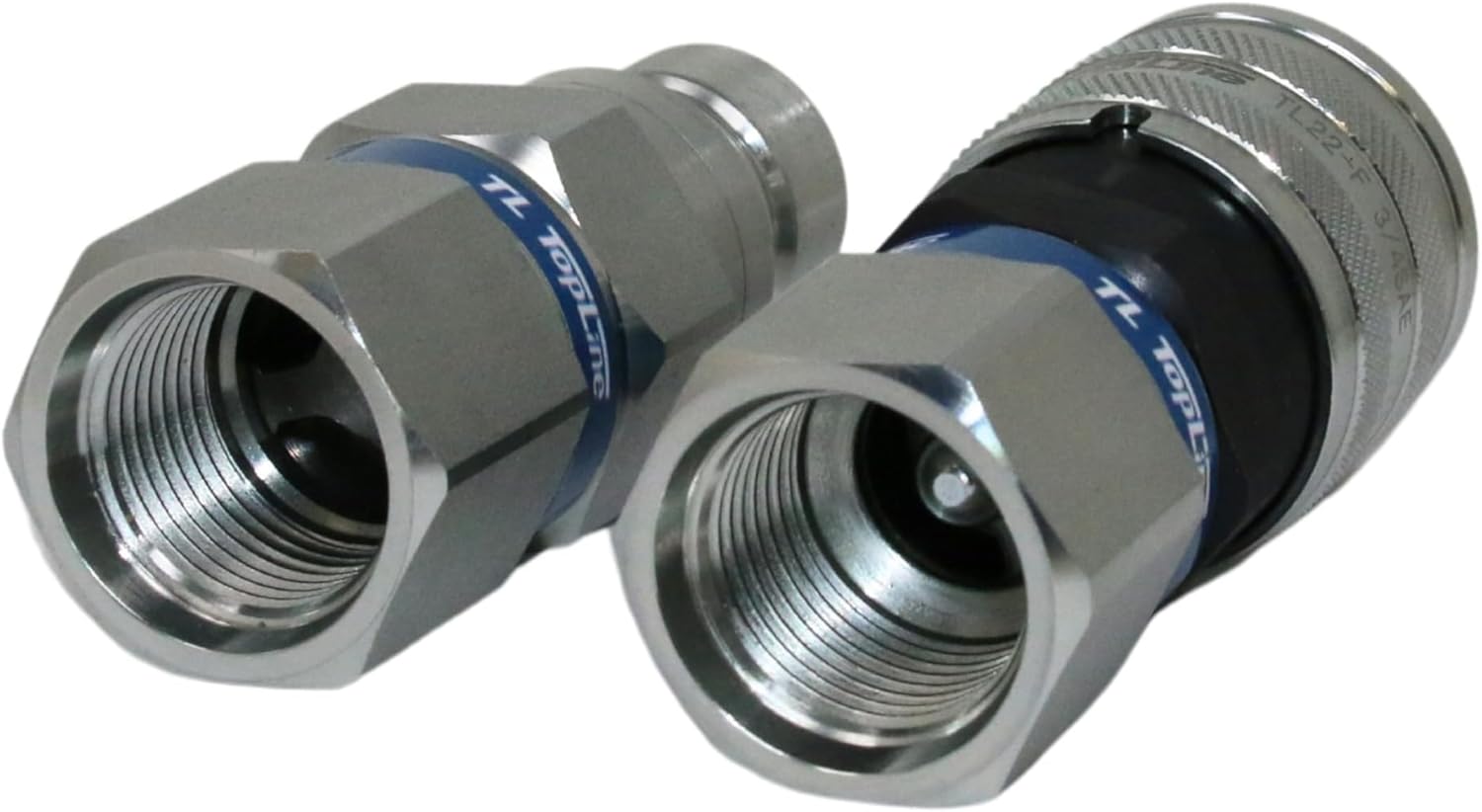

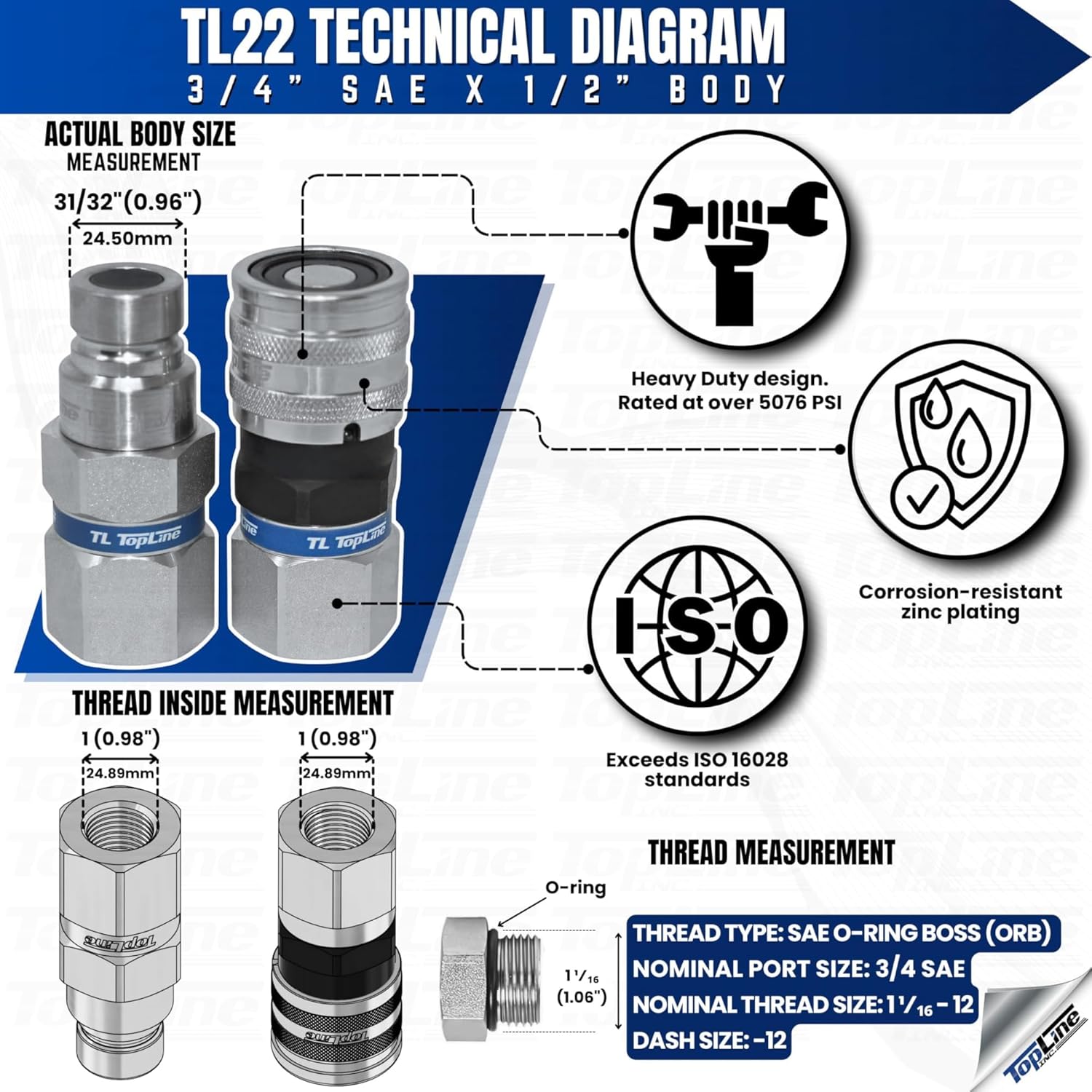

🗸 TL22 1/2" BODY X 3/4" SAE ORB FLAT FACE COUPLER – A heavy-duty, high-performance hydraulic coupler designed for precision applications. Rated for over 5076 PSI and a 23 GPM max flow rate, it is built to handle the most demanding heavy-duty tasks.

🗸 SECURE & LEAK-FREE: Features a push-connect locking sleeve that guarantees reliable coupling with no air inclusion or hydraulic leaks, maintaining system pressure and efficiency.

🗸 BUILT FOR LONGEVITY: Engineered from high-strength steel with a corrosion-resistant trivalent zinc plating, exceeding ISO 16028 standards to provide long-lasting protection against rust and environmental wear.

🗸 EFFICIENT FLUID CONTROL: The flat face design minimizes hydraulic fluid loss during disconnection and is exceptionally easy to keep clean, preventing harmful contaminants from entering your hydraulic system.

🗸 ERGONOMIC FIELD DESIGN: Includes heavy knurled sleeves for a secure, non-slip grip, allowing for quick and effortless connections and disconnections even when working in the field with gloved hands.

Q: What makes the TL22 Hydraulic Quick Connect Coupler a superior choice?

A: The TL22 is built for high-performance use with a heavy-duty steel body and a robust pressure rating of over 5,076 PSI. It is specifically engineered to withstand tough, high-flow (up to 23 GPM) environments while delivering consistent, leak-free performance.

Q: How does the flat face design improve performance?

A: The flat face design significantly reduces fluid loss during connection and disconnection while minimizing the introduction of contaminants. This enhances hydraulic system longevity and reduces equipment downtime due to maintenance.

Q: Is the TL22 compatible with my skid steer or equipment?

A: Yes. The TL22 is compatible with many skid steers and attachments from major brands including Bobcat, John Deere, CAT, Kubota, CASE, JCB, and more. Its standard sizing allows for broad compatibility across various hydraulic systems.

Q: Does the product include any protective accessories?

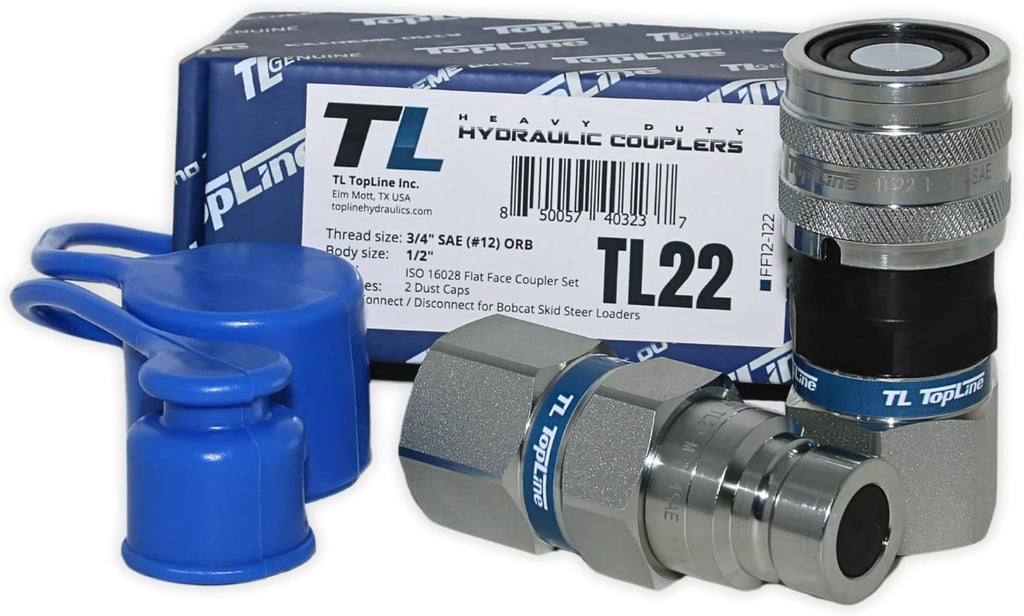

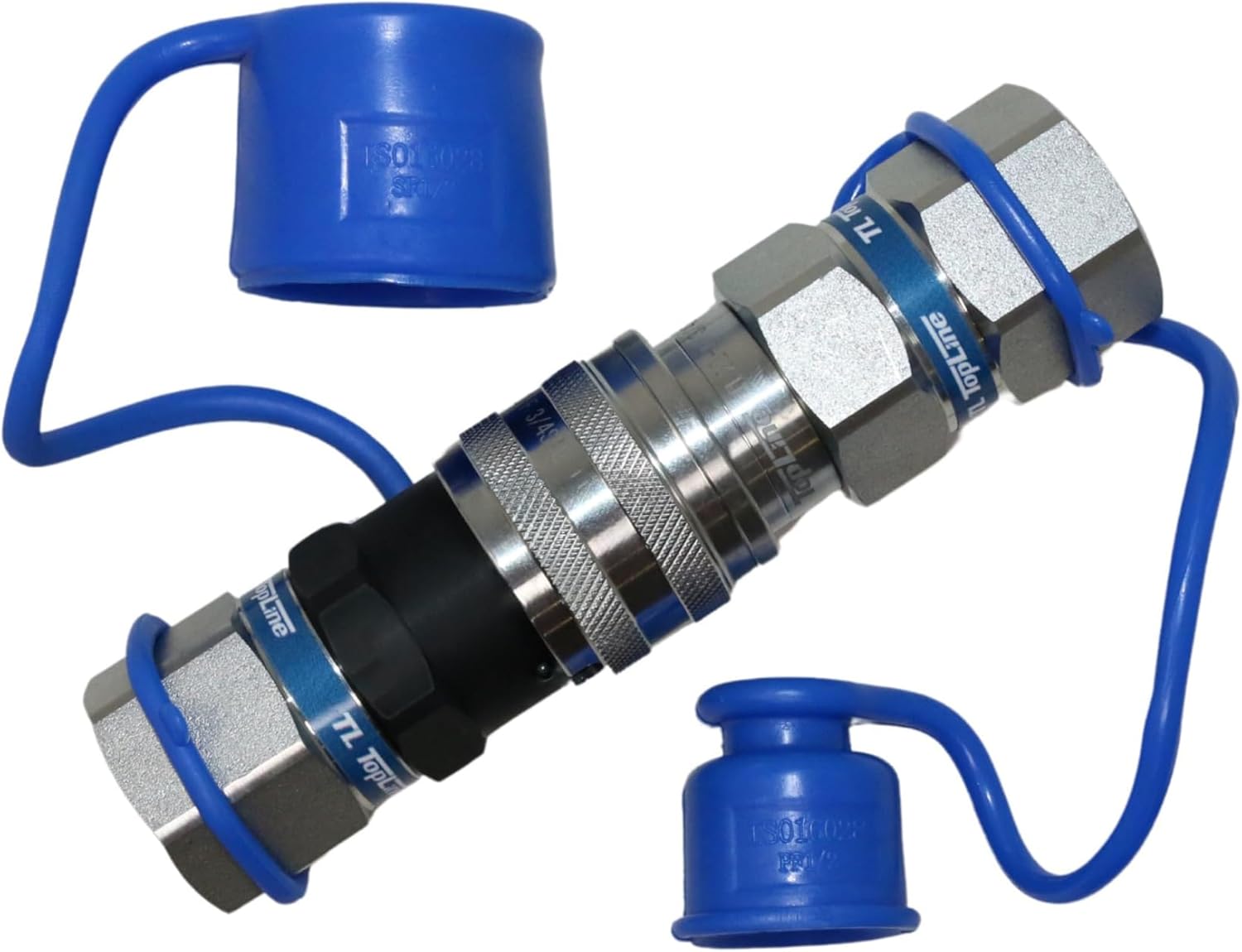

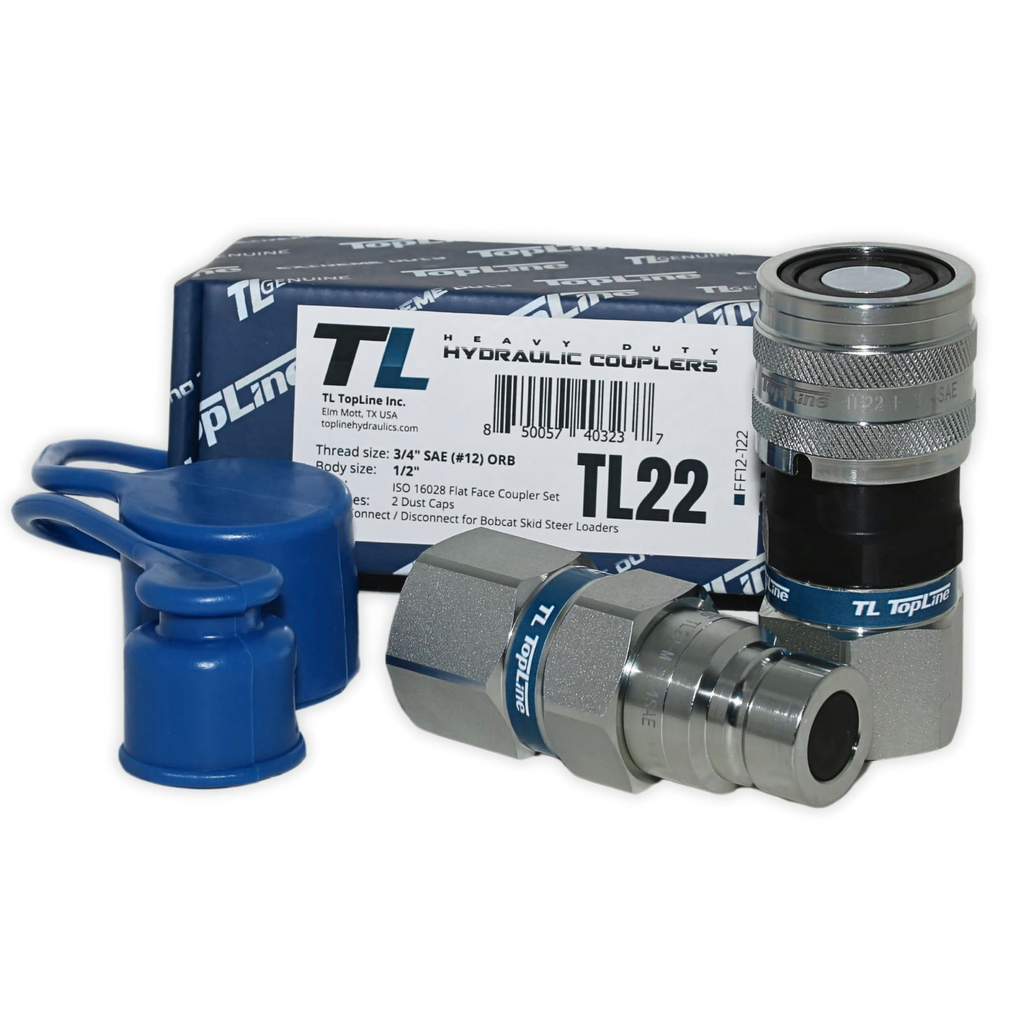

A: Yes, the TL22 set includes protective dust caps for both the male and female couplers. These caps help prevent dirt, debris, and moisture from entering the hydraulic system when the couplers are disconnected.

Q: Can the TL22 be used as a direct replacement?

A: Absolutely. The TL22 is designed as a direct replacement for many standard flat-face hydraulic couplers used on skid steers and other hydraulic machinery. Its standardized sizing makes for a simple, straightforward installation.

TL23

TL20

TL21

TL22

TL24

This coupler may fit:

• BOBCAT (2001 or older) - 853, 863, 873, 963,
• DEERE - 325, 328, 332
• GEHL - 4640, 4840, 5640, 6640
• VOLVO - MC90, MC110
• ASV- RC100

 Interchangeable Part Numbers:

Manufacturer	Male	Female
Dixon HT Series	HT4OF6	4HTOF6
DNP PLT4 Series	FF-HPG-08-12N-SAE	FF-HPG-08-12C-SAE
Eaton Aeroquip	FD89-1004-12-08	FD89-1005-12-08
Faster FFH Series	FFH08 34SAE M	FFH08 34SAE F
Parker FE Series	FEM-502-12FO	FEM-501-12FO
Safeway	FFE491-4-12	FFE495-4-12
Snap Tite	74N8-12EM	74C8-12EM
Stucchi FIRG Series	800804009	800804008
Tomco FE Series	EP4-12	EC4-12
TopLine	FF-1234-2-M	FF-1234-2-F

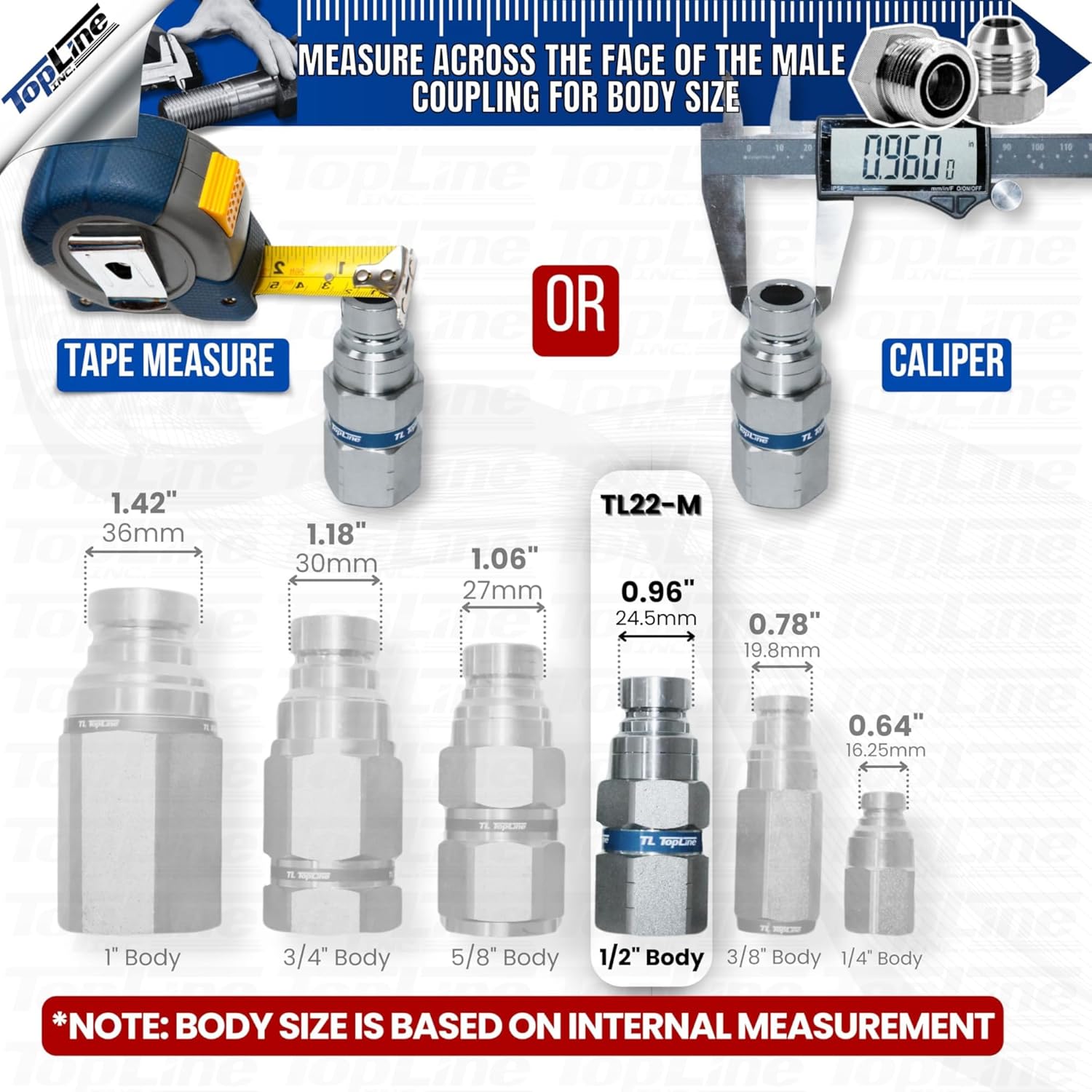

More Thread Sizes for 1/2" Flat Face Coupler:

3/8”  NPT  Female Thread (Set) TL19

1/2”  NPT  Female Thread (Set) TL23

1/2”  NPT  Female Thread (Male) TL40 -Connect under pressure

#08  JIC   Male Thread    (Set) TL20

5/8” SAE Female Thread (Set) TL21

#10  JIC   Male Thread    (Set) TL24   -With Bulkhead fitting-

5/8”  ORFS  Male Thread  (Set) TL26  -With Bulkhead fitting-

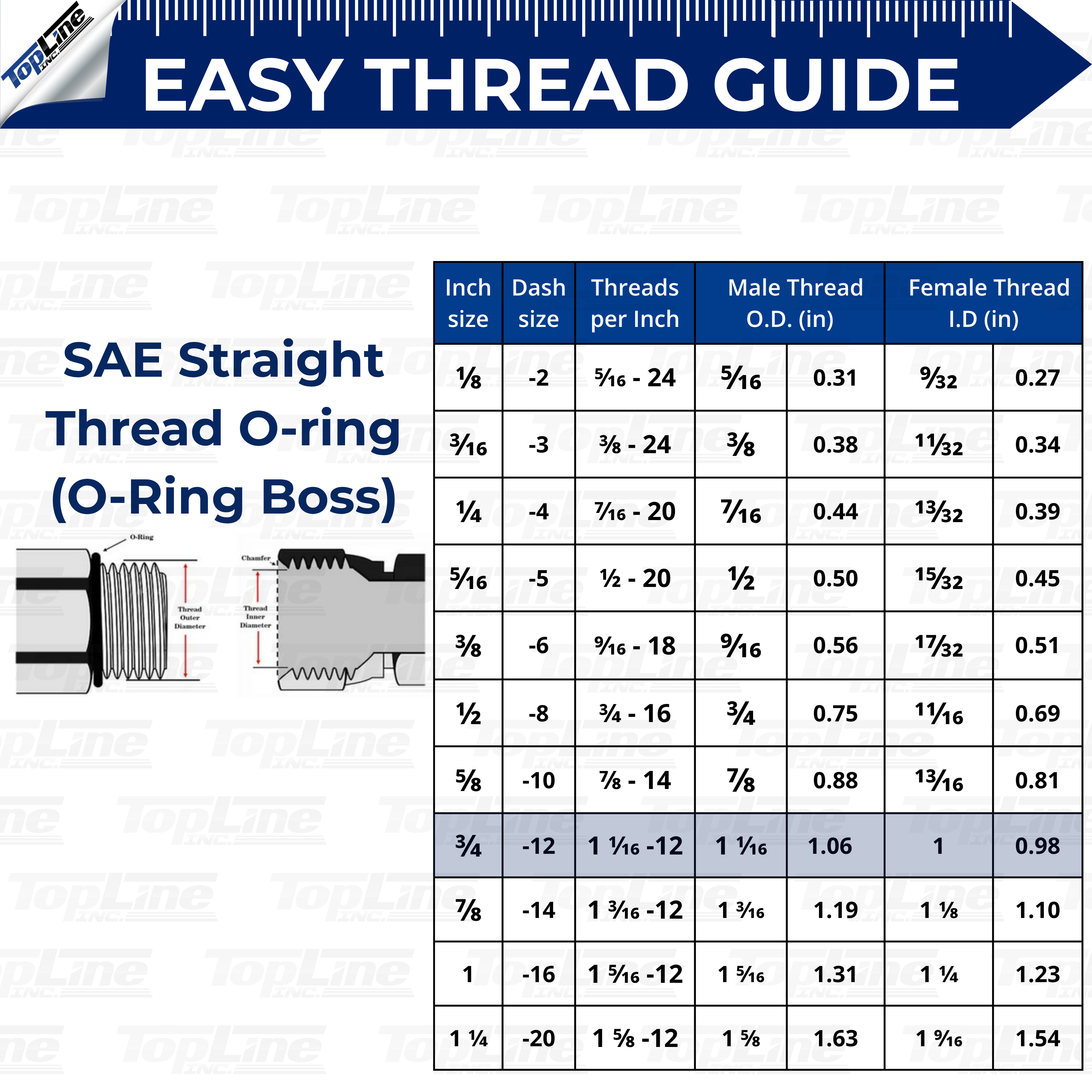

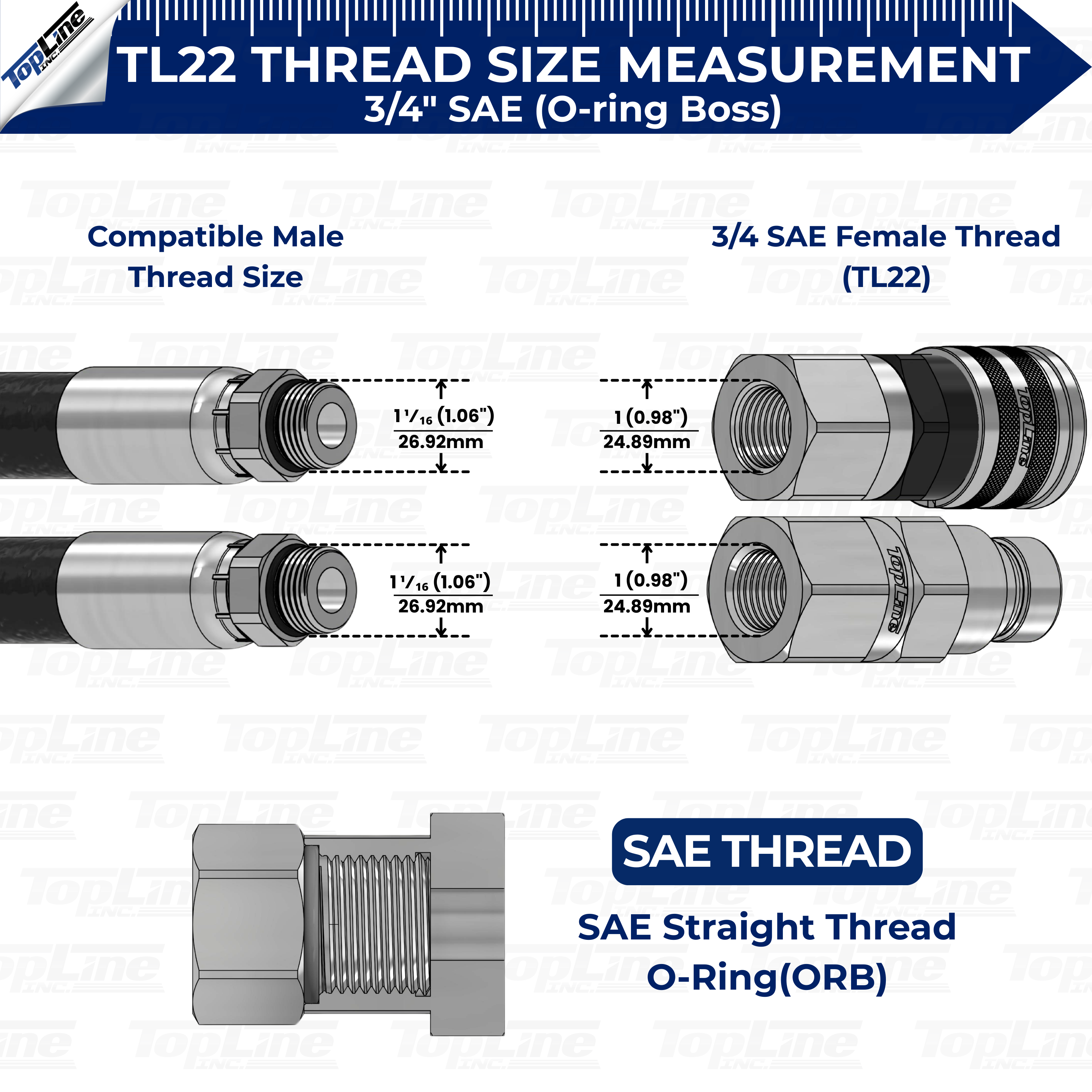

3/4”  SAE  Female Thread (Set) TL22

#12  JIC   Male Thread     (Set) TL25   -With Bulkhead fitting-

3/4”  NPT  Female Thread (Set) TL30

3/4”  NPT  Female Thread (Male) TL43 -Connect under pressure-



Flat Face to Agricultural Style Adapters:

Flat Face to Male Ag Couplers TL46

Flat Face to Male & Female Ag Coupler TL36

See our Store for more coupler sizes
