1/2" Hydraulic Quick Connect Coupler Set, Flat Face, 1/2" NPT, ISO 16028, Heavy-Duty Steel, Includes Mounting Bracket, Fits Skid Steer Bobcat Attachments - TL23B-2

$ 67.15 $ 104.93

Collections: 1/2" BODY COUPLER SET, Brackets, Flat Face Quick Coupler (1/2" body)


🗸 OUR BRACKETS ARE MADE HERE IN THE USA: Ensuring top-quality craftsmanship and durability. Set includes: Two (2) Couplers and one (1) Mounting Bracket.
🗸 TL23B-2 1/2" NPT THREAD - 1/2" BODY SIZE, Couplers Hydraulic Quick Connect with Break Away Mounting Bracket to fit Agricultural tractors and other farm equipment. Rated for over 5076 PSI. Built for heavy-duty use.
🗸 QUICK & SECURE CONNECTION: Push-connect / Pull-disconnect locking sleeve ensures easy, reliable coupling with no air inclusion or leaks.
🗸 CORROSION-RESISTANT: Zinc-plated for long-lasting protection and exceeds ISO 16028 standards.
🗸 EFFORTLESS USE – The push-connect locking sleeve is designed to be connected one handed, allowing for quick and easy connections and disconnections in the field, even with gloved hands.
🗸 VERSATILE COMPATIBILITY: Ideal for use with a wide range of agricultural machinery, including tractors, planters, sprayers, and other heavy-duty farm equipment. Perfect for maximizing efficiency and minimizing downtime in the field.

Product description

1/2" Body Hydraulic Quick Connect Coupler Set, 1/2" NPT Thread, Flat Face, ISO 5675
1/2" Body Hydraulic Quick Connect Coupler Set, 1/2" NPT Thread, Flat Face, ISO 5675
1/2" Body Hydraulic Quick Connect Coupler Set, 1/2" NPT Thread, Flat Face, ISO 56751/2" Body with 1/2" NPT Thread, Hydraulic Quick Connect Coupler, Flat Face, ISO 16028, Heavy-Duty
1/2" Body with 1/2" NPT Thread, Hydraulic Quick Connect Coupler, Flat Face, ISO 16028, Heavy-Duty
What makes the TL23B-2 Hydraulic Quick Connect Coupler a superior choice?
The TL23B-2 coupler is built for high-performance use with a heavy-duty steel body and a working pressure rating of over 5,000 PSI. It's engineered to withstand tough environments while delivering consistent, leak-free performance.
How does the flat face design improve performance?
The flat face design significantly reduces fluid loss during connection and disconnection while minimizing the introduction of contaminants. This enhances hydraulic system longevity and reduces downtime due to maintenance.
Is the TL23B-2 compatible with my skid steer or equipment?
The TL23B-2 is compatible with many skid steers and attachments from Bobcat, John Deere, CAT, Kubota, CASE, JCB, and more. It features a standard 1/2" NPT thread and 1/2" body size for broad compatibility.
Does the product include any protective accessories?
Yes, the TL23B-2 includes protective dust caps for both male and female couplers. These caps help prevent dirt and debris from entering the hydraulic system when the couplers are not in use.
Can the TL23B-2be used as a replacement for existing couplers?
Absolutely. The TL23B-2 is designed as a direct replacement for many standard flat face hydraulic couplers used on skid steers and other hydraulic machinery. Its standardized sizing allows for a simple, straightforward installation.



Specification Details
Model Number TL23B-2
Coupler Body Size 1/2"
Coupler Thread Size 1/2" NPT
Thread Inner Diameter 0.77”
Thread Dash Number -08
Coupler Material Type Steel
Coupler Plating Type Corrosion-resistant trivalent zinc
This set includes: 1 Male Flat Face Coupler
1 Female Flat Face Coupler
1 Mounting Bracket

TL39B-2 TL39B-1 TL39B-4 TL39B-6 TL39B-8

    How to Connect/Disconnect Breakaway Couplers



    Interchangeable Part Numbers:

    Manufacturer

    Male

    Female

    Dixon HT Series

    HT4F4

    4HTF4

    DNP PLT4 Series

    FF-HPG-08-08N-NPT

    FF-HPG-08-08C-NPT

    Eaton Aeroquip

    FD89-1002-08-08

    FD89-1001-08-08

    Faster FFH Series

    FFH08 12NPT M

    FFH08 12NPT F

    Holmbury

    FIMC12A NPT 1/2"M

    FIMC12A NPT 1/2"F

    Parker FE Series

    FEM-502-8FP

    FEM-501-8FP

    Safeway

    FFE491-4

    FFE495-4

    Snap Tite

    74N8-8F

    74C8-8F

    Stucchi FIRG Series

    800801007

    800801006

    Tomco

    EP4-26

    EC4-26
    TopLine FF-1212-1-M FF-1212-1-F





    (Click below to see what couplers fit your machine)

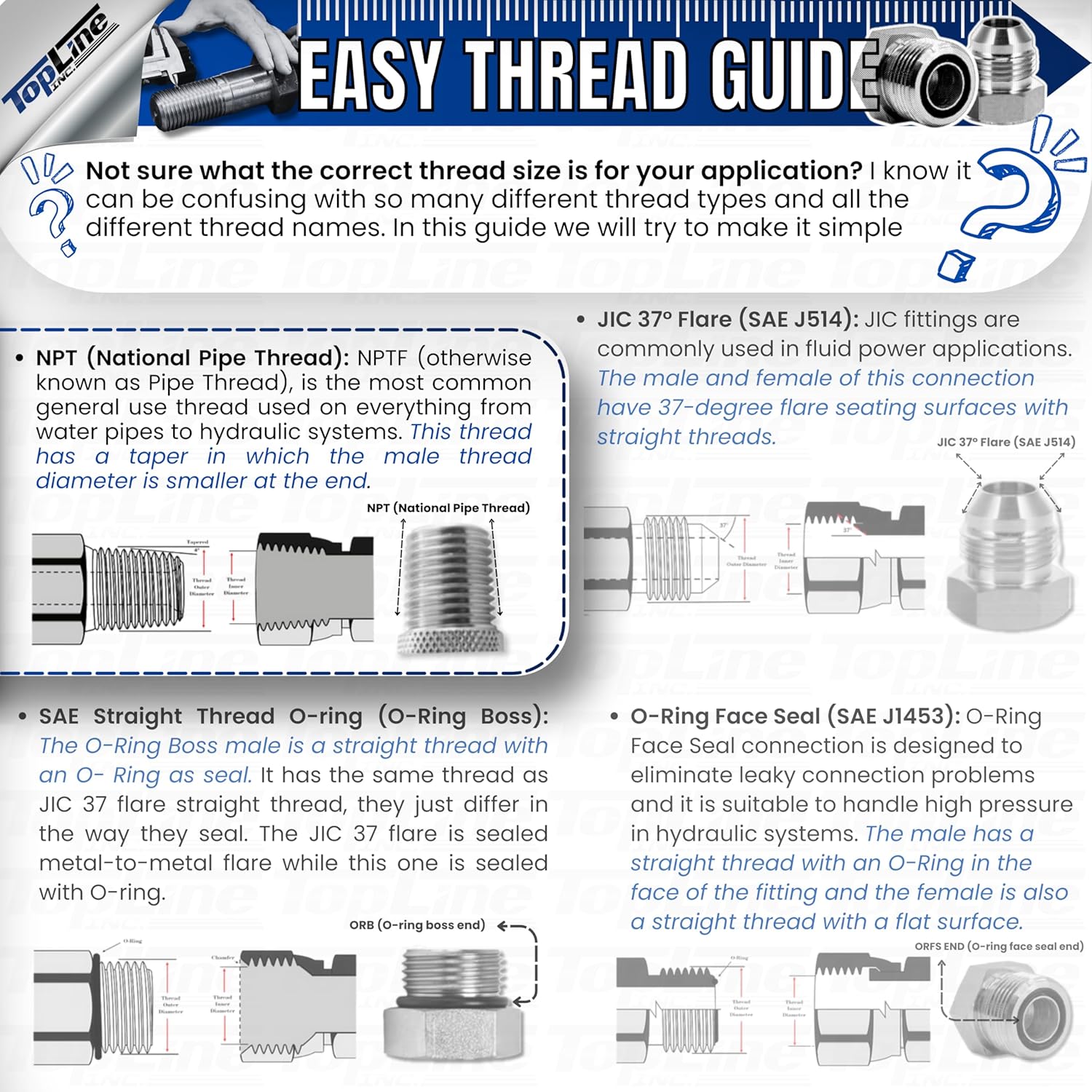

    More Thread Sizes for 1/2" Flat Face Coupler:

    3/8”  NPT  Female Thread (Set) TL19

    1/2”  NPT  Female Thread (Set) TL23

    1/2”  NPT  Female Thread (Male) TL40 -Connect under pressure

    #08  JIC   Male Thread    (Set) TL20

    5/8” SAE Female Thread (Set) TL21

    #10  JIC   Male Thread    (Set) TL24   -With Bulkhead fitting-

    5/8”  ORFS  Male Thread  (Set) TL26  -With Bulkhead fitting-

    3/4”  SAE  Female Thread (Set) TL22

    #12  JIC   Male Thread     (Set) TL25   -With Bulkhead fitting-

    3/4”  NPT  Female Thread (Set) TL30

    3/4”  NPT  Female Thread (Male) TL43 -Connect under pressure-



    Flat Face to Agricultural Style Adapters:

    Flat Face to Male Ag Couplers TL46

    Flat Face to Male & Female Ag Coupler TL36



    See our Store for more coupler sizes



    We aim to be your #1 source for high quality skid steer & ag hydraulic quick connect couplers and accessories.



    This item has a 100% satisfaction guarantee!



    Return Policy: If you are not fully satisfied with your purchase, you may return unused item for a full refund of the purchase price, excluding shipping charges, within 60 days of purchase date.

    If you have any questions about this item, feel free to contact us

     Check back often for more skid steer products and solutions.
