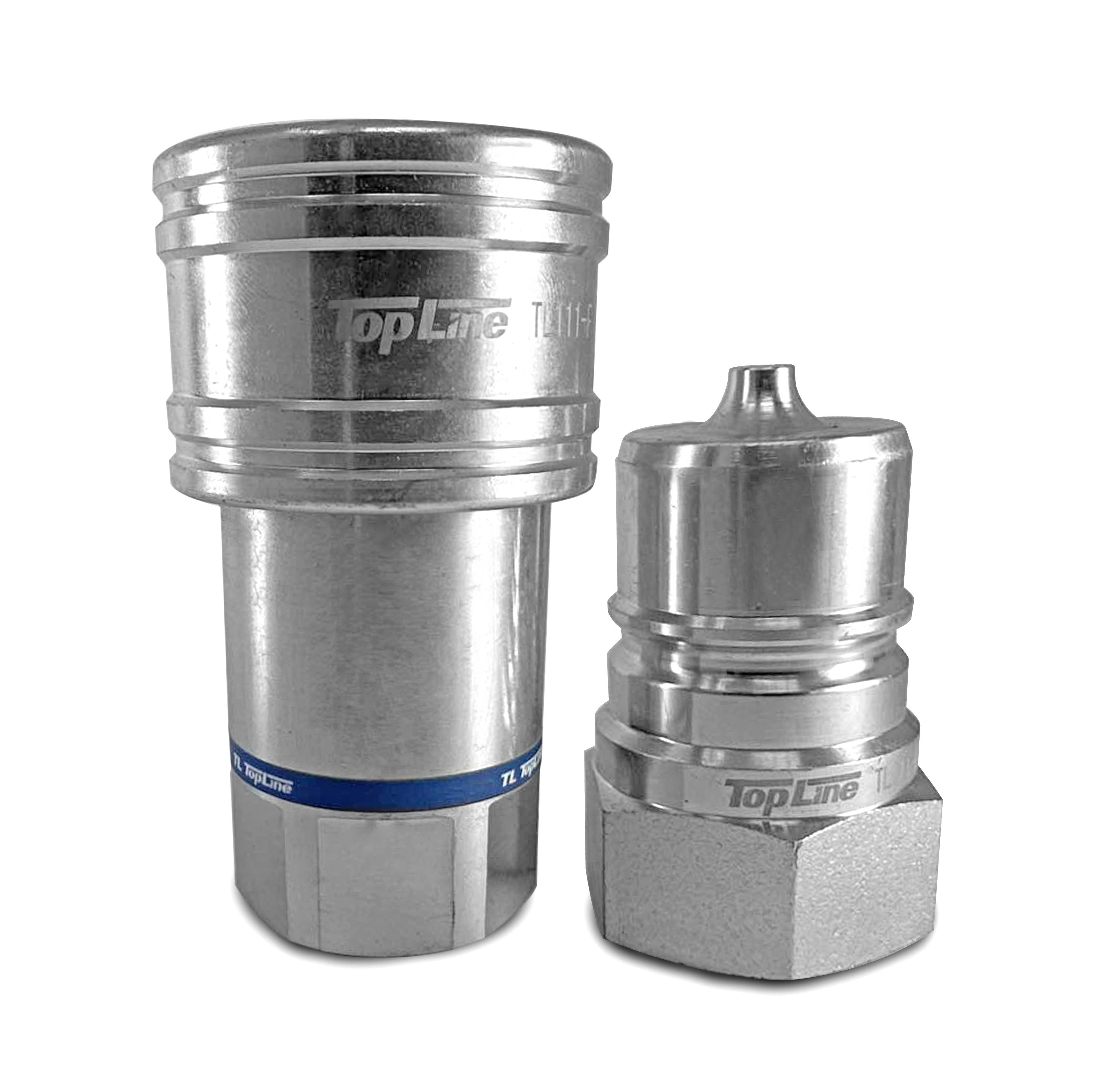

1" NPT x 1" Body TL111 Ag ISO 5675 Quick Coupler Male Nipple w/dust caps- Poppet Style Hydraulic Tractor Coupling

These are NOT light duty couplers. The sturdy design of heavy duty TopLine couplers have become well known for their durability and ability to withstand rugged conditions.

Our coupler sizes fit many models of: Bobcat, John Deere, CAT, Kubota, New Holland, CASE, JCB, Thomas, Gehl, Volvo, and ASV skid steers.

Ag Style couplers are designed for applications where hydraulic spillage is a concern. One of the great advantages to the Flush Face design is that the couplers are easy to keep clean which helps to prevent contaminants from entering the hydraulic system during connection and disconnection.

Couples to any standard 1" body Ag style couplers on Skid Steers and other equipment. These couplers meet or exceed the ISO 5675 standard.

Features:

• Heavy Duty design. Rated at over 3600 PSI
• Couples to any standard 1” Ag style coupler
• Push-connect locking sleeve design
• Exceeds ISO 5675 standards
• Corrosion-resistant zinc plating
• No air inclusion during disconnection
• Heavy knurled sleeves for non-slip grip
• Includes dust caps to protect from the elements
• Flat Face coupler design minimizes hydraulic fluid loss

Specifications:

• Model number:                   TL111
• Coupler Body Size:            1"
• Coupler Thread Size:         1" NPT
• Thread Inner Diameter:      1-1/4" (1.24”)
• Thread Dash Number:       -16
• Coupler Material Type:       Steel
• Coupler Plating Type:         Corrosion-resistant trivalent zinc

This set includes:

• 1 Male Ag Style Coupler
• 1 Female Ag Style Coupler
• 2 Protective Dust Caps

Thread Sizes for 1/2" Body Agricultural Style Adapters:

Flat Face to Agricultural Style Adapters:
