TL38 1/2" NPT Thread Ag Quick Connect Hydraulic Coupler Ball style 1/2" body size for Tractor Bobcat Skid Steer Loaders Implements





Q: Can the these couplers be connected with one hand and be disconnected with just pulling hyd hose out with one hand?

A: The TL38 couplers are designed for two hand  operation, although we do have another model  that will work with one hand. Please take a look at our model TL39 breakaway couplers which are designed to be mounted in a bracket that holds the collar stationary, this allows the couplers to engage or disengage with one hand operation.

These couplers are a direct replacement for the standard sized coupler mounted on many models of skid steers and attachments.

These are NOT light duty couplers. The sturdy design of heavy duty TopLine couplers have become well known for their durability and ability to withstand rugged conditions.

Our coupler sizes fit many models of: Bobcat, John Deere, CAT, Kubota, New Holland, CASE, JCB, Thomas, Gehl, Volvo, and ASV skid steers.

Ag style couplers are designed for applications where hydraulic spillage is a concern. One of the great advantages to the Flush Face design is that the couplers are easy to keep clean which helps to prevent contaminants from entering the hydraulic system during connection and disconnection.

Couples to any standard 1/2" Ag ball Style Ag couplers on Skid Steers and other equipment. These couplers meet or exceed the ISO 5675 standard.



Features:

  • Heavy Duty design. Rated at over 3600 PSI
  • Couples to any standard 1/2” Ag ball style coupler
  • Push-connect locking sleeve design
  • Exceeds ISO 5675 standards
  • Corrosion-resistant zinc plating
  • No air inclusion during disconnection
  • Heavy knurled sleeves for non-slip grip
  • Includes dust caps to protect from the elements
  • Flat Face coupler design minimizes hydraulic fluid loss



Specifications:

  • Model number:                 TL38
  • Coupler Body Size:           1/2"

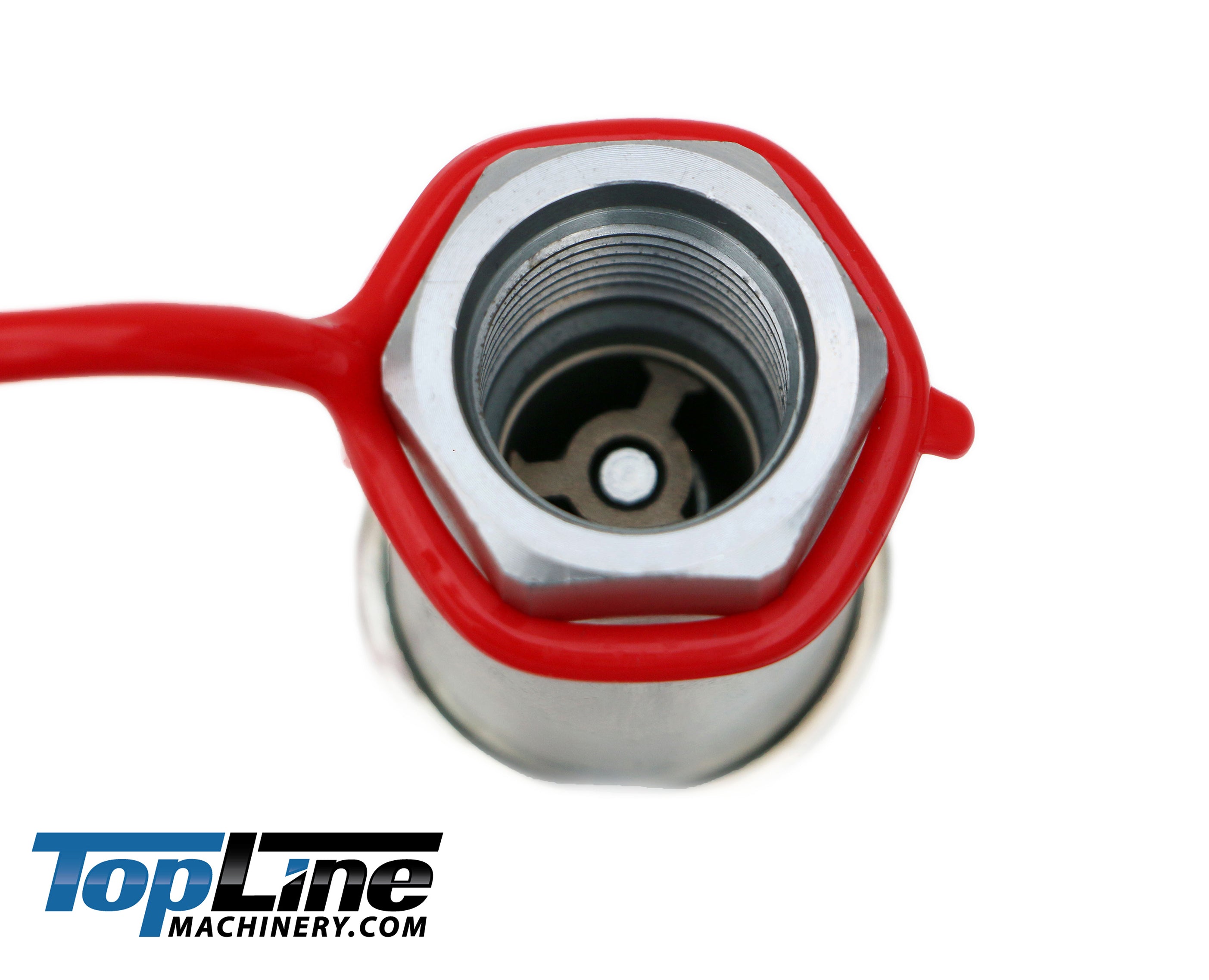

  • Coupler Thread Size:        1/2" NPT
  • Thread Inner Diameter:     0.77”
  • Thread Dash Number:       -08
  • Coupler Material Type:     Steel
  • Coupler Plating Type:       Corrosion-resistant trivalent zinc

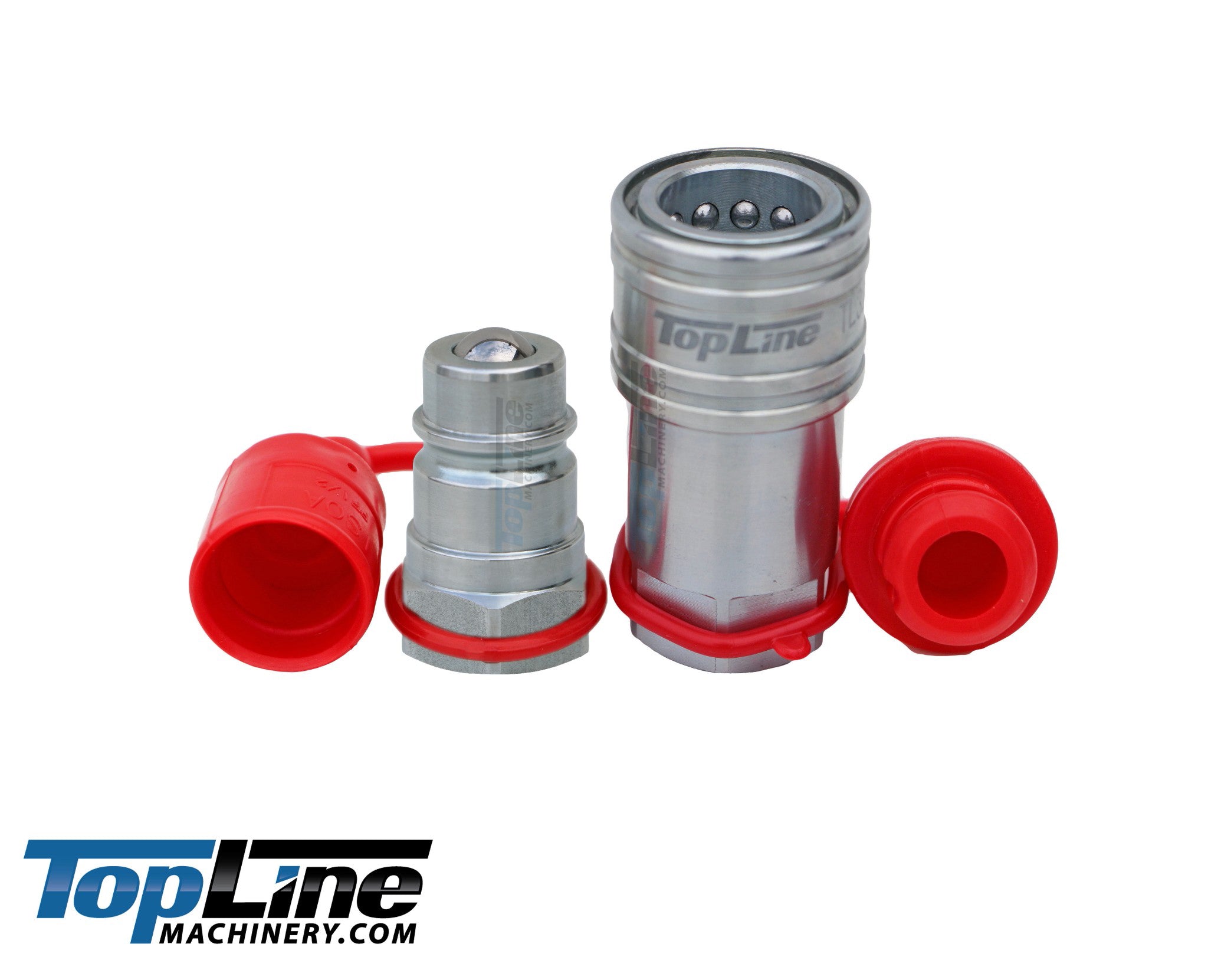

This set includes:

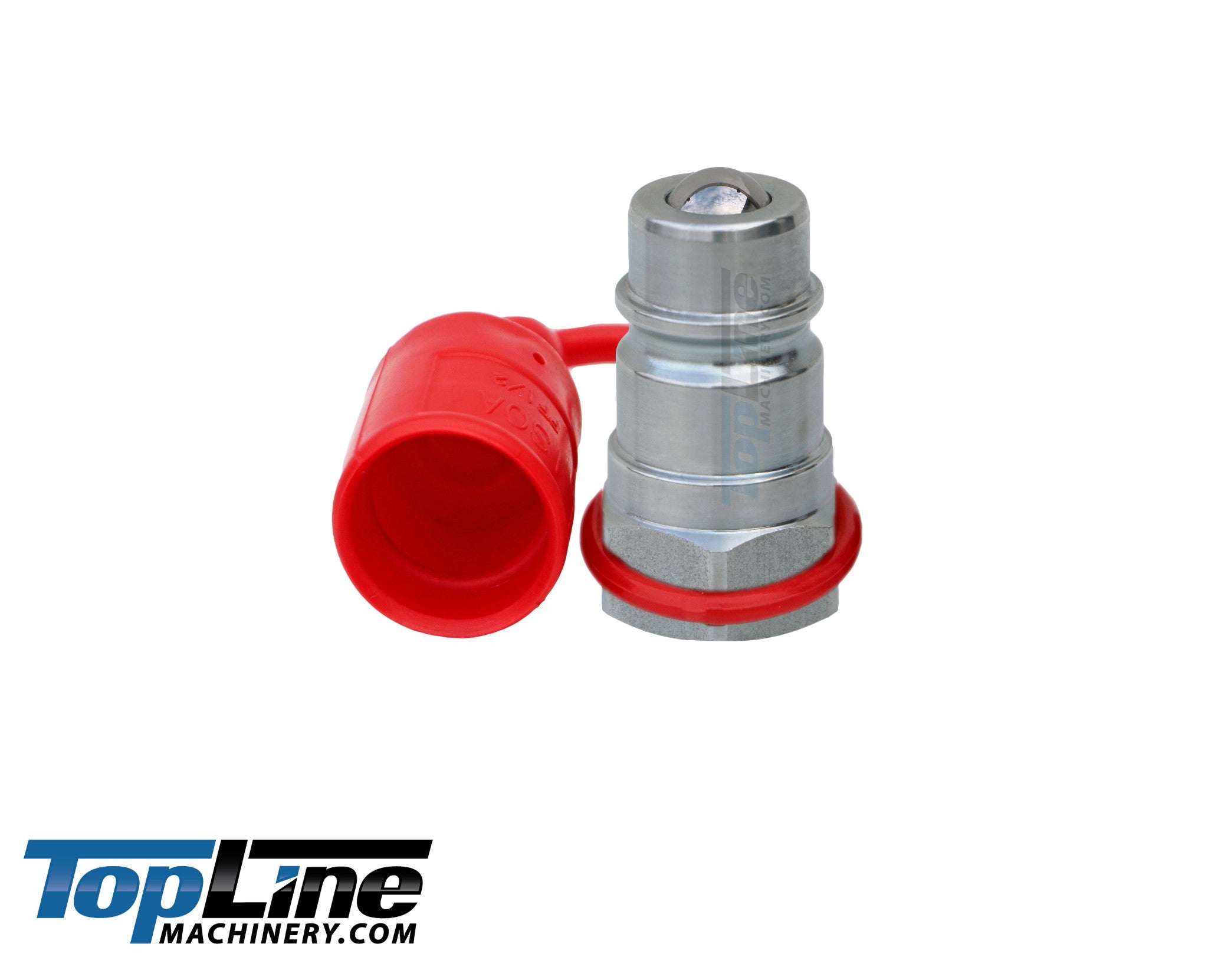

  • 1 Male Ag Style Coupler

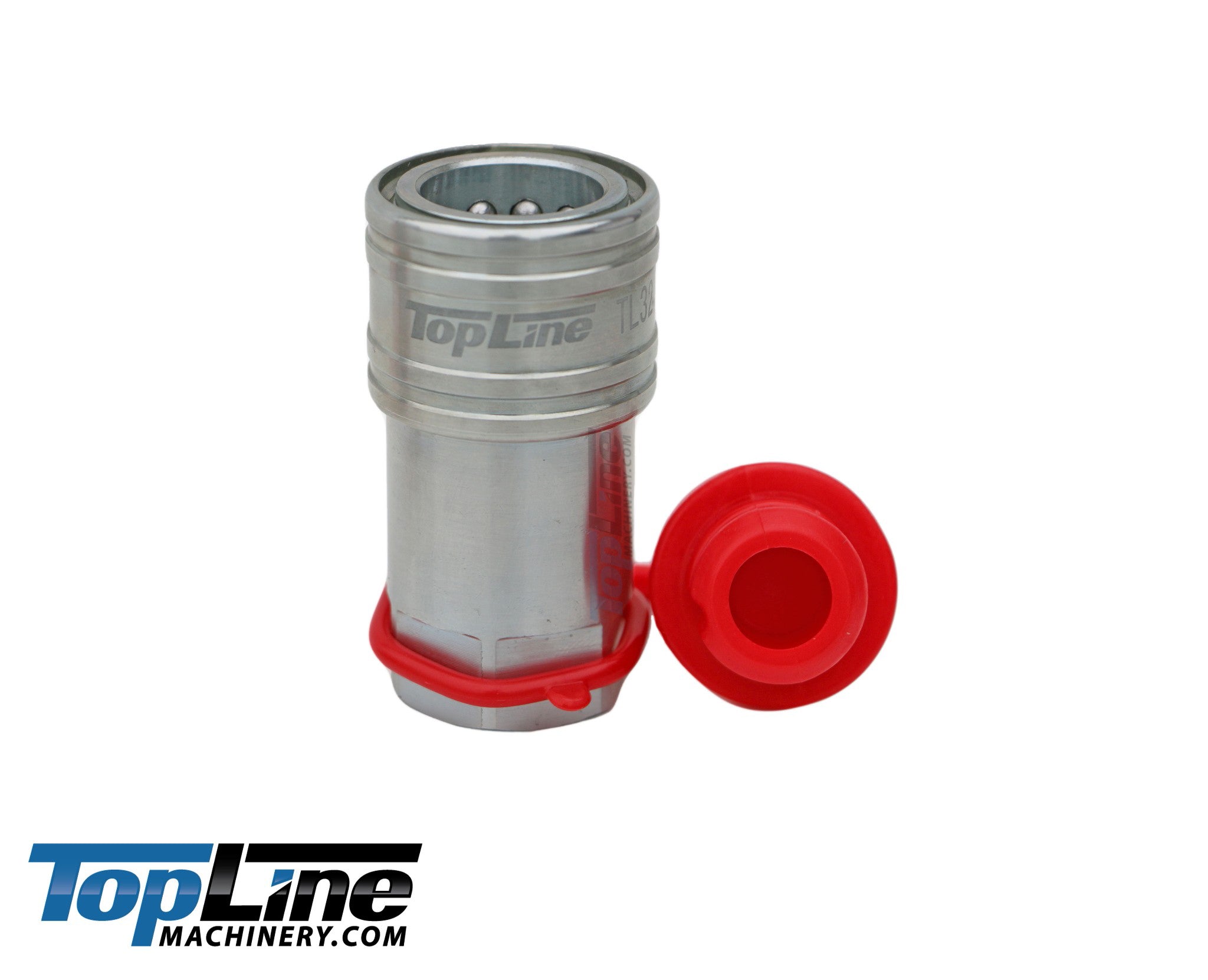

  • 1 Female Ag Style Coupler

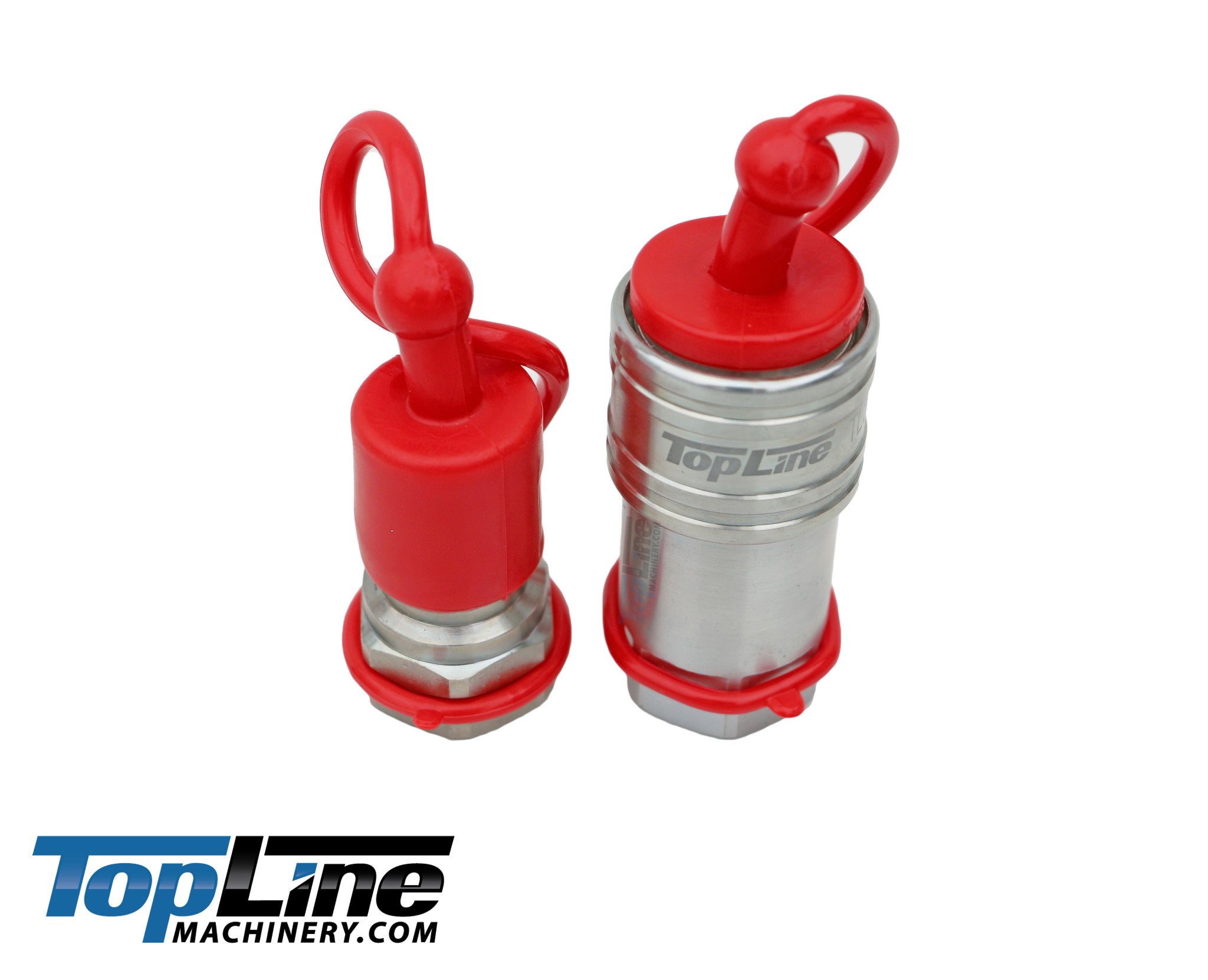

  • 2 Protective Dust Caps



Interchangeable Part Numbers:

Manufacturer

Aeroquip FD42

Dixon AG Series

Faster NV/NS Series

ISO 5675 Series

ISO 7241 Series

Parker/Pioneer 4000 Series

4050-4 female and 8010-4 male

Safeway S-20 Series

Snap-Tite 60/ 21

Stucchi IR Series

TopLine AG-1212-1B






(Click below to see what couplers fit your machine)



More Thread Sizes for 1/2" Body Agricultural Style Adapters:

5/8” SAE (ORB) Female Thread (Set) TL32

1/2” NPT Female Thread (Set) TL37

1/2” NPT Female Thread (Set) TL38 – Ball Style

1/2” NPT Female Thread (Set) TL39



Flat Face to Agricultural Style Adapters:

Flat Face to Male Ag Couplers TL46

Flat Face to Male & Female Ag Coupler TL36



See our Store for more coupler sizes

We aim to be your #1 source for high quality skid steer & ag hydraulic quick connect couplers and accessories.



This item has a 100% satisfaction guarantee!



Return Policy: If you are not fully satisfied with your purchase, you may return unused item for a full refund of the purchase price, excluding shipping charges, within 60 days of purchase date.

If you have any questions about this item, feel free to contact us

 Check back often for more skid steer products and solutions.
