Product Description

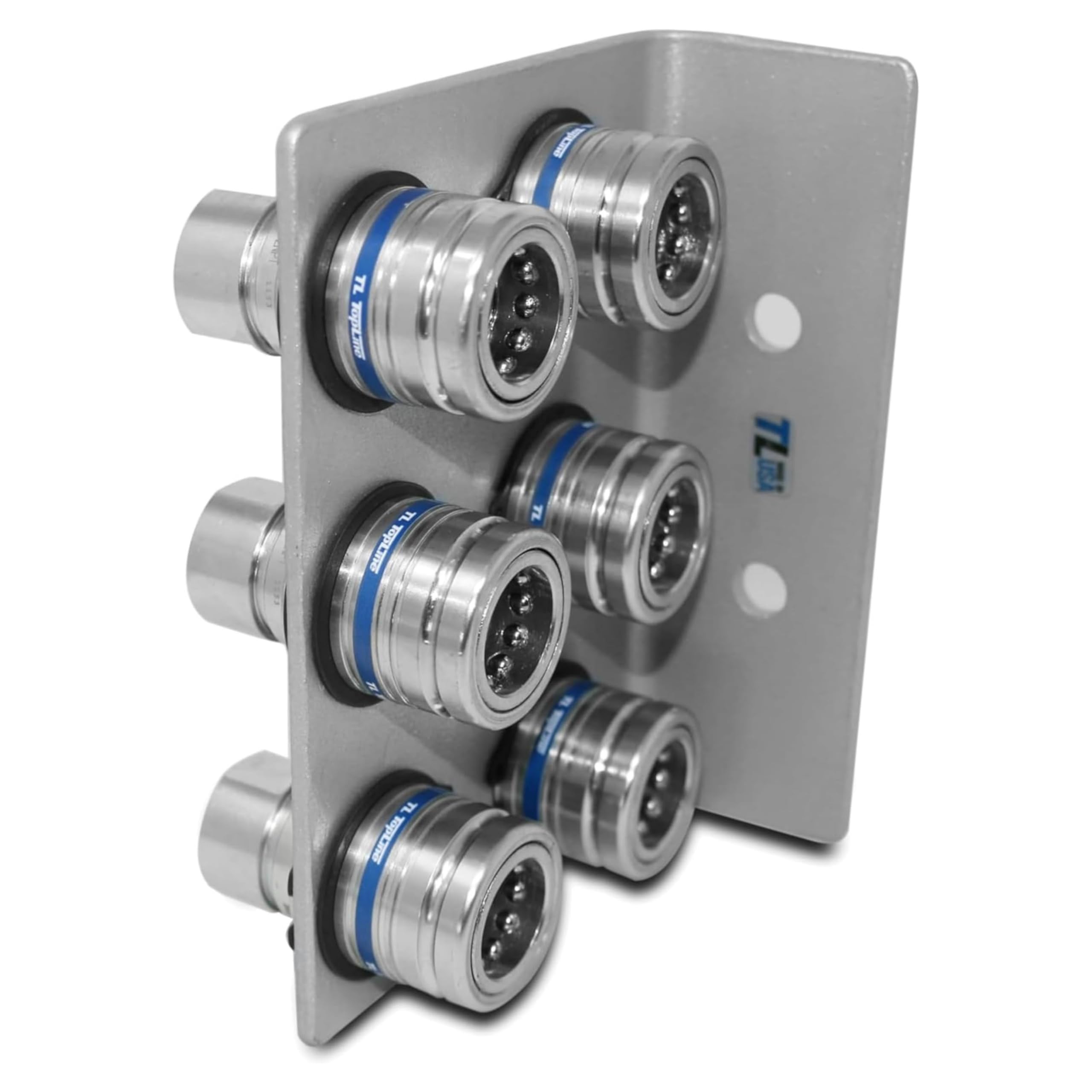

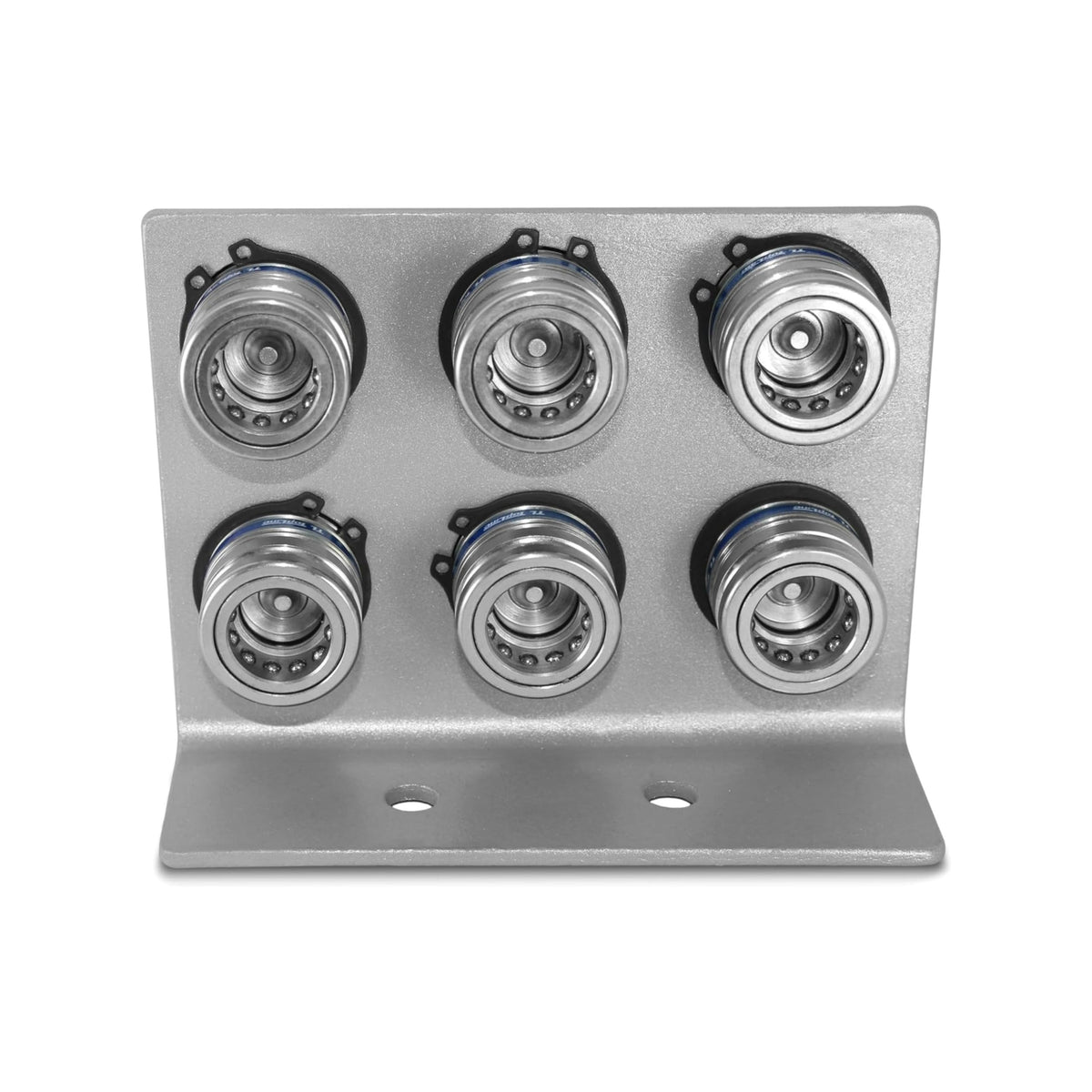

🗸 TL132B-6 HIGH-CAPACITY BREAKAWAY COUPLER SET – A comprehensive professional kit featuring six heavy-duty female Ag-style couplers and a robust, steel-yoke mounting bracket. This set is engineered for agricultural operations requiring multiple hydraulic circuits, ensuring reliable, secure, and organized hose management in the field.
🗸 SAFETY-DRIVEN BREAKAWAY DESIGN: Specifically engineered for "push-pull" operation. In the event of an accidental implement disconnect, the couplers are designed to snap out of the steel bracket safely, protecting your tractor’s hydraulic ports and the implement’s hoses from costly damage.
🗸 HEAVY-DUTY INDUSTRIAL BUILD: Rated for over 3600 PSI and built to exceed ISO 5675 standards. These components are forged from high-strength steel with a corrosion-resistant trivalent zinc finish, providing the resilience required to withstand years of exposure to mud, moisture, and agricultural chemicals.
🗸 PUSH-PULL ERGONOMICS: The unique sleeve design allows for effortless connection and disconnection, even under residual system pressure. This is a vital feature for operators who regularly cycle through different implements like seeders, planters, and sprayers.
🗸 READY-TO-INSTALL MULTI-CIRCUIT KIT: By including six couplers and a precision-engineered mounting bracket, this set is the ideal solution for upgrading or refreshing the hydraulic bulkhead on your tractor, providing a unified, professional-grade interface for all your auxiliary lines.

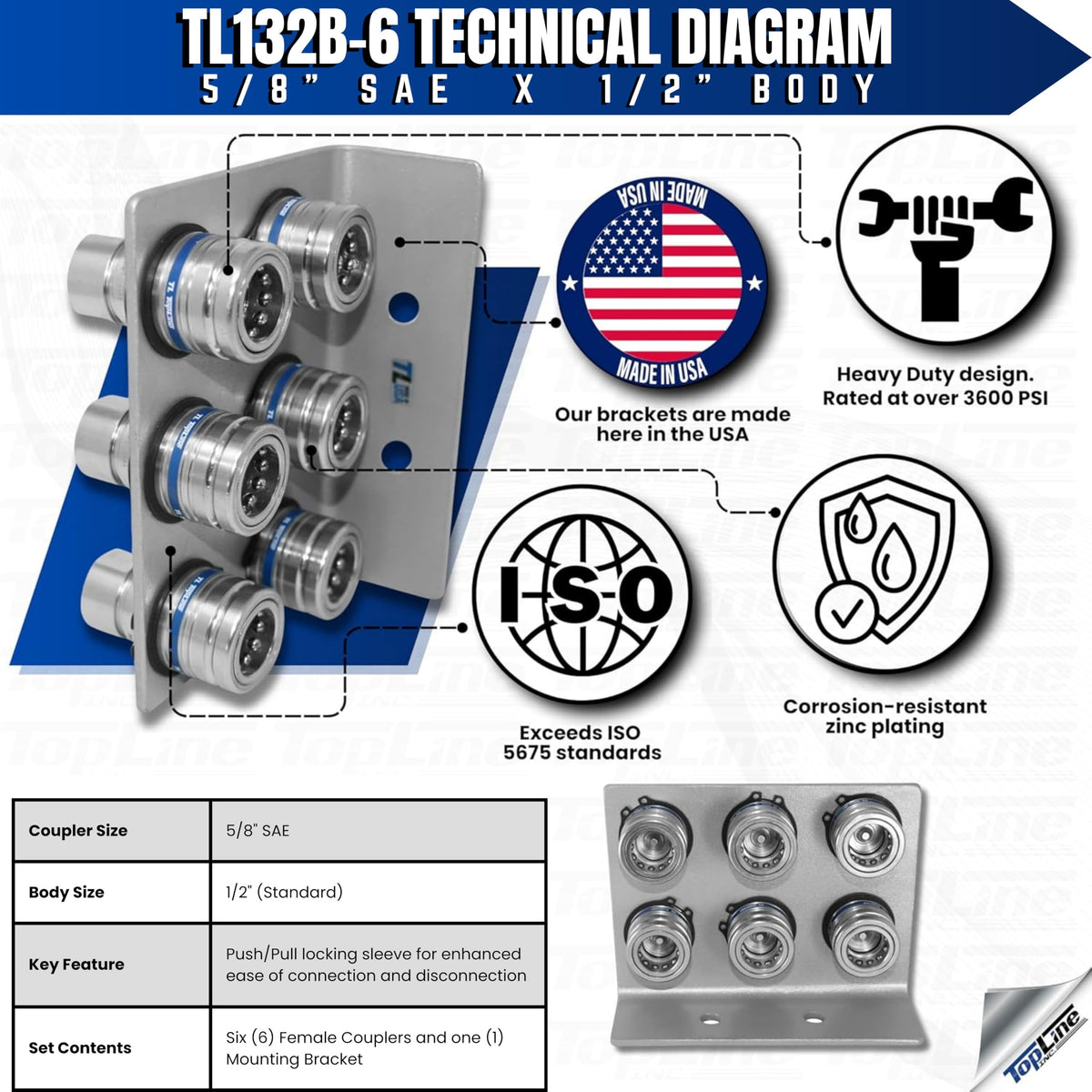

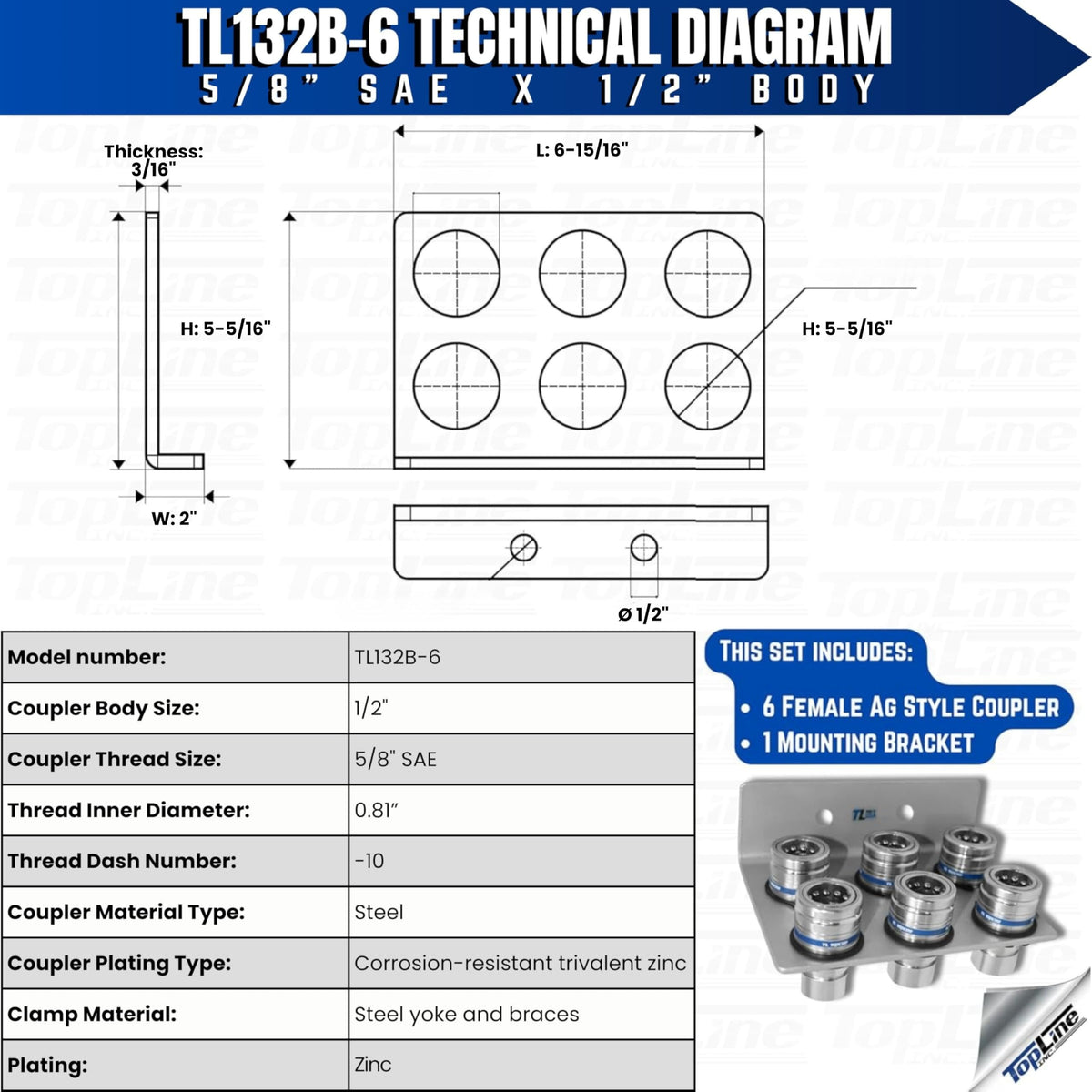

| Specification | Details |
| Model Number: | TL132B-6 |
| Coupler Body Size: | 1/2" |

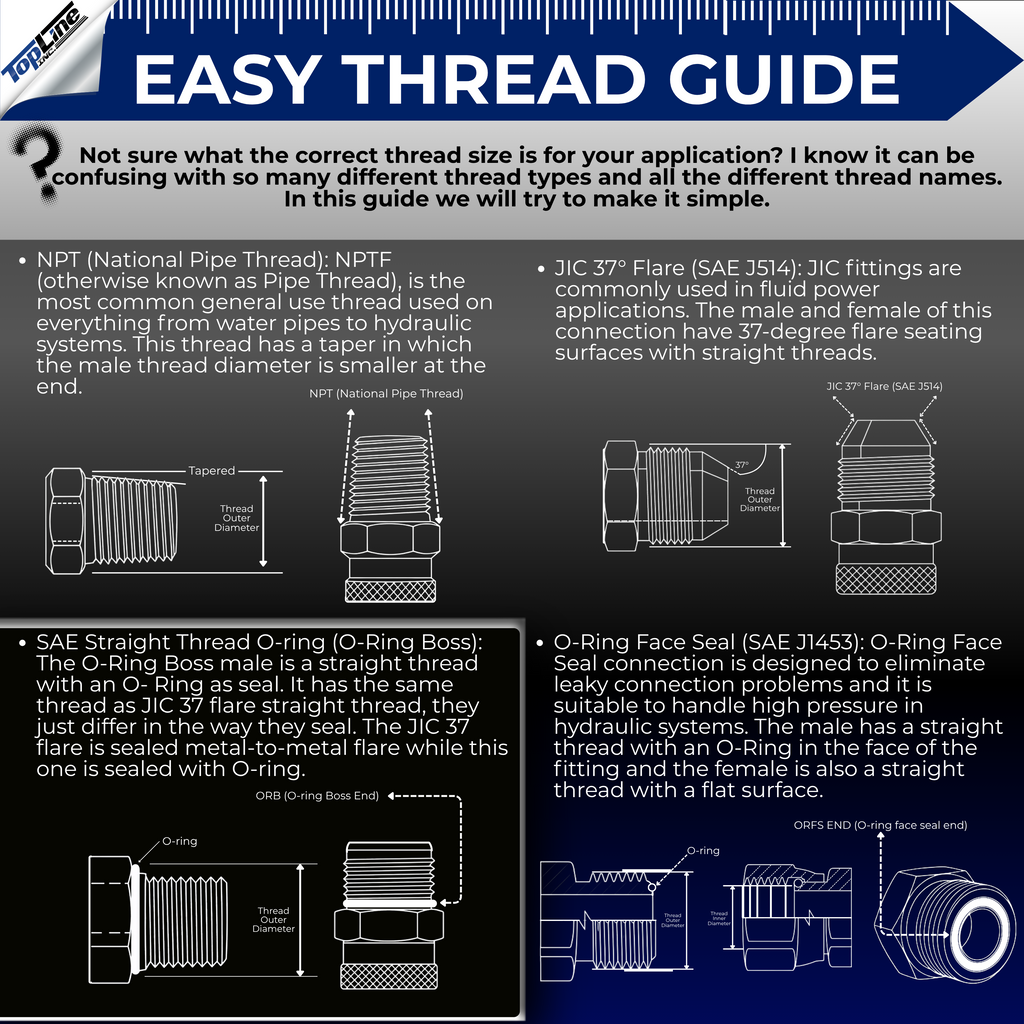

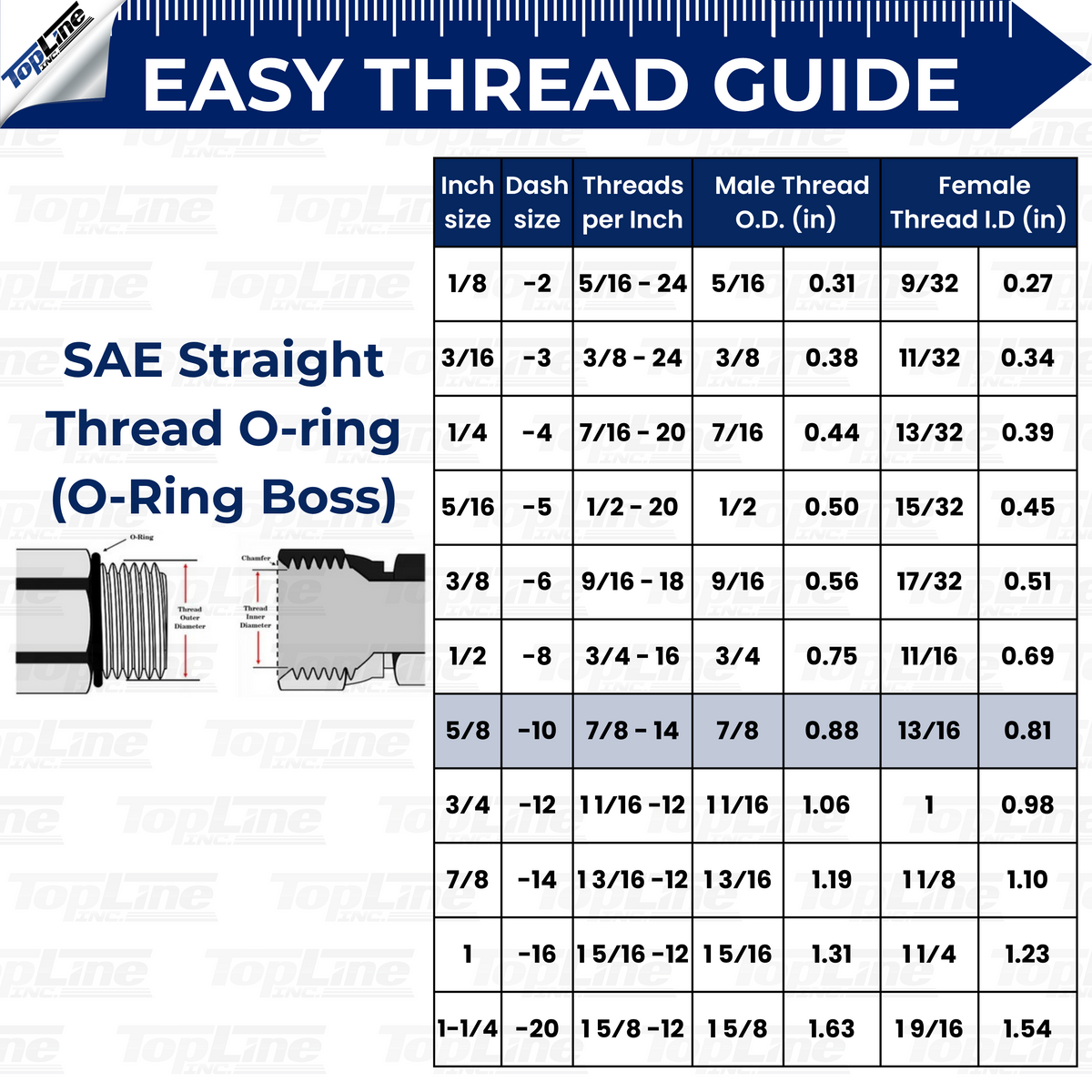

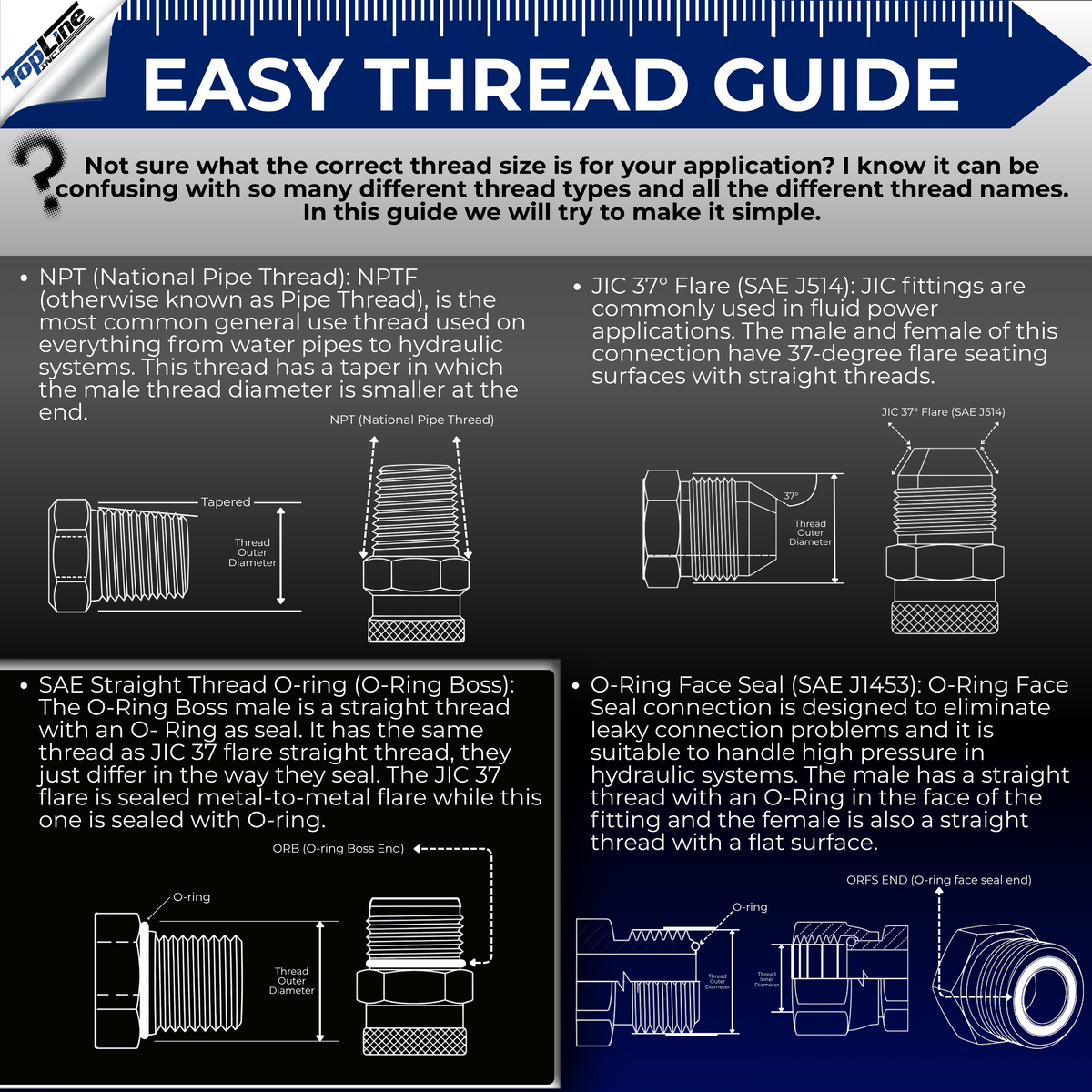

| Coupler Thread Size: | 5/8" SAE |
| Thread Inner Diameter: | 13⁄16 0.81" |
| Thread Dash Number: | -10 |
| Coupler Material Type: | Heavy-Duty Steel |
| Clamp/Bracket Material: | Steel Yoke and Braces |
| Plating Type: | Corrosion-resistant trivalent zinc |
| Package Includes: | (6) Female Ag Style Couplers, (1) Mounting Bracket |
Q: Why choose a 6-coupler kit versus buying individual units?
A: Buying the TL132B-6 set provides a complete, factory-style bulkhead solution. It ensures all your connections are perfectly spaced, properly supported by the included steel yoke, and uniform in performance. It simplifies the installation process and ensures your tractor's hydraulic array looks and functions like a professional setup.
Q: How does the "breakaway" feature protect my equipment?
A: The couplers are held within the steel bracket assembly. Should an implement accidentally disconnect while moving, the assembly is designed to let the couplers "break away" rather than putting the full force of the tractor's pull onto the hydraulic hoses. This saves your hoses from bursting and your tractor's hydraulic valves from being ripped out of the chassis.
Q: Is this set compatible with standard agricultural tractors?
A: Yes. Because these meet or exceed ISO 5675 standards, they are universally compatible with standard 1/2" body Ag-style systems found on almost all modern agricultural tractors and farming implements, regardless of the brand.
How to Connect/Disconnect Breakaway Couplers
