1/2" Body 5/8" SAE Thread | Agricultural Couplers Hydraulic Quick Connect with Break Away Mounting Bracket | ISO 5675 | Push/Pull Heavy-Duty Coupling | Model TL132B-2

$ 72.40 $ 81.35

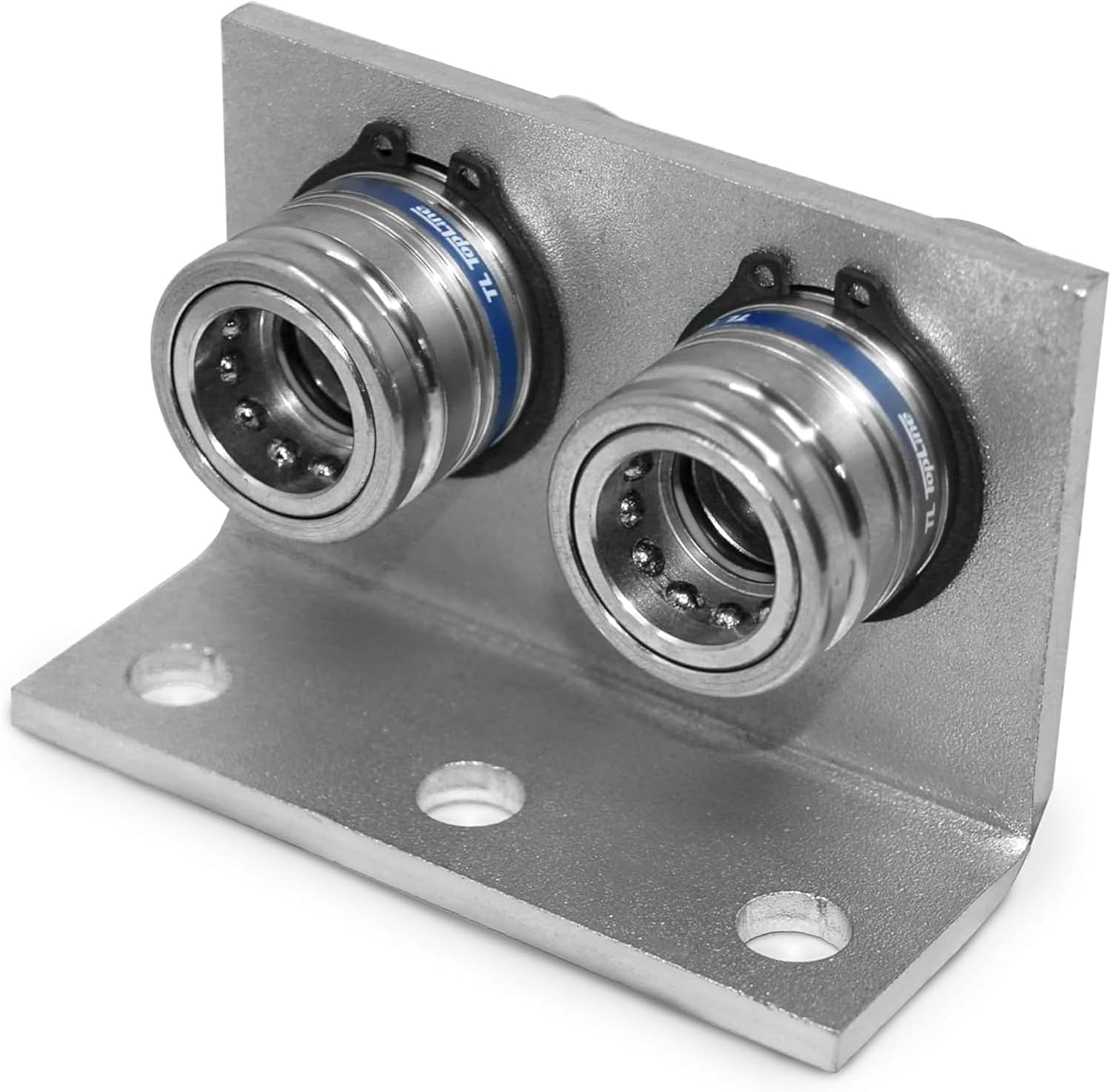

TL132-F Agricultural Coupler with Quick Coupling Breakaway Bracket, this is designed to be used with push-pull type sleeves to allow the couplings to disconnect in a breakaway situation.

This Breakaway Brackets comes with 1-1/2" diameter (1/2" body size) push-pull type sleeves Agricultural Quick Couplings

The Special design of the TL132 coupler features a Push/Pull locking sleeve which makes it easier to connect and disconnect the coupler.

Couples to any standard 1/2" body size ag style couplers on Skid Steers and other equipment. These couplers meet or exceed the ISO 5675 standard.

How to Connect/Disconnect Breakaway Couplers

title="How to Connect/Disconnect Breakaway Couplers" frameborder="0"

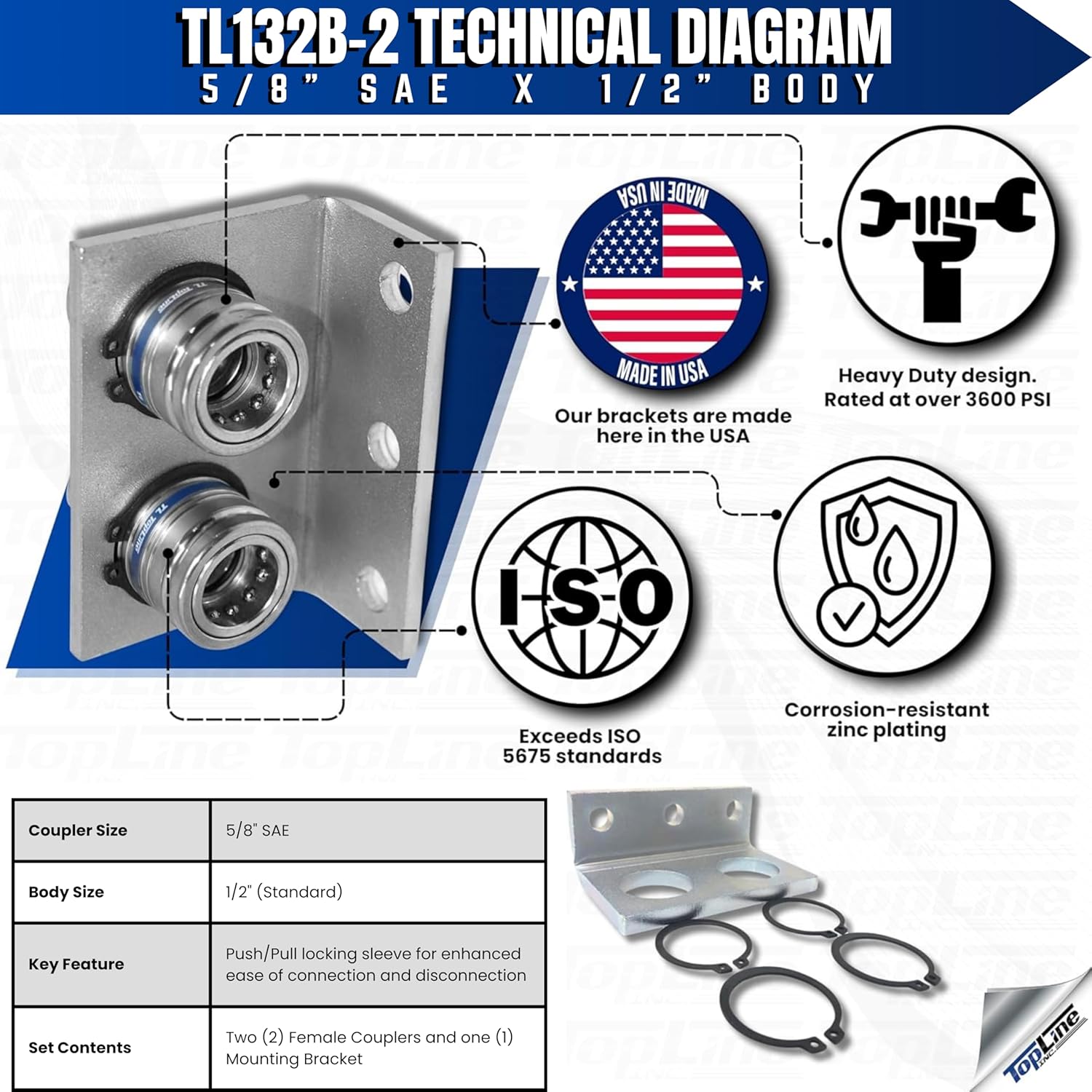

Features:

Heavy Duty design. Rated at over 3600 PSI
Couples to any standard 1/2” Ag Style coupler
Special Push/Pull locking sleeve design
Exceeds ISO 5675 standards
Corrosion-resistant zinc plating

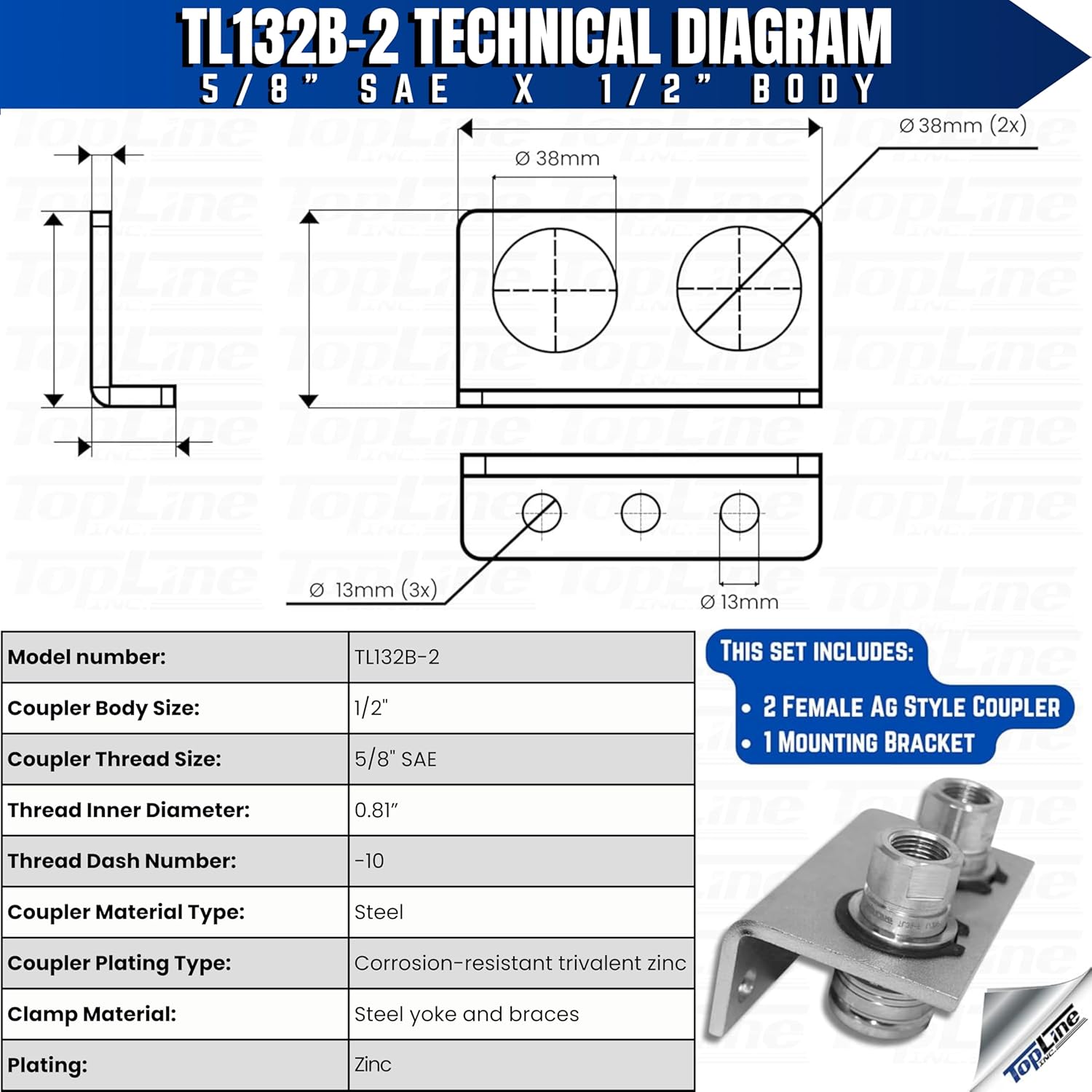

Specifications:

Model number: TL132B-2
Coupler Body Size: 1/2"

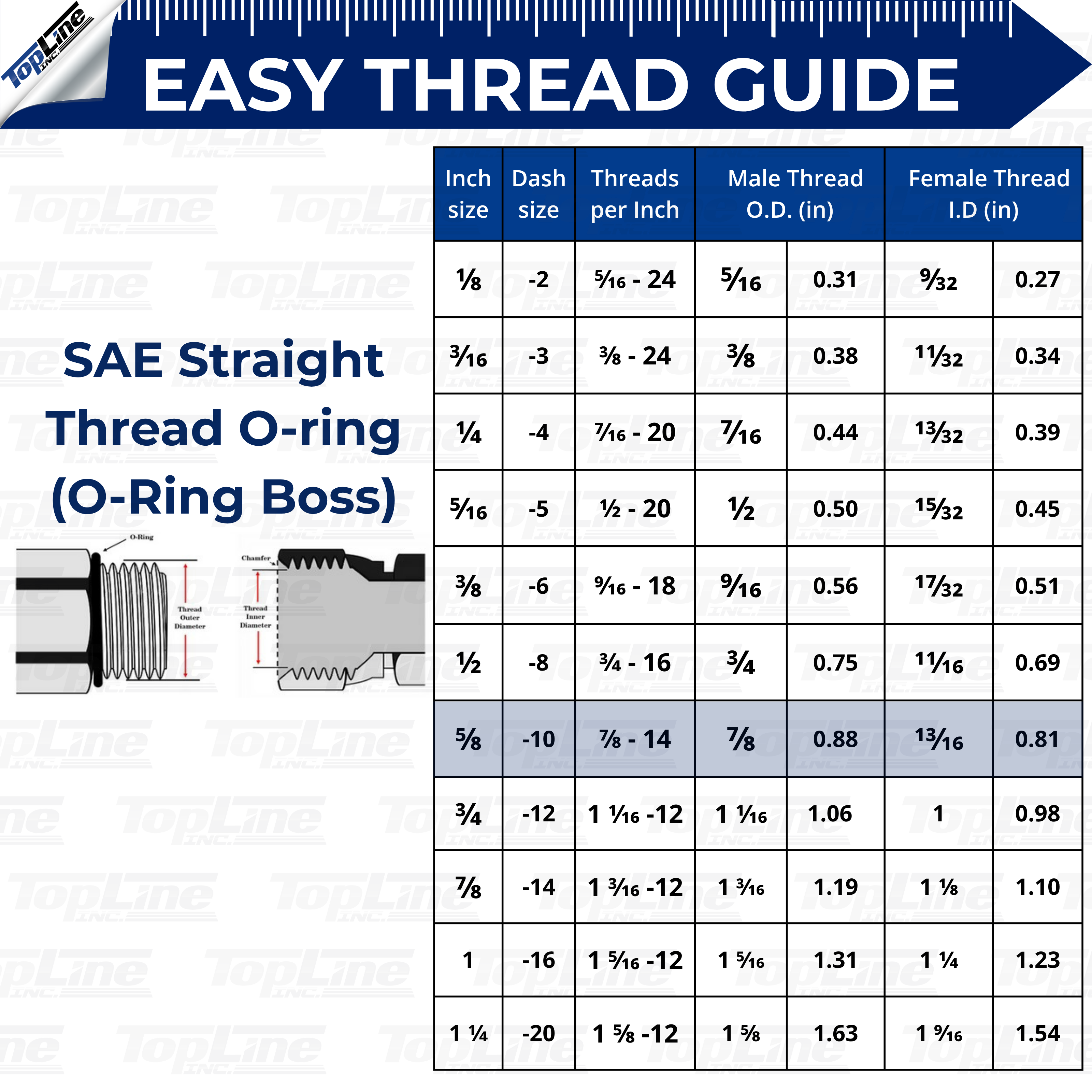

Coupler Thread Size: 5/8" SAE
Thread Inner Diameter: 13⁄16 (0.81)
Thread Dash Number: -10
Coupler Material Type: Steel
Coupler Plating Type: Corrosion-resistant trivalent zinc
Clamp Material: Steel yoke and braces
Plating: Zinc

This set includes:

2 Female Ag Style Coupler
1 Mounting Bracket

**If you need a bracket with...
(1) one coupler, click here
(4) four couplers, click here
(6) six couplers, click here
(8) eight couplers, click here
