Product Description

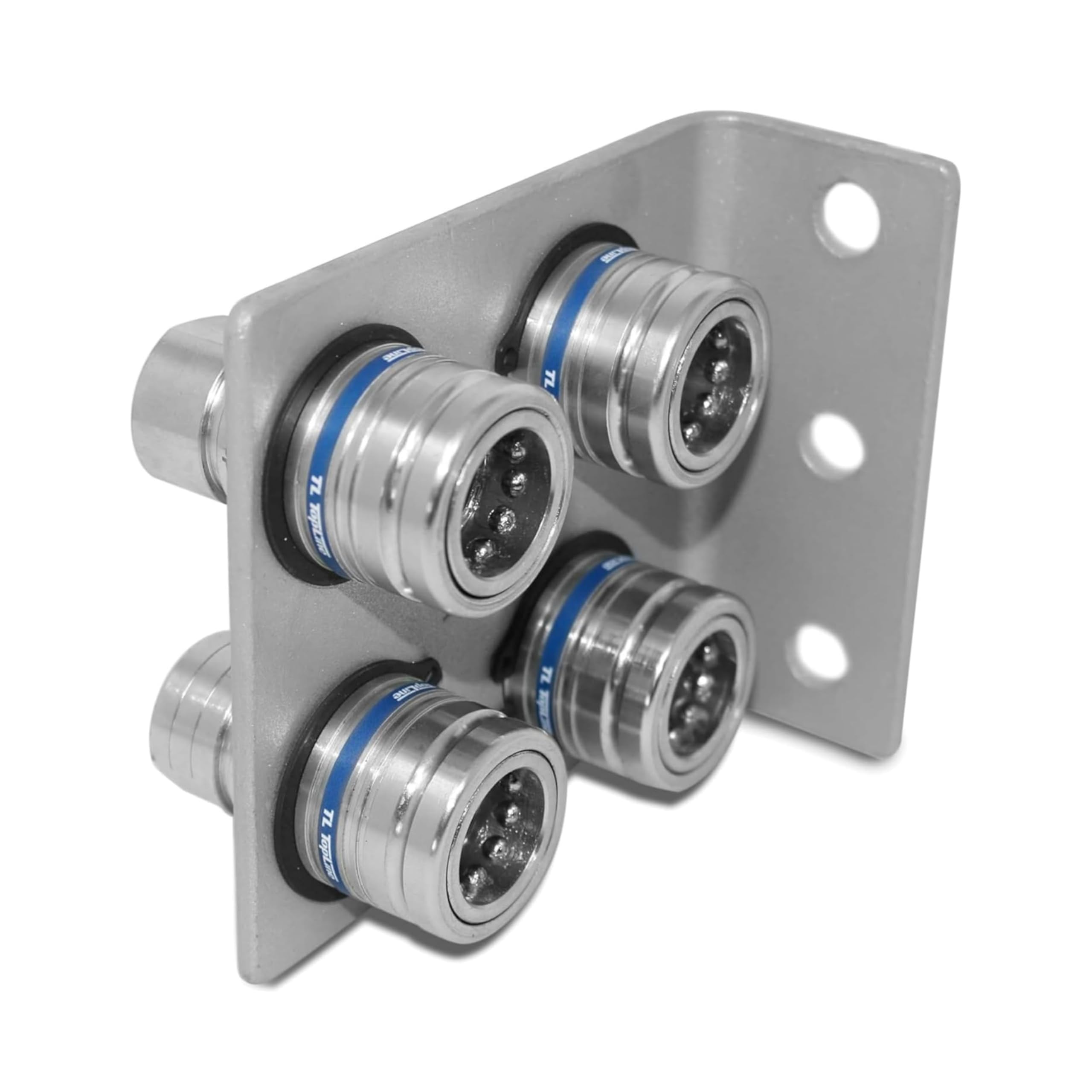

🗸 TL132B-4 HIGH-CAPACITY BREAKAWAY COUPLER SET – A comprehensive professional kit featuring four heavy-duty female Ag-style couplers and a robust, steel-yoke mounting bracket. This kit is the standard for agricultural operators who need a secure, organized, and safety-conscious way to mount multiple hydraulic lines on their tractor bulkheads.
🗸 SAFETY-DRIVEN BREAKAWAY DESIGN: Engineered specifically for "push-pull" operation. In the event of an accidental implement disconnect, the couplers are designed to snap out of the steel yoke safely, preventing catastrophic damage to your hydraulic ports or hose assemblies.

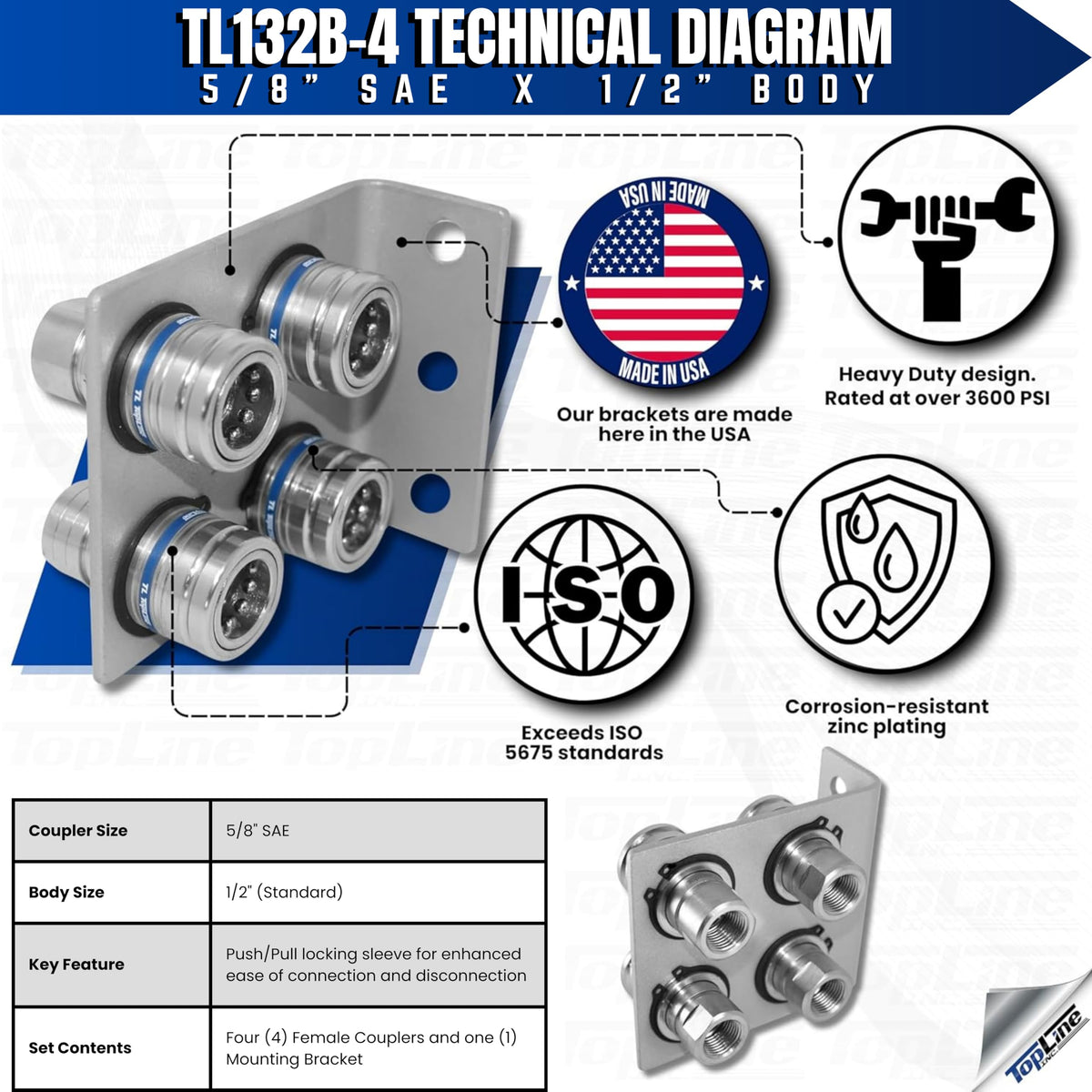

🗸 HEAVY-DUTY INDUSTRIAL BUILD: Rated for over 3600 PSI and built to exceed ISO 5675 standards. These components are forged from high-strength steel with a corrosion-resistant trivalent zinc finish, ensuring longevity even when exposed to harsh farm environments, fertilizers, and moisture.
🗸 PUSH-PULL ERGONOMICS: The unique sleeve design allows for effortless connection and disconnection, even under residual system pressure. This is a vital feature for operators who frequently switch between different implements during the work day.
🗸 READY-TO-INSTALL BULKHEAD KIT: By including four couplers and a precision-engineered mounting bracket, this set is the perfect solution for upgrading your tractor’s auxiliary hydraulic interface, ensuring all lines are held securely and vibration-free.

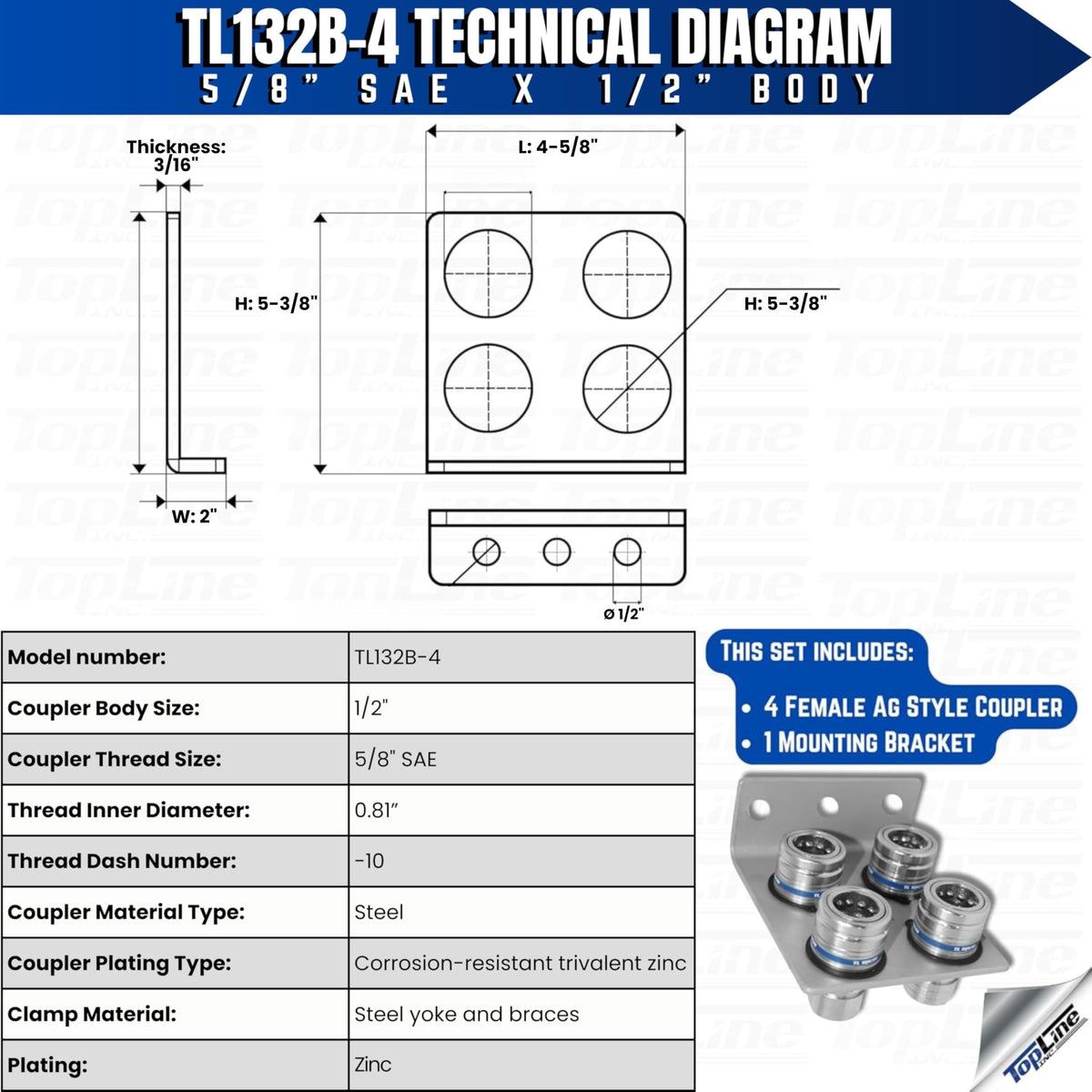

| Specification | Details |
| Model Number: | TL132B-4 |
| Coupler Body Size: | 1/2" |

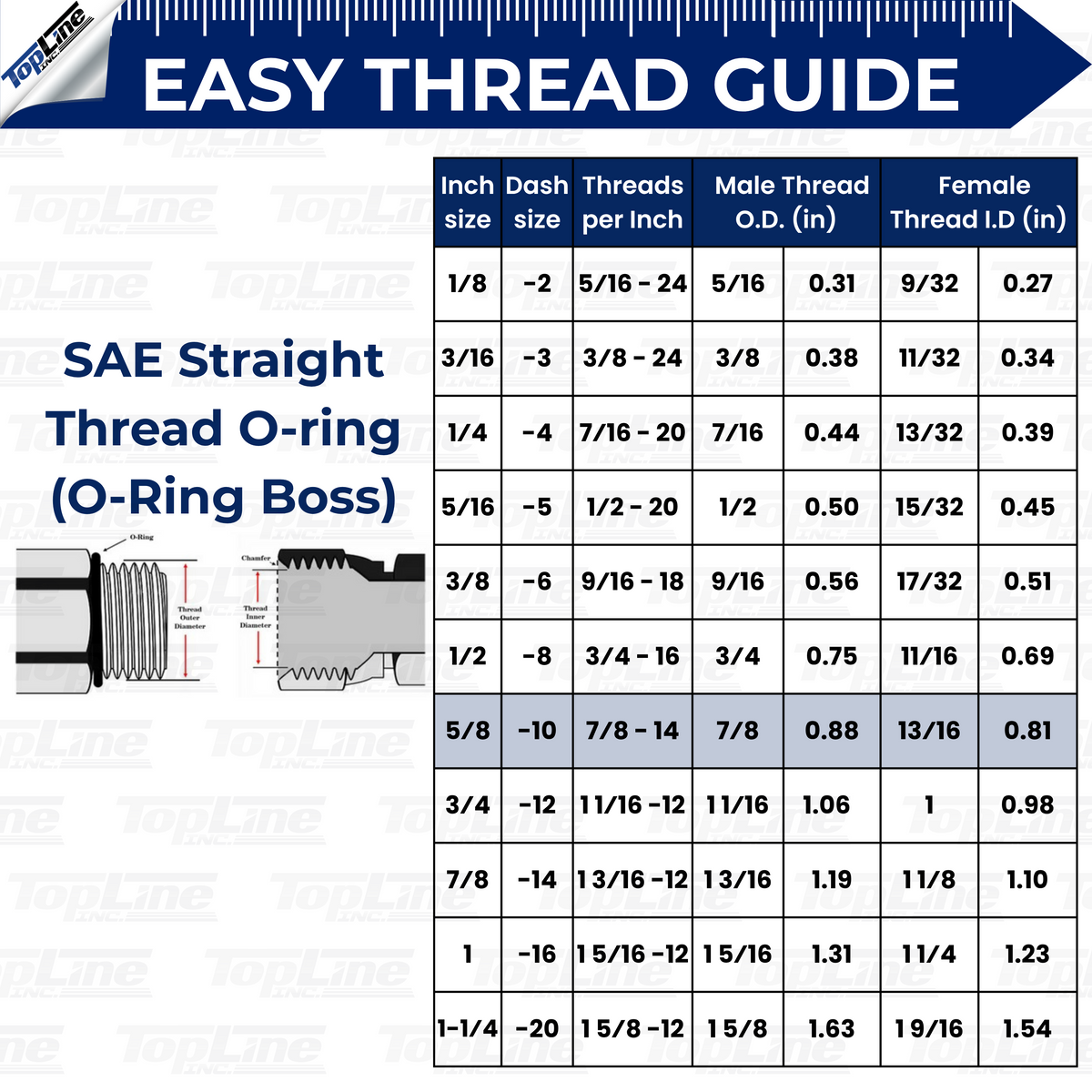

| Coupler Thread Size: | 5/8" SAE |
| Thread Inner Diameter: | 13⁄16 0.81" |
| Thread Dash Number: | -10 |
| Coupler Material Type: | Heavy-Duty Steel |
| Clamp/Bracket Material: | Steel Yoke and Braces |
| Plating Type: | Corrosion-resistant trivalent zinc |
| Package Includes: | (4) Female Ag Style Couplers, (1) Mounting Bracket |
Q: Why is the breakaway bracket critical for my tractor?
A: If an implement is disconnected unexpectedly while moving, the bracket acts as the "fuse." It transfers the pull force away from your tractor's permanent hydraulic plumbing and allows the couplers to detach without ripping valves or fittings out of your machine, saving you from expensive repairs.
Q: How does the push-pull sleeve help me in the field?
A: Standard couplers often require two hands to connect or disconnect, which is difficult when you're working with heavy attachments. The TL132 push-pull design allows you to engage or release the coupler with a simple, direct motion, making it significantly faster and easier to manage your hydraulic circuits.
Q: Are these compatible with my current agricultural implements?
A: Yes. Because these meet or exceed ISO 5675 standards, they provide universal compatibility with the standard 1/2" Ag-style couplers found on nearly all modern farm equipment and tractors.
How to Connect/Disconnect Breakaway Couplers
**If you need a bracket with...
(1) one coupler, click here
(2) two couplers, click here
(6) six couplers, click here
(8) eight couplers, click here
We aim to be your #1 source for high quality skid steer & ag hydraulic quick connect couplers and accessories.
This item has a 100% satisfaction guarantee!
Most orders ship out same day*
Return Policy: If you are not fully satisfied with your purchase, you may return unused item for a full refund of the purchase price, excluding shipping charges, within 60 days of purchase date.
If you have any questions about this item, feel free to contact us
Check back often for more skid steer products and solutions.
*Orders received before 2pm PST Mon - Fri.
