Product Description

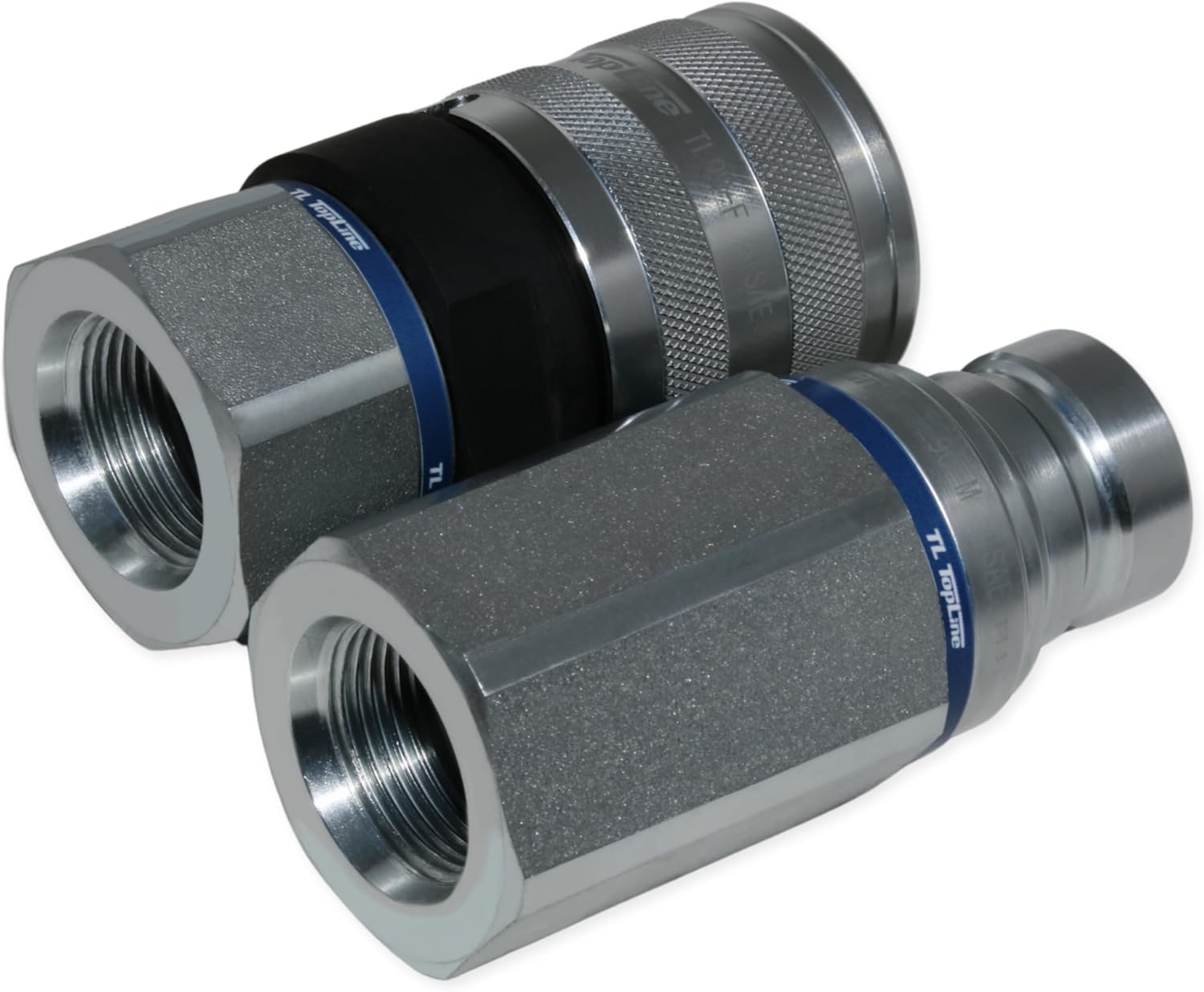

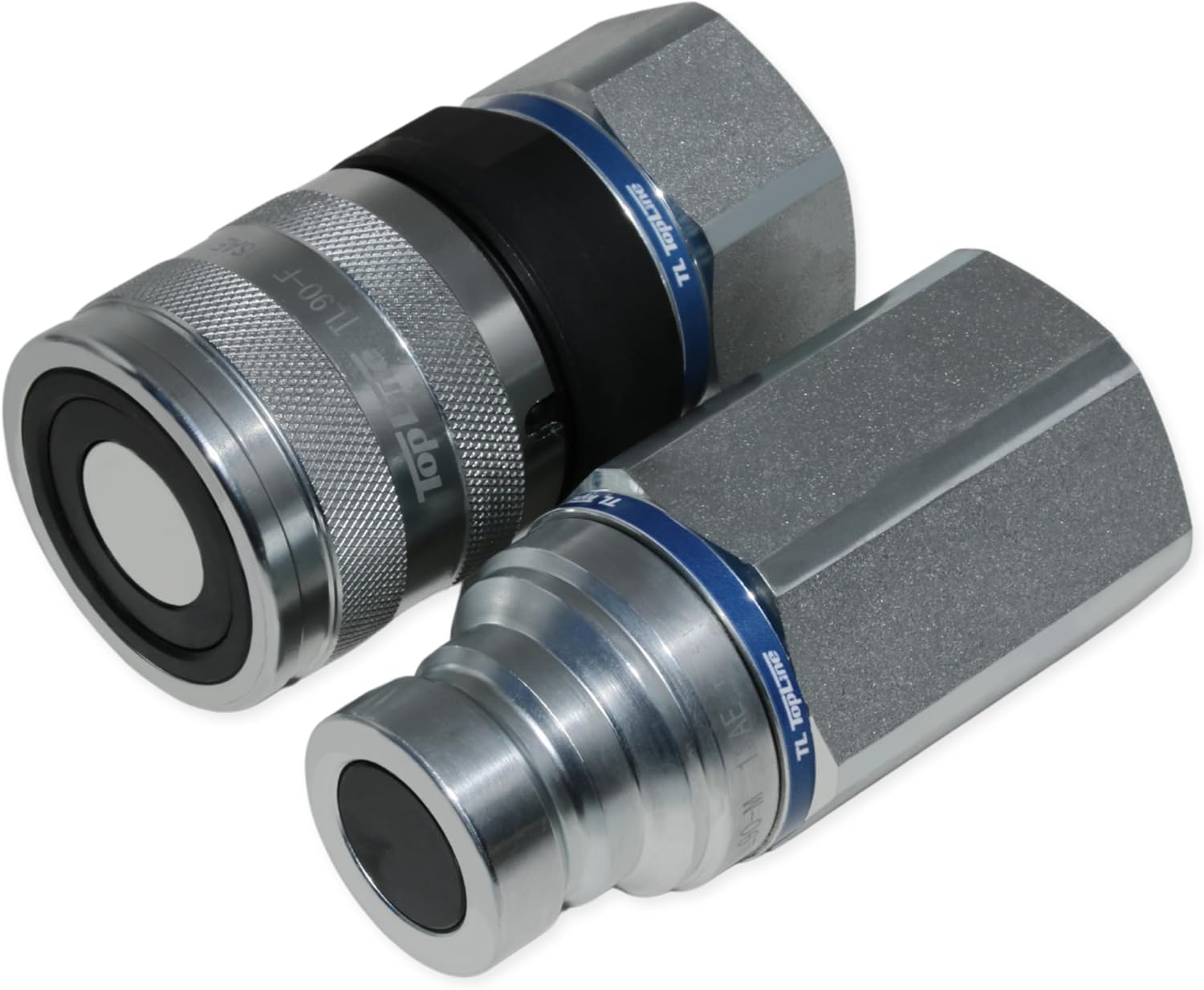

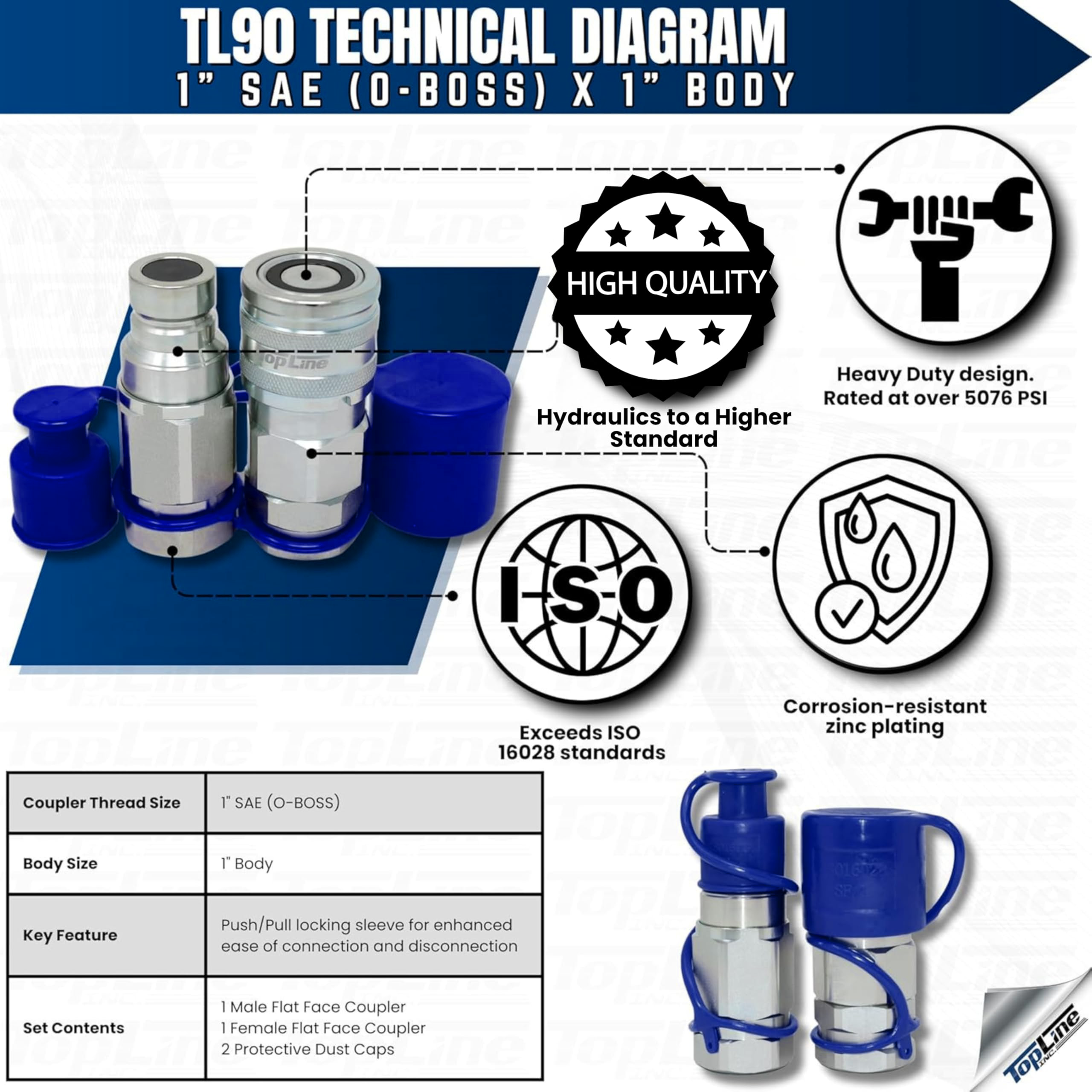

🗸 TL90 1" BODY X 1" SAE ORB FLAT FACE COUPLER SET – A high-capacity, industrial-grade hydraulic coupling solution engineered for large-scale machinery and high-flow attachments. Rated for over 5076 PSI, this set provides maximum reliability under intense pressure.
🗸 PRECISION SAE CONNECTION: Features a 1" SAE O-Ring Boss (ORB) thread, offering a superior, leak-proof seal essential for high-pressure hydraulic circuits on large heavy-duty equipment.
🗸 LARGE-FLOW PERFORMANCE: With a 1" body size, the TL90 is built specifically for systems that demand high fluid flow, ensuring your machinery operates without restriction or efficiency loss.
🗸 FLUSH FACE ADVANTAGE: Designed to minimize hydraulic fluid loss and air inclusion. The flat, flush face is remarkably easy to clean, keeping harmful contaminants out of your hydraulic system to ensure long-term longevity.
🗸 BUILT FOR THE FIELD: Features a robust, push-connect locking sleeve and heavy knurled grips. This set is engineered for consistent, one-handed operation, even when working with thick, heavy-duty work gloves.
| Specification | Details |
| Model Number: | TL90 |

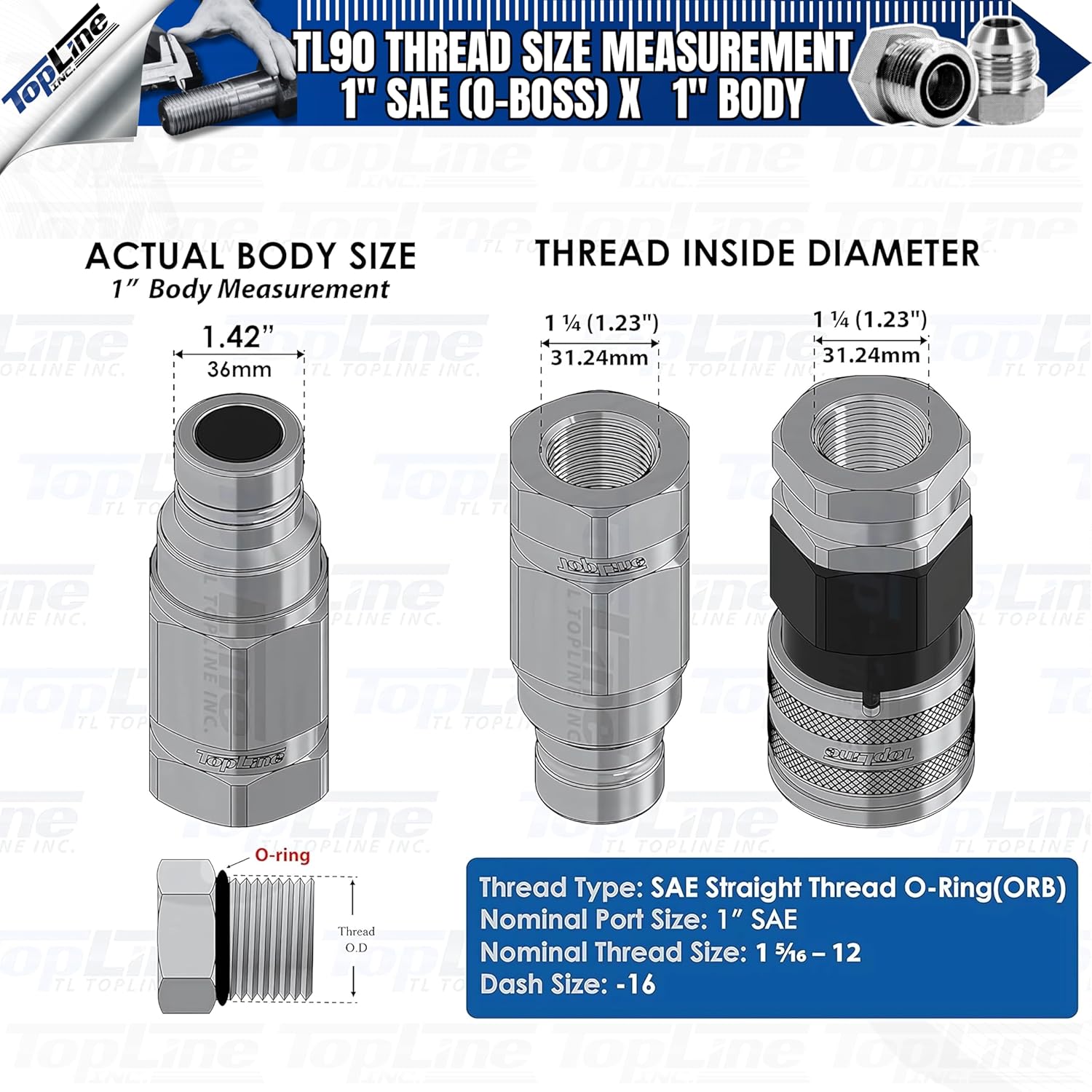

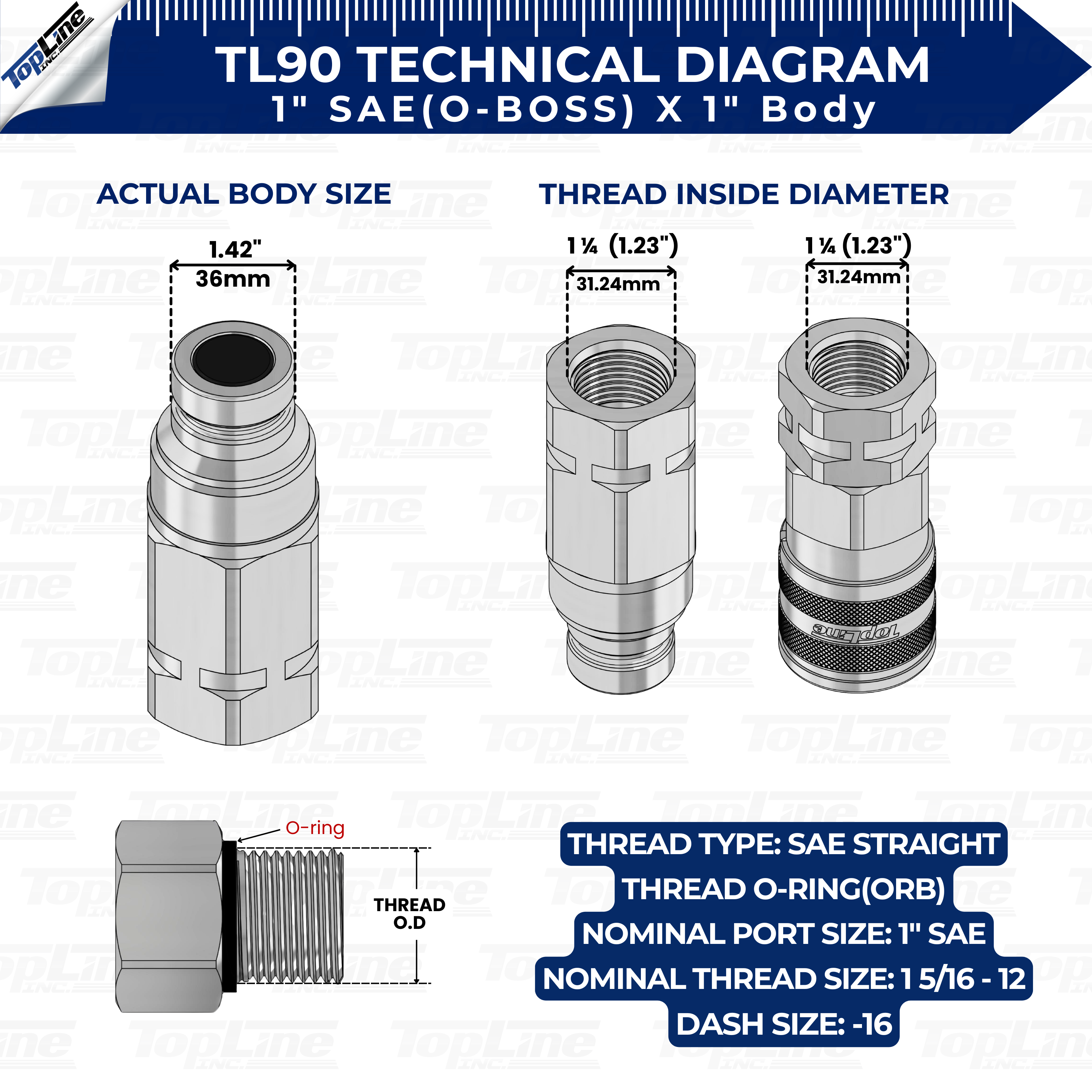

| Coupler Body Size: | 1" |
| Coupler Thread Size: | 1" SAE (ORB) |
| Thread Inner Diameter: | 1.23" |

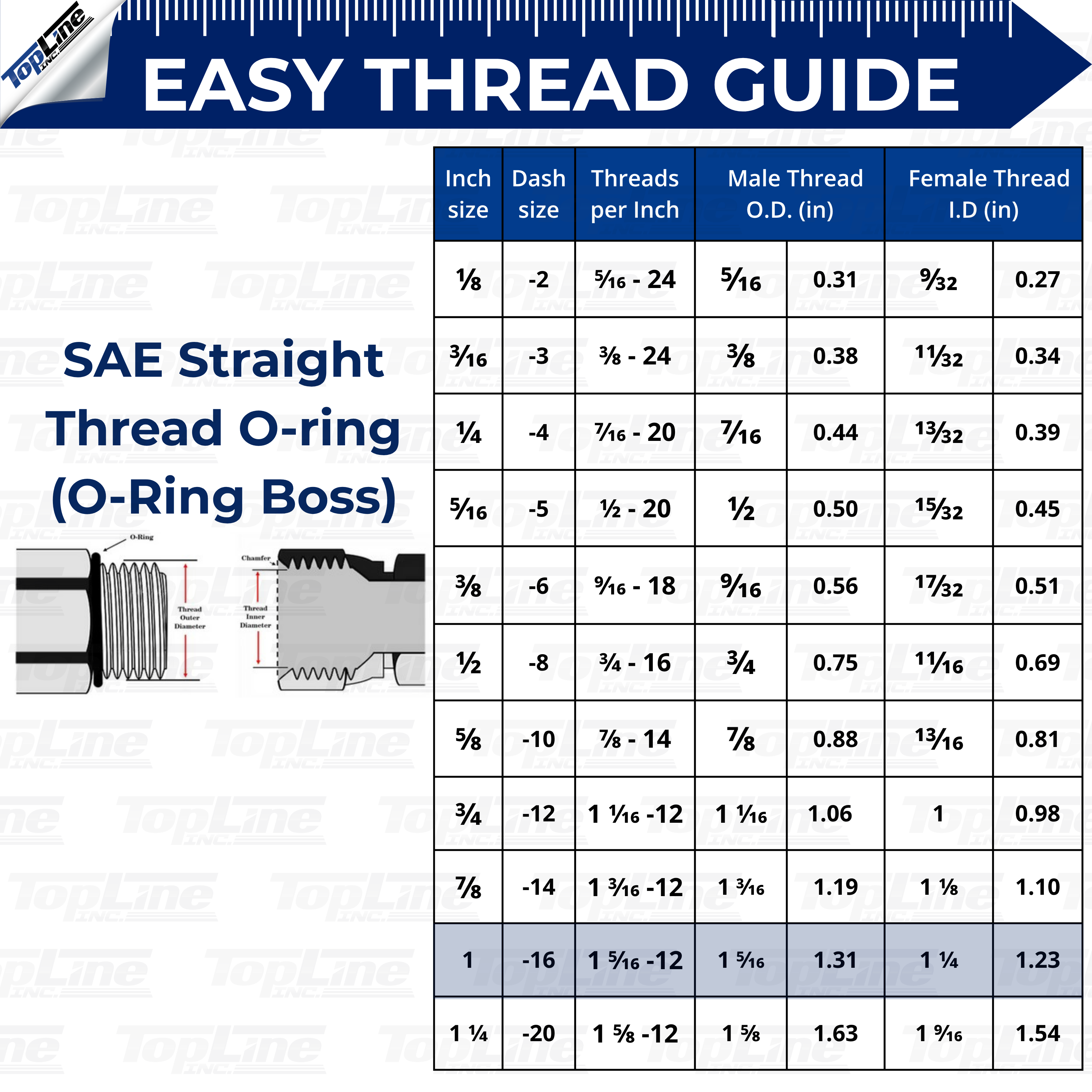

| Thread Dash Number: | -16 |
| Coupler Material Type: | Steel |
| Coupler Plating Type: | Corrosion-resistant trivalent zinc |

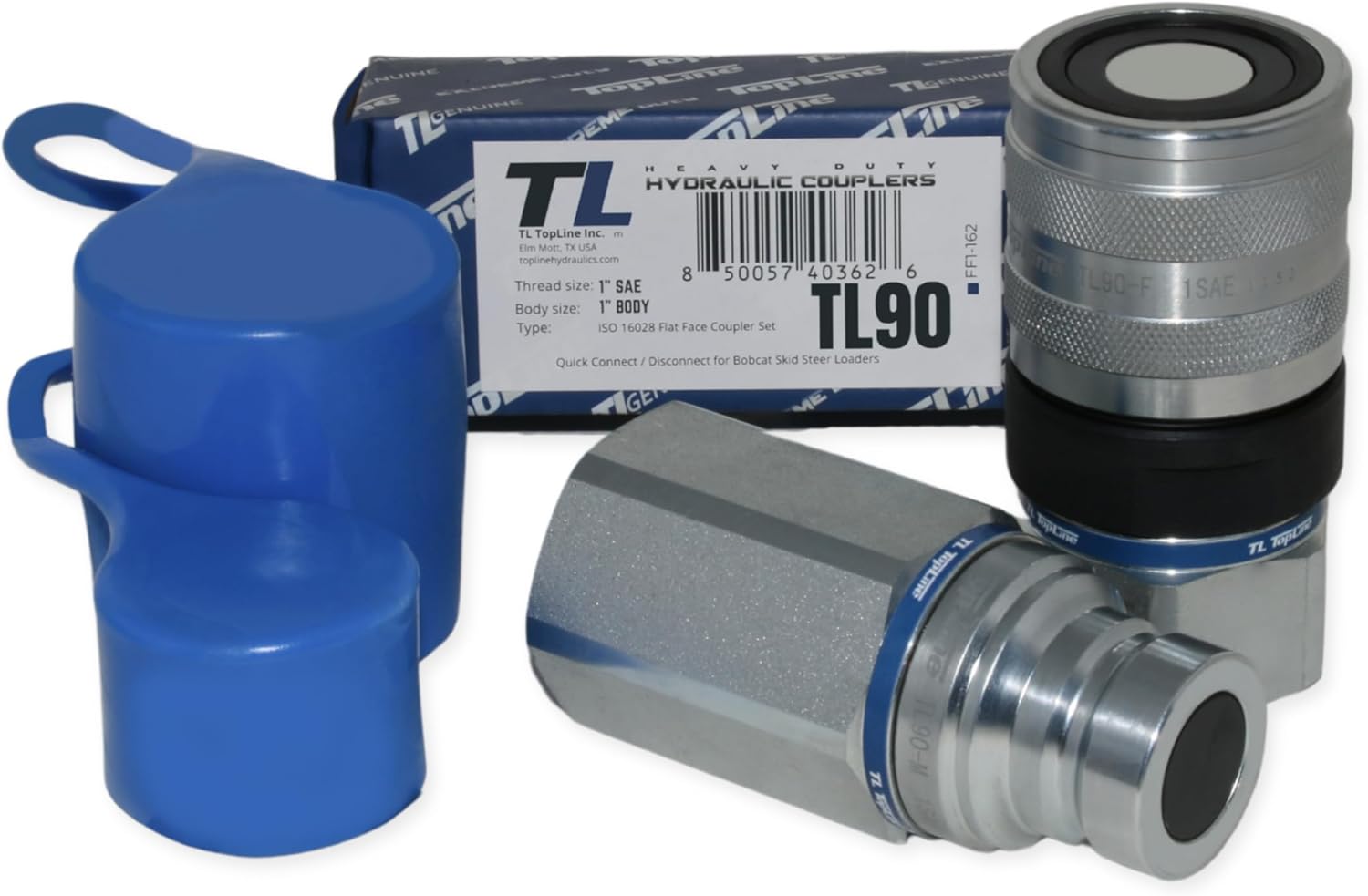

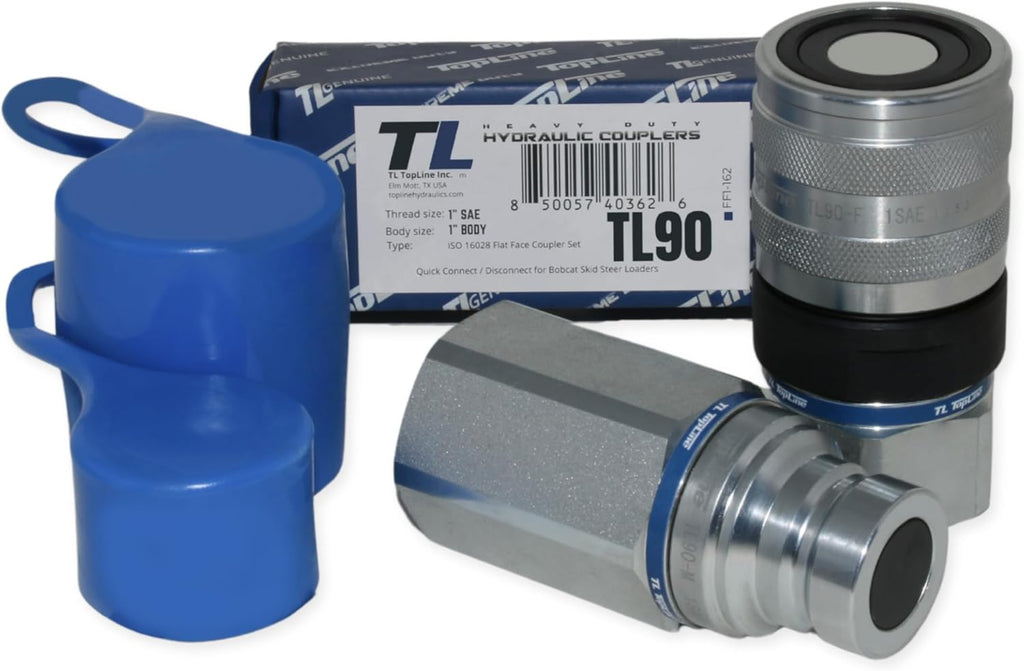

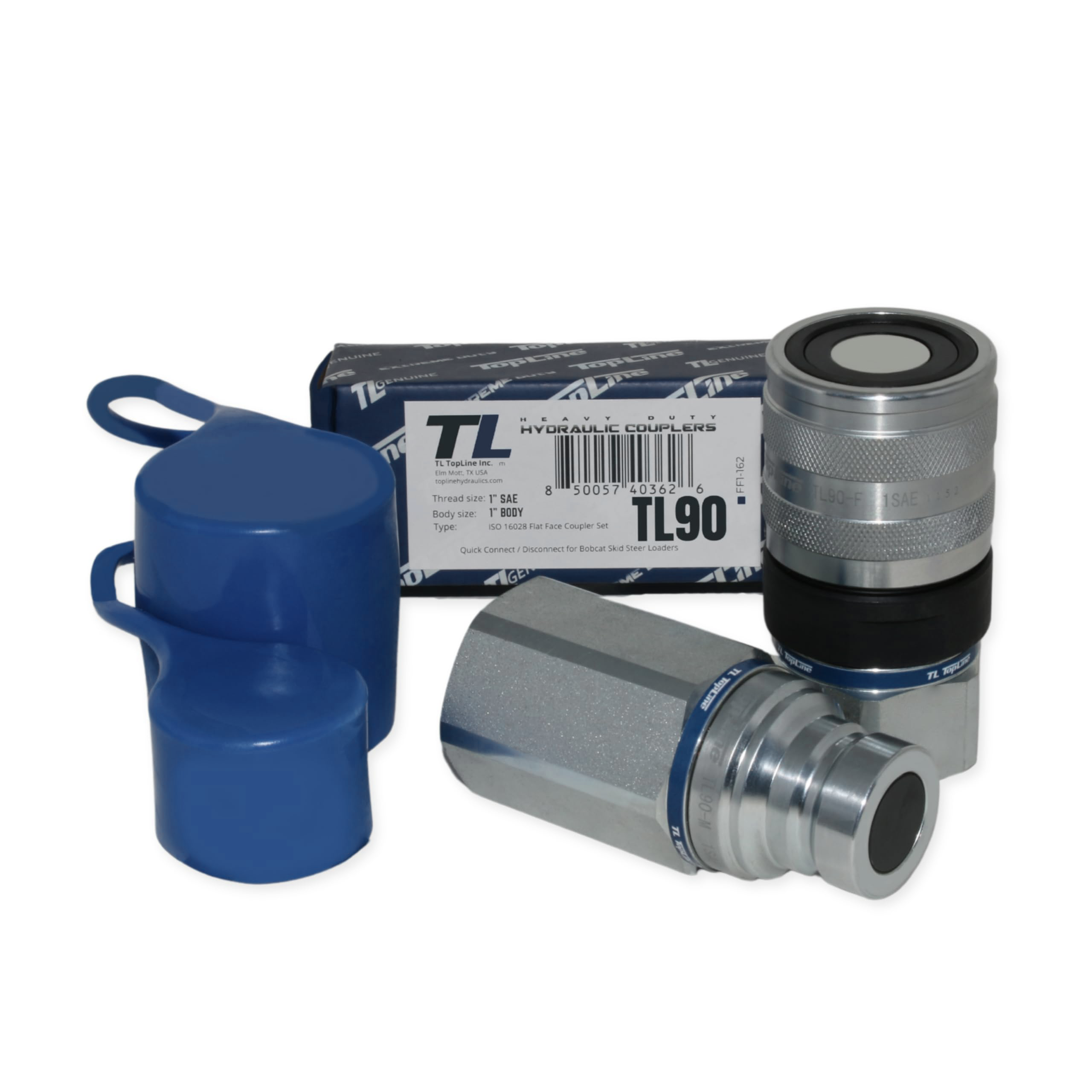

| Package Includes: | 1 Male Coupler, 1 Female Coupler, Protective Dust Caps |
Q: What makes the TL90 the superior choice for high-capacity equipment?
A: The TL90 is built with an industrial-strength steel body and a pressure rating of over 5,076 PSI. It is specifically engineered to handle the high flow rates and rugged conditions typical of large heavy-duty machinery.
Q: How does the flat face design benefit system maintenance?
A: By minimizing fluid loss and making the surface easy to wipe clean, the flat face design prevents the introduction of dirt and debris into your hydraulic lines. This significantly reduces internal wear on sensitive components like pumps and valves.
Q: Is the TL90 compatible with my heavy equipment?
A: The TL90 is designed for high-flow compatibility across major machinery brands that utilize 1" body flat-face couplings. Its standardized 1" SAE (ORB) threading makes it a reliable replacement for original high-flow hydraulic components.
Q: Does the TL90 include protection for the elements?

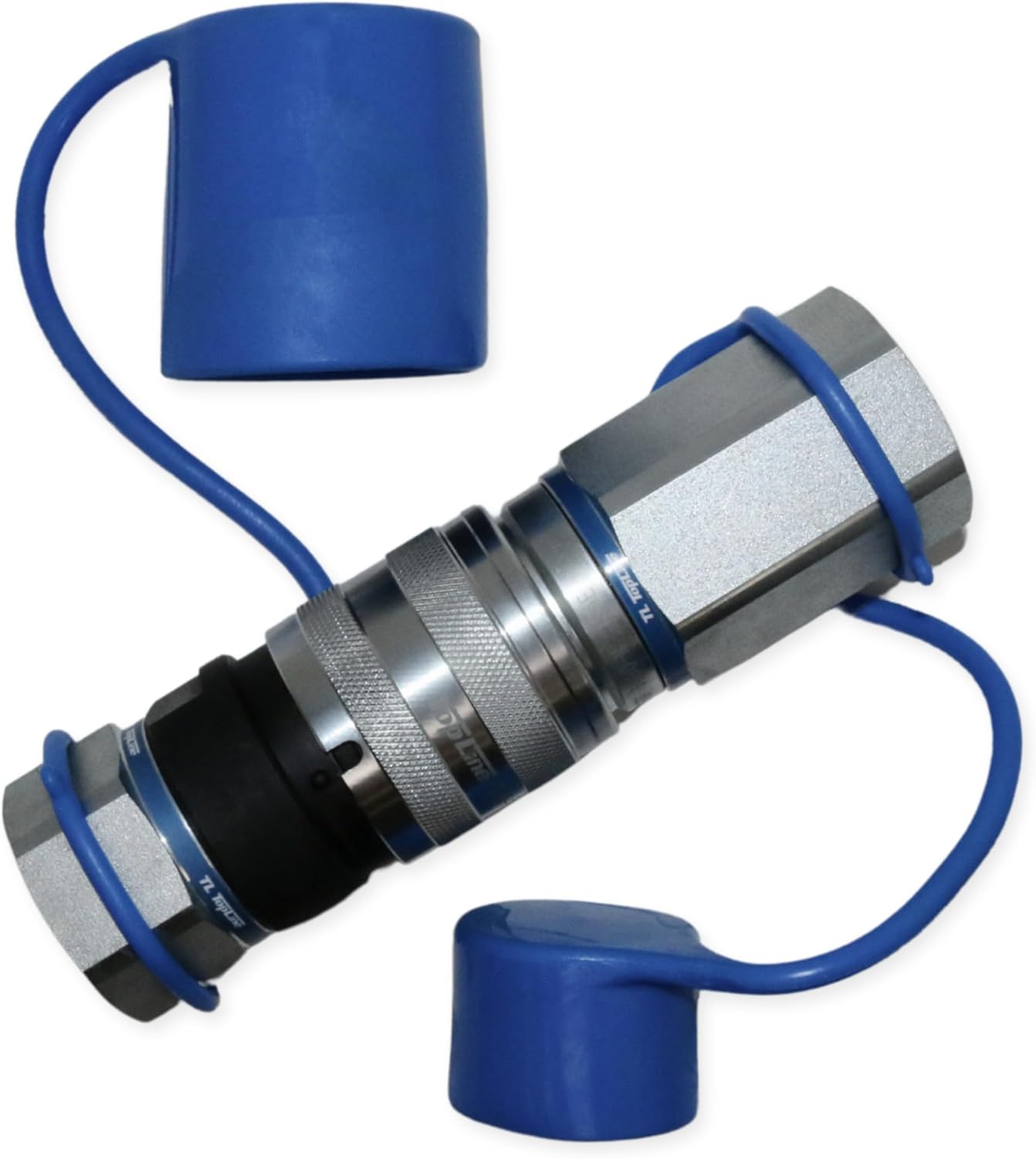

A: Yes, the set includes protective dust caps for both the male and female couplers. These are vital for shielding the coupler faces from dirt, moisture, and debris when the hydraulic lines are disconnected in the field.
Q: Can I use the TL90 as a direct replacement?
A: Absolutely. It is designed as a direct, heavy-duty replacement for existing 1" flat face couplers, offering a straightforward, bolt-on installation for your high-flow hydraulic circuits.
 |
 |
 |
 |
 |
|
|---|---|---|---|---|---|
| Thread Size | 1/2 NPT (90° Elbow) | 1/2 NPT | 3/4 SAE | 1" SAE (ORB) | 3/4 NPT |
| Coupler Type | ISO 16028 | ISO 16028 | ISO 16028 | ISO 16028 | ISO 16028 |
| Heavy Duty | Built to Last | Built to Last | Built to Last | Built to Last | Built to Last |
| Expert Tested | Trustworthy | Trustworthy | Trustworthy | Trustworthy | Trustworthy |
| Durable & Authentic | Long-lasting Construction | Long-lasting Construction | Long-lasting Construction | Long-lasting Construction | Long-lasting Construction |
1" Body 1" SAE (ORB) Hydraulic Quick Connect Couplers TL90
These couplers are designed for hydraulic attachments with a 1" Body with 1" SAE (ORB). They are a direct replacement for standard couplers on many skid steer models. Our couplers fit popular brands like Bobcat, John Deere, CAT, and more. The flat face design minimizes hydraulic fluid loss and meets ISO 16028 standards.
Interchangeable Part Numbers:
| Manufacturer | Male | Female |
|---|---|---|
| DNP PLT4 Series | FF-HPG-16-16N-SAE | FF-HPG-16-16C-SAE |
| Eaton Aeroquip FD89 | FD89-1004-16-12 | FD89-1005-16-12 |
| Faster FFH Series | FFH16 1SAE M | FFH16 1SAE F |
| Parker FE Series | FEM-1002-16FO | FEM-1001-16FO |
| Snap Tite 74 Series | 74N16-16EF | 74C16-16EF |
| Stucchi FIRG Series | 801304039 | 801304038 |
We aim to be your #1 source for high quality skid steer & ag hydraulic quick connect couplers and accessories.
This item has a 100% satisfaction guarantee!
Return Policy: If you are not fully satisfied with your purchase, you may return unused item for a full refund of the purchase price, excluding shipping charges, within 60 days of purchase date.
If you have any questions about this item, feel free to E-mail me and I'll do my best to answer them. Walter
Check back often for more skid steer products and solutions.
