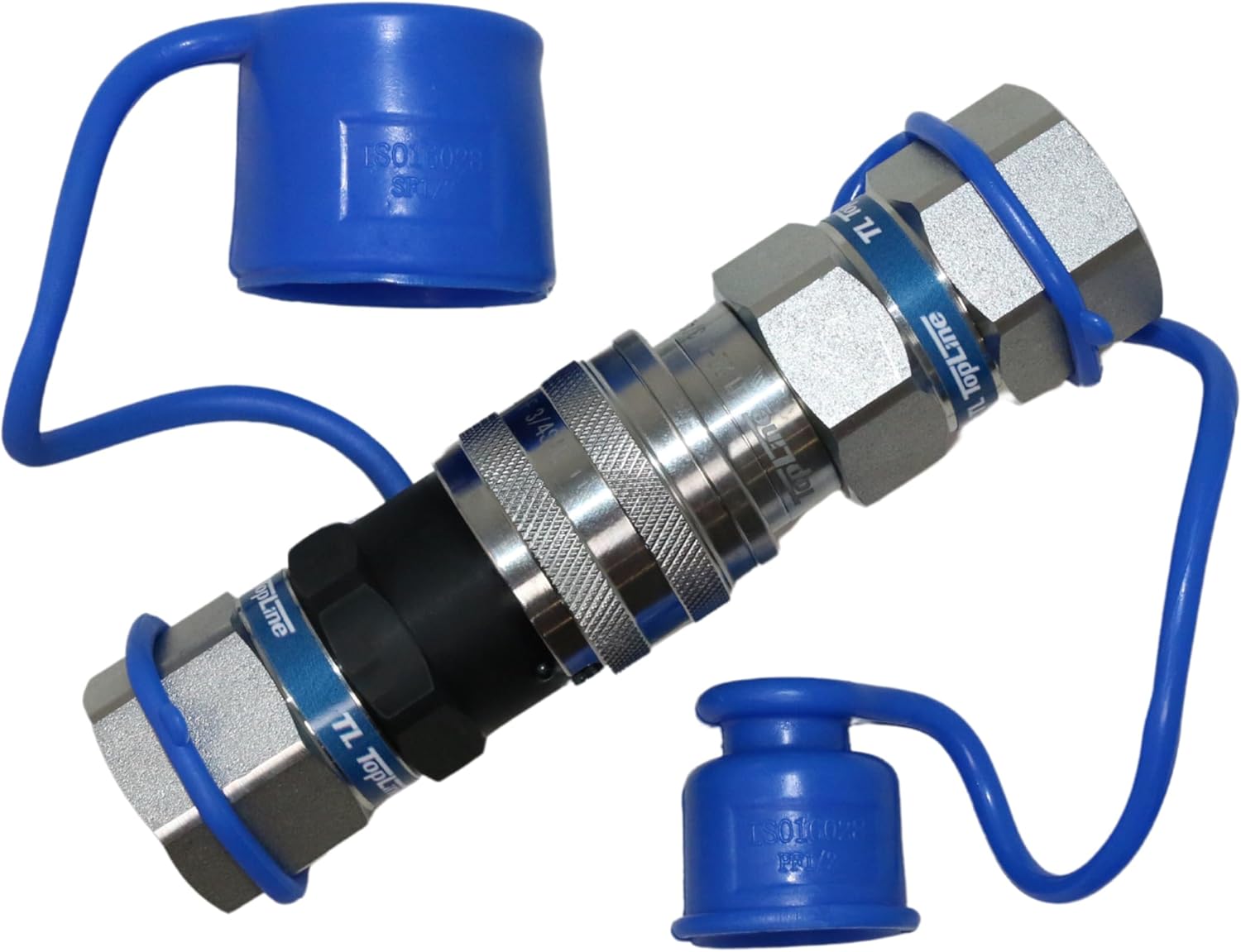

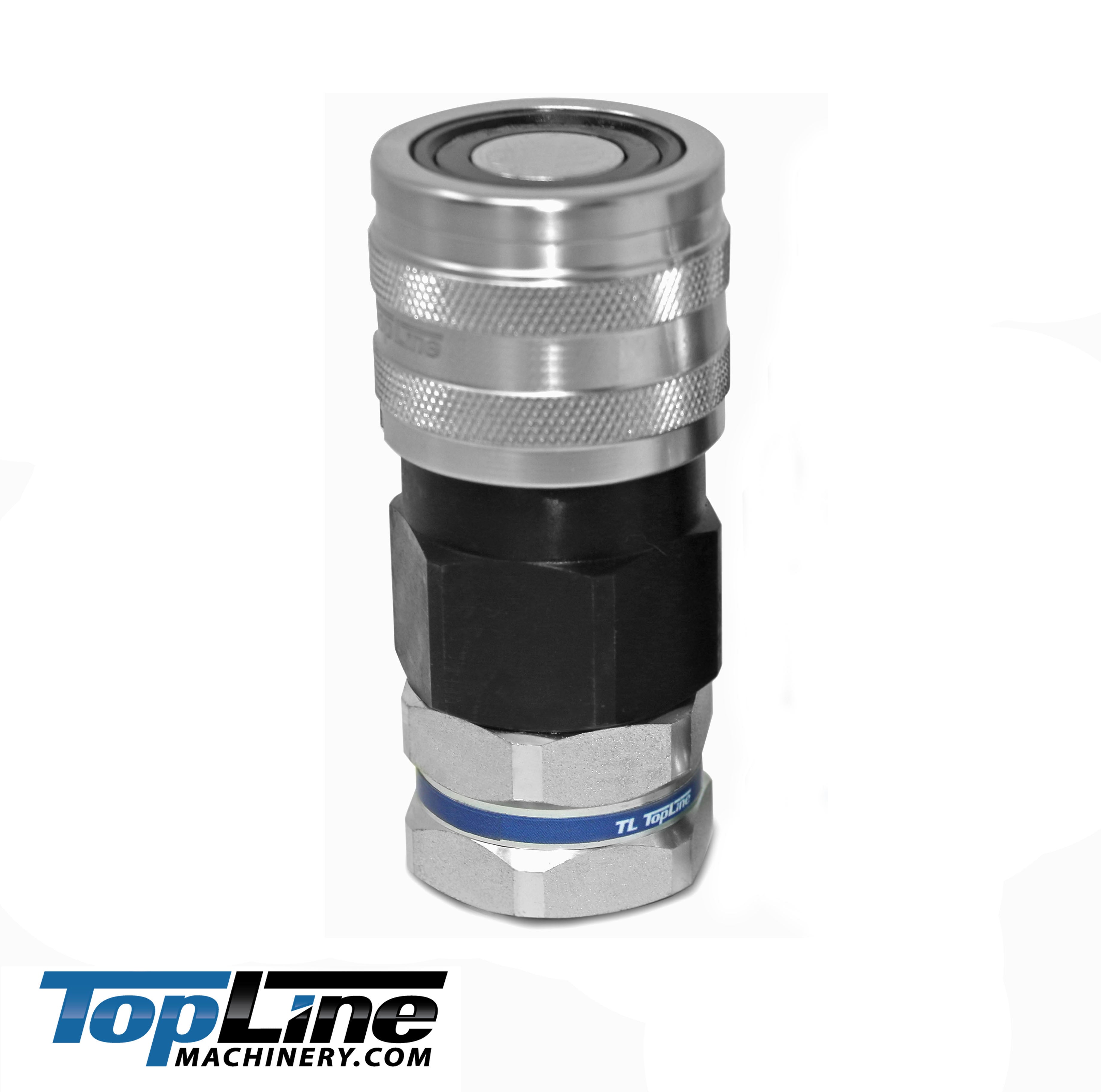

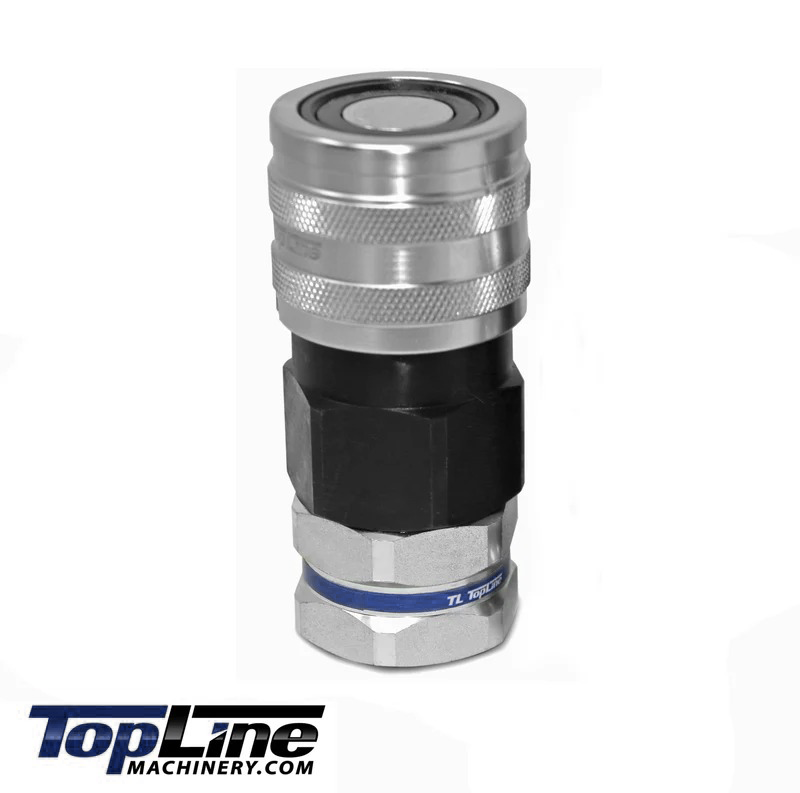

TL51-F 1" SAE Thread Female Flat Face High Flow Quick Connect Hydraulic Coupler 3/4" body size for Bobcat Skid Steer Loaders

$ 86.98 $ 150.00

Collections: Flat Face Quick Coupler (3/4" body), Flat Face Quick Couplers, Frontpage, SAE Straight Thread O-ring Couplers

These couplers are a direct replacement for the standard sized coupler mounted on many models of skid steers and attachments.

These are NOT light duty couplers. The sturdy design of heavy duty TopLine couplers have become well known for their durability and ability to withstand rugged conditions.

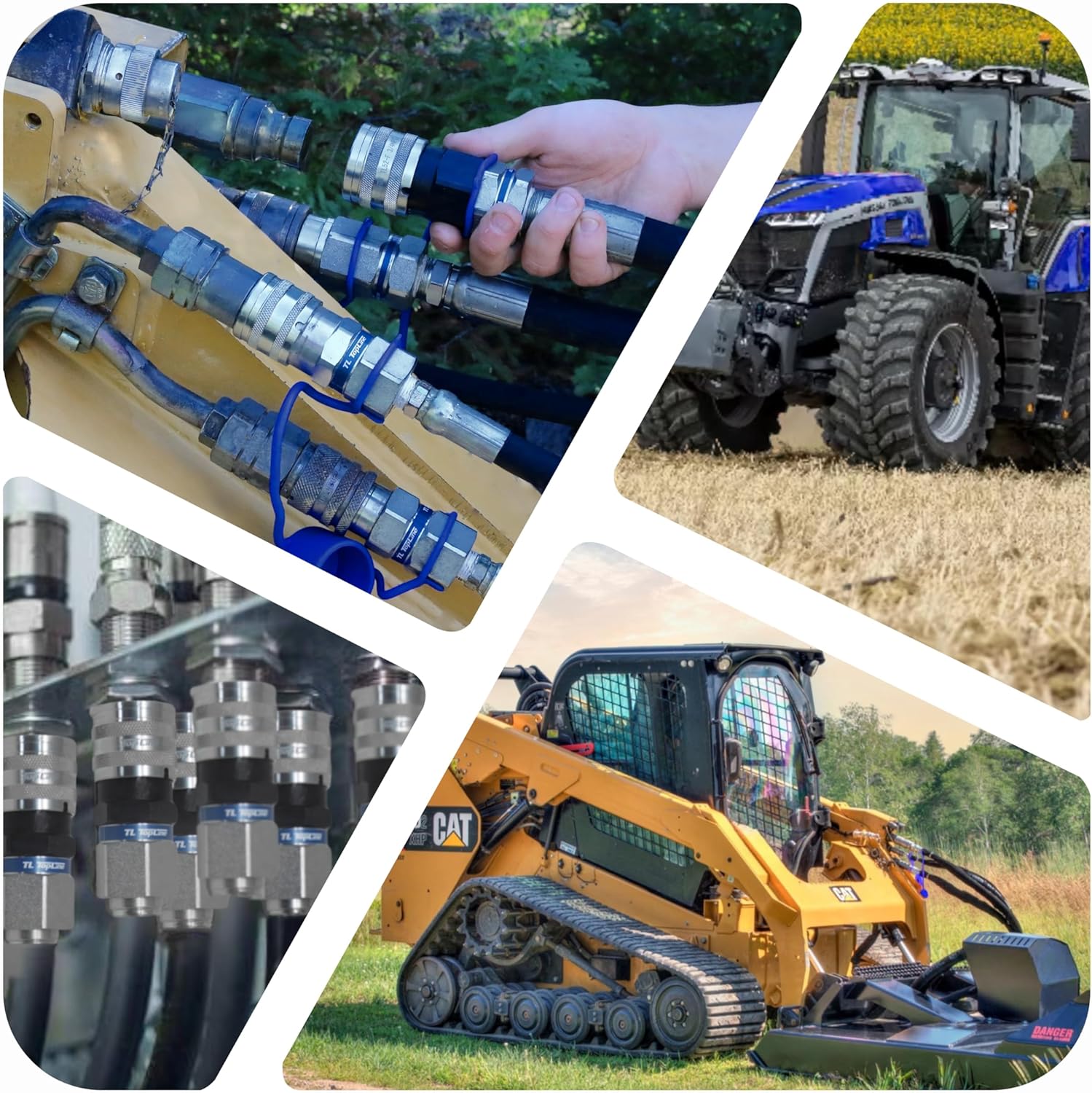

Our coupler sizes fit many models of: Bobcat, John Deere, CAT, Kubota, New Holland, CASE, JCB, Thomas, Gehl, Volvo, and ASV skid steers.

Flat Face couplers are designed for applications where hydraulic spillage is a concern. One of the great advantages to the Flush Face design is that the couplers are easy to keep clean which helps to prevent contaminants from entering the hydraulic system during connection and disconnection.

The High Flow Design of these couplers allows for higher hydraulic fluid flow rate needed for High-Performance attachments.

Couples to any standard 3/4" body Flat Face couplers on Skid Steers and other equipment. These couplers meet or exceed the ISO 16028 standard.

Features:

Heavy Duty design. Rated at over 5076 PSI
High Flow design to power High-Performance Attachments
Couples to any standard 3/4” Flat Face coupler
Push-connect locking sleeve design
Exceeds ISO 16028 standards
Corrosion-resistant zinc plating
No air inclusion during disconnection
Heavy knurled sleeves for non-slip grip

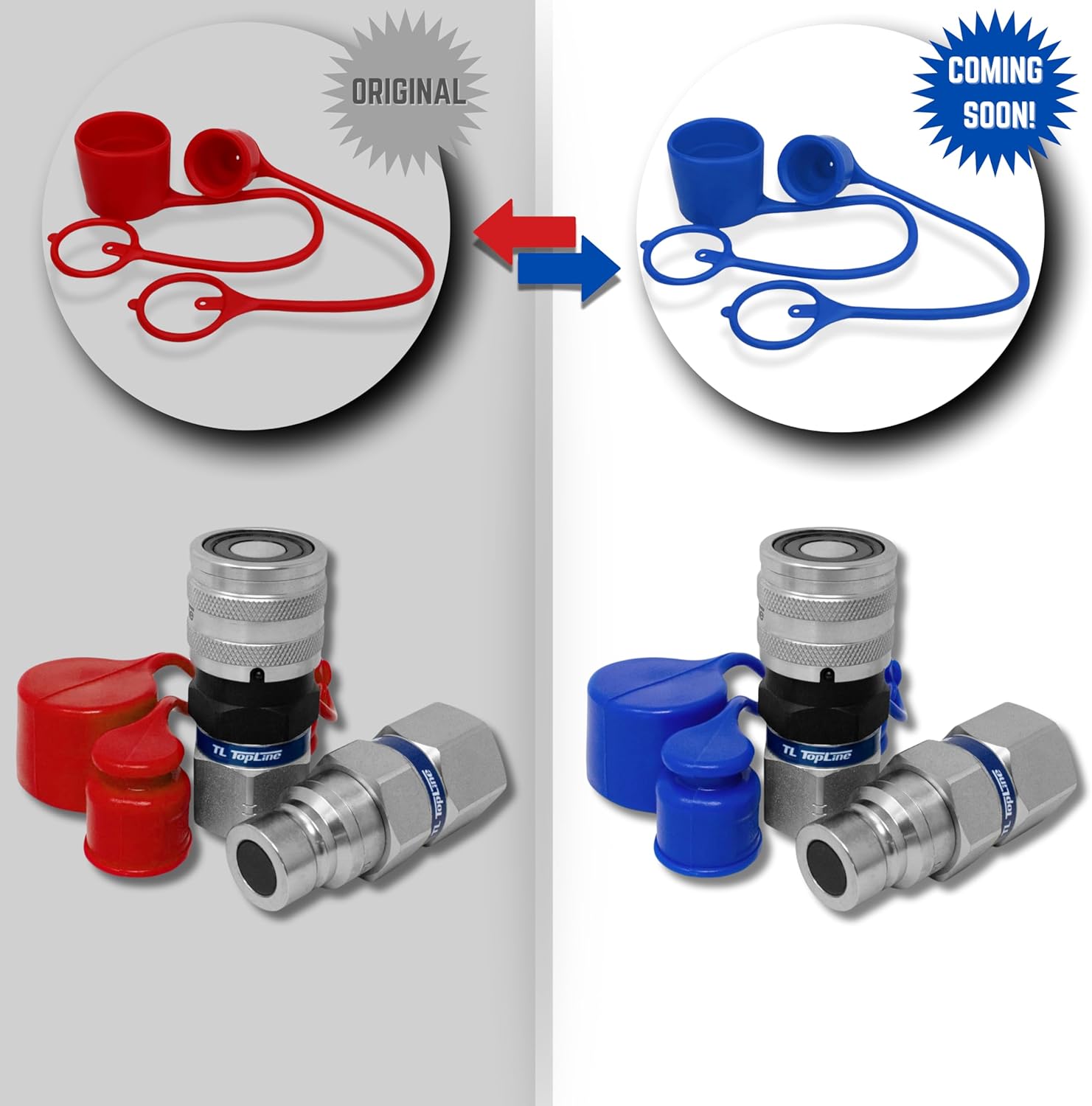

Includes dust caps to protect from the elements
Flat Face coupler design minimizes hydraulic fluid loss

Specifications:

Model number: TL51-F
Coupler Body Size: 3/4"

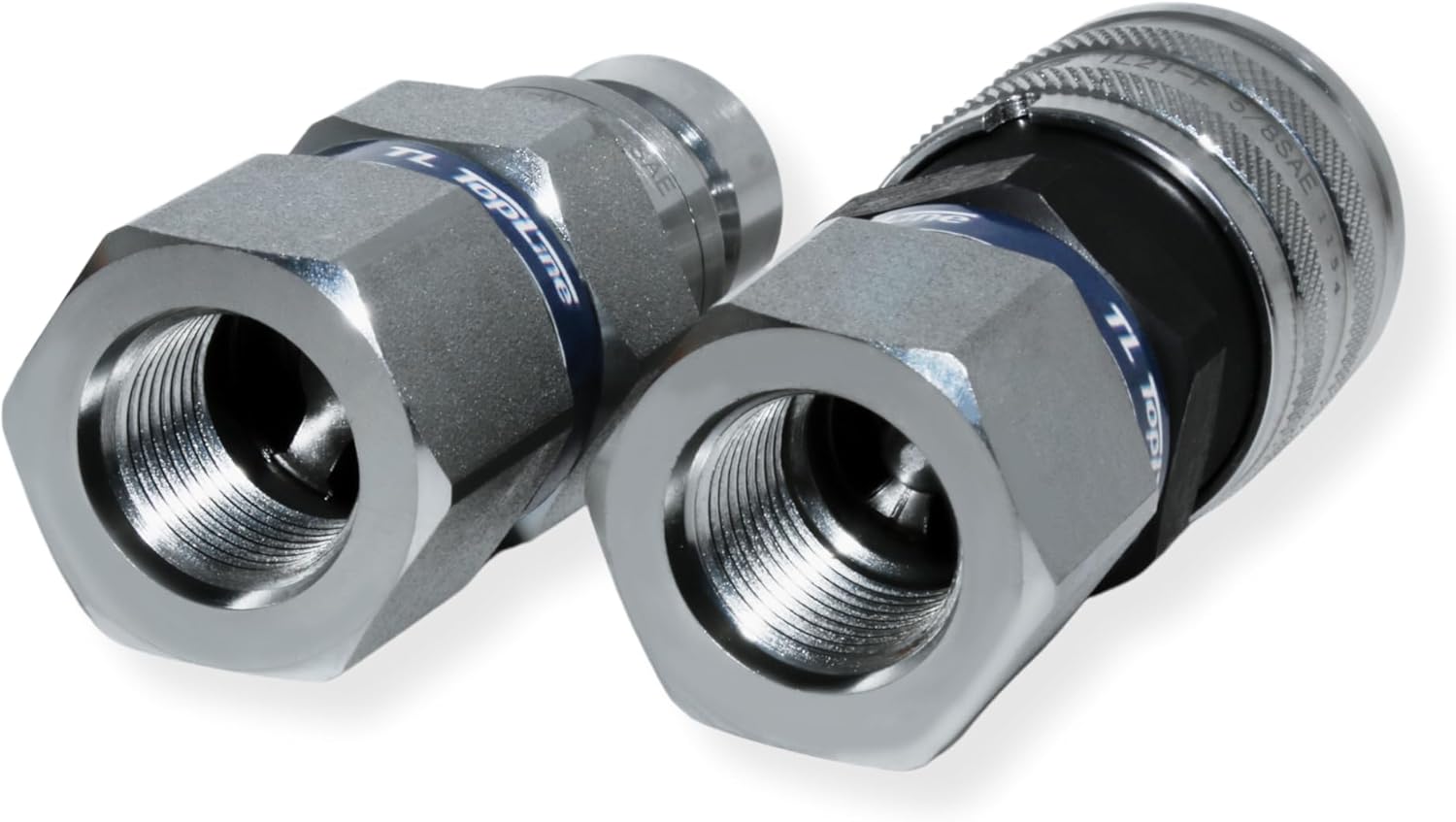

Coupler Thread Size: 1" SAE (ORB)
Thread Inner Diameter: 1.23”

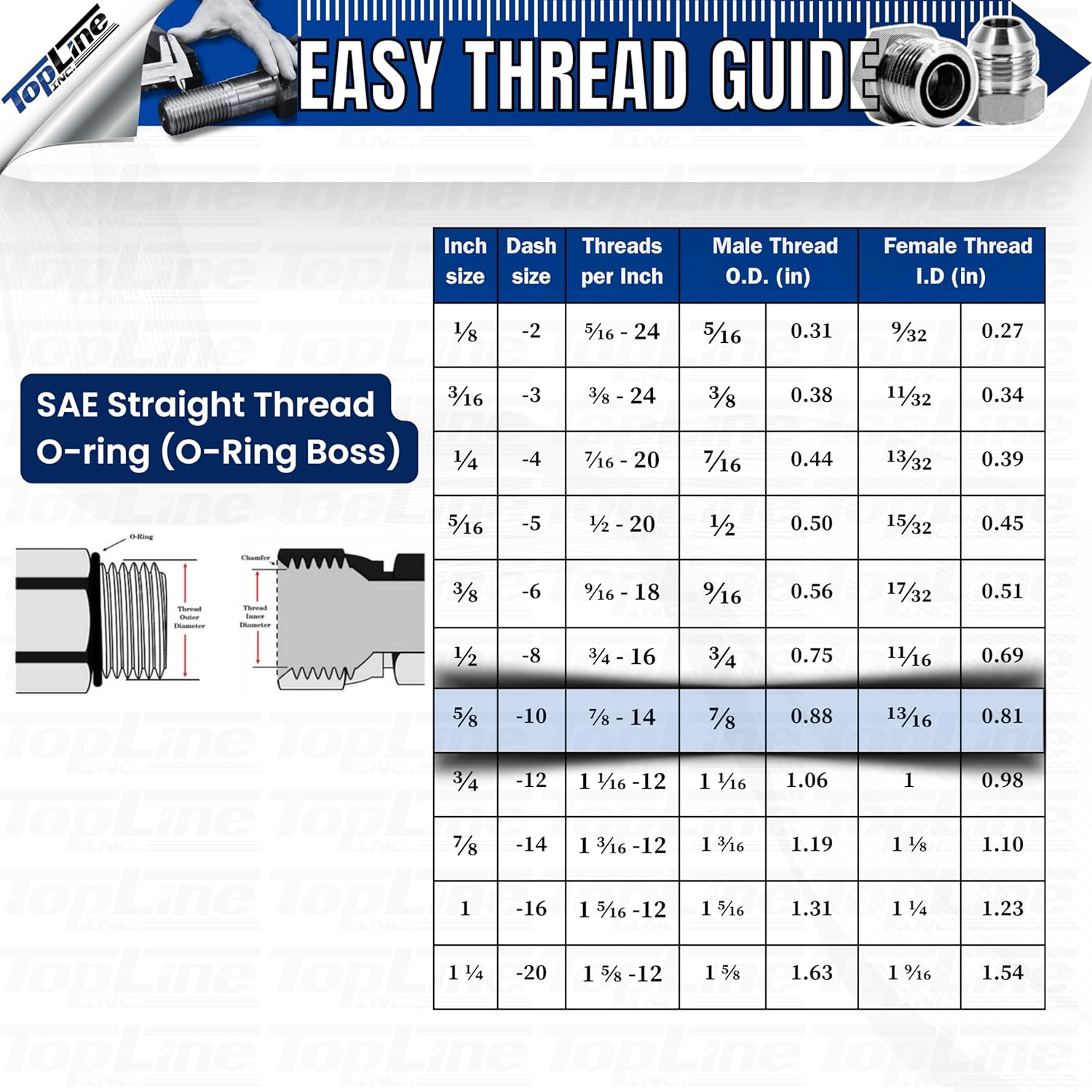

Thread Dash Number: -16
Coupler Material Type: Steel
Coupler Plating Type: Corrosion-resistant trivalent zinc

This set includes:

1 Female Flat Face Coupler
1 Protective Dust Caps

Interchangeable Part Numbers:

Manufacturer	Male	Female
DNP PLT4 Series	FF-HPG-12-16N-SAE	FF-HPG-12-16C-SAE
Eaton Aeroquip FD89	FD89-1004-16-12	FD89-1005-16-12
Faster FFH Series	FFH12 1SAE M	FFH12 1SAE F
Safeway FFE49 Series	FFE491-6-16	FFE495-6-16
Snap Tite 74 Series	74N12-16EF	74C12-16EF
Stucchi FIRG Series	800804013	800804012
TopLine	FF-341-2	FF-341-2

(Click below to see what couplers fit your machine)

More Thread Sizes for 3/4" Flat Face Couplers:

1” SAE (ORB) Female Thread (Set) TL51

3/4” NPT Female Thread (Set) TL52

3/4” SAE (ORB) Female Thread (Set) TL53

See our Store for more coupler sizes
