TL52 3/4" NPT Thread Flat Face High Flow Quick Connect Hydraulic Coupler 3/4" body size for Bobcat Skid Steer Loaders

These couplers are a direct replacement for the standard sized coupler mounted on many models of skid steers and attachments.



These are NOT light duty couplers. The sturdy design of heavy duty TopLine couplers have become well known for their durability and ability to withstand rugged conditions.



Our coupler sizes fit many models of: Bobcat, John Deere, CAT, Kubota, New Holland, CASE, JCB, Thomas, Gehl, Volvo, and ASV skid steers.



Flat Face couplers are designed for applications where hydraulic spillage is a concern. One of the great advantages to the Flush Face design is that the couplers are easy to keep clean which helps to prevent contaminants from entering the hydraulic system during connection and disconnection.



The High Flow Design of these couplers allows for higher hydraulic fluid flow rate needed for High-Performance attachments.

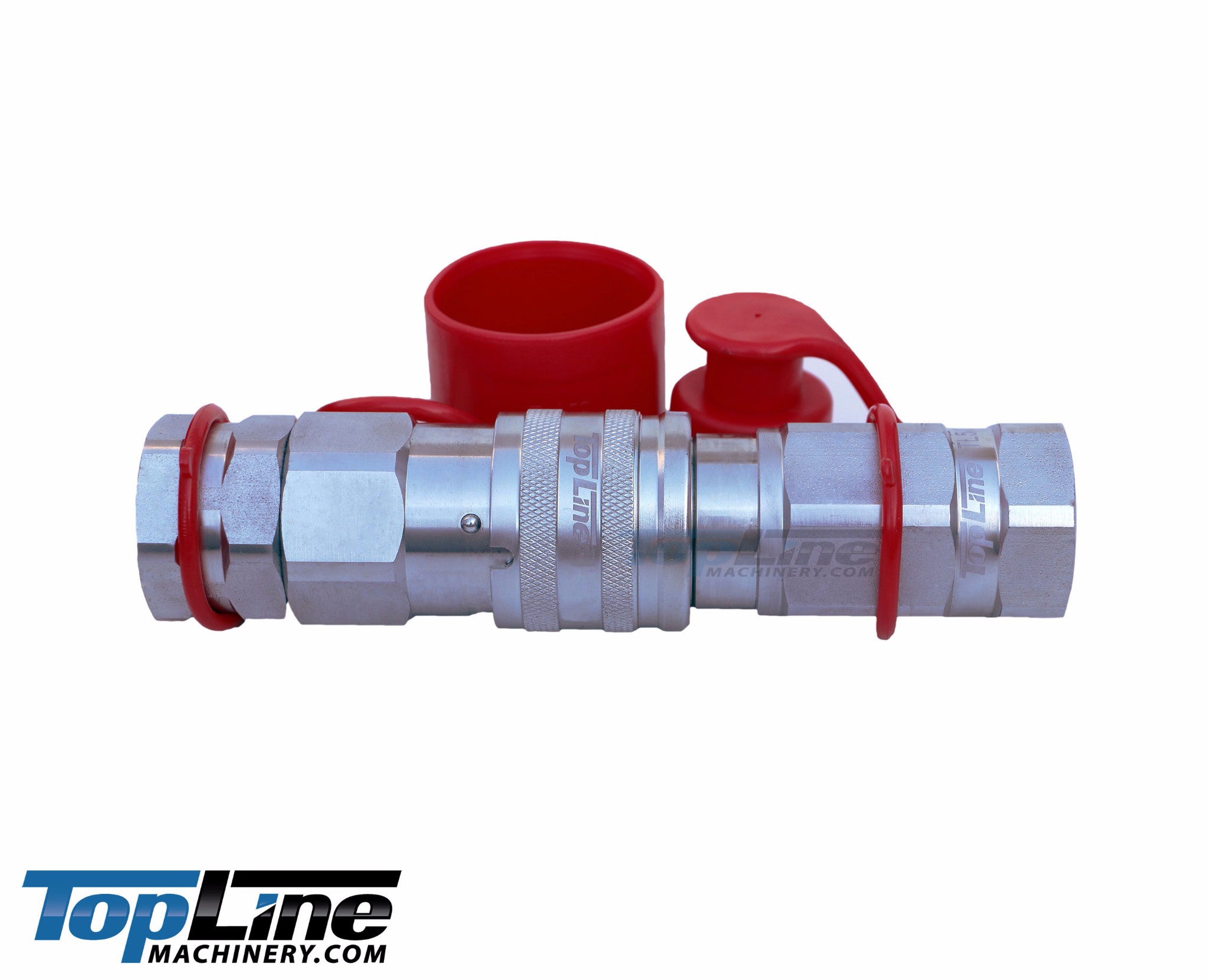

Couples to any standard 3/4" body Flat Face couplers on Skid Steers and other equipment. These couplers meet or exceed the ISO 16028 standard.



Features:



  • Heavy Duty design. Rated at over 5076 PSI
  • High Flow design to power High-Performance Attachments
  • Couples to any standard 3/4” Flat Face coupler
  • Push-connect locking sleeve design
  • Exceeds ISO 16028 standards
  • Corrosion-resistant zinc plating
  • No air inclusion during disconnection
  • Heavy knurled sleeves for non-slip grip
  • Includes dust caps to protect from the elements
  • Flat Face coupler design minimizes hydraulic fluid loss

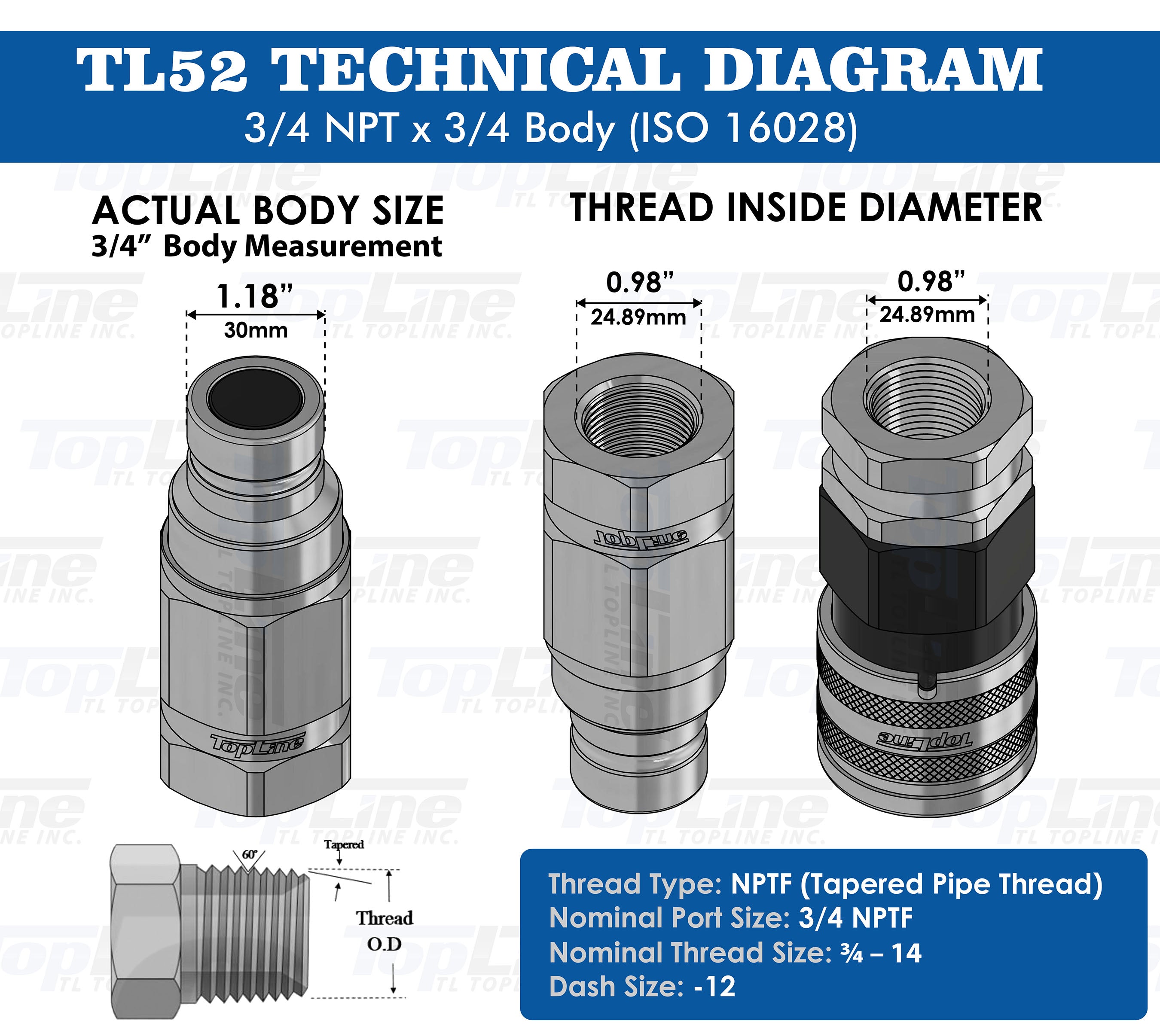

Specifications:

  • Model number:                  TL52
  • Coupler Body Size:           3/4"
  • Coupler Thread Size:        3/4" NPT
  • Thread Inner Diameter:     0.98”
  • Thread Dash Number:       -12
  • Coupler Material Type:      Steel
  • Coupler Plating Type:        Corrosion-resistant trivalent zinc

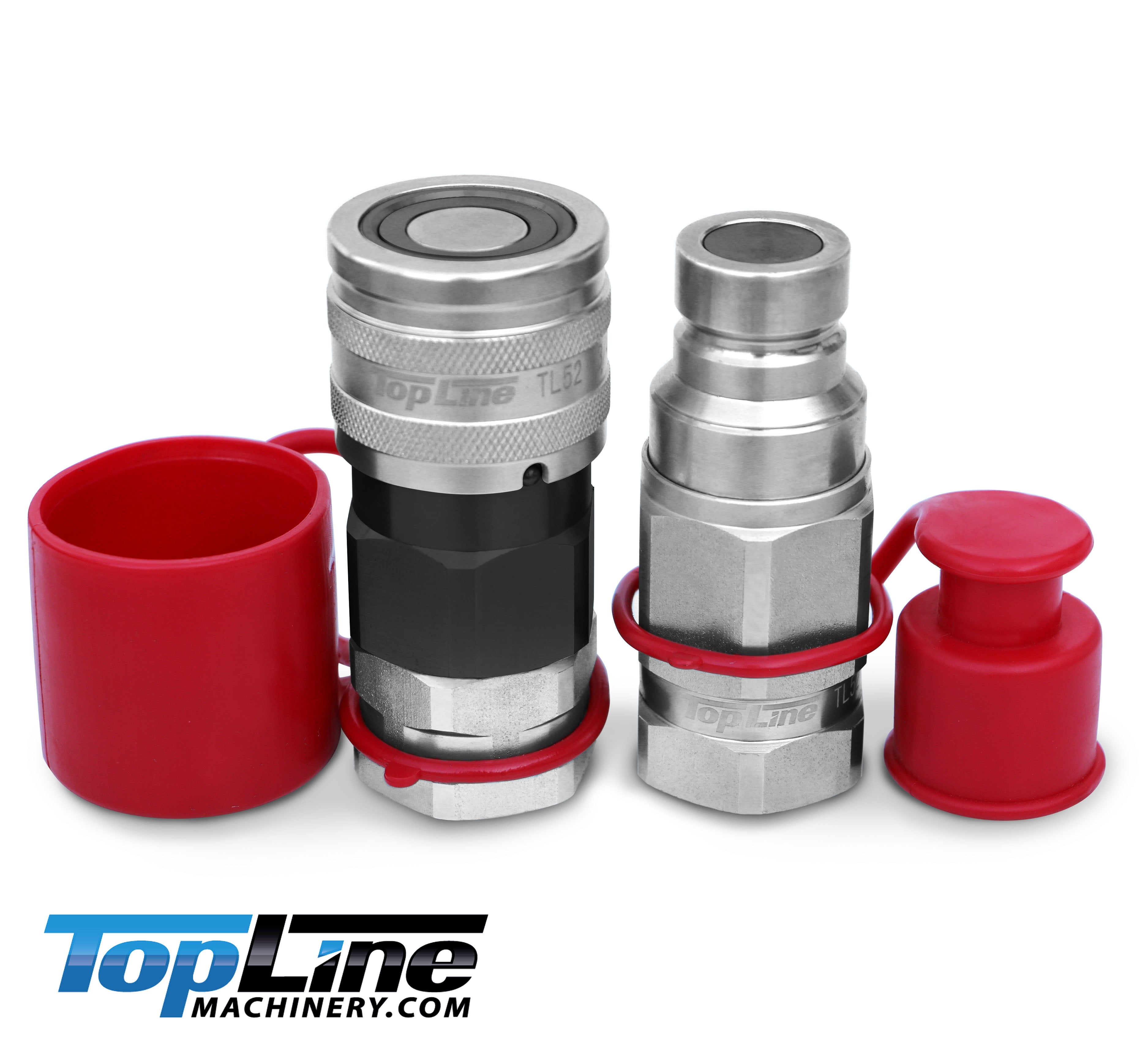

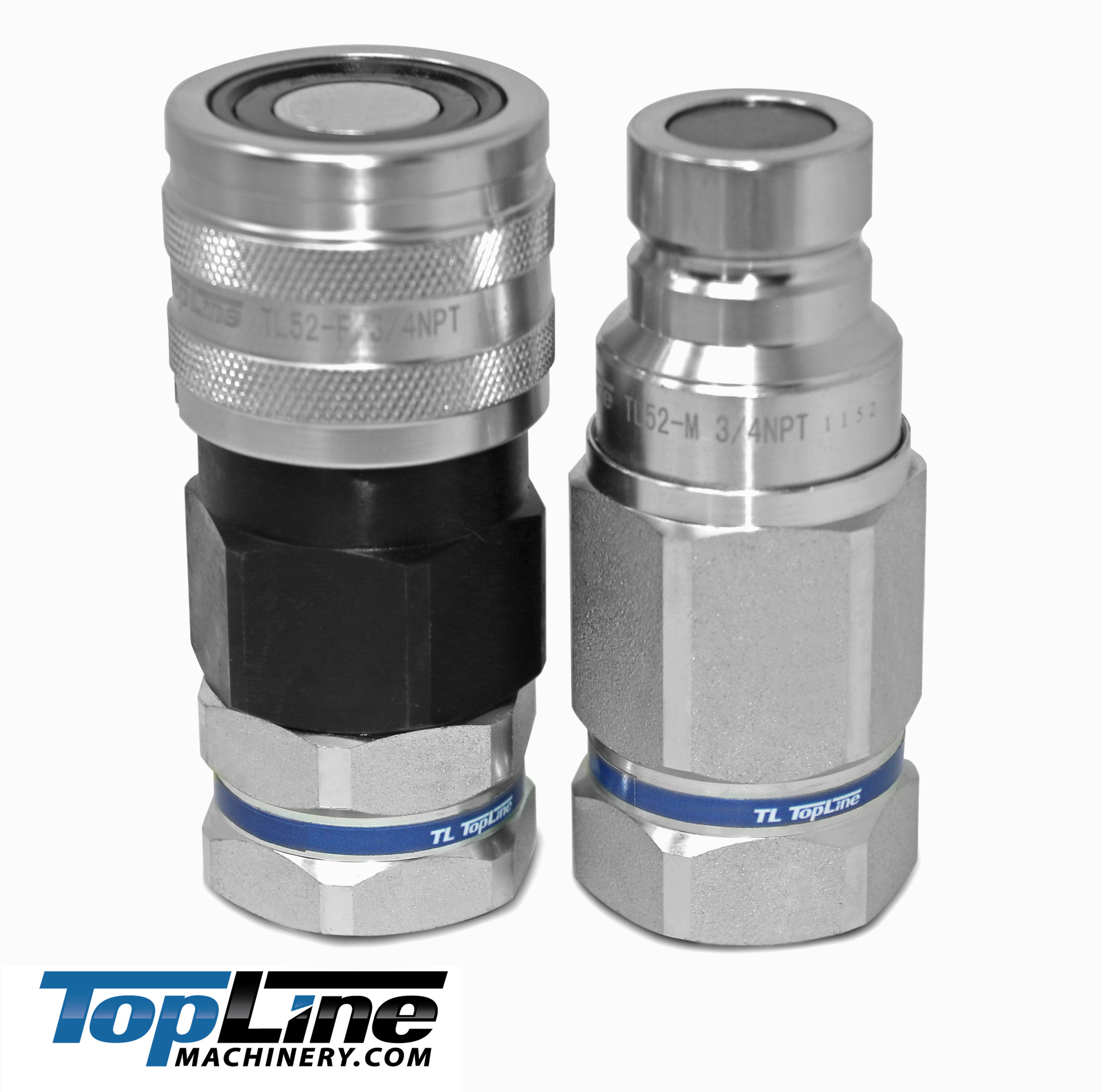

This set includes:

  • 1 Male Flat Face Coupler
  • 1 Female Flat Face Coupler
  • 2 Protective Dust Caps



Interchangeable Part Numbers:

Manufacturer

Male

Female

Dixon HT Series

HT6F6

6HTF6

DNP PLT4 Series

FF-HPG-12-12N-NPT

FF-HPG-12-12C-NPT

Eaton Aeroquip FD89

FD89-1002-12-10

FD89-1001-12-10

Faster FFH Series

FFH12 34NPT M

FFH12 34NPT F

Parker FE Series

FEM-752-12FP

FEM-751-12FP

Safeway FFE49 Series

FFE491-6

FFE495-6

Snap Tite 74 Series

74N12-12F

74C12-12F

Stucchi FIRG Series

800801021

800801020

Tomco FE Series

EP6-31

EC6-31

TopLine FF-3412-1 FF-3412-1



(Click below to see what couplers fit your machine)

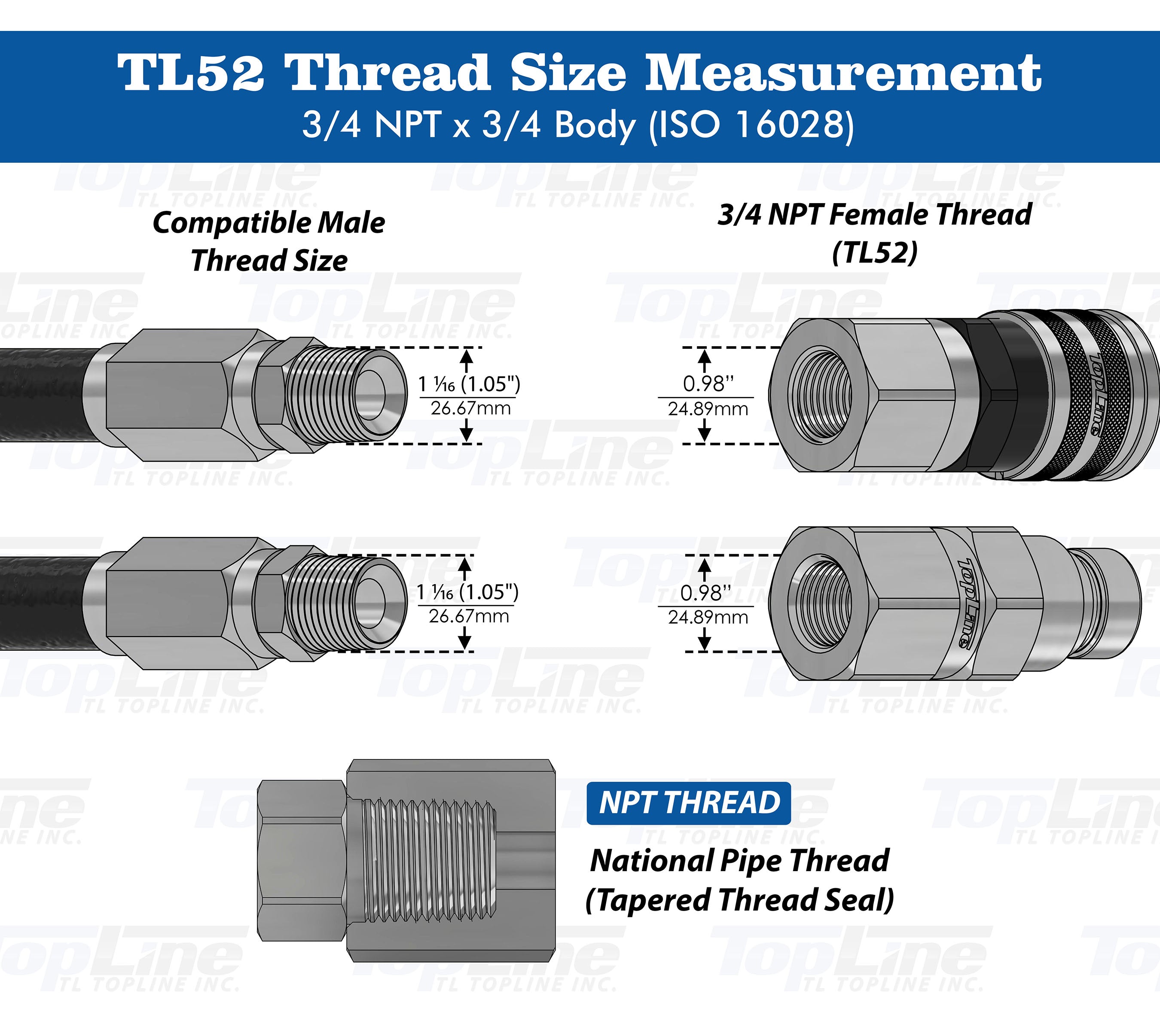

Thread Sizes for 3/4" Body Flat Face Coupler:

1” SAE (ORB) Female Thread (Set) TL51

3/4” NPT Female Thread (Set) TL52

3/4” SAE (ORB) Female Thread (Set) TL53



See our Store for more coupler sizes
