TL50-M 1" NPT Thread Male Flat Face High Flow Quick Connect Hydraulic Coupler 3/4" body size for Bobcat Skid Steer Loaders

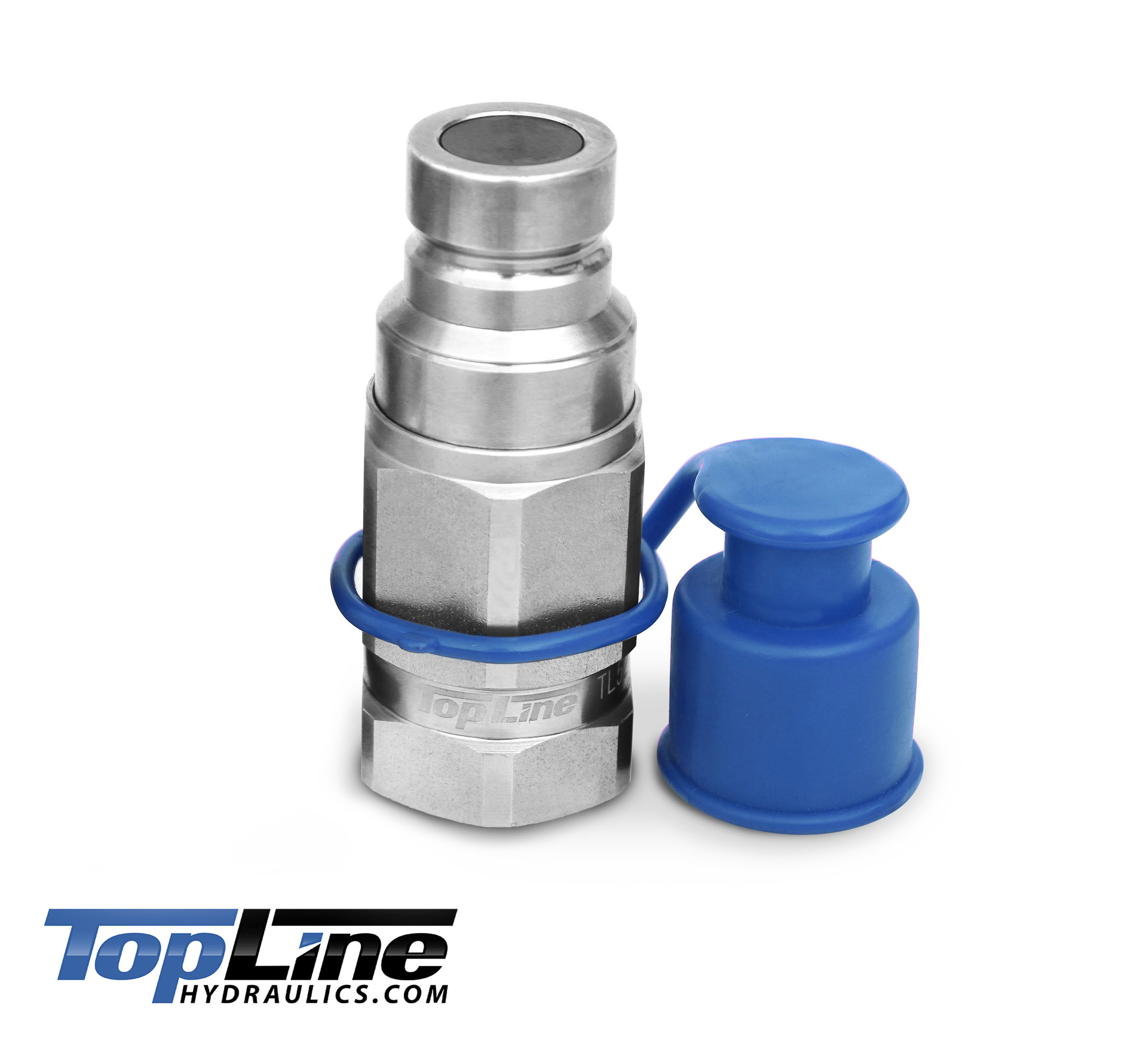

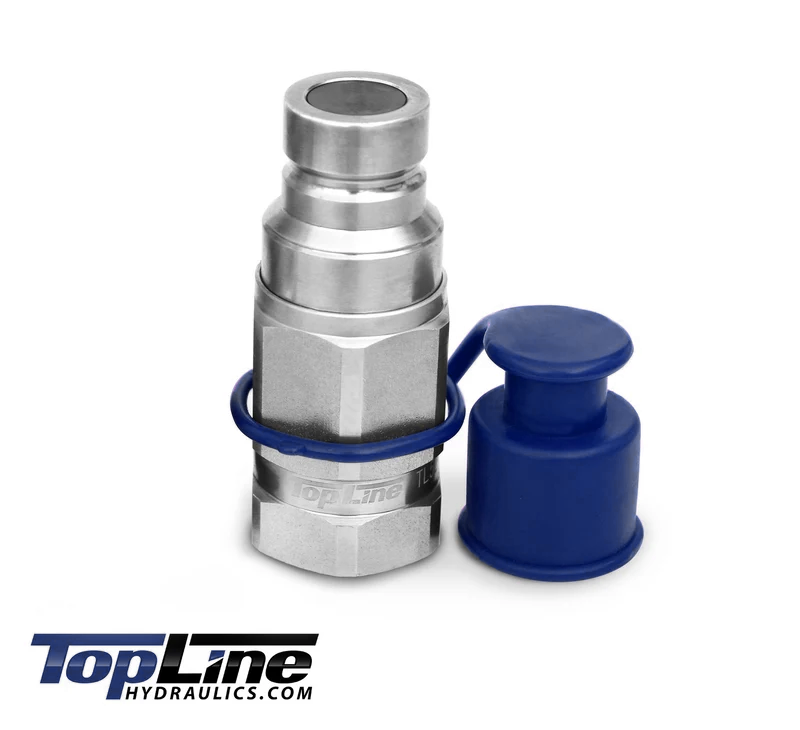

TL50-M 3/4" Body "High Flow" Male Flat Face Hydraulic Quick Connect Coupler (1" NPT)

The TL50-M is an industrial-strength, "High Flow" flat-face coupler engineered specifically for heavy-duty skid steer and compact loader applications. Designed to handle the increased hydraulic fluid volume required by high-performance attachments like snow blowers, cold planers, and large hydraulic mowers, this coupler ensures your machine operates at maximum power without restriction.

🗸 High-Flow Engineering: Specifically designed to reduce pressure drop, ensuring that high-performance attachments receive the full fluid volume required for optimal operation.

🗸 Heavy-Duty Pressure Rating: Built for demanding conditions with a rating exceeding 5076 PSI.

🗸 Universal 3/4" Body Compatibility: While optimized for High Flow circuits, it remains fully interchangeable with any standard 3/4" body ISO 16028 Flat Face hydraulic system.

🗸 Contamination & Fluid Management: The flush-face architecture is easy to wipe clean, keeping contaminants out of your hydraulic manifold. It also features a design that minimizes fluid loss during connection and disconnection.

🗸 Robust Construction: Constructed from high-strength steel with trivalent zinc plating to provide a durable barrier against corrosion, moisture, and the harsh, grit-filled environments typical of heavy equipment operation.

🗸 Secure Handling: Features a heavy-knurled locking sleeve to allow for a non-slip grip when connecting or disconnecting lines, and includes a protective dust cap.

Specifications

Q: What makes a coupler "High Flow"?

A: Standard hydraulic couplers often have internal valves that create "restriction" (or pressure drop) as fluid moves through them. "High Flow" couplers are engineered with a more efficient internal valve geometry and larger internal fluid channels to minimize this restriction, allowing more fluid to move through the coupler at a given pressure.

Q: Can I use this on a machine that is not "High Flow" rated?

A: You can physically connect it to any standard 3/4" body ISO 16028 system, but the "High Flow" benefit will not be realized unless the machine’s hydraulic pump and the attachment are both rated for High Flow operations.

Q: Why is the 3/4" body size significant?

A: In the world of skid steer hydraulics, body size determines the flow capacity. A 1/2" body is standard for most operations, while a 3/4" body is required for High Flow circuits to prevent the hydraulic fluid from overheating and to provide the attachment with the power it needs.

Q: Should I use thread sealant on the 1" NPT connection?

A: Yes. Because 1" NPT is a large tapered pipe thread, it is critical to use a high-quality hydraulic-rated thread sealant or Teflon tape to ensure a leak-free seal, especially given the high-pressure and high-flow environment these couplers operate in.

Thread Sizes for 3/4" Body Flat Face Coupler:
