TL44 1/2" NPT Thread 3/8" body size Flat Face Quick Connect Hydraulic Couplers for Bobcat Skid Steer Loaders

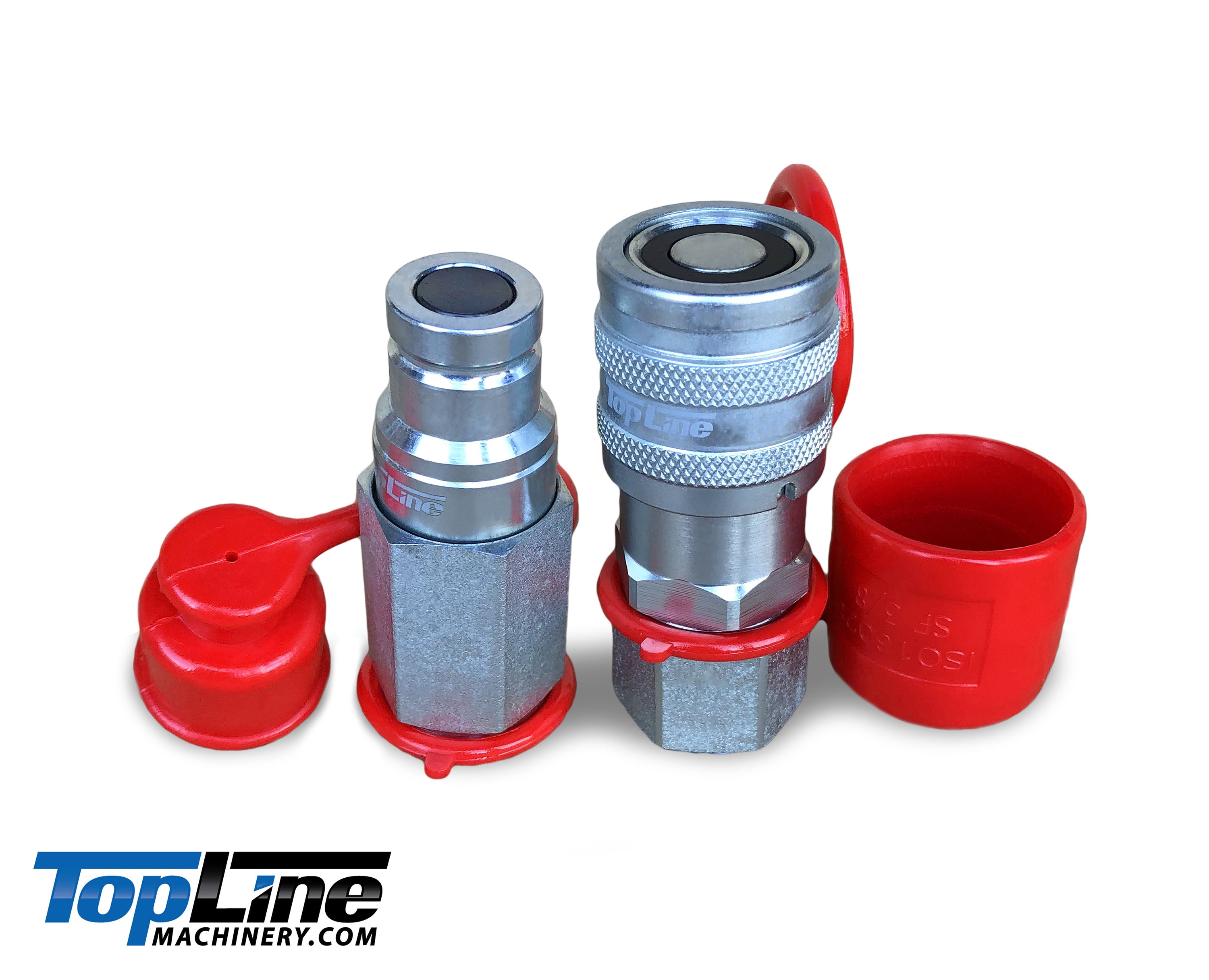

🗸 TL44 3/8" BODY FLAT FACE HYDRAULIC COUPLER SET (1/2" NPT THREAD)

The TL44 is a professional-grade, heavy-duty coupler set specifically engineered for the "case drain" or "small return line" found on many modern skid steer attachments. While smaller than standard 1/2" drive lines, these return lines are critical to preventing back-pressure damage in attachment motors; the TL44 ensures these lines remain clean, sealed, and reliable.

🗸 CASE DRAIN OPTIMIZED: Designed specifically for the smaller return lines on skid steer attachments, the TL44 provides the exact flow characteristics required for proper case drain function, protecting expensive attachment motors from internal seal failure caused by excessive back-pressure.

🗸 HEAVY-DUTY INDUSTRIAL RATING: These are not light-duty components. Rated for over 5076 PSI, the TL44 is constructed from high-strength steel to handle the rigorous duty cycles and vibrations of professional construction and landscaping environments.

🗸 ISO 16028 FLUSH FACE TECHNOLOGY: This design is the industry standard for system cleanliness. Because the coupler face is perfectly flush, it is simple to wipe clean with a rag before connection. This is vital for protecting the return line circuit—a critical path that, if contaminated, can carry debris directly back into your skid steer's hydraulic filter and main valve block.

🗸 FIELD-READY ERGONOMICS: Featuring a push-connect locking sleeve with deep, heavy knurled texturing, the TL44 provides a secure, non-slip grip. This allows for quick, effortless attachment swaps in the field, even when the operator is wearing thick safety gloves.

Specifications

Q: What is a "case drain" or "small return line"?

A: Many high-performance skid steer attachments (like mowers or cold planers) have internal hydraulic motors that leak a small amount of oil internally to lubricate the motor bearings. This oil must be returned to the loader's reservoir through a "case drain" line. The 3/8" body coupler is the standard size for this specific connection.

Q: Why is it important to use a high-quality coupler for the return line?

A: If the case drain coupler fails or restricts flow, pressure builds up inside the attachment motor, which will quickly "blow" the motor's shaft seal. Using a heavy-duty, ISO-rated coupler like the TL44 ensures that the return path remains unrestricted, preventing costly motor repairs.

Q: Is the TL44 a direct-fit replacement?

A: Yes. It is designed to be a direct-fit replacement for the 3/8" body flat-face couplers found on the auxiliary case drain ports of most modern Bobcat and other skid steer brands.

Q: Are the dust caps necessary for the return line?

A: Absolutely. Even though the return line is not under the same main-flow pressure as the primary lines, any grit that enters the return port during disconnection will eventually migrate to your machine's primary hydraulic filter. Using the included dust caps is the best way to keep your entire hydraulic loop clean.
