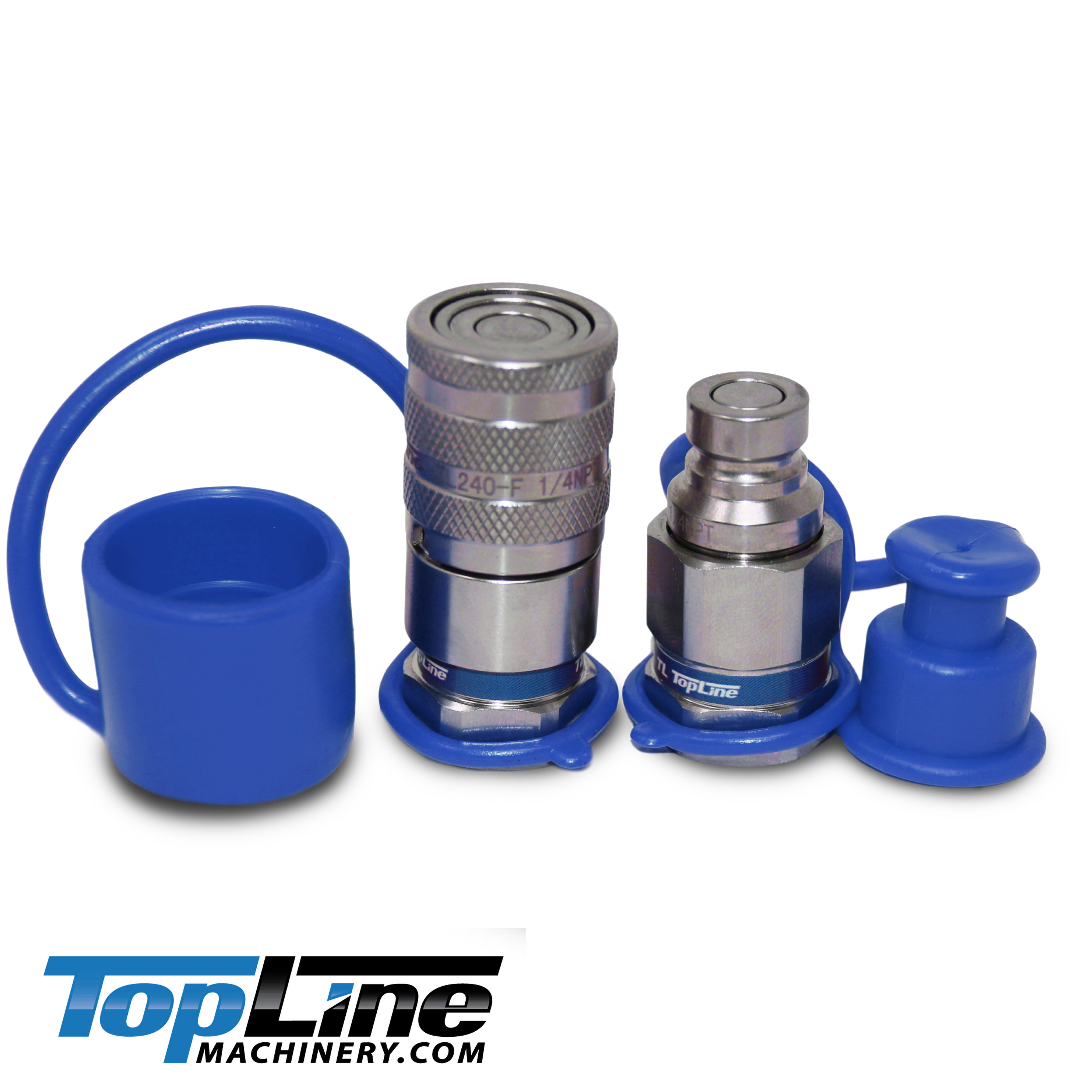

3/8" NPT Thread Flat Face Quick Connect Hydraulic Couplers 3/8" body size- STAINLESS STEEL TL241

TL241 3/8" Body Stainless Steel Flat Face Hydraulic Quick Connect Coupler Set (3/8" NPT)

The TL241 is a premium, heavy-duty hydraulic coupler set constructed from 304 Stainless Steel. Engineered for professionals who operate in harsh environments, this set provides superior resistance to corrosion and rust. It is specifically sized for the "small return line" or "case drain" on skid steer attachments, ensuring high-performance fluid management while keeping your system free of debris.

🗸 304 Stainless Steel Construction: Built to withstand severe environmental exposure, such as salt, moisture, and chemicals, making this set significantly more durable than standard steel couplers in high-corrosion conditions.

🗸 Optimized for Case Drain Lines: Specifically sized for the 3/8" body requirement often found on auxiliary return lines and case drains of high-performance skid steer attachments.

🗸 Heavy-Duty Industrial Rating: Rated for high-pressure hydraulic circuits with a capacity of over 5076 PSI.

🗸 Universal ISO 16028 Compatibility: Designed to interface seamlessly with any standard 3/8" body Flat Face hydraulic system, providing a perfect fit for a wide range of skid steer brands including Bobcat, John Deere, CAT, and more.

🗸 Contamination & Fluid Management: The Flat Face design allows the coupling faces to be easily wiped clean, preventing debris from entering your hydraulic lines. It also minimizes fluid loss during disconnection.

🗸 Ergonomic & Secure: Equipped with heavy knurled locking sleeves to ensure a secure, non-slip grip, even when working with wet, muddy, or oily equipment, and includes two protective dust caps.

Specifications

Q: Why choose the TL241 Stainless Steel over the standard steel model?

A: If you work in marine environments, use salt-based de-icing agents, or frequent areas with high humidity, standard zinc-plated steel couplers can rust over time. 304 Stainless Steel offers exceptional resistance to rust and oxidation, ensuring the coupler remains functional and easy to connect for years longer than standard steel.

Q: Can I use this on a standard hydraulic system that isn't stainless steel?

A: Yes. Because these meet the ISO 16028 standard, they are fully interchangeable with any standard 3/8" body carbon-steel flat-face couplers. You can mix and match them without issue.

Q: Why is the 3/8" body size specific to "small return lines"?

A: Case drains (return lines) on skid steer attachments often have lower flow requirements than the primary drive lines. Using a 3/8" body size ensures you aren't over-coupling the line, while still maintaining the pressure capacity needed to protect the attachment's internal motor seals.

Q: Does the stainless steel material change how I install the NPT thread?

A: No. The installation process remains the same. Since it is an NPT (National Pipe Taper) thread, you should always use a quality hydraulic-rated thread sealant or Teflon tape to ensure a leak-free seal between the coupler and your hose.
