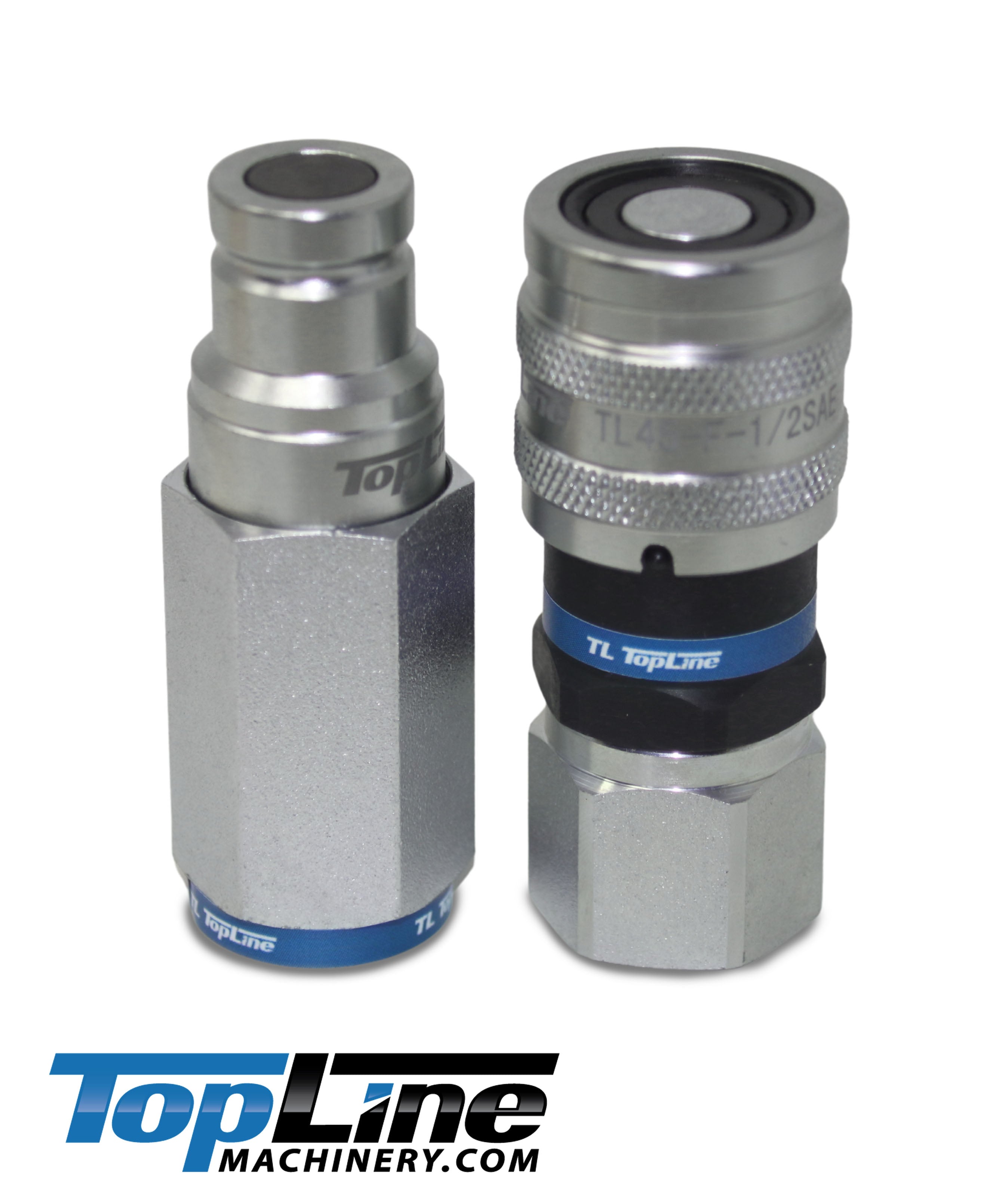

TL45 1/2" SAE Thread 3/8" body size Flat Face Quick Connect Hydraulic Couplers for Bobcat Skid Steer Loaders

🗸 TL45 3/8" BODY FLAT FACE HYDRAULIC COUPLER SET (1/2" SAE THREAD)

The TL45 is a high-performance, heavy-duty hydraulic coupler set engineered for the critical "small return line" or "case drain" connections on modern skid steer attachments. By combining robust SAE (ORB) sealing with the ISO 16028 standard, the TL45 ensures your attachment's motor casing pressure is managed safely, preventing costly internal seal blowouts.

🗸 CASE DRAIN OPTIMIZED: Specially sized for the smaller return lines on skid steer attachments, the TL45 is built to handle the flow requirements of case drains. Proper case drain management is essential to prevent high back-pressure from destroying the shaft seals of your attachment's hydraulic motors.

🗸 HEAVY-DUTY INDUSTRIAL RATING: These are not light-duty components. Rated for over 5076 PSI, the TL45 is constructed from high-strength steel to survive the extreme pressure spikes and intense vibrations encountered in professional construction, forestry, and demolition work.

🗸 ISO 16028 FLUSH FACE TECHNOLOGY: The industry benchmark for hydraulic hygiene. The perfectly flat interface allows for an instant wipe-clean before connecting. This prevents abrasive grit or metallic debris from migrating back through the return line and into your machine's primary hydraulic filter or valve block.

🗸 FIELD-READY ERGONOMICS: Designed for quick, reliable service, the push-connect locking sleeve features deep, heavy knurled texturing. This ensures a positive, non-slip grip, allowing for efficient attachment changes in the field, even when the operator is wearing thick safety gloves.

Specifications

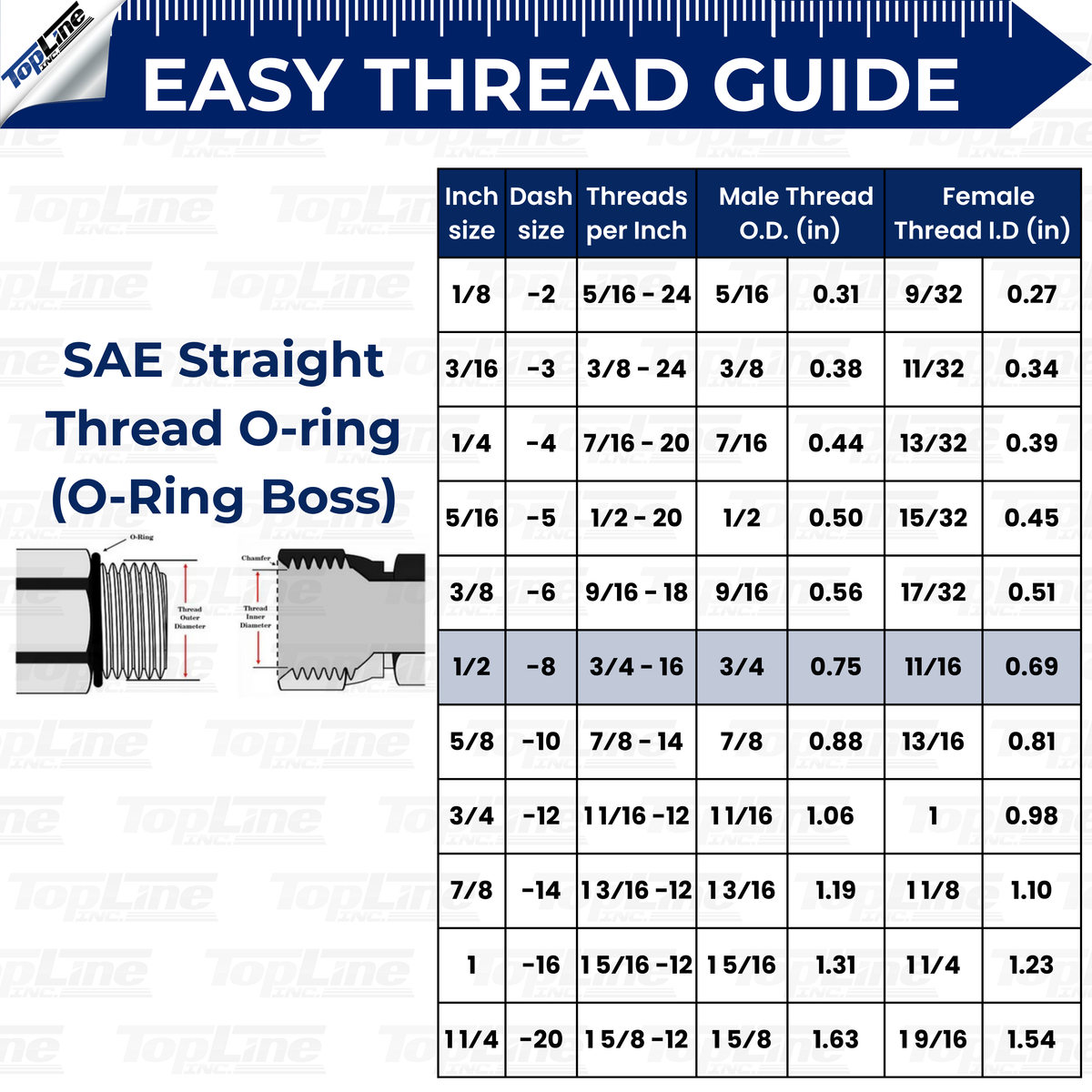

Q: What is the benefit of the SAE (ORB) thread over NPT?

A: SAE O-Ring Boss (ORB) threads are the preferred standard for high-pressure hydraulic connections. They utilize a dedicated O-ring seal at the base of the thread, which is significantly more resistant to vibration-induced leaks than NPT (tapered) threads, which rely on thread deformation for their seal.

Q: Why do my attachments have a "small return line" in addition to the main hoses?

A: This is the "case drain." High-performance motors inside attachments often leak a small amount of oil internally for lubrication. This oil must be returned directly to the hydraulic tank through the case drain line. If this line is blocked or restricted by an inferior coupler, the trapped pressure will rupture the motor's internal seals.

Q: Is the TL45 a direct replacement for my factory coupler?

A: Yes, it is designed as a direct-fit replacement for standard 3/8" body flat-face couplers found on the case drain ports of almost all modern Bobcat, John Deere, CAT, and other skid steer brands.

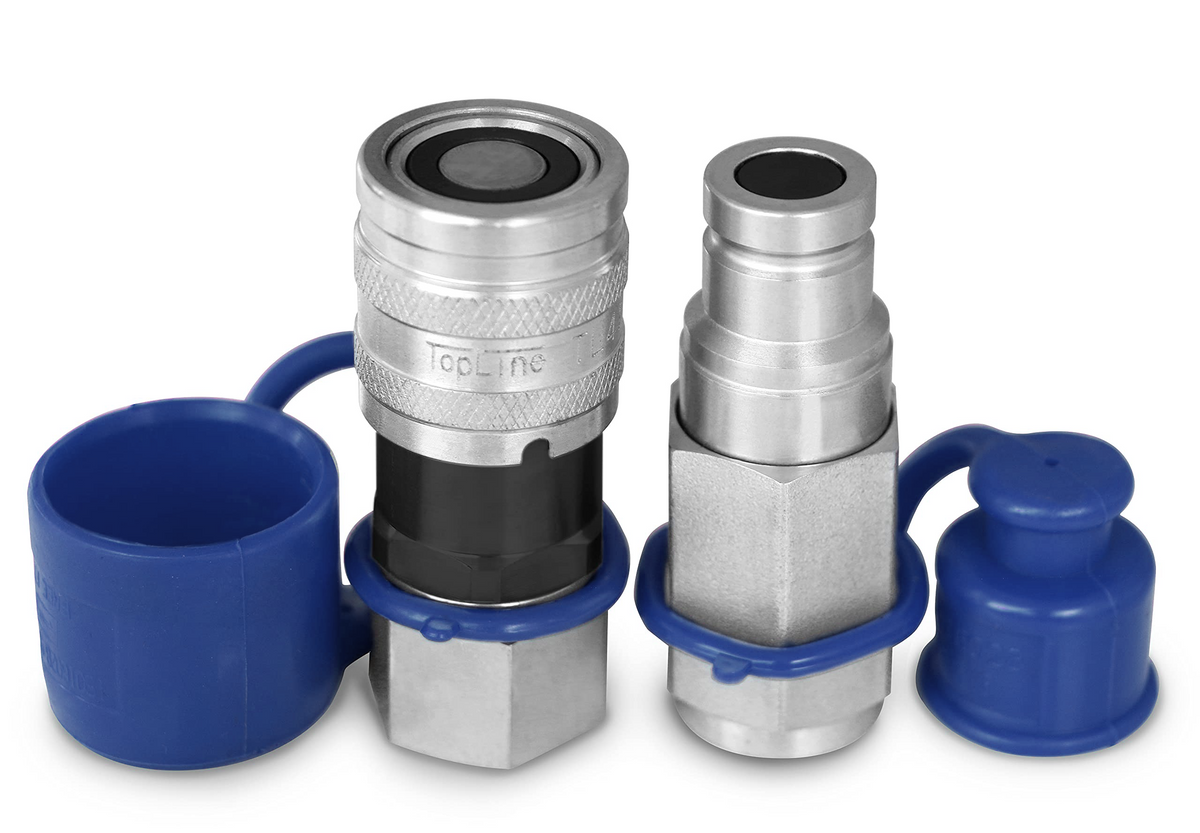

Q: Why are the included dust caps so important for these specific lines?

A: Case drain lines are often overlooked, yet they are the direct path back into your main hydraulic oil supply. If the coupler face gets dirty and you connect it, that dirt is flushed straight into your machine's oil filter and pump. Keeping these caps on when disconnected is the simplest way to maintain the cleanliness of your entire hydraulic circuit.
