Product Description

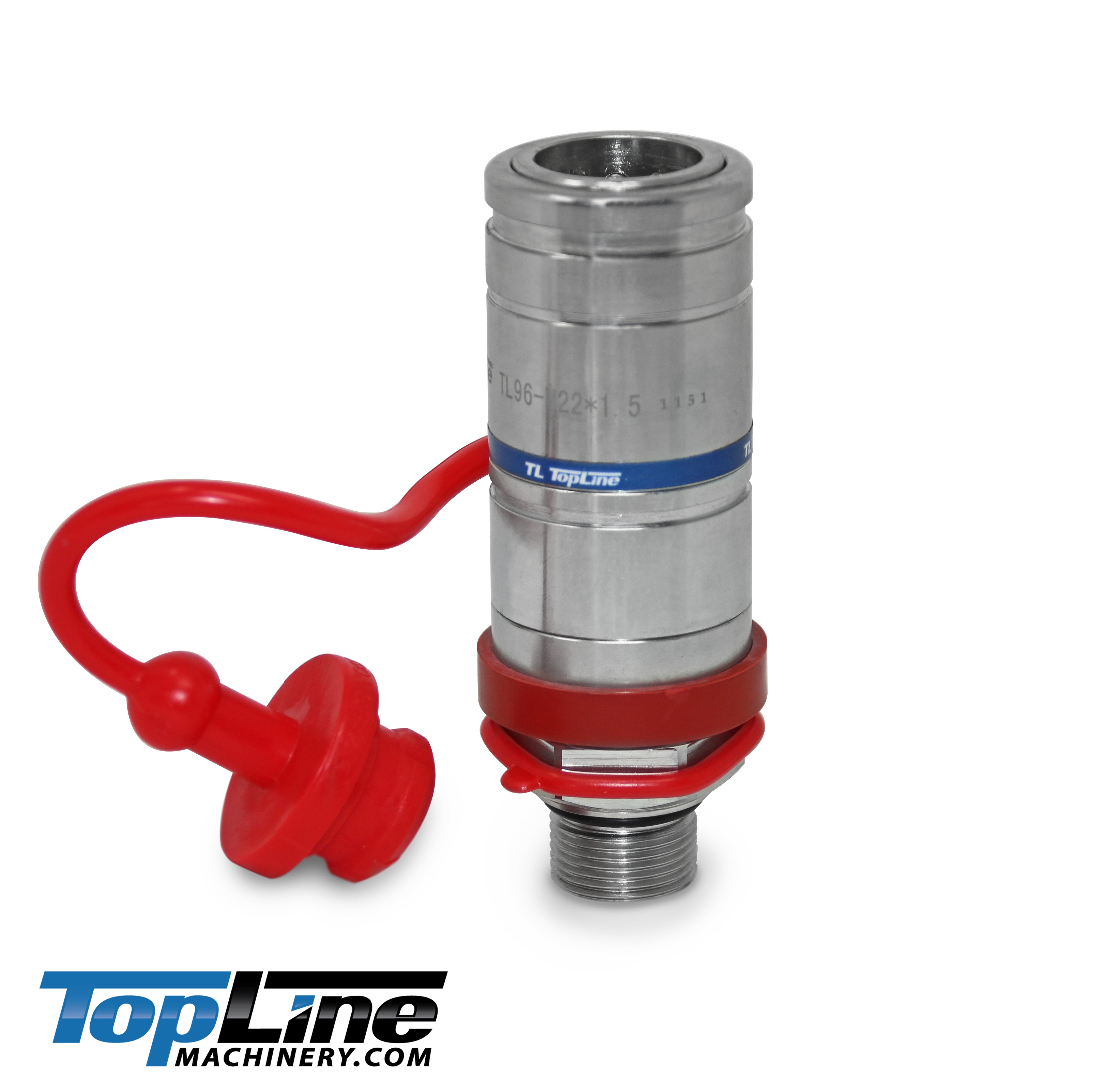

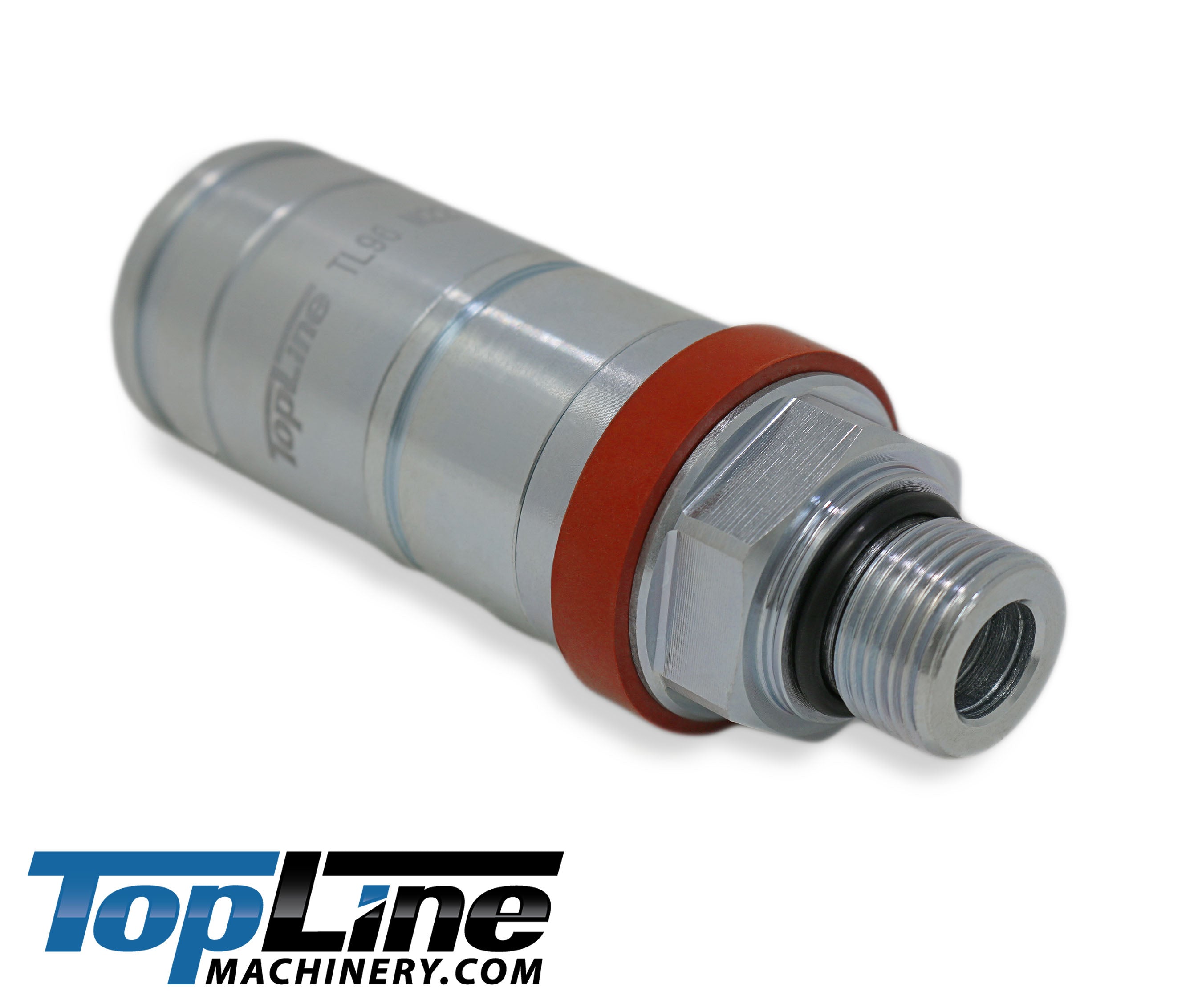

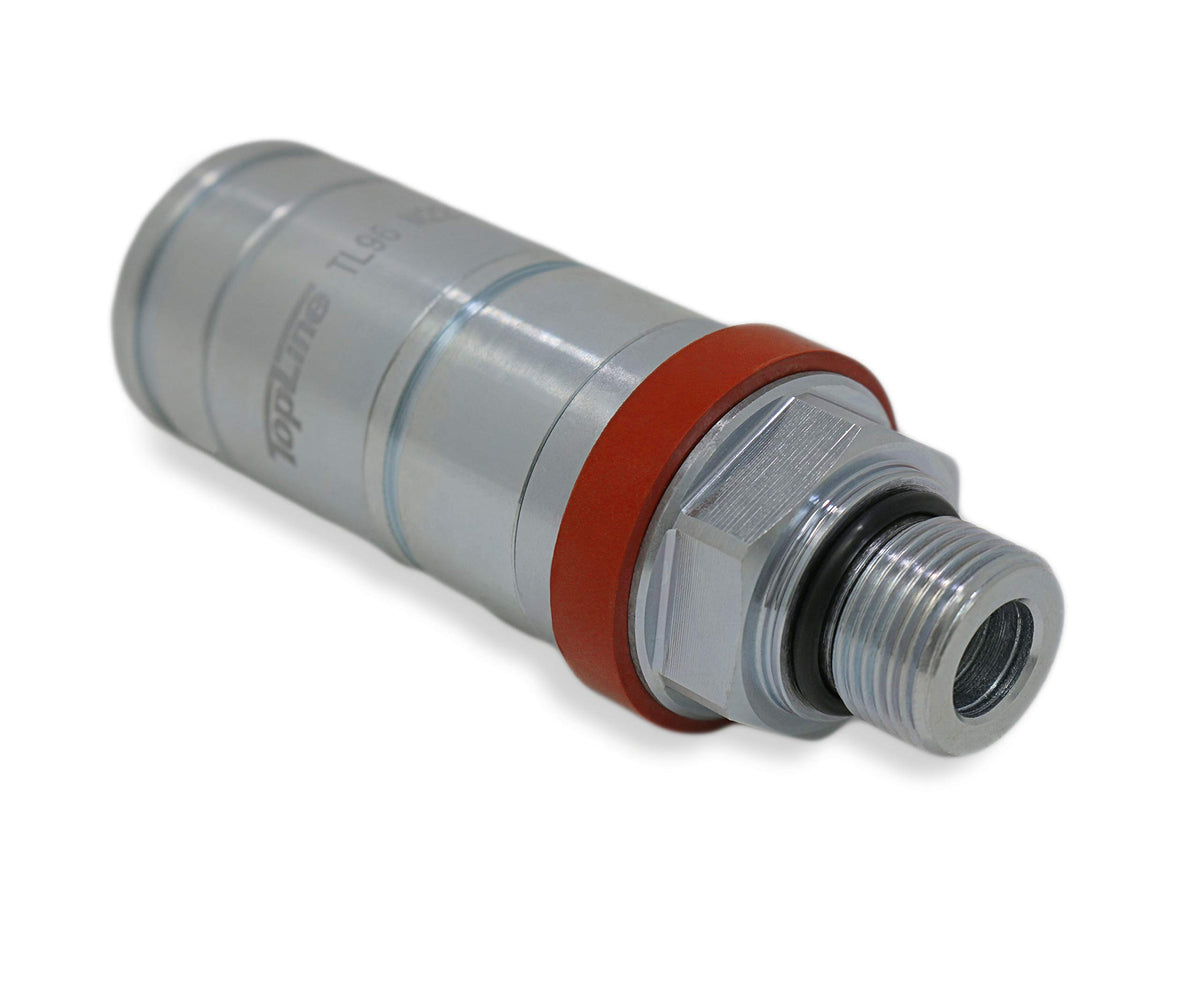

TL96 PUSH-PULL BREAKAWAY HYDRAULIC FEMALE COUPLER (M22 x 1.5 THREAD)
The TL96 is an industrial-grade, push-pull breakaway coupler engineered for high-reliability applications, serving as a direct, heavy-duty replacement for John Deere AL166181 and 3384873M8 components. Specifically designed for Selective Control Valve (SCV) systems on tractors, this coupler provides the essential "breakaway" safety feature required for modern agricultural and heavy machinery.
🗸 PUSH-PULL BREAKAWAY TECHNOLOGY: Safety is paramount in field operations. The TL96 features a specialized push-pull design that allows the coupler to disconnect automatically if an implement is accidentally pulled away from the tractor. This prevents expensive damage to your hydraulic hoses, fittings, and the tractor's SCV block itself.
🗸 ISO 7241-A COMPLIANCE: Engineered to meet the international ISO 7241-A standard, the TL96 ensures full compatibility with standard poppet-type hydraulic systems. This provides a robust, proven seal that is easy to service and widely available for seamless integration with existing farm implements.
🗸 HEAVY-DUTY CONSTRUCTION: Built for the rugged environment of a working farm, the TL96 features a high-strength steel body with a corrosion-resistant trivalent zinc plating. This finish resists the oxidation and rust common in outdoor, multi-season usage, ensuring the push-pull mechanism remains smooth and responsive year after year.
🗸 SEALED INTEGRITY: The coupler includes a high-durability protective dust cap. By sealing the female poppet face when not in use, you prevent abrasive dust, dirt, and moisture from entering your tractor's hydraulic circuit, which is the primary cause of internal valve failure.
Specifications
| Detail | Specification |
| Model Number | TL96 |
| Coupler Body Size | 1/2" (NW12) |
| Coupler Thread Size | M22 x 1.5 Male |
| Coupler Material Type | Heavy-Duty Steel |
| Plating Type | Corrosion-resistant trivalent zinc |
| Package Includes | (1) Female Poppet Coupler, (1) Protective Dust Cap |
Q: What is a "Push-Pull" breakaway coupler, and why do I need it?
A: A push-pull breakaway coupler is designed for safety. If an implement is disconnected while still coupled to the tractor and then dragged away, the force of the tension automatically trips the coupler, causing it to disconnect safely. Without this, the hydraulic hoses would be ripped from the tractor, causing a massive oil spill and potential damage to the tractor's SCV mounting points.
Q: Is the TL96 compatible with my John Deere tractor?
A: Yes, the TL96 is designed as a direct-fit replacement for the John Deere AL166181 and is optimized for use on SCV blocks where this specific push-pull functionality is required.
Q: Why does this coupler use a "poppet" design instead of "flat face"?
A: While flat-face couplers are excellent for minimizing spillage, ISO 7241-A poppet-type couplers are the industry standard for many tractor-mounted SCVs. The poppet design is exceptionally robust, easy to operate under slight residual pressure, and provides a very reliable flow path for standard hydraulic implements.
Q: How do I maintain the push-pull mechanism?
A: Keep the sleeve and the locking balls clean. If you notice it becoming difficult to connect or disconnect, a light spray of silicone lubricant on the moving parts of the sleeve (while disconnected) can keep the mechanism operating smoothly in dusty environments.
Interchangeable Part Numbers:
- 3CFPV
- 3384873M8
- AL166181
- AL119348
- AL200979
- RSD-501-22MM-L103-F
- 3905722M, 1696241M92, 3384871M1
- 3384873M4, 3384873M5, 3384873M6
- 3384873M7, 3384873M8, 3794298M1
- 3794298M2, 3905722M91
- RR-S.3049
Application:
John Deere Machines
5078E, 5080R, 5080RN, 5085E, 5090E, 5090R, 5090RN, 5100R, 5100RN, 5620, 5720, 5820
6010, 6020, 6090MC, 6090RC, 6100RC, 6110, 6115M, 6115R, 6120, 6120M, 6125E, 6125J, 6125M, 6125R, 6130J, 6130, 6130M, 6130R, 6135M, 6140M, 6140R, 6145J, 6145M, 6150M, 6150R, 6155M, 6165J, 6170M, 6170R, 6175M, 6180J, 6190R, 6195M, 6205J
SE6010, SE6020, SE6100, SE6110, SE6120, SE6200, SE6210, SE6220, SE6220, SE6300, SE6310, SE6320, SE6400, SE6410, SE6420, SE6510, SE6520, SE6610, SE20, SE6920
6200, 6210R, 6215, 6220, 6230, 6300, 6310, 6320, 6330, 6400, 6405, 6410, 6415, 6630, 6715, 6800, 6810, 6820, 6830, 6900, 6910S, 6910, 6920, 6920S, 6930
7130, 7185J, 7195J, 7205J, 7210J, 7225J, 7230, 7330, 7430, 7515, 7530
Massey Ferguson Tractors
340, 342, 350, 352, 353, 354, 355, 360, 362, 362 N, 363, 365, 372, 372 N, 373, 373 S, 374, 374 S, 375, 377, 382, 382 N, 383, 383 S, 384, 384 F, 384 S, 387, 390, 390 T, 393, 393 S, 394, 394 F, 394 S, 397, 398, 399, 670, 675, 690, 698, 698 T, 699 300 Series 360, 362, 375, 383, 390, 393, 396, 398, 399 3000 Series 3090 3100 Series 3120 3600 Series 3630, 3650, 3660, 3680 390T
