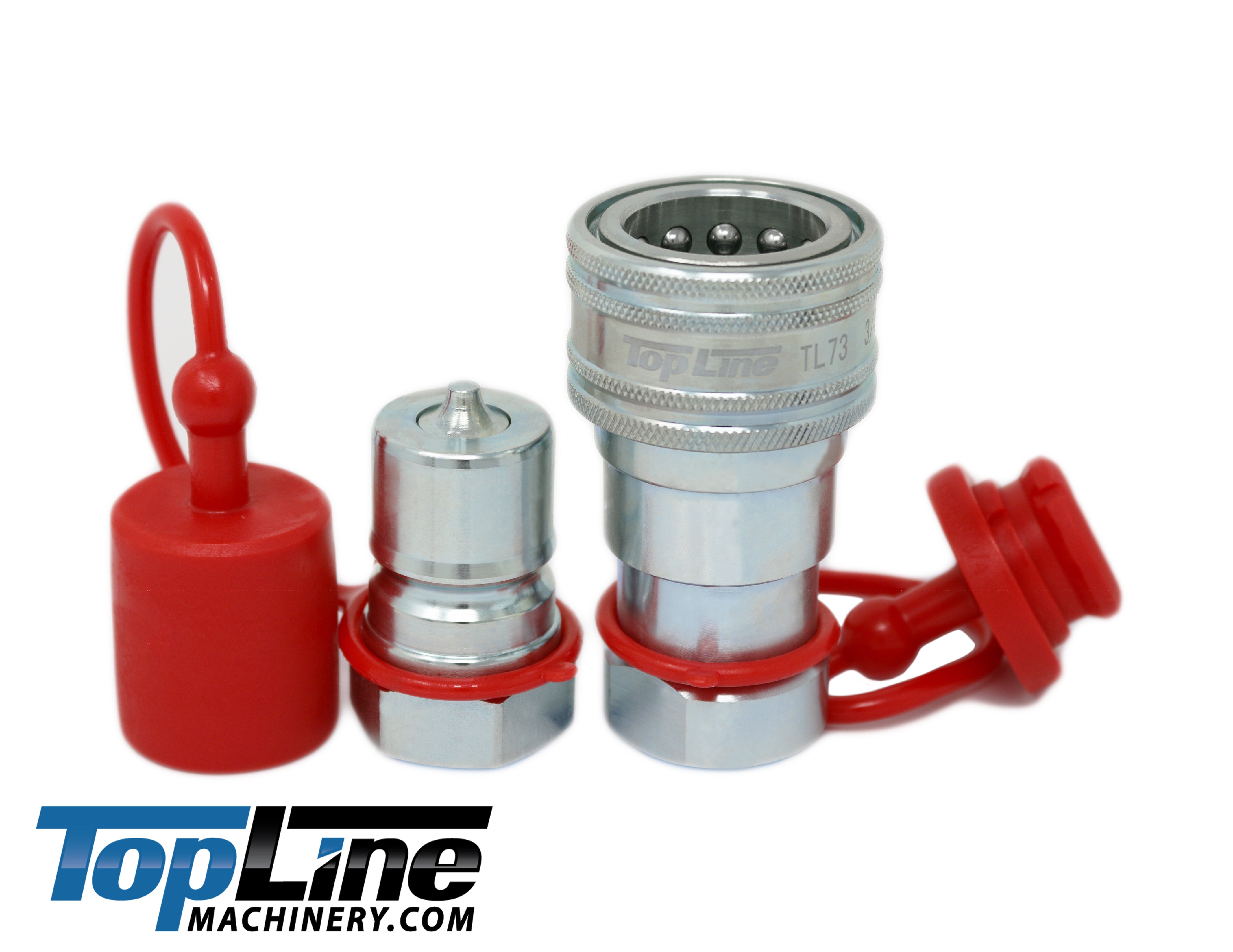

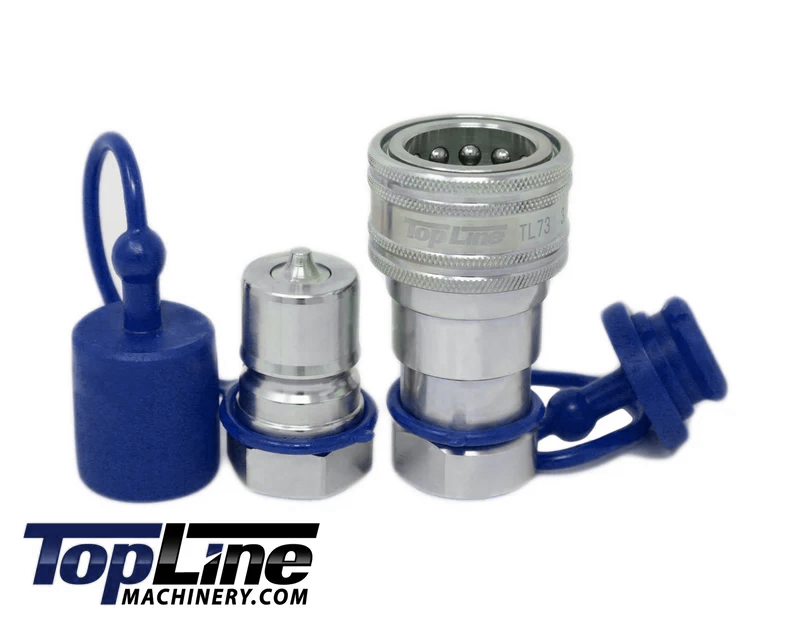

TL73 3/4" NPT Thread ISO 7241-B Hydraulic Coupler Set 3/4 body Poppet Valve

TL73 3/4" BODY ISO 7241-B HYDRAULIC COUPLER SET (3/4" NPT THREAD)

The TL73 is a heavy-duty, high-flow hydraulic coupling set designed for demanding industrial and heavy-equipment applications. Built to the ISO 7241-B standard, this set provides a reliable, robust connection for high-volume hydraulic systems, ensuring that your equipment maintains consistent flow and pressure under rigorous operating conditions.

🗸 ISO 7241-B COMPLIANCE: This set is engineered to meet or exceed ISO 7241-B international standards, ensuring full interchangeability with existing 3/4" poppet-style hydraulic systems. This standard is widely recognized for its reliability in heavy-duty agricultural and industrial settings.

🗸 HEAVY-DUTY INDUSTRIAL RATING: These are not light-duty components. Rated for over 3600 PSI, the TL73 set is constructed from high-strength steel, designed to withstand the extreme flow demands and pressure surges found in larger skid steers and industrial hydraulic attachments.

🗸 ROBUST POPPET VALVE DESIGN: The poppet-style valving provides a secure, leak-resistant seal when disconnected, making it an excellent choice for applications requiring frequent attachment changes where system cleanliness is a priority.

🗸 FIELD-READY ERGONOMICS: Designed for quick service, the push-connect locking sleeve features deep, heavy knurled texturing for a positive, non-slip grip. This allows for fast and safe attachment changes in the field, even when the operator is wearing thick safety gloves or working in challenging environments.

Specifications

Q: What is the difference between ISO 7241-B and the more common flat-face couplers?

A: ISO 7241-B couplers utilize a "poppet" valve design. They are generally prized for their robustness and ease of connection under residual pressure compared to some flat-face designs. While flat-face couplers (ISO 16028) are often preferred for "spill-free" performance, ISO 7241-B is the standard for many heavy-duty industrial applications requiring high flow capacity.

Q: Is the TL73 compatible with my skid steer?

A: The TL73 is designed for any system utilizing the ISO 7241-B standard. It is a frequent replacement for 3/4" body couplers on larger machines that require higher fluid volumes than the standard 1/2" couplers provide.

Q: Why is the 3/4" body size significant?

A: A 3/4" body size allows for significantly higher hydraulic flow rates compared to 1/2" couplers. This reduces fluid restriction, which lowers heat generation and prevents performance bottlenecks when using high-demand attachments like large rock breakers, high-flow mowers, or industrial augers.

Q: How does the "no air inclusion" feature help?

A: When connecting hydraulic couplers, trapped air can be pushed into the system. As this air is compressed, it causes the hydraulic fluid to "heat up" and the pump to undergo stress. The TL73's valve engineering is designed to minimize the introduction of air, protecting your system from the performance-degrading effects of aeration.
