Product Description

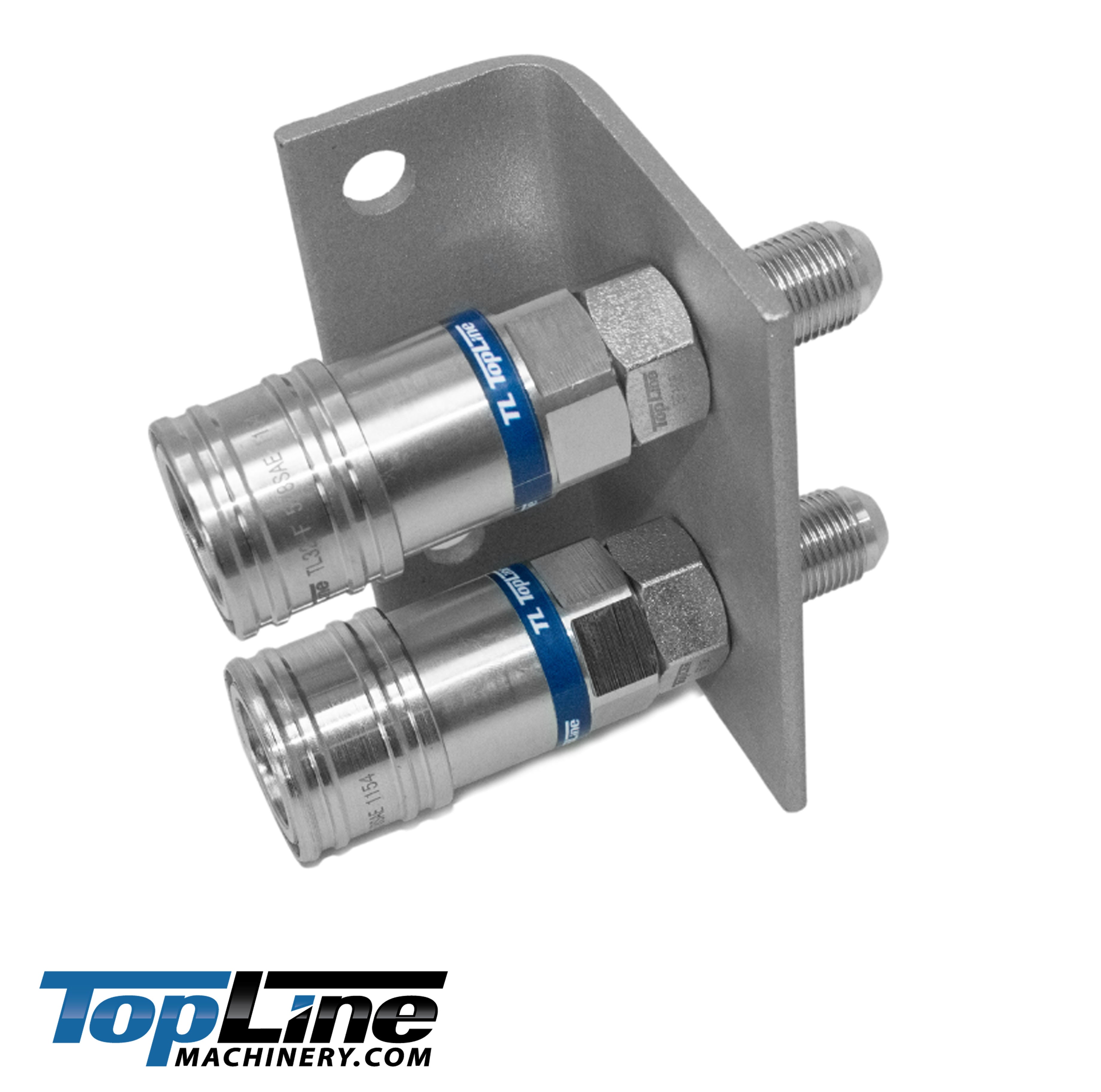

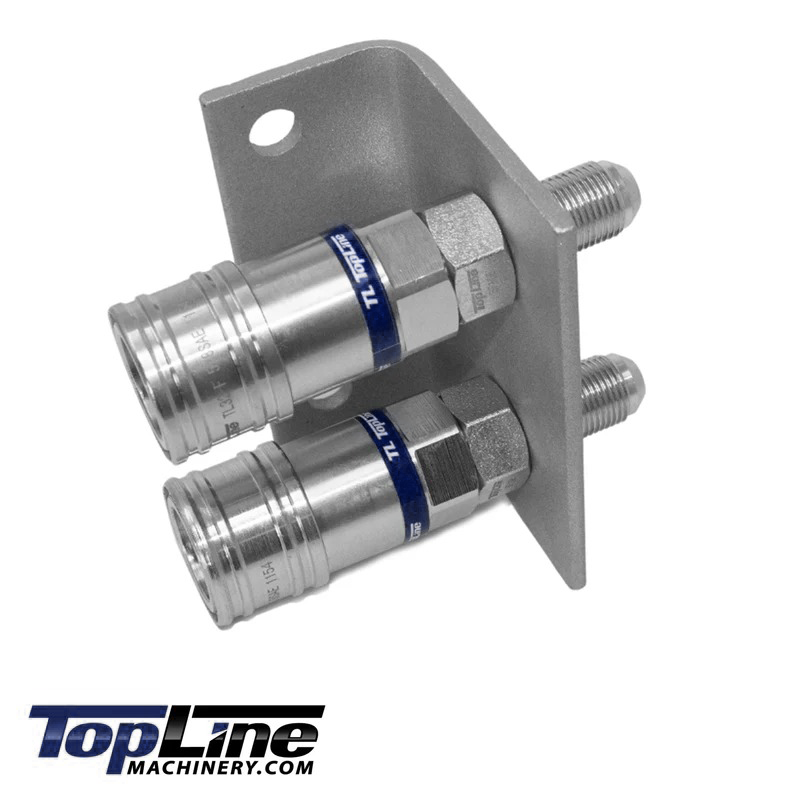

TL32B-2 Hydraulic Quick Coupling 1/2" JIC Bulkhead with Mounting Bracket Set
The TL32B-2 is an industrial-grade hydraulic manifold solution designed to provide a centralized, secure connection point for implements and attachments. This set includes (2) 1/2" JIC (#8) bulkhead Agricultural Quick Couplers pre-mounted on a heavy-duty steel bracket, making it ideal for streamlining hydraulic lines on tractors, skid steers, and loaders.
🗸 Heavy-Duty Industrial Rating: Built for durability, these couplers are rated for over 3600 PSI to handle the rigorous demands of agricultural and construction environments.
🗸 Universal Ag-Style Compatibility: Designed to meet or exceed ISO 5675 standards, ensuring seamless connection to any standard 1/2" body agricultural coupler.
🗸 Integrated Mounting Solution: Includes a robust steel yoke and brace mounting bracket, providing a clean, organized, and secure bulkhead setup for your hydraulic lines.
🗸 Corrosion Resistance: Both the couplers and the mounting hardware feature trivalent zinc plating to resist rust and degradation caused by moisture, fertilizers, and road salt.
Specifications
| Detail | Specification |
| Model Number | TL32B-2 |
| Coupler Body Size | 1/2" |
| Coupler Thread Size | 1/2" JIC |
| Thread Dash Number | -08 |
| Coupler Material Type | Steel |
| Plating Type | Corrosion-resistant trivalent zinc |
| Clamp Material | Steel yoke and braces |
| Package Includes | (2) Female Ag-Style Couplers, (1) Mounting Bracket |
Q: Are these "Flat Face" or "Ball Style" couplers?
A: These are AG-Style Ball-Detent couplers. They use a poppet valve and ball-locking mechanism, making them the industry standard for traditional agricultural tractors and older skid steer models.
Q: Why use a bulkhead bracket?
A: Mounting your hydraulic couplers to a fixed bracket prevents hose fatigue, reduces movement and vibration, and provides a clear, labeled, and accessible connection point for operators, which significantly speeds up implement swaps.
Q: Can I use these with Flat Face (ISO 16028) systems?
A: No. AG-Style (ISO 5675) and Flat Face (ISO 16028) couplers are not cross-compatible. You must ensure your equipment ports match the AG-style interface.

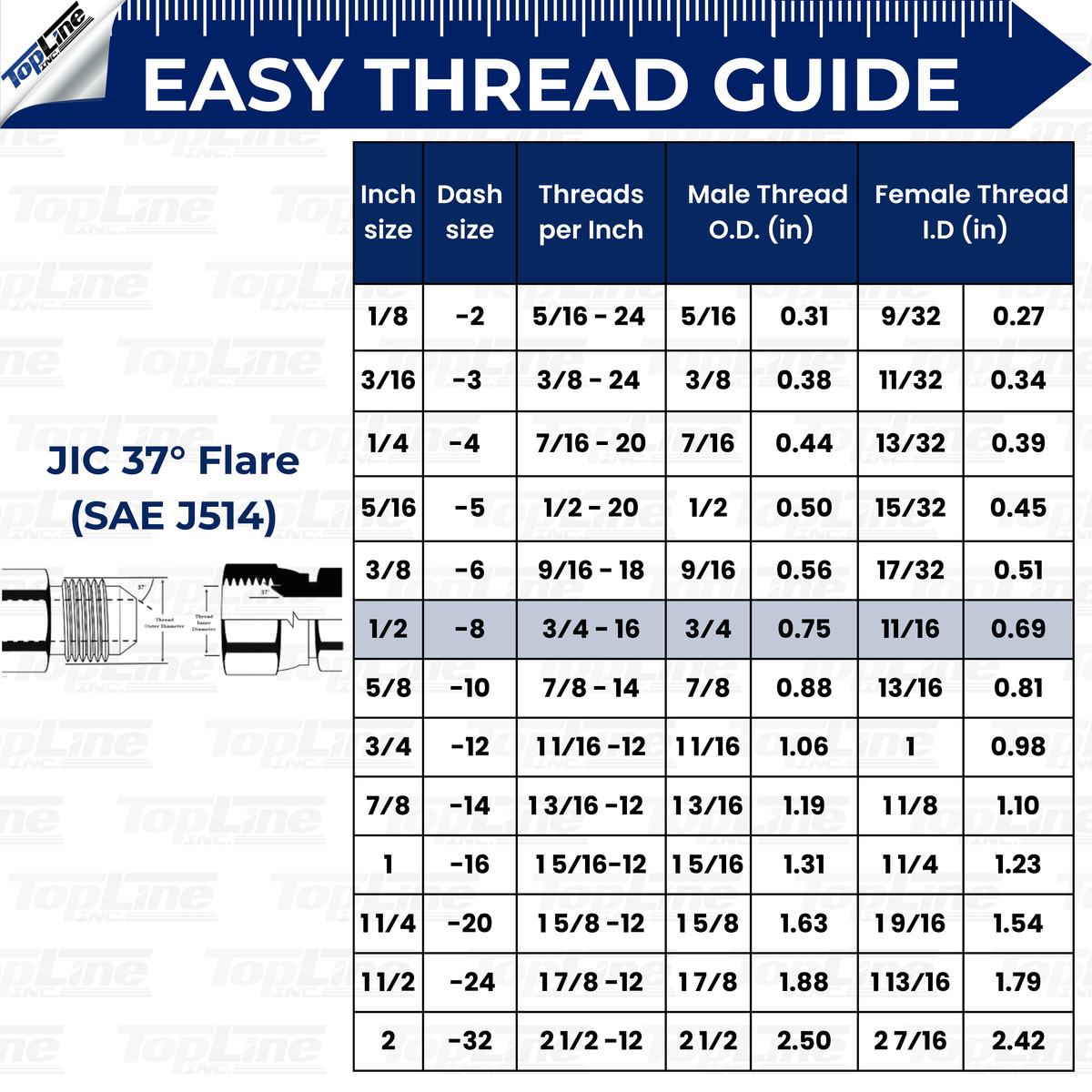

Q: How do I verify if my hose uses 1/2" JIC threads?
A: JIC fittings feature a 37-degree flare seat. If you are uncertain of your current thread type, you can use a thread pitch gauge or compare the flare angle against known specifications. The dash size (-08) corresponds to the 1/2" nominal size for these hydraulic lines.
How to Connect/Disconnect Breakaway Couplers
