Product Description
🗸 PRECISION FIT: Equipped with factory-crimped 1/2" Male NPT x Male NPT fittings.

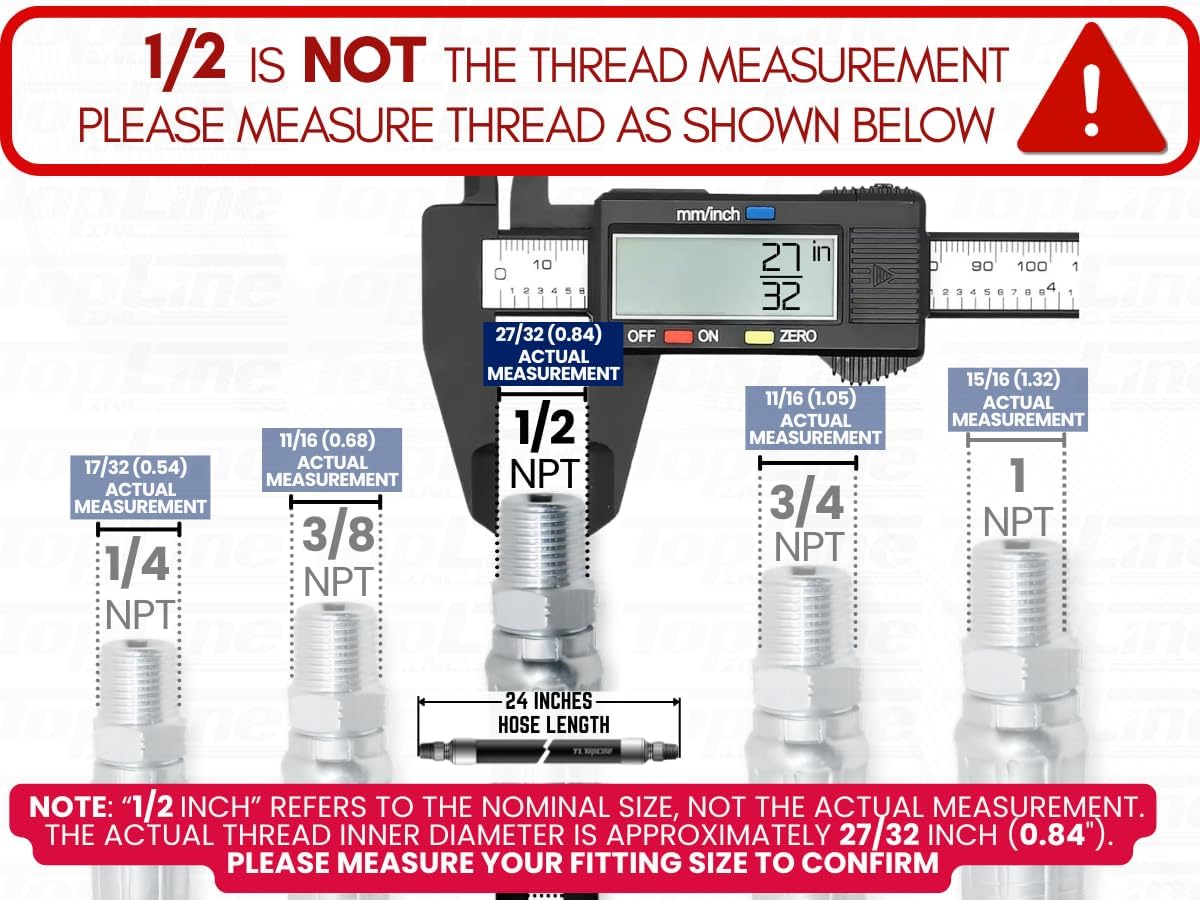

Note: The 1/2" designation refers to the hose's nominal size. The actual thread outer diameter is approximately 27/32" (0.84"). Please verify your existing port measurements to ensure a perfect fit.
🗸 VERSATILE TEMPERATURE RANGE: Engineered for reliability across a massive temperature spectrum—from -40°C to +120°C—ensuring your equipment stays operational regardless of the season or climate.

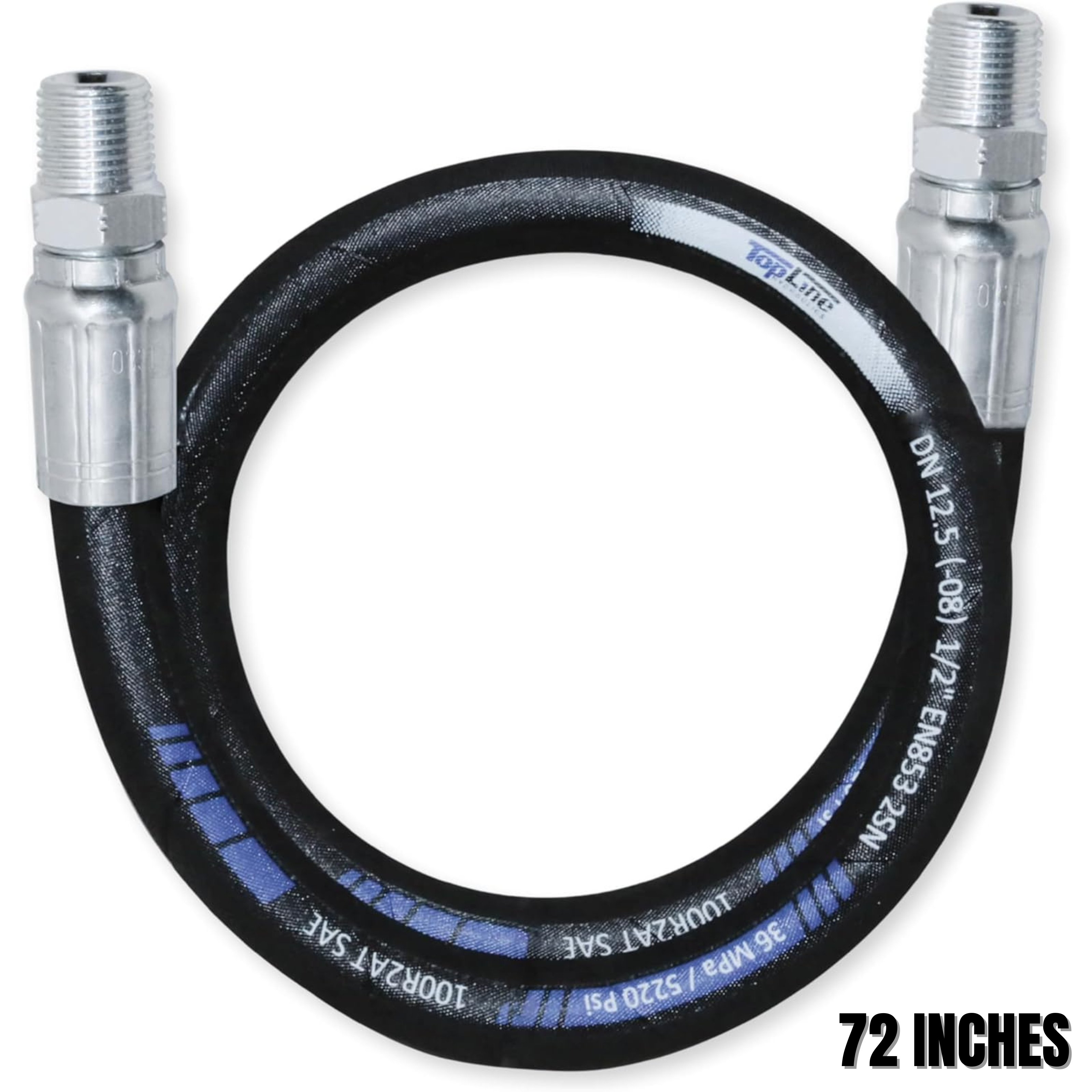

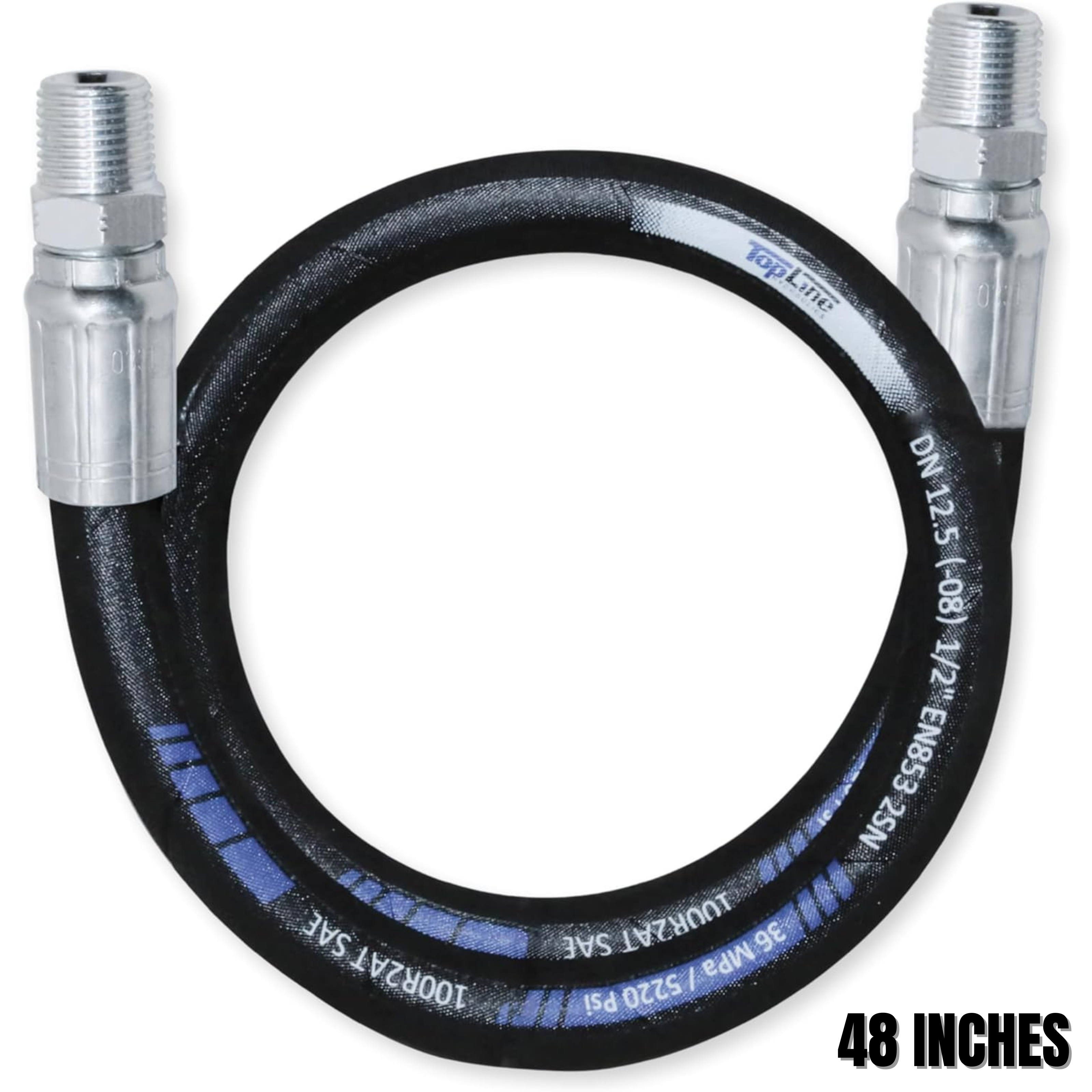

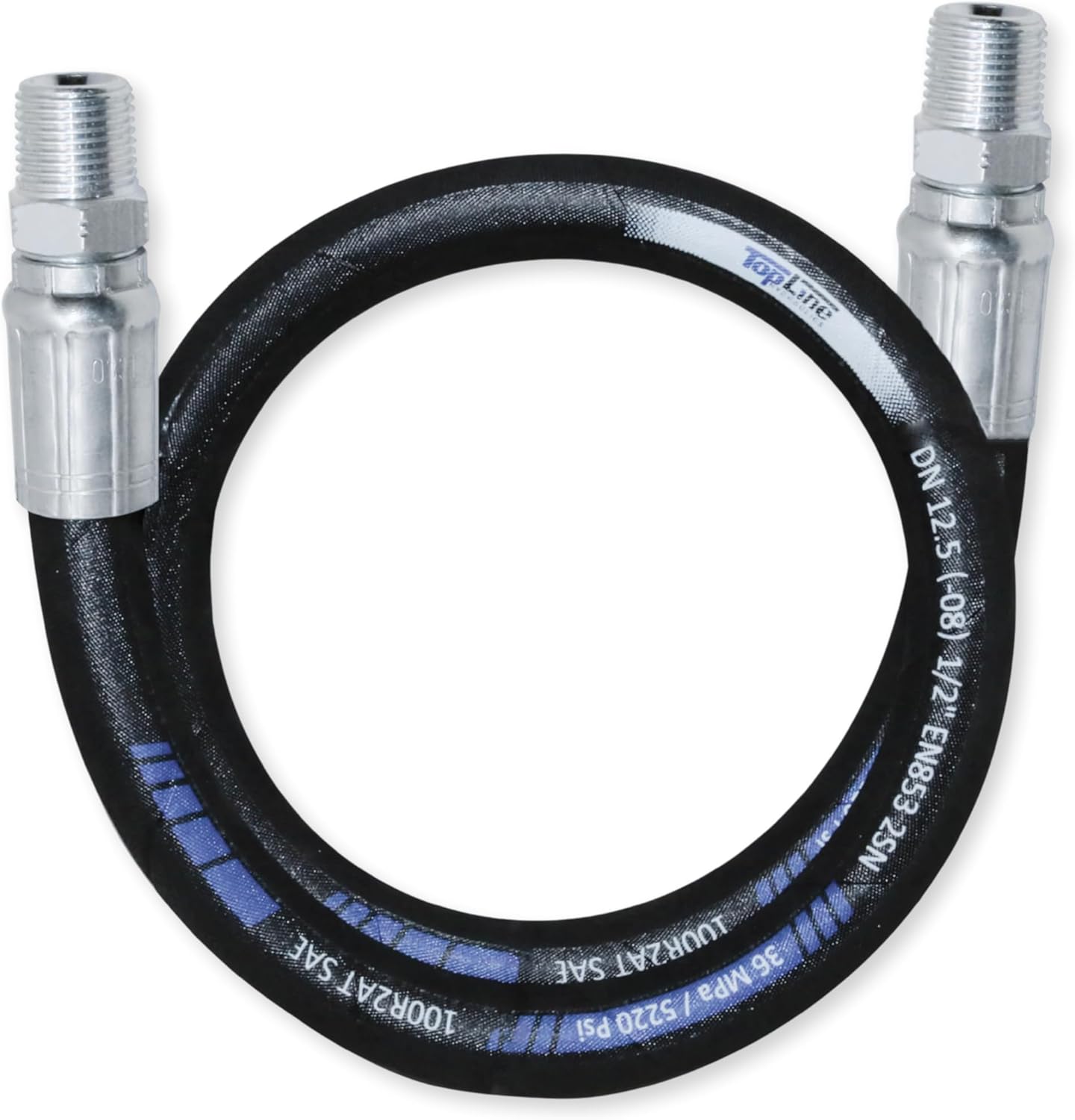

🗸 HFR208 1/2" HIGH-PRESSURE HYDRAULIC HOSE ASSEMBLY – A professional-grade hydraulic line engineered for the extreme pressures of industrial, agricultural, and construction machinery. With a 5,220 PSI working pressure rating, this assembly is built to deliver consistent fluid power under the most demanding conditions.
🗸 RUGGED DUAL-WIRE REINFORCEMENT: Constructed with two high-tensile steel wire braids, this hose assembly exceeds both SAE 100 R2AT and DIN EN853 2SN standards. It is designed to resist deformation and rupture even during intense pressure cycling and vibration.
🗸 INDUSTRIAL-GRADE CONSTRUCTION: Features a premium, oil-resistant synthetic rubber tube and a heavy-duty cover engineered to withstand abrasion, ozone, and extreme weather. This ensures the hose remains flexible and intact even in harsh, outdoor work environments.
| Specification | Details |
| Model Number (MPN): | HFR208-081M-081M |
| Hose Size: | 1/2" (Nominal) |
| Fittings: | 1/2" Male NPT x 1/2" Male NPT |
| Working Pressure: | 5,220 PSI / 36 MPa |
| Standards: | SAE 100 R2AT / DIN EN853 2SN |
| Reinforcement: | (2) High-tensile steel wire braids |
| Temp. Range: | -40°C to +120°C |
| Construction: | Synthetic oil-resistant rubber |
Q: Is this hose suitable for high-vibration applications like skid steers?
A: Yes. The 2-wire braided construction makes this hose exceptionally resilient against the vibration and pressure surges common in skid steer and heavy agricultural equipment, providing a much longer service life than standard light-duty alternatives.
Q: How do I know if the 1/2" NPT fitting is the right size for my equipment?
A: Remember that the "1/2 inch" refers to the nominal pipe size, not the physical measurement of the thread. As a quick check, your fitting's outer thread diameter should measure approximately 27/32" (0.84"). We always recommend double-checking your port size with a caliper to ensure you have the correct match.
Q: Can this hose be used for fluids other than hydraulic oil?
A: Yes. While it is optimized for hydraulic systems, its oil-resistant synthetic rubber tube is also fully compatible with air and water, making it a highly versatile assembly for various auxiliary pneumatic or fluid-transfer tasks on the job site.
