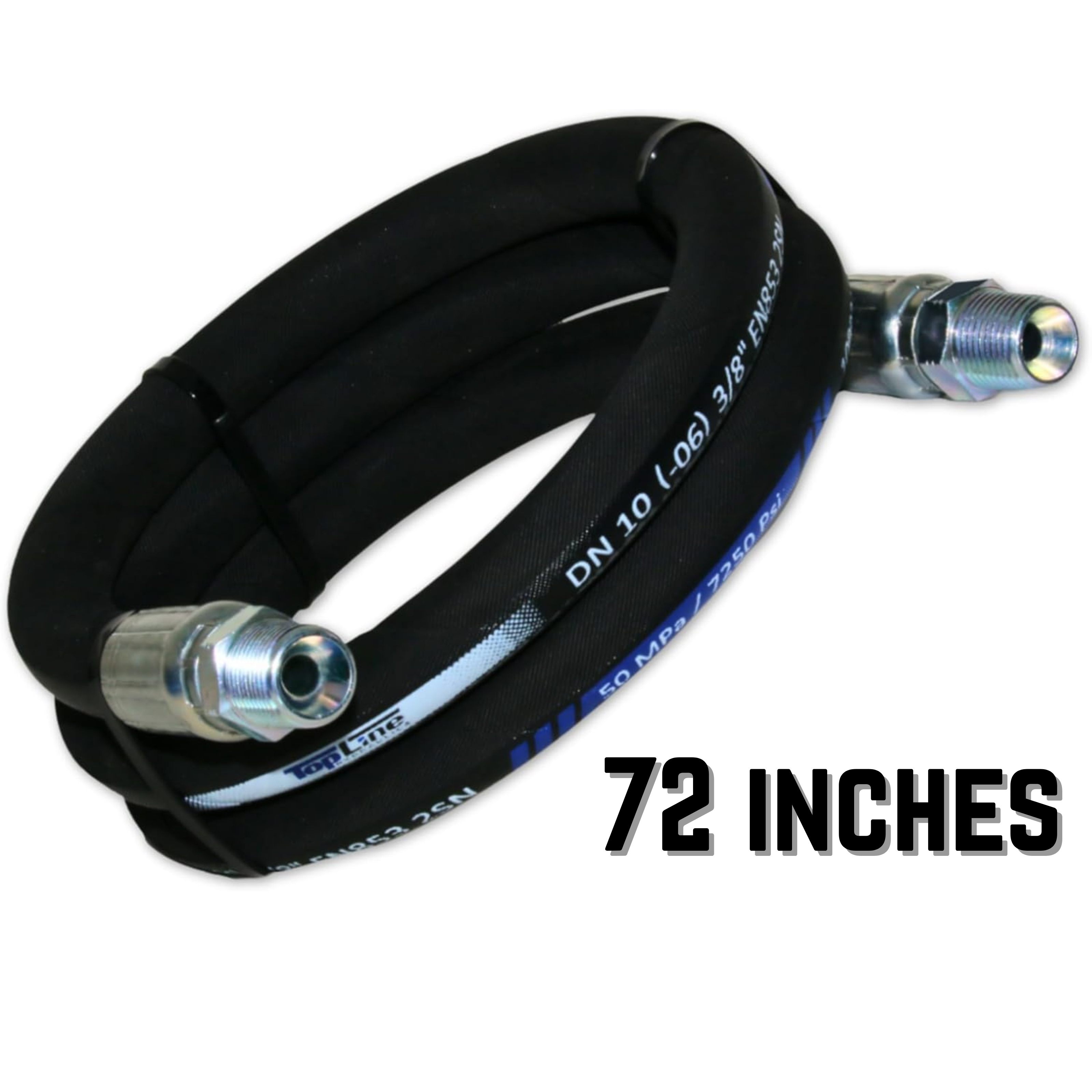

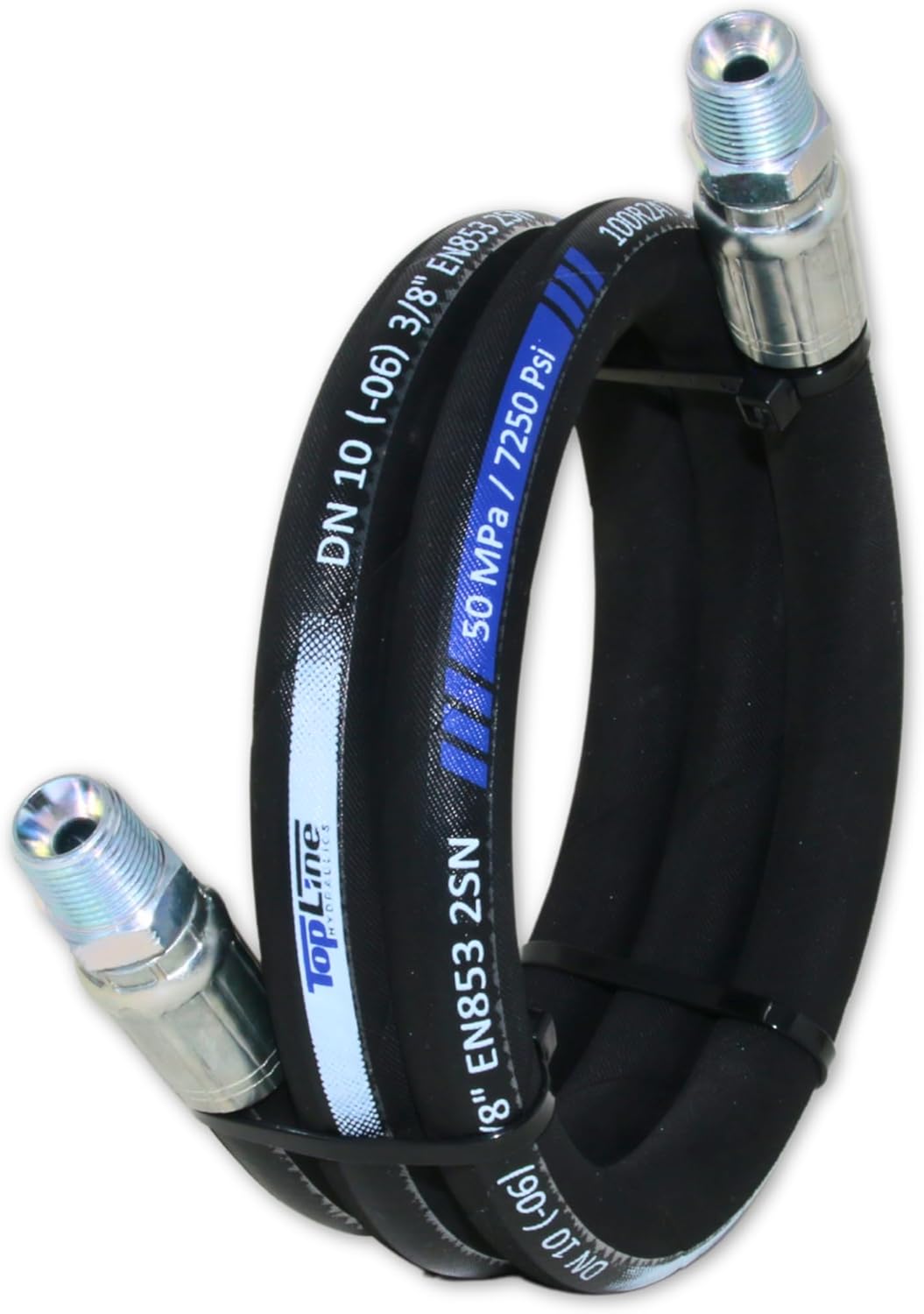

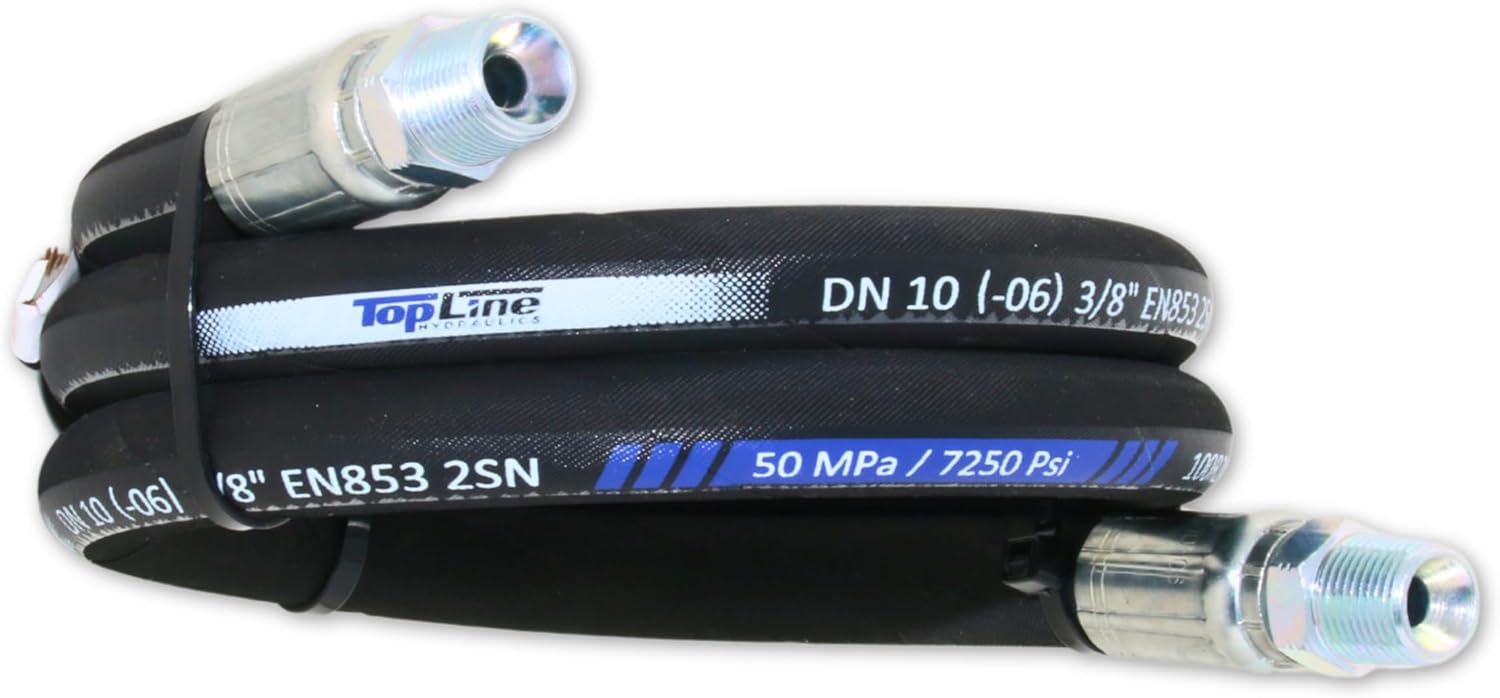

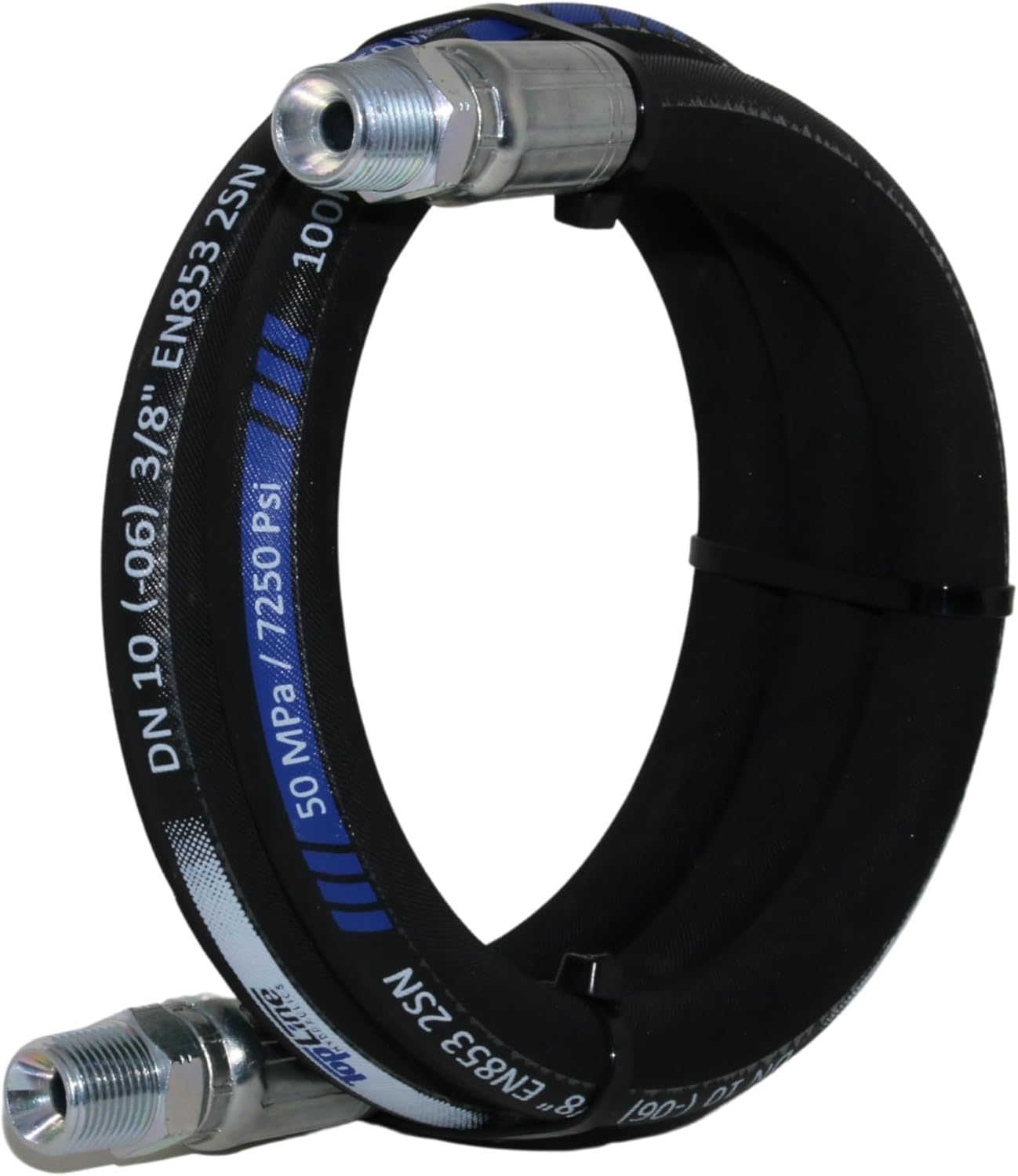

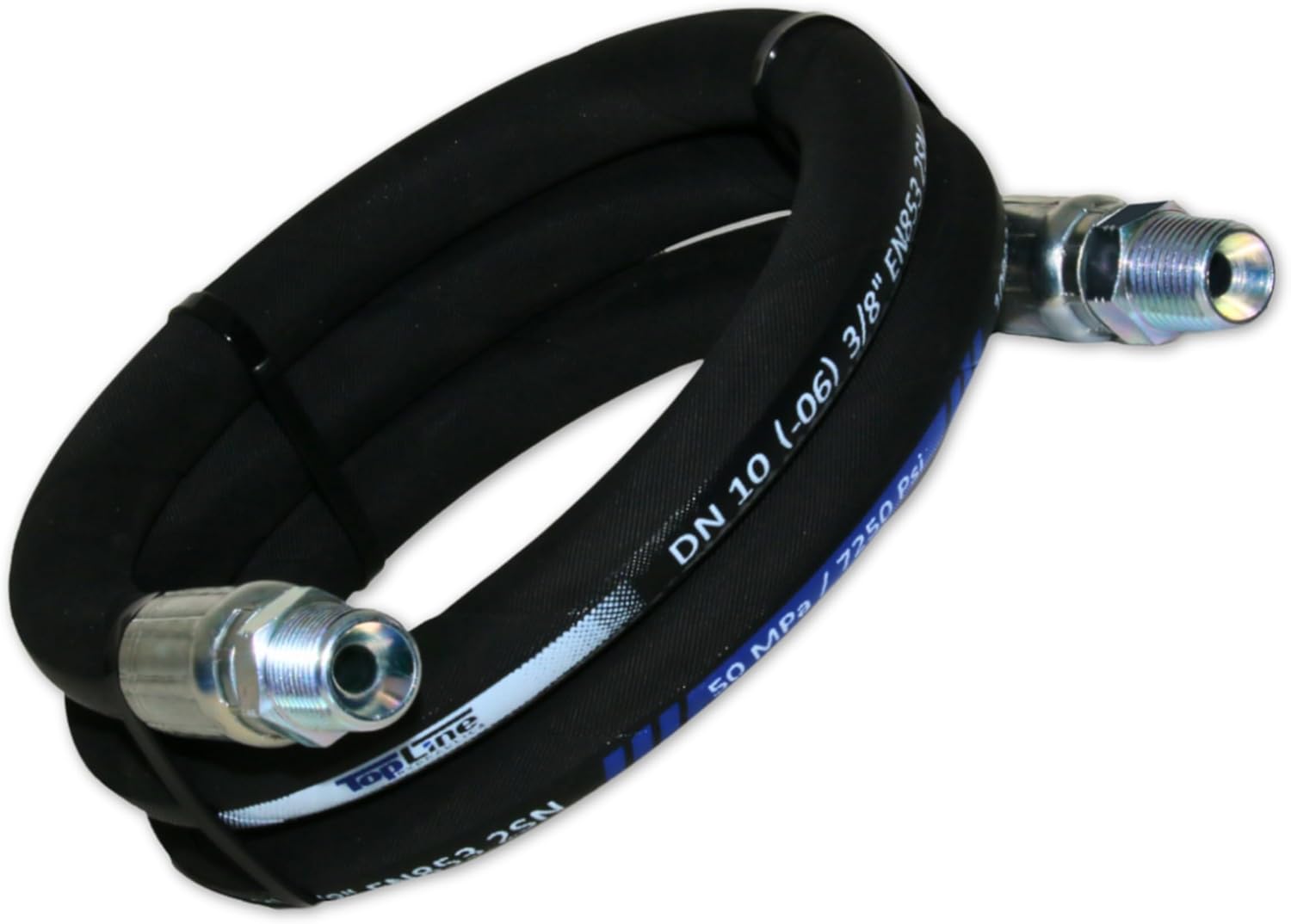

3/8" Hydraulic Hose Assembly with Male NPT X Male NPT 7,250 psi (48-72 inches) SAE 100 R2AT 2-Wire Braided, Oil-Resistant Rubber Tube, High-Tensile Steel Reinforced | Model HFR206-061M-061M

Roll over image to zoom in Click on image to zoom

3/8" Hydraulic Hose Assembly with Male NPT X Male NPT 7,250 psi (48-72 inches) SAE 100 R2AT 2-Wire Braided, Oil-Resistant Rubber Tube, High-Tensile Steel Reinforced | Model HFR206-061M-061M

Size: 48"

Price:

$ 35.23 $ 55.05

Quantity:

If you’re interested in purchasing in bulk, please complete our wholesale application form and submit it for approval. Once approved, you’ll be eligible for wholesale discounts. Wholesale Form

Added to cart!

Product Description

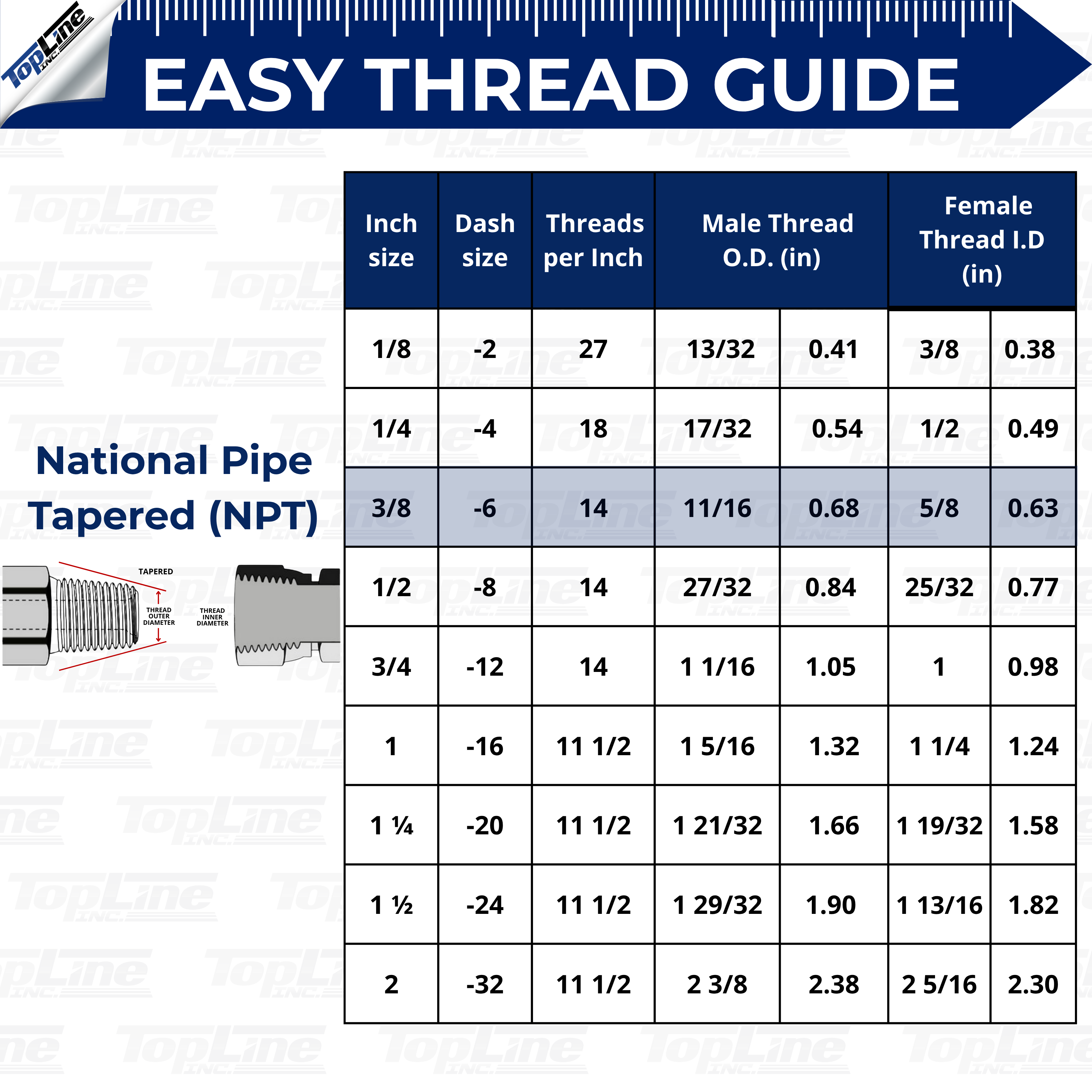

🗸 Note: “3/8 inch” refers to the nominal size, not the actual measurement. The actual thread outer diameter is approximately 11/16 inch (0.68"). PLEASE MEASURE YOUR FITTING SIZE TO CONFIRM
🗸 HIGH-PERFORMANCE HOSE: 3/8" Hydraulic Hose Assembly with male NPT X male NPT, rated for 7,250 psi, designed to handle high-pressure hydraulic oils, air, and water.
🗸 MODEL HFR206-061M-061M-72: 3/8" Hydraulic Hose Assembly with Male NPT X Male NPT 7,250 psi (72 inches) SAE 100 R2AT 2-Wire Braided, Oil-Resistant Rubber Tube, High-Tensile Steel Reinforced
🗸 DURABLE & WEATHER-RESISTANT: Made with a synthetic oil-resistant rubber tube and cover that’s abrasion, ozone, and weather-resistant, ensuring longevity and reliability.
🗸 EXCEPTIONAL REINFORCEMENT: Features two high-tensile steel wire braids for added strength and resistance to wear, surpassing SAE 100 R2AT and DIN EN853 Type 2SN standards.

Is this hydraulic hose compatible with my 3/8” Female NPT setup?

Yes! It features 3/8" Male NPT x Male NPT fittings. Note: 3/8" is the nominal size—the actual thread OD is ~0.68", so please measure your fittings for a proper match.

Can this hose handle extreme pressure in industrial applications?

Yes, it handles up to 7250 PSI and features dual high-tensile steel wire braids—ideal for heavy-duty hydraulic systems and high-pressure tasks.

Will this hose last outdoors or in harsh conditions?

Built with weather, ozone, and abrasion-resistant rubber, this hose is designed for long-lasting use in demanding environments.

What makes this hydraulic hose better than others?

It meets and exceeds SAE 100 R2AT and DIN EN853 2SN standards, offering reinforced durability, oil-resistant tubing, and leak-proof crimped ends.

Why choose TL Topline over other brands?

TL Topline offers reliable, high-performance hoses with custom fittings and expert support—trusted by pros for quality and service.

Specification	Details
MPN:	HFR206-061M-061M
Hose Size:	3/8"
Fittings Thread Size:	3/8 NPT (Male Thread) - 3/8 NPT (Male Thread)
Working Pressure:	7,250 PSI / 50 MPa
Hose Type:	SAE 100 R2AT - 2-Wire Braided
Colour:	Black
Tube:	Synthetic oil resistant rubber
Reinforcement:	2 high-tensile steel wire braids.
Temperature:	-40°C +120°C
