Product Description

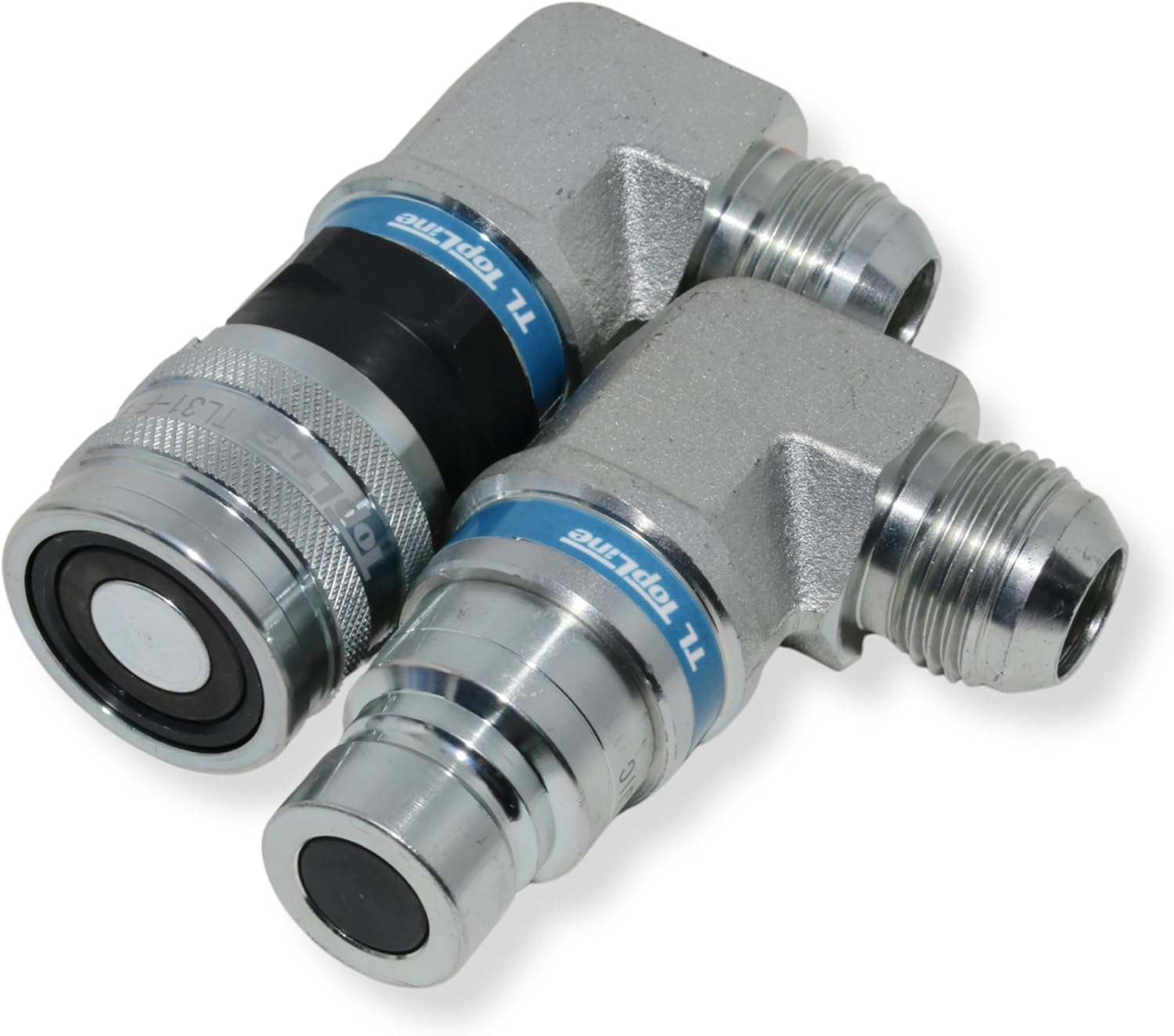

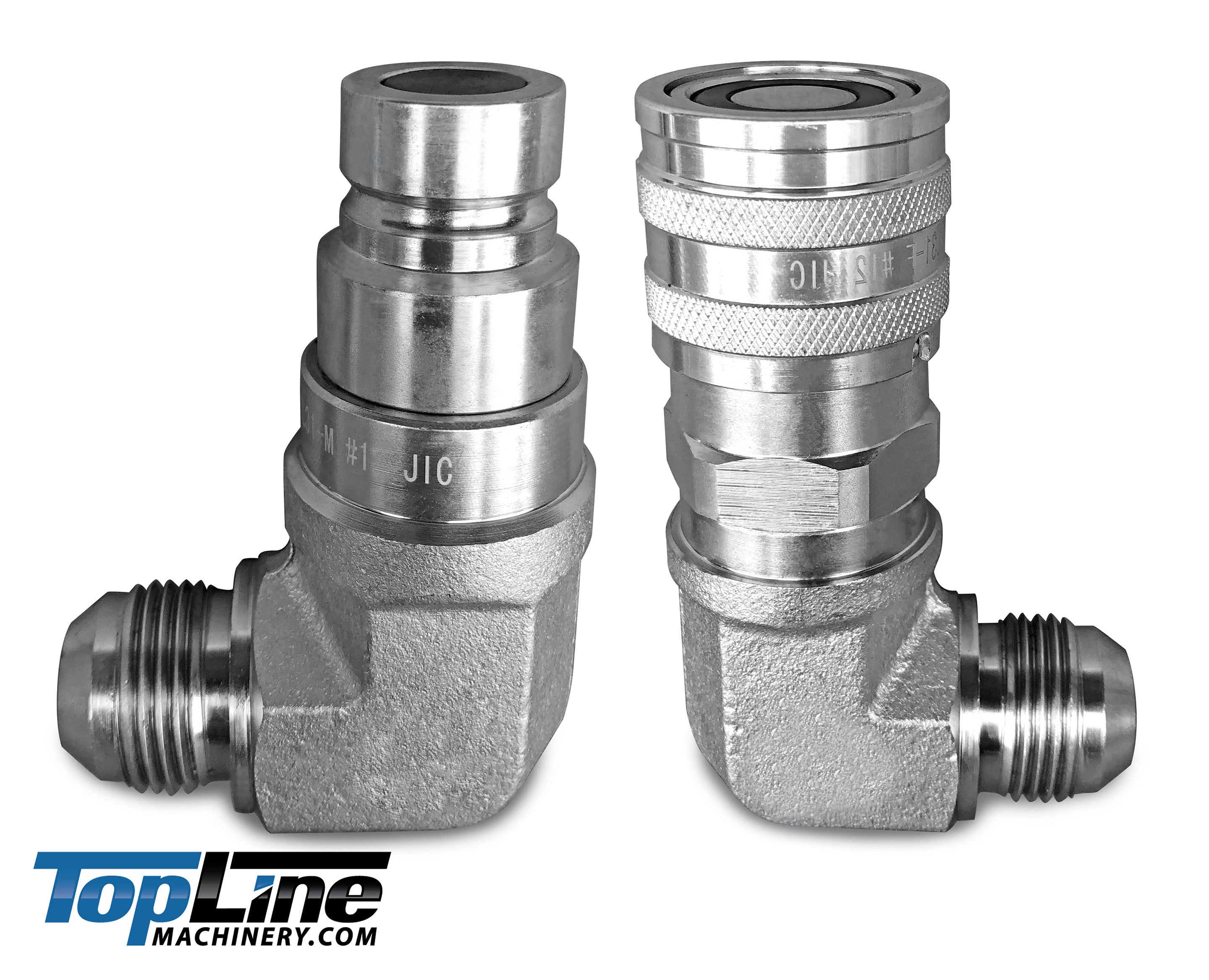

TL31 1/2" Body Flat Face Hydraulic Quick Connect Coupler Set (3/4" JIC 90° Elbow)
The TL31 is a heavy-duty, flat-face hydraulic coupler set featuring a specialized 90-degree 3/4" JIC (#12 JIC) elbow connection. Engineered to exceed ISO 16028 standards, this set is designed for applications where hydraulic lines need to be routed at right angles to minimize hose strain, prevent kinking, and maintain a low profile in tight spaces on skid steers and attachments.
🗸 90-Degree Elbow Configuration: The integrated 3/4" JIC male elbow allows for cleaner hose routing in confined spaces, reducing hose fatigue and improving overall system organization.

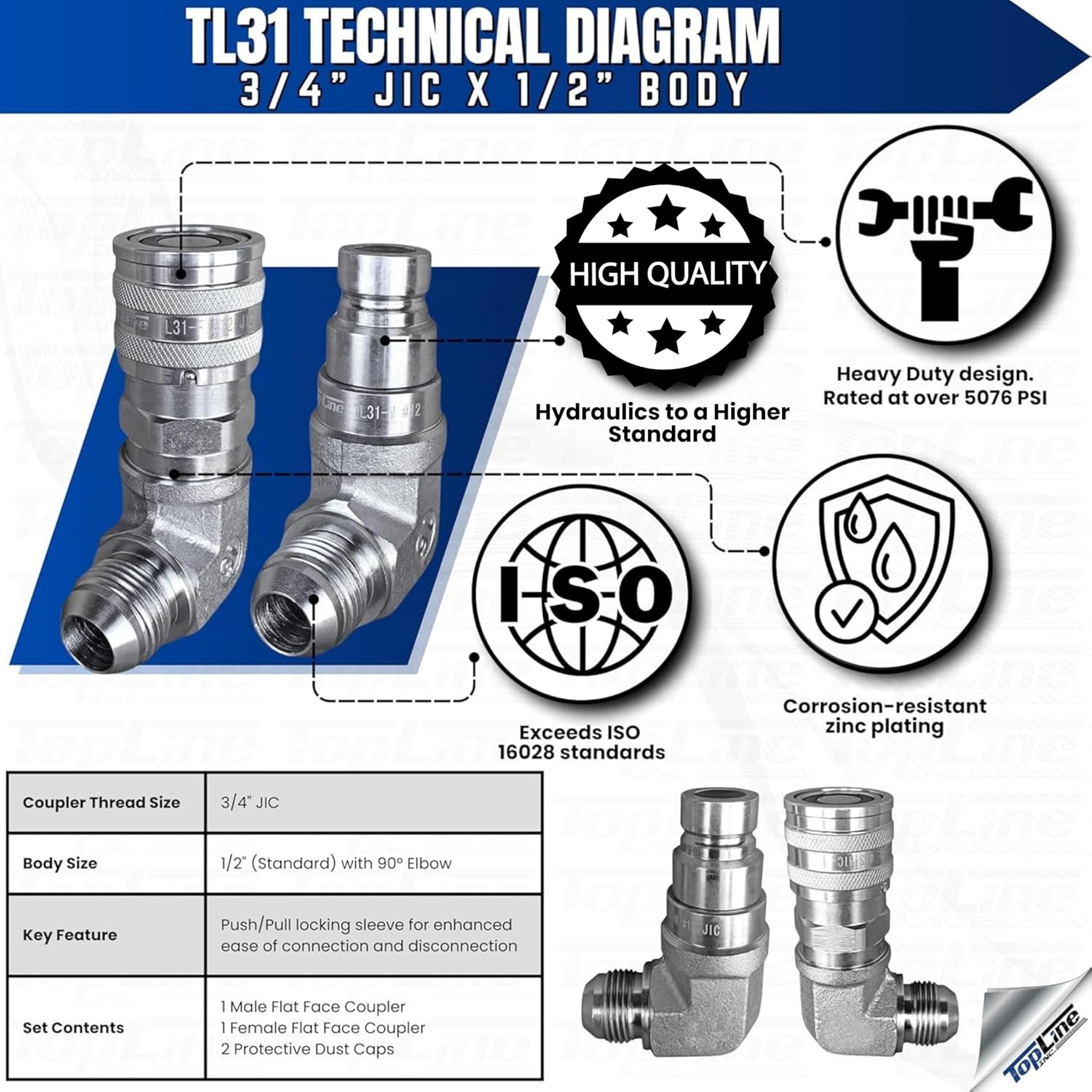

🗸 Heavy-Duty Industrial Rating: Built for durability in rugged conditions, this set is rated for over 5076 PSI.
🗸 Universal Flat Face Compatibility: Designed to couple with any standard 1/2" body ISO 16028 Flat Face hydraulic system, making it an ideal replacement for major skid steer brands like Bobcat, John Deere, CAT, Kubota, New Holland, and more.
🗸 Spillage & Contamination Prevention: The Flat Face architecture minimizes hydraulic fluid loss during disconnection and provides a flush surface that is easy to wipe clean, keeping your hydraulic system free of debris.
🗸 Corrosion Resistance: Finished with trivalent zinc plating to provide a robust barrier against rust, moisture, and harsh field environments.
🗸 Integrated Protection: Includes two protective dust caps to shield the interface from debris when the coupler is not connected.

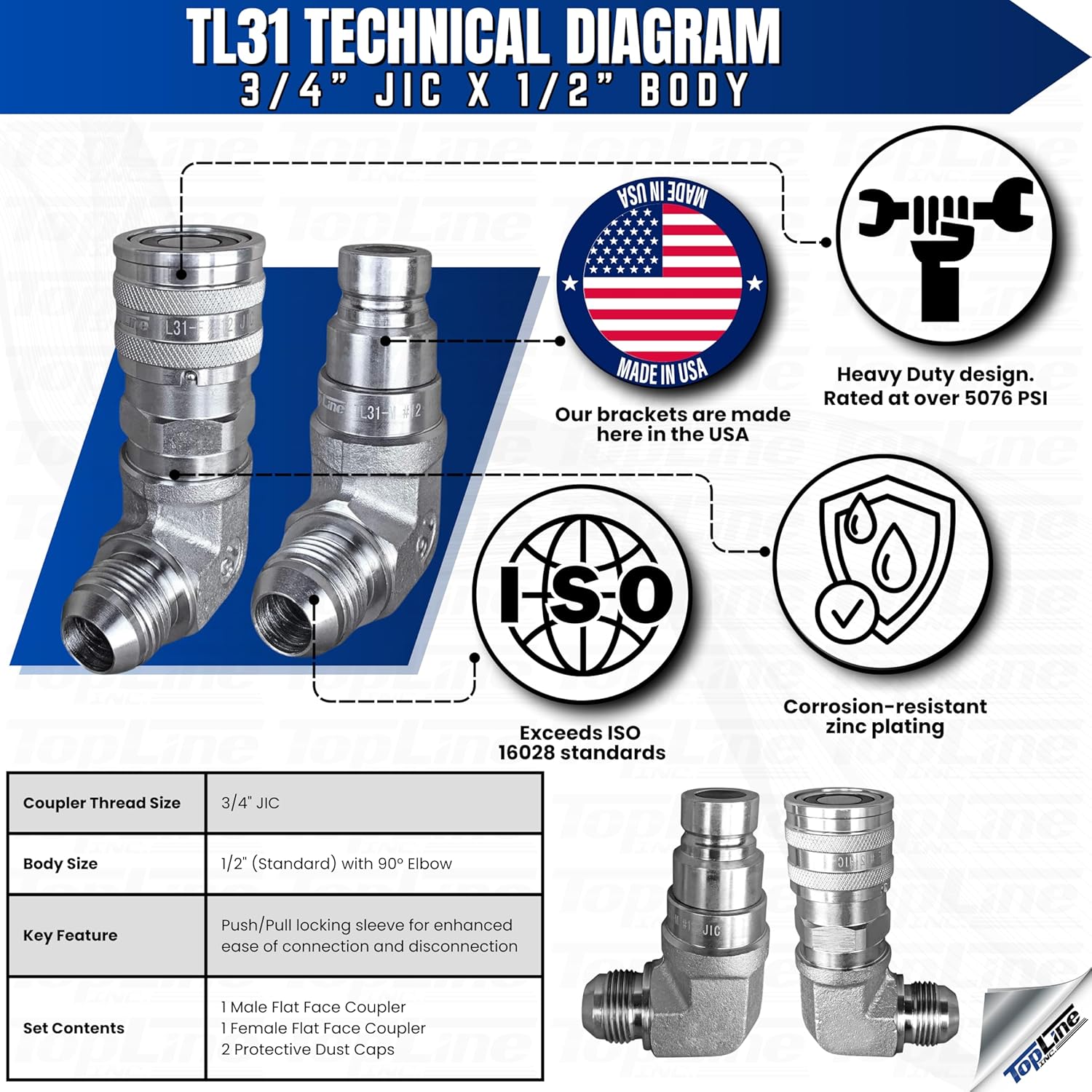

Specifications
| Detail | Specification |
| Model Number | TL31 |

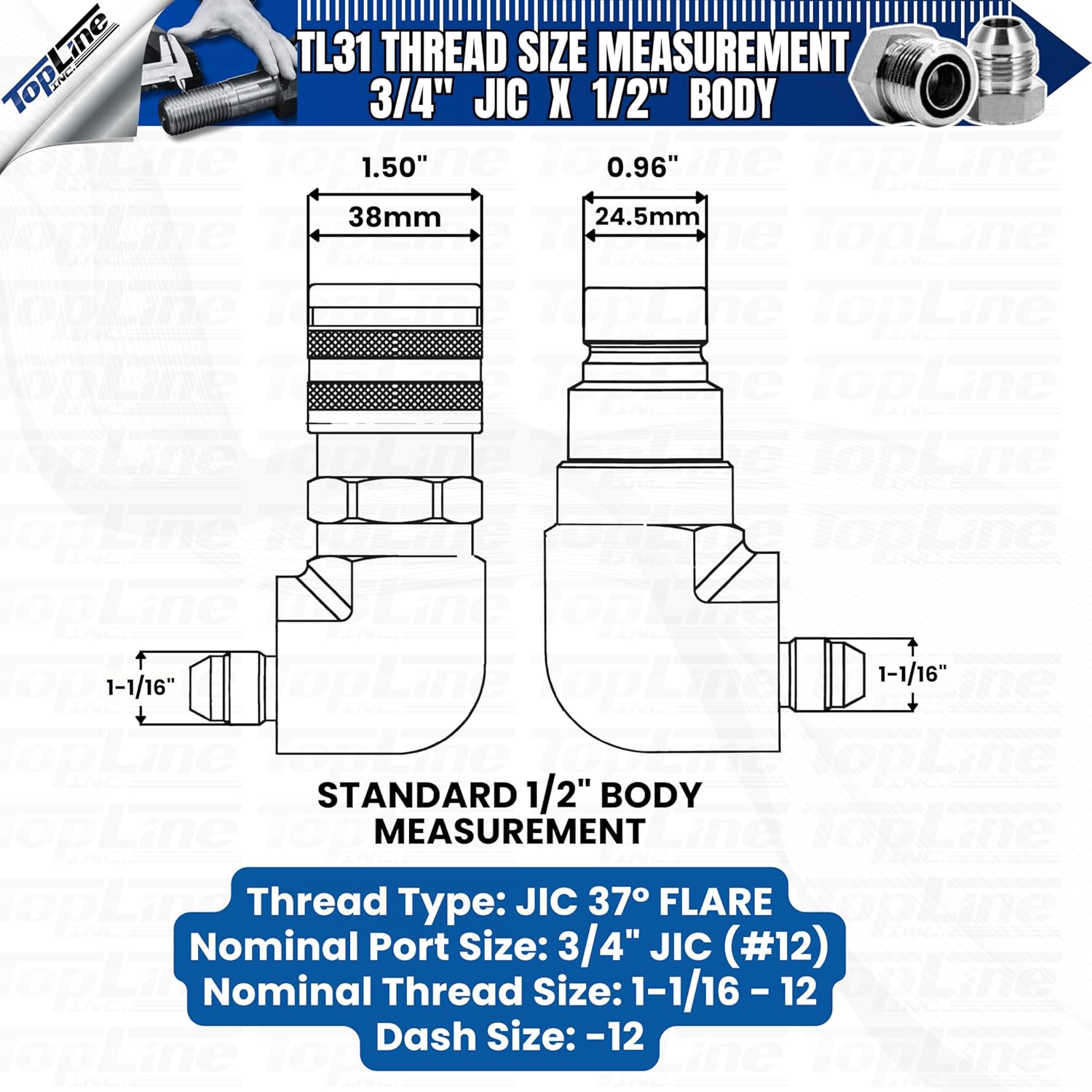

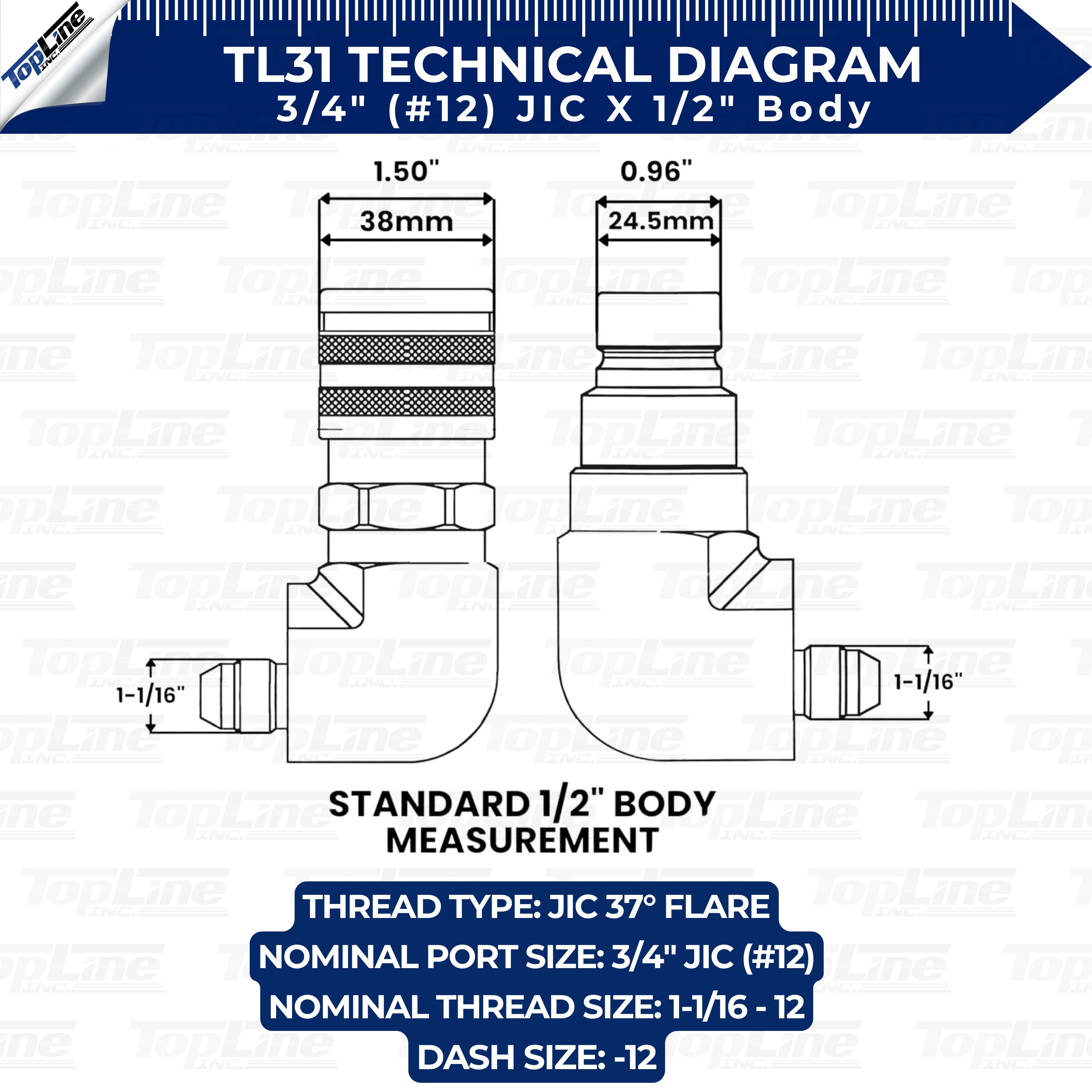

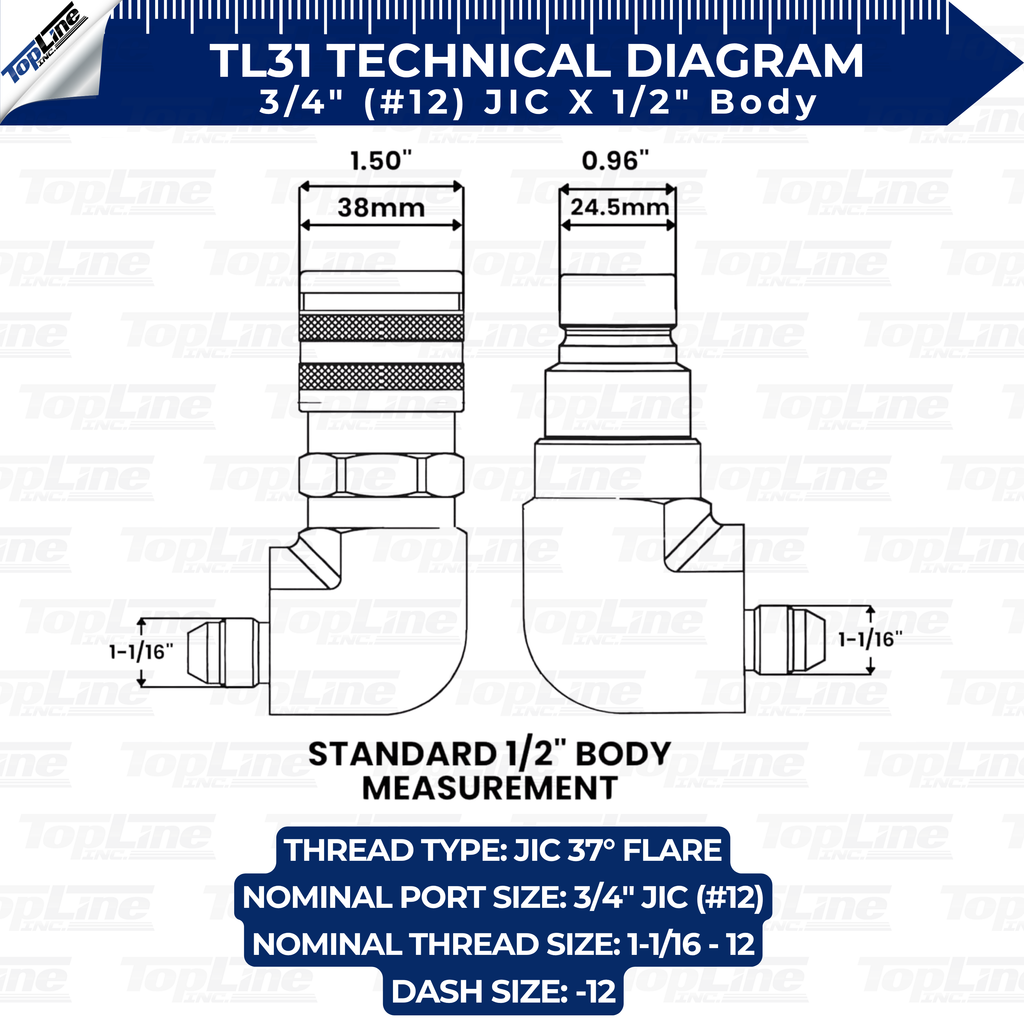

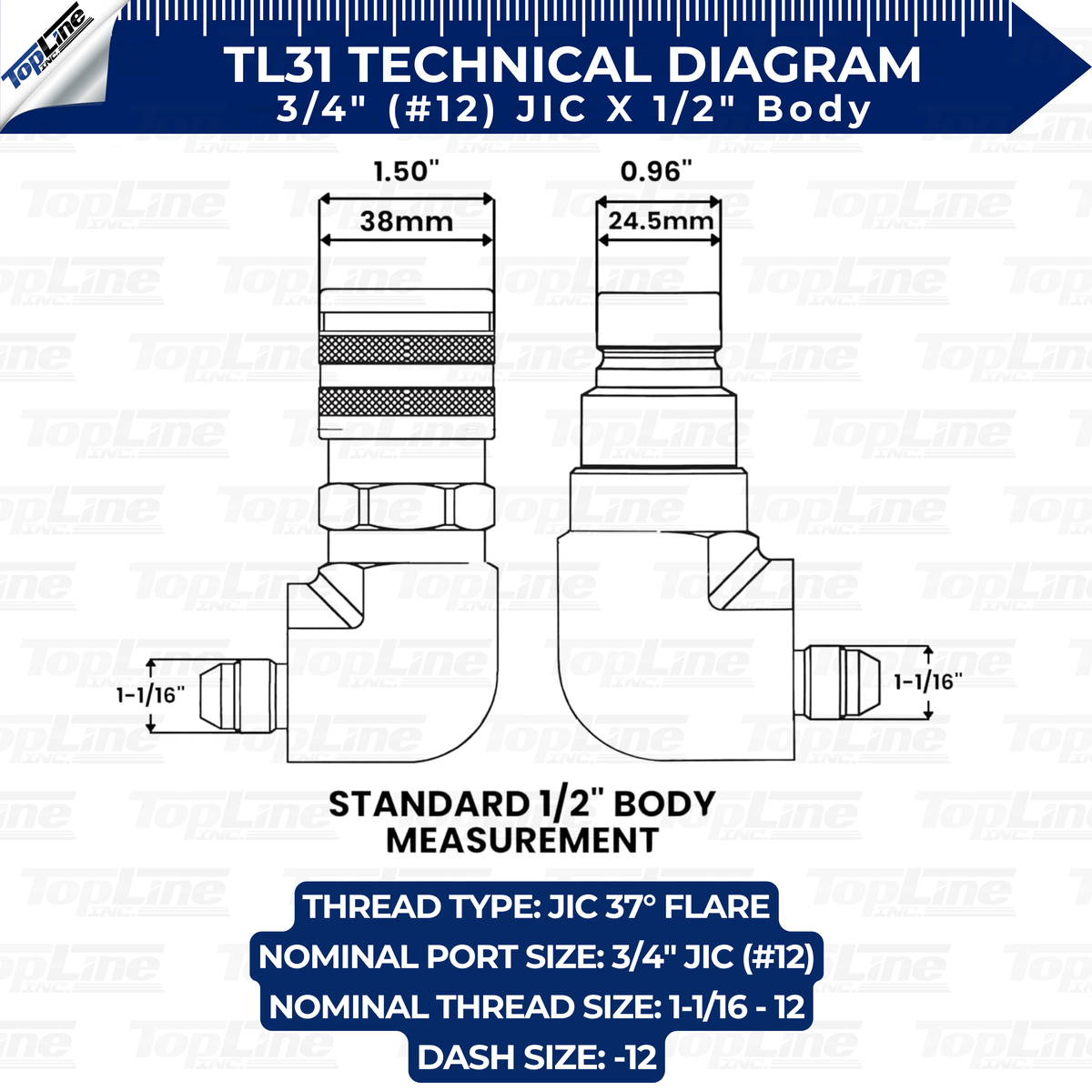

| Coupler Body Size | 1/2" |

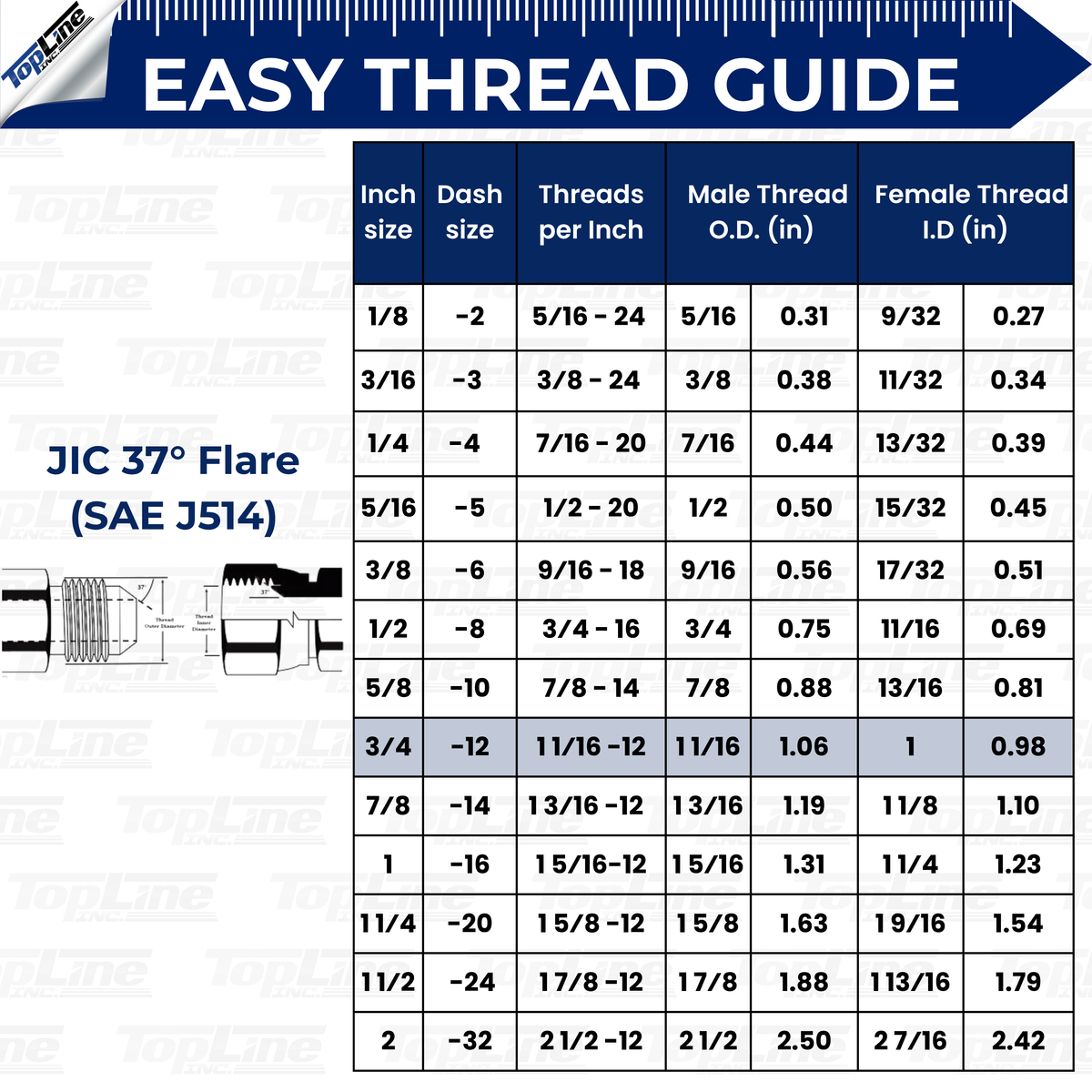

| Coupler Thread Size | 3/4" JIC (#12 JIC) |
| Dash Size | -12 |
| Coupler Material Type | Steel |
| Plating Type | Corrosion-resistant trivalent zinc |

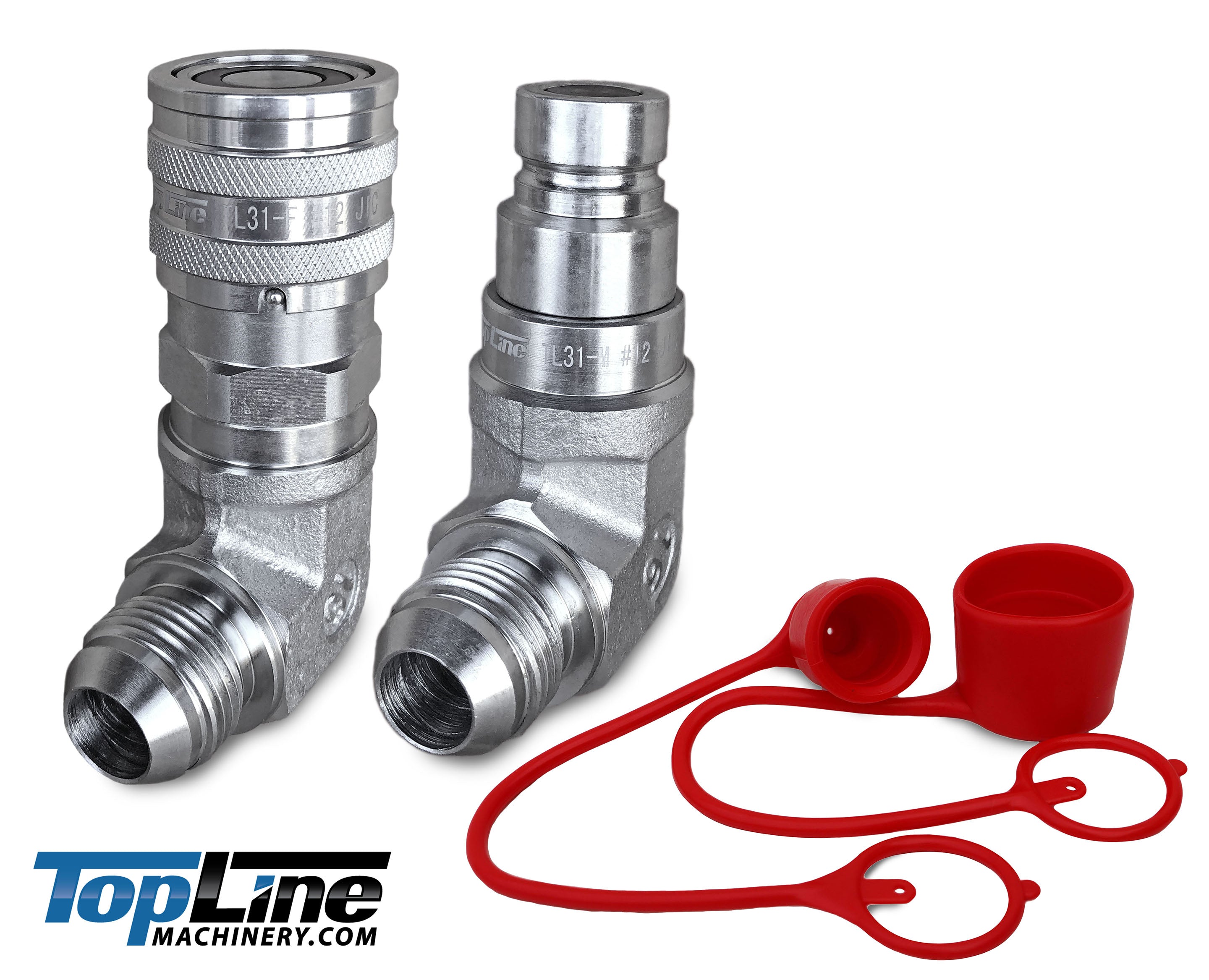

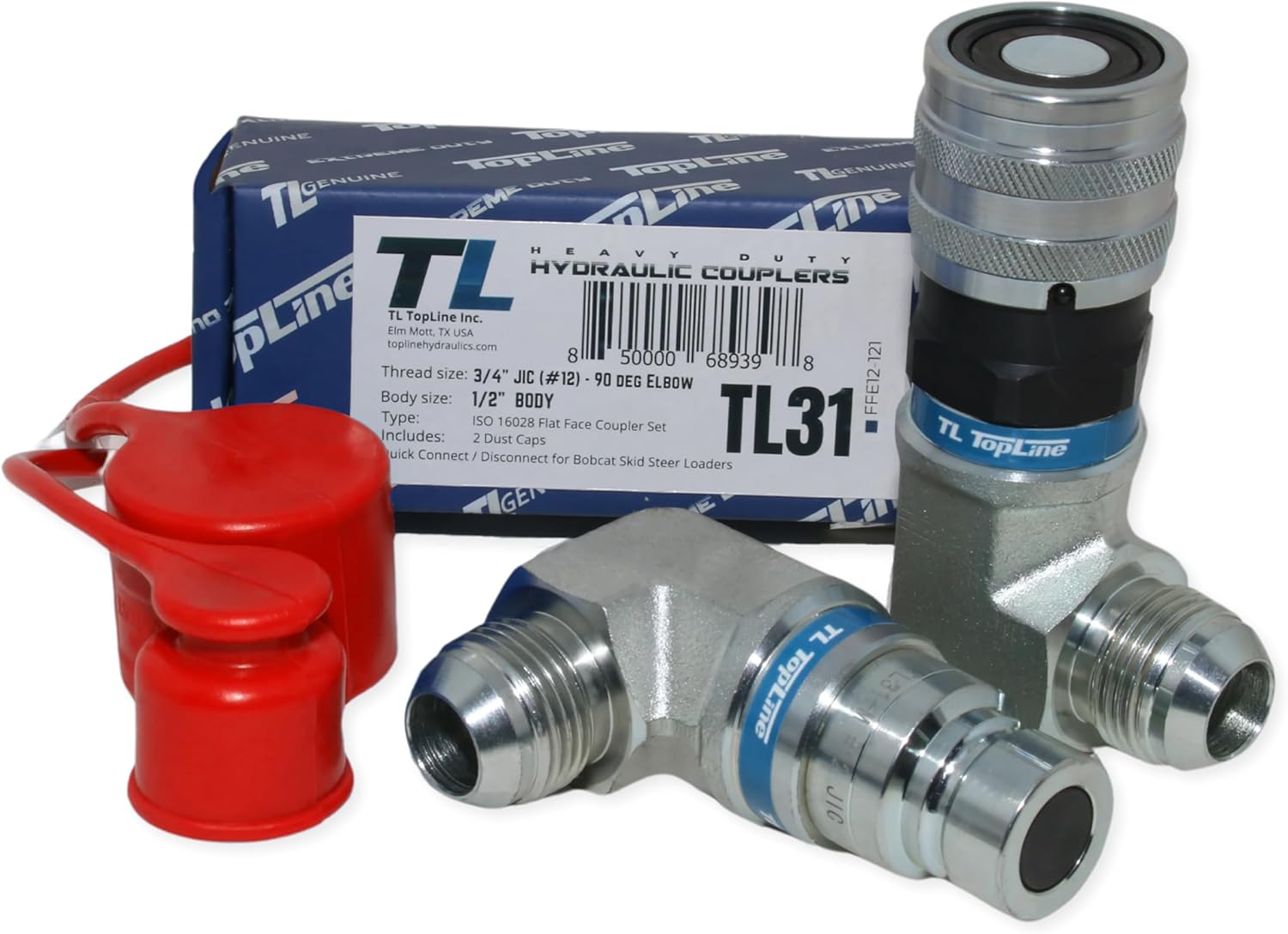

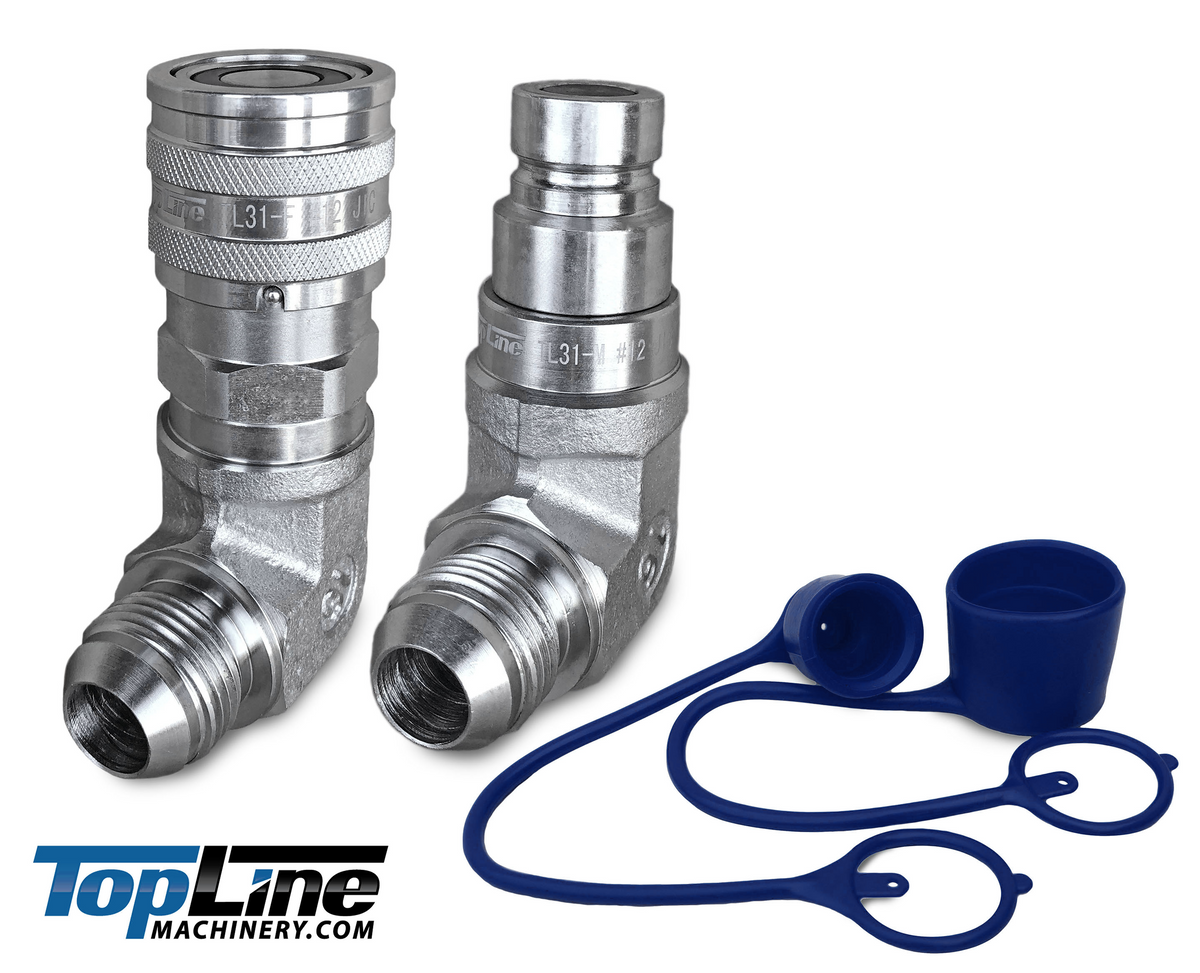

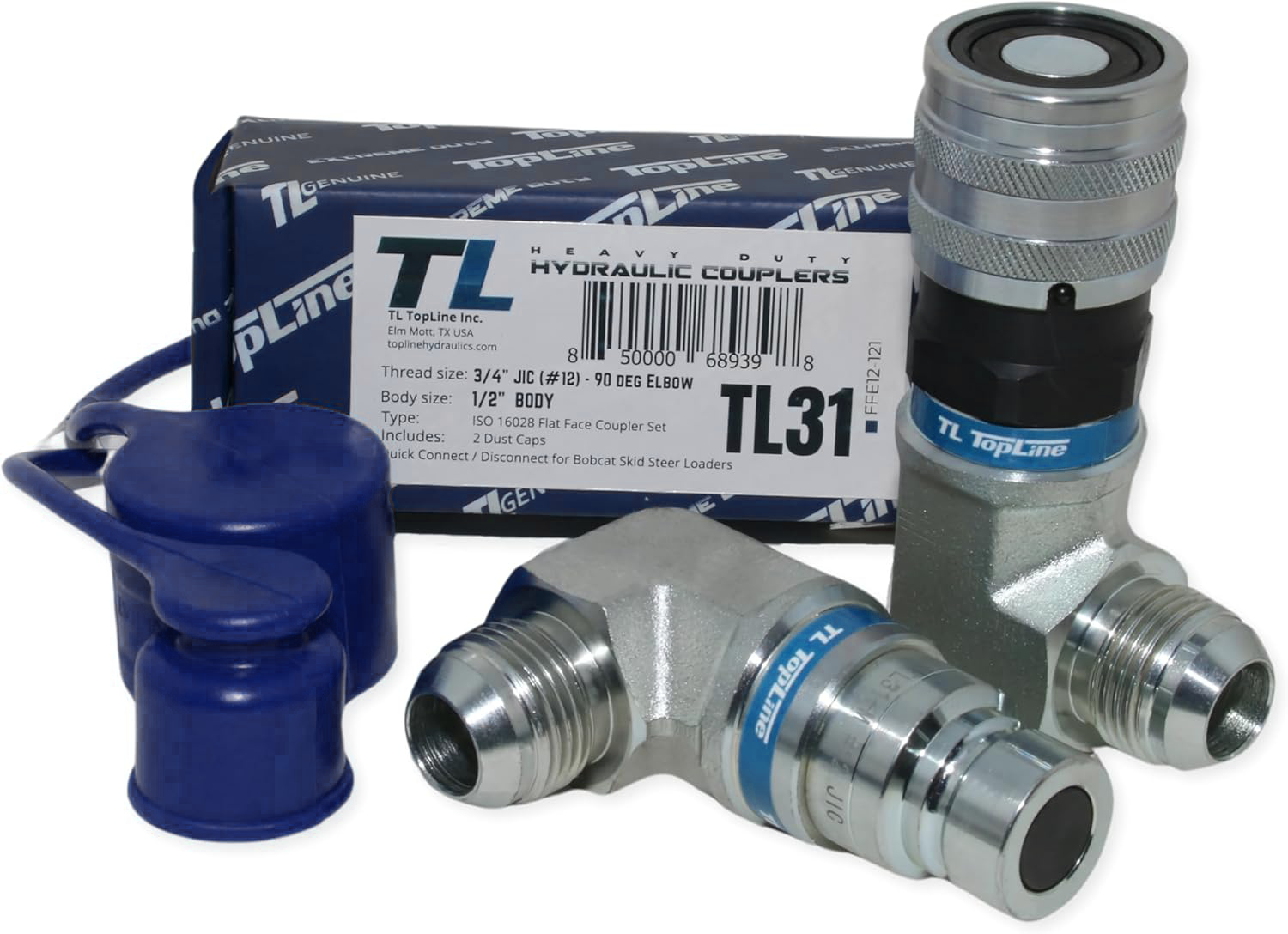

| Package Includes | (1) Male Flat Face Coupler (with 90° elbow), (1) Female Flat Face Coupler, (2) Protective Dust Caps |
Q: Why use a 90-degree elbow coupler?
A: Elbow couplers are essential in tight engine compartments or crowded attachment connection points. They allow you to route your hoses away from the manifold or machine frame at a right angle, preventing hose bends that are too sharp, which can lead to premature hose failure or kinking.
Q: Is this compatible with my machine's standard straight couplers?
A: Yes, as long as your machine uses a standard 1/2" body ISO 16028 flat-face interface. The 90-degree bend is purely for the physical orientation of the hose; it does not change the coupler's function or compatibility with the machine's ports.
Q: Can I use this for high-pressure applications?
A: Yes, the TL31 is a heavy-duty unit rated for over 5076 PSI, making it well-suited for high-pressure hydraulic circuits on skid steers and heavy machinery.
Q: Are these interchangeable with Poppet (AG-style) couplers?
A: No. Flat Face (ISO 16028) and Ag-style (ISO 5675) couplers are not interchangeable. You must verify that your equipment uses the Flat Face interface to ensure a proper fit.
