Product Description

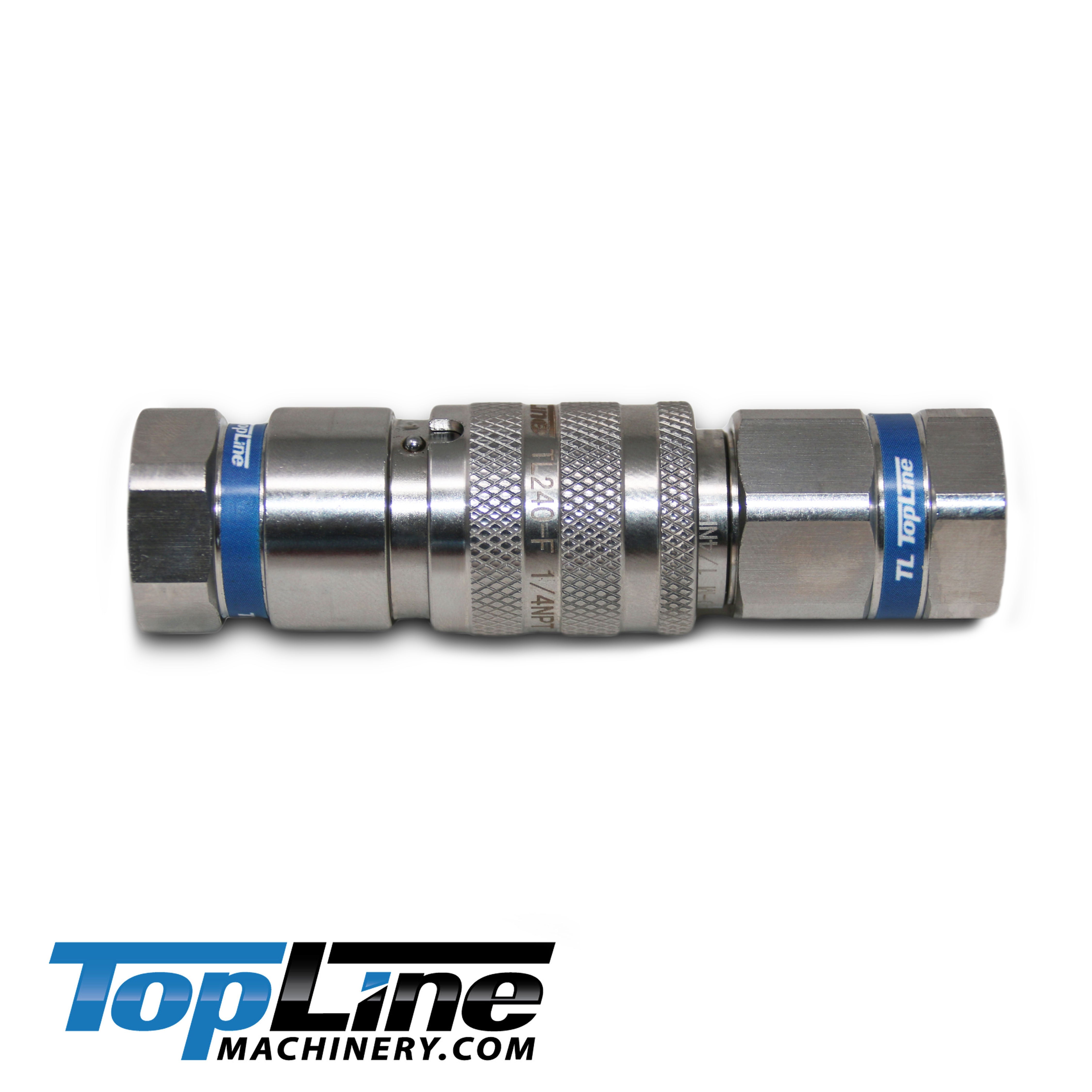

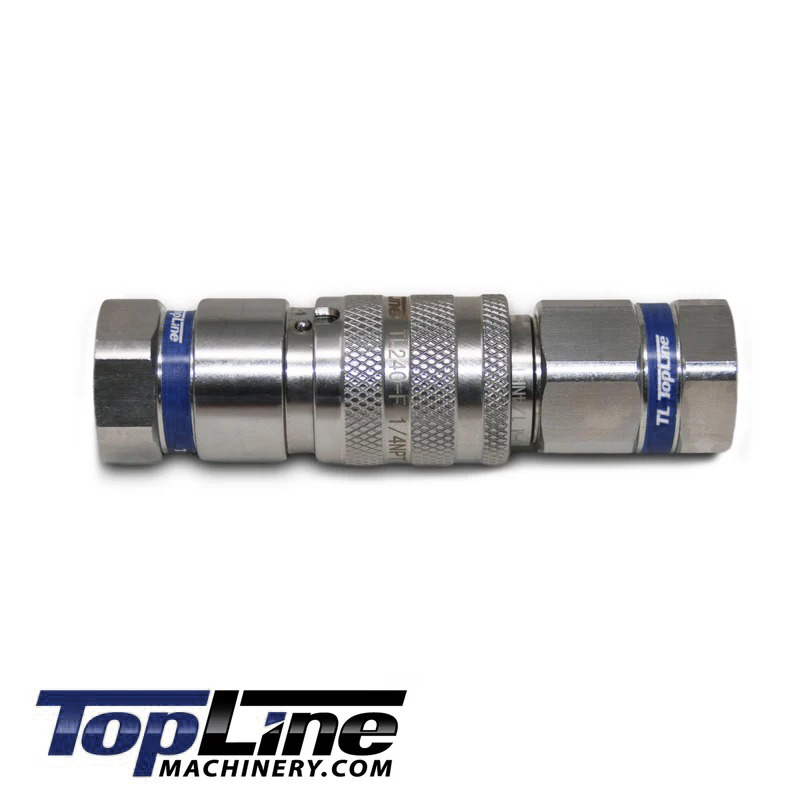

TL240 1/4" Body Stainless Steel Flat Face Hydraulic Quick Connect Coupler Set (1/4" NPT)
The TL240 is a premium, compact hydraulic coupler set designed for applications where extreme corrosion resistance and durability are paramount. Built to exceed ISO 16028 standards, the 1/4" body size makes this set ideal for smaller hydraulic circuits, pilot lines, and compact attachments where fluid cleanliness and minimal spillage are critical.
🗸 Superior Corrosion Resistance: Engineered with stainless steel construction, these couplers are perfect for high-moisture, chemical-heavy, or marine environments where standard plated steel may degrade.
🗸 High-Pressure Capability: Despite its compact 1/4" body, the TL240 is built for heavy-duty use with a pressure rating exceeding 5076 PSI.
🗸 Universal ISO 16028 Compatibility: Interfaces perfectly with any standard 1/4" body Flat Face hydraulic port, making it a professional-grade replacement for skid steers, utility vehicles, and compact excavators.
🗸 Spillage & Contamination Prevention: The Flat Face design allows the coupling faces to be easily wiped clean, preventing debris from entering the hydraulic system, and ensures near-zero fluid loss upon disconnection.
🗸 Ergonomic Design: Features a heavy-knurled locking sleeve to provide a secure, non-slip grip, allowing for efficient connection and disconnection even while wearing gloves.
Specifications
| Detail | Specification |
| Model Number | TL240 |
| Coupler Body Size | 1/4" |
| Coupler Thread Size | 1/4" NPT |
| Thread Inner Diameter | 0.49" |
| Thread Dash Number | -04 |
| Coupler Material Type | Stainless Steel |
| Plating Type | Corrosion-resistant trivalent zinc |

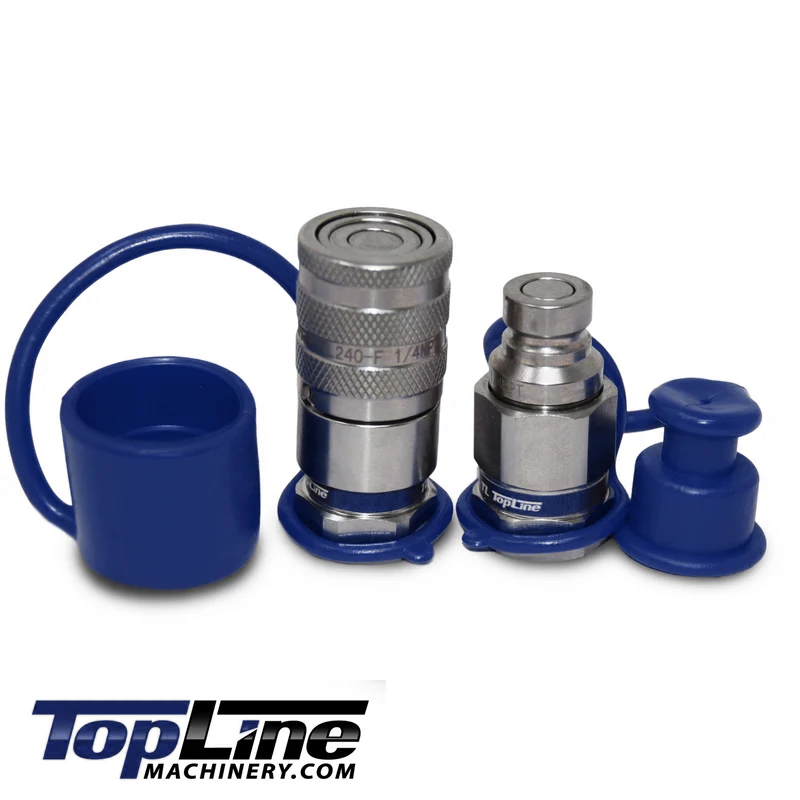

| Package Includes | (1) Male Flat Face Coupler, (1) Female Flat Face Coupler |
Q: Is stainless steel better than the standard zinc-plated steel couplers?
A: Yes, in harsh environments. While zinc-plated steel is excellent for general construction, stainless steel provides superior resistance to oxidation and chemical corrosion, significantly extending the service life of the coupler if it is regularly exposed to salt, water, or harsh industrial chemicals.
Q: Can I use this on a standard hydraulic system?
A: Yes. Because these meet the ISO 16028 standard, they are fully interchangeable with standard carbon-steel flat-face couplers of the same 1/4" body size.
Q: What is the primary use for a 1/4" body coupler?
A: 1/4" body couplers are commonly used for auxiliary low-flow lines, pilot signals, and smaller tool attachments. Because they are smaller, they are less suited for high-flow hydraulic drive motors but are perfect for precise, small-scale hydraulic circuits.
Q: Does the stainless steel construction change the pressure rating?
A: No. The TL240 maintains its heavy-duty rating of over 5076 PSI, ensuring that the enhanced corrosion resistance does not come at the cost of structural strength.
Interchangeable Part Numbers:
