Product Description

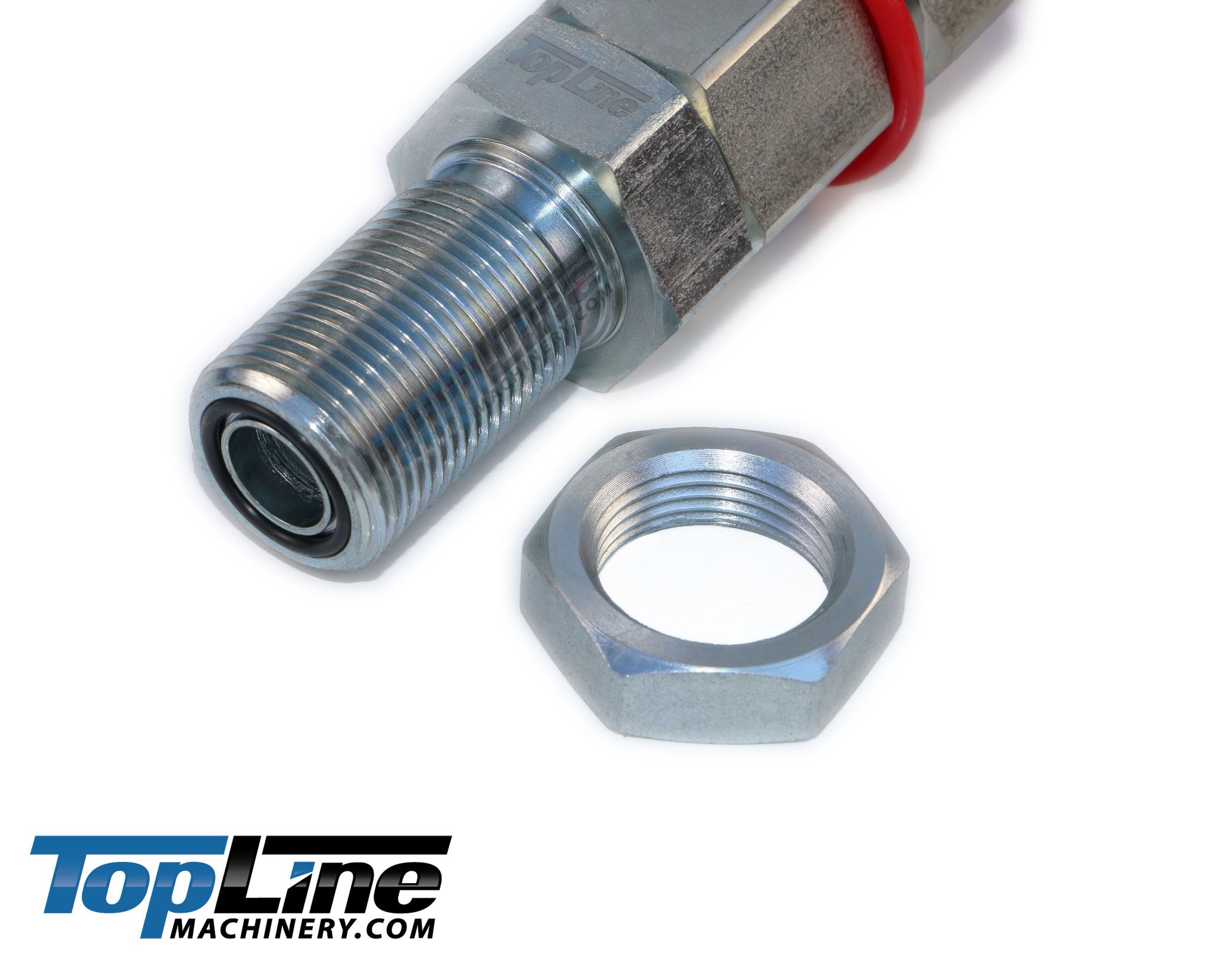

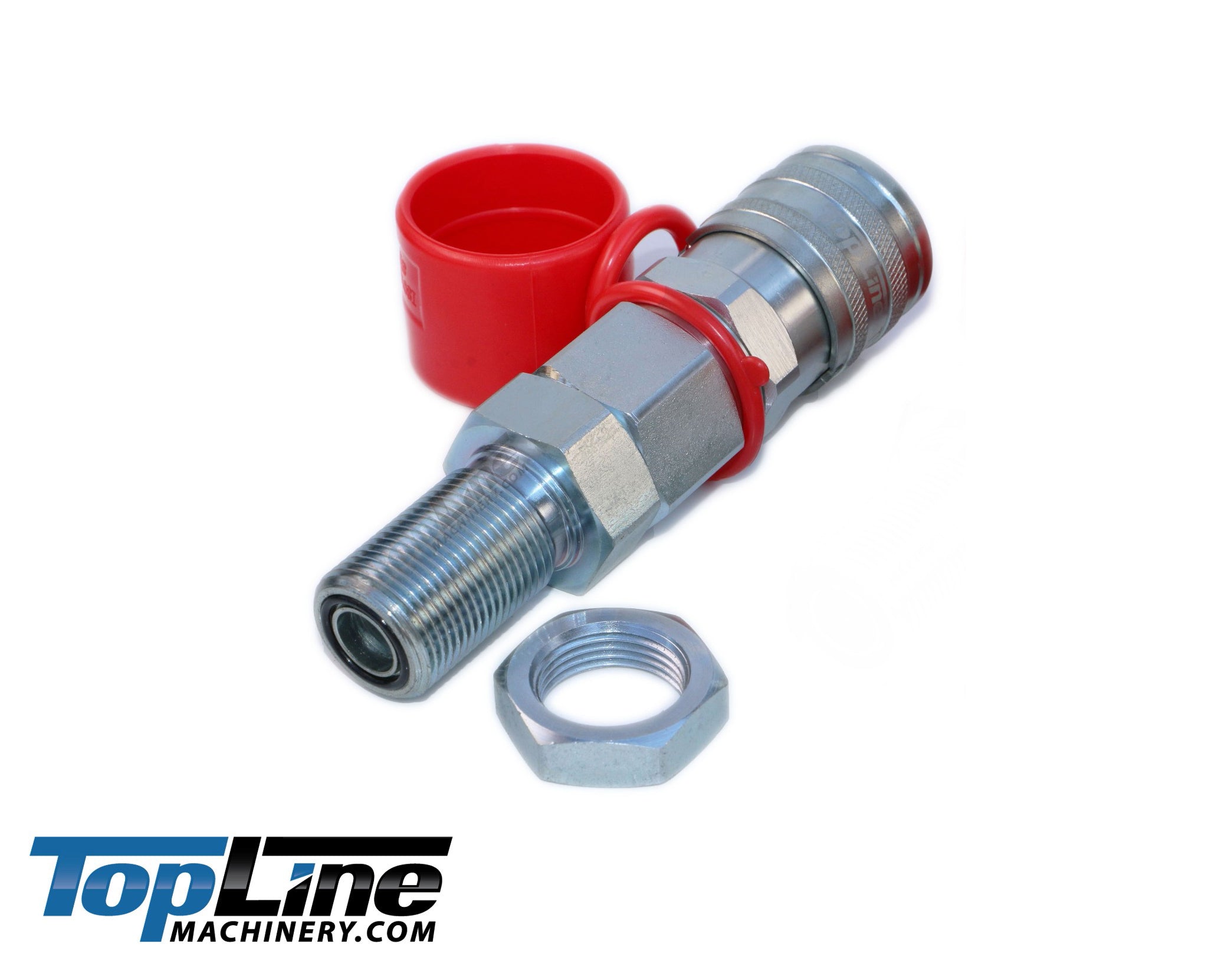

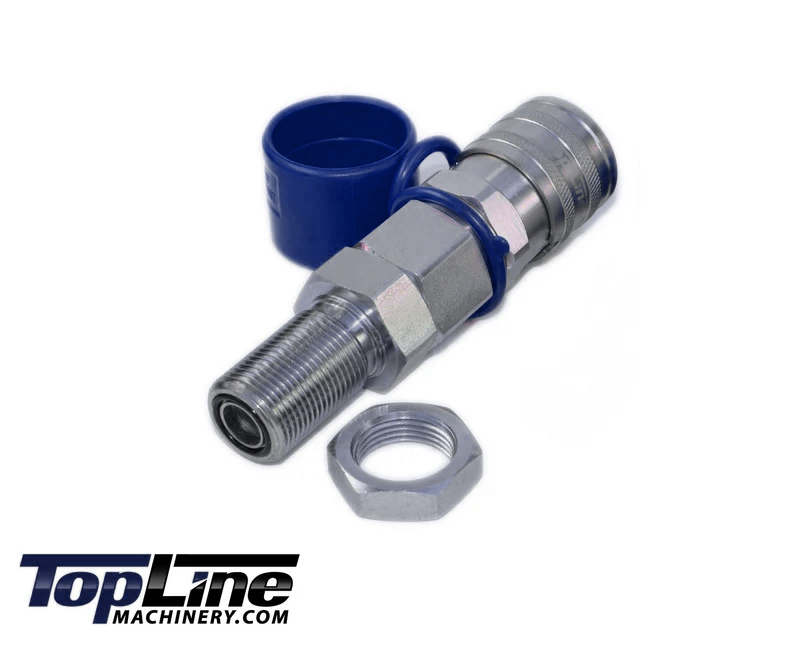

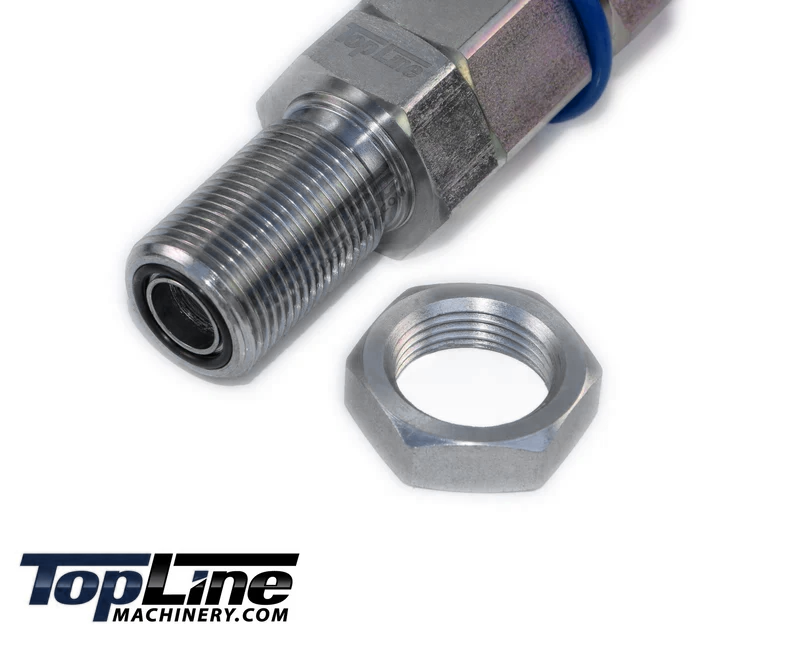

John Deere KV11305 Interchange Female Hydraulic Flat Face Quick Coupler
This coupler is a direct replacement for the John Deere KV11305, a premium Female 5/8" ORFS Hydraulic Flat Face Quick Coupler engineered for demanding applications.
🗸 Heavy-Duty Design: Built to withstand high-pressure environments, this unit is rated at over 5076 PSI.
🗸 Universal Compatibility: Couples to any standard 1/2” Flat Face coupler and exceeds ISO 16028 standards for performance and reliability.
🗸 Precision Engineering: Features a push-connect locking sleeve with heavy knurling for a non-slip grip, even when wearing gloves.
🗸 Fluid Efficiency: The Flat Face design minimizes hydraulic fluid loss and ensures no air inclusion during disconnection.
🗸 Corrosion Resistance: Constructed with high-strength steel and finished with trivalent zinc plating to prevent rust and environmental degradation.
🗸 Integrated Protection: Each unit includes dust caps to shield the interface from debris and the elements when not in use.
Specifications
| Detail | Specification |
| Model Compatibility | Direct replacement for John Deere KV11305 |
| Coupler Body Size | 1/2" |
| Coupler Thread Size | 5/8" SAE (ORFS) |
| Thread Outer Diameter | 0.96" |
| Thread Dash Number | -10 |
| Coupler Material Type | Steel |
| Plating Type | Corrosion-resistant trivalent zinc |
| Package Includes | (1) Female Coupler, (1) Dust Cap set |
Q: Is this a Flat Face or AG-Style (Ball-Detent) coupler?
A: This is a Flat Face (ISO 16028) coupler. It is distinct from AG-style couplers, which utilize a poppet valve and ball-locking mechanism. It features a completely flush face to prevent leaks and contamination.
Q: Can I use this on a system with AG-Style couplers?
A: No. Flat Face and AG-Style couplers are not interchangeable. You must match the coupler style to your machine's existing ports.
Q: What does the ORFS thread mean?
A: ORFS stands for "O-Ring Face Seal." It provides a leak-resistant seal by compressing an O-ring between the flat face of the fitting and the mating surface, which is ideal for high-pressure hydraulic systems.
Application
Fits the following John Deere Machines:
SKID STEER
BACKHOES
Front Loaders
240
250
313
315
317
318
319
320
323
CT315
CT322
110
210
310
315
324
410
710
210
244
304
324
