Product Description

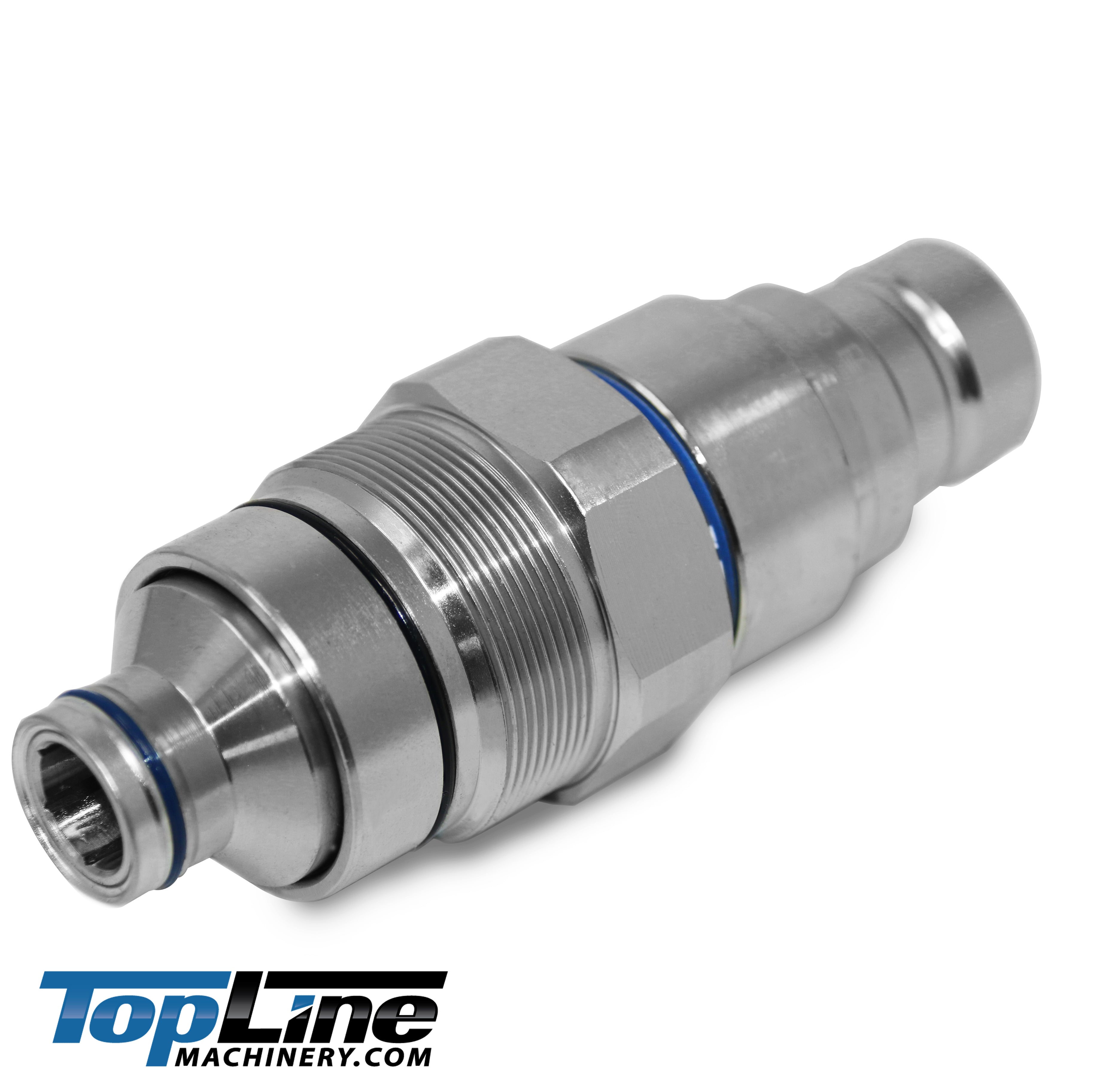

TL65 Aftermarket Replacement 3/4" High Flow Cartridge Male Coupler (4FH12)
The TL65 is a high-performance, male-side cartridge coupler designed to complete your high-flow hydraulic manifold system. As a direct aftermarket replacement for the John Deere (AT406476) and other 4FH12-based manifold assemblies, it provides robust, leak-free performance for heavy-duty skid steer and loader attachments.
🗸 High-Flow Performance: Optimized to support 145 l/min, this 3/4" coupler ensures your high-demand attachments receive the volume of hydraulic oil needed for peak operation.
🗸 Manifold-Ready Design: Engineered as a cartridge-style coupler to screw directly into your manifold block, creating a streamlined, low-profile connection that is protected from side-loading damage.
🗸 Connect-Under-Pressure Technology: Integrated valve design allows for easy connection even when residual heat expansion has trapped pressure in your hydraulic lines.
🗸 ISO 16028 Compatibility: Fully interchangeable with standard ISO 16028 flat face systems, ensuring broad compatibility with your existing equipment fleet.
🗸 Superior Durability: Constructed from zinc-plated steel with a heavy-duty locking collar to prevent accidental disconnection, rated for operating pressures up to 35 MPa.
🗸 Minimal Fluid Loss: The flat face architecture ensures virtually zero spillage (0.02 ml), keeping your machine clean and environmentally responsible.
Specifications
| Detail | Specification |
| Model Number | TL65 |

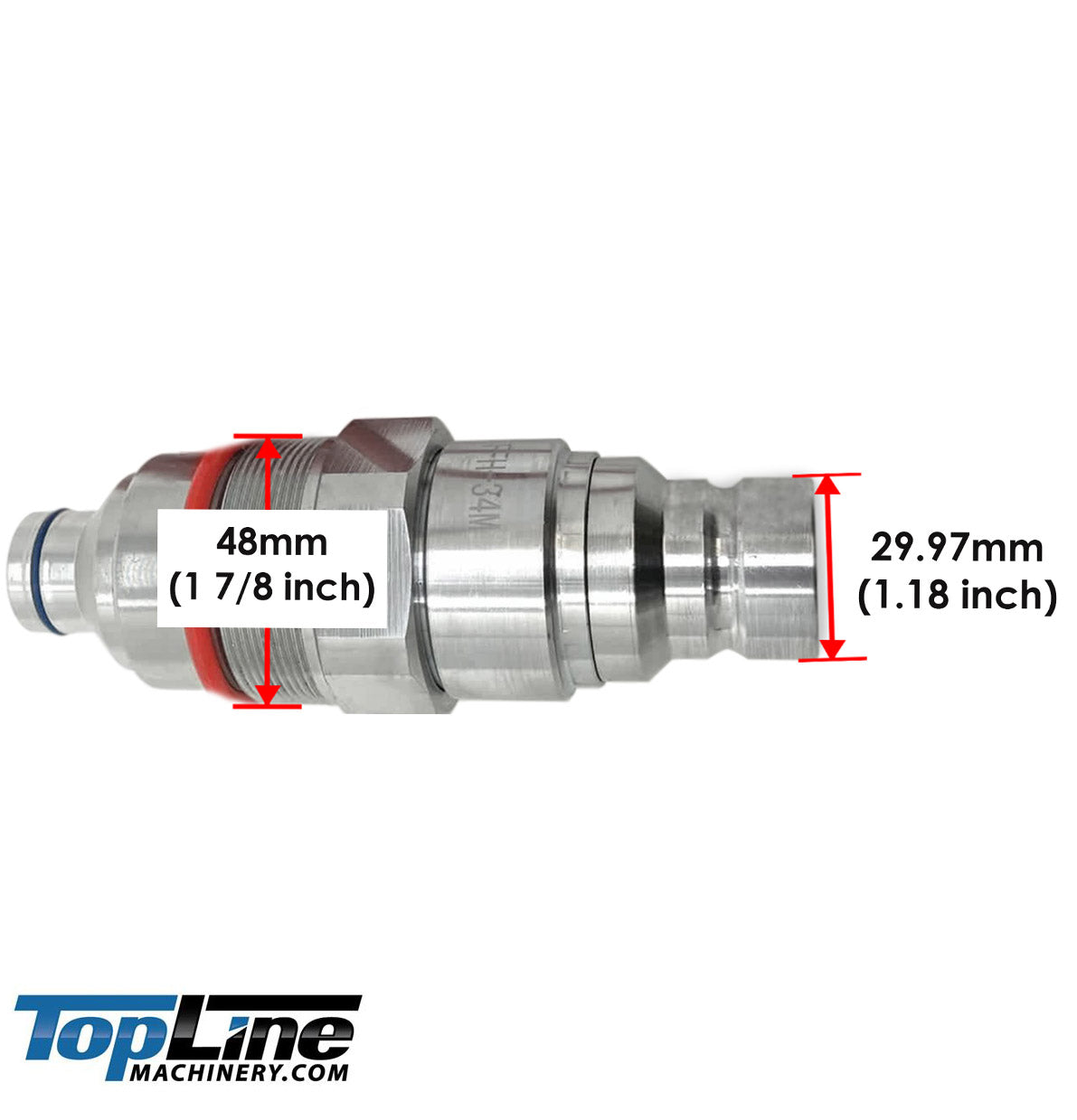

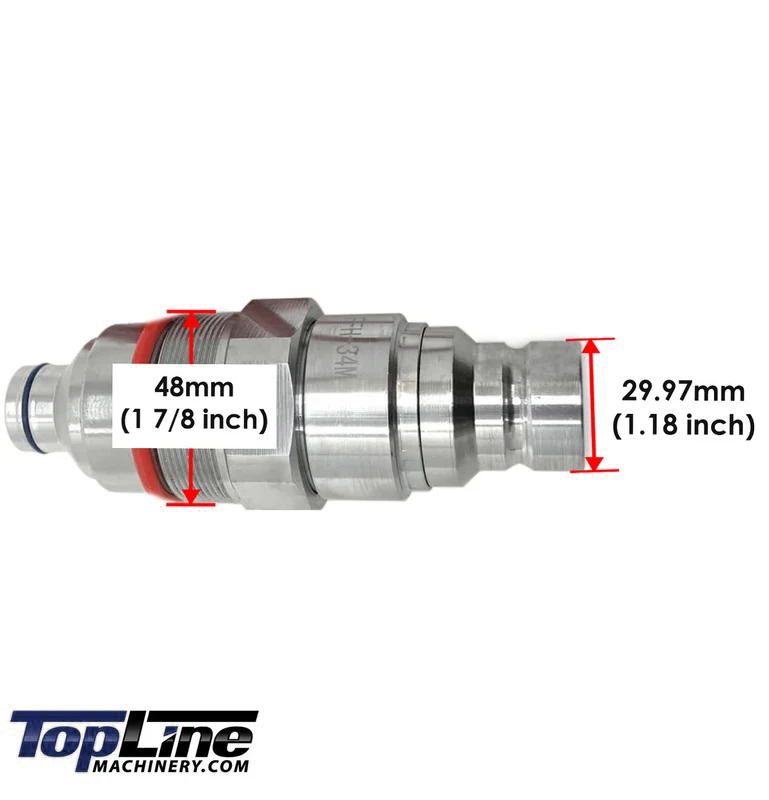

| Coupler Body Size | 3/4" |
| Dash Size | 12 |
| Flow Rate | 145 l/min |
| Working Pressure | 35 MPa |
| Coupler Material | Zinc-plated Steel |
| Operating Temp | -40°C to 106°C |
| Compatibility | 4FH12 Manifold Block (e.g., John Deere 333E) |
| Package Includes | (1) Male Flat Face Cartridge Coupler |
Q: Is the TL65 a "Female" or "Male" coupler?
A: The TL65 is the Male component of the cartridge coupler pair. It is designed to interface with the Female cartridge coupler (such as the TL64) installed in your manifold block.
Q: Can I use this on a John Deere 333E?
A: Yes. This is a direct aftermarket replacement for the John Deere part number AT406476, which is used on the 333E skid steer's 4FH12 manifold block.
Q: How do I distinguish between cartridge-style and standard quick-connects?
A: Cartridge-style couplers (like the TL65) feature a threaded body designed to be permanently or semi-permanently installed into a manifold block. Standard quick-connects are designed to be threaded onto the end of a flexible hydraulic hose.
Q: Do I need to replace both the male and female sides?
A: While they can be replaced individually if one side is damaged, it is often best practice to replace both sides of a hydraulic connection simultaneously to ensure uniform seal wear and prevent contamination from an older, worn-out counterpart.
Application:
- John Deere 333E skid steer
-
John Deere AT406476
***The female version of this coupler TL64, click HERE
