Product Description

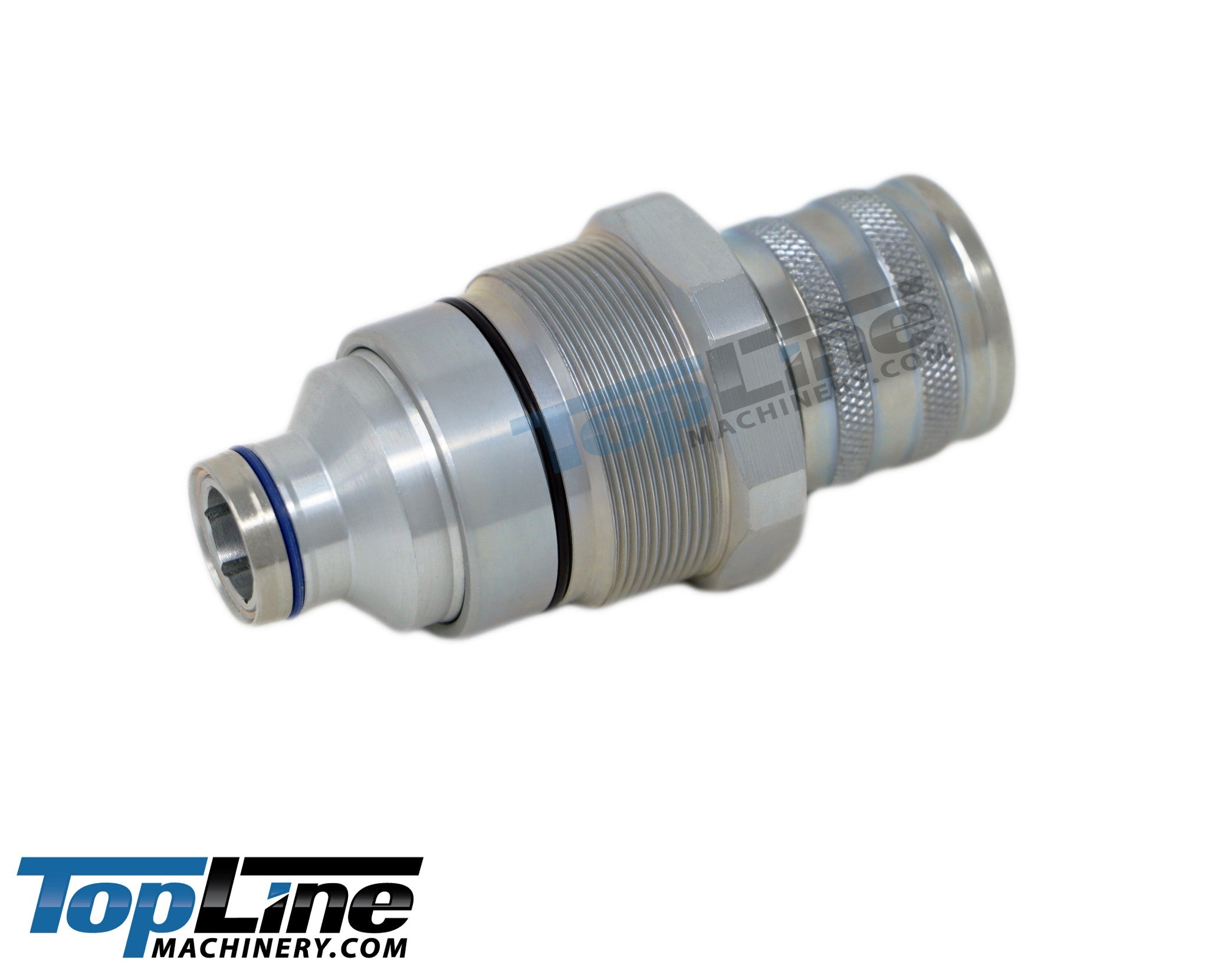

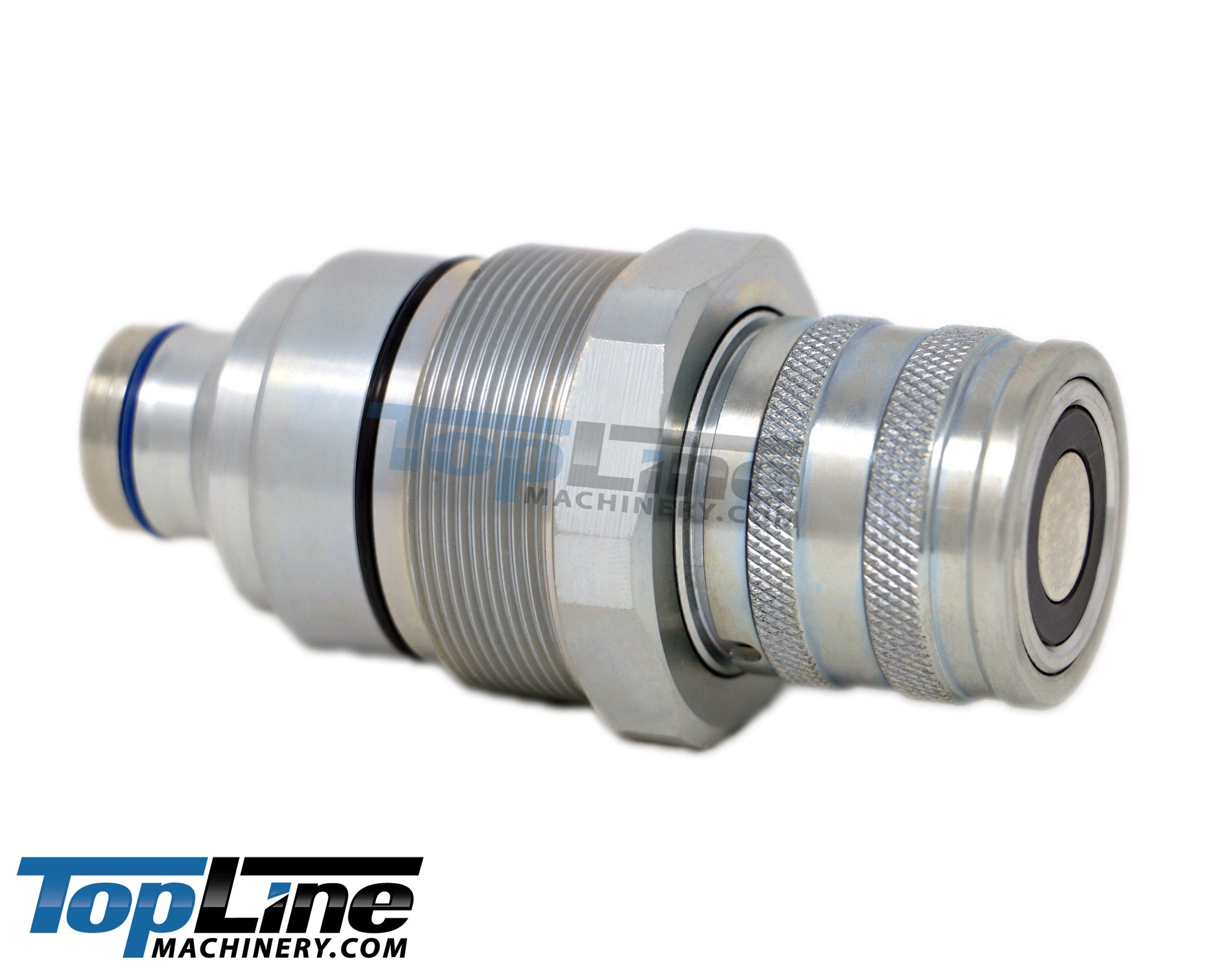

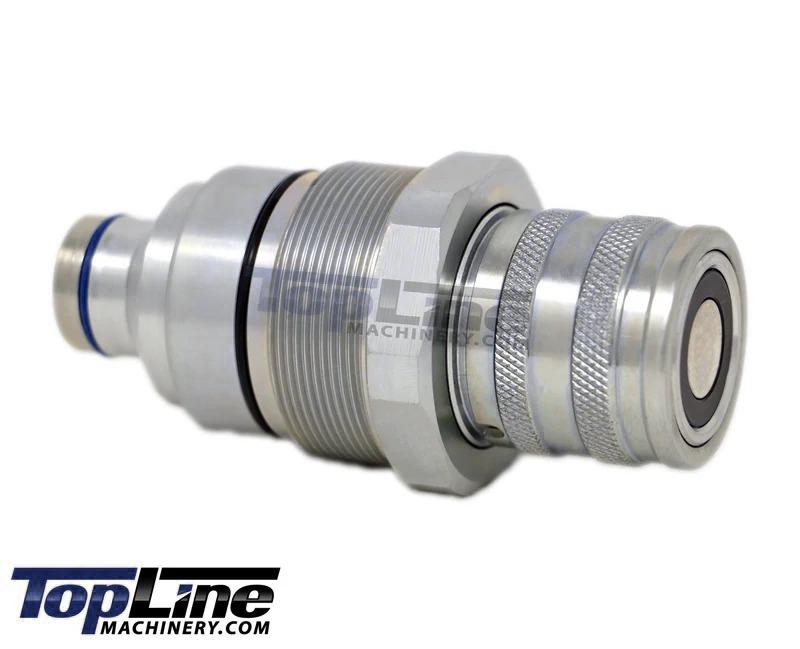

TL62 Aftermarket Replacement 4BD4FH Cartridge-Style Flat Face Hydraulic Coupler
The TL62 is a high-performance, manifold-mounted flat face coupler engineered for specialized equipment requiring a cartridge-style connection. Designed as a direct replacement for 4BD4FH manifolds, this unit is built for demanding environments where rapid attachment changes and system reliability are essential.
🗸 Heavy-Duty Industrial Rating: Engineered for the toughest job sites, this coupler is rated for over 5075 PSI (35 MPa) and is built to withstand extreme temperatures ranging from -40°C to 106°C.
🗸 Connect-Under-Pressure Functionality: Features built-in technology to allow for connection even when residual pressure is present, saving you significant downtime.
🗸 Manifold Integration: Designed specifically for 48mm manifold ports, the low-profile design minimizes side-loading stress on your hydraulic system.
🗸 ISO 16028 Compliance: Fully interchangeable with any coupler conforming to ISO 16028 standards, ensuring compatibility with standard skid steer and excavator attachments.
🗸 Secure Connection: Includes a heavy-duty locking collar specifically designed to prevent accidental disconnections during operation.
🗸 Minimal Environmental Impact: The flat face architecture ensures minimal fluid loss (spillage of only 0.02 ml) during disconnection, helping keep your workspace clean and the environment protected.
Specifications
| Detail | Specification |
| Model Number | TL62 |
| Coupler Body Size | 1/2" |

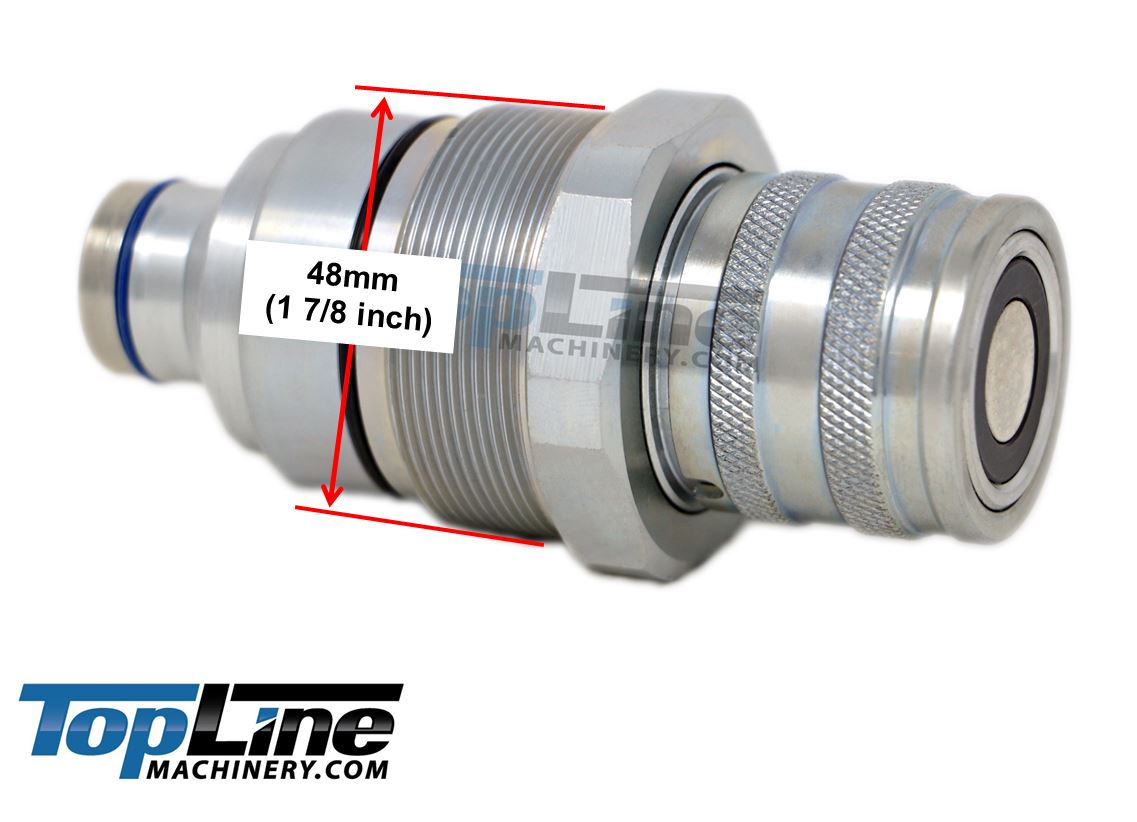

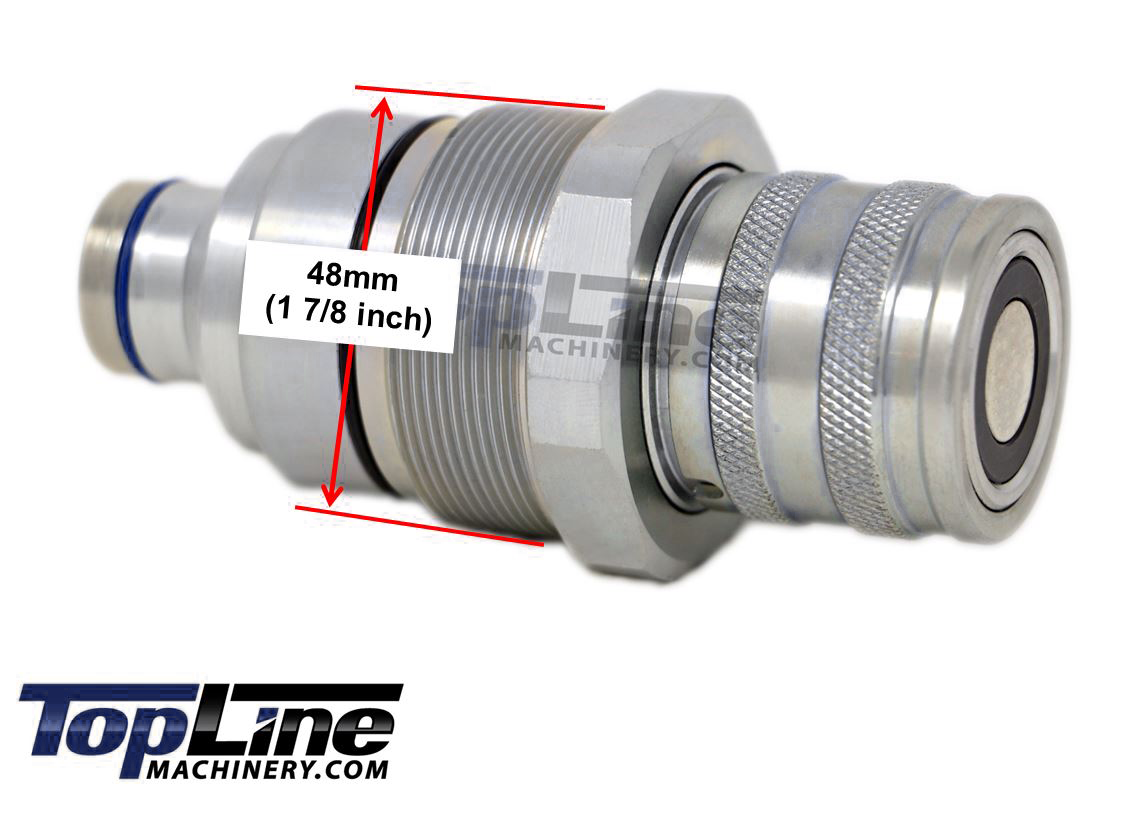

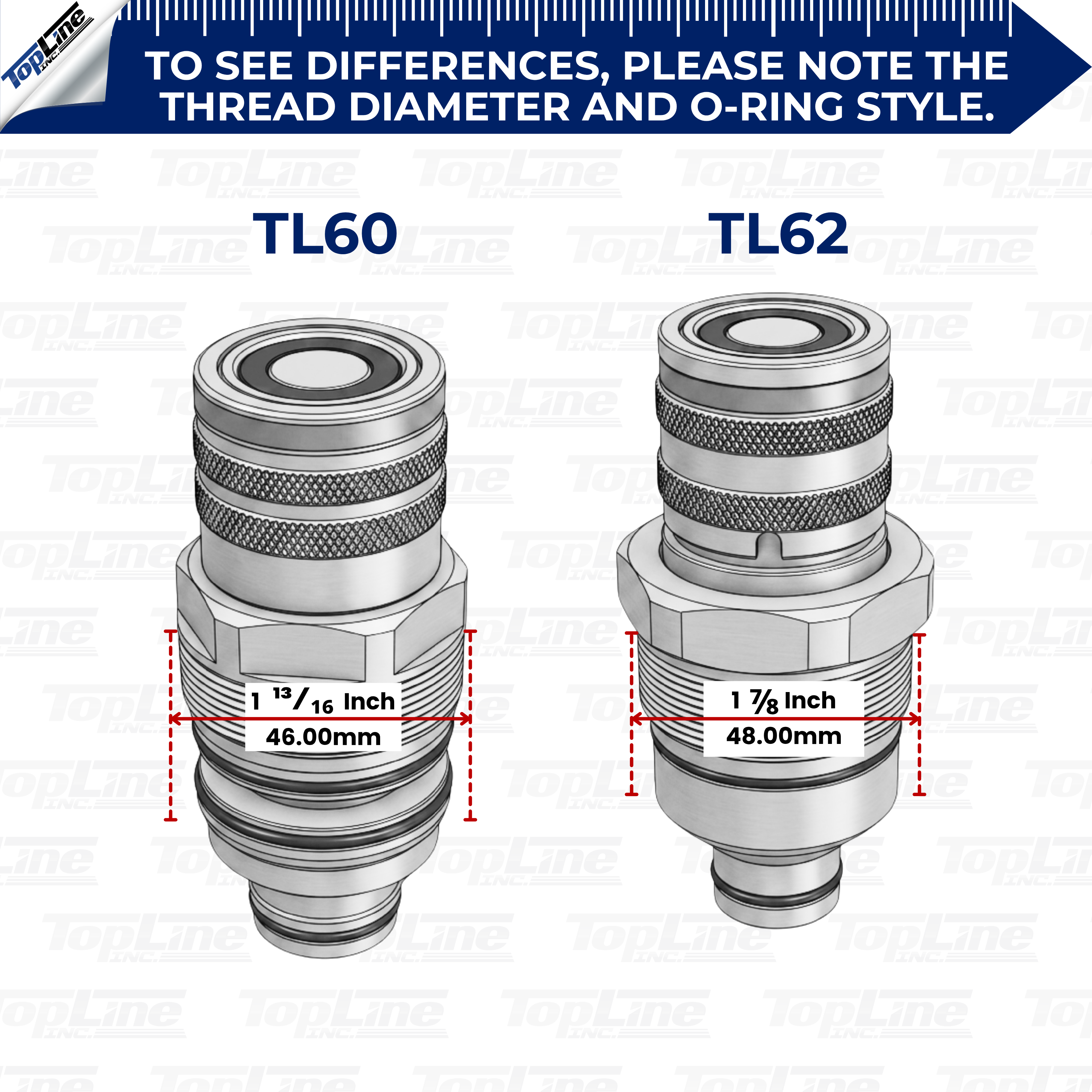

| Thread Diameter | 48 mm (~1 7/8") |
| Thread Type | SAE |
| Coupler Material | Zinc-plated Steel |
| Max Flow Rate | 100 l/min |
| Operating Temp | -40°C to 106°C |
| Package Includes | (1) Female Flat Face Cartridge Coupler |
Q: What is a "Cartridge-Style" coupler?
A: Unlike standard "quick-disconnect" couplers that attach to the end of a hose, a cartridge coupler is designed to screw directly into a hydraulic manifold block (like the 4BD4FH). This provides a more compact, integrated setup for machines that use a central attachment connection plate.
Q: How do I know if this fits my machine?
A: The TL62 is specifically designed for the 4BD4FH manifold standard. You should measure your existing manifold port—if the thread diameter is approximately 48mm (1 7/8"), this is the correct replacement. It is commonly found on newer Bobcat, Kubota, Takeuchi, and Case skid steers and excavators.
Q: Can I use this with standard hose-end couplers?
A: No. This is a cartridge coupler intended for manifold installation. It is designed to receive standard ISO 16028 male flat-face tips, but the body itself must be threaded into a manifold port, not attached directly to a loose hydraulic hose.
Q: Why is "Connect Under Pressure" useful?
A: Hydraulic lines often trap "residual pressure" due to heat expansion when equipment sits in the sun. Standard couplers can be nearly impossible to connect in these conditions; the TL62’s internal valve design allows you to bridge that pressure safely and easily.
*Interchangeable Part Numbers:
-
Kubota V1311-77150
-
Bobcat 7246802
-
FFH12F-48
- 753, 763, 773, 863, 864, 883
- A220, A300, A770
- S130, S150, S160, S175, S185, S205, S250, S300, S450, S510, S530, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850
- T140, T180, T190, T200, T250, T300, T320, T450, T550, T590, T595, T630, T650, T740, T750, T770, T870
- TL26.60, TL30.60, TL30.70, TL34.65HF, TL35.70, TL358, TL360, TL38.70HF, TL470, TL470H
- E32, E32i, E34, E35, E35i, E42, E45, E50, E55
- V519, V723
- 5600, 5610
***The male version of this coupler is TL63(48mm), click HERE
