Aftermarket Replacement 3/8 Body Return/Relief Drain Line Flat Face Coupler 4BD4FH Manifold Block TL42

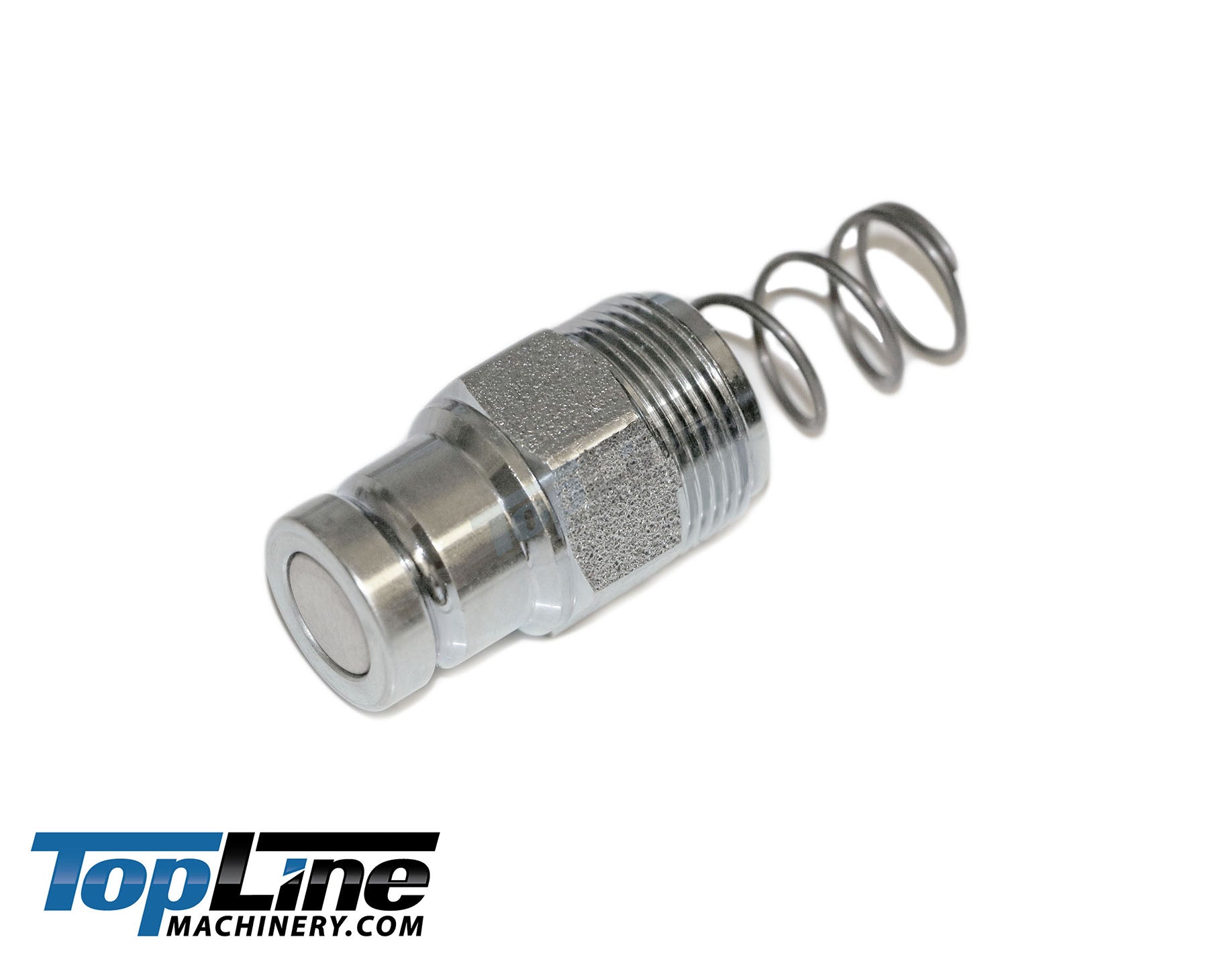

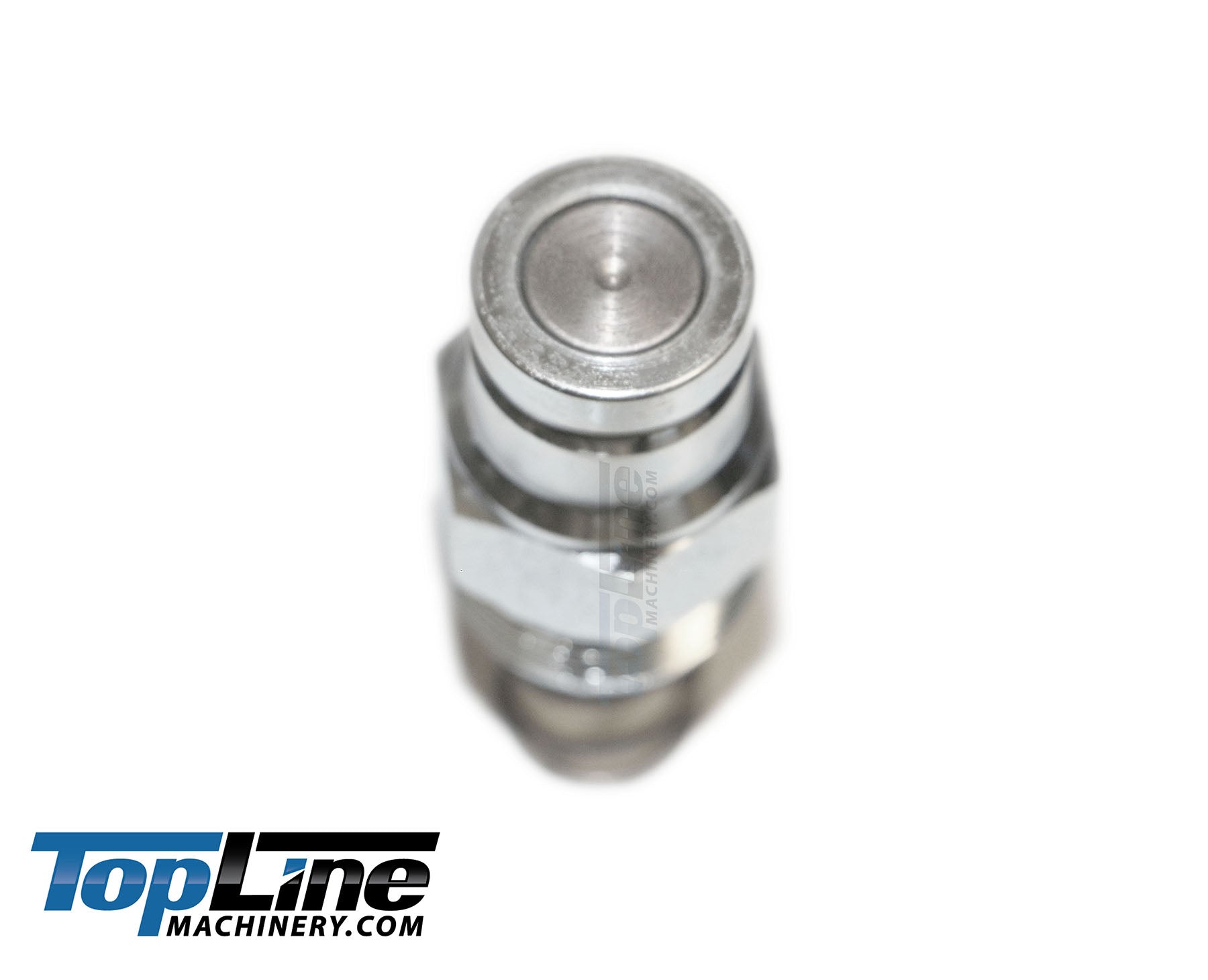

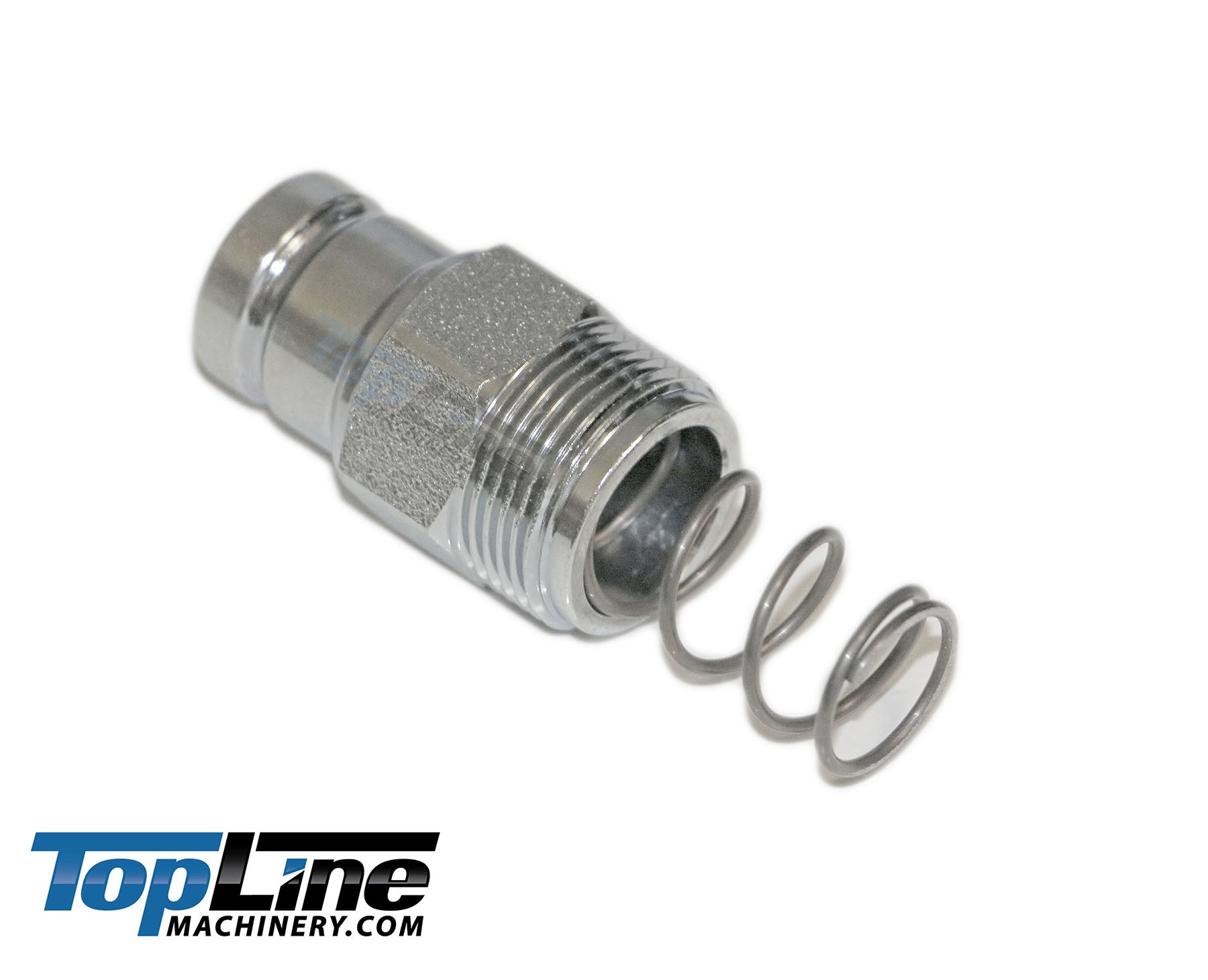

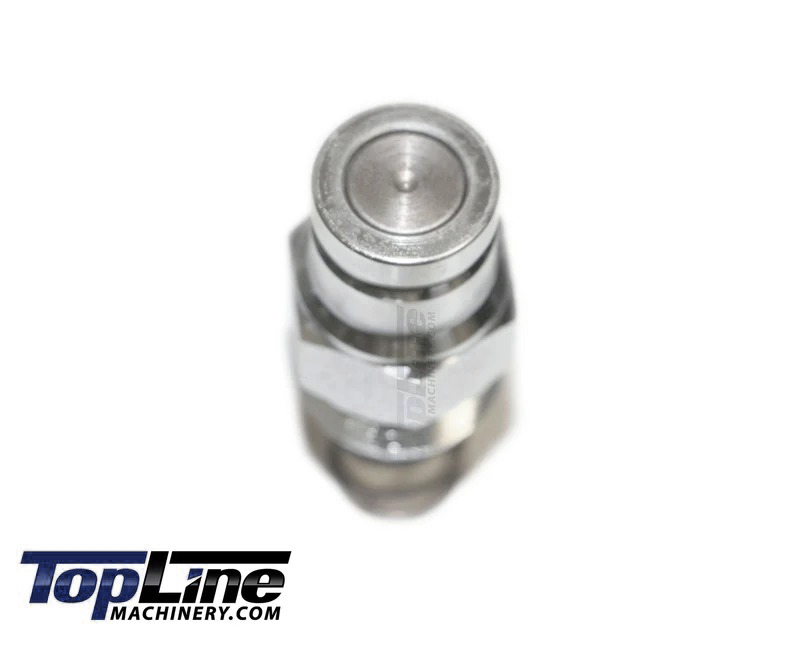

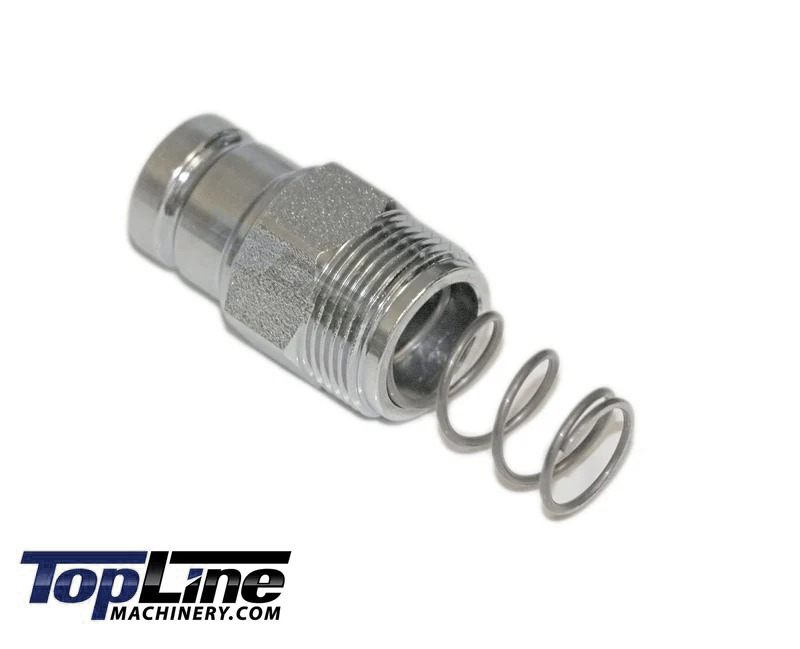

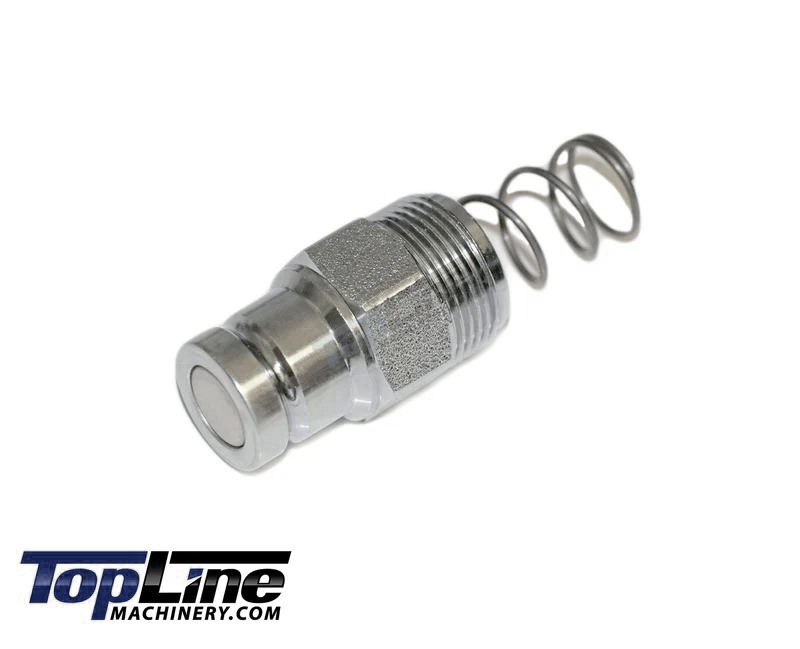

TL42 3/8" Body Return/Relief Drain Line Male Flat Face Coupler (4BD4FH Manifold)

The TL42 is a specialized 3/8" body male flat face coupler, engineered specifically for the "small return line" (often referred to as the case drain or relief line) on skid steers, excavators, and compact utility vehicles. Designed as a direct replacement for equipment utilizing the 4BD4FH manifold block, this coupler ensures that your attachment's drain lines are connected securely and efficiently.

🗸 Specialized Case Drain Design: Engineered specifically for the small return/relief lines found on hydraulic attachments, ensuring correct pressure management and fluid return.

🗸 Heavy-Duty Industrial Construction: Built for durability in demanding construction and agricultural environments.

🗸 ISO 16028 Standard Compliance: Meets or exceeds industry standards, ensuring reliable, leak-free performance and compatibility with your existing 4BD4FH manifold systems.

🗸 Corrosion Resistance: Finished with robust zinc plating to provide a long-lasting barrier against rust and environmental degradation.

🗸 Flat Face Architecture: Designed to minimize hydraulic fluid loss during connection and disconnection, while allowing for an easy-to-clean interface that prevents contaminants from entering the hydraulic system.

Specifications

Q: Why is this "return/relief drain line" coupler different from the main hydraulic couplers?

A: High-flow attachments (like mulchers, breakers, or forestry heads) often require a separate "case drain" or "return" line to prevent internal pressure buildup in the attachment motor. This TL42 coupler is designed for that specific, lower-pressure return circuit, whereas your main drive couplers are designed for the high-pressure supply and return lines.

Q: Will this fit my 4BD4FH manifold?

A: Yes, the TL42 is designed specifically for machines equipped with the 4BD4FH manifold block, including various models of Bobcat, Kubota, Takeuchi, and Case equipment.

Q: Can I use this for the main high-pressure hydraulic lines?

A: No. The TL42 is intended for the smaller return/drain circuit. The main high-pressure circuits require larger 1/2" or 3/4" couplers (like the TL62 or TL64 series) designed to handle full hydraulic flow. Attempting to use this for main drive lines will severely restrict flow and may damage your attachment.

Q: Is this a cartridge-style coupler?

A: Yes, this coupler is designed to screw directly into the 4BD4FH manifold block, consistent with other cartridge-style flat-face components in this series.
