Product Description

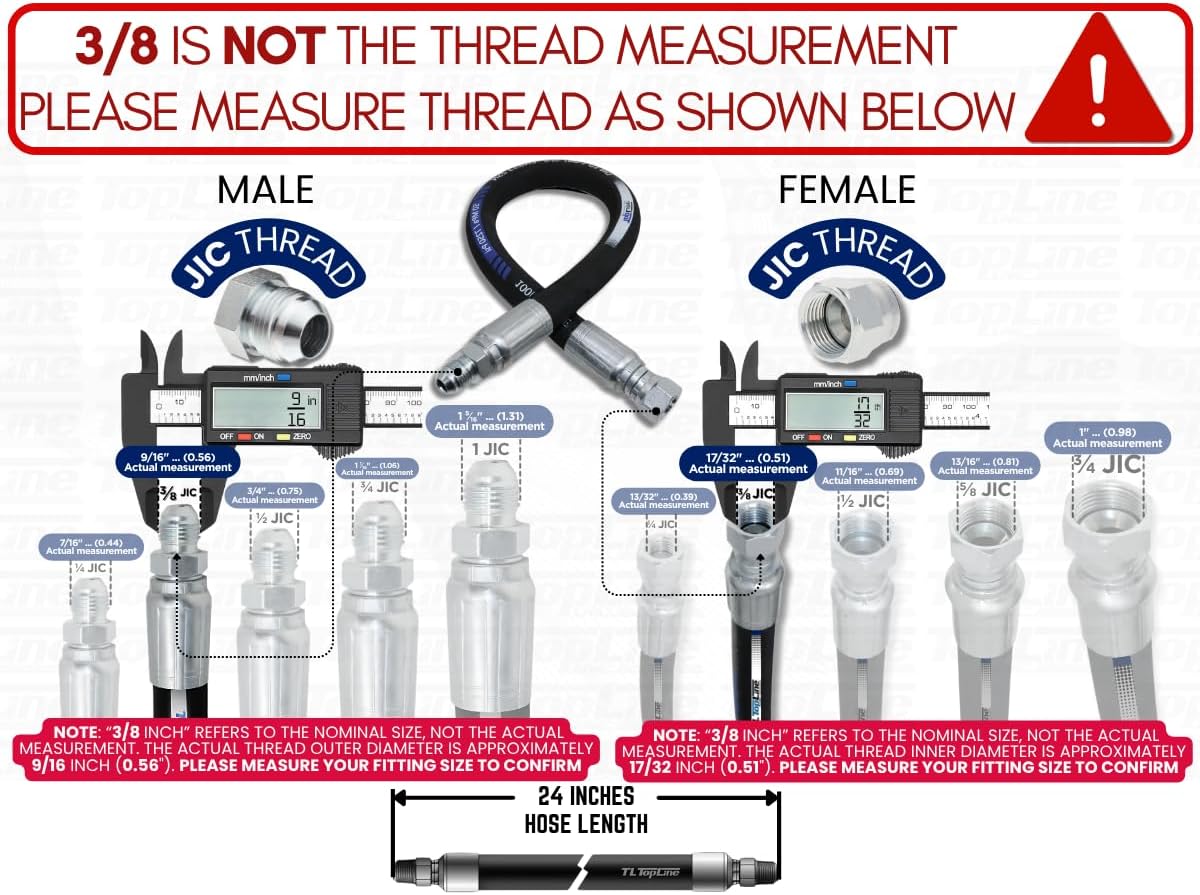

🗸 Note: “3/8 inch” refers to the nominal size, not the actual measurement. Male JIC thread Inner diameter: approximately 9/16 inch (0.56") Female JIC thread Inner diameter: approximately 17/32 inch (0.51") Please measure your fitting size to confirm compatibility.

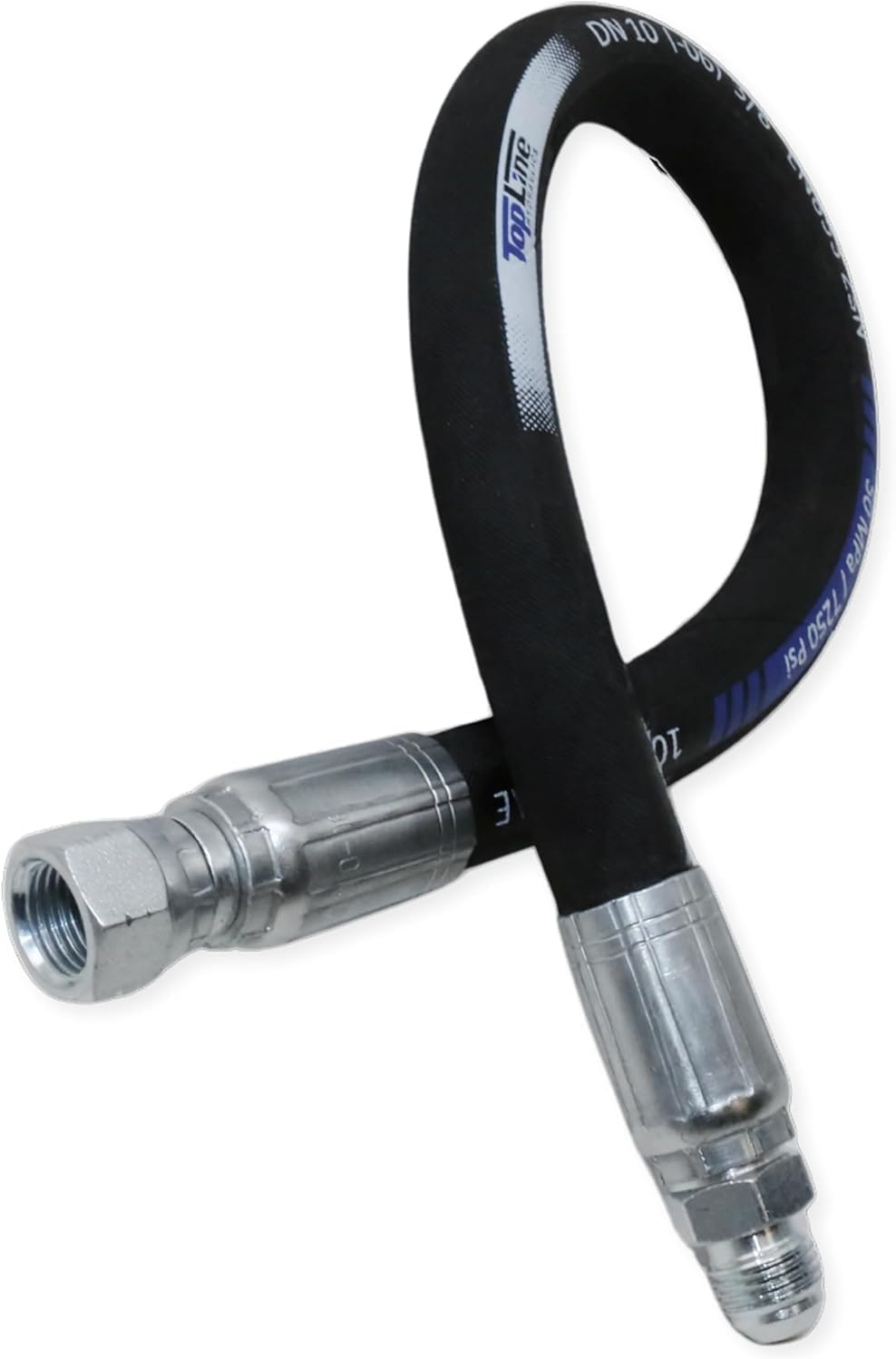

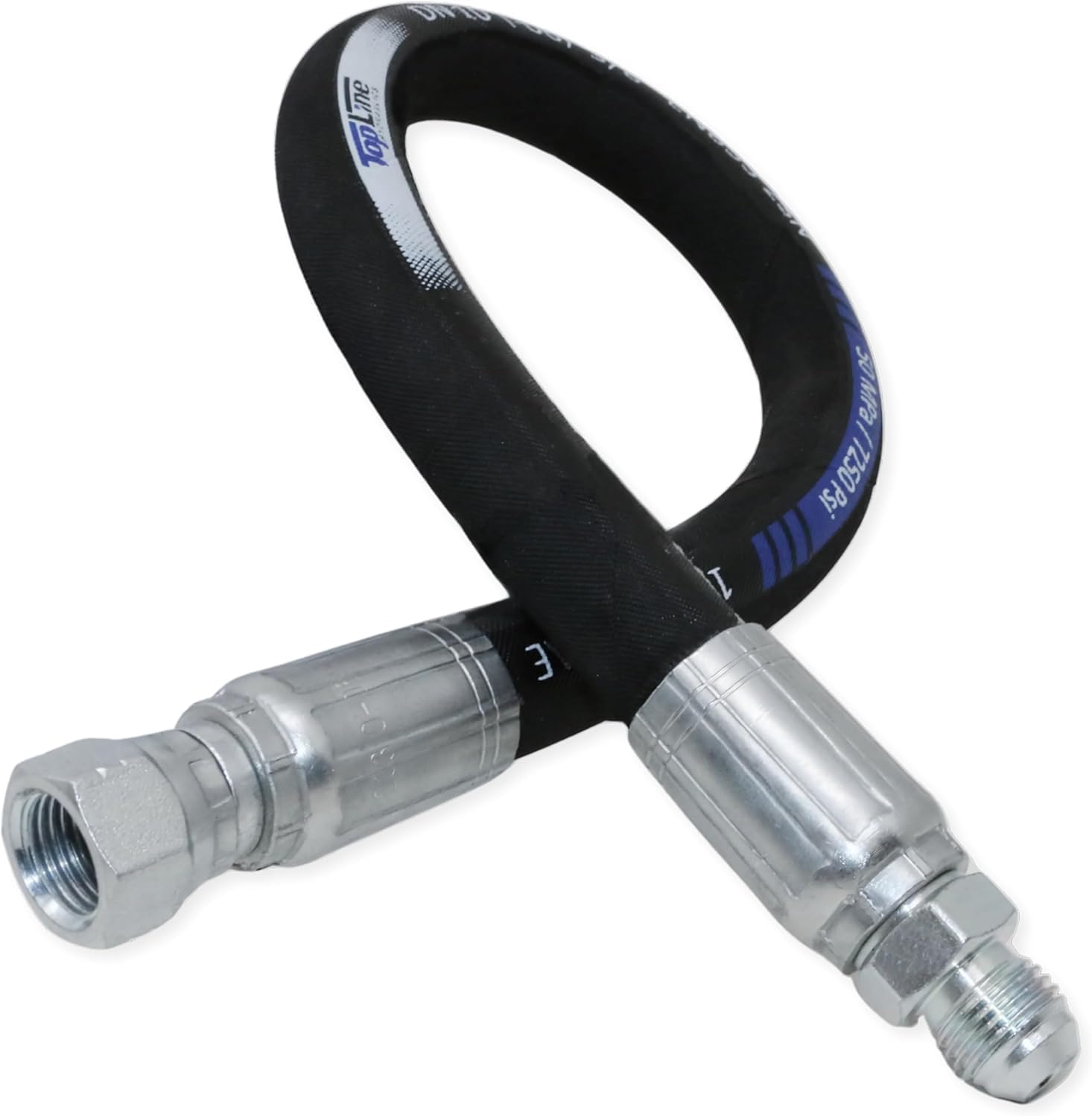

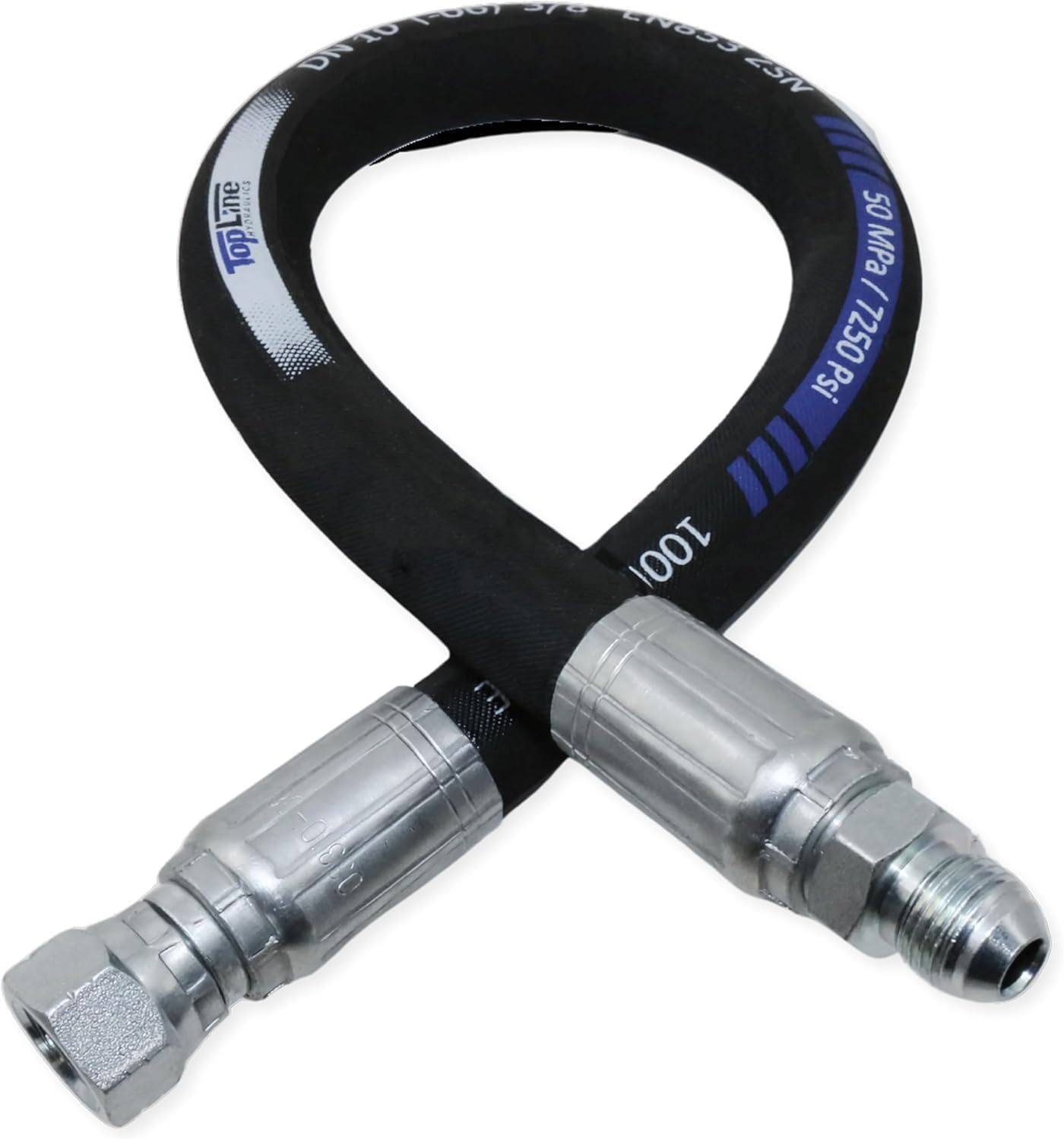

🗸 HFR206 3/8" HIGH-PRESSURE HYDRAULIC HOSE ASSEMBLY – An industrial-strength 24-inch assembly designed for the most demanding high-pressure environments. With dual high-tensile steel wire braids, this hose provides exceptional resistance to pressure spikes, vibration, and mechanical wear when transporting hydraulic oil, air, or water.
🗸 SAE & DIN CERTIFIED PERFORMANCE: Engineered to meet and exceed SAE 100 R2AT and DIN EN853 2SN industry standards. This certification guarantees a component that is ready for the rigorous duty cycles found in mobile, agricultural, and heavy-industrial hydraulic circuits.
🗸 RUGGED EXTERNAL DEFENSE: Featuring a premium synthetic rubber outer cover, this assembly is built to resist abrasion, ozone, and harsh weather. Whether operating in dusty fields or oil-laden industrial workshops, the hose maintains its structural integrity and flexibility.
🗸 PRECISION JIC CONNECTIVITY: Equipped with professionally crimped Female and Male JIC ends for a secure, metal-to-metal seal. Note: The 3/8" nominal size corresponds to a precise thread inner diameter (~9/16" for Male, ~17/32" for Female) to ensure a factory-tight fit every time.
🗸 EXTREME PRESSURE CAPACITY: Capable of handling a robust working pressure of 7,250 PSI (50 MPa), this hose assembly provides the safety margin and strength necessary to prevent failure in high-load hydraulic systems.
| Specification | Details |
| Model Number (MPN): | HFR206-063F-063M |
| Hose Size: | 3/8" (Nominal) |
| Fitting Thread: | 3/8" JIC (Female x Male) |
| Working Pressure: | 7,250 PSI / 50 MPa |
| Construction: | SAE 100 R2AT (2-Wire Braided) |
| Reinforcement: | 2 High-Tensile Steel Wire Braids |
| Operating Range: | Hydraulic Oil, Air, and Water |
Q: How do I confirm this hose will fit my existing ports?

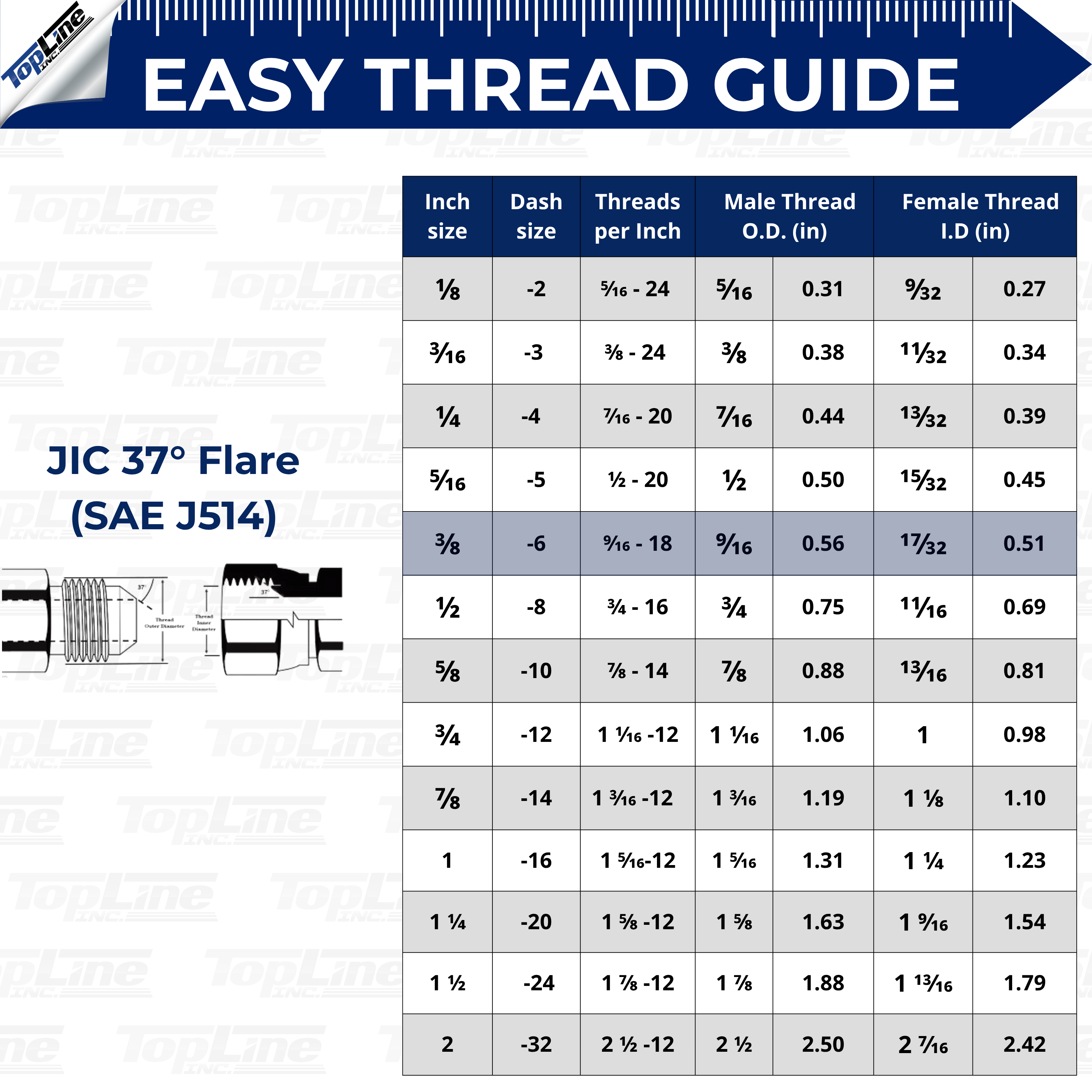

A: Since "3/8 inch" is the nominal size, we recommend verifying the actual thread diameter before installation. The Male JIC thread should measure approximately 9/16" (0.56"), and the Female JIC thread should measure approximately 17/32" (0.51").
Q: Is this hose suitable for outdoor agricultural use?
A: Absolutely. The synthetic rubber cover is specifically treated to be ozone and weather-resistant, ensuring it won't dry-rot or crack when left out in the sun or exposed to extreme field conditions.
Q: Can I use this for non-hydraulic fluids?
A: Yes. Because it features a high-grade synthetic oil-resistant tube, it is versatile enough to handle hydraulic oils, compressed air, and water, making it a highly reliable multi-purpose hose for shop or field maintenance.
