Product Description

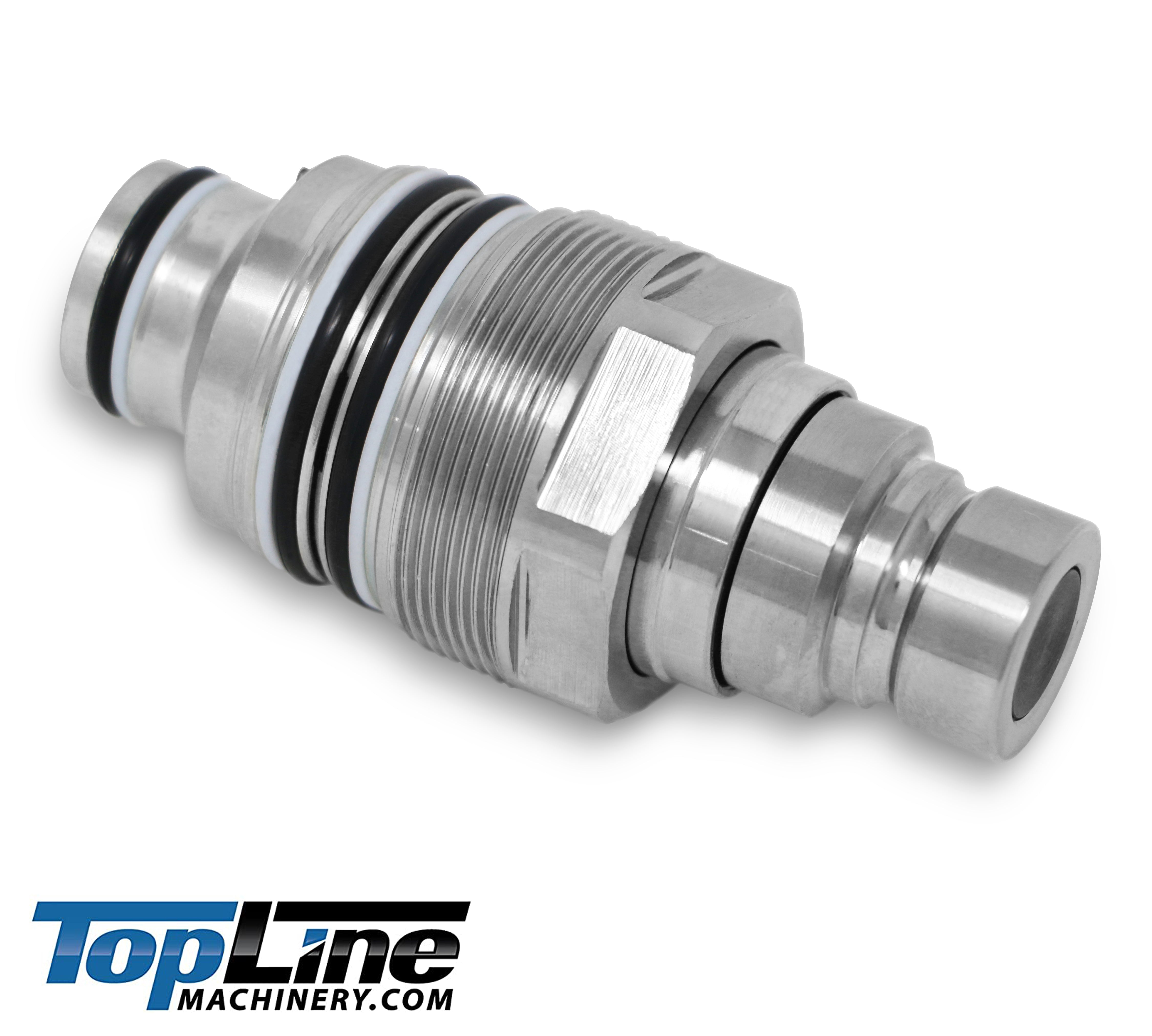

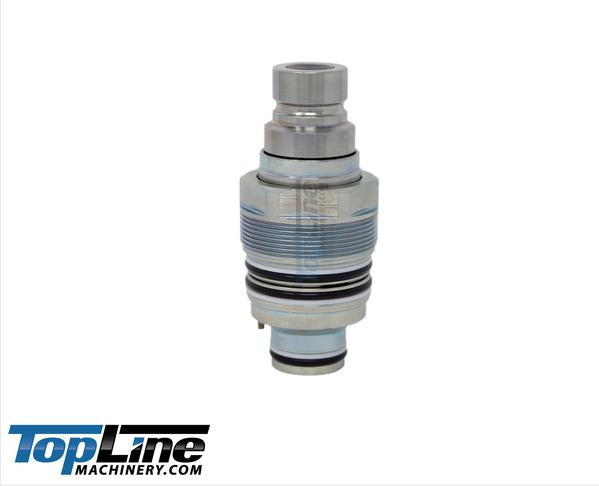

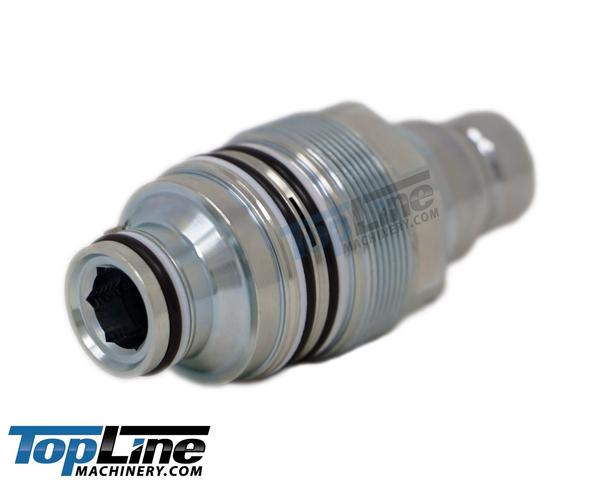

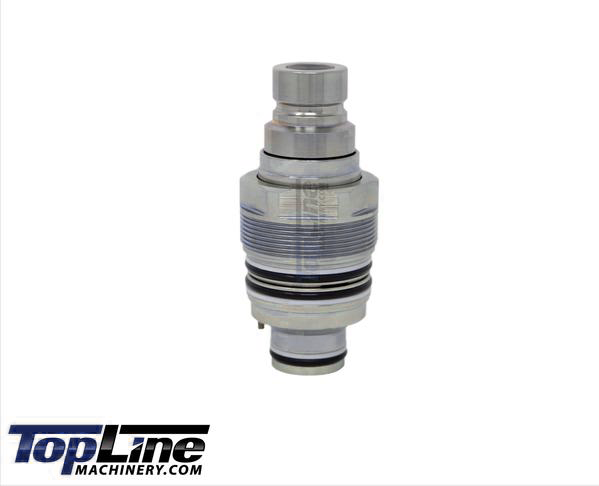

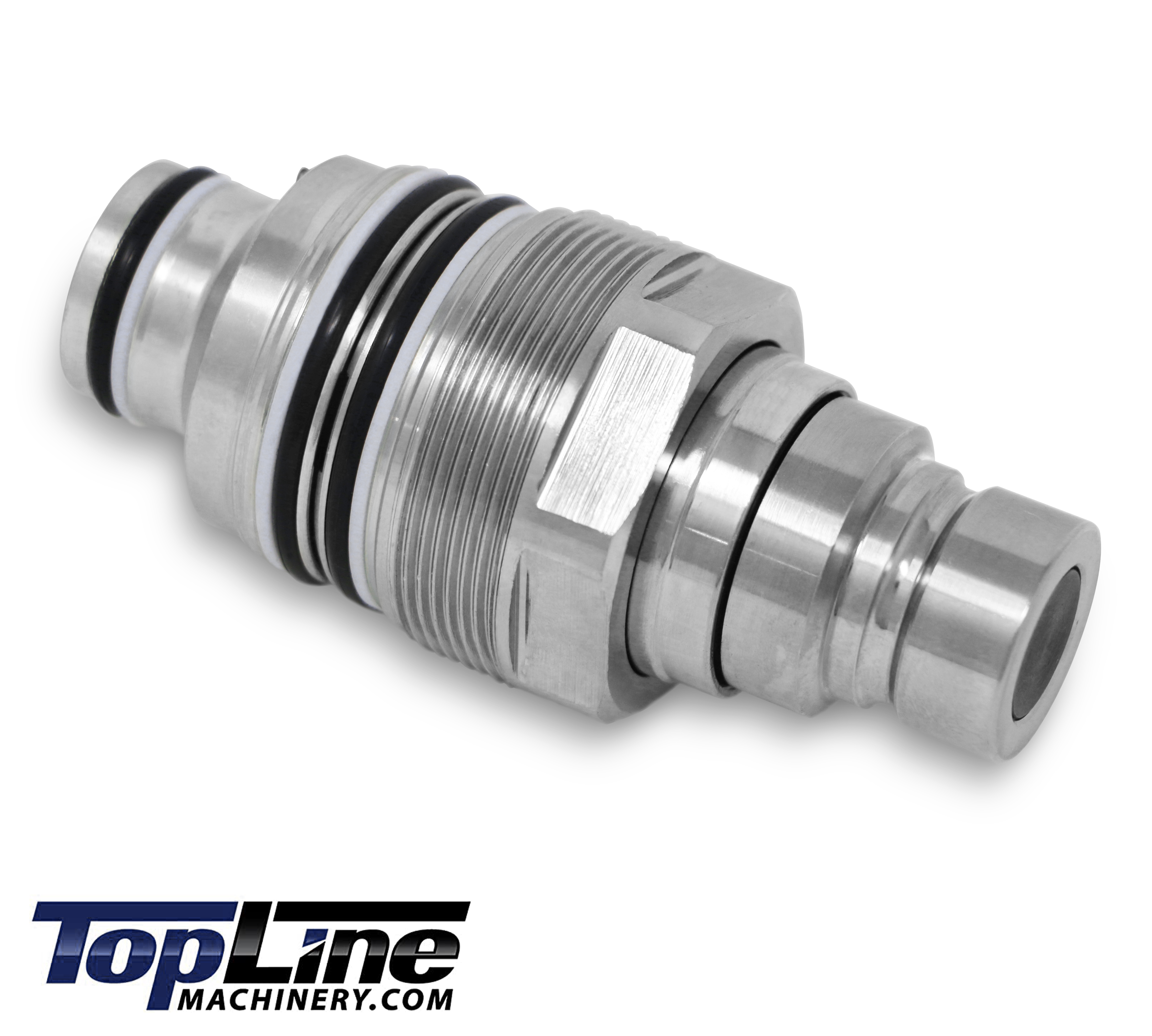

🗸 TL61 1/2" MALE FLAT FACE CARTRIDGE COUPLER – A precision-engineered, high-performance coupler designed specifically for the 4BD4FI manifold system. Built for rapid, reliable attachment changes on Bobcat, Kubota, Takeuchi, CASE, and other major skid steer and excavator brands.
🗸 CONNECT-UNDER-PRESSURE CAPABILITY: Features integrated technology that allows you to connect hydraulic lines even when trapped residual pressure is present, significantly reducing downtime in the field.
🗸 HEAVY-DUTY ARCHITECTURE: Rated for 35 MPa (5075 PSI), this coupler features a low-profile design that minimizes side loading, protecting both your manifold and the connection point from stress during heavy-duty operations.
🗸 SECURE & RELIABLE: Equipped with a heavy-duty locking collar to prevent accidental disconnection, providing safety and consistent flow during high-vibration tasks.
🗸 EXACT FITMENT: Specifically designed for 4BD4FI manifolds with a 46 mm (approx. 1-13/16") thread diameter. Built to ISO 16028 standards to ensure seamless interchangeability with existing high-performance equipment.
| Specification | Details |
| Part Number: | TL61 |
| Compatibility: | 4BD4FI Manifolds |
| Coupler Body Size: | 1/2" |
| Dash Size: | 8 |

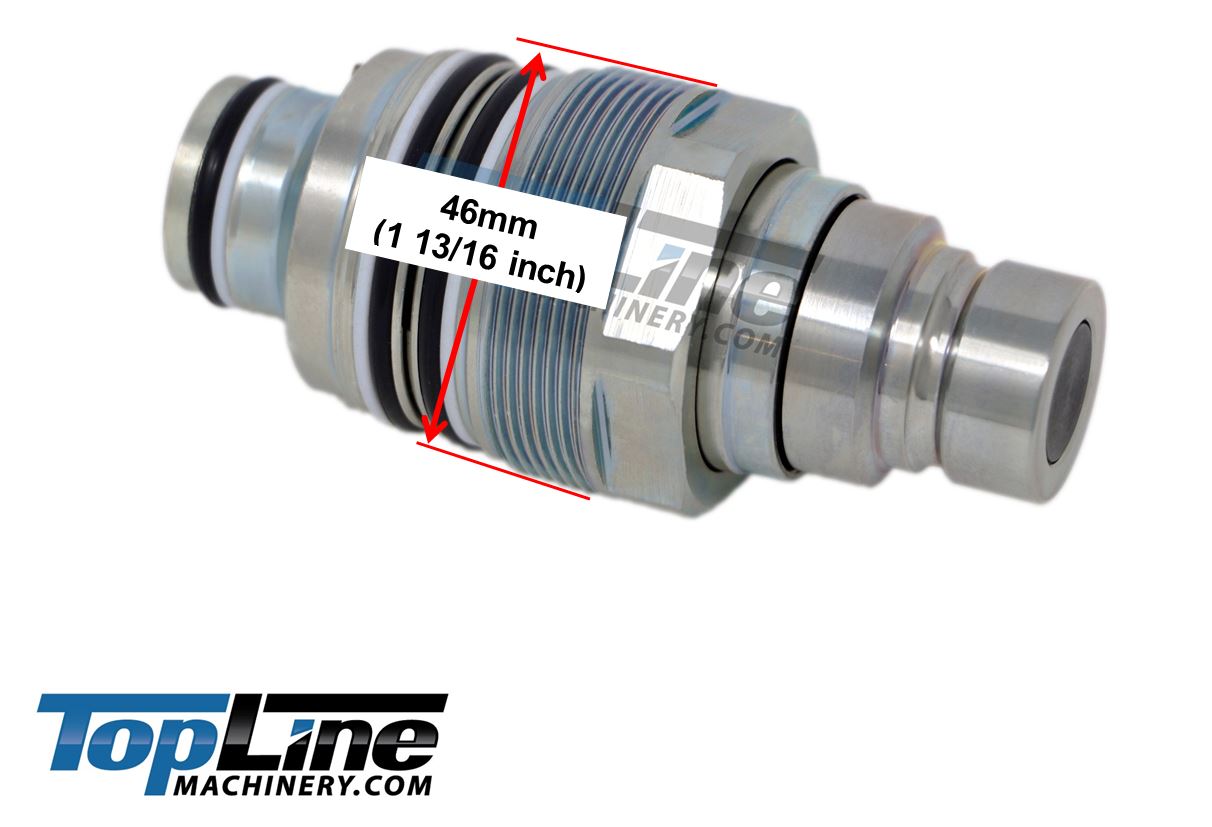

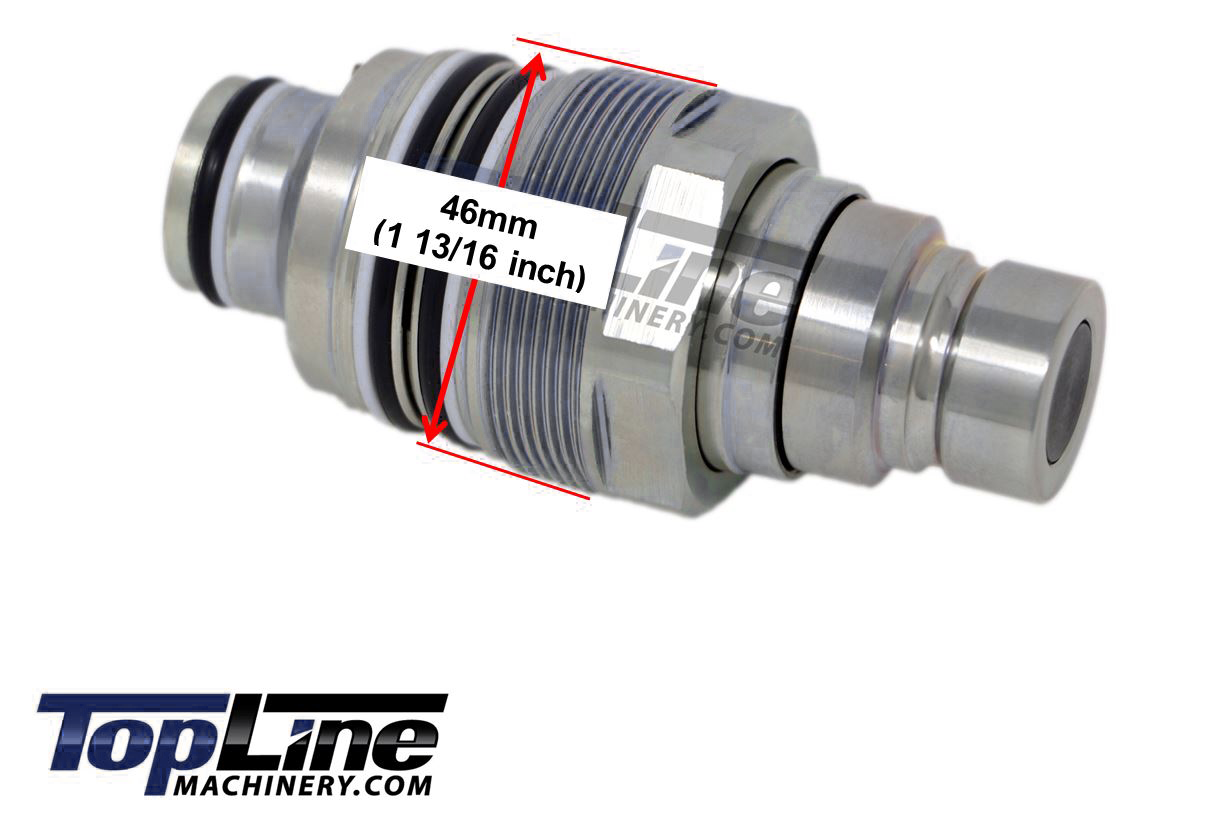

| Thread Outer Diameter: | 46 mm (approx. 1-13/16") |
| Thread Type: | SAE |
| Max Working Pressure: | 35 MPa (5075 PSI) |
| Flow Rate: | 100 l/min |
| Operating Temperature: | -40°C to 106°C (-40°F to 223°F) |
| Coupler Plating: | Zinc-plated Steel |
| Package Includes: | 1 Male Flat Face Cartridge Coupler |
Q: How do I know if I need the TL61?
A: The TL61 is specifically for 4BD4FI manifolds with a 46 mm thread diameter. Because some machines have different thread sizes for the same manifold style, we strongly recommend measuring the outer diameter of your original part's thread or comparing the o-ring style to the images provided on your listing to ensure an exact match.
Q: What is the benefit of the "connect-under-pressure" feature?
A: Trapped pressure often makes connecting a coupler extremely difficult. This built-in functionality allows you to push and lock the connection even if there is residual hydraulic pressure in the attachment line, saving you from having to manually bleed off pressure before swapping tools.
Q: How does this coupler stand up to harsh environments?
A: The TL61 is constructed from heavy-duty, zinc-plated steel and is rated for a broad temperature range (-40°C to 106°C), ensuring that it remains durable and functional in both extreme cold and hot, heavy-duty operational environments.
Q: Is this a direct replacement for my skid steer?
A: Yes, if your machine is equipped with the 4BD4FI manifold system. It is a direct aftermarket replacement for various models from Bobcat, Kubota, Takeuchi, and CASE. Its low-profile design ensures it fits perfectly where standard couplers might be subject to unnecessary side loading.
Q: Does it include protective dust caps?
A: The TL61 is a cartridge-style coupler that screws directly into your manifold. Because it is a cartridge design, it is designed for integration into your machine's manifold block rather than as a loose hose-end coupler.
Application
Fits the following Bobcat Machines:
- Bobcat Skid Steer Loaders:
753, 763, 773, 863, 864, 883
A220, A300, A770
S130, S150, S160, S175, S185, S190, S205, S220, S250, S300, S330, S450, S510, S530, S550, S570, S590, S630, S650, S750, S770, S850
T140, T180, T190, T200, T250, T300, T320, T450, T550, T590, T595, T630, T650, T750, T770, T870
- Excavators:
325, 328
- Telescopic Handlers:
TL35.70, TL360, TL38.70HF, TL470, TL470HF
- Work Machines:
5600, 5610
*Interchange Part Numbers:
- Bobcat 6679837
- FFI12M-46
***The Female version of this coupler TL60(46mm), click HERE
For the other size of this coupler:
