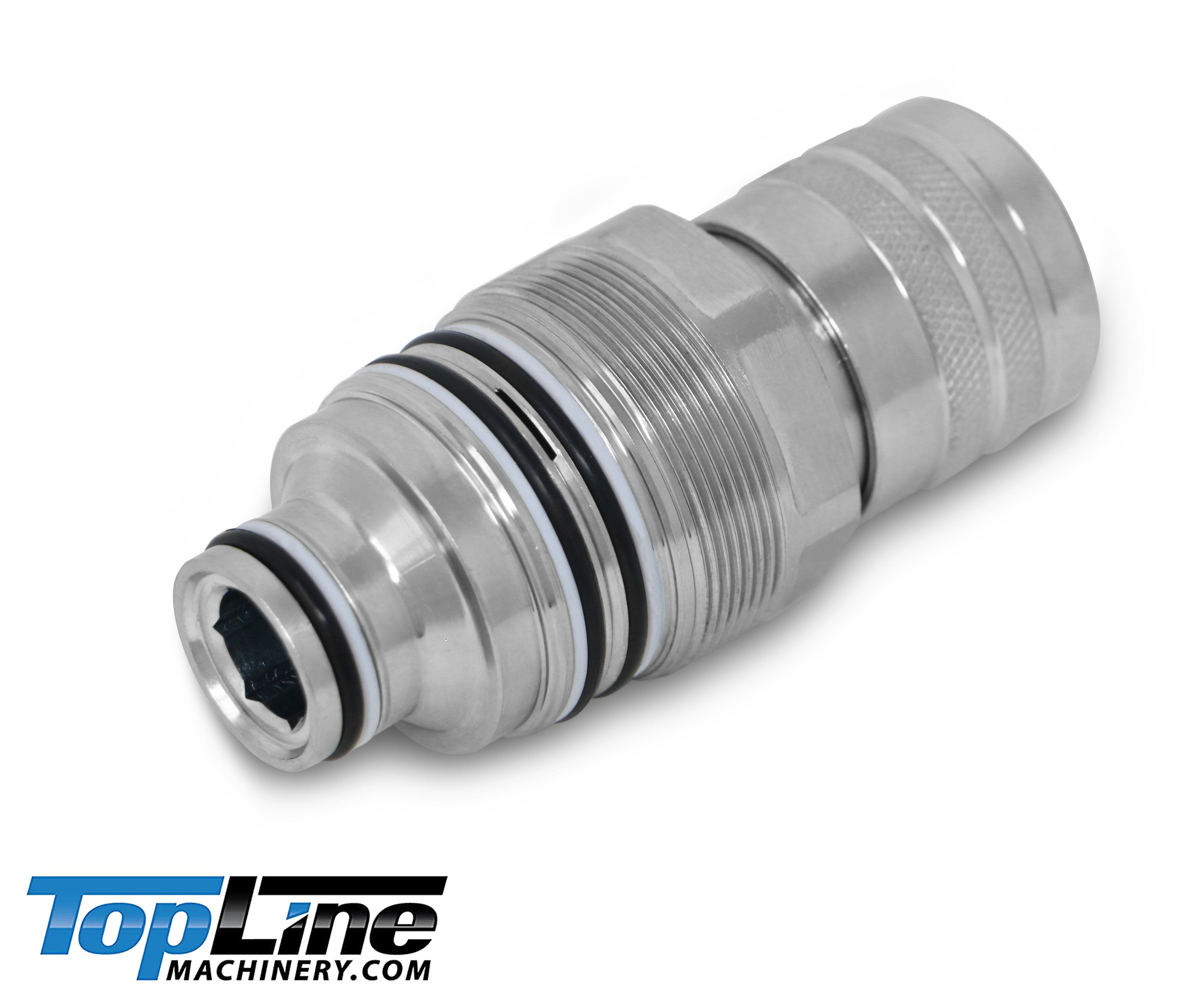

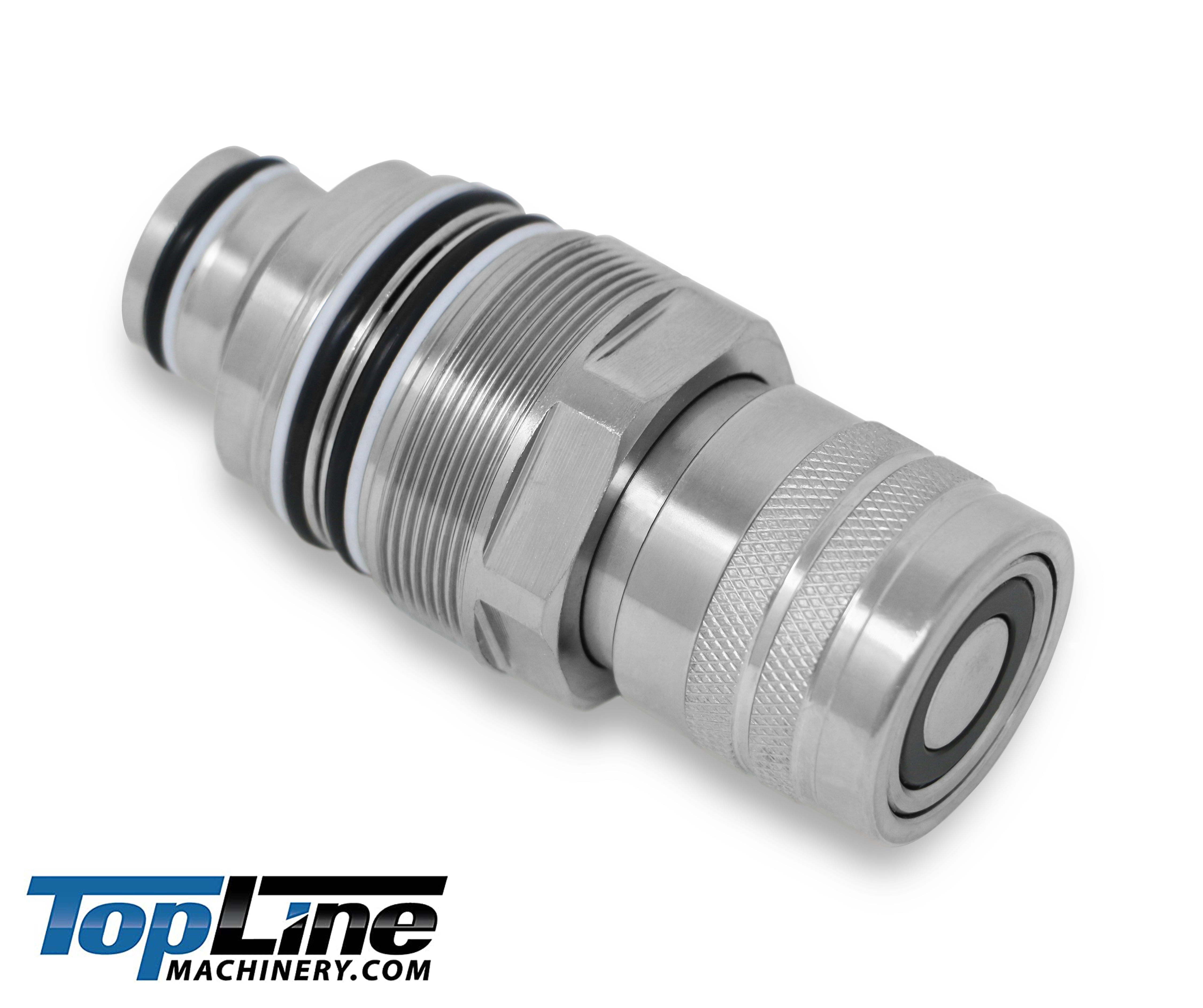

1/2" Aftermarket Replacement for 4BD4FI Cartridge Female FFI Coupler Flat Face TL60

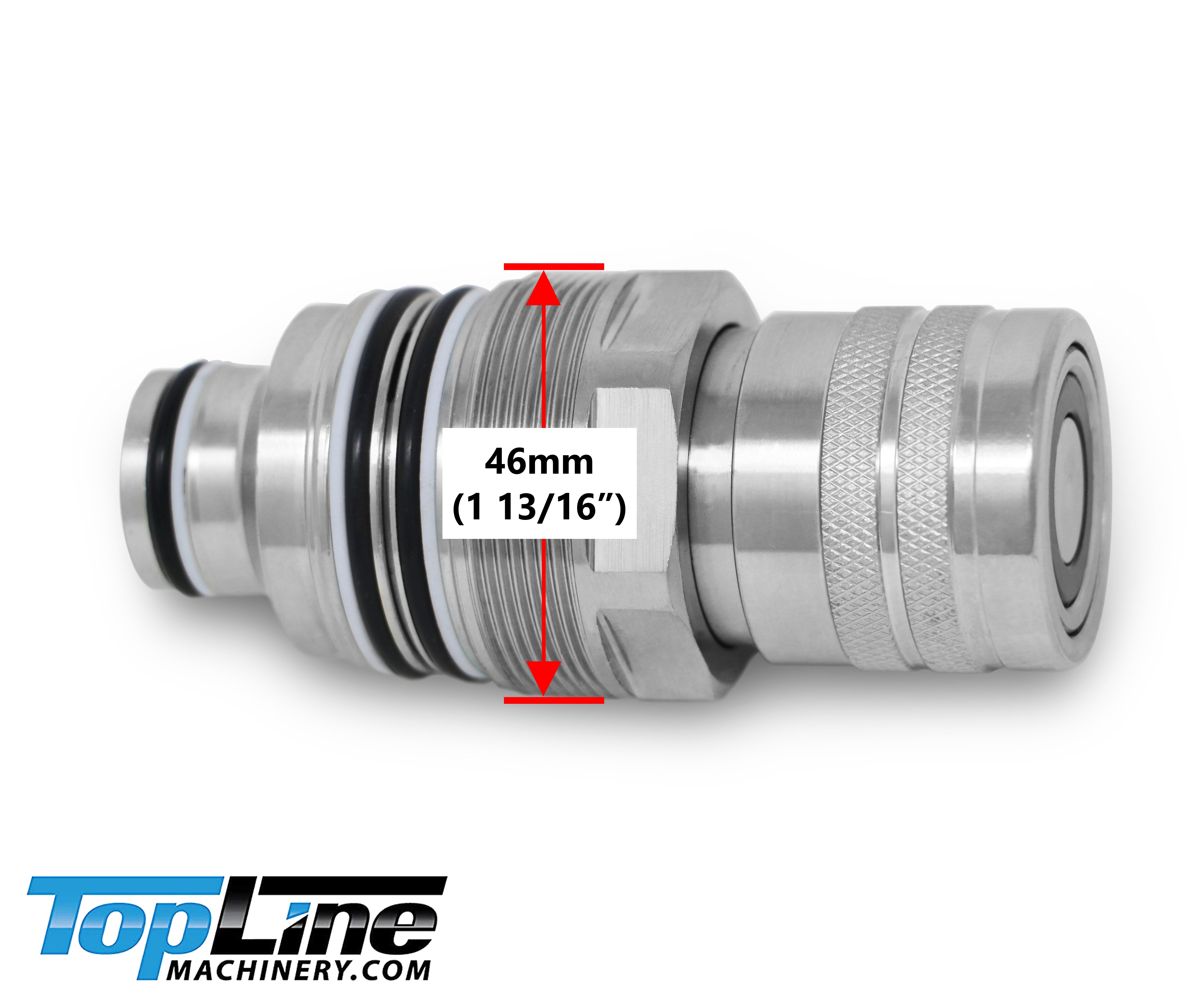

This is an aftermarket replacement for manifold type flat face coupler with 46mm (about 1 13/16 inch) thread diameter (see images for measurement example). Fits many models of Bobcat, Kubota, Takeuchi, Case and other brands of skid steers, excavators and other machines equipped with a 4BD4FI* manifold

Note: We have two different thread sizes available for Bobcat manifold type couplers. To determine which size/style you will need, measure the outside diameter of the thread, or take a close look at the style of o-rings in the images and compare to your original part.

What size do you need?

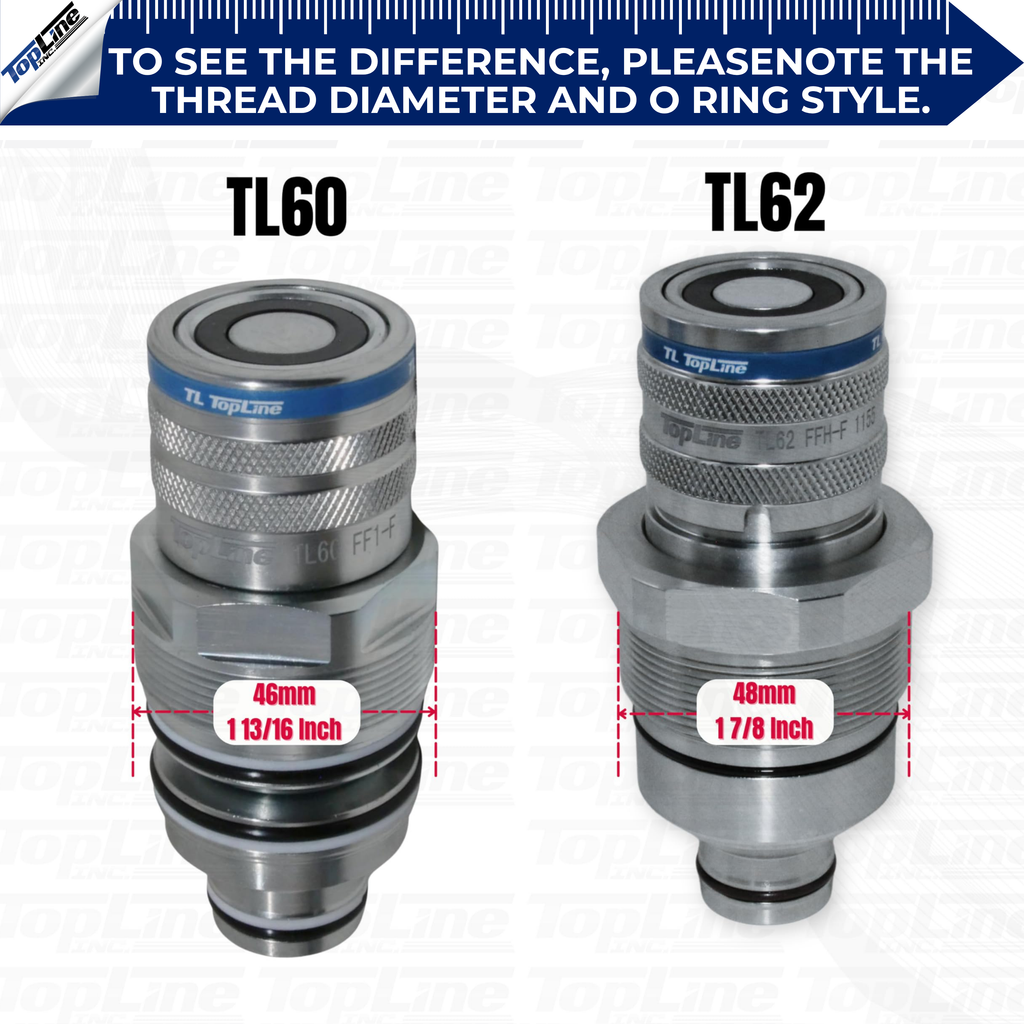

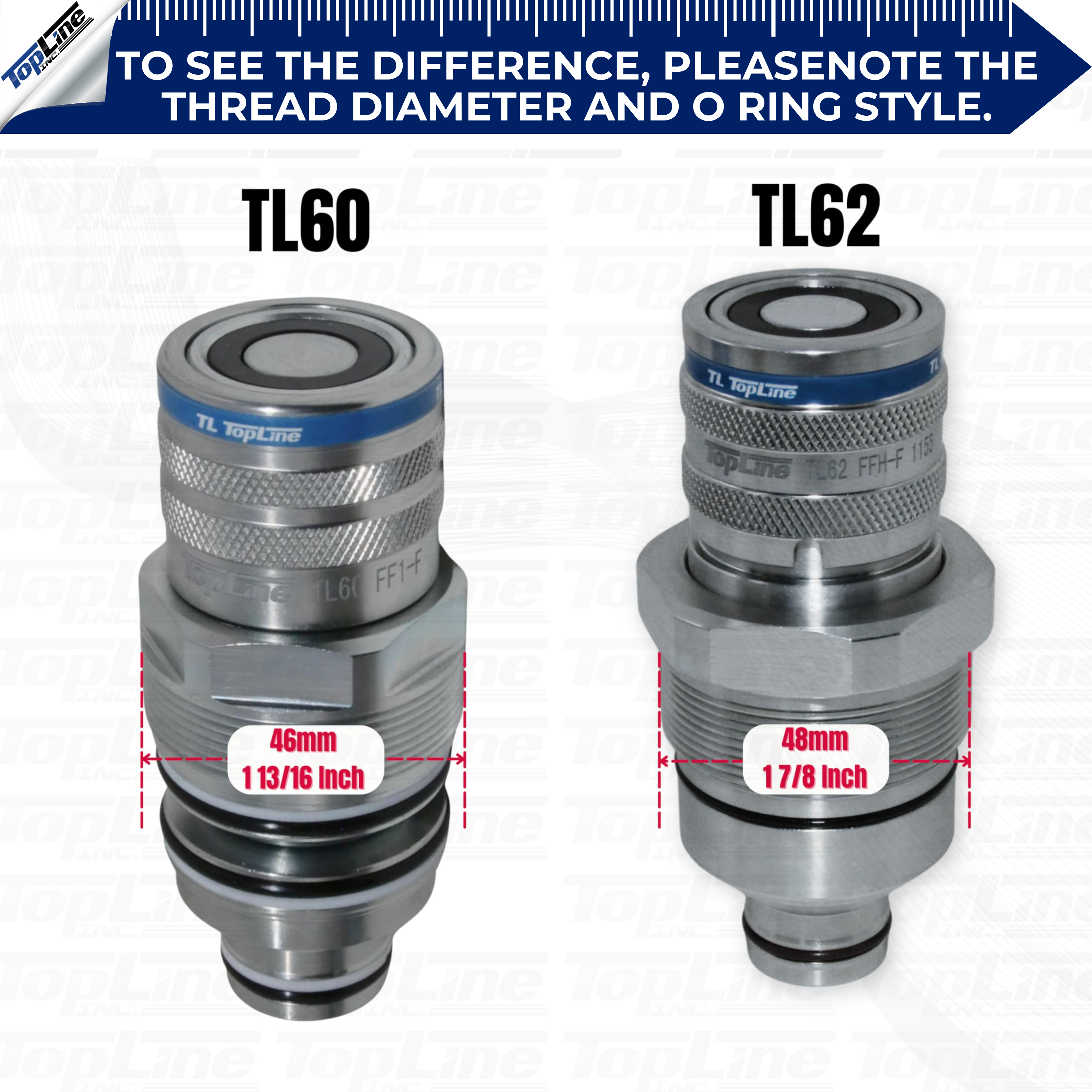

Take a look at the comparison image to make sure this is the correct part for your machine.







Features:

  • This only fits 4BD4FI manifolds.
  • Heavy Duty design. Rated at over 5075 PSI
  • Has built-in connect under pressure functionality
  • Operating temperatures (With Nitrile seals): -40°C (-40°F) to 106°C (223°F)
  • Maximum working pressure 350 bar
  • Low profile coupler design minimizes side loading
  • Interchange with other brands conforming to ISO 16028
  • Heavy Duty Locking Collar to resist the possibility of accidental disconnect
  • Flat Face quick release couplings to screw into manifold
  • Designed for the quick changeover of hydraulic attachments for skid steer loaders, compact loaders, backhoe loaders and compact utility vehicles.



Application

Fits the following Bobcat Machines:

  • Bobcat Skid Steer Loaders:

753, 763, 773, 863, 864, 883

A220, A300, A770

S130, S150, S160, S175, S185, S190, S205, S220, S250, S300, S330, S450, S510, S530, S550, S570, S590, S630, S650, S750, S770, S850

T140, T180, T190, T200, T250, T300, T320, T450, T550, T590, T595, T630, T650, T750, T770, T870

  • Excavators:

325, 328

  • Telescopic Handlers:

TL35.70, TL360, TL38.70HF, TL470, TL470HF

  • Work Machines:

5600, 5610



*Interchange Part Numbers:

  • 6680018
  • V0511-77150



Specifications:

  • Part Number:                     TL60
  • Coupler Body Size:            1/2"
  • Dash                                  8
  • Thread Outer Diameter:     46 mm
  • Coupler Plating Type:        Zinc plated Steel
  • Flow Rate:                         100 l/min

  • Spillage:                             0.01 ml

  • Force to Connect :             200 N

  • Working Pressure :            35 MPa

  • Thread Type:                      SAE



This set includes:

  • 1 Female Flat Face Cartridge Coupler

 ***The male version of this coupler TL61(46mm), click HERE

For the other size of this coupler:

  • TL63 (48mm) - Male
  • TL62 (48mm) - Female

We aim to be your #1 source for high quality skid steer & ag hydraulic quick connect couplers and accessories.

This item has a 100% satisfaction guarantee!

Return Policy: If you are not fully satisfied with your purchase, you may return unused item for a full refund of the purchase price, excluding shipping charges, within 60 days of purchase date.

*Disclaimer: All third party trademarks (including logos and icons) referenced by TL Topline Inc. ("Topline") remain the property of their respective owners. Unless specifically identified as such, Topline's use of third party Trademarks does not indicate any relationship, sponsorship, or endorsement between Topline and the owners of these trademarks. Any References by Topline to third party trademarks and part numbers is to identify the corresponding third party goods and/or services and shall be considered nominative fair use under the trademark law.

If you have any questions about this item, feel free to E-mail me and I'll do my best to answer them. Walter

 Check back often for more skid steer products and solutions.
