Product Description

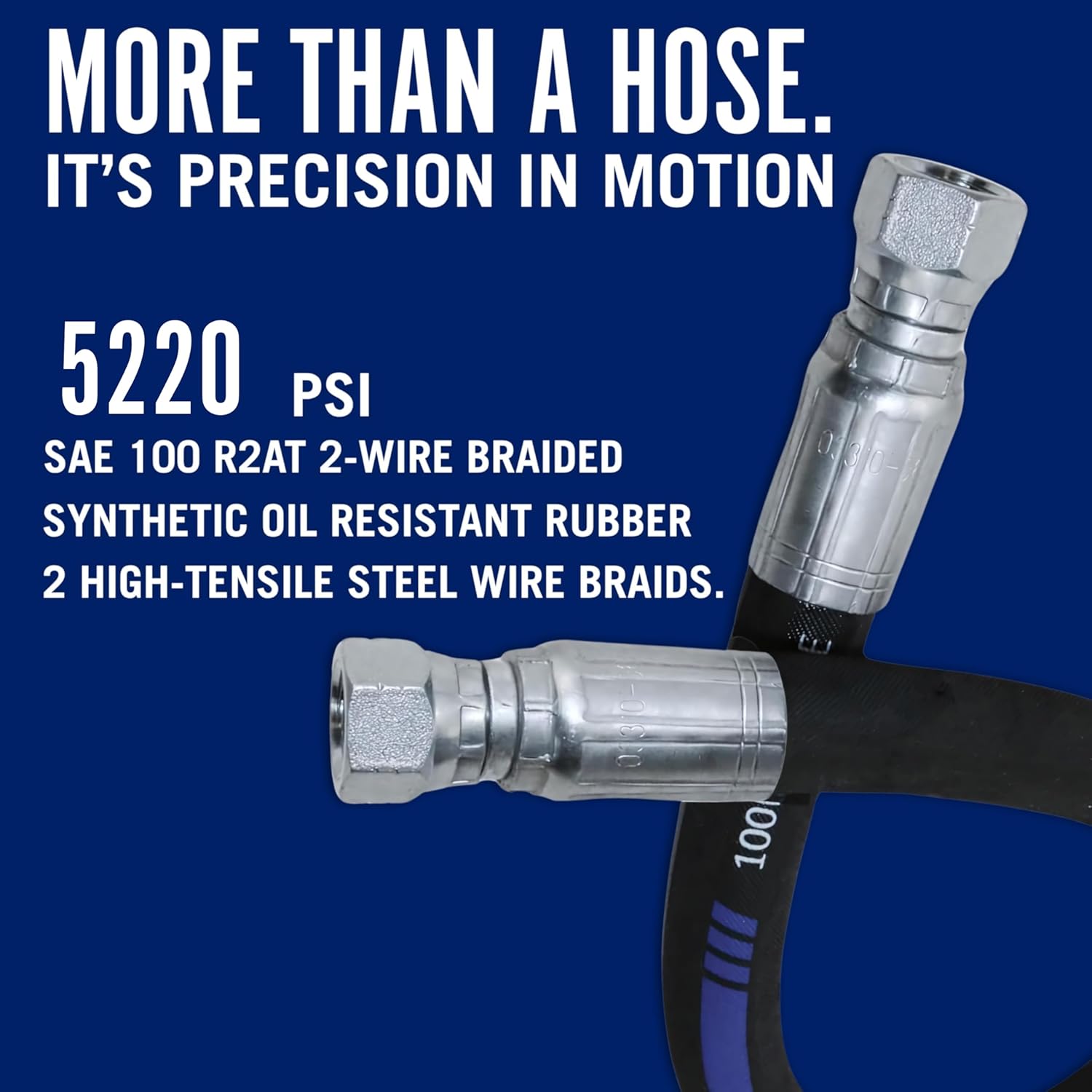

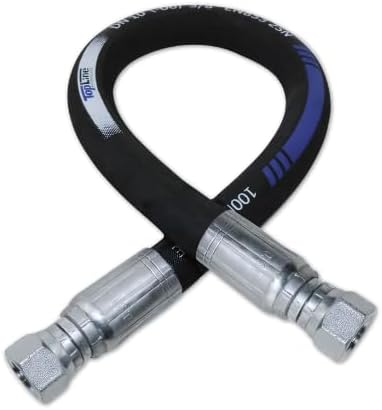

🗸 HFR208 1/2" HIGH-PRESSURE HYDRAULIC HOSE ASSEMBLY – An industrial-strength assembly engineered for demanding high-pressure applications. Featuring dual high-tensile steel wire braids, this hose is designed to handle hydraulic oil, air, and water with maximum reliability and safety.
🗸 SAE & DIN CERTIFIED PERFORMANCE: Built to meet and exceed SAE 100 R2AT and DIN EN853 Type 2SN standards. This certification ensures that you are getting a professional-grade component capable of withstanding the rigorous duty cycles of heavy machinery and industrial equipment.
🗸 RUGGED EXTERNAL DEFENSE: The synthetic rubber cover is specially formulated for superior resistance to abrasion, ozone, and harsh weather conditions, ensuring the assembly won't degrade when exposed to the elements or rugged field environments.
🗸 PRECISION JIC CONNECTIVITY: Equipped with professionally crimped 1/2" JIC (Female) fittings, this assembly provides a secure, leak-proof interface for your high-pressure lines, ensuring optimal fluid transfer and system efficiency.
🗸 BROAD OPERATING RANGE: With a high working pressure of 5,220 PSI (36 MPa) and a versatile temperature tolerance of -40°C to +120°C, this hose is ready for everything from freezing winter operations to high-heat hydraulic system demands.

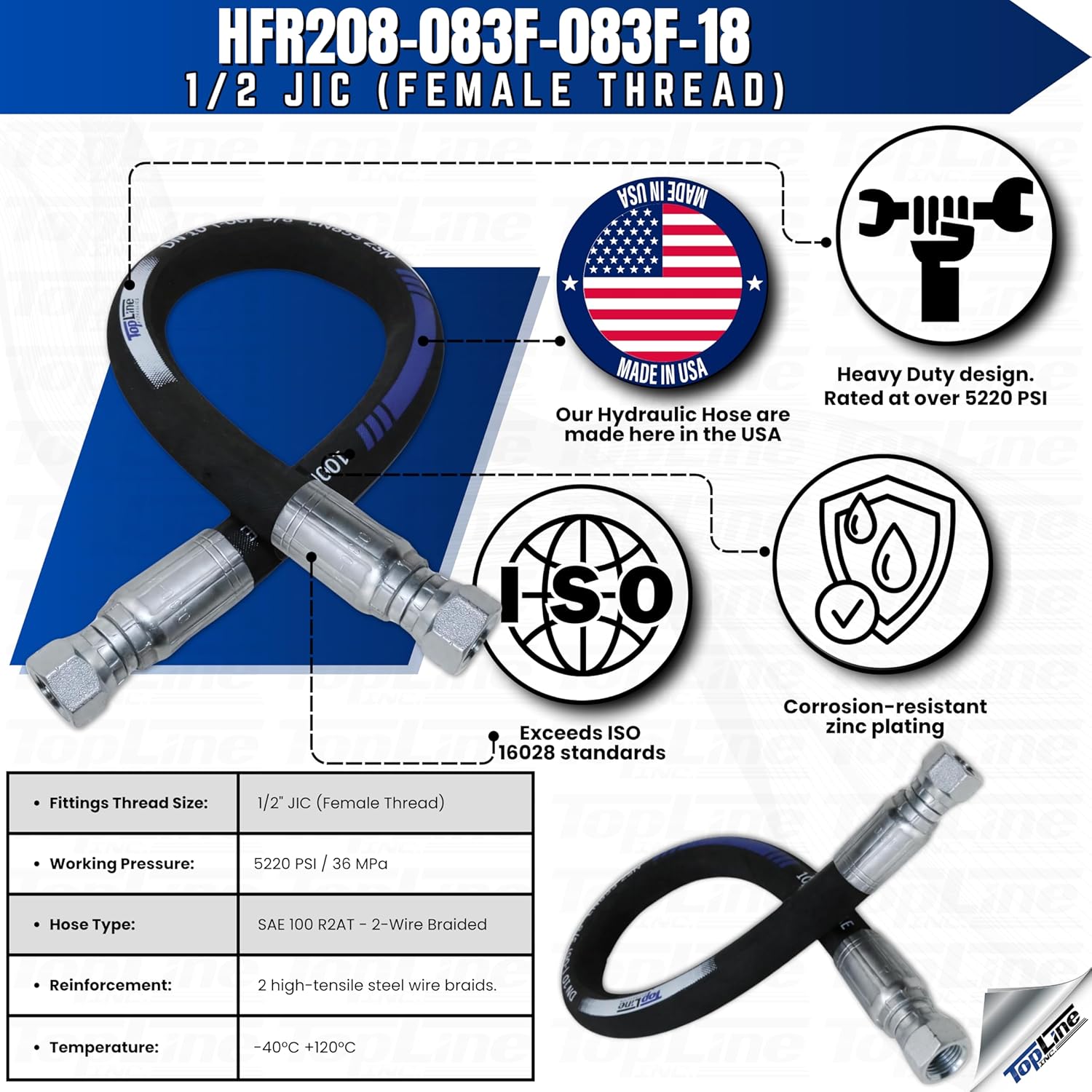

| Specification | Details |
| Model Number (MPN): | HFR208-083F-083F |
| Hose Size: | 1/2" |
| Fitting Thread: | 1/2" JIC (Female) |
| Working Pressure: | 5,220 PSI (36 MPa) |
| Construction: | SAE 100 R2AT (2-Wire Braided) |
| Reinforcement: | 2 High-Tensile Steel Wire Braids |
| Temperature Range: | -40°C to +120°C |
Q: What does the SAE 100 R2AT rating mean for me?
A: This rating is the industry benchmark for high-pressure, two-wire braided hydraulic hose. It guarantees that the hose can handle severe operating conditions, high-pressure surges, and constant flexing without failing, making it ideal for heavy equipment and hydraulic power units.
Q: Can this hose be used for applications other than hydraulic oil?
A: Yes. Because it features a synthetic, oil-resistant rubber tube, it is versatile enough to safely transport hydraulic oils, air, and water. This makes it an excellent choice for a variety of pneumatic and hydraulic industrial tasks.
Q: How does the JIC fitting help with installation?
A: JIC (Joint Industry Council) fittings are the industry standard for high-pressure connections. They provide a metal-to-metal seal that is exceptionally resistant to vibration and thermal cycling, ensuring your connections remain tight and leak-free even under extreme operating stress.
