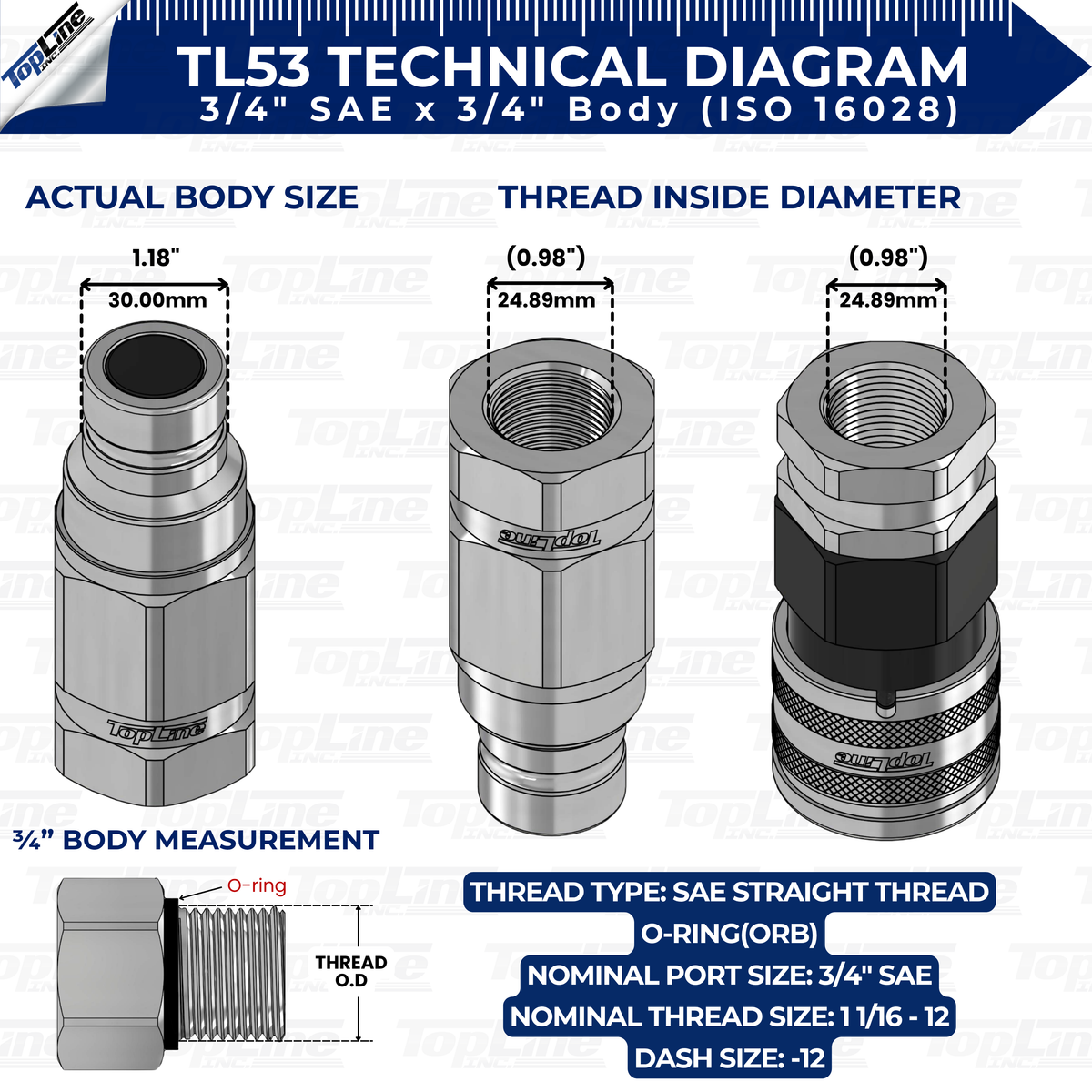

TL53 3/4" SAE Thread Flat Face High Flow Quick Connect Hydraulic Coupler 3/4" body size for Bobcat Skid Steer Loaders

🗸 TL53 3/4" BODY HIGH-FLOW FLAT FACE HYDRAULIC COUPLER SET (3/4" SAE/ORB THREAD) – A premium, industrial-grade hydraulic connection solution designed for heavy-duty skid steer loaders equipped with "High-Flow" auxiliary circuits. Engineered for power and longevity, this coupler set ensures optimal fluid volume delivery for your most demanding hydraulic attachments.

🗸 HIGH-FLOW PERFORMANCE: Specifically designed to meet the high GPM (gallons per minute) requirements of professional-grade attachments like brush cutters, snowblowers, and hydraulic hammers. The internal architecture of the TL53 minimizes flow restriction, preventing system overheating and ensuring your attachments perform at full capacity.

🗸 HEAVY-DUTY INDUSTRIAL RATING: These are not light-duty connectors. Rated for over 5076 PSI, the TL53 is built from high-strength steel to survive the extreme pressure spikes, constant vibration, and harsh environmental challenges of professional-grade forestry, demolition, and construction sites.

🗸 ISO 16028 FLUSH FACE TECHNOLOGY: The flush-face design is critical for high-flow reliability. By minimizing hydraulic fluid spillage and providing an easy-to-clean interface, it prevents abrasive contaminants from entering the circuit—safeguarding your high-flow pump and valve block from internal damage and premature wear.

🗸 FIELD-READY ERGONOMICS: Featuring a push-connect locking sleeve with heavy knurled texturing, the TL53 allows for a positive, non-slip grip. This enables fast, safe attachment changes in the field, even when the operator is wearing thick safety gloves or working in muddy environments.

Specifications

Q: Why is a 3/4" body size required for my attachment?

A: Standard hydraulic systems typically use 1/2" body couplers. High-Flow attachments, however, need to move much larger volumes of fluid to achieve their performance specs. Using a 3/4" body coupler like the TL53 ensures that the fluid moves without creating back-pressure or heat, allowing your attachment to run at its peak power.

Q: Is the TL53 compatible with my Bobcat's High-Flow system?

A: Yes. The TL53 is designed to meet or exceed ISO 16028 standards and is a direct-fit replacement for systems utilizing 3/4" body flat-face couplers. Always ensure your specific loader and attachment are both configured for "High-Flow" operation before connecting.

Q: How does the SAE (ORB) thread benefit my machine?

A: SAE O-Ring Boss (ORB) threads are the preferred standard for high-pressure hydraulic connections. The O-ring provides a vibration-resistant, leak-proof seal that is far more reliable than traditional pipe threads (NPT) in heavy-duty machinery subject to constant movement and operational stress.

Q: Are the protective dust caps included in the box?

A: Yes, each set includes two protective dust caps. These are essential for keeping the connection interface clean and dry when your hoses are not connected to the machine. Keeping the coupler face pristine is the most effective way to ensure a long service life for your hydraulic circuit.

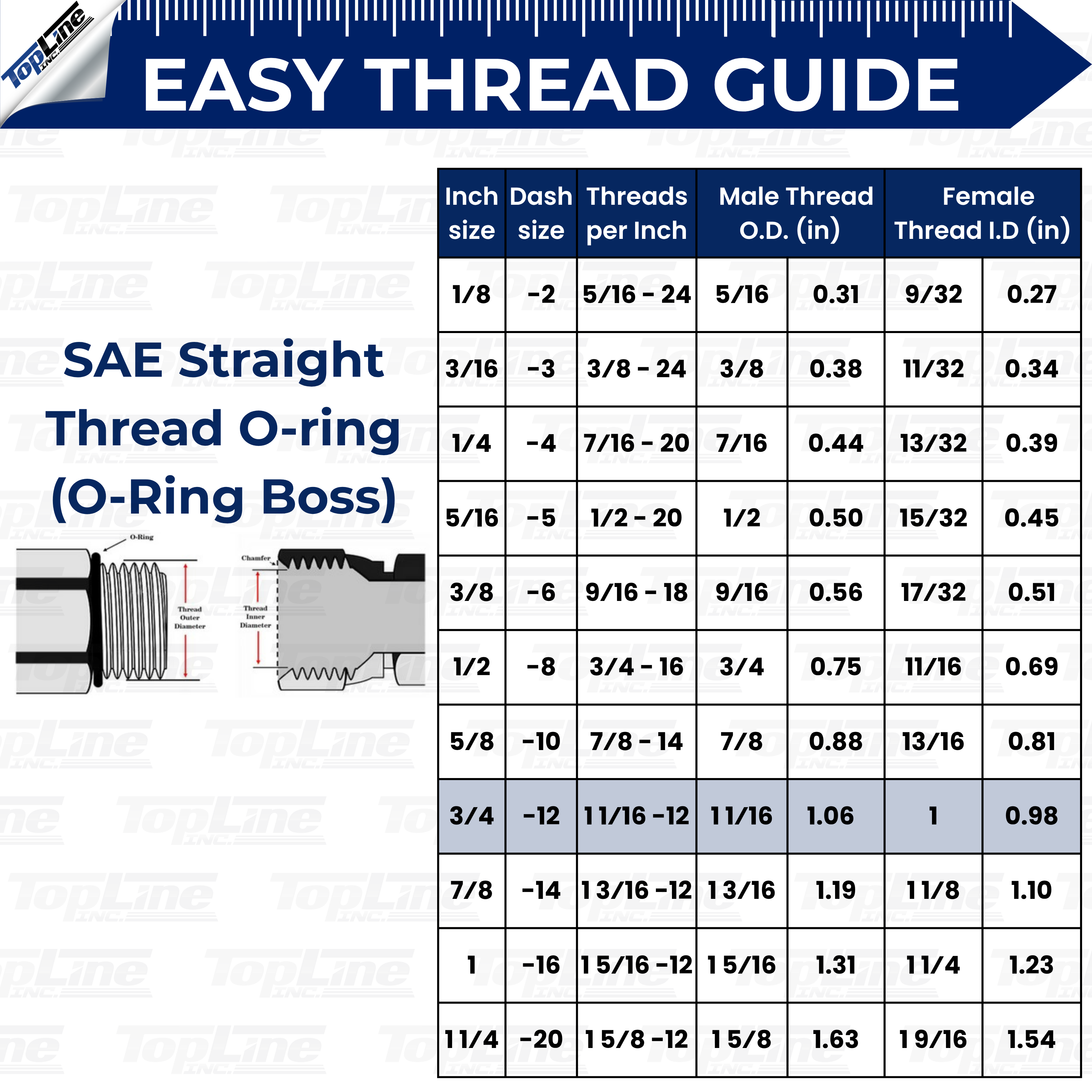

Thread Sizes for 3/4" Body Flat Face Coupler:
