Product Description

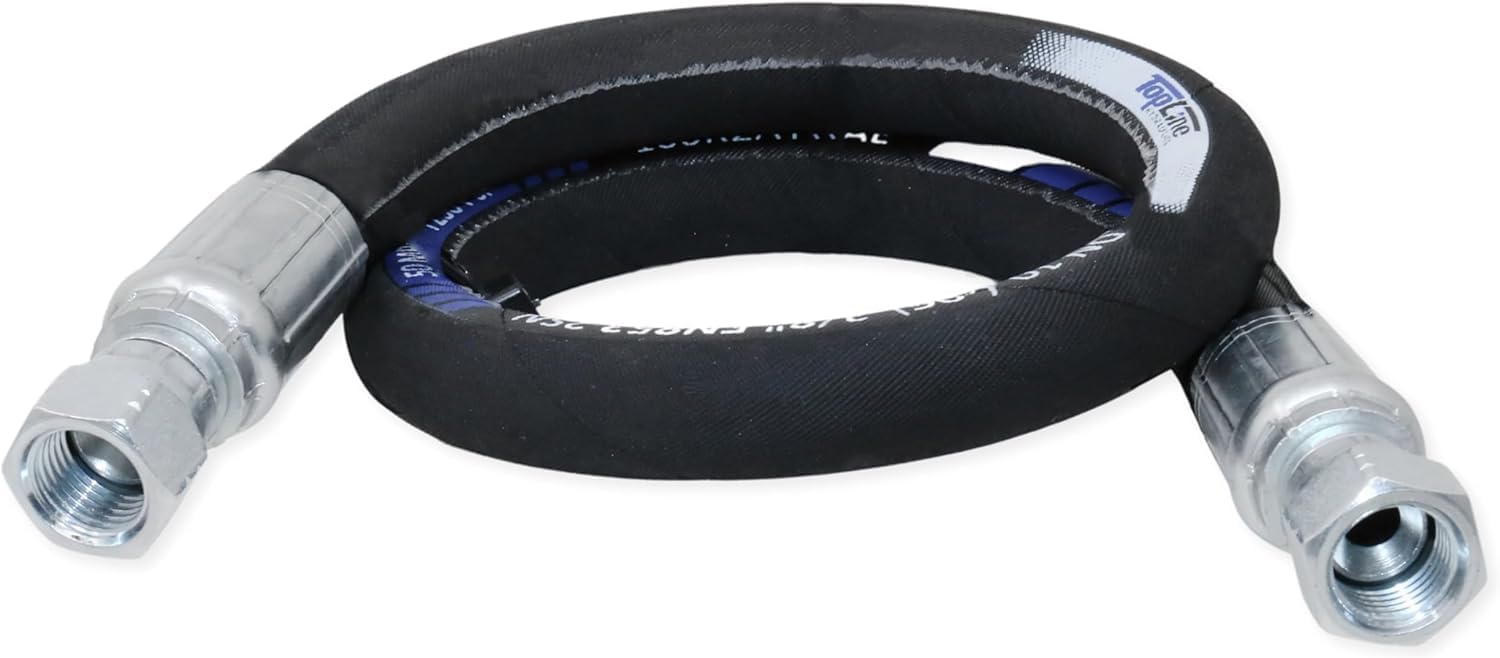

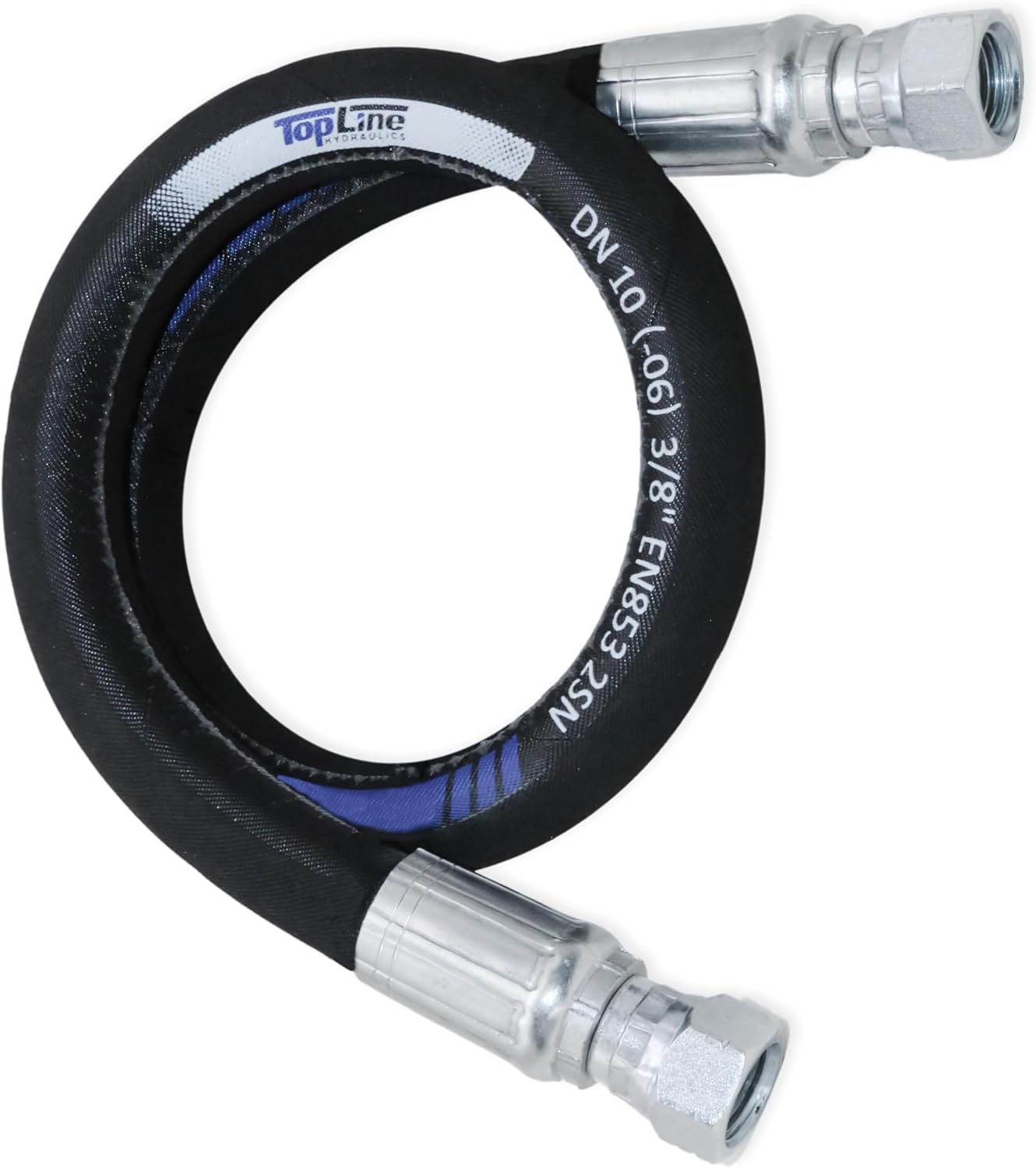

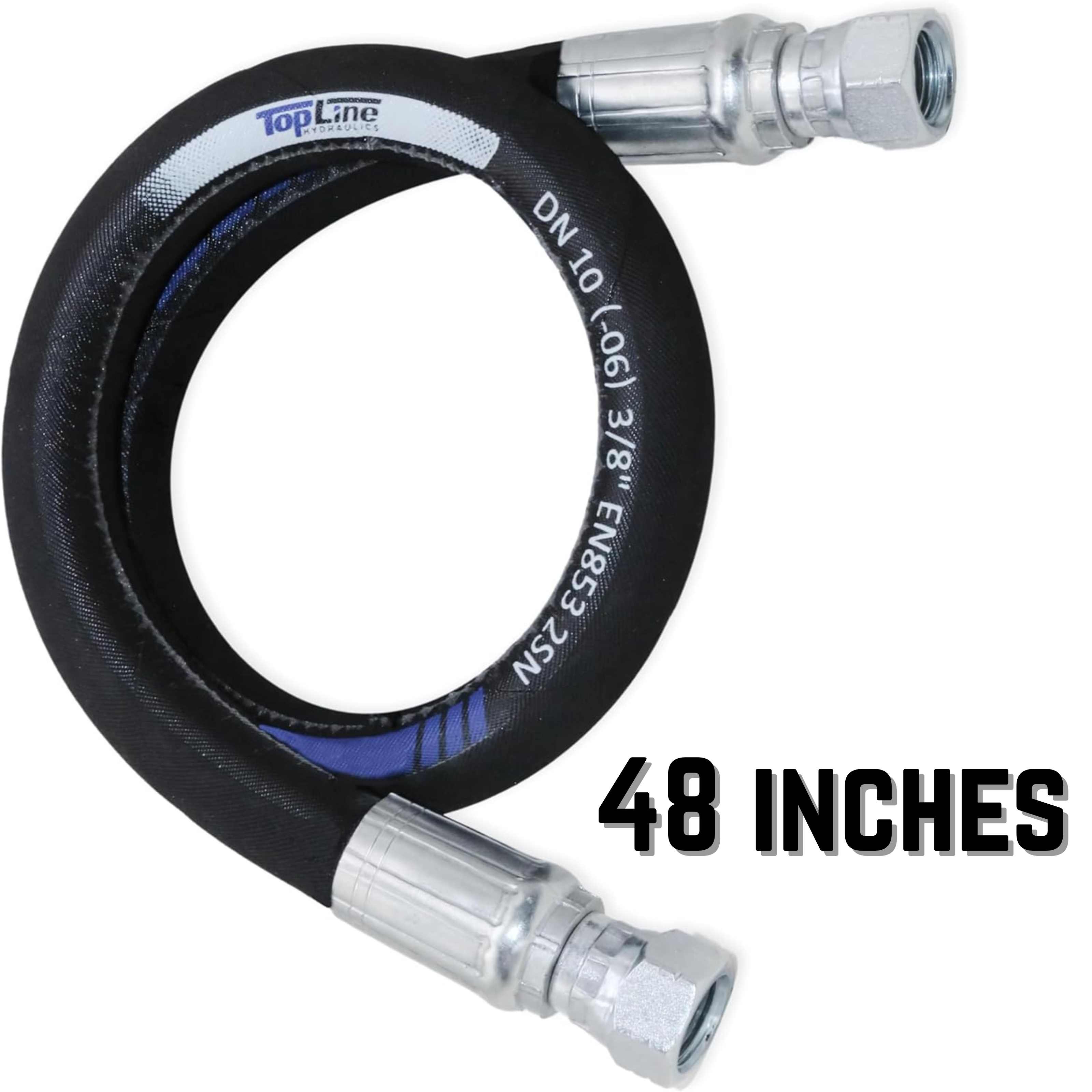

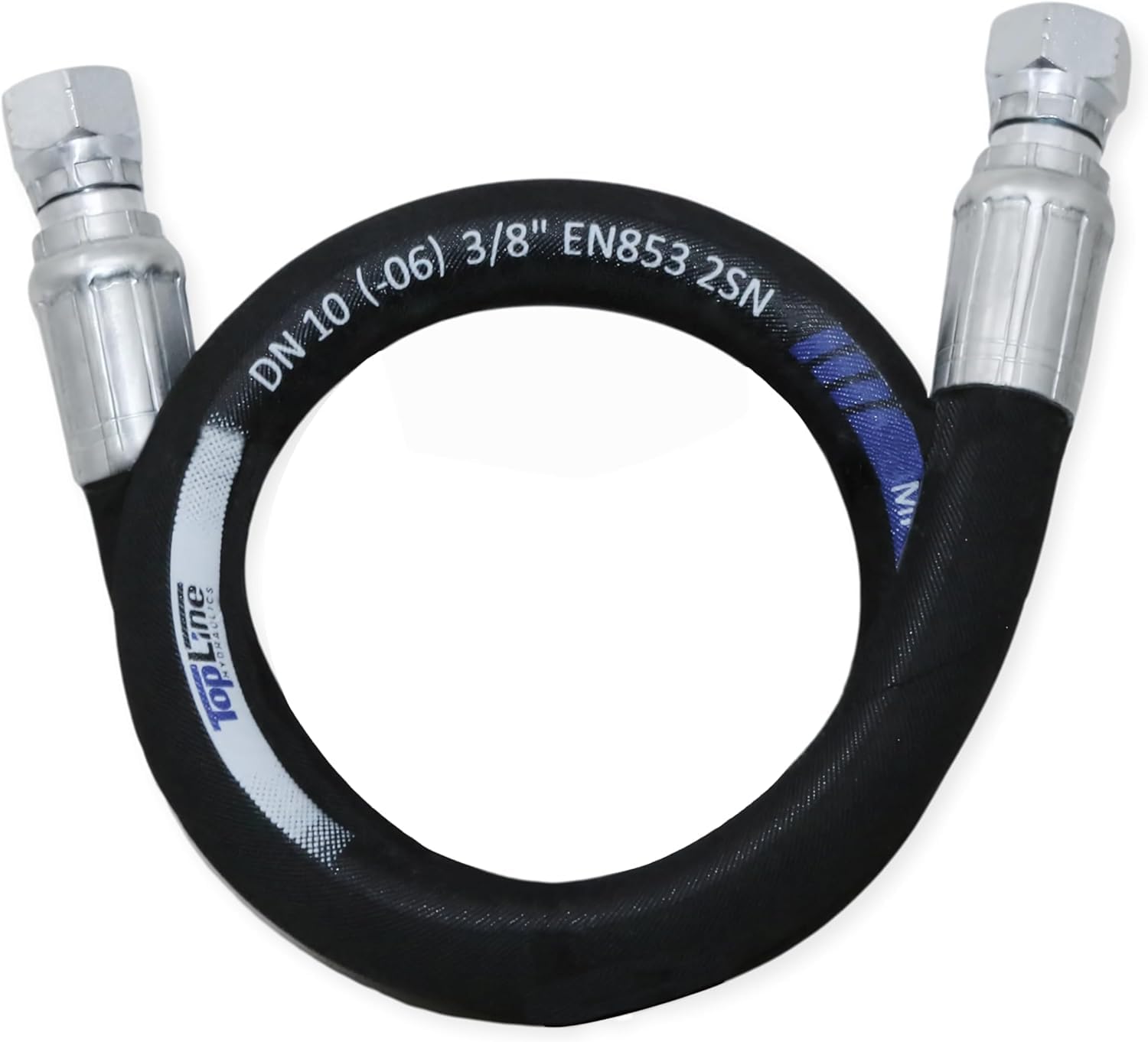

HFR206-063F-063FH 3/8" x 48-Inch 2-Wire Braided Hydraulic Hose Assembly (3/8" Female JIC x 3/8" Female JIC)
The HFR206-063F-063FH is a professional-grade, high-pressure hydraulic hose assembly engineered for rigorous industrial and mobile applications. Featuring dual high-tensile steel wire braids, this hose exceeds SAE 100 R2AT and DIN EN853 Type 2SN standards, delivering exceptional strength, flexibility, and reliability for demanding heavy-duty systems.
✓ High-Pressure Performance: Rated for an impressive working pressure of up to 7,250 PSI (50 MPa), making it ideal for high-stress hydraulic circuits, construction equipment, and agricultural machinery.
✓ Precision JIC Connections: Equipped with secure 3/8" Female JIC swivel fittings on both ends, designed to create a metal-to-metal seal that prevents twisting during installation and eliminates leaks under high pressure.
✓ Extreme Durability & Reinforcement: Constructed with a synthetic oil-resistant rubber inner tube and reinforced with 2 high-tensile steel wire braids to handle severe pressure cycles and heavy impulse loads.
✓ Weather & Abrasion Resistant: Encased in a rugged outer cover designed to withstand abrasion, weather elements, and ozone damage for long-lasting field performance.

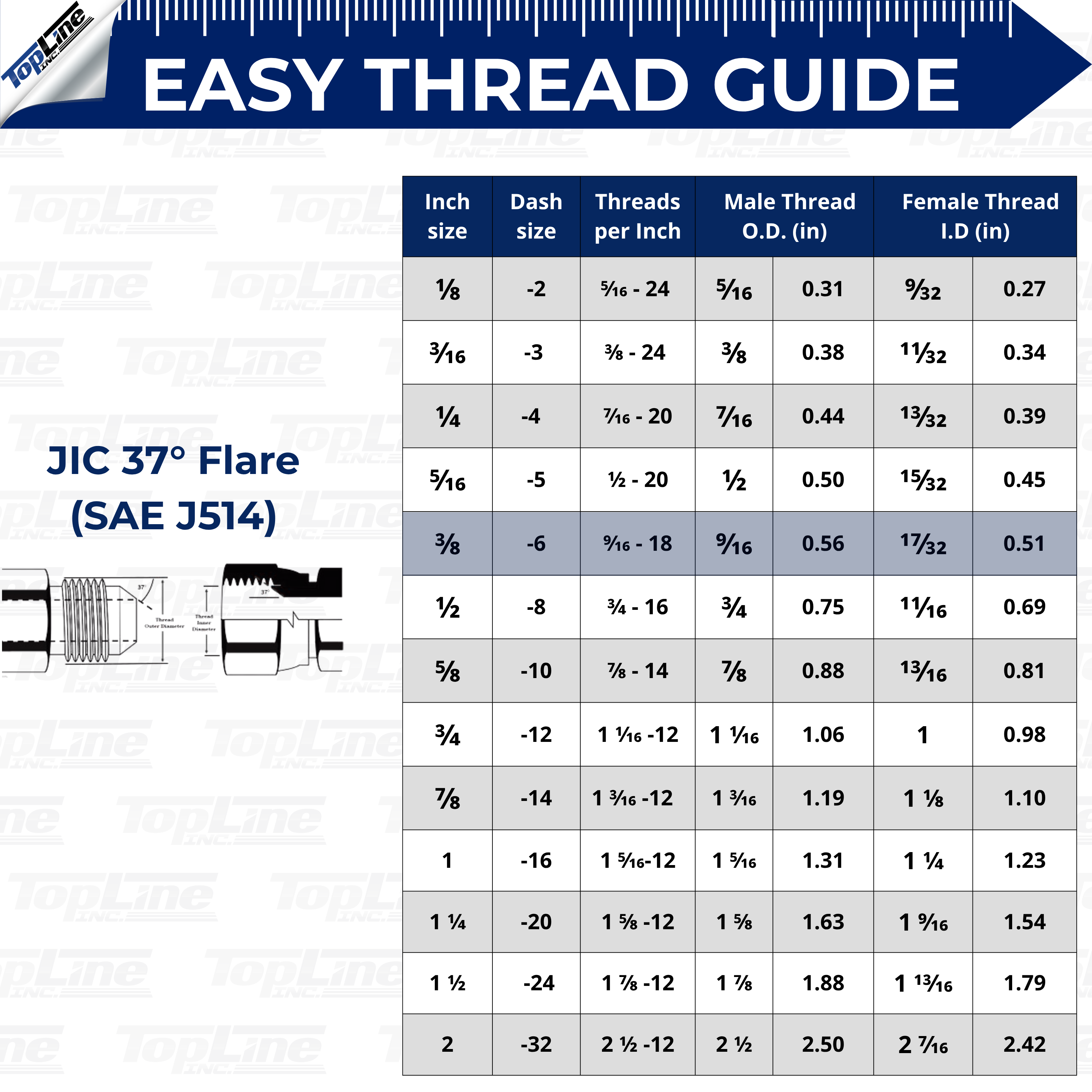

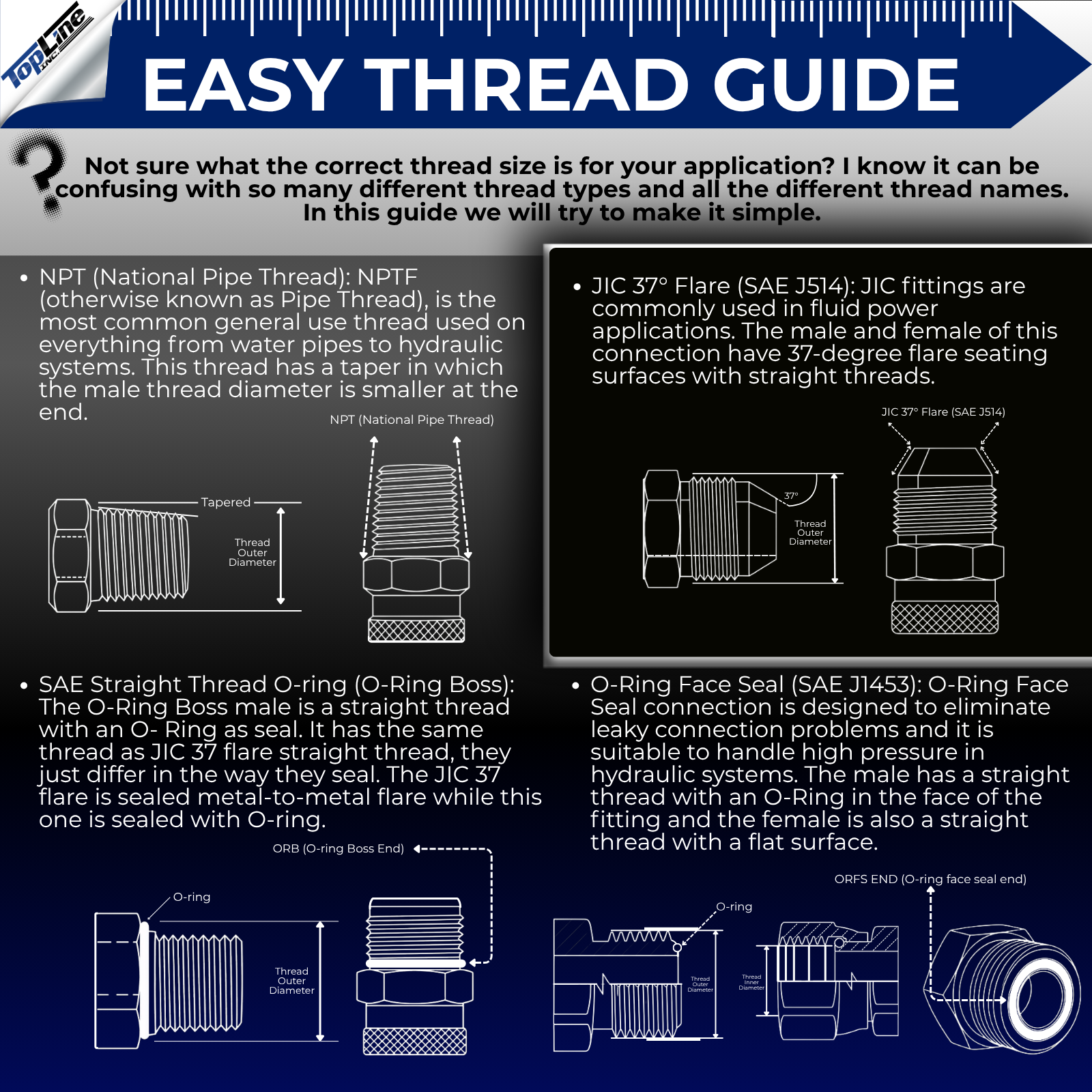

✓ Important Fitment Note: The 3/8" size refers to the nominal hose diameter. Always measure your existing port threads to ensure a proper fit (note that nominal 3/8" JIC threads feature an outer diameter of approximately 9/16" or 0.56").
Specifications
| Detail | Specification |
| MPN | HFR206-063F-063FH |
| Hose Size | 3/8" |
| Fittings Thread Size | 3/8" Female JIC x 3/8" Female JIC |
| Working Pressure | 7,250 PSI / 50 MPa |
| Hose Type | SAE 100 R2AT - 2-Wire Braided |
| Colour | Black |
| Tube Construction | Synthetic oil-resistant rubber |
| Reinforcement | 2 high-tensile steel wire braids |
| Temperature Range | -40°C to +120°C (-40°F to +248°F) |
Frequently Asked Questions
Q: Is this hydraulic hose compatible with my 3/8” Female JIC setup?
A: Yes! It features precise 3/8" Female JIC x Female JIC fittings. Keep in mind that 3/8" is the nominal size—always measure your current fittings to confirm the exact thread dimensions for a proper match.
Q: Can this hose handle extreme pressure in industrial applications?
A: Yes, it is rated up to 7,250 PSI and features dual high-tensile steel wire braids, making it exceptionally well-suited for heavy-duty hydraulic systems and high-pressure tasks.
Q: Will this hose last outdoors or in harsh conditions?
A: Absolutely. Built with weather, ozone, and abrasion-resistant rubber, this hose is specifically designed for long-lasting durability in rough outdoor and industrial environments.
Q: What makes this hydraulic hose better than standard options?
A: It meets and exceeds strict SAE 100 R2AT and DIN EN853 2SN standards, offering superior reinforcement, oil-resistant inner tubing, and secure, leak-proof crimped ends.
